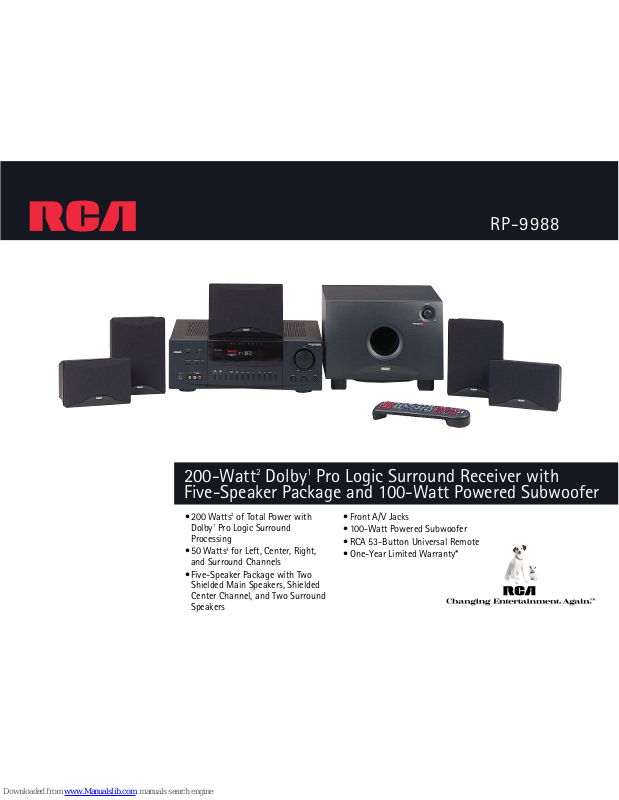

RCA RP-9988 Specifications
200-Watt2Dolby1Pro Logic Surround Receiver with
Five-Speaker Package and 100-Watt Powered Subwoofer
RP-9988
•200 Watts2of Total Power with
Dolby
1
Pro Logic Surround
Processing
•50 Watts
2
for Left, Center, Right,
and Surround Channels
•Five-Speaker Package with Two
Shielded Main Speakers, Shielded
Center Channel, and Two Surround
Speakers
•Front A/V Jacks
•100-Watt Powered Subwoofer
•RCA 53-Button Universal Remote
•One-Year Limited Warranty*
Speakers
•Shielded Main Speakers
{Left and Right}
–4" Woofer
–2" Cone Tweeters
• Shielded Two-Way Center Channel
–4" Woofer
–2" Cone Tweeters
• 3" Full-Range Surround Speakers
• 100-Watt Powered Subwoofer
–6
1
/2" Woofer
T uner
•AM/FM/FM Stereo Tuner
• 30 Station Presets
• Seek Up/Down
• Preset Scan
• Built-In AM Antenna
• FM Wire Antenna
General
•Dimensions:
Receiver
6" H, 16
1
⁄2" W, 15" D
Left/Right Speakers
8
1
⁄8" H, 53⁄4" W, 41⁄2" D
Center Speaker
5
3
⁄4" H, 73⁄4" W, 41⁄2" D
Surround Speakers
4
3
⁄4" H, 7" W,4" D
Subwoofer
10" H, 12
3
⁄4" W, 123⁄4" D
• One-Year Limited Warranty*
Jacks/Cables
•Stereo Headphone Jack
• Front Mounted A/V Jacks
–VCR In/Out
–Monitor Out
• Rear Jack Pack
–TV/CD/Tape In
–Tape Out
• Subwoofer Output {Low Level}
• Audio Left and Right Patch Cords
{White, Red}
• Video Patch Cord {Yellow}
RP-9988
Remote Control
• RCA 53-Button Universal Remote
Programmable remote with easy-touse button layout. Operates most
features on RCA audio and video
products. It can also be programmed
to operate most brands of audio and
video components and RCA brand
DSS® receivers.
1 Dolby is a registered trademark of Dolby
Laboratories Licensing Corp.
2 50 watts/channel, both channels driven into 8 ohms,
at frequencies from 40 Hz to 20 kHz with no more
than 0.9% Total Harmonic Distortion {THD}.
DSS is a registered trademark of DIRECTV, Inc., a unit
of Hughes Electronics Corp.
©1998 Thomson Consumer Electronics, Inc.
Get more information on RCA Consumer Electronics
Products at www.rca.com
*For complete details on warranties,
see your nearest RCA Dealer.
Form RP-9988
Trademark(s) ® Registered Marca(s) Registrada(s)
Photos and features subject to change without notice.
Illustration of product finish may vary from actual color.
PC10725
Surround
Amplifier
•200-Watt2Dolby1Pro Logic
Surround Amplifier
–50-Watt
2
Left, Center, Right, and
Surround Channels
• Four Surround Settings
–Pro Logic
–Dolby
1
3 Stereo
–Hall
–Bypass
• Center Modes
–Normal
–Wide
–Phantom
• Dolby
1
3 Stereo Center Modes
–Normal
–Wide
• Test Tone
• 15 ms, 20 ms, and 30 ms Variable
Delay Time
• Center and Surround Volume
Up/Down
• Motorized Rotary Volume Control
• Balance, Treble, and Bass Controls
