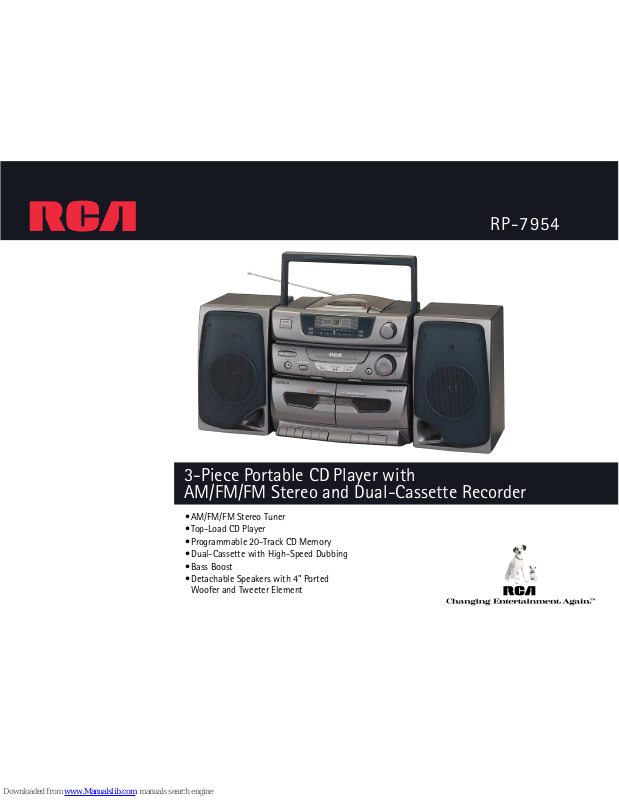

Page 1
3-Piece Portable CD Player with
AM/FM/FM Stereo and Dual-Cassette Recorder
RP-7954
•AM/FM/FM Stereo Tuner
•Top-Load CD Player
•Programmable 20-Track CD Memory
•Dual-Cassette with High-Speed Dubbing
•Bass Boost
•Detachable Speakers with 4" Ported
Woofer and Tweeter Element
Page 2
Cassette Deck
•Automatic End-of-Tape Shutoff in
Play Mode
• Cassette Carry Door with
Cushion Eject
Makes inserting and removing
cassettes easy.
• Six Push-Button Operation on
Record Deck
–Stop/Eject
–Pause
–Fast Forward
–Rewind
–Play
–Record
• Two Push-Button Operation on
Play Deck
–Stop/Eject
–Play
• Variable Level Record Monitor
Provides constant recording level
regardless of volume.
• Automatic Level Control {ALC}
in Record
Provides constant recording level
regardless of source.
• One-Button Record
Makes recording simple.
• Three-Way Recording Capability
–Direct “off-air” radio record
–Switchable high-speed synchronous
dubbing from deck B to deck A.
–Direct recording from CD, tuner to
deck A.
T uner
•AM/FM/FM Stereo Tuner
• FM Mono/Stereo Selector
• FM Stereo LEDIndicator
• Automatic Frequency Control
{AFC} on FM
Provides stable reception.
• Two Built-In Antennas
–Ferrite Rod for AM
–Telescoping Whip Antenna for FM
• Three-Position Mode Switch
{AM/FM/FM Stereo}
• Tape/CD/Radio Function Switch
• Analog Slide Rule Tuning with
Easy-to-Read Dial Scales
General
•Dimensions: 101⁄2" H, 23" W, 81⁄2" D
• One-Year Limited Warranty*
P ower/Jacks
•Operates on Eight “D” Alkaline
Batteries {not included}
• 3.5 mm Stereo Headphone Jack
• AC/DC
Built-in 120V AC line cord; 12V DC
{Eight “D” Batteries not included}.
• Automatic AC/DC Switching
Switches from DC to AC automatically,
when unit is plugged in, to prolong
battery life.
• Detachable AC Line Cord
• Power ON LEDIndicator
• Left and Right Speaker Jacks
RP-7954
Compact Disc
•Top-Load CD with Cushion Eject
• Programmable 20-Track CD
Memory
• 1-Bit Digital to Analog Conversion
{DAC}
• LCD Display for CDFunctions
–Track Number
–Repeat
–Pause
–Play
–Program
• Repeat One/All
Allows repeat of single track or entire
disc.
• Three-Way Repeat
–One Track
–Disc
–Program
• Forward/Reverse Track Skip
Allows instant access to next track.
• Forward/Reverse Track Search
Allows high-speed scanning to desired
part of selected track.
• CD Push-Button Controls
–Play/Pause
–Stop
–Track {Forward/Reverse}
–Repeat
–Program
–Search {Forward/Reverse}
Sound
•Dynamic Bass Boost System
{DBBS}
• Rotary Balance Control
• Detachable Speakers with 4"
Ported Woofer and Tweeter
Element
• Rotary Volume Control
©1998 Thomson Consumer Electronics, Inc.
Get more information on RCA Consumer Electronics
Products at www.rca.com
*For complete details on warranties,
see your nearest RCA Dealer.
Form RP-7954
Trademark(s) ® Registered Marca(s) Registrada(s)
Photos and features subject to change without notice.
Illustration of product finish may vary from actual color.
PC10441
