LCD TV
RLC1909
INSTRUCTION MANUAL
Table of Contents
Caution
Important Safety Precautions
INSTALLATION
Top/Side panel diagram
Remote Controller
Battery Installation
Using the Remote Control
Install TV
Set your TV
Connect Antenna and power
Turn On TV
PICTURE MENU
SOUND MENU
TUNE MENU
FUNCTION MENU
2
3
4-6
7-8
9
10
11-12
12
12
13
13
PARENT CONTROL
CHANGE PASSWORD
TV RATOMG
OSD MENU
PC MENU
COLOR TEMP
GEOMETRY
RESOLUTION
HELP
SPECIFICATIONS
14
14
15
15
15
16
16
17
18
19
1
Caution
The lightening flash with arrowhead symbol, within an equilateral triangle is
intended to alert the user to the presence of un-insulated "dangerous voltage"
within the products enclosure that may be of sufficient magnitude to constitute a
risk of electric shock to the persons.
The exclamation point within an equilateral triangle is intend to alert the user to
the presence of important operating and maintenance (servicing) instructions in
the literature accompanying the appliance.
Correct disposal of this Product
W aste Electrical & Electronic Equipment (WEEE)
Your product is designed and manufactured with high quality materials and
components which can be recycled and reused.
This symbol means that electrical and electronic equipment, at their end-of-life,
should be disposed of separately from your household waste.
Please dispose of this equipment at your local community waste
collection/recycling centre.
In the European Union there are separate collection systems for used electrical
and electronic products. Please help us to conserve the environment we live in!
2
Caution:
To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.2
19) Do not place any sources of danger on the apparatus (e.g. liquid filled objects, lighted candles).
20) Wall or Ceiling Mounting - The appliance should be mounted to a wall or ceiling only as
recommended by the manufacturer.
These servicing instructions are for use by qualified service personnel only. To reduce the risk of
electric shock do not perform any servicing other than that contained in the operating instructions.
unless you are qualified to do so.
3
INSTALLATION
STANDARD INSTALLATION
The TV can be installed in various ways such as on a wall, or on a desktop etc.
10inches
10inches
10inches
10inches
10inches
The TV is designed to be mounted horizontally.
Ensure that you connect the earth ground wire to prevent possible electric shock.
if grounding methods are not possible, have a qualified electrician install a
separate circuit breaker.
Power
Supply
Short-Circuit
Breaker
Do not try to ground the unit by connceting it to telephone wires, lightening rods
or gas pipes.
a. Desktop Pedestal Installation
This is the default installation way of the TV.
4
STANDARD INSTALLATION
b. Wall Mount: Horizontal installation
(1) Secure the wall brackets with the bolts(not provided as parts of the product, must
purchase separately) on the wall.Match the height of the bracket that is mounted on
the wall. The wall bracket is of nomal dimension. Please see the position of the wall
brackets bolts as follow picture. The actual dimension of the wall brackts bolt should
according to the products.
The wall brackets bolt position
100mm
100mm
Four Mounting
Holes
Size:M4 Screws
(2) Remove the table stand of the TV when install the TV on a wall as follow:
(3) For proper ventilation, allow a clearance of 10” on each side from the wall.
10inches
10inches
10inches
10inches
10inches
5
NOTES OF WALL INSTALLATION
(1) Keep the TV stand for may be future use.
(2) Don’t set the TV set on shelves, carpets, beds, or closets.
(3) Don’t cover the TV with curtain or paper.
(4) Leave ventilation space to avoid the following:
No good for ventilation
No good for ventilation
6

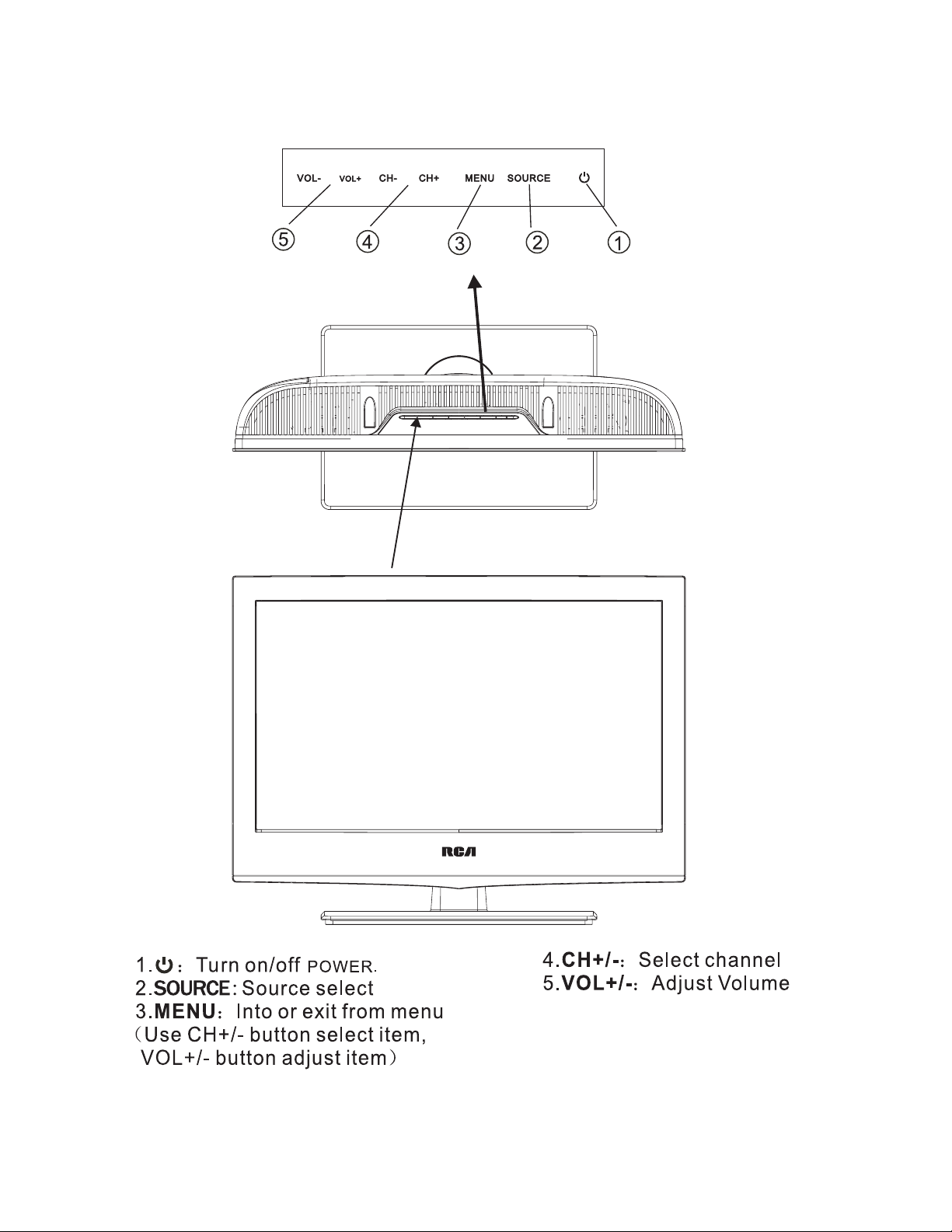

Top panel diagram
7
Side panel diagram
9
INPU T
OUTP U T
VIDEORL
VIDEORL
11 1
S-VIDEO
YPbPr: Color difference
components input and relevant
video input
S-VIDEO: Color and brightness
difference components input.
AV Output
VGA/AUDIO: VGA audio input.
1415
22 2
P
r
VIDEORL
P
b
Y
HDM I
(3.5mm)
ANT 75 ohm: Connect the antenna to
the antenna input.
HDMI Input: Digital signal input from
HDMI video connector
14/15. VIDEO/R/L :1/2 external AV
signal input and relevant right/left
sound channel.
16. Connect to Mains
POWER(DC IN)
Adapter
16
4A
8
Remote Controller
1 Sets your TV to power on or standby mode.POWER :
2 Press to mute the sound. Press again or pressMUTE :
VOL+ to unmute.
3 0--9 Press 0~9 to select a TV channel directly while watching
TV. The channel will change after 2 seconds.Applicable for
entering page number in teletext mode and so on.
4 : Return to the previously viewed program.
5 Press to scan through or to select a channel.CH +/- :
6 Press to increase / decrease the sound level.V +/-:
7 -/-- Press this button to enter a program number for
different digit. eg. -/--/---
8 Press to display the source and channel's info.DISPLAY :
9
10 SOURCE: Press to list the source items.
11 SLEEP: Select amount of time before TV turn itself
off automatically.
12 E Exits from the menu or sub-menu and menus and adjustXIT:
the system settings to your preference.
1B
3
748
+
MUTE
MTS
SOURCE
VOL
8
2
9
3
D
5B
5F
4B
7
4F
4
A
11
C
15
6
16
1010
E
1F
13
+
5
17
POWER
4
1
5
1
1
2
57
53
5
6
47
43
2
14
13
9
0
P.MODE S.MODE SLEEP
MENU
CH
7
-
VOL
9
6
ENTER
B
3
12
-
CH
DISPLAYEXIT
F
8
13 MENU : Allows you to navigate the on-screen menus.
14 Press to cycle through the different picture settingsP.MODE:：
15 Press to select the MTS mode.(for example,Nicam ,MTS:：
BTSC,MONO,STEREO .eg )
16 S.MODE: Press to cycle through the different sound settings.
Universal Remote Control code:007F
Battery Installation:
Remove the battery compartment lid on the rear of the remote control by sliding the lid down, then
off. Put two AAA batteries inside the battery compartment with their + and - ends aligned as
indicated. Do not mix old and new batteries or different types of batteries Replace the battery
compartment lid. Slide the lid until you hear it click into place.
Using the Remote Control:
Unless stated otherwise, the remote control can operate all the features of the TV.
Always point the remote control directly at the remote sensor in the front of the TV.
9
DC 12V 4A
AV Input/Output
S-Video Input
AV2 Input/Y Pb Pr Input
VGA Input
HDMI Input
side
10
3
indicator
7
11
sub-menu.
Press Menu to exit
12
memory
2. In Advance item, Press button to enter sub
menu, as below figure.
2.1.
2.2.
3.
OFF
4.
13
G PG PG13
NC17
NONE
X
R
14
Empty
Empty
C
G
18 ANS +
C8+
14+18+
8 ANS + 13 ANS +
16 ANS +
G
PG
CHANNEL
15
16
1366
17
No Power
Signal receive
not properly
No picture
Video is ok ,but
without audio
Audio is ok, but
color error or no
picture.
snow statics
picture and noise
Level broken line
Dual-Image or
"simulacrum"
The TV no
response with
the Remote.
NO Video In.
(PC Mode)
Vertical twinkling
(PC Mode)
horizontal ripping
(PC Mode)
The screen is too
bright or too dark
(PC Mode)
PC Function no
response
Ripping line in
RCA connecting
Problem still
exist
HELP
Check the AC cord of TV is plus in or not. If still no power, please
Pull out the plug and replug in after60 seconds. And open the TV
again.
To cause double image or phantom if there has high building or high
mountain round -TV. You can adjust image effect by manually
operation: consult instruction of vernier regulation or change the direction
of external antenna.
If you use the indoor antenna . under certain circumstance, receive will be
more difficult .So you can change the direction of the antenna to adjust the
image effect . If can't change image receiving effect either , you have to
use external antenna.
Check the antenna at the back of TV is connected properly or not.
Try to select other channels and check whether the TV problem itself or not.
Increase the volume.
Check the TV is in mute mode or not , and please press the mute
button to make sound resume.
Increase contrast and brightness.
Check the antenna at the back of TV is connected or not .
Maybe has electrical appliance interfere, such as hair drier, vacuum
cleaner and so on, please turn off these kinds of electrical appliance.
Perhaps the location for the antenna is not good.Use the tall beamed
antenna can be improved quality of the display image.
Operate the remote direct to the remote sensor on the TV.If still no
response for the TV, please check if the plastic bag on the remote take or
not. And checkif the location for the battery is correct.Change the new
battery.
The TV will shift to the STAND BY if no response from the remote in the
few minutes.
Please check if the display cable connect to the VGA correcte .
Please check if there has the bend on the display cable.
Enter the main menu, Use the clock regulator for the Video display noise
to eliminate the vertical line.
Adjust the Audio sound horizontal in the main menu to clear the horizontal
ripping line.
Adjust the contrast ratio or brightness in the main menu.
Check the computer setting in the state of compatible display resolution
Please use good quality connecting cable.
Unplug the power cable and wait for 30 seconds, then connect.If there is
some problem with our TV, do not repair it by yourself, please contact with
the customer service center.
18
Note: There will be complete picture and the brightness will come down if the TV
is in the static picture for too long time, So please do not keep the TV in a state of same
Menu or same picture that has much difference in brightness and contrast ratio for too
long time.
SPECIFICATIONS
Screen Size
TV system
Video system
Preset Channels
Input/Output
Audio output power
Power requirement
Max. power consumption
Accessories
19”
NTSC M PAL M/N
NTSC/PAL
AIR：2-69 ：1-125CATV
IN:.VGA, A/VX2, S-VIDEO, HDMI, Y PBPR, inputPC Audio
ANT 75
3Wx2
DC 12V 4A
<48W
User's manual
AC adaptor
Ω
OUT: EARPHONE, A/V.
Remote controller
2 x AAA Batteries
Power cord
19
