Rca RCT6223W87 SK User Manual
RCT6223W87 SK
User Manual
Safety precautions
Equipment tested
for compliance as
RCT6223W87
a complete unit
FCC Information
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received,
inclu din g interfe ren ce that may cause un desired
operation.
This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant
to Par t 15 of FCC Rules. The se li mits are designed
to provide reasonable protection against harmful
interference in a residential installation. This equipment
generates, uses, and can radiate radio frequency energy
and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio
communications.
However, there is no guarantee that interference will
not occur in a particular installation. If this equipment
does cause harmful interference to radio or television
reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and
receiver.
• Con n e c t th e e qui p m e nt int o a n ou t l et o n a
circuit different from that to which the receiver is
connected.
• Con sult the dealer or an ex per ienced rad io/ TV
technician for help.
Warning: Changes or modifications not expressly
approved by the party responsible for compliance (MLB
International Inc., PO Box 1214, Lockport, NY, 14095, Tel:
716-240-0902) could void the user’s authority to operate
the equipment.
CAN ICES-3(B) / NMB-3(B)
- 1 -
This device complies with Industry Canada Licenseexempt RSS-210. Operation is subject to the following two
conditions: (1) This device may not cause interference, and
(2) this device must accept any interference, including
interference that may cause undesired operation of the
device.
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure
limits set forth for an uncontrolled environment. End
user must follow the specific operating instructions for
satisfying RF exposure compliance. This transmitter must
not be co-located or operating in conjunction with any
other antenna or transmitter.
T h e p o r t a b l e d e v i c e i s d e s i g n e d t o m e e t t h e
requirements for exposure to radio waves established by
the Federal Communications Commission (USA). These
requirements set a SAR limit of 1.6 W/kg averaged over
one gram of tissue. The highest SAR value reported under
this standard during product certification for use when
properly worn on the body.
Caution: Us e of con tr ol s or adj us tments or
performance of procedures other than those specified
may result in hazardous radiation exposure.
Warning: the AC adapter is used as disconnect
device and it should remain readily operable during
intended use. In order to disconnect the mains plug
from mains completely, the AC adapter should be
disconnected from the mains socket outlet completely.
The socket-outlet shall be installed near the equipment
and shall be easily accessible.
Service Information
This product should be serviced only by those specially
trained in appropriate servicing techniques. For
instructions on how to obtain service, refer to the warranty
included in this guide.
- 2 -
Important safety instructions
PLEASE READ AND SAVE THIS FOR FUTURE REFERENCE
Some of the following information may not apply to your particular product; however, as with any electronic product,
precautions should be observed during handling and use.
• Read these instructions.
• Keep these instructions.
• Heed all warnings.
• Follow all instructions.
• Do not use this apparatus near water.
• Clean only with dry cloth.
• Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
• Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including
ampliers) that produce heat.
• Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the
point where they exit from the apparatus.
• Only use attachments / accessories specied by the manufacturer.
• Unplug this apparatus during lightning storms or when unused for long periods of time.
• Refer all servicing to qualied service personnel. Servicing is required when the apparatus has been damaged in
any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the
apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
- 3 -
ADDITIONAL SAFETY INFORMATION
• The AC adapter and apparatus shall not be exposed to dripping or splashing and no objects filled with liquids,
such as vases, shall be placed on the apparatus.
• Always leave sufficient space around the product for ventilation. Do not place product in or on a bed, rug, in a
bookcase or cabinet that may prevent air ow through vent openings.
• Do not place lighted candles, cigarettes, cigars, etc. on the product.
• Care should be taken so that objects do not fall into the product.
• Do not attempt to disassemble the cabinet. This product does not contain customer serviceable components.
• To prevent the risk of re or electric shock, do not expose this apparatus to rain or moisture.
• Do not play your headset at high volume. Hearing experts warn against extended high-volume play.
Accessory
The following accessory is included.
AC Ad ap ter ..................................................................................................................................................................................................................x1
- 4 -
Contents
Safety precautions .............................................1
Important safety instructions .......................... 3
Getting to know your Tablet ............................ 6
Left side .............................................................. 6
Rear view ........................................................................ 7
Buttons ..................................................................... 8

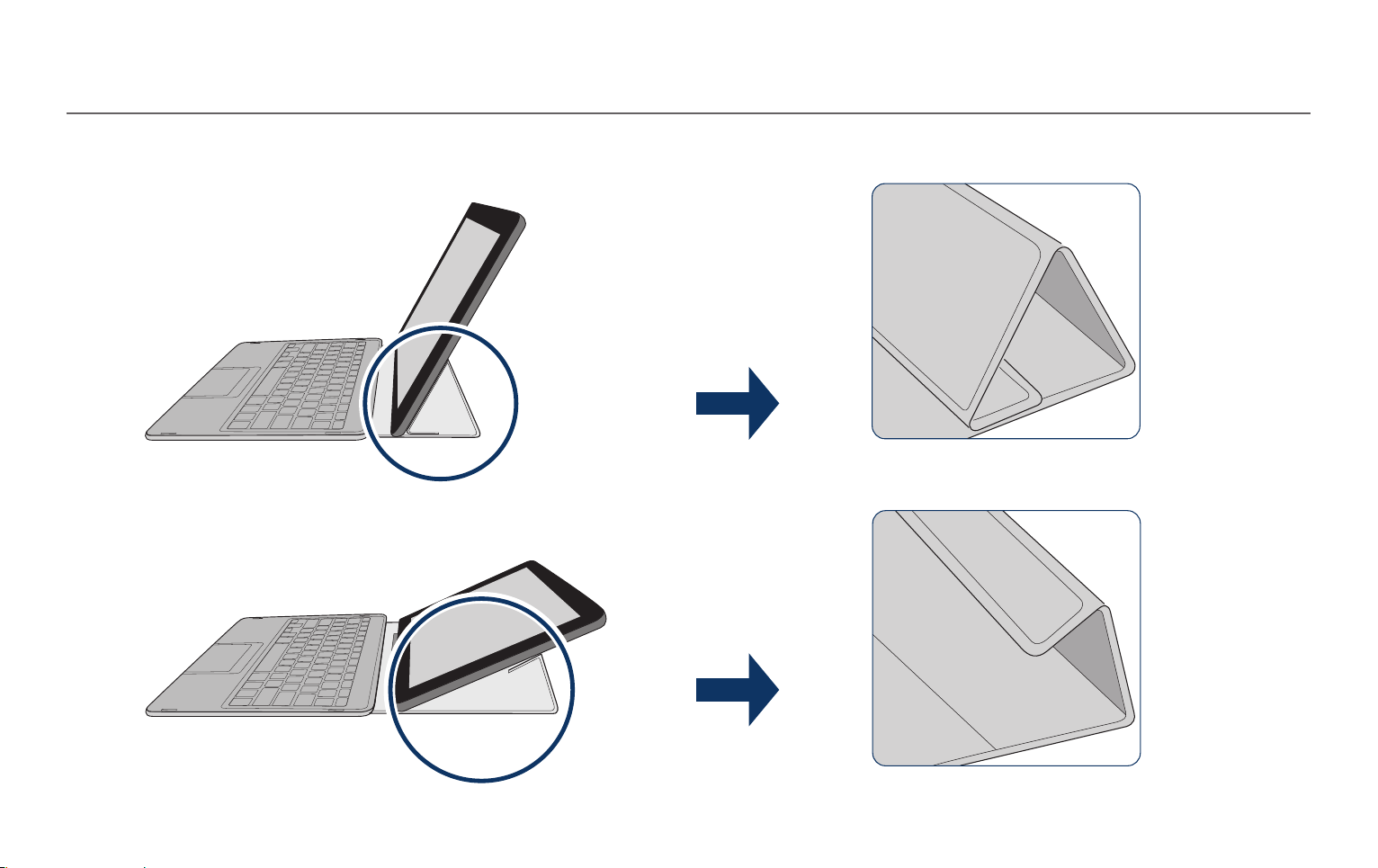

Tablet docking / undocking ............................ 9
Navigating the Home Screen .......................... 11
Connections .................................................... 14
Battery Management and Charging ............................... 14
USB ...........................................................................15
Headphone ..................................................................... 15
MicroSD ........................................................................16
HDMI .............................................................................. 16
Wi-Fi .............................................................................. 17
Bluetooth ........................................................................ 18
Google NowTM ................................................................... 20
Voice Search & Voice Actions ............................................ 20
Google PlayTM ........................................................................... 21
GoogleTM ............................................................................ 21
Settings ........................................................................... 22
Preinstalled apps ............................................. 23
Additional information ................................... 24
Trouble Shooting .............................................................. 24
Copyright and Trademark Notices ................................... 25
Specifications .................................................................. 25
Limited warranty ............................................. 26
Basic operation ............................................... 19
First Time Operation .......................................................... 19
Basic Operation ................................................................ 19
- 5 -
Getting to know your Tablet
Left side view
Microphone
For voice input.
HDMI port
Connect to a TV or a display device.
DC jack
Connect with 5V DC charger.
Micro-USB port
Use to charge the tablet's battery.
Headphone jack
Headphone connection for personal listening.
Power button
Press to enter standby/wake up mode, press and
hold to switch On/Off the unit.
USB port
Connect to a USB storage device or a mouse or a
wire keyboard.
Front camera
- 6 -
Rear view
Reset button
Press to reset the tablet (then press and hold the
Power button for 4~5 seconds to turn on the
unit).
MicroSD card slot
Accepts microSD card (up to 128GB).
Rear camera
Volume +/- button
Press to increase/decrease the volume.
Connector
- 7 -
Buttons
Power button
Power the tablet On
Volume +/- buttons
Press the Volume +/- buttons to increase or decrease
the volume.
Press and hold the Power button
turn on the tablet.
Power the tablet O
Press and hold the Power button until the" Power
off" message displays, then tap it and the tablet will be
powered o.
Sleep mode
Briefly press the Power
sleep mode. If you don’t operate for some time, the
tablet will enter sleep mode automatically.
Tip: You can go to Settings -> Device -> Display ->
Sleep to set the screen timeout.
Wake the tablet from Sleep mode
Press the Power
sleep mode.
button to put the tablet in
button to wake the tablet from
for 4~5 seconds to
Tip: You can go to Settings -> Device -> Sound &
notification -> Sound general settings to adjust
volume settings.
- 8 -
