This symbol indicates
“dangerous voltage” inside the
product that presents a risk of
electric shock or personal injury.
To reduce the risk of electric shock, do not remove
cover (or back). No user serviceable parts inside.
Refer servicing to qualified personnel.
This symbol indicates
important instructions
accompanying the product.
FCC NOTE (for U.S.A.):
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or
more of the following measures.
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect this equipment into an outlet on a circuit different from that to which
the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
This class B digital apparatus meets all requirements of the Canadian
Interference--Causing Equipment Regulations.
Caution: To prevent electric shock, match wide blade of plug to
wide slot, fully insert.
Attention: Pour éviter les chocs électriques, introduire la lame la
plus large de la fiche dans la borne correspondante de la prise et
pousser jusqú au fond.
Refer to the identification/rating label located on the back panel of your product for
its proper operating voltage.
FCC Regulations state that unauthorized changes or modifications to this
equipment may void the user’s authority to operate it.
Caution: Using video games or any external accessory with fixed images for
extended periods of time can cause them to be permanently imprinted on the
picture tube (or projection TV picture tubes). ALSO, some network/program
logos, phone numbers, etc. may cause similar damage. This damage is not
covered by your warranty.
Cable TV Installer: This reminder is provided to call your attention to Article 820-
40 of the National Electrical Code (Section 54 of the Canadian Electrical Code,
Part 1) which provides guidelines for proper grounding and, in particular, specifies
that the cable ground shall be connected to the grounding system of the building as
close to the point of cable entry as practical.
WARNING
To reduce the risk of fire or shock hazard, do
not expose this DVD player to rain or moisture.
No objects filled with liquids, such as vases,
shall be placed on the apparatus.
CAUTION
THIS PRODUCT UTILIZES A LASER. USE OF
CONTROLS OR ADJUSTMENTS OR
PERFORMANCE OF PROCEDURES OTHER
THAN THOSE SPECIFIED HEREIN MAY
RESULT IN HAZARDOUS RADIATION
EXPOSURE. DO NOT OPEN COVERS AND
DO NOT REPAIR YOURSELF. REFER
SERVICING TO QUALIFIED PERSONNEL.
CAUTION
FCC Regulations state that unauthorized
changes or modifications to this equipment may
void the user’s authority to operate it.
Note:
This DVD player is designed and manufactured
to respond to the Region Management
Information. If the Region number of a DVD
disc does not correspond to the Region
number of this DVD player, this DVD player
cannot play the disc. The Region number for
this DVD player is Region No 1.
Note:
This device is protected by U.S. patent numbers
4,631,603 and 4,577,216 and 4,819,098 and
other intellectual property rights. The use of
Macrovision’s copy protection technology in the
device must be authorized by Macrovision and is
intended for home and other limited pay-perview uses only, unless otherwise authorized in
writing by Macrovision. Reverse engineering or
disassembly is prohibited.
CLASS 1
LASER
PRODUCT
Product Registration Information
Keep your sales receipt to obtain warranty parts and service and for proof of purchase. Attach it here and record the serial number
in case you need it. The number is located on the player.
Model No. _____________________________________________________________________________________________
Serial No.______________________________________________________________________________________________
Purchase Date: _________________________________________________________________________________________
Dealer/Address/Phone: ___________________________________________________________________________________
RC6001P
Table of Contents
Contents
Chapter One: Setup and Connections
Things to Consider Before You Connect .........................................................................6
Protect Against Power Surges ...................................................................................6
Protect Components from Overheating ...................................................................6
Position Cables Properly to Avoid Audio Interference ............................................ 6
•Connect all components before you plug any of their power cords into the wall outlet.
•Turn off the TV and/or components before you connect or disconnect any cables.
•Make sure all antennas and cables are properly grounded. Refer to the Important Safeguards
sheet packed with your DVD player.
Protect Components from Overheating
•Don’t block ventilation holes on any of the components. Arrange the components so that air
can circulate freely.
•Don’t stack components.
•When you place components in a stand, make sure you allow adequate ventilation.
•If you connect an audio receiver or amplifier, place it on the top shelf so the heated air from
it won’t flow around other components.
Position Cables Properly to Avoid Audio Interference
•Insert each cable firmly into the designated jack.
•If you place components above the TV, route all cables down the side of the back of the TV
instead of straight down the middle of the back of the TV.
•If your antenna uses 300-ohm twin lead cables, do not coil the cables. Also, keep the twin
lead cables away from audio/video cables.
Connection Pictures
Audio/video cables are usually bundled together. For better visibility, the connection pictures in
this book show each cable separately (audio left, audio right, and video).
Types of Discs Your DVD Player will Play
•DVD video discs – DVD video discs contain high quality picture and sound content.
•Video CD discs – Like DVD video discs, Video CDs contain picture and sound content. The difference
is the amount of information that can be stored on the disc. VCDs typically have lower picture and
sound quality than DVD discs.
VIDEO CD
6Chapter 1
Connections & Setup
Choose Your Connection
There are several ways to connect your DVD player. Please use the following chart to determine
which connection is best for you. Turn to the appropriate page and connect your DVD player.
TV
TV
TV
TV
DVD
DVD
DVD
DVD
VCR
Dolby Digital System
RF Modulator
Cables neededComponents
• Coaxial
• Audio/video
• S-Video (optional)
• Component video (optional)
• Coaxial
• Audio/video
• S-Video (optional)
• Component video (optional)
• Coaxial
• Audio/video
• S-Video (optional)
• Component video (optional)
• Coaxial
• Audio/video
Connection
Go to...
Title
TV +DVD + VCRpage 9
TV + DVD +
Dolby Digital
TV + DVD
(component
video jacks)
TV + DVD + RF
Modulator
(coaxial
jack only)
pages
10-11
page12
page 13
TV
DVD
VCR
• Coaxial
• Audio/video
• S-Video (optional)
• Component video (optional)
Satellite
TV +DVD +
VCR + Satellite
page
14-15
Cables Needed to Connect Components to Your TV
The pictures below show the cables needed for the connections represented in this book. There is a detailed
explanation of cables and jacks on the following page.
Note: Audio/Video cables (A/V cables for short) are usually sold as a bundled set, but the
connection pictures in this book show each cable separately for better visibility.
RF coaxial cable
S-Video cableOptical digital audio cable
Chapter 17
Audio/Video cables
Component Video cables
Connections & Setup
Explanation of Input Jacks and Cables
This section describes the jacks and cables you can use to make connections (the cables aren’t provided with your television). There are
several ways to connect components to your TV.
Different jacks and cables provide a different level of performance (this book categorizes these levels as Excellent, Very Good, and Good). It’s
important to remember, we’re talking about degrees of picture improvement for comparison. If your component has S-VIDEO, composite
video (VIDEO, AUDIO Left and Right), and an ANTENNA jack (where you connect a coaxial cable); S-Video would be considered
excellent, composite video would be very good, and the ANTENNA jack would be considered good.
Y PB PR
Component Video
Cables and Jacks
S-Video Cable and Jack
Digital Audio Out
Cable and Jack
Component Video (Y P
The Y P
jacks allow you to connect to a TV that has Component or progressive scan video jacks. This
B PR
) Jacks and Cables— Excellent Video Quality
B PR
connection provides optimum picture quality because the video is separated into three signals. To ensure
maximum picture quality, use three video-grade cables for the connection.
Note: Also, remember to connect the left and right audio cables because the Y PB PR jacks and
cables carry only the picture signal, not the sound.
S-Video Jack and Cable — Very Good Video Quality
The S-Video (separate video) jack provides better picture quality than the regular video jacks (labeled INPUT1
VIDEO; INPUT2 VIDEO; INPUT3 VIDEO) because the color (chrominance, also called chroma) part of
the signal is separated from the black and white (luminance) part of the picture.
If your TV has an S-VIDEO jack, connect the recorder to the TV with an S-Video cable for a better quality
picture.
Note: Remember to connect the left and right audio cables because the S-Video cable carries only
the picture signal, not the sound.
Digital Audio Out Jack and Optical Cable — Excellent Audio Quality
The optical cable is used to connect a Dolby Digital receiver. If you own a Dolby Digital receiver that uses an
optical cable-type input, you can use an optical cable for the best sound quality.
Note: This DVD recorder’s optical digital output jack fully complies with the international
standard governing this type of jack (IEC958), and is designed for connection to a Dolby Digital
(AC-3® or PCM) receiver or Dolby Digital (AC-3 or PCM) decoder. Older equipment, some of which
is not fully compliant with IEC958, may not be compatible with the Dolby Digital bitstream. Such a
connection using anything other than Dolby Digital AC-3 or PCM receiver or decoder could create
a high noise level, causing damage to headphones or speakers.
Audio/Video Jacks and Cables (RCA-type) — Very Good Video and Audio
These jacks are used for most audio/video connections between components. The audio/video jacks are often
color coded (yellow for video, red for right audio, and white for left audio). This is also called composite video.
Note: If components you are connecting to have only one input for audio (mono), connect it to
the left (white L/Mono) audio jack and don’t connect the right audio part of the cable.
RF Jacks and Coaxial Cables (F-type) — Good Video and Audio
Audio/Video Cables
and Jacks
The RF jacks are necessary for reception of off-air broadcasts, cable, and DIRECTV signals.
These jacks are required for antenna or cable connections. The RF and coaxial jacks on the TV are labeled
SATELLITE IN, ANTENNA A IN, and ANTENNA B IN.
An RG-6 coaxial cable is required for all satellite signal distribution.
RF Cable and Jack
8Chapter 1
Connections & Setup
TV
DVD
TV
DVD
PLAYER
VCR
S-VIDEO
OUT
IN
LR
AUDIO
LR
VIDEO IN
2
OPTICALCOAX.
DIGITAL
AUDIO OUT
VIDEO
AUDIO OUT
R
L
AUDIO IN
LR
1
SUBWOOFER
CENTER
1
SURROUND
2
Pb
R L
5.1 CHANNEL
AUDIO OUT
FRONT
MIXED
Y
Pb
Pr
COMPONENT
VIDEO OUT
PROG. SCAN
COMPOSITE
Y
Pb
Pr
S-VIDEO
ANT IN
3
OUT TO TV
IN FROM ANT
CABLE
OR
OFF-AIR SIGNAL
4
VCR
DVD Player + TV + VCR
1.Connect the audio cables to the 5.1 CHANNEL AUDIO OUT L (left – white) and R (right – red) jacks
on the back of your DVD Player, and to the corresponding Audio Input jacks on your TV .
2. Connect the video cable.
• Basic video connection – Connect the video cable (yellow) to the COMPOSITE jack on the back of
your DVD Player, and to the Video Input jack on your TV .
OR
• S-Video (optional) – If your TV has an S-Video Input jack, connect the S-Video cable to the
S-VIDEO OUT jack on the back of your DVD Player and to the S-Video jack on your TV. If
your TV doesn’t have S-Video, use the basic video connection listed above.
OR
• Component video (optional, not shown in illustration) – If your TV has component video (Y , PB, and
P
jacks) use video-grade cables for the Y , PB, and PR connections. Note that it is essential to match the
R)
color coded connectors with a compatible TV. If your TV doesn’t have component video, use the basic
video connection listed above.
NOTE: If you use this connection, you must change the Video Output in the Display
menu (see page 42). The default video output is S-video/Composite.
3.Connect the antenna or cable to the Antenna Input jack on the VCR.
4.Connect a coaxial cable to the antenna output jack on the VCR and to the Antenna Input jack
on the television.
5.Insert the AC power cord into an AC outlet.
Go to page 18
Chapter 19
Connections & Setup
TV
TV
DVD
DVD
PLAYER
S-VIDEO
OPTICALCOAX.
AUDIO/VIDEO
RECEIVER
VIDEO IN
DIGITAL
AUDIO OUT
AUDIO IN
LR
CABLE
OR
3
PROG. SCAN
COMPOSITE
Y
Pb
Pr
S-VIDEO
SUBWOOFER
CENTER
1
2
Pb
R L
5.1 CHANNEL
AUDIO OUT
SURROUND
FRONT
MIXED
Y
Pb
Pr
COMPONENT
VIDEO OUT
OFF-AIR SIGNAL
ANT IN
2
DIGITAL
AUDIO IN
IN
L
1
R
Dolby Digital System
Dolby Digital® and DTS
®
Both Dolby Digital and DTS are audio formats used to record 5.1-channel audio signals onto the
digital track of film (while the film is being made). Both of these formats provide up to six separate
channels: left, right, center, left rear, right rear, and common subwoofer.
The disc will play 5.1-channel sound only if you’ve connected a DTS or Dolby Digital receiver or
decoder and if the original movie the disc was recorded from was encoded in the Dolby Digital or
DTS format.
Please Read This Before Using the DIGITAL AUDIO OUT Jack!
This player’s digital output jack is designed for a connection to a Dolby Digital or DTS receiver or
decoder.
Older digital equipment may not be compatible with the Dolby Digital bitstream. Such a connection
can create a high level of noise that may be harmful to your ears, and could damage headphones or
speakers.
It is important to choose the correct Digital Output setting in the DVD Player’s Sound menu,
especially when you use the DIGITAL AUDIO OUT jack. For more information, see chapter 5.
DTS is a registered trademark of Digital Home Theater Systems, Inc.
10Chapter 1
Connections & Setup
DVD Player + TV + Dolby Pro Logic, Dolby Digital
or DTS Receiver
To Connect the DVD Player
1.Connect the left and right audio cables to your audio/video receiver and to the 5.1 CHANNEL AUDIO
OUT L (left – white) and R (right – red) jacks on the back of your DVD Player.
2.If you have a Dolby Digital or DTS receiver, insert an optical digital cable (not provided) to the DIGIT AL
AUDIO OUT jack on the DVD player to the Digital Input jack on the back of the receiver. Y ou must also
set the Digital Ouput setting in the Sound menu (see chapter 5).
3. Connect the video cable.
• Basic video connection – Connect the video cable (yellow) to the COMPOSITE jack on the back of
your DVD Player, and to the Video Input jack on your TV .
OR
• S-Video (optional) – If your TV has an S-Video Input jack, connect the S-Video cable to the
S-VIDEO OUT jack on the back of your DVD Player and to the S-Video jack on your TV. If
your TV doesn’t have S-Video, use the basic video connection listed above.
OR
• Component video (optional, not shown in illustration) – If your TV has component video (Y , PB, and
P
jacks) use video-grade cables for the Y , PB, and PR connections. Note that it is essential to match the
R)
color coded connectors with a compatible TV. If your TV doesn’t have component video,
use the basic video connection listed above.
Note: If you use this connection, you must change the Video Output in the Display
menu (see page 42). The default video output is S-video/Composite.
4.Connect the AC power cord into an AC outlet.
Go to page 18
Chapter 111
Connections & Setup
CABLE
OR
OFF-AIR SIGNAL
TV
DVD
TV
AUDIO OUT
R
L
S-VIDEO
VIDEO IN
AUDIO IN
LR
ANT IN
1
2
DVD
PLAYER
OPTICALCOAX.
DIGITAL
AUDIO OUT
SUBWOOFER
CENTER
1
2
Pb
R L
5.1 CHANNEL
AUDIO OUT
SURROUND
FRONT
MIXED
Y
Pb
Pr
COMPONENT
VIDEO OUT
Pb
Pr
PROG. SCAN
COMPOSITE
Y
S-VIDEO
DVD Player + TV with Audio/Video Input Jacks
1.Connect the audio cables to the 5.1 CHANNEL AUDIO OUT L (left – white) and R (right – red) jacks
on the back of your DVD Player, and to the corresponding Audio Input jacks on your TV .
2. Connect the video cable.
• Basic video connection – Connect the video cable (yellow) to the COMPOSITE jack on the back of
your DVD Player, and to the V ideo Input jack on your TV.
OR
• S-Video (optional) – If your TV has an S-Video Input jack, connect the S-Video cable to the S-
VIDEO OUT jack on the back of your DVD Player and to the S-Video jack on your TV . If your TV
doesn’t have S-Video, use the basic video connection listed above.
OR
• Component video (optional, not shown in illustration) – If your TV has component video (Y , PB, and
PR jacks) use video-grade cables for the Y , PB, and PR connections. Note that it is essential to match the
color coded connectors with a compatible TV. If your TV doesn’t have component video, use the basic
video connection listed above.
Note: If you use this connection, you must change the Video Output in the Display
menu (see page 42). The default video output is S-video/Composite.
3.Connect the AC power cord into an AC outlet.
Note: Your cable or off-air connection to the television should not be affected by this connection.
Connect your cable or off-air antenna to your television as you normally would. You may need to
consult your television manual for details.
Go to page 18
12Chapter 1
TV
Connections & Setup
TV
ANT IN
RF Modulator
DVD
3
CABLE
OR
OFF-AIR SIGNAL
RF MODULATOR
ANT IN
TO TV
AUDIO
IN
VIDEO
IN
1
2
DVD
PLAYER
OPTICALCOAX.
DIGITAL
AUDIO OUT
SUBWOOFER
Pb
1
2
R L
5.1 CHANNEL
AUDIO OUT
CENTER
SURROUND
FRONT
MIXED
Y
Pb
Pr
COMPONENT
VIDEO OUT
PROG. SCAN
Y
Pb
Pr
COMPOSITE
S-VIDEO
DVD Player + TV + RF Modulator (with coaxial Jack only)
If your TV doesn’t have colored component jacks, you will need an RF modulator (not included) to connect
your DVD player.
1.Connect the audio cable to the 5.1 CHANNEL AUDIO OUT L (left – white) jack on the back of your
DVD Player and to the corresponding Audio Input jack on the RF modulator.
2. Connect the video cable (yellow) to the COMPOSITE jack on the back of your DVD Player to the
Video input jack on the RF modulator.
3.Connect the RF modulator to the back of the TV.
4.Insert the AC power cord into an AC outlet.
Go to page 18
Chapter 113
Connections & Setup
TV
DVD
VCR
TV
DVD
PLAYER
VCR
S-VIDEO
OUT
IN
LR
AUDIO
LR
VIDEO IN
OPTICALCOAX.
DIGITAL
AUDIO OUT
VIDEO
2
Pb
SUBWOOFER
R L
5.1 CHANNEL
AUDIO OUT
L
AUDIO IN
LR
CENTER
1
SURROUND
2
FRONT
MIXED
AUDIO OUT
R
Y
Pb
Pr
COMPONENT
VIDEO OUT
PROG. SCAN
Y
Pb
Pr
ANT IN
1
COMPOSITE
S-VIDEO
OUT TO TV
IN FROM ANT
3
SATELLITE
RECEIVER
IN FROM ANT
OUT
Satellite
S-VIDEO
S-VIDEO
VIDEO
LR
OUT TO TV
CABLE
OR
OFF-AIR
SIGNAL
14Chapter 1
SATELLITE IN
SATELLITE
SIGNAL
Connections & Setup
DVD Player + TV + VCR + Satellite Receiver
1.Connect the audio cables to the 5.1 CHANNEL AUDIO OUT L (left – white) and R (right – red) jacks
on the back of your DVD Player, and to the corresponding Audio Input jacks on your TV .
2. Connect the video cable.
• Basic video connection – Connect the video cable (yellow) to the COMPOSITE jack on the back of
your DVD Player, and to the V ideo Input jack on your TV.
OR
• S-Video (optional) – If your TV has an S-Video Input jack, connect the S-Video cable to the
S-VIDEO OUT jack on the back of your DVD Player and to the S-Video jack on your TV. If
your TV doesn’t have S-Video, use the basic video connection listed above.
OR
• Component video (optional, not shown in illustration) – If your TV has component video (Y , PB, and
P
jacks) use video-grade cables for the Y , PB, and PR connections. Note that it is essential to match the
R)
color coded connectors with a compatible TV. If your TV doesn’t have component video,
use the basic video connection listed above.
Note: If you use this connection, you must change the Video Output in the Display
menu (see page 42). The default video output is S-video/Composite.
3.Use a coaxial cable to connect the antenna output on the satellite receiver to the antenna input on the
VCR.
4.Insert the AC power cord into an AC outlet.
Go to page 18
Chapter 115
Connections & Setup
The Jacks on the Back of the DVD Player
When connecting, make sure you connect Output jacks to Input jacks, Video to Video, Right
Audio to Right Audio, etc.
Y
Pb
Pr
COMPOSITE
S-VIDEO
OPTICALCOAX.
DIGITAL
AUDIO OUT
SUBWOOFER
Pb
R L
CENTER
1
SURROUND
2
FRONT
MIXED
5.1 CHANNEL
AUDIO OUT
Y
Pb
Pr
COMPONENT
VIDEO OUT
PROG. SCAN
Description of Jacks (from left to right)
DIGITAL AUDIO OUT
Use a digital optical cable (not provided) to connect your DVD Recorder to a compatible Dolby Digital or
DTS receiver or decoder.
5.1 CHANNEL AUDIO OUT
Insert audio cables (left and right) from the FRONT R and L jacks on your DVD recorder to the
corresponding Audio Input jacks (left and right) on your TV or receiver.
COMPONENT VIDEO (Y, PB, PR) VIDEO OUT
Use these jacks to connect to a TV with component video input jacks. Unlike a single video input,
component video maintains the video signal as three separate signals through these three jacks. This
connection provides optimum quality. To ensure maximum picture quality, use three video-grade cables for
the Y , PB, and PR connections. Note that it is essential to match the color-coded connectors with a
compatible TV.
PROGRESSIVE (Y, PB, PR) VIDEO OUT
Use these jacks to connect to a TV with progressive video input jacks (labeling may vary; for example,
progressive scan jacks might be labeled Y , Pb, Pr). Progressive scan is a video scanning system that displays
all lines in a frame in one pass, as opposed to the traditional system, interlaced scan. This connection
provides optimum quality. To ensure maximum picture quality, use three video-grade cables for
connections. Note that it is essential to match the color-coded connectors with a compatible TV .
COMPOSITE VIDEO OUT
If you are using color-coded red, yellow and white RCA cables, connect the yellow video cable to this jack
and to the Video Input jack on your TV .
S-VIDEO OUT
If your TV has an S-Video jack, you can connect an S-Video cable for increased video quality. The S-Video
cable only carries the picture signal; remember to connect the left and right audio cables.
16Chapter 1
Connections & Setup
PLAY/PAUSE button
POWER button
power
Headphones jack
Disc tray
Front panel display
OPEN/CLOSE button
Headphones volume
Front Panel Controls
POWER – Turns the player on and off. The ON•OFF indicator lights when the player is on.
Disc tray – Press OPEN•CLOSE to open and close the disc tray.
open/close
skip rev
SKIP REV
button
STOP
stop
skip fwd
SKIP FWD
button
Shuttle
OPEN•CLOSE – Press to open and close the disc tray.
PLA Y/P AUSE – Press to begin playback. During playback, press to pause.
STOP – Stops disc play.
SKIP FWD – Allows you to move to the beginning of the next title, chapter, or track on a disc (in effect, “skipping” the title, chapter , or
track).
Shuttle – Turn to the right to fastforward playback. Turn to the left to reverse playback.
SKIP REV – Allows you to move to the beginning of the preceding title, chapter, or track on a disc (in effect, “skipping” the title, chapter,
or track).
Front panel display – Displays information about disc and playback status.
Headphones V olume – Adjusts volume for headphones
HEADPHONES – Plug headphones in here.
Chapter 117
Connections & Setup

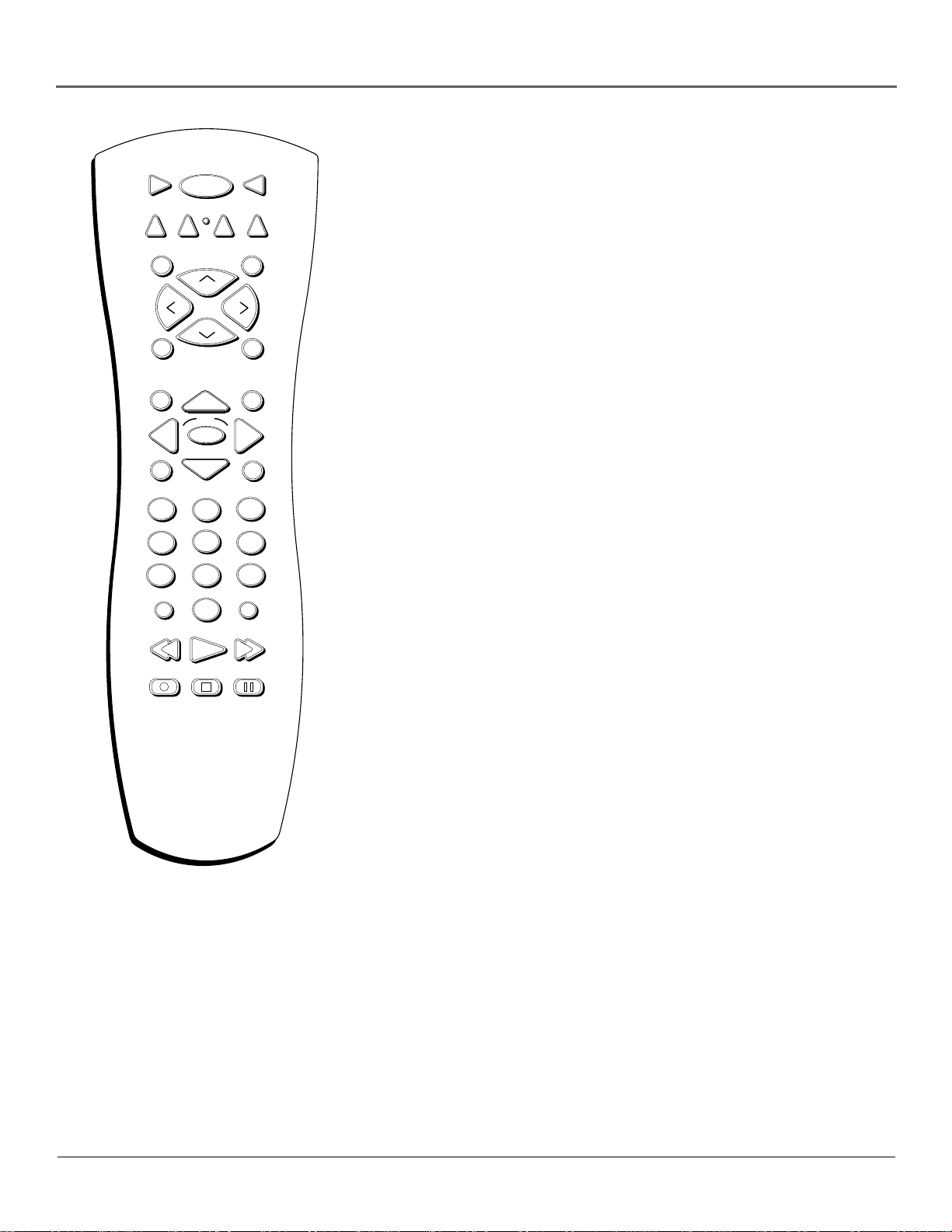

Install Batteries in the Remote
1.Remove the battery compartment cover on the back of the remote.
2.Insert new batteries. Match the polarities (+ and –) on the batteries with the
diagram on the remote.
3.Put the battery compartment cover back on the remote.
Important Battery Information
•If you’re not going to use the remote for a month or more, be sure
to remove the batteries because they can leak and cause damage.
•Dispose of batteries in the proper manner, according to federal,
state, and local regulations.
•Any battery may leak electrolyte if mixed with a different battery
type, if inserted incorrectly, if all batteries are not replaced at the
same time, if disposed of in fire, or if an attempt is made to charge a
battery not intended to be recharged.
•Discard leaky batteries immediately. Leaking batteries can cause skin
burns or other personal injury.
Point the Remote in the Right Direction
When you want the remote to operate the DVD Player, point the remote
at the DVD Player, not the TV. The remote has to be pointed in the
correct direction and toward the correct component in order for the
remote control’s signal to communicate with the sensor on the
component. Make sure there is a clear path between the remote control
and the component you want to operate so the signal isn’t blocked.
Turn on the TV and DVD Player
1.Turn on your TV and tune to the correct video input channel (see
following page).
2.Press the ON•OFF button on the DVD remote or the POWER button on
the DVD player.
18Chapter 1
Connections & Setup
How to Find Your TV’s Video Input Channel
In order to see what’s playing on your DVD recorder, you need to tune your TV to the Video Input Channel
that corresponds to the jacks you used to hook up the recorder to the TV. The video channel on TVs varies for
different brands and different models. In order for your DVD remote to work, your TV must be set on the
correct video input channel. Below are some things to try.
•If your TV brand is RCA, GE, or Proscan, press the TV button on the remote that came with your TV.
Then press the INPUT button on the remote.
•If you have another brand, consult your TV’s Owner’s Manual.
If those options don’t work, try one of the following options.
•Press a button on the TV remote (see table below).
•Select it from the TV’s menu system.
•Tune directly to the DVD input channel by pressing a specific number (see table below).
•Go through all the channels in the channel list by pressing the channel up/down buttons on the TV.
Some common scenarios are listed in the following table:
Video Input Channel Variations
Button/switchButton on theChannel #
on the TVTV Remote
VIDEOVID 100
SIGNALLINE90
VID 1VID91
VID 2VIDEO92
S-VIDS-VID93
S-VIDEOINPUTVID 1
S-VIDEOVID 2
SOURCE
AUX
How to Move Around the DVD Player’s Menu
System
The technical term for how you move through the DVD Player’s menu system is “Navigation.”
This book tells you how to select different menu items, but you can explore the menu system on your own by
following a few “navigational rules.”
Press the arrow buttons on the remote to highlight different menu items on the screen. (In your DVD Player’s
menu, a highlighted item appears brighter than the other items on the screen.) To select a menu item, press OK
on the remote when the menu item is highlighted.
The invalid symbol appears on the screen when you press a button that doesn’t have any function.
Chapter 119
Loading...
+ 49 hidden pages
You need points to download manuals.
1 point = 1 manual.
You can buy points or you can get point for every manual you upload.
