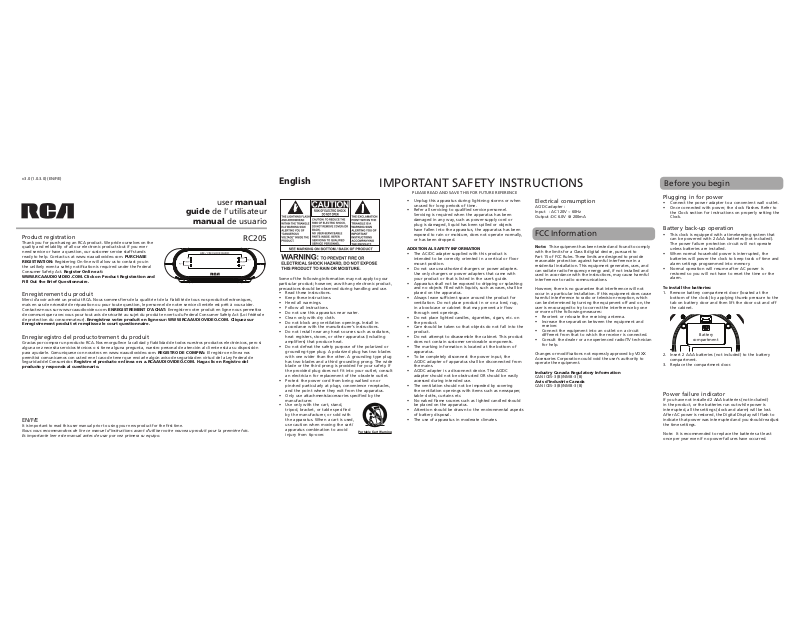

RCA RC205 User Manual

EN/F/E

It is important to read this user manual prior to using your new product for the ﬁ rst time.

Nous vous recommandons de lire ce manuel d’instructions avant d’utiliser votre nouveau produit pour la première fois. Es importante leer este manual antes de usar por vez primera su equipo.

Product registration

Thank you for purchasing an RCA product. We pride ourselves on the quality and reliability of all our electronic products but if you ever need service or have a question, our customer service staff stands ready to help. Contact us at www.rcaaudiovideo.com. PURCHASE REGISTRATION: Registering On-line will allow us to contact you in the unlikely event a safety notiﬁ cation is required under the Federal Consumer Safety Act. Register Online at:

WWW.RCAAUDIOVIDEO.COM. Click on Product Registration and Fill Out the Brief Questionnaire.

Enregistrement du produit

Merci d’avoir acheté un produit RCA. Nous sommes ﬁ ers de la qualité et de la ﬁ abilité de tous nos produits électroniques, mais en cas de nécessité de réparation ou pour toute question, le personnel de notre service clientèle est prêt à vous aider. Contactez-nous sur www.rcaaudiovideo.com. ENREGISTREMENT D’ACHAT: Enregistrer votre produit en ligne nous permettra de communiquer avec vous pour tout avis de sécurité au sujet du produit en vertu du Federal Consumer Safety Act (Loi fédérale de protection du consommateur). Enregistrez votre produit en ligne sur: WWW.RCAAUDIOVIDEO.COM. Cliquez sur

Enregistrement produit et remplissez le court questionnaire.

Enregisregistro del productotrement du produit

Gracias por comprar un producto RCA. Nos enorgullece la calidad y ﬁ abilidad de todos nuestros productos electrónicos, pero si alguna vez necesita servicios técnicos o si tiene alguna pregunta, nuestro personal de atención al cliente está a su disposición para ayudarle. Comuníquese con nosotros en www.rcaaudiovideo.com. REGISTRO DE COMPRA: El registro en línea nos permitirá comunicarnos con usted en el caso de tener que enviarle algún aviso de seguridad en virtud de la Ley Federal de Seguridad del Consumidor. Registre el producto en línea en: a.RCAAUDIOVIDEO.COM. Haga clic en Registro del

producto y responda al cuestionario.

user manual

guide de l’utilisateur

manual de usuario

v3.0 (1.0.3.0) (EN/F/E)

Before you begin

Plugging in for power

• Connect the power adapter to a convenient wall outlet.

• Once connected with power, the clock ﬂ ashes. Refer to the Clock section for instructions on properly setting the Clock.

Battery back-up operation

• This clock is equipped with a timekeeping system that can be powered with 2 AAA batteries (not included). The power failure protection circuit will not operate unless batteries are installed.

• When normal household power is interrupted, the batteries will power the clock to keep track of time and alarm settings programmed into memory.

• Normal operation will resume after AC power is restored so you will not have to reset the time or the alarm.

To install the batteries:

1. Remove battery compartment door (located at the bottom of the clock) by applying thumb pressure to the tab on battery door and then lift the door out and off the cabinet.

Battery

compartment

2. Insert 2 AAA batteries (not included) to the battery compartment.

3. Replace the compartment door.

IMPORTANT SAFETY INSTRUCTIONS

PLEASE READ AND SAVE THIS FOR FUTURE REFERENCE

Some of the following information may not apply to your particular product; however, as with any electronic product, precautions should be observed during handling and use.

• Read these instructions.

• Keep these instructions.

• Heed all warnings.

• Follow all instructions.

• Do not use this apparatus near water.

• Clean only with dry cloth.

• Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.

• Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including ampliﬁ ers) that produce heat.

• Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong is provided for your safety. If the provided plug does not ﬁ t into your outlet, consult an electrician for replacement of the obsolete outlet.

• Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

• Only use attachments/accessories speciﬁ ed by the manufacturer.

• Use only with the cart, stand, tripod, bracket, or table speciﬁ ed by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/ apparatus combination to avoid injury from tip-over.

• Unplug this apparatus during lightning storms or when unused for long periods of time.

• Refer all servicing to qualiﬁ ed service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

ADDITIONAL SAFETY INFORMATION

• The AC/DC adapter supplied with this product is intended to be correctly oriented in a vertical or ﬂ oor mount position.

• Do not use unauthorized chargers or power adapters. Use only chargers or power adapters that came with your product or that is listed in the user’s guide.

• Apparatus shall not be exposed to dripping or splashing and no objects ﬁ lled with liquids, such as vases, shall be placed on the apparatus.

• Always leave sufﬁ cient space around the product for ventilation. Do not place product in or on a bed, rug, in a bookcase or cabinet that may prevent air ﬂ ow through vent openings.

• Do not place lighted candles, cigarettes, cigars, etc. on the product.

• Care should be taken so that objects do not fall into the product.

• Do not attempt to disassemble the cabinet. This product does not contain customer serviceable components.

• The marking information is located at the bottom of apparatus.

• To be completely disconnect the power input, the AC/DC adapter of apparatus shall be disconnected from the mains.

• AC/DC adapter is a disconnect device. The AC/DC adapter should not be obstructed OR should be easily accessed during intended use.

• The ventilation should not be impeded by covering the ventilation openings with items such as newspaper, table-cloths, curtains etc.

• No naked ﬂ ame sources such as lighted candled should be placed on the apparatus.

• Attention should be drawn to the environmental aspects of battery disposal.

• The use of apparatus in moderate climates.

Electrical consumption

AC/DC adapter : Input : AC 120V ~ 60Hz Output :DC 6.0V @ 200mA

Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

Changes or modiﬁ cations not expressly approved by VOXX Accessories Corporation could void the user’s authority to operate the equipment.

Industry Canada Regulatory Information

CAN ICES-3 (B)/NMB-3 (B)

Avis d’Industrie Canada

CAN ICES-3 (B)/NMB-3 (B)

]

Portable Cart Warning

FCC Information

English

RC205

Power failure indicator

If you have not installed 2 AAA batteries (not included) in the product, or the batteries run out while power is interrupted, all the settings (clock and alarm) will be lost. After AC power is restored, the Digital Display will ﬂ ash to indicate that power was interrupted and you should readjust the time settings.

Note: It is recommended to replace the batteries at least once per year even if no power failures have occurred.

EN/F/E

It is important to read this user manual prior to using your new product for the ﬁ rst time.

Nous vous recommandons de lire ce manuel d’instructions avant d’utiliser votre nouveau produit pour la première fois. Es importante leer este manual antes de usar por vez primera su equipo.

Product registration

WWW.RCAAUDIOVIDEO.COM. Click on Product Registration and Fill Out the Brief Questionnaire.

Enregistrement du produit

Enregistrement produit et remplissez le court questionnaire.

Enregisregistro del productotrement du produit

producto y responda al cuestionario.

user manual

guide de l’utilisateur

manual de usuario

v3.0 (1.0.3.0) (EN/F/E)

Before you begin

Clock

Plugging in for power

• Connect the power adapter to a convenient wall outlet.

• Once connected with power, the clock ﬂ ashes. Refer to the Clock section for instructions on properly setting the Clock.

Battery back-up operation

• This clock is equipped with a timekeeping system that can be powered with 2 AAA batteries (not included). The power failure protection circuit will not operate unless batteries are installed.

• When normal household power is interrupted, the batteries will power the clock to keep track of time and alarm settings programmed into memory.

• Normal operation will resume after AC power is restored so you will not have to reset the time or the alarm.

To install the batteries:

1. Remove battery compartment door (located at the bottom of the clock) by applying thumb pressure to the tab on battery door and then lift the door out and off the cabinet.

Battery

compartment

2. Insert 2 AAA batteries (not included) to the battery compartment.

3. Replace the compartment door.

Setting clock manually

1. In clock mode, press and hold Set time until the clock ﬂ ashes to enter the clock setting mode.

2. Press Hour + and Minute + to set the time.

• Press and hold to decrease or increase the time value quickly.

• The clock is in 12 hour format. The PM indicator appears to show PM time.

3. Press Set time to conﬁ rm and exit clock setting mode.

Radio

Turning on/off the Radio

In clock mode, press the ON/OFF to turn on the radio. Press ON/OFF again to turn off the radio.

Switching band

Press AM/FM repeatedly to select FM or AM band.

Tuning the radio

Press TUNE +/TUNE – to adjust the radio frequency. Press and hold TUNE +/TUNE – for two seconds to automatically search for the next available station.

Built-in AFC

The Built In Automatic Frequency Control (AFC) helps to reduce drift on FM reception and keeps the radio locked in on the FM station to which it is tuned.

This unit is equipped with an FM antenna at the back. Uncoil the antenna to its full length for best reception. Tape the end of the antenna onto the wall if possible to improve reception.

AM antenna

A built-in ferrite rod antenna eliminates the need for an outside antenna for AM reception. Rotating the unit slightly may improve reception of distant AM stations.

Setting wake time

This unit allows 2 wake times to be set.

1. In clock mode, press and hold Set AL 1 once to set WAKE 1.

2. Press Hour + and Minute + to set the wake time.

• Press and hold to decrease or increase the time value quickly.

3. To conﬁ rm this wake time, press Set AL 1.

4. Follow step 1 to step 3 to set WAKE 2.

Selecting wake source

You may choose radio or alarm as your wake up source.

• In clock mode, press Set AL 1 to select wake source:

BEEP – Wake 1 by alarm MUSIC – Wake 1 by radio (You will wake up to your

most recently tuned radio station.)

• After setting WAKE 1, press Set AL 2 to select wake source for WAKE 2.

Wake to radio

To set wake radio station:

1. Select desired station.

2. Adjust the volume by VOL +/VOL –.

Wake function

In sleep mode, the unit will turn off automatically after a speciﬁ ed time (up to 90 minutes).

1. Press Sleep repeatedly to cycle through the available durations for Sleep Mode (90min, 80min, 70min ... 10min or OFF. The sleep time is default to OFF). The maximum time is 90 minutes. Note that the radio will automatically turn on when initiating SLEEP mode, and it will stay on for the duration of the selected Sleep time.

2. To view remaining time in sleep mode, press Sleep.

3. To cancel the sleep function, press ON/OFF or press Sleep repeatedly to select OFF.

Sleep function
