RCA ANT702F User Manual

1

ENGLISH

FCC Statement

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may
not cause harmful interference, and (2) this device must accept any interference received, including interference that may
cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B Digital Device, pursuant to Part 15 of the
FCC Rules. These limits are designed to this equipment generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the radio or television off and on, the user
is encouraged to try to correct interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on another circuit.

• Consult the dealer or an experienced radio/TV technician for help.
Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s

authority to operate this equipment.

Industry Canada Regulatory Information

CAN ICES-3 (B)/NMB-3 (B)

Avis d’Industrie Canada

CAN ICES-3 (B)/NMB-3 (B)

Important: T h i s p o w e r a d a p t e r s h o u l d b e p l u g g e d i n s o t h a t i t s t a y s v e r t i c a l o r l a y s f l a t .

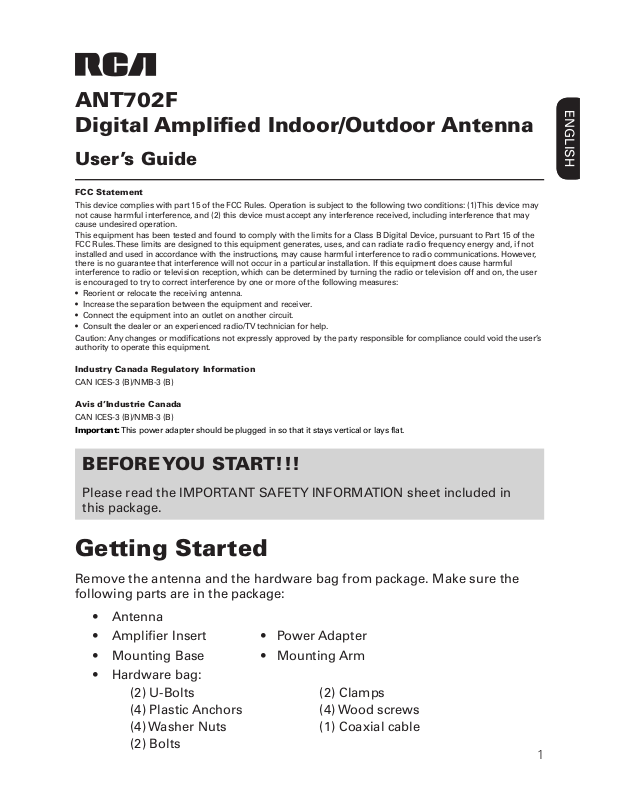

ANT702F
Digital Amplifi ed Indoor/Outdoor Antenna

User’s Guide

Getting Started

Remove the antenna and the hardware bag from package. Make sure the
following parts are in the package:

• Antenna

• Amplifi er Insert • Power Adapter

• Mounting Base • Mounting Arm

• Hardware bag:
(2) U-Bolts (2) Clamps

(4) Plastic Anchors (4) Wood screws
(4) Washer Nuts (1) Coaxial cable
(2) Bolts

BEFORE YOU START!!!

Please read the IMPORTANT SAFETY INFORMATION sheet included in
this package.

ENGLISH

2

Mounting the Antenna

The antenna mounting base and arm give you fl exibility in mounting the
antenna. The antenna can be mounted:

• To a surface, such as a rooftop, eaves, siding, or rafters in an
attic

-OR-

• To a standard mast (not included)

WARNING: Never hang anything from the antenna; never attach foreign
objects to the antenna.

NOTES: Do not install the antenna on any metal surface, including
aluminum siding. Mounting on a metal surface will seriously degrade
reception quality.

In most cases, the antenna provides the best performance when mounted
outdoors in a high location (such as on the roof or high up on the side of
your house). The antenna can also be mounted in an attic or indoors.

Finding the Right Location

Before you mount the antenna, consider the following factors in reception
performance:

• The antenna performs best when mounted vertically

• The antenna should be mounted on the side of your house that faces
most of your local broadcast towers. Visit www.antennaweb.org to see
the locations of your local broadcast towers.

• The higher the elevation of the antenna, the better the reception
performance will be.

3

ENGLISH

Mounting to a Surface

1. Mount the base to the surface.

Find the four wood screws included in this package. Using these
screws, attach the base to the surface as shown here.

If you’re mounting to concrete, brick, or drywall...

You’ll need to use the anchors included in this package. Here’s how to
install them:

• Place the antenna base against the concrete where you want to
mount the antenna. Make sure it’s level.

• Mark the surface through the holes in the base where you’re
going to mount the antenna.

• Set the base aside and drill a 0.1575” pilot hole at each marked
location. Remove any excess dust from the holes.

• Insert a concrete anchor into each hole so that it is fl ush with the
concrete surface. You can use a hammer to gently tap the anchors
into place if necessary.

• Place the antenna base back against the concrete surface and
secure it using the four wood screws provided. Do not overtighten
these screws.

continues on next page...

4

2. Attach the arm to the base.
Find one of the bolts included in this package.

First, set the bolt in the base’s mounting well. Then position the arm

over the other side of the well. Tighten the bolt to attach the arm to the
base.

3. Attach the antenna to the arm.

Find the other bolt included in this package.
First, set the bolt in the antenna’s mounting well. Then position the

arm over the other side of the well. Tighten the bolt to attach the arm
to the antenna.
