english

Introduction 3 Features/Accessories 3 Functions (User interface) 4 Display 4 Batteries 5 Measurement (Quick Start) 5 Measurement (Continuous) 6 Measurement (Spot size) 6 Selecting a function 7 Laser On/Off 7 Emissivity explained 8 Emissivity adjustment 8 Emissivity Table of Values 9 Emissivity Unknown value 9 Mode Maximum 10 Mode Minimum 10 Mode Difference 11 Mode Average 11 Mode Probe connection 12 Setup High Alarm 13 Setup Low Alarm 13 Setup Time 14 Setup Date 14 Setup Offset 15 Mode Min-Max values 15 Data Logger (How to store data) 16 Data Recall 16 Display (Graphic Display) 17 Display (Auto or Man. range) 17 Display Begin (Man. range) 18 Display End (Man. range) 18 Display Cycle 19 Settings (DIP switch settings) 19 Appendix A: Special order models 23 Appendix B: Troubleshooting 24 Appendix C: Maintenance 25 Appendix D: Laser Warning Label 26 Appendix E: Cautions 27 Appendix F: Emissivities table 29 Specifications 30 Factory Defaults 31 NIST/DKD CE Conformity 32

Table of Contents

Page 6

Page 7

english

We hope you enjoy using your infrared thermometer! It measures the amount of infrared energy emitted by a target object, and calculates the temperature of that object´s surface.

INTRODUCTION

Your thermometer includes:

- Laser sighting

- Adjustable emissivity

- High/Low Alarm

- MAX, MIN, DIF, AVG

- Data Logger (100 points)

- Trigger lock

- Graphic display ... and more!

FEATURES

ACCESSORIES

(optional)

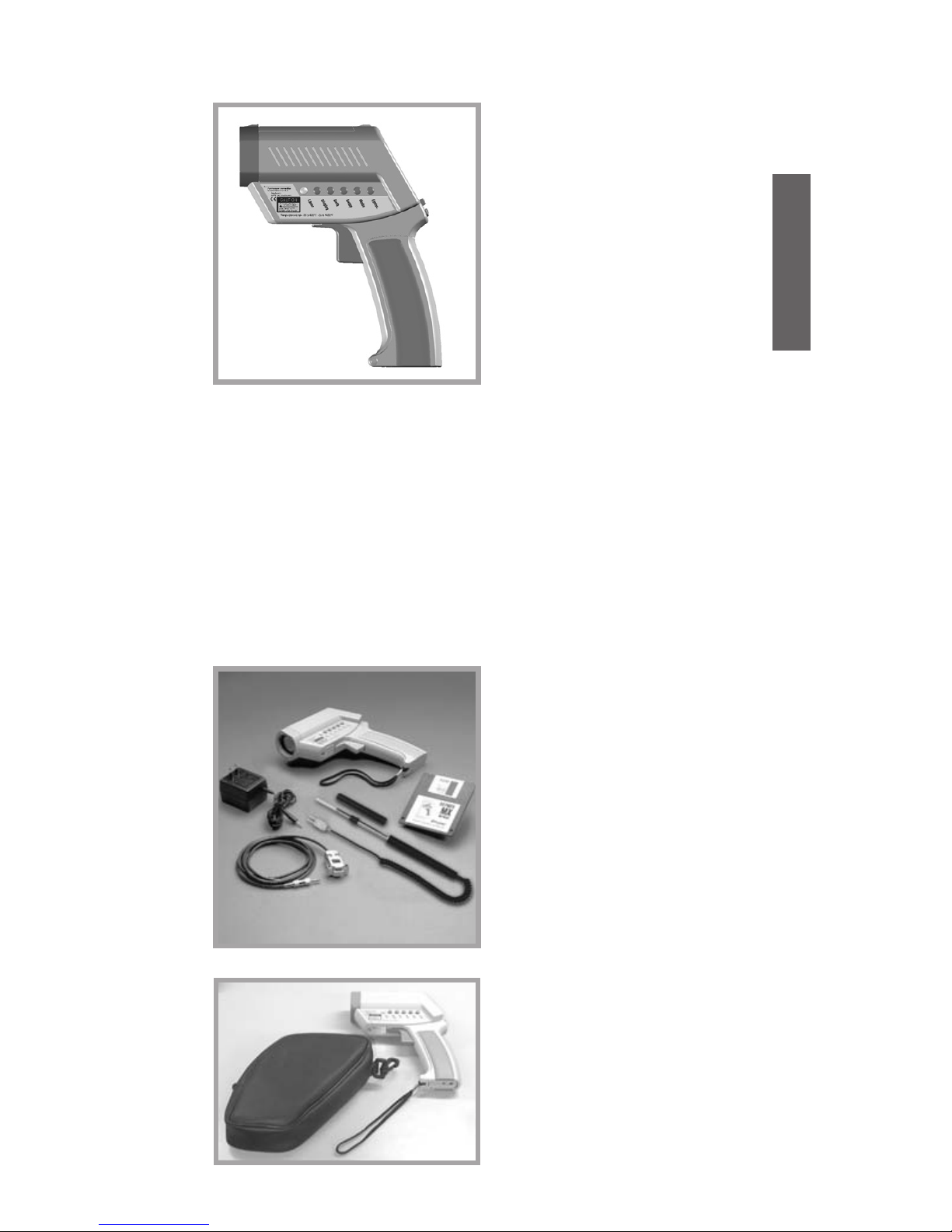

The accessories package for your infrared thermometer, if ordered, includes:

- external power supply

- thermocouple type K

- Windows-based software

- RS232 cable

OPTIONAL POUCH

The optional pouch comes with a belt clip and helps to protect your infrared thermometer when not in use.

Page 8

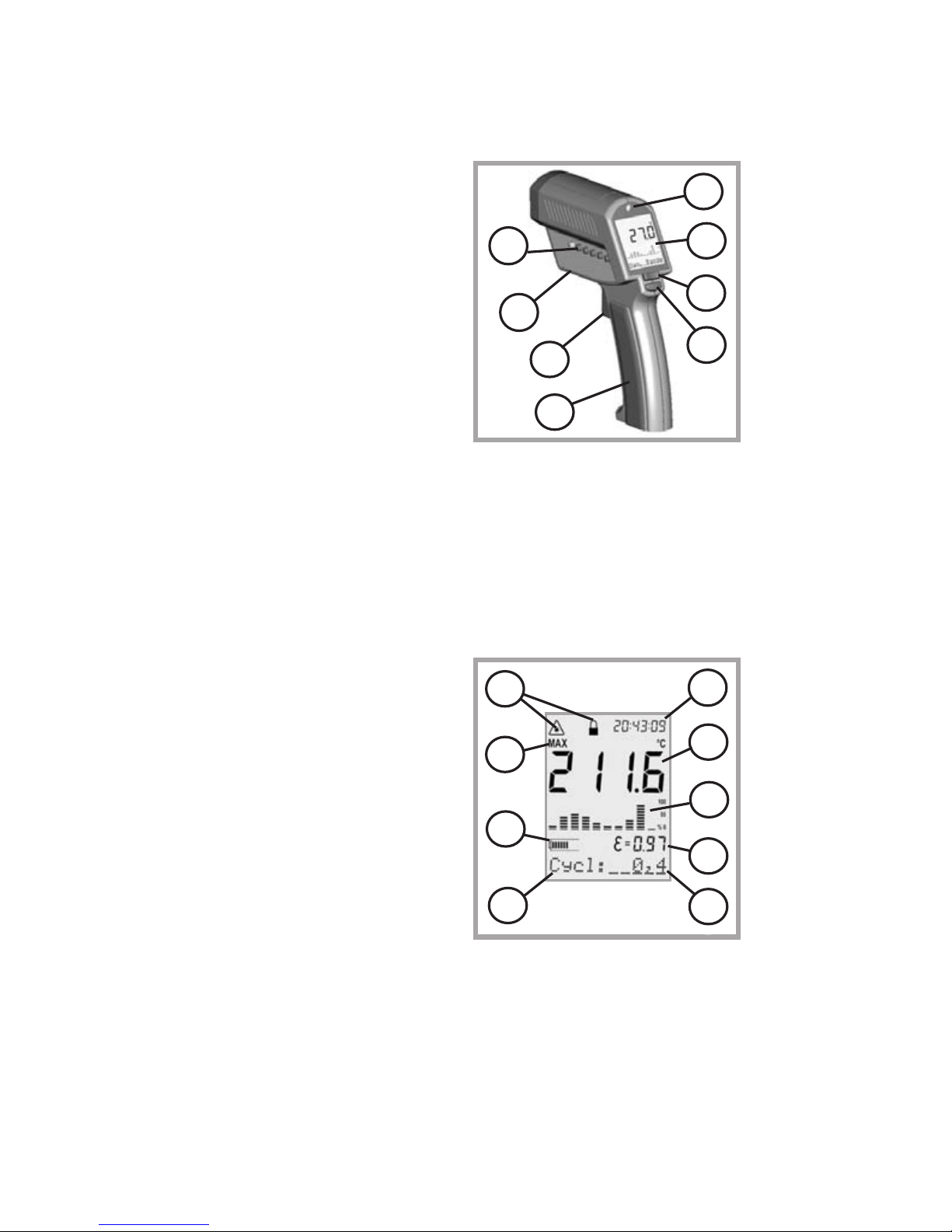

Function keys and display: (A) Visual and audible

alarm (B) Display (C) Up and Down keys (D) Enter (E) Handle and battery

compartment

(DIP switches for

adjustments are

inside handle) (F) Trigger (G) Tripod mount (H) 6 main function keys

FUNCTIONS

USER INTERFACE

Displayed functions: (1) Laser condition /

Lock symbol (2) Time (or date) (3) Main temperature

display (4) Graphic display (5) Emissivity value (6) Status bar (7) Mode indicator (8) Battery life indicator (9) MAX, MIN, DIF, AVG

symbols

DISPLAY

Page 9

english

BATTERIES

To open the battery compartment, press gently on the top part of the handle (1) to release the catch (2) and pivot the grip as shown in the figure. Orient the batteries (two alkaline R6 (AA, UM3)) as shown on the housing.

MEASUREMENT

QUICK START

To take a temperature measurement, hold the unit as shown. Aim at the target. Pull the trigger (F). The temperature of the object being measured is shown on the display (B). The temperature will be displayed for seven seconds after the trigger

is released. The unit automatically switches “off” after 7 seconds if a function key is not pressed. The last settings are stored. The display returns to the last mode selected. To recall the last reading, press ENTER without pulling the trigger.

Page 10

MEASUREMENT

CONTINUOUS

Open the battery compartment and switch LOCK "on" to lock the unit on. You may mount the unit on a tripod, using the tripod mount. Pull the trigger for continuous temperature measurement. (The laser will not be locked on.) To unlock, switch LOCK off.

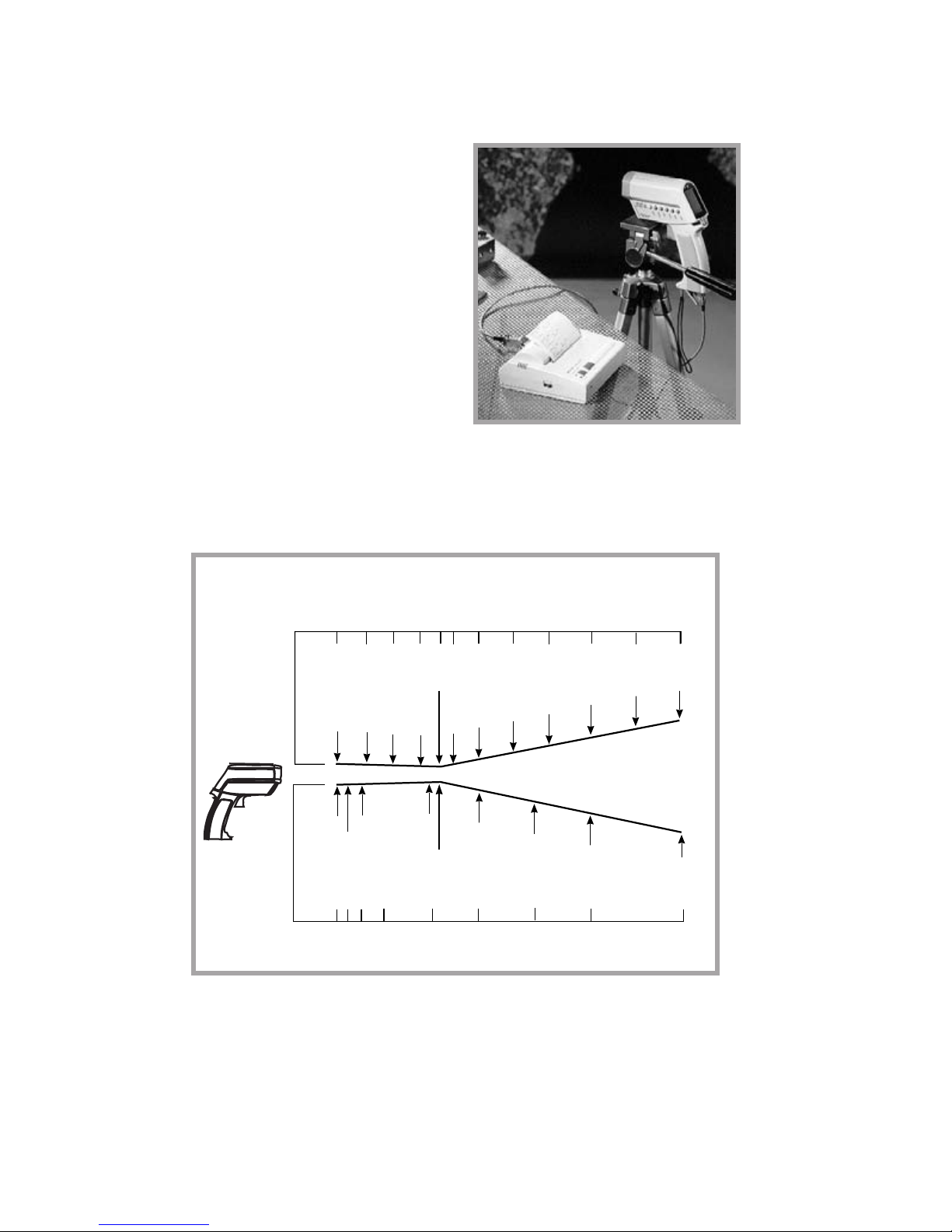

STANDARD MODEL Optical Chart

3000

120

1.0

SPOT DIA. (IN)

SPOT DIA. (mm)

DISTANCE: SENSOR TO OBJECT (mm)

DISTANCE: SENSOR TO OBJECT (IN)

FOCUS POINT D:S = 60:1 FAR FIELD D:S = 35:1

0.76 IN @ 46 IN

19 mm @ 1150 mm

1500

2500

100

1.2

2.3

2.9

29.0

58.0

72.0

2000

44.0

1000

500

250

100

0.9

0.81

0.82

1.51

1.85

2.5

19.8

108

0.87

The measured spot size depends on the distance between the object you are measuring and the infrared thermometer. The relationship between distance and spot size is 60:1 at the focus point. The D:S in the far field (>33ft/10m) is 35:1.

MEASUREMENT

SPOT SIZE

Page 11

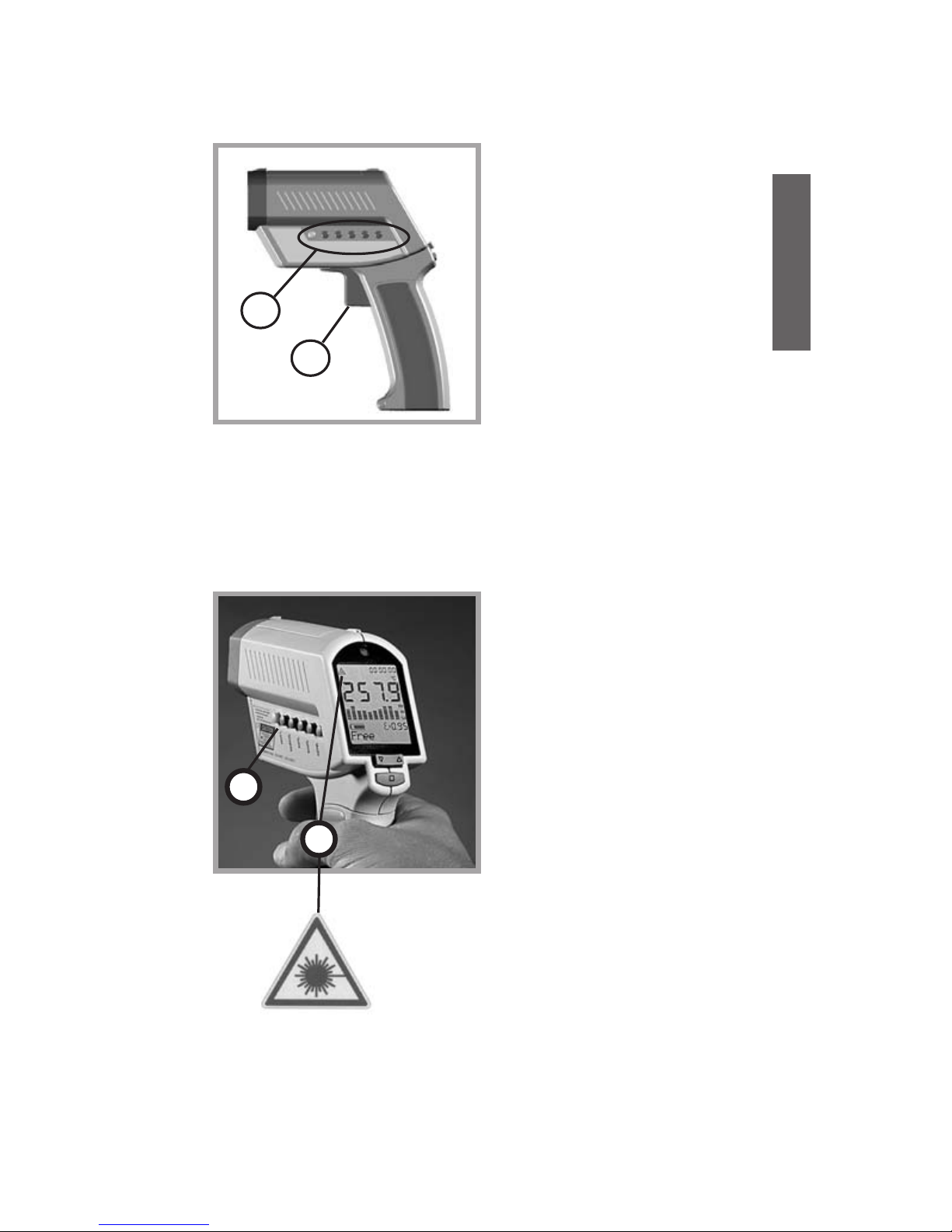

The laser sight simplifies sighting of the measurement object. It shows the spot size that includes the measured target.

To turn the laser on or off press the LASER button (K) when the trigger is pulled. A laser symbol (1) appears when the laser is on. The laser automatically turns off if you release the trigger.

english

To select a function, first

turn the unit on by pulling

the trigger (F). Then push

the button of the desired

function (H). To change

functions, press ENTER

or the function button

again, and then the new

function button.

SELECTING

A FUNCTION

LASER

ON/OFF

laser ON symbol

Page 12

Reflected energy

Emitted energy

Transmitted energy

EMISSIVITY

Target

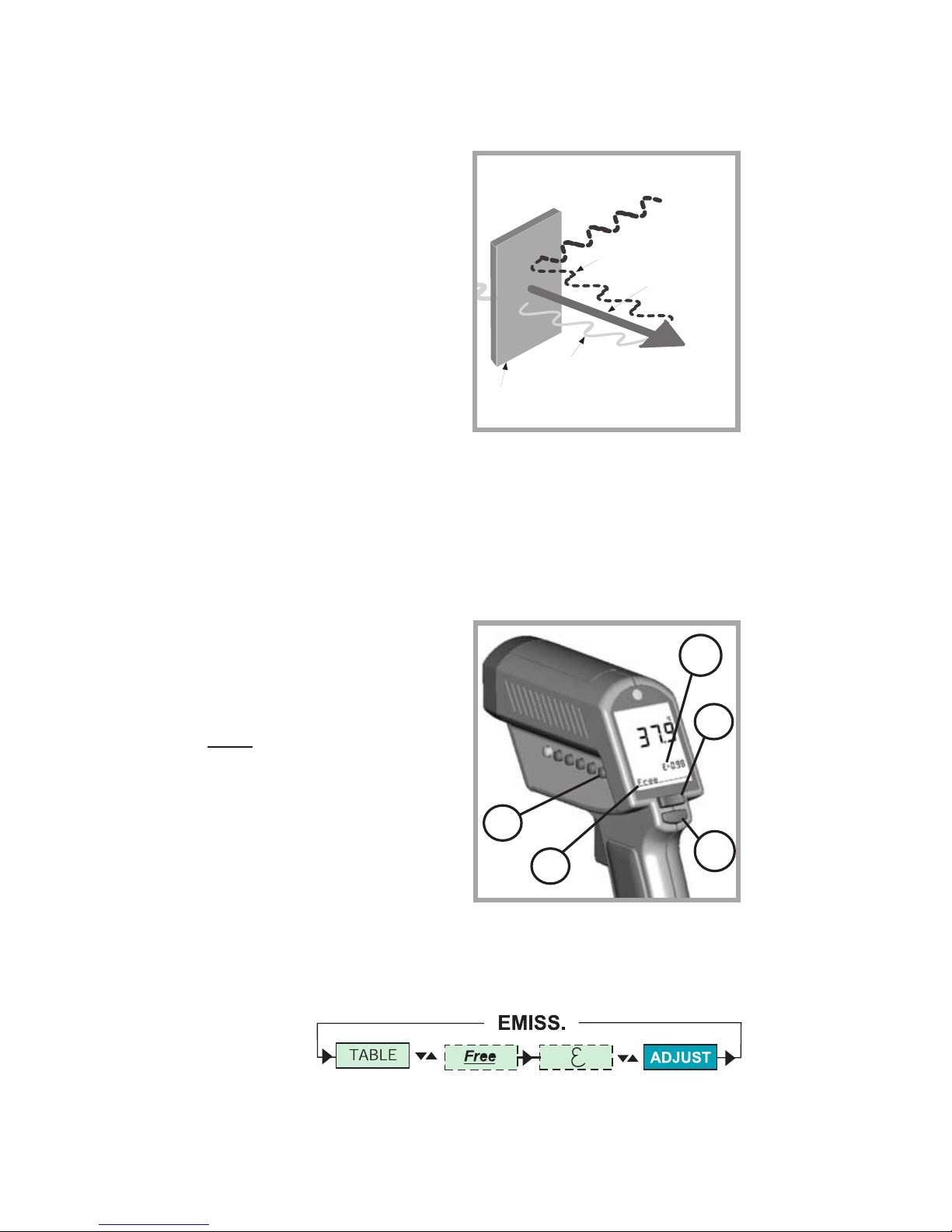

The amount of infrared energy radiated by an object depends on its emissivity and its temperature. The emissivity depends on the material and its surface characteristics. For more accurate readings, adjust the emissivity value for the type of material being measured.

EMISSIVITY

EMISSIVITY EXPLAINED

To adjust the emissivity value, press EMISS (P). Use the Up and Down keys to select “Free“ (“F

ree” will have a flashing underline) (7). Press EMISS again. “Free” is not underlined, and the emissivity icon (5) flashes. Use the Up and Down keys (C) to adjust. Press ENTER (D) to activate this setting.

EMISSIVITY

ADJUST EMISSIVITY

Page 13

To adjust the unit’s emissivity value for a material with unknown emissivity, plug in the probe. Pull the unit’s trigger. Place the measuring tip of the probe on the area to be measured. Wait for the reading to stabilize.

EMISSIVITY

TABLE OF VALUES

To choose the emissivity of a material, press EMISS (P). The display shows a material name (7), an emissivity value, and the calculated temperature value (5). To choose another material, use the Up and Down keys (C). Press ENTER (D) to activate this setting.

EMISSIVITY

UNKNOWN VALUE

Note the indicated probe temperature reading. Release the trigger. Pull the trigger again. Measure the same area using infrared measurement. Press the emissivity button (P). Use the Up and Down keys (C) to select the material name “Free” which will be shown in the display (7). Press the emissivity button (P) again until the emissivity sign (5) flashes. Use the arrow keys (C) to change the emissivity value until the temperature matches the probe’s reading.

english

Page 14

To activate the MAX mode, press MODE (O) until the MAX symbol appears (9). The measured maximum temperature is displayed (3) as long as the trigger is pulled or locked on. The real time temperature is shown in the lower part of the display (NORM) (7).

MODE

MAXIMUM

To activate the MIN mode, press MODE (O) until the MIN symbol (9) appears. The measured minimum temperature (3) is displayed as long as the trigger is pulled or locked on. The real time temperature is shown in the lower part of the display (NORM) (7).

MODE

MINIMUM

MAX

MIN

Page 15

english

MODE

DIFFERENCE

To activate the DIF mode, press MODE (O) until the DIF symbol (9) appears. The difference between the measured max and min temperatures is displayed (3) as long as the trigger is pulled or locked on. The real time temperature is shown in the lower part of the display (NORM) (7).

MODE

AVERAGE

To activate the AVG mode, press MODE (O) until the AVG symbol (9) appears. The average value of measured temperatures (3) is displayed as long as the trigger is pulled or locked on. The real time temperature is shown in the lower part of the display (NORM) (7).

DIF

AVG

Page 16

Open the battery compartment and set the switches ON or Off according to the desired probe type.

(10) NTC - thermistor (11) TC - thermocouple (12) Thermocouple type J (13) Thermocouple type K

MODE TC/NTC

PROBE CONNECTIONS

Connect the probe to the input (U). Press MODE, until the desired probe symbol (7) appears. The probe temperature is shown in the lower part of the display (6). The real time infrared temperature is shown in the main display (3).

Page 17

english

SETUP

HIGH ALARM

The high alarm (HiAl) generates an audible and visual (flashing LED (A) and laser) alarm if the temperature is above the setpoint. To set the alarm value (6), Press SETUP (N) once, and use the Up and Down keys (C). Then press ENTER (D) to activate this setpoint.

The low alarm (LoAl) generates an audible and visual (flashing LED (A) and laser) alarm if the temperature is below the setpoint. To set the alarm value (6), Press SETUP (N) twice and use the Up and Down keys (C). Then press ENTER (D) to activate this setpoint.

SETUP

LOW ALARM

Page 18

To set the time, press SETUP (N) three times. Change the time (2) using the Up and Down keys (C). Then press ENTER (D) for each time segment to activate this time setting. The time appears on the display, is stored within the data logger, and is part of the printer output.

SETUP

TIME

SETUP

DATE

To set the date, press SETUP (N) four times. Change the date using the Up and Down keys (C). Then press ENTER (D) for each date segment to activate this date setting. The date (2) is stored within the data logger and is part of the printer output.

Page 19

SETUP

OFFSET

This function is used with a selected emissivity to add or subtract an offset value (±10°C/±18°F) to the temperature value. Press the Setup button (N) until "Offset" appears in the display. With the arrow keys (C) adjust the display to the corrected value. Press ENTER (D) to

confirm. If OFFSET is used, a symbol (1) appears in the display. The OFFSET feature allows the temperature values for several units to be matched, correcting for the allowed temperature tolerance difference between units. The OFFSET function can also be used to increase the accuracy for a narrow temperature range.

english

MODE

MIN-MAX VALUES

To show the minimum and maximum temperature values during a measurement at the bottom of the display, press MODE (O) until the two values appear (6).

MODE

MAX MIN DIF AVG TC/NTC MIN-MAX

Page 20

DATA LOGGER

HOW TO STORE DATA

To Recall stored data, press the ENTER button (D), without pulling the trigger. Then press the DATA button (M) until RCL appears on the display. A log location will be shown (6). To select another log location, use the Up and Down keys (C).

DATA

RECALL

By pressing the ENTER button (D) the LOG function (6) appears on the display. Pull the trigger (F) and hold it. Aim at the target. Be sure that the laser sighting is inside the target. Gently release the trigger to record the temperature. The next location will be shown on the display. This function is also initiated by pressing the DATA button (M) once.

Page 21

english

The graphic display (4) shows the temperature as a picture. The last ten measurements are shown (B). It is possible to choose between Auto Range and Manual Range. In manual range the user defines the beginning and ending temperature points of the graph.

DISPLAY

GRAPHIC DISPLAY

DISPLAY

AUTO OR MAN RANGE

Press DISPLAY (L) once. Use the Up and Down keys (C) to toggle between ranges. Auto Range is automatically defined by the measured maximum and minimum value. Manual Range (Man Range) is user defined (see DISPLAY, BEGIN section).

Page 22

To set the BEGIN value for the graphic display (Man Range is activated), press DISPLAY (L) until “Begin” is shown at the status bar. Use the Up and Down keys (C) to select the value (6).

DISPLAY

BEGIN (Man. Range)

DISPLAY

END (Man. Range)

To set the END value of the graphic display (Man. Range), press DISPLAY (L) until ”End” is shown at the status bar. Use the Up and Down keys (C) to select the value (6).

Page 23

english

CYCLE allows the adjustment of the display interval. Press DISPLAY (L) until Cycl.: (7) is shown at the status bar. To select the interval time, use the Up and Down keys (C). The default value is pre-set for 0.2 sec.

DISPLAY

CYCLE

Change the setting in the unit by using the DIP switches located in the battery compartment (see BATTERIES section).

Lock: Trigger locked

(on) or unlocked (off).

°C/°F: changes between

°C and °F and date and time format.

Buzzer: Audible alarm

On or Off.

SETTINGS

(PART 1)

Page 24

Lock

C/ F

Digi/Ana

Laserflash

Ltd. Access

Set Default

Backlight

Buzzer

TC-J/TC-K

NTC/TC

Time/Date

Printer

Lock

Digi/Ana

Laserflash

Ltd. Access

Set Default

Backlight

Buzzer

TC-J/TC-K

NTC/TC

Time/Date

Printer

C/ F

Factory Defaults DIP-Switch Settings

Celsius setting shown

Fahrenheit setting shown

SETTINGS

(PART 2)

Backlight: Backlight On or Off. Set Default: Activates the factory defaults

by overwriting listed settings

(see specifications). Ltd. Access: No function buttons will work. Laserflash: The laser flashes in case of

over- or underranging of the

alarm values.

Page 25

english

Printer: (ON) The printer’s data output (RS232) is working as long as the trigger is pulled. The protocol includes:

(14) Date (15) Time (16) Target temperature - infrared (17) Target temperature- probe "X"

See software manual for other printout options.

SETTINGS

(PART 3)

PRINTER

Page 26

Digi/Ana: Digital or Analog output. Digital (RS232) output must be used with the printer or a PC. Analog output (mV/°) is usually used for data logging.

Time/Date: Time or date shown on the display.

SETTINGS

(PART 4)

SETTINGS

(PART 5) CONTACT PROBES

NTC/TC: Thermistor (NTC) or thermocouple (TC).

TC-J/TC-K: Type of thermocouples. The temperature range for the probes:

K: -30°C to 400°C

(-25°F to 750°F)

J : -30°C to 650°C

(-25°F to 1200°F)

NTC: -30°C to 120°C

(-25°F to 250°F)

Note: The temperature ranges given are for the unit’s optional type K thermocouple.

Page 27

english

CLOSE FOCUS MODEL Optical Chart

500

0.93

SPOT DIA. (IN)

SPOT DIA. (mm)

DISTANCE: SENSOR TO OBJECT (mm)

DISTANCE: SENSOR TO OBJECT (IN)

FOCUS POINT D:S = 50:1 FAR FIELD D:S = 12:1

0.24 IN @ 11.8 IN

6 mm @ 300 mm

Close Focus

0.62

15,5

150

0.9

0.75

18,7

100

7.9 9.8

200 250

0.49

0.37

12,3

9,2

1000

2.81

The measured spot size depends on the distance between the object you are measuring and the infrared thermometer. The relationship between distance and spot size is 50:1 at the focus point. The D:S in the far field is 12:1. The best distance between sensor and object is from 10 cm (4“) up to 50 cm (20“).

APPENDIX A

SPECIAL ORDER MODELS

Close-Focus Model

Sub-Zero Model

Temperature Range: -50 to 500°C (-58 to 932°F) Following is the accuracy table for the

sub-zero model when the ambient temperature is 25°C (77°F) ±5°C (9°F):

arget Temperature Accuracy

-5 to 500°C (23 to 932°F) ±1% of reading or ±1°C (2°F), whichever is greater

-30 to -5°C (-22 to 23°F) ±1.5°C (3°F)

-50 to -30°C (-58 to -22°F) ±2°C (4°F)

Page 28

TROUBLESHOOTING

Code Problem Action

-O- Target temperature is over Select target

within unit’s

-U- under range specs

EEPROM-Err EEPROM error Contact

Factory

CalAreaErr calibration errors Contact ProbCalEr Factory

Battery icon Battery is low Replace flashes or Batteries LowBatt

Blank display Battery is dead Replace

Batteries

Laser won’t Low or dead battery Replace work Batteries

Ambient above 45

C (113oF) Operate

unit in 45

(113

F) ambient or below

Display “ON” Display locked “ON” Disconnect

the unit from the PC or power supply

APPENDIX B

TROUBLESHOOTING

Page 29

english

APPENDIX C

MAINTENANCE

Lens Cleaning: Blow off loose particles using clean compressed air. Brush remaining debris away with a camel’s hair brush. Wipe the surface with a moist cotton swab. The swab may be moistened with water or a water based glass cleaner. NOTE: DO NOT use solvents to clean the plastic lens.

Cleaning the Housing: To clean the exterior housing, use soap and water or a mild commercial cleaner. Wipe with a damp sponge or soft rag.

Page 30

CAUTION! Do not stare into beam!

Avoid indirect exposure via reflective materials!

APPENDIX D

LASER WARNING LABEL

SERIAL NUMBER LABEL

Manufacturer, Address

Made in Germany: Month, Year

Model: XXXXXXX Serial: 000000-0000-0000

Power Requirements 3 V

Page 31

english

Avoid static electricity, arc welders, and induction heaters. Keep away from very strong EMF (electromagnetic fields). Don’t leave the unit on or near objects of high temperature.

WARNING: DO NOT touch live voltage with contact probe. Use the wrist strap for cable

support.

APPENDIX E

CAUTIONS

Page 32

Avoid abrupt changes in temperature. If this occurs, allow 40 minutes for thermal stabilization before use to prevent the possibility of inaccurate temperature readings. Use only the power supply from the manufacturer.

APPENDIX E

CAUTIONS (cont.)

Thermal Shock

Page 33

english

APPENDIX F

EMISSIVITIES

Aluminum* 0.30 Asbestos 0.95 Asphalt 0.95 Basalt 0.70 Brass* 0.50 Brick 0.90 Carbon 0.85 Ceramic 0.95 Concrete 0.95 Copper* 0.95 Dirt 0.94 Frozen food 0.90 Hot food 0.93 Glass (plate) 0.85 Ice 0.98 Iron* 0.70 Lead* 0.50 Limestone 0.98 Oil 0.94 Paint 0.93 Paper 0.95 Plastic** 0.95 Rubber 0.95 Sand 0.90 Skin 0.98 Snow 0.90 Steel* 0.80 Textiles 0.94 Water 0.93 Wood*** 0.94

* oxidized ** opaque, over 20 mils ***natural

Page 34

SPECIFICATIONS

Temperature Range - 30 to 900°C (- 25 to 1600°F)

Display Resolution 0.1°C (0.2°F)

Accuracy ± 0.75% of reading or

(Infrared) ± 0.75K (± 1,5°F), whichever is greater

at 25°C (77°F) ambient temperature, ± 2K (± 4°F) for targets below -5°C (23°F)

Ambient derating < 0.05K/K or < 0.05%/K,

whichever is greater at + 25°C (77°F) ± 25K (± 45°F)

Optical Resolution 60:1 (19mm spot size at 1.15 M.)

(Standard Focus) (0.75in. spot size at 3.8 feet)

Optical Resolution 50:1( 6mm spot size at 0.3 M.)

(Close Focus) (0.24in. spot size at 0.98 feet)

Accuracy ± 2K or ± 0.75%,

(Thermocouple K & J) whichever is greater

Accuracy

(Thermistor)

-30 to 0°C (-22 to 32°F) ± 0.6K 0 to 70°C (32 to 158°F) ± 0.4K

70 to 100°C (158 to 212°F) ± 1K

100 to 120°C (212 to 248°F) ± 1.5K

Repeatability ± 0.5% of reading or ± 0.5°C (1°F),

(Infrared) whichever is greater,

± 1°C (± 2°F) for targets below -5°C (23°F)

Response Time (95%) 250 mSec

Hot Spot Detection (30%) 85 mSec

Spectral Range 8 to 14 µm

Ambient Operating Range 0 to 50°C (32 to 122°F)

Storage Temperature -20 to 50°C (-4 to 122°F)

(without batteries)

Analog output 1 mV/°C(°F)

Digital Output RS232

Page 35

english

FACTORY DEFAULTS

Default Range

Emissivity/Gain 0.95 0.10 to 1.50

in steps of 0.01

Emissivity Table Free 30 materials

Mode normal

Hi Alarm 50°C (100°F) -30 to 900°C

(-25 to 1600°F)

Lo Alarm 0°C (32°F) -30 to 900°C

(-25 to 1600°F)

Offset Adjust 0°C (0°F) -10 to 10°C

(-18 to 18°F)

Graphic Display Auto Range Auto Range

/ Man Range

Cycle Time 0.2 sec 0.1 sec to 300 sec

Printer Mode Data Recording 3 modes,

selectable via software

Printer output ASCII

8 bits 1 Stop bit No Parity Baud Rate 9600

Data logger 100 points

pre-set with emissivity 0.95 Lo-Al: 0°C Hi-Al: 50°C adjustable only via Software Accessory

SPECIFICATIONS (Cont.)

Power 2 x 1.5 V Alkaline Type AA

Battery Life 13 hrs. (50% laser and 50% backlight on)

Power supply 7.5 V

200 mA (Using the power supply

(External) the display automatically switches on)

Dimensions 200 x 170 x 50 mm (7.9 x 6.7 x 2 inches)

Tripod Mount 1/4”-20 UNC

Page 36

This instrument conforms to the following standards:

EMC: - EN 61326-1

Safety: - EN 61010-1:1993 / A2:1995

- EN 60825-1:1994

This product herewith complies with the requirements of the EMC Directive 89/336/EEC and the Low Voltage Directive 73/23/EEC.

This instrument conforms to the Standards of the European Community.

CE CONFORMITY

NIST/DKD CERTIFICATION

The temperature sources used to calibrate this instrument are traceable to the U.S. National Institute of Standards and Technology (NIST) and the Deutscher Kalibrierdienst (DKD). NIST and DKD certificates are available as an option from the manufacturer.

Page 37

Infrared Thermometer with LinTech* Bluetooth module

This infrared thermometer allows wireless data transfer with the aid of Bluetooth technology.

System requirements:

- Windows-compatible computer (operating system 98, ME, 2000, XP or higher)

- Bluetooth system fully installed on the computer (not included)

- BlueTool conﬁguration software (included) After the Bluetooth system has been installed as required on the computer, the thermometer can be operated in two different modes:

1. Passive mode

In this mode, the thermometer is constantly activated and is searched for by the computer. This is advantageous when continuous temperature monitoring should take place.

Attention: As a result of continuous operation, the thermometer‘s batteries are discharged much faster then during intermittent use.

Proceed as follows:

1. Switch on the thermometer with the measurement button.

2. Press the Setup button on the display. The words “Bluetooth on-up, off-down“ appear. Activate Bluetooth with the Up button below the display. A lightning symbol in the display indicates that the Bluetooth module is ready

- the lock symbol signals continuous operation.

Note: If the automatic battery test ﬁnds that the battery is too weak here (display: “LowBat - no BT“), the Bluetooth application is not started.

3. Now start the Bluetooth software on your computer and allow it to search for and connect the Bluetooth devices.

(Please refer to the relevant operating instructions for how this happens in the case of your Bluetooth application)

4. The thermometer is reco-

gnized as “IR Therm....“. The

requested PIN is “1234“ when the unit is delivered. With the right mouse button, click on the symbol for the device and select “Eigenschaften/Properties“ in the submenu. Make a note of the ComPort‘s number. The green LED on the left above the thermometer‘s display signals the existing connection.

5. If you have not already done so, now start the relevant application software for the thermometer. Before you can exchange data between the thermometer and computer, you must set in this software the number of the ComPort found under Point 4.

* Please refer to the LinTech speciﬁcations overview for the exact speciﬁcation of the Bluetooth module used.

6. Press the Setup button and then the Down button below the display to end the Bluetooth connection.

If data is being transferred at this time, you cannot deactivate the Bluetooth module.

Important note: The above refers to the thermo

meter as delivered. It can be programmed on a user-deﬁned basis with the aid of the “BlueTool“ software. For details, see the section “User-deﬁned conﬁguration“.

2. Active mode

After switching on, the thermometer automatically establishes contact with the computer, the address of which has been programmed for the thermometer. This is done by the supplied BlueTool software

(for details, see the section “User-deﬁned conﬁguration“). The active mode is particularly suitable for

intermittent operation of the infrared thermometer. The thermometer‘s power consumption is signiﬁcantly less than in passive mode.

Making contact with the computer and data transfer

Open the thermometer‘s handle and switch the DIL switch 9 to ON (Master). Switch on the thermometer with the measurement button.

In the display, a framed lightning symbol points to the Bluetooth module in active mode and the thermometer starts to search for the associated computer. When the connection has been made, a green LED lights up on the left above the display and the color of the Bluetooth symbol changes on the connected computer. You can now transfer data to the thermometer‘s user software. The thermometer automatically switches itself off after approximately 7 seconds if the measurement button is not pressed and if there is no data transfer.

3. User-deﬁned conﬁguration

Preparing the thermometer

Open the device‘s handle and set the DIL switch 5 to ON (Set Default). “Default ?“ appears in the display. At this point in time, it is essential for the DIL switch 9 to be set to OFF (Slave). Now start the Bluetooth module as described under “Passive mode“.

Programming the thermometer with the aid of BlueTool

Start the Bluetooth software on your computer and start the device search. Make the connection by double clicking on the symbol for the in-frared thermometer (signaling by the green LED on the left above the display and the color of the Bluetooth symbol changes on the computer). The properties can be displayed by right-clicking on the service under



























Page 38

Serial Ports. Note the number of the connected ComPort. Now start the BlueTool application, enter the ComPort number just found and then click on Connect. A conﬁguration window opens.

It shows various details of

the device and several ﬁelds for calling up additional setting possibilities. First open ”Device settings“.

Here you can give the thermometer a name and change the PIN. Attention: Be sure to make a note of this PIN, because you will be asked to provide it for encrypted transmissions and connections with the aid of the BlueTool software. SPP must be selected as the ComHardware mode and the connection indicator must be deactivated. Conﬁrm the settings with OK. Now open ”Master settings“.

Here, place a tick in front of both “Master - automatic connection attempt“ and “Master attempts to establish connection when starting“. The address of the current computer is in the Remote BTA ﬁeld

Note: Only if you wish to address another computer (e.g. PDA or notebook) with the thermometer later must you enter the Bluetooth address of the other computer here. The same applies to the PIN in this window. It is then binding for the connection with the other computer.

It is therefore essential to note it.

Click on OK. In the main window, ﬁrst

click on “Save

settings“ - the data is transferred to the thermometer.

With “Update“, you can call up the current settings to check them.

Then end the program. Now switch the DIL switch 5 in the thermometer‘s handle back to OFF. Press the DOWN button under the display. Now wait until the device switches itself off automatically (approximately 7 s).

FCC NOTICE

WARNING: Modiﬁcations not expressly approved by this company could void the user‘s authority to operate the equipment.

FCC ID: STG-DFQMX4.
