Raytek MX4+NI Operating Manual
HIGH PERFORMANCE
INFRARED THERMOMETER
english
Introduction 3
Features/Accessories 3
Functions (User interface) 4
Display 4
Batteries 5
Measurement (Quick Start) 5
Measurement (Continuous) 6
Measurement (Spot size) 6
Selecting a function 7
Laser On/Off 7
Emissivity explained 8
Emissivity adjustment 8
Emissivity Table of Values 9
Emissivity Unknown value 9
Mode Maximum 10
Mode Minimum 10
Mode Difference 11
Mode Average 11

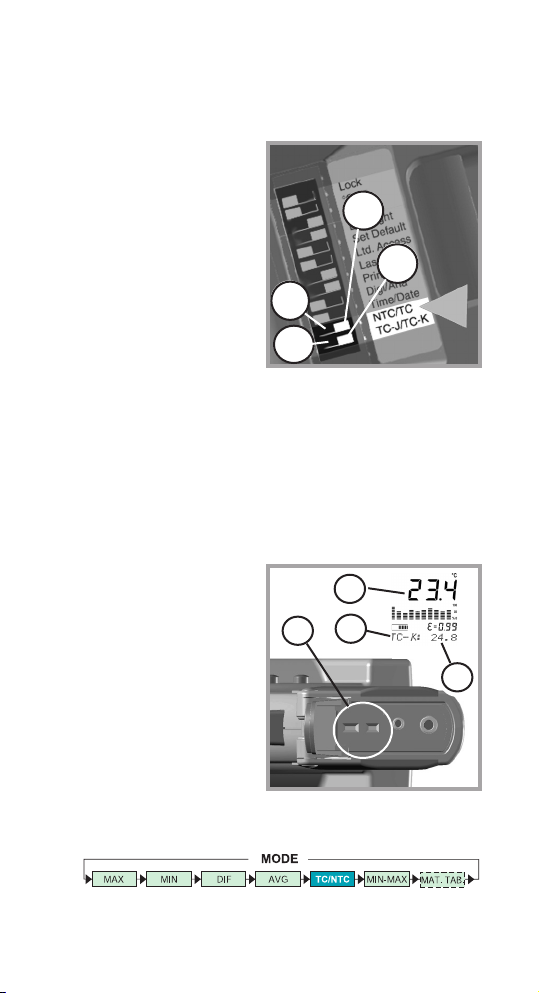

Mode Probe connection 12

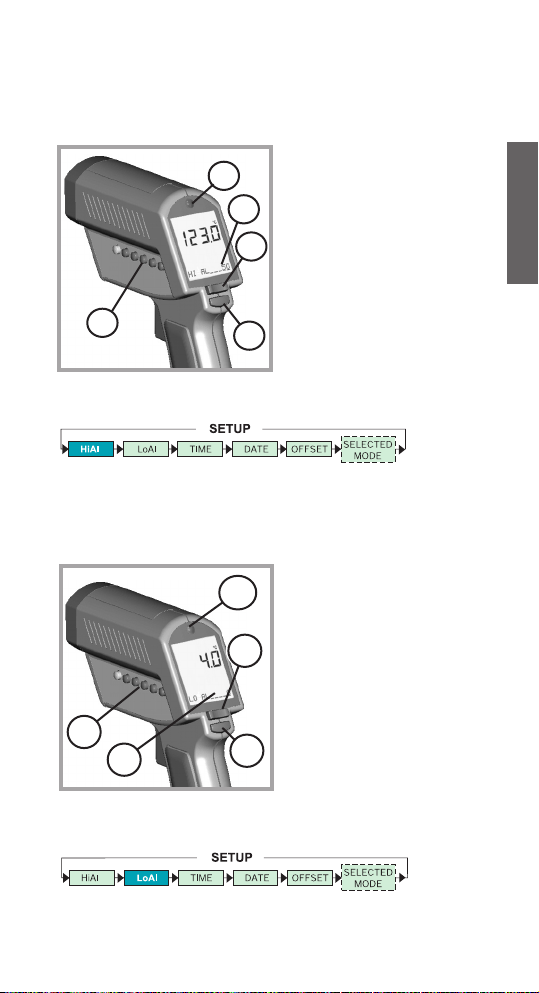

Setup High Alarm 13
Setup Low Alarm 13

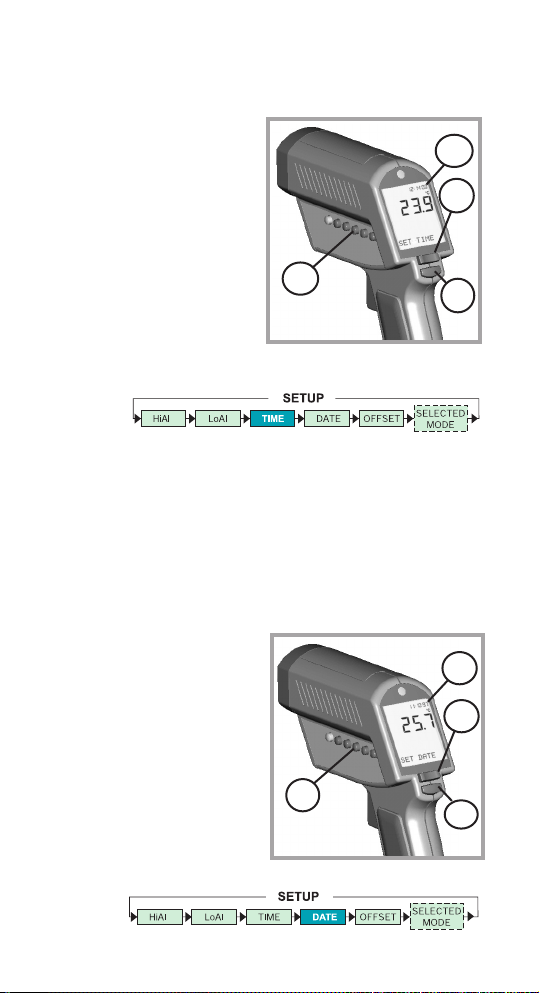

Setup Time 14
Setup Date 14

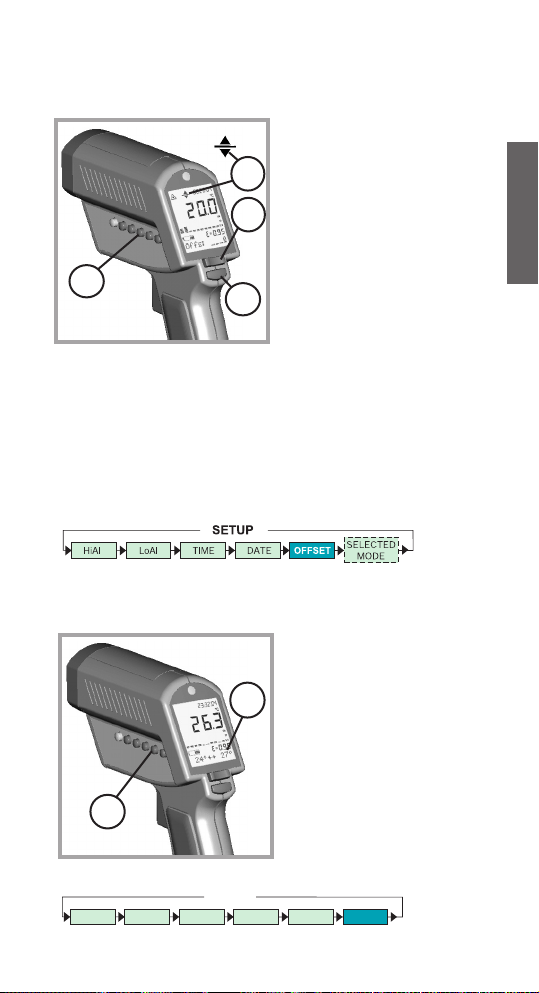

Setup Offset 15
Mode Min-Max values 15

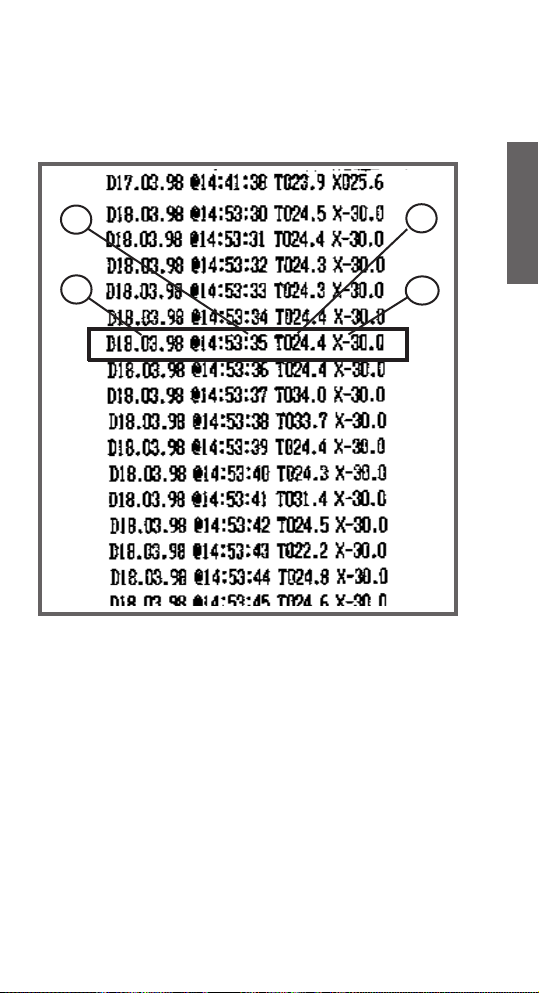

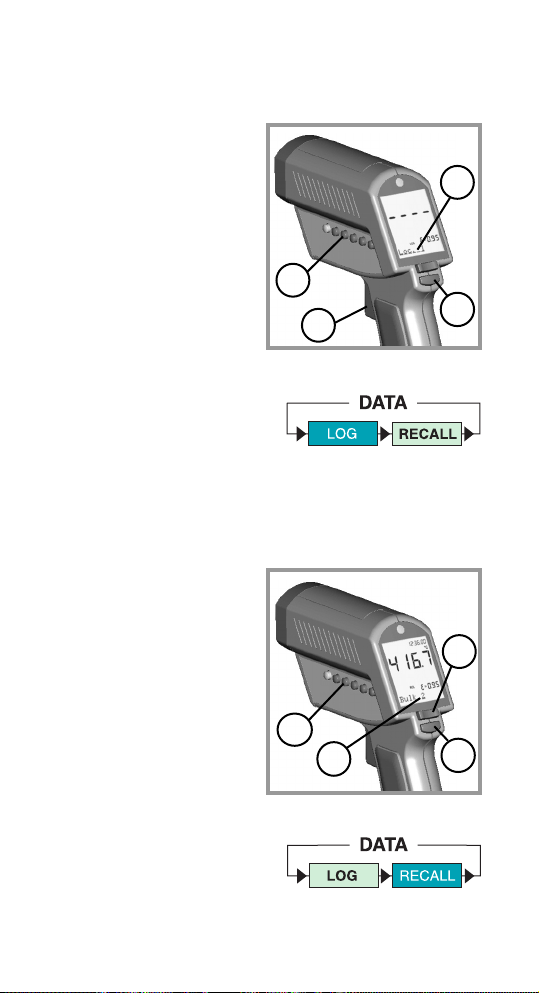

Data Logger (How to store data) 16
Data Recall 16

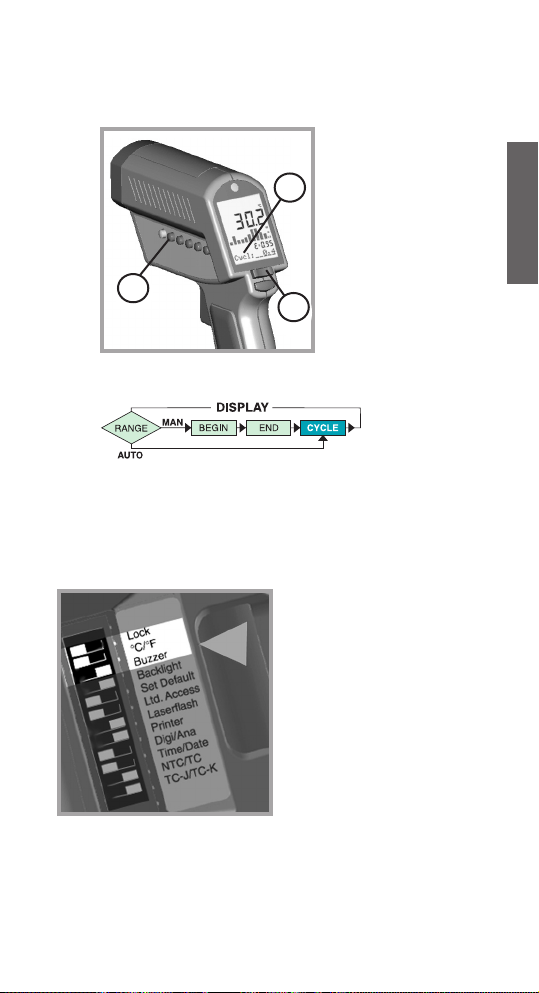

Display (Graphic Display) 17

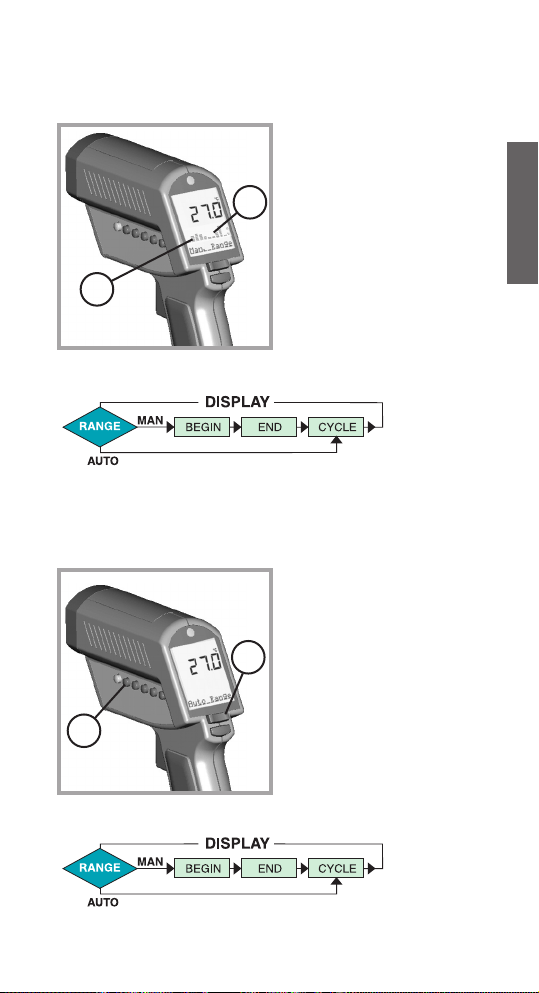

Display (Auto or Man. range) 17

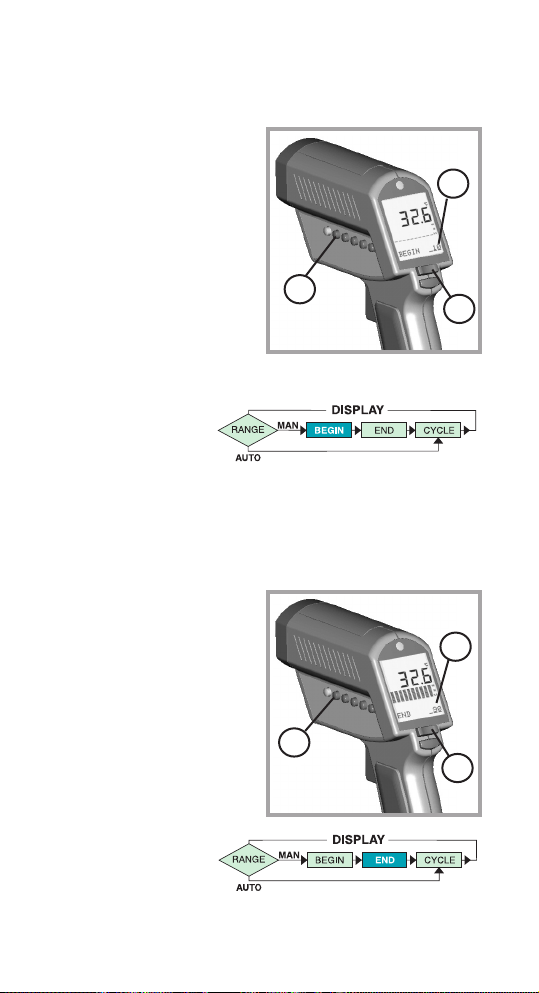

Display Begin (Man. range) 18
Display End (Man. range) 18
Display Cycle 19

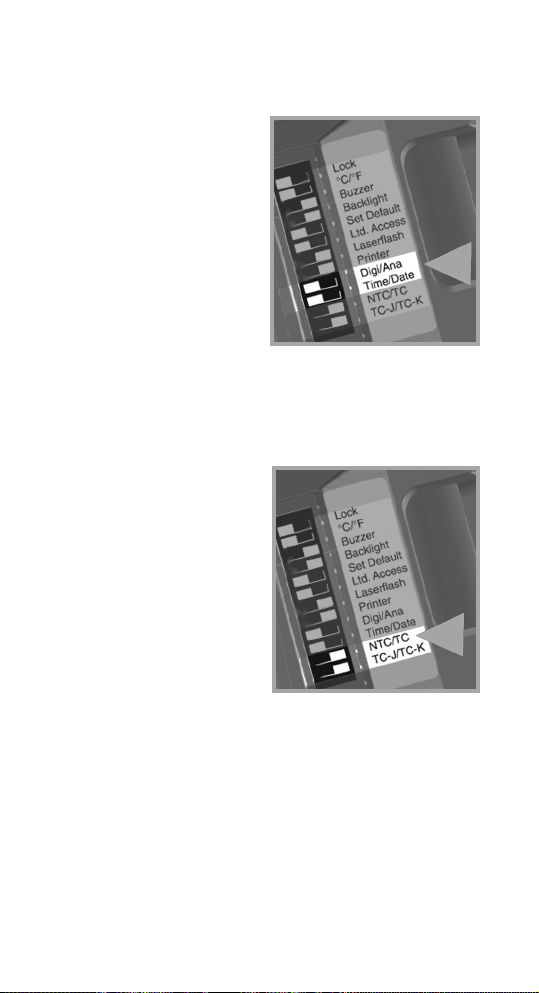

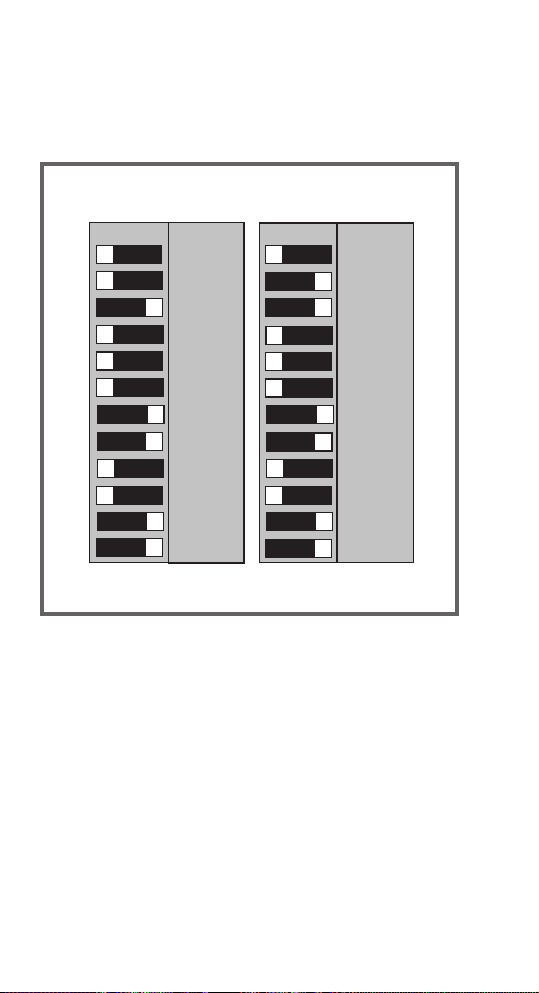

Settings (DIP switch settings) 19
Appendix A: Special order models 23
Appendix B: Troubleshooting 24

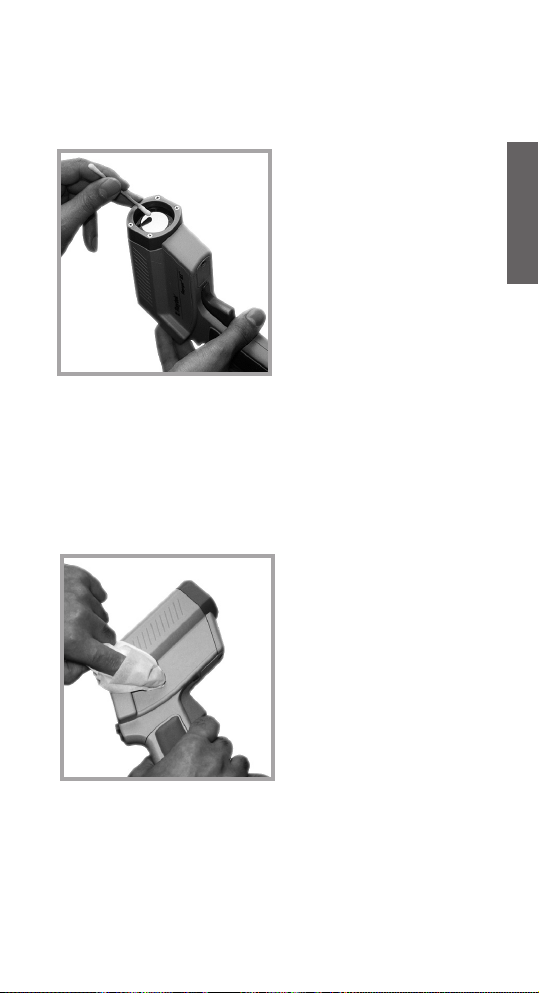

Appendix C: Maintenance 25

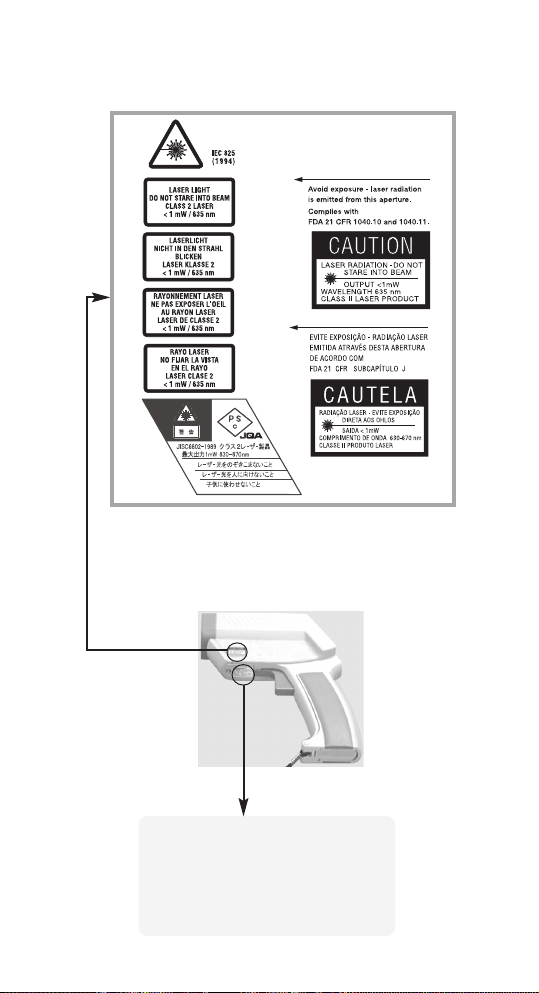

Appendix D: Laser Warning Label 26

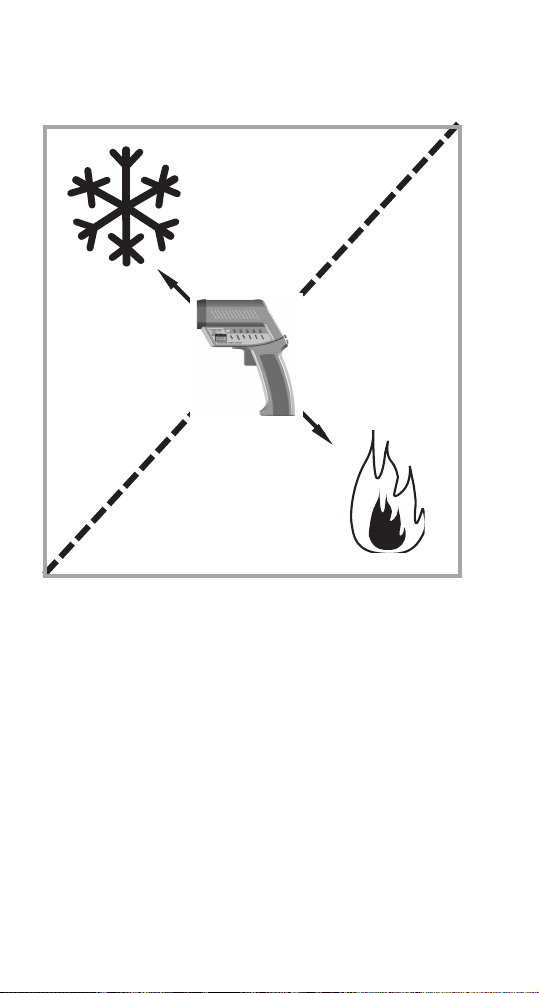

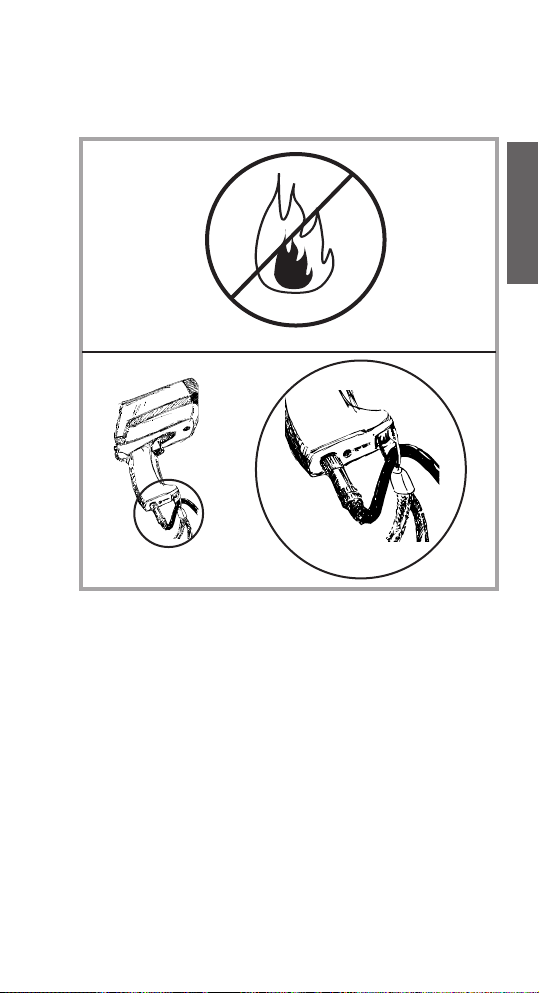

Appendix E: Cautions 27
Appendix F: Emissivities table 29
Specifications 30
Factory Defaults 31
NIST/DKD CE Conformity 32
Table of Contents
english
We hope you enjoy using
your infrared thermometer!
It measures the amount of
infrared energy emitted by
a target object, and
calculates the temperature
of that object´s surface.
INTRODUCTION
Your thermometer includes:
- Laser sighting
- Adjustable emissivity
- High/Low Alarm
- MAX, MIN, DIF, AVG
- Data Logger (100 points)
- Trigger lock
- Graphic display ... and
more!
FEATURES
ACCESSORIES
(optional)
The accessories
package for your infrared
thermometer, if ordered,
includes:
- external power supply
- thermocouple type K
- Windows-based software
- RS232 cable
OPTIONAL POUCH
The optional pouch
comes with a belt clip
and helps to protect your
infrared thermometer
when not in use.
3
4
Function keys and display:
(A) Visual and audible
alarm
(B) Display
(C) Up and Down keys
(D) Enter
(E) Handle and battery
compartment
(DIP switches for
adjustments are
inside handle)
(F) Trigger
(G) Tripod mount
(H) 6 main function keys
FUNCTIONS
USER INTERFACE
Displayed functions:
(1) Laser condition /
Lock symbol
(2) Time (or date)
(3) Main temperature
display
(4) Graphic display
(5) Emissivity value
(6) Status bar
(7) Mode indicator
(8) Battery life indicator
(9) MAX, MIN, DIF, AVG
symbols
DISPLAY
A
B
C
D
E
F
G
H
1
2
3
4
5
6
7
8
9
english
5
BATTERIES
To open the battery
compartment, press
gently on the top part of
the handle (1) to release
the catch (2) and pivot
the grip as shown in the
figure.
Orient the batteries (two
alkaline R6 (AA, UM3))
as shown on the housing.
MEASUREMENT
QUICK START
To take a temperature
measurement, hold the
unit as shown. Aim at the
target. Pull the trigger (F).
The temperature of the
object being measured is
shown on the display (B).
The temperature will be
displayed for seven
seconds after the trigger
is released.
The unit automatically switches “off” after
7 seconds if a function key is not pressed.
The last settings are stored. The display
returns to the last mode selected.
To recall the last reading, press ENTER
without pulling the trigger.
F
B
2
1
6
MEASUREMENT
CONTINUOUS
Open the battery compartment and switch LOCK
"on" to lock the unit on.
You may mount the unit on
a tripod, using the tripod
mount. Pull the trigger for
continuous temperature
measurement. (The laser
will not be locked on.)
To unlock, switch LOCK
off.

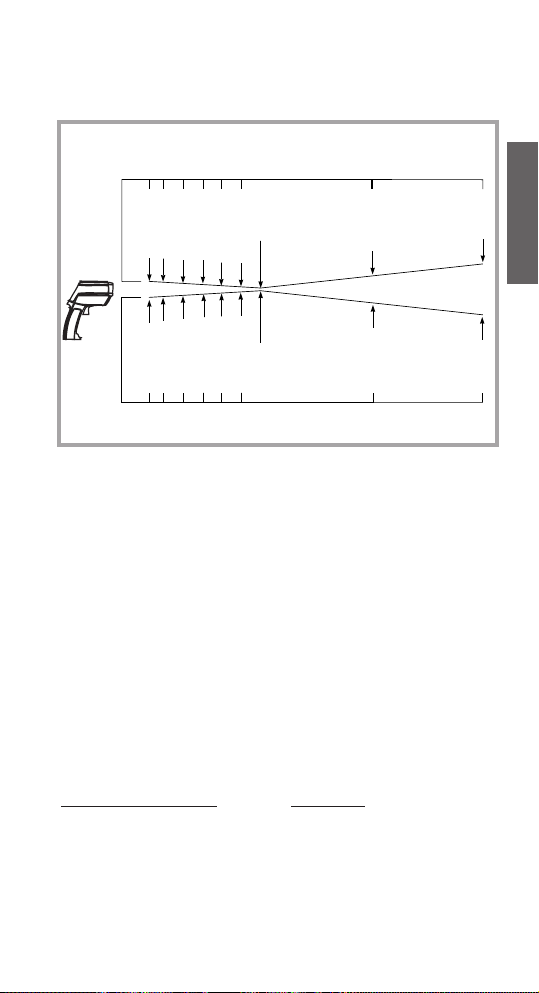

The measured spot size depends on the distance
between the object you are measuring and the infrared
thermometer. The relationship between distance and
spot size is 60:1 at the focus point. The D:S in the far
field (>33ft/10m) is 35:1.
MEASUREMENT
SPOT SIZE
STANDARD MODEL
Optical Chart
DISTANCE: SENSOR TO OBJECT (IN)
0
30
20
36
0.76 IN @ 46 IN
SPOT DIA. (IN)
1.0
0.9
0.81
0.87
84
60
46
48
72
1.51
1.2
0.82
1.85
100
2.3
120
108
2.9
2.5
24
24
0
250
500
100
SPOT DIA. (mm)
DISTANCE: SENSOR TO OBJECT (mm)
FOCUS POINT D:S = 60:1 FAR FIELD D:S = 35:1
29.0
19 mm @ 1150 mm
1000
1500
44.0
2000
58.0
2500
72.0
3000
19.8
23
The laser sight simplifies
sighting of the measurement object. It shows the
spot size that includes the
measured target.
To turn the laser on or off
press the LASER button
(K) when the trigger is
pulled. A laser symbol (1)
appears when the laser is
on. The laser automatically
turns off if you release the
trigger.
7
english
To select a function, first
turn the unit on by pulling
the trigger (F). Then push
the button of the desired
function (H). To change
functions, press ENTER
or the function button
again, and then the new
function button.
SELECTING
A FUNCTION
LASER
ON/OFF
H
F
laser ON
symbol
K
1
8
The amount of infrared
energy radiated by an
object depends on its
emissivity and its
temperature.
The emissivity depends on
the material and its surface
characteristics. For more
accurate readings, adjust
the emissivity value for
the type of material being
measured.
EMISSIVITY
EMISSIVITY EXPLAINED
To adjust the emissivity
value, press EMISS (P).
Use the Up and Down
keys to select “Free“
(“F
ree” will have a
flashing underline) (7).
Press EMISS again.
“Free” is not underlined,
and the emissivity icon (5)
flashes. Use the Up and
Down keys (C) to adjust.
Press ENTER (D) to
activate this setting.
EMISSIVITY
ADJUST EMISSIVITY
P
5
7
C
D
Target
Transmitted energy
Reflected energy
Emitted energy
EMISSIVITY
To adjust the unit’s
emissivity value for a
material with unknown
emissivity, plug in the
probe.
Pull the unit’s trigger.
Place the measuring
tip of the probe on the
area to be measured.
Wait for the reading to
stabilize.
EMISSIVITY
TABLE OF VALUES
To choose the emissivity
of a material, press
EMISS (P). The display
shows a material name
(7), an emissivity value,
and the calculated
temperature value (5). To
choose another material,
use the Up and Down
keys (C). Press ENTER
(D) to activate this setting.
EMISSIVITY
UNKNOWN VALUE
Note the indicated probe temperature reading.
Release the trigger. Pull the trigger again. Measure
the same area using infrared measurement. Press
the emissivity button (P). Use the Up and Down keys
(C) to select the material name “Free” which will be
shown in the display (7). Press the emissivity button
(P) again until the emissivity sign (5) flashes. Use
the arrow keys (C) to change the emissivity value
until the temperature matches the probe’s reading.
9
english
P
7
5
C
D
O
10
To activate the MAX mode,
press MODE (O) until the
MAX symbol appears (9).
The measured maximum
temperature is displayed
(3) as long as the trigger
is pulled or locked on. The
real time temperature is
shown in the lower part of
the display (NORM) (7).
MODE
MAXIMUM
To activate the MIN mode,
press MODE (O) until the
MIN symbol (9) appears.
The measured minimum
temperature (3) is
displayed as long as the
trigger is pulled or locked
on.
The real time temperature
is shown in the lower part
of the display (NORM) (7).
MODE
MINIMUM
O
9
3
7
MAX
9
3
7
MIN
O
3
11
english
MODE
DIFFERENCE
To activate the DIF mode,
press MODE (O) until the
DIF symbol (9) appears.
The difference between
the measured max and
min temperatures is
displayed (3) as long as
the trigger is pulled or
locked on. The real time
temperature is shown in
the lower part of the
display (NORM) (7).
MODE
AVERAGE
To activate the AVG mode,
press MODE (O) until the
AVG symbol (9) appears.
The average value of
measured temperatures
(3) is displayed as long
as the trigger is pulled or
locked on. The real time
temperature is shown in
the lower part of the
display (NORM) (7).
O
9
7
DIF
3
7
AVG
9
