Raytec WB1 Specsheet
BRACKET SUMMARY
AI CIRCULAR BRACKET
Supplied as standard with all Raytec adaptive illuminators. Provides a large degree of flexibility of mounting options. Can be attached
directly to a wall, ceiling and any of the brackets listed in this document.
300 series is supplied with a larger version of this bracket.
25 series is supplied with a U-Bracket.
300 Series AI 25 and Fusion Products
72.00
UK Tel: +44 (0) 1670 520055 Fax: +44 (0) 1670 819760
Americas (Toll Free) Tel: +1 888 505 8335
49.50
Assembly Notes: Access to the back of the bracket maybe
limited, it is possible to remove U/AI Circular / Large AI Circular
bracket from illuminator. Mount AI circular bracket to area of
your choice - fix illuminator to its AI circular bracket as shown
below. Set the vertical angle of illumination then tighten screws.
www.rayteccctv.com
1
WB1 WALL BRACKET
Designed to mount Raytec illuminators to walls or to Raytec PBC brackets (see page 3 and 4) to provide full pan/tilt adjustment
when used with AI circular bracket.
Assembly Notes: Mount WB1 to wall or Raytec PBC-1/
PBC-2. Mount illuminator to WB1 as shown below. Set the
vertical/horizontal angle of illumination then tighten screws.
UK Tel: +44 (0) 1670 520055 Fax: +44 (0) 1670 819760
Americas (Toll Free) Tel: +1 888 505 8335
www.rayteccctv.com
2

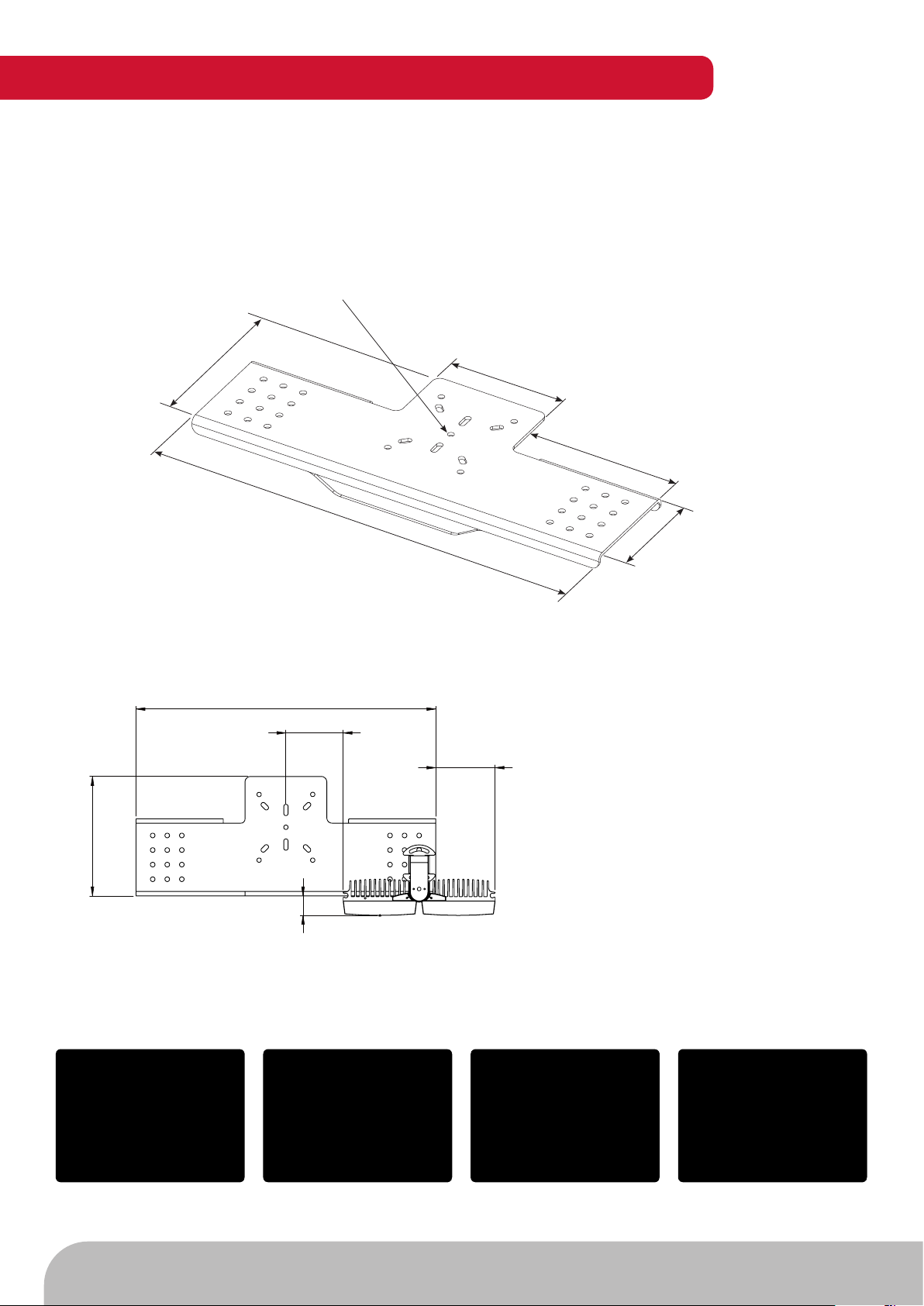

PBC-1
Designed to mount Raytec illuminators to circular poles / columns.
To fit poles approx minimum 50mm up to 170mm (other diameters available on request).
Provides flat mounting platform for 1x RAYMAX or RAYLUX illuminator and Voyager Range. (PSU mounted elsewhere)
Large Circular Bracket
Assembly Notes: Mount PBC- 1 to pole using mounting clips – position and tighten. Access to the back of the bracket maybe limited,
it is possible to remove U/AI Circular / Large AI Circular bracket from illuminator, mount bracket to PBC- 1 as shown below.
Fix illuminator to its bracket as shown below. Set the vertical angle of illumination then tighten screws. (please note full pan and tilt
capability can be possible by mounting an illuminator to PBC- 1 bracket using a WB1 bracket – see page 2)
UK Tel: +44 (0) 1670 520055 Fax: +44 (0) 1670 819760
Americas (Toll Free) Tel: +1 888 505 8335
www.rayteccctv.com
3
