Soft Key Labels:

Change when you press a key.

Default soft key labels are shown.

ROUTE GOTO SCREEN

FIND SHIP

ALARMS

DISPLAY

GAIN

DISPLAY

SEA

MOB

MARKS

MULTI

VRM/EBL

RANGE

GAIN and SEA

Not used in Chart Mode.

MULTI

Controls display contrast and brilliance and key lighting.

- Press to display slider, options and soft keys.

- use trackball to highlight option in list. Press soft key (if appropriate) to toggle

CONT

highlighted option between ON/OFF.

BRILL

Turn knob to adjust slider setting of

LIGHTS

highlighted option. Press ENTER to finish.

Controls display mode and windows.

- Press for display mode and soft keys display.

- Press again to toggle through display modes, then ENTER.

- Press and hold for 2 seconds for full chart display of upper window.

WINDOWS

OFF ON

Press WINDOWS soft key to toggle window on/off, or return to full screen.

MARKS / MOB

Controls waypoint, and Man Overboard function.

- Press to display waypoint soft keys.

- Press and hold for 2 seconds to activate or cancel MOB.

PLACE WPT AT CURSOR

SELECT WINDOW

PLACE WPT AT VESSEL

WAYPOINT

LIST

LOAD/SAVE USER CARD

POWER

Soft keys

Press to select option, or highlight option or slider. Labels change when you press soft/dedicated key. Elipses (...) after the text indicate that pressing soft key leads to a further display of soft key options.

ENTER Confirms selection and (if appropriate) clears current soft key labels. It either performs the selected task, accepts changes, or leads to display of more options. When cursor text is displayed, cursor takes control of the object. When arrow-head cursor symbol is displayed, drops the object under cursor control.

CLEAR Cancels operation in progress and returns to previous display. Deletes an object/function under cursor control.

Trackball

Controls cursor position on screen, the sliders and setup options.

POWER

Press and hold until unit beeps to turn on display. Press to toggle between Standby and Transmit. Press for 3 seconds to turn off display.

ENTER CLEAR MENU

ALARMS Used to set up the chartplotter alarms.

- Press to display the Alarms set up menu and soft keys, the soft keys correspond to the selected alarm.

ALARMS SET UP

ARRIVAL ALARM 0.01nm

OFF TRACK ALARM

ANCHOR ALARM

COUNTDOWN TIMER

ALARM CLOCK

Use the trackball to select the alarm, then use the softkeys to adjust parameters and/or toggle the alarm on/off. Press ENTER to finish.

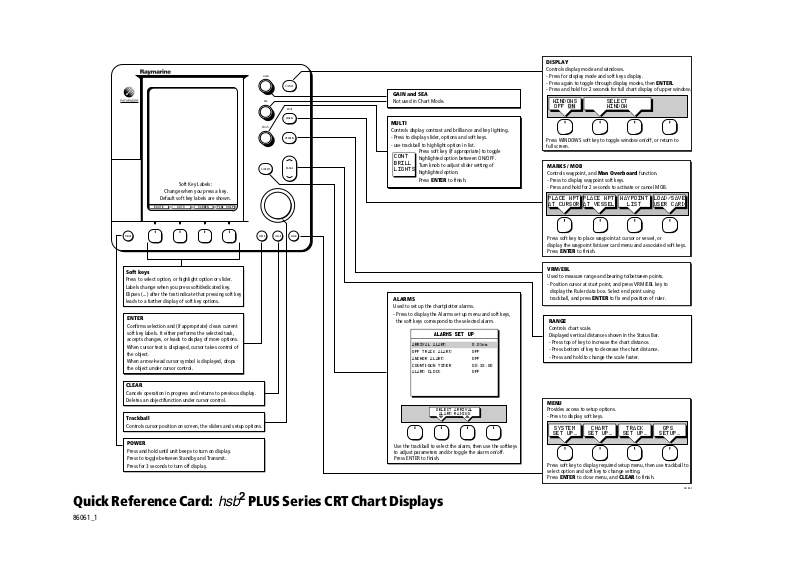

Quick Reference Card: hsb2 PLUS Series CRT Chart Displays

86061_1

SELECT ARRIVAL

ALARM RADIUS

OFF

00:33:00

OFF

Press soft key to place waypoint at cursor or vessel, or display the waypoint list/user card menu and associated soft keys. Press ENTER to finish.

VRM/EBL

Used to measure range and bearing to/between points.

- Position cursor at start point, and press VRM/EBL key to display the Ruler data box. Select end point using trackball, and press ENTER to fix end position of ruler.

RANGE

Controls chart scale. Displayed vertical distances shown in the Status Bar.

- Press top of key to increase the chart distance.

- Press bottom of key to decrease the chart distance.

- Press and hold to change the scale faster.

Provides access to setup options.

- Press to display soft keys.

SYSTEM

SET UP¬

Press soft key to display required setup menu, then use trackball to select option and soft key to change setting. Press ENTER to close menu, and CLEAR to finish.

CHART

SET UP¬

TRACK

SET UP¬

GPS

SETUP¬

D4189-2

Default Display

Chart Range

Chart Boundary

Waypoint

Object data box -

for object selected by cursor

ROUTE

MAKE

ROUTE

EDIT

ROUTE

CLEAR ROUTE

Soft Keys

Use the soft keys to set up a series of waypoints as a route. Use the trackpad to move the cursor then press PLACE WAYPOINT, continue until the route is complete. Press ACCEPT ROUTE to finish.

Use the softkeys to edit the current route. Press UNDO WAYPOINT to remove the last waypoint in a route and PLACE waypoint to add a waypoint at the end of the route. Press ACCEPT ROUTE to finish.

Default soft key labels

These can be turned off: press any soft key to redisplay them. Different labels are displayed when you press a key.

PLACE

UNDO

WAYPOINT

PLACE

WAYPOINT

UNDO

WAYPOINT

ROUTE

USE WPT

LIST

USE WPT

LIST

Status Bar

Vessel Position

Cursor -

selecting chart object

Depth Area

Cursor position box

Shows the current cursor position as either Range/Bearing or Lat/Long. You can move this box to your preferred position on the screen or turn it off.

ROUTE

REVERSE

ROUTE

SAVE

ROUTE

LIST

Context Sensitive Cursor Control

When the cursor is positioned over special features on the display, a text label appears to identify the feature. Depending on the feature, you can then move, re-size or delete it.

MORE¬

Press to reverse the waypoint order in the current route.

Use to save and name the current route.

Soft Keys

SHOW

ROUTE

ERASE ROUTE

NAME ROUTE

YES NO

ROUTE

INFO

Move (for example, a WPT)

MOVE

WAYPOINT

NAME

ROUTE

WPT

GOTO

WAYPOINT

GOTO

CURSOR

ROUTE

Text Label

A-B BOX COG HDG MRK MOB POS RTE TIDE WPT

Feature

Ruler Line Data Box (any type) Course Over Ground vector Heading vector Radar Mark Man Overboard Marker Vessel position Route Leg Tide vector Waypoint

Delete (for example, a WPT)

WPT

ERASE

WAYPOINT

Soft Keys

GOTO

CURSOR

GOTO

CURSOR

ROUTE

RESTART

XTE

WAYPOINT

ADVANCE

GOTO

WAYPOINT

Use to navigate to a waypoint selected from the waypoint database list. Use the trackpad to select the waypoint then press the soft key to start the GOTO.

STOP GOTO

Press to navigate to the cursor position. When you press GOTO CURSOR, a temporary waypoint is added at the cursor position and the GOTO is started. Press STOP GOTO to cancel.

STOP

Press to clear the current route from the display, if it is not saved you are prompted to save the route.

Use the soft keys to manage the route database list. Use the trackpad to select a route then press the required softkey.

Press to follow the current route. Use the softkeys to cancel the follow, or to modify the route whilst it is being followed
