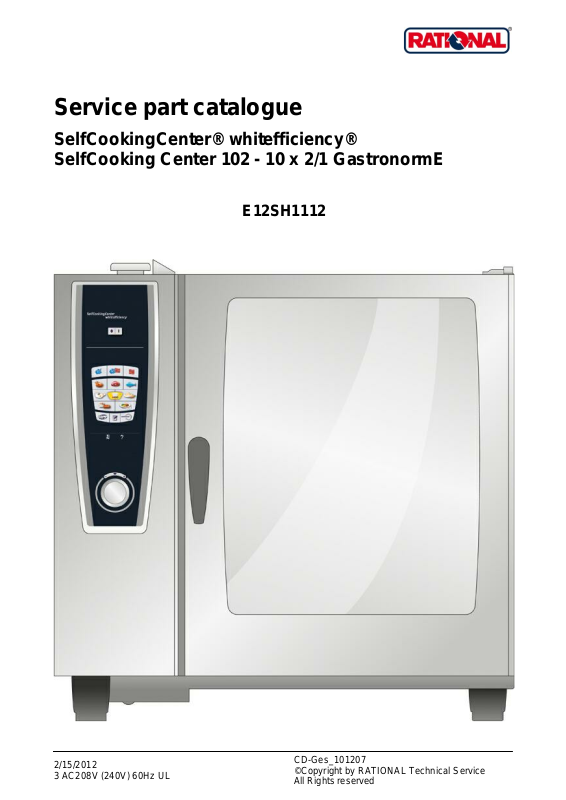

Service part catalogue
SelfCookingCenter® whitefficiency®
SelfCooking Center 102 - 10 x 2/1 GastronormE
E12SH1112
2/15/2012
3 AC208V (240V) 60Hz UL
CD-Ges_101207
©Copyright by RATIONAL Technical Service
All Rights reserved
SelfCooking Center 102 - 10 x 2/1 GastronormE
E12SH1112
SelfCookingCenter® whitefficiency®
2
3 AC208V (240V) 60Hz UL
2/15/2012
SelfCooking Center 102 - 10 x 2/1 GastronormE
E12SH1112
SelfCookingCenter® whitefficiency®
Pos. Part No. Description Qty.
1 Control panel 1
2 Electrical installation 1
3 ClimaPlus 1
4 Steam generator 1
5 Hot air heating 1
6 Motor and fan wheel 1
7 Interior cabinet 1
8 Door 1
9 Exterior cabinet 1
10 Water 1
11 CleanJet + Care 1
13 Standard accessory 1
2/15/2012
3 AC208V (240V) 60Hz UL
3
SelfCooking Center 102 - 10 x 2/1 GastronormE
E12SH1112
Control panel
4
3 AC208V (240V) 60Hz UL
2/15/2012
SelfCooking Center 102 - 10 x 2/1 GastronormE
E12SH1112
Control panel
Pos. Part No. Description Qty.
1 87.01.005 Control panel insert with overlay *RAT* 1
2 42.00.112 Control pcb *TFT* 1
3 42.00.081 MMI pcb 1
4 40.03.467 Cable On-Off switch MMI 1
5 40.03.515 Cable MMI - TFT 1
6 40.03.516 Cable MMI - CPU 1
7 16.02.062 Dial f. pulse generator 1
9 40.00.404 Pulse generator 1
12 16.01.910 Cover f. control pcb w. gasket 1
13 16.01.908 Sealing f. panel insert 1
2/15/2012
3 AC208V (240V) 60Hz UL
5
SelfCooking Center 102 - 10 x 2/1 GastronormE
E12SH1112
Electrical installation
6
3 AC208V (240V) 60Hz UL
2/15/2012
SelfCooking Center 102 - 10 x 2/1 GastronormE
E12SH1112
Electrical installation
Pos. Part No. Description Qty.
1 40.00.453 Solid state relais 6
2 10.00.061 Pan head screw Torx T20 M4x12 12
3 10.00.061 Pan head screw Torx T20 M4x12 2
4 1204.0120 Tooth lock washer A4,3 2
5 40.03.537 Heat sink 3 SSR 2
6 40.03.319 Mounting device heat sink SSR 1
7 10.00.507 Pan head screw Torx 5/16" T20 18
8 40.03.499 Fan housing *UL* 1
9 40.03.428 Cooling fan 1
10 40.03.257 Converter 230VAC 24VDC 1
16 42.00.080 Control pcb *Sicotronic* 1
17 42.00.128 SD-memory card 4GB 1
18 40.04.000 Mounting base for control pcb 1
19 10.00.989 Rivet with screw 2
20 10.00.243 Spacer M4x8 1
21 1104.0121 Hex nut M4 self locking 2
22 40.03.756 Fixing clip f. pcb 1
23 40.03.533 Fixing clip f. pcb 4
24 40.03.998 Bus cable 1.15m 1
35 40.04.034 Loudspeaker K 64 WPT 1
A Electrical installation 1
2/15/2012
3 AC208V (240V) 60Hz UL
7
SelfCooking Center 102 - 10 x 2/1 GastronormE
E12SH1112
Electrical installation
8
3 AC208V (240V) 60Hz UL
2/15/2012
SelfCooking Center 102 - 10 x 2/1 GastronormE
E12SH1112
Electrical installation
Pos. Part No. Description Qty.
1 40.03.360 Contactor assembly 1
2 40.03.981 Cable clock switch USA 1
6 40.03.484 Cable control harness 1
8 40.01.329 Dry up protector 183° 1
9 3014.0302 Hex nut M10 for dry-up protector 1
10 40.01.482 Safety temperature limiter 365°C 1
11 3014.0327 Hex nut M10x1,0 1
12 40.03.666 Contactor B&J K3-74B00 190 R 1
13 40.02.641 Auxilliary contact B&J HN10 N/O 1
17 40.03.348 Control transformer T1 1
18 10.01.065 Hex nut M5 1
19 40.03.404 Mounting support transformer 1
20 10.01.065 Hex nut M5 1
21 40.02.425 Varistor 1
25 4001.0224 Fuse 6.35x32mm 2
25 40.01.588 Fuse SC-8A 10x38 2
26 40.02.512 Fuse holder 2x6.3A 1
26 40.01.487 Fuse holder 2pol 1
29 10.00.365 Pan head screw Torx M3x20 2
37 40.01.611 Terminal block grey WKN 70/U 3
39 40.01.610 Earth terminal 20 WKN 70SL/U 1
44 4001.1203 End plate for mounting rail 1
47 40.03.282 Drip protection for air inlet filter 1 UL 1
48 10.00.709 Hex nut M6 w. locking 1
49 10.01.218 Edge protection profile 1
50 40.03.755 Cover behind 2 UL 1
51 10.00.365 Pan head screw Torx M3x20 2
54 40.04.122 Cover for Fuse *UL* 2
2/15/2012
3 AC208V (240V) 60Hz UL
9
SelfCooking Center 102 - 10 x 2/1 GastronormE
E12SH1112
ClimaPlus
10
2/15/2012
3 AC208V (240V) 60Hz UL
SelfCooking Center 102 - 10 x 2/1 GastronormE
E12SH1112
ClimaPlus
Pos. Part No. Description Qty.
1 22.00.882 Mounting device f. pressure sensor 1
2 3017.1011 Pressure sensor for humidity control Huba 401 1
4 22.00.850 Outer humidity meas. Piece 1
5 22.00.881 Gasket f. hum. meas. Pipe 1
6 1104.0122 Hex combination nut M4 galv 3
7 22.00.525 Hose set f. humidity control 1
8 22.00.725 Humidity control cpl. 1
9 22.00.915 Air inlet pipe 1
10 22.00.960 Drain hose for humidity control 1
11 2066.0527 Hose clamp ø14mm 2
12 22.00.767 Vent cover 1
13 22.00.837 O-ring for humidity control 2
15 10.00.111 Cable clip long 2
2/15/2012
3 AC208V (240V) 60Hz UL
11
SelfCooking Center 102 - 10 x 2/1 GastronormE
E12SH1112
Steam generator
12
2/15/2012
3 AC208V (240V) 60Hz UL
SelfCooking Center 102 - 10 x 2/1 GastronormE
E12SH1112
Steam generator
Pos. Part No. Description Qty.
1 44.00.943 Steam generator insolated 1
2 10.00.709 Hex nut M6 w. locking 2
14 44.01.376 Heating element 1
15 44.01.376 Heating element 1
17 44.00.279 Gasket f. heating element 2
18 10.00.709 Hex nut M6 w. locking 18
19 2066.0519 Hose clamp 35,6mm 1
20 2066.0526 Hose clamp ø46mm 1
21 44.00.207 Emptying pump 1
22 1006.0762 Hex screw M6x10 2
23 1306.0222 Washer A6,4x15x1,5 2
24 44.00.232 Fixing device f. pump steam generator 1
25 10.00.709 Hex nut M6 w. locking 2
26 44.01.222 Drain hose steam generator 1
27 40.04.106 Thermocouple steam generator *B5* 1
29 10.00.414 Cable strap black 120° 1
30 1104.0122 Hex combination nut M4 galv 1
31 2112.1006 Steam hose 50x7mm 1
32 2066.0504 Hose clamp 40-60mm 2
34 44.00.280 Gasket f. heating element+Level elektrode insert 1
35 2920.1300 Level elektrode insert 1
36 10.00.709 Hex nut M6 w. locking 4
37 44.01.291 Filling level electrode 90 mm 1
38 44.01.168 Fixing angle steam generator 1
39 44.01.181 Fixing angle steam generator 1
43 2066.0518 Hose clamp 30mm 2
A 8354.1320 Pump connection spout cpl. 1
2/15/2012
3 AC208V (240V) 60Hz UL
13
SelfCooking Center 102 - 10 x 2/1 GastronormE
E12SH1112
Pump connection spout
14
2/15/2012
3 AC208V (240V) 60Hz UL
SelfCooking Center 102 - 10 x 2/1 GastronormE
E12SH1112
Pump connection spout
Pos. Part No. Description Qty.
1 2118.1000 Pump connection spout 1
2 2120.1259 Stop plug 10mm 1
3 2110.1008 Silicon hose ø10x2mm 1
4 2066.0527 Hose clamp ø14mm 2
5 2066.0530 Hose clamp ø16.4mm 1
6 2062.0331 Junction pressure hose GS 10 1
7 4005.0101 Tie rap 145 mm 1
2/15/2012
3 AC208V (240V) 60Hz UL
15
SelfCooking Center 102 - 10 x 2/1 GastronormE
E12SH1112
Hot air heating
16
2/15/2012
3 AC208V (240V) 60Hz UL
SelfCooking Center 102 - 10 x 2/1 GastronormE
E12SH1112
Hot air heating
Pos. Part No. Description Qty.
1 40.03.413 Mating flange f. heating assembly 1
2 40.03.645 Heating assembly 1
4 10.00.109 Hex screw M5x23 6
5 10.01.076 Cap nut M5*A2 1
6 40.03.416 Gasket f. heating assembly 1
7 1107.0103 Star lock ø3 2
17 50.01.471 Nozzle f. moistening 1
18 50.00.846 Union nut M12x13.2 N 1
2/15/2012
3 AC208V (240V) 60Hz UL
17
SelfCooking Center 102 - 10 x 2/1 GastronormE
E12SH1112

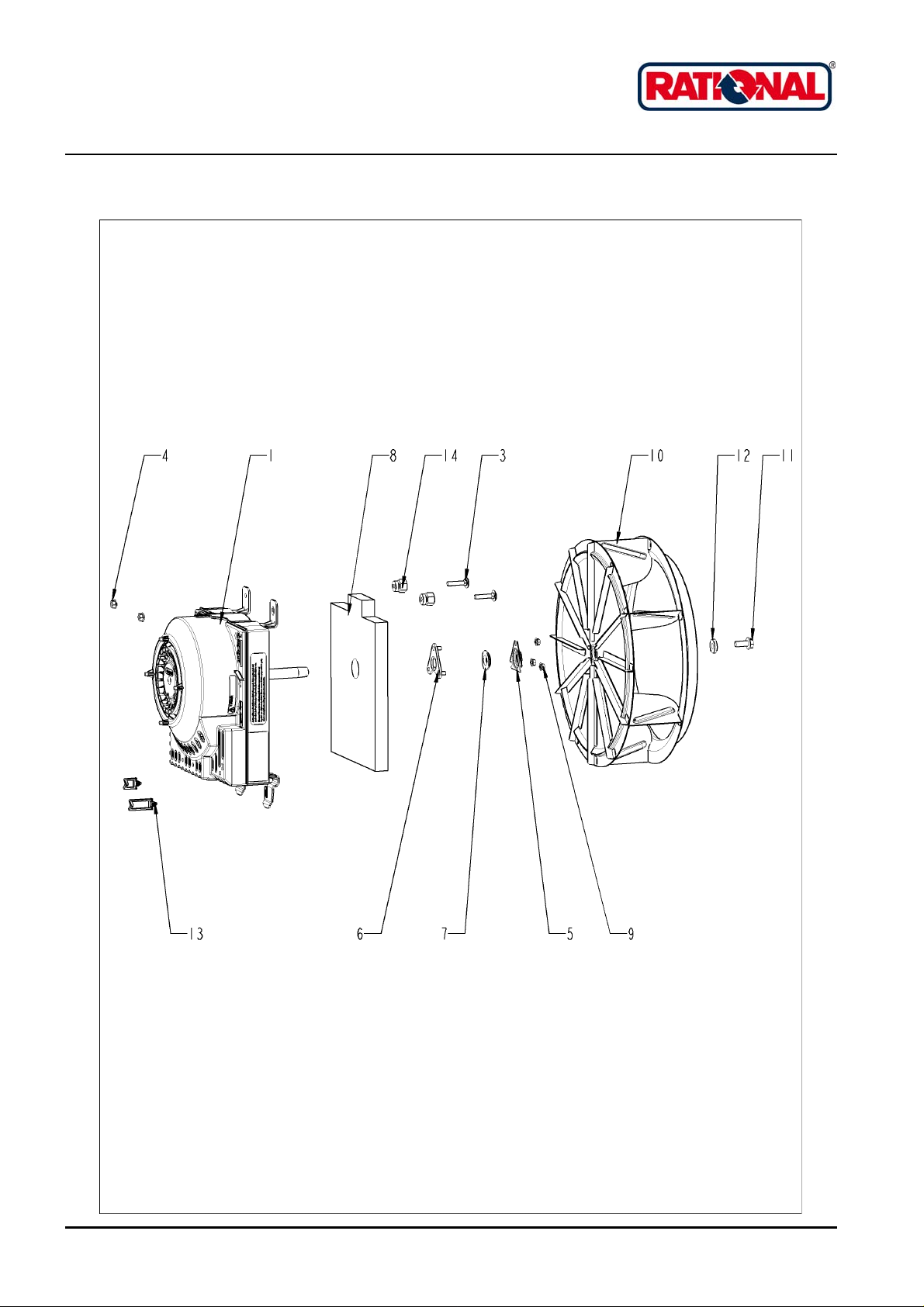

Motor and fan wheel
18
2/15/2012
3 AC208V (240V) 60Hz UL
SelfCooking Center 102 - 10 x 2/1 GastronormE
E12SH1112
Motor and fan wheel
Pos. Part No. Description Qty.
1 40.03.513 Fan motor 1
3 10.01.049 Square necked mushroom head bolt 6x30 4
4 10.00.709 Hex nut M6 w. locking 2
5 22.00.721 Flange f. motor shaft gasket 1
6 22.00.722 Mounting support f. gasket flange 1
7 22.00.083 Motor shaft gasket 1
8 20.01.755 Isolation for mounting plate for motor 1
9 10.01.065 Hex nut M5 3
10 22.00.829 Fan wheel 1
11 10.00.565 Hex screw M8x20 1
12 1308.0162 Washer A8,4 1
13 10.00.111 Cable clip long 3
14 20.01.411 Bushing for motor mounting bar 4
2/15/2012
3 AC208V (240V) 60Hz UL
19
SelfCooking Center 102 - 10 x 2/1 GastronormE
E12SH1112

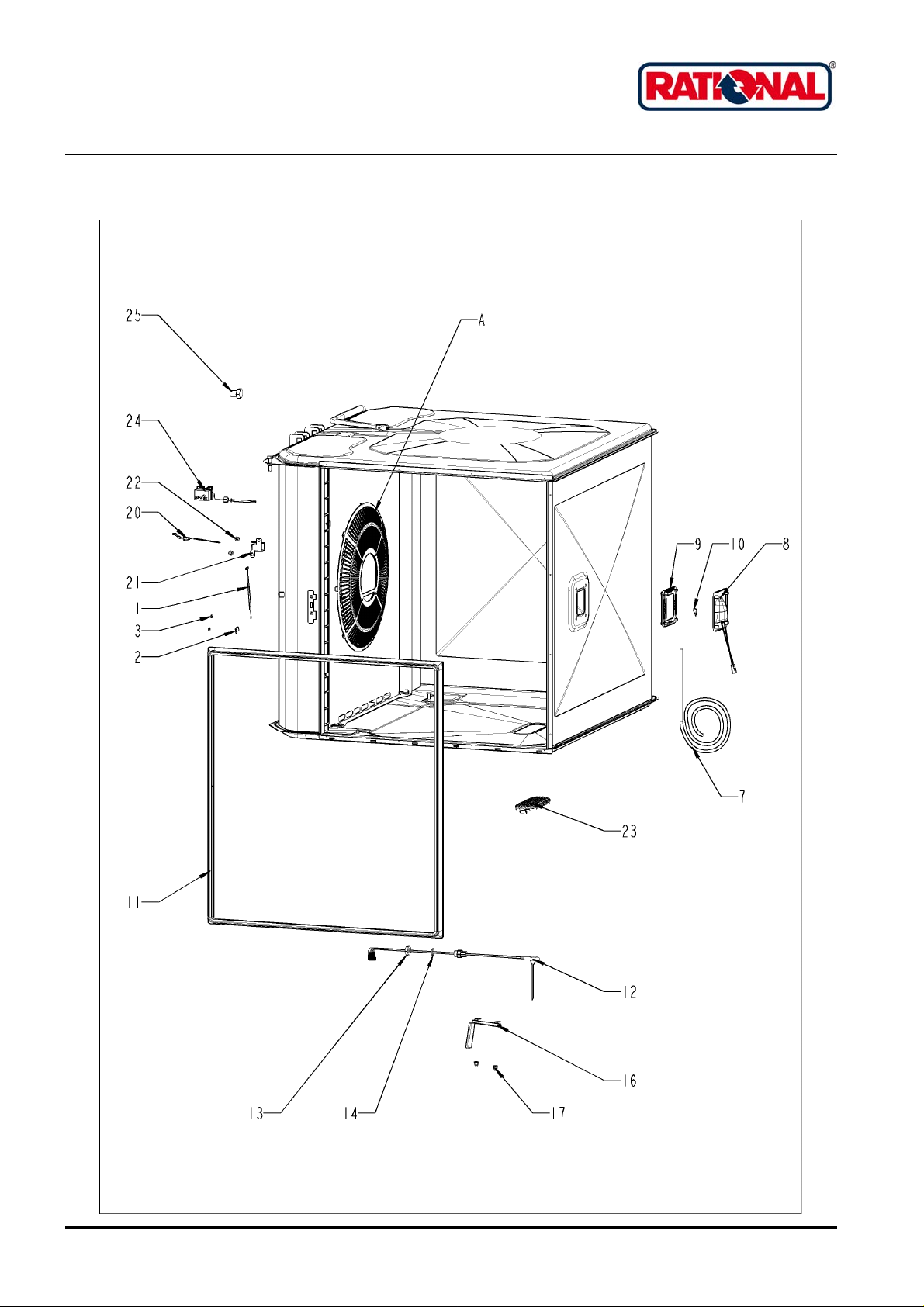

Interior cabinet
20
2/15/2012
3 AC208V (240V) 60Hz UL
SelfCooking Center 102 - 10 x 2/1 GastronormE
E12SH1112
Interior cabinet
Pos. Part No. Description Qty.
1 40.00.290 Thermocouple humidity 1
2 10.00.087 Clamp strap f. sensor 1
3 10.00.100 Hex nut M4, self-locking 1
7 40.04.114 Wiring interior light 1
8 40.00.098 Reflector f. interior light 1
9 40.00.091 Gasket frame w. glass a. gaskets 1
10 3024.0201 Halogen bulb 300°C 1
11 20.01.803 Door gasket 1
12 40.00.606 Meat probe sensor 1
13 10.00.612 Hex nut M16 flat 1
14 1315.0104 Copper washer 16x20x1,5 1
16 40.01.317 Screen core temperature sensor 1
17 10.01.076 Cap nut M5*A2 2
20 40.03.488 Thermocouple interior cabinet B1 1
21 40.03.782 Screen interior cabinet sensor 1
22 10.01.076 Cap nut M5*A2 2
23 54.01.117 Outlet sieve 1
24 40.01.482 Safety temperature limiter 365°C 1
25 3014.0327 Hex nut M10x1,0 1
A 22.00.746 Air baffle 1
2/15/2012
3 AC208V (240V) 60Hz UL
21
SelfCooking Center 102 - 10 x 2/1 GastronormE
E12SH1112

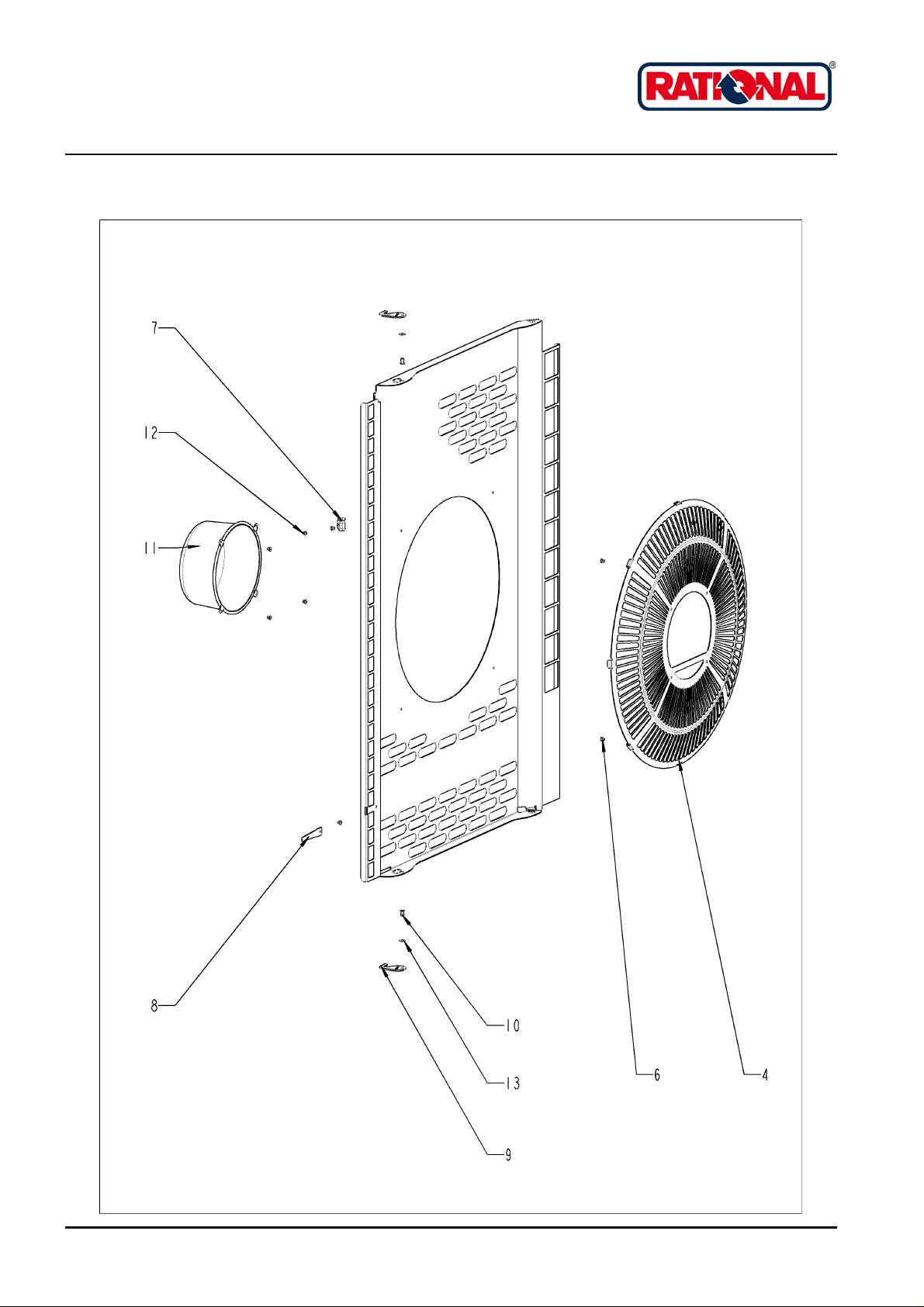

Air baffle
22
2/15/2012
3 AC208V (240V) 60Hz UL
SelfCooking Center 102 - 10 x 2/1 GastronormE
E12SH1112
Air baffle
Pos. Part No. Description Qty.
4 22.00.730 Hand protection 1
6 10.00.515 Rivet 3,2x5 A4 4
7 40.03.780 Fixing clip core temp. cable 1
8 22.00.491 Surge guard for Meat probe sensor 1
9 2760.1370 Latch hook for air baffle 2
10 1604.0167 Rivet 4x10 3
11 22.00.361 Deep-draw f. air baffle 1
12 10.00.515 Rivet 3,2x5 A4 4
13 10.00.744 Washer A4,3 *A4 1
2/15/2012
3 AC208V (240V) 60Hz UL
23
SelfCooking Center 102 - 10 x 2/1 GastronormE
E12SH1112

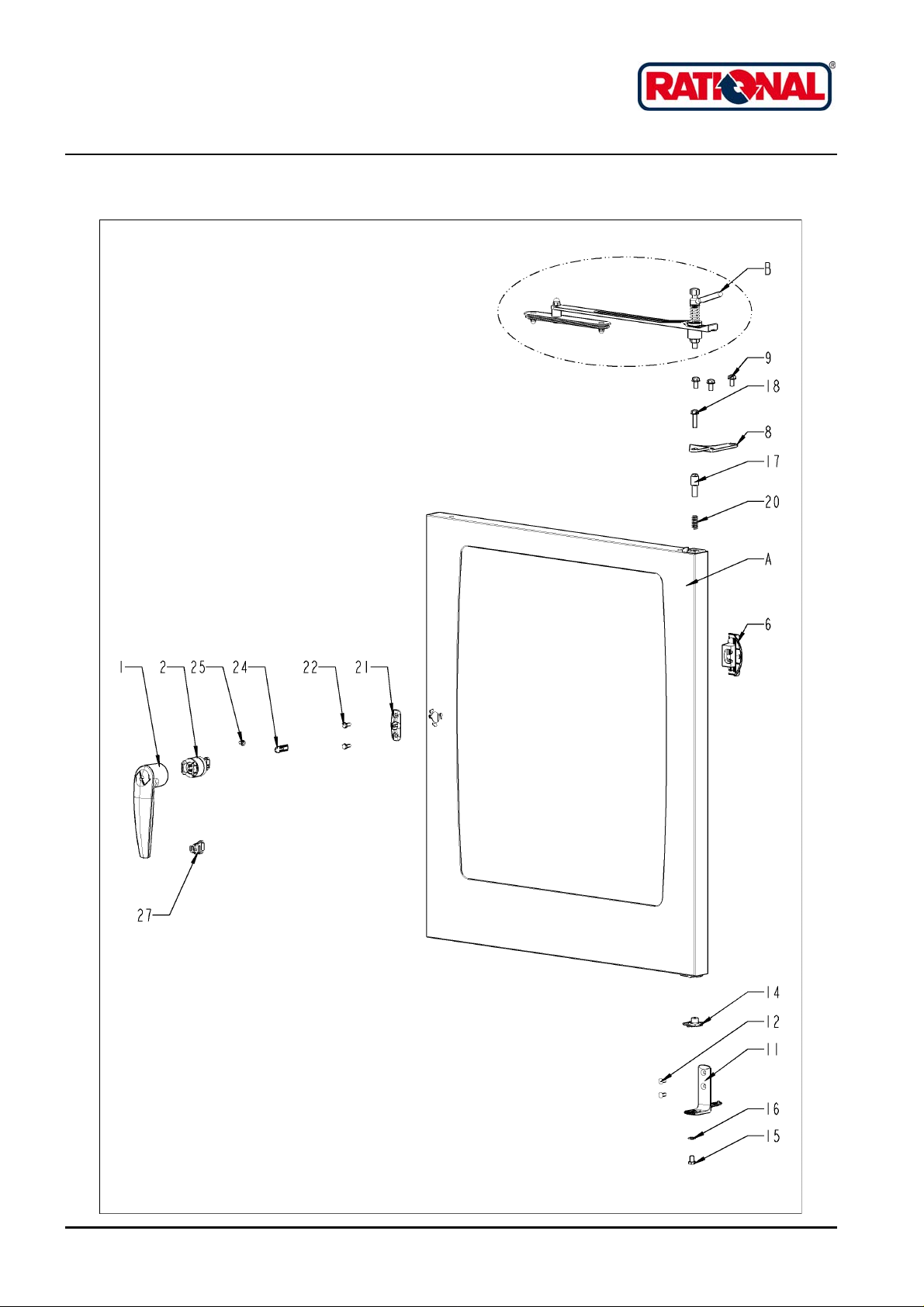

Door
24
2/15/2012
3 AC208V (240V) 60Hz UL
SelfCooking Center 102 - 10 x 2/1 GastronormE
E12SH1112
Door
Pos. Part No. Description Qty.
1 24.00.152 Door handle 1
2 24.00.176 Door lock 1
6 24.00.504 Lock cover 1
8 24.00.133 Door mounting support top 1
9 1008.0768 Ornamental screw M8x16 3
11 24.00.223 Door mounting support bottom 1
12 1006.1962 Countersunk screw Torx M6x16 2
14 24.00.137 Door bolt 1
15 10.00.099 Hex screw M8x12 1
16 1308.0160 Washer A8,4 1
17 24.00.048 Door bolt 1
18 1008.0769 Ornamental screw M8x30 1
20 2001.0109 Compression spring 1
21 24.00.141 Holding bracket f. door catch 1
22 1006.0760 Hex screw M6x16 2
24 24.00.142 Door catch 1
25 1005.2000 Interlocking tooth screw M5x8 1
27 24.01.100 Spring clip f. door lock 1
A 24.00.113 Door 1
2/15/2012
3 AC208V (240V) 60Hz UL
25
SelfCooking Center 102 - 10 x 2/1 GastronormE
E12SH1112

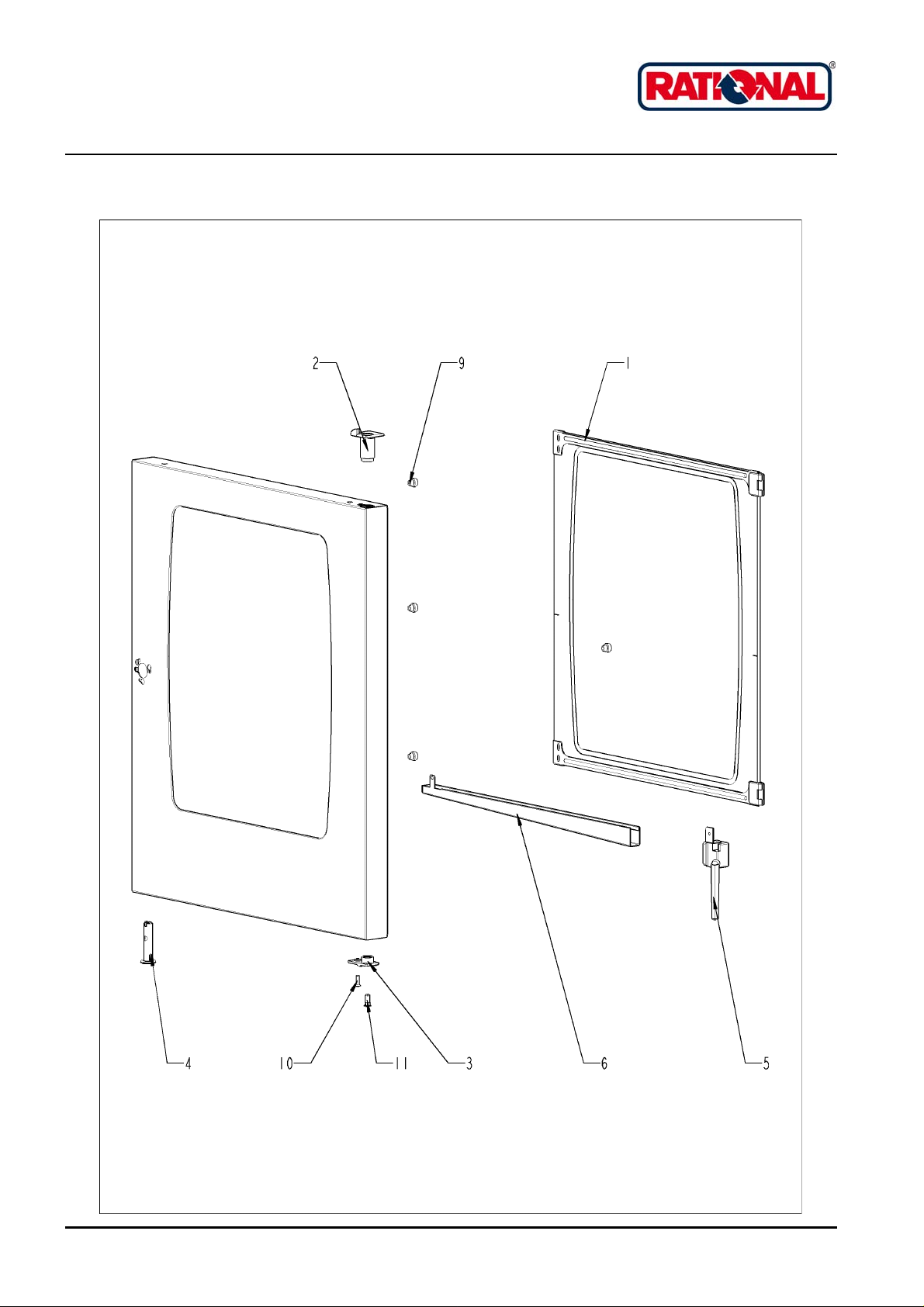

Door
26
2/15/2012
3 AC208V (240V) 60Hz UL
SelfCooking Center 102 - 10 x 2/1 GastronormE
E12SH1112
Door
Pos. Part No. Description Qty.
1 24.00.200 Inner glass pane 1
2 24.00.147 Sleeve for door bolt top 1
3 24.00.146 Door setting bolt 1
4 24.00.502 Fixing device f. magnet with magnet 1
5 24.01.188 Drain door drip collector 1
6 24.01.801 Door drip collector 1
9 24.00.171 Silicone buffer 7mm for door 1
10 1005.1966 Countersunk screw Torx M5x16 2
11 10.00.041 Rivet nut M5 hexagon closed 2
2/15/2012
3 AC208V (240V) 60Hz UL
27
SelfCooking Center 102 - 10 x 2/1 GastronormE
E12SH1112

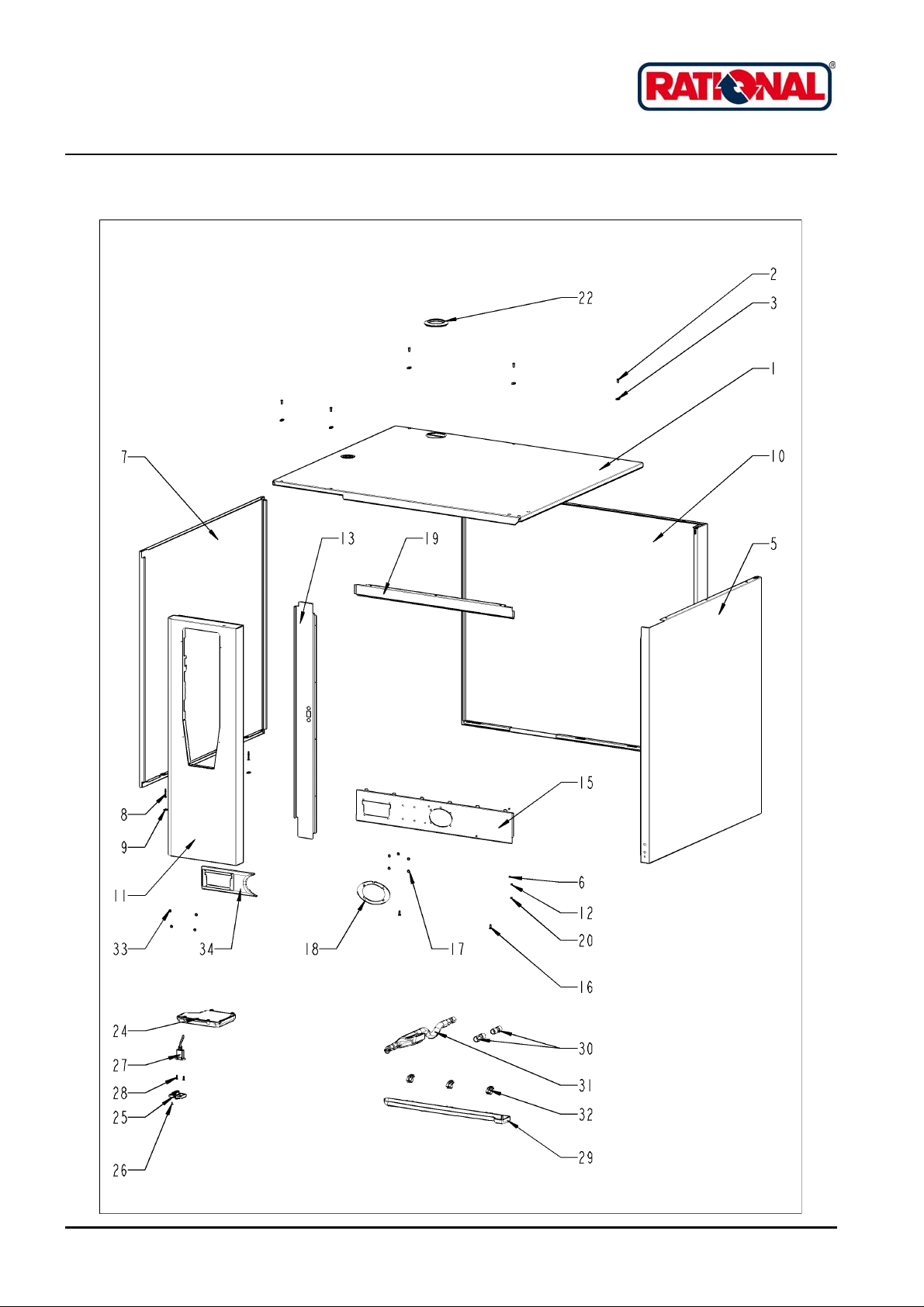

Exterior cabinet
28
2/15/2012
3 AC208V (240V) 60Hz UL
SelfCooking Center 102 - 10 x 2/1 GastronormE
E12SH1112

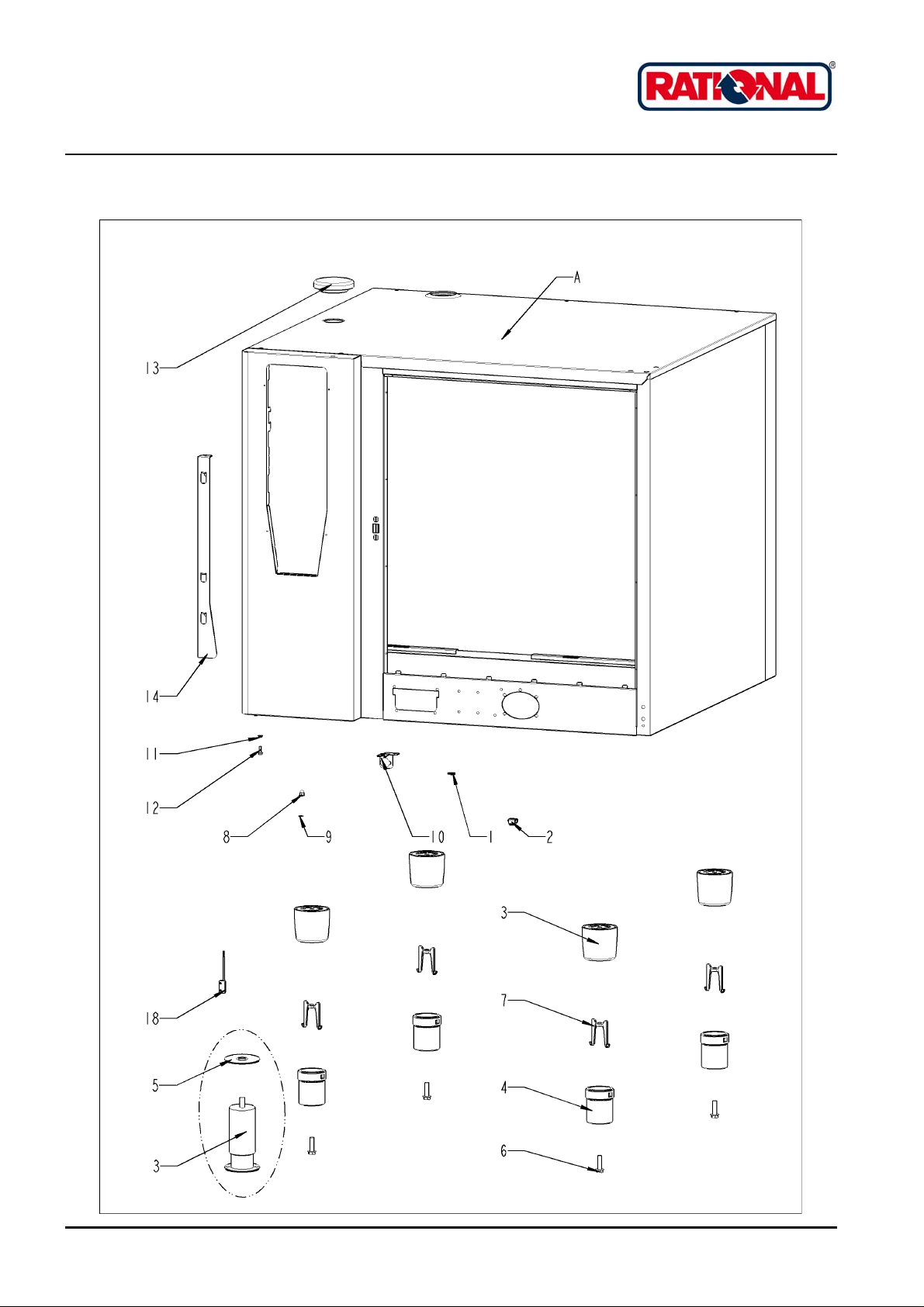

Exterior cabinet
Pos. Part No. Description Qty.
1 1104.0820 Snap nut 4,2mm 3
2 1110.0800 Cage nut M10 3
3 12.00.205 Upper part of pedestal 4
4 12.01.133 Lower part of pedestal 4
6 10.00.975 Hex screw M10x35 4
7 12.00.516 Turning lock f. lower part of pedestal 4
8 10.00.745 Cap nut M6*A2 1
9 1206.0120 Tooth lock washer A6,4 1
10 16.01.146 Bracket for door contact switch 1
12 10.01.214 Interlocking tooth screw M5x10 1
13 22.00.767 Vent cover 1
14 16.01.965 Opening mechanism for panel insert 1
18 40.00.335 Door switch 1
A Exterior cabinet 1
2/15/2012
3 AC208V (240V) 60Hz UL
29
SelfCooking Center 102 - 10 x 2/1 GastronormE
E12SH1112
Exterior cabinet
30
2/15/2012
3 AC208V (240V) 60Hz UL
SelfCooking Center 102 - 10 x 2/1 GastronormE
E12SH1112
Exterior cabinet
Pos. Part No. Description Qty.
1 16.02.154 Top cover 1
2 1003.2265 Countersunk self tapping screw 4,2x16 5
3 1104.0820 Snap nut 4,2mm 5
5 16.00.154 Side panel right 1
6 1603.0166 Rivet 3,2x7,9 CNS closed 4
7 16.00.155 Side panel left 1
8 10.00.992 Hex self tapping screw B4,2x32 2
9 1104.0820 Snap nut 4,2mm 2
10 16.01.927 Back panel 1
11 16.01.858 Front panel 1
12 1603.0166 Rivet 3,2x7,9 CNS closed 4
13 16.00.681 Crossbar front panel 1
15 16.01.511 Crossbar below 1
16 1004.2160 Hex self tapping screw 4,2x16 3
17 1107.0100 Star lock ø4 5
18 50.00.751 Tulip for handshower with tape 1
19 16.00.331 Crossbar top 1
20 1603.0166 Rivet 3,2x7,9 CNS closed 4
22 16.01.434 Gasket f. breather tube d=74mm 1
24 40.02.684 Air inlet filter cpl. 1
25 16.00.329 Cover f. USB interface 1
26 10.00.103 EJOT PT-screw KA 3.5x10 1
27 40.04.046 Interface cable USB 1.0m 1
28 10.00.460 EJOT PT-Screw Torx 3,5x14 2
29 50.00.300 Drip collector 1
30 50.00.303 Bushing drip collector 2
31 50.01.192 Drain pipe with bushing 1
32 50.00.296 Clip f. drip collector 4
33 1107.0100 Star lock ø4 6
34 56.00.445 Frame for drawer CareControl 1
2/15/2012
3 AC208V (240V) 60Hz UL
31
SelfCooking Center 102 - 10 x 2/1 GastronormE
E12SH1112

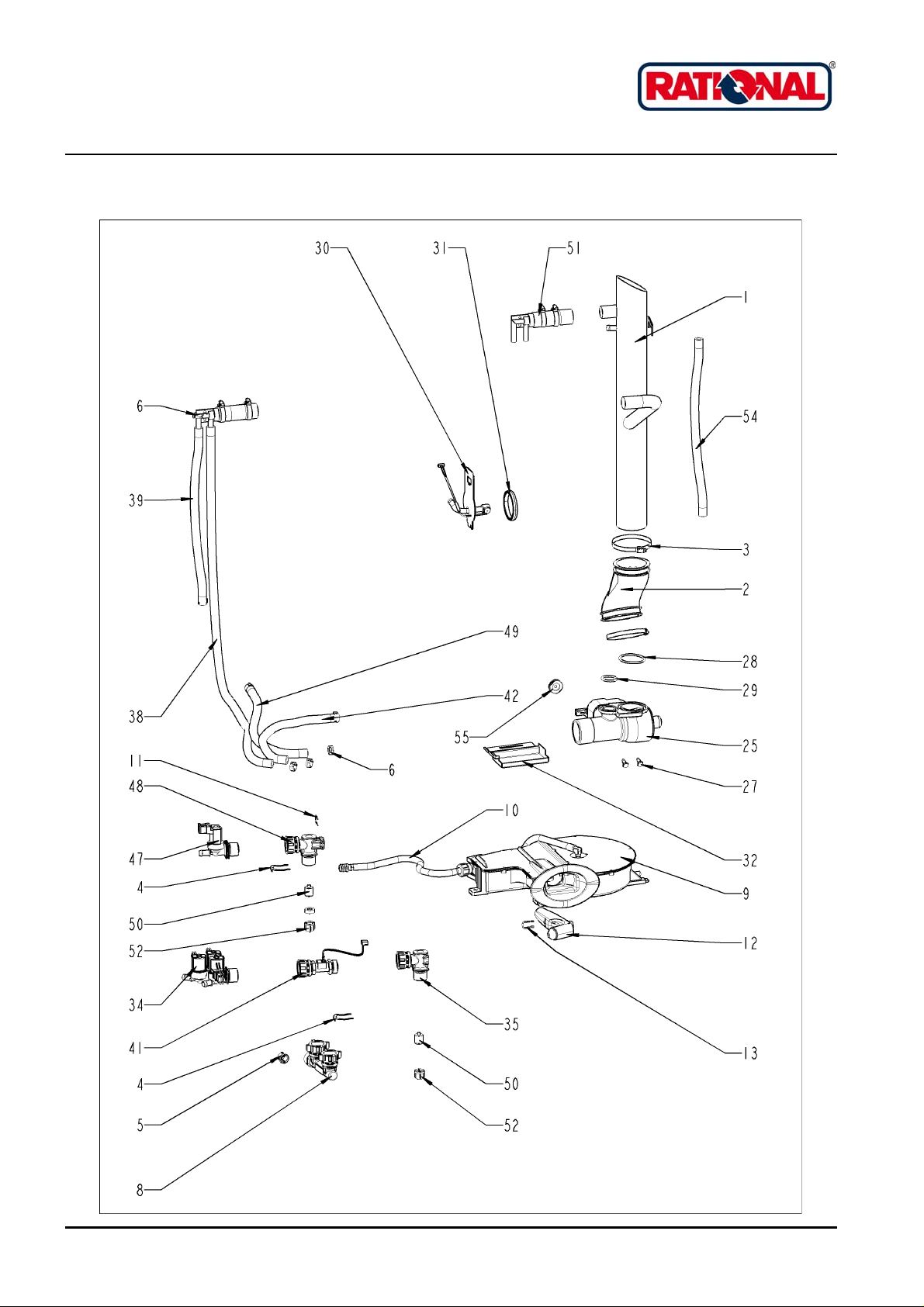

Water
32
2/15/2012
3 AC208V (240V) 60Hz UL
SelfCooking Center 102 - 10 x 2/1 GastronormE
E12SH1112
Water
Pos. Part No. Description Qty.
1 54.00.879 Ventilation pipe 1
2 54.01.142 Rubber form piece venting pipe 1
3 2066.0516 Hose clamp 60-80 mm 2
4 50.00.086 Locking plate f. water distribution 1
6 2066.0205 Hose clamp 8-16x9 mm SW 7mm 2
8 50.00.313 T-fitting water connection 1
9 50.01.238 Hand shower roll guide *lead free* 1
10 50.01.213 Connect. pipe f. hand shower roll guide 1
11 50.00.085 Plug-in spring f. hand shower roll guide 1
12 50.00.130 Hand shower 1
13 50.00.156 Clamp f. hand shower roll guide 1
15 1105.0121 Hex combination nut M5 galv 1
25 54.01.291 Ball valve drain SCC cpl. 1
27 10.00.449 Pan head screw M6x16 2
28 10.00.511 O-ring for ball valve drain 46x3.5 1
29 10.00.512 O-ring for ball valve drain 26x3.5 1
30 54.01.169 Inspection lid, quenching nozzle, B2 1
31 54.01.168 Gasket f. inspection lid quenching 1
32 54.01.191 Collecting pan 1
33 10.00.745 Cap nut M6*A2 1
34 50.01.050 Triple solenoid valve 1
35 50.00.071 Water distribution hor. w/o roll guide con. 1
38 2067.0050 Pressure hose d10mm 1.3
39 2067.0050 Pressure hose d10mm .65
41 50.01.523 Water volume sensor 1
42 2067.0050 Pressure hose d10mm .56
47 50.01.146 Single solenoid valve 1
48 50.00.070 Water distribution hor roll guide con. 1
49 2067.0050 Pressure hose d10mm .42
50 50.00.078 Non return valve DW16/DN12 2
51 8354.1304 Venting valve for steam generator 1
52 1900.0202 Water filter 3
55 2022.0101 Grommet d8mm 1
2/15/2012
3 AC208V (240V) 60Hz UL
33
SelfCooking Center 102 - 10 x 2/1 GastronormE
E12SH1112

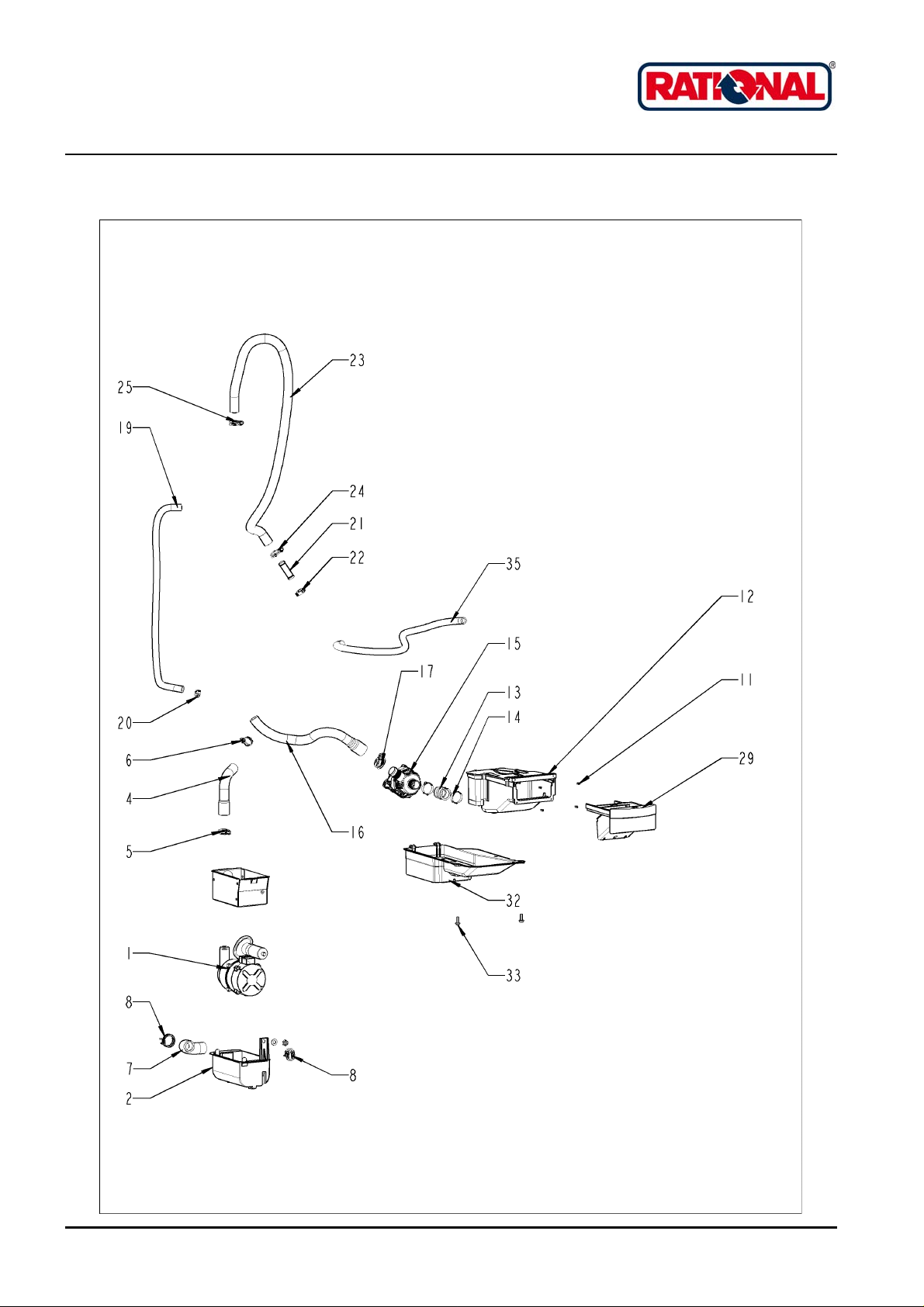

CleanJet + Care
34
2/15/2012
3 AC208V (240V) 60Hz UL
SelfCooking Center 102 - 10 x 2/1 GastronormE
E12SH1112
CleanJet + Care
Pos. Part No. Description Qty.
1 56.00.185 Pump f. cleaning UP30 1
2 12.00.898 Housing f. Cleaning pump 1
3 1004.0666 Hex screw M4x10 1
4 56.00.166 Pressure hose f. cleaning 1
5 2066.0518 Hose clamp 30mm 1
6 2066.0521 Hose clamp 27mm 1
7 56.00.607 Suction hose f. cleaning 1
8 2066.0518 Hose clamp 30mm 2
11 10.00.980 EJOT PT-Screw K30x10 4
12 56.00.492 Care container table unit 1
13 56.00.462 Bushing care container/pump 1
14 10.00.984 Hose clamp CLIC d=27.5mm 2
15 56.00.451 Pump f. CareControl DPS 35 1
16 56.00.540 Care hose 1 1
17 2066.0518 Hose clamp 30mm 1
18 40.02.965 Cable harness solenoid valve / SC-pump 1
19 2067.0164 Pressure hose ø10mm 650mm long 1
20 10.00.873 Hose clamp CLIC d=15.5mm 1
21 56.00.537 Pipe f. Care hose 1
22 10.00.983 Hose clamp CLIC d=23mm 1
23 56.00.428 Care hose 2 1
24 10.00.605 Hose clamp ø25.3 1
25 10.00.979 Cable clamp D=22 1
26 1005.2000 Interlocking tooth screw M5x8 1
29 56.00.488 Drawer Care container 1
32 56.00.375 Cover for pump 1
33 10.01.214 Interlocking tooth screw M5x10 2
35 2067.0050 Pressure hose d10mm .89
2/15/2012
3 AC208V (240V) 60Hz UL
35
SelfCooking Center 102 - 10 x 2/1 GastronormE
E12SH1112

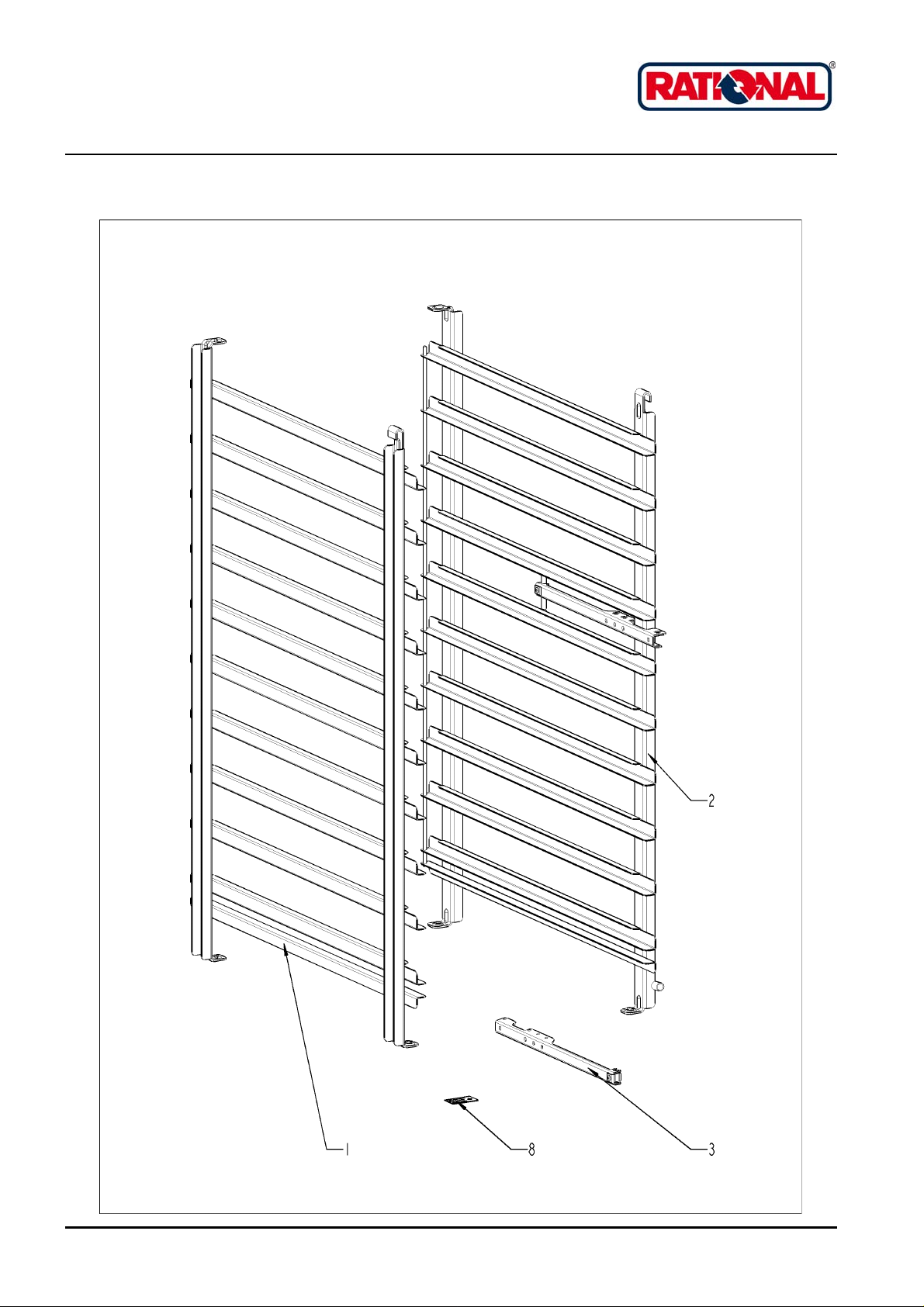

Standard accessory
36
2/15/2012
3 AC208V (240V) 60Hz UL
SelfCooking Center 102 - 10 x 2/1 GastronormE
E12SH1112
Standard accessory
Pos. Part No. Description Qty.
1 60.12.116 Hinging rack left 1
2 60.12.117 Hinging rack right 1
3 60.71.022 Positioning support f. core sensor 1
8 10.01.193 Sticker set 1
10 60.71.379 Water connection kit, table unit E/USA 1
10 60.71.379 Water connection kit, table unit E/USA 1
2/15/2012
3 AC208V (240V) 60Hz UL
37
SelfCooking Center 102 - 10 x 2/1 GastronormE
E12SH1112
Index
Part-no. Description Page
22.00.746 Air baffle ............................................................... 21....................
40.02.684 Air inlet filter cpl. ....................................................... 31....................
22.00.915 Air inlet pipe ........................................................... 11....................
40.02.641 Auxilliary contact B&J HN10 N/O ...................................... 9.....................
16.01.927 Back panel ............................................................. 31....................
54.01.291 Ball valve drain SCC cpl. .............................................. 33....................
16.01.146 Bracket for door contact switch ........................................ 29....................
40.03.998 Bus cable 1.15m ....................................................... 7.....................
56.00.462 Bushing care container/pump ......................................... 35....................
50.00.303 Bushing drip collector .................................................. 31....................
20.01.411 Bushing for motor mounting bar ....................................... 19....................
10.00.979 Cable clamp D=22 ..................................................... 35....................
10.00.111 Cable clip long ......................................................... 11, 19................
40.03.981 Cable clock switch USA ............................................... 9.....................
40.03.484 Cable control harness ................................................. 9.....................
40.02.965 Cable harness solenoid valve / SC-pump ............................. 35....................
40.03.516 Cable MMI - CPU ...................................................... 5.....................
40.03.515 Cable MMI - TFT ...................................................... 5.....................
40.03.467 Cable On-Off switch MMI .............................................. 5.....................
10.00.414 Cable strap black 120° ................................................ 13....................
1110.0800 Cage nut M10 ......................................................... 29....................
10.01.076 Cap nut M5*A2 ........................................................ 17, 21................
10.00.745 Cap nut M6*A2 ........................................................ 29, 33................
56.00.492 Care container table unit .............................................. 35....................
56.00.540 Care hose 1 ........................................................... 35....................
56.00.428 Care hose 2 ........................................................... 35....................
50.00.156 Clamp f. hand shower roll guide ....................................... 33....................
10.00.087 Clamp strap f. sensor .................................................. 21....................
50.00.296 Clip f. drip collector .................................................... 31....................
54.01.191 Collecting pan ......................................................... 33....................
2001.0109 Compression spring ................................................... 25....................
50.01.213 Connect. pipe f. hand shower roll guide ............................... 33....................
38
3 AC208V (240V) 60Hz UL
2/15/2012
SelfCooking Center 102 - 10 x 2/1 GastronormE
E12SH1112
Index
Part-no. Description Page
40.03.360 Contactor assembly ................................................... 9......................
40.03.666 Contactor B&J K3-74B00 190 R....................................... 9......................
87.01.005 Control panel insert with overlay *RAT* ............................... 5......................
42.00.080 Control pcb *Sicotronic* ............................................... 7......................
42.00.112 Control pcb *TFT* ..................................................... 5......................
40.03.348 Control transformer T1 ................................................ 9......................
40.03.257 Converter 230VAC 24VDC ............................................ 7......................
40.03.428 Cooling fan ............................................................ 7......................
1315.0104 Copper washer 16x20x1,5 ............................................ 21....................
1005.1966 Countersunk screw Torx M5x16....................................... 27....................
1006.1962 Countersunk screw Torx M6x16....................................... 25....................
1003.2265 Countersunk self tapping screw 4,2x16 ............................... 31....................
40.03.755 Cover behind 2 UL .................................................... 9......................
16.01.910 Cover f. control pcb w. gasket ......................................... 5......................
16.00.329 Cover f. USB interface................................................. 31....................
40.04.122 Cover for Fuse *UL* ................................................... 9......................
56.00.375 Cover for pump ........................................................ 35....................
16.01.511 Crossbar below ........................................................ 31....................
16.00.681 Crossbar front panel ................................................... 31....................
16.00.331 Crossbar top ........................................................... 31....................
22.00.361 Deep-draw f. air baffle ................................................. 23....................
16.02.062 Dial f. pulse generator ................................................. 5......................
24.00.113 Door ................................................................... 25....................
24.00.137 Door bolt ............................................................... 25....................
24.00.048 Door bolt ............................................................... 25....................
24.00.142 Door catch ............................................................. 25....................
24.01.801 Door drip collector ..................................................... 27....................
20.01.803 Door gasket............................................................ 21....................
24.00.152 Door handle ........................................................... 25....................
24.00.176 Door lock .............................................................. 25....................
24.00.223 Door mounting support bottom ........................................ 25....................
24.00.133 Door mounting support top ............................................ 25....................
2/15/2012
3 AC208V (240V) 60Hz UL
39
SelfCooking Center 102 - 10 x 2/1 GastronormE
E12SH1112
Index
Part-no. Description Page
24.00.146 Door setting bolt ....................................................... 27....................
40.00.335 Door switch ............................................................ 29....................
24.01.188 Drain door drip collector ............................................... 27....................
22.00.960 Drain hose for humidity control ........................................ 11....................
44.01.222 Drain hose steam generator ........................................... 13....................
50.01.192 Drain pipe with bushing ................................................ 31....................
56.00.488 Drawer Care container ................................................ 35....................
50.00.300 Drip collector .......................................................... 31....................
40.03.282 Drip protection for air inlet filter 1 UL .................................. 9.....................
40.01.329 Dry up protector 183° .................................................. 9.....................
40.01.610 Earth terminal 20 WKN 70SL/U ....................................... 9.....................
10.01.218 Edge protection profile ................................................ 9.....................
10.00.980 EJOT PT-Screw K30x10 .............................................. 35....................
10.00.103 EJOT PT-screw KA 3.5x10 ............................................ 31....................
10.00.460 EJOT PT-Screw Torx 3,5x14 .......................................... 31....................
44.00.207 Emptying pump ........................................................ 13....................
4001.1203 End plate for mounting rail ............................................ 9.....................
40.03.499 Fan housing *UL* ...................................................... 7.....................
40.03.513 Fan motor .............................................................. 19....................
22.00.829 Fan wheel ............................................................. 19....................
44.01.291 Filling level electrode 90 mm .......................................... 13....................
44.01.168 Fixing angle steam generator ......................................... 13....................
44.01.181 Fixing angle steam generator ......................................... 13....................
40.03.780 Fixing clip core temp. cable ........................................... 23....................
40.03.756 Fixing clip f. pcb ....................................................... 7.....................
40.03.533 Fixing clip f. pcb ....................................................... 7.....................
24.00.502 Fixing device f. magnet with magnet .................................. 27....................
44.00.232 Fixing device f. pump steam generator ................................ 13....................
22.00.721 Flange f. motor shaft gasket ........................................... 19....................
56.00.445 Frame for drawer CareControl ........................................ 31....................
16.01.858 Front panel ............................................................ 31....................
4001.0224 Fuse 6.35x32mm ...................................................... 9.....................
40
3 AC208V (240V) 60Hz UL
2/15/2012
SelfCooking Center 102 - 10 x 2/1 GastronormE
E12SH1112
Index
Part-no. Description Page
40.01.487 Fuse holder 2pol....................................................... 9......................
40.02.512 Fuse holder 2x6.3A .................................................... 9......................
40.01.588 Fuse SC-8A 10x38 .................................................... 9......................
16.01.434 Gasket f. breather tube d=74mm ...................................... 31....................
40.03.416 Gasket f. heating assembly............................................ 17....................
44.00.279 Gasket f. heating element ............................................. 13....................
44.00.280 Gasket f. heating element+Level elektrode insert ..................... 13....................
22.00.881 Gasket f. hum. meas. Pipe ............................................ 11....................
54.01.168 Gasket f. inspection lid quenching..................................... 33....................
40.00.091 Gasket frame w. glass a. gaskets ..................................... 21....................
2022.0101 Grommet d8mm ....................................................... 33....................
3024.0201 Halogen bulb 300°C ................................................... 21....................
22.00.730 Hand protection........................................................ 23....................
50.00.130 Hand shower .......................................................... 33....................
50.01.238 Hand shower roll guide *lead free* .................................... 33....................
40.03.537 Heat sink 3 SSR ....................................................... 7......................
40.03.645 Heating assembly ..................................................... 17....................
44.01.376 Heating element ....................................................... 13....................
1104.0122 Hex combination nut M4 galv.......................................... 11, 13................
1105.0121 Hex combination nut M5 galv.......................................... 33....................
1104.0121 Hex nut M4 self locking ................................................ 7......................
10.00.100 Hex nut M4, self-locking ............................................... 21....................
10.01.065 Hex nut M5 ............................................................ 9, 19..................
10.00.709 Hex nut M6 w. locking ................................................. 9, 13, 19..............
3014.0302 Hex nut M10 for dry-up protector ...................................... 9......................
3014.0327 Hex nut M10x1,0 ...................................................... 9, 21..................
10.00.612 Hex nut M16 flat ....................................................... 21....................
1004.0666 Hex screw M4x10 ..................................................... 35....................
10.00.109 Hex screw M5x23 ..................................................... 17....................
1006.0762 Hex screw M6x10 ..................................................... 13....................
1006.0760 Hex screw M6x16 ..................................................... 25....................
10.00.099 Hex screw M8x12 ..................................................... 25....................
2/15/2012
3 AC208V (240V) 60Hz UL
41
SelfCooking Center 102 - 10 x 2/1 GastronormE
E12SH1112
Index
Part-no. Description Page
10.00.565 Hex screw M8x20 ..................................................... 19....................
10.00.975 Hex screw M10x35 .................................................... 29....................
1004.2160 Hex self tapping screw 4,2x16 ........................................ 31....................
10.00.992 Hex self tapping screw B4,2x32 ....................................... 31....................
60.12.116 Hinging rack left ....................................................... 37....................
60.12.117 Hinging rack right ...................................................... 37....................
24.00.141 Holding bracket f. door catch .......................................... 25....................
2066.0205 Hose clamp 8-16x9 mm SW 7mm ..................................... 33....................
2066.0521 Hose clamp 27mm .................................................... 35....................
2066.0518 Hose clamp 30mm .................................................... 13, 35................
2066.0519 Hose clamp 35,6mm .................................................. 13....................
2066.0504 Hose clamp 40-60mm ................................................. 13....................
2066.0516 Hose clamp 60-80 mm ................................................ 33....................
10.00.873 Hose clamp CLIC d=15.5mm .......................................... 35....................
10.00.983 Hose clamp CLIC d=23mm ............................................ 35....................
10.00.984 Hose clamp CLIC d=27.5mm .......................................... 35....................
2066.0527 Hose clamp ø14mm ................................................... 11, 15................
2066.0530 Hose clamp ø16.4mm ................................................. 15....................
10.00.605 Hose clamp ø25.3 ..................................................... 35....................
2066.0526 Hose clamp ø46mm ................................................... 13....................
22.00.525 Hose set f. humidity control ............................................ 11....................
12.00.898 Housing f. Cleaning pump ............................................. 35....................
22.00.725 Humidity control cpl. ................................................... 11....................
24.00.200 Inner glass pane ....................................................... 27....................
54.01.169 Inspection lid, quenching nozzle, B2 .................................. 33....................
40.04.046 Interface cable USB 1.0m ............................................. 31....................
1005.2000 Interlocking tooth screw M5x8 ......................................... 25, 35................
10.01.214 Interlocking tooth screw M5x10 ....................................... 29, 35................
20.01.755 Isolation for mounting plate for motor ................................. 19....................
2062.0331 Junction pressure hose GS 10 ........................................ 15....................
2760.1370 Latch hook for air baffle ............................................... 23....................
2920.1300 Level elektrode insert .................................................. 13....................
42
3 AC208V (240V) 60Hz UL
2/15/2012
SelfCooking Center 102 - 10 x 2/1 GastronormE
E12SH1112
Index
Part-no. Description Page
24.00.504 Lock cover ............................................................. 25....................
50.00.086 Locking plate f. water distribution...................................... 33....................
40.04.034 Loudspeaker K 64 WPT ............................................... 7......................
12.01.133 Lower part of pedestal ................................................. 29....................
40.03.413 Mating flange f. heating assembly ..................................... 17....................
40.00.606 Meat probe sensor .................................................... 21....................
42.00.081 MMI pcb ............................................................... 5......................
22.00.083 Motor shaft gasket ..................................................... 19....................
40.04.000 Mounting base for control pcb ......................................... 7......................
22.00.882 Mounting device f. pressure sensor ................................... 11....................
40.03.319 Mounting device heat sink SSR ....................................... 7......................
22.00.722 Mounting support f. gasket flange ..................................... 19....................
40.03.404 Mounting support transformer ......................................... 9......................
50.00.078 Non return valve DW16/DN12 ......................................... 33....................
50.01.471 Nozzle f. moistening ................................................... 17....................
10.00.512 O-ring for ball valve drain 26x3.5 ...................................... 33....................
10.00.511 O-ring for ball valve drain 46x3.5 ...................................... 33....................
22.00.837 O-ring for humidity control ............................................. 11....................
16.01.965 Opening mechanism for panel insert .................................. 29....................
1008.0768 Ornamental screw M8x16 ............................................. 25....................
1008.0769 Ornamental screw M8x30 ............................................. 25....................
22.00.850 Outer humidity meas. Piece ........................................... 11....................
54.01.117 Outlet sieve ............................................................ 21....................
10.00.449 Pan head screw M6x16 ............................................... 33....................
10.00.507 Pan head screw Torx 5/16" T20 ....................................... 7......................
10.00.365 Pan head screw Torx M3x20 .......................................... 9......................
10.00.061 Pan head screw Torx T20 M4x12 ..................................... 7......................
56.00.537 Pipe f. Care hose ...................................................... 35....................
50.00.085 Plug-in spring f. hand shower roll guide ............................... 33....................
60.71.022 Positioning support f. core sensor ..................................... 37....................
2067.0050 Pressure hose d10mm ................................................ 33, 35................
56.00.166 Pressure hose f. cleaning ............................................. 35....................
2/15/2012
3 AC208V (240V) 60Hz UL
43
SelfCooking Center 102 - 10 x 2/1 GastronormE
E12SH1112
Index
Part-no. Description Page
2067.0164 Pressure hose ø10mm 650mm long .................................. 35....................
3017.1011 Pressure sensor for humidity control Huba 401 ....................... 11....................
40.00.404 Pulse generator ........................................................ 5.....................
2118.1000 Pump connection spout ............................................... 15....................
8354.1320 Pump connection spout cpl. ........................................... 13....................
56.00.451 Pump f. CareControl DPS 35 .......................................... 35....................
56.00.185 Pump f. cleaning UP30 ................................................ 35....................
40.00.098 Reflector f. interior light ................................................ 21....................
10.00.515 Rivet 3,2x5 A4 ......................................................... 23....................
1603.0166 Rivet 3,2x7,9 CNS closed ............................................. 31....................
1604.0167 Rivet 4x10 ............................................................. 23....................
10.00.041 Rivet nut M5 hexagon closed .......................................... 27....................
10.00.989 Rivet with screw ....................................................... 7.....................
54.01.142 Rubber form piece venting pipe ....................................... 33....................
40.01.482 Safety temperature limiter 365°C ...................................... 9, 21.................
40.01.317 Screen core temperature sensor ...................................... 21....................
40.03.782 Screen interior cabinet sensor ......................................... 21....................
42.00.128 SD-memory card 4GB ................................................. 7.....................
16.01.908 Sealing f. panel insert ................................................. 5.....................
16.00.155 Side panel left ......................................................... 31....................
16.00.154 Side panel right ........................................................ 31....................
2110.1008 Silicon hose ø10x2mm ................................................ 15....................
24.00.171 Silicone buffer 7mm for door .......................................... 27....................
50.01.146 Single solenoid valve .................................................. 33....................
24.00.147 Sleeve for door bolt top ................................................ 27....................
1104.0820 Snap nut 4,2mm ....................................................... 29, 31................
40.00.453 Solid state relais ....................................................... 7.....................
10.00.243 Spacer M4x8 .......................................................... 7.....................
24.01.100 Spring clip f. door lock ................................................. 25....................
10.01.049 Square necked mushroom head bolt 6x30 ............................ 19....................
1107.0103 Star lock ø3 ............................................................ 17....................
1107.0100 Star lock ø4 ............................................................ 31....................
44
3 AC208V (240V) 60Hz UL
2/15/2012
SelfCooking Center 102 - 10 x 2/1 GastronormE
E12SH1112
Index
Part-no. Description Page
44.00.943 Steam generator insolated ............................................ 13....................
2112.1006 Steam hose 50x7mm .................................................. 13....................
10.01.193 Sticker set ............................................................. 37....................
2120.1259 Stop plug 10mm ....................................................... 15....................
56.00.607 Suction hose f. cleaning ............................................... 35....................
22.00.491 Surge guard for Meat probe sensor ................................... 23....................
50.00.313 T-fitting water connection .............................................. 33....................
40.01.611 Terminal block grey WKN 70/U........................................ 9......................
40.00.290 Thermocouple humidity................................................ 21....................
40.03.488 Thermocouple interior cabinet B1 ..................................... 21....................
40.04.106 Thermocouple steam generator *B5*.................................. 13....................
4005.0101 Tie rap 145 mm ........................................................ 15....................
1204.0120 Tooth lock washer A4,3 ............................................... 7......................
1206.0120 Tooth lock washer A6,4 ............................................... 29....................
16.02.154 Top cover .............................................................. 31....................
50.01.050 Triple solenoid valve................................................... 33....................
50.00.751 Tulip for handshower with tape ........................................ 31....................
12.00.516 Turning lock f. lower part of pedestal .................................. 29....................
50.00.846 Union nut M12x13.2 N................................................. 17....................
12.00.205 Upper part of pedestal ................................................. 29....................
40.02.425 Varistor ................................................................ 9......................
22.00.767 Vent cover ............................................................. 11, 29................
54.00.879 Ventilation pipe ........................................................ 33....................
8354.1304 Venting valve for steam generator .................................... 33....................
10.00.744 Washer A4,3 *A4 ...................................................... 23....................
1306.0222 Washer A6,4x15x1,5 .................................................. 13....................
1308.0162 Washer A8,4........................................................... 19....................
1308.0160 Washer A8,4........................................................... 25....................
60.71.379 Water connection kit, table unit E/USA ................................ 37....................
50.00.070 Water distribution hor roll guide con. .................................. 33....................
50.00.071 Water distribution hor. w/o roll guide con. ............................. 33....................
1900.0202 Water filter ............................................................. 33....................
2/15/2012
3 AC208V (240V) 60Hz UL
45
SelfCooking Center 102 - 10 x 2/1 GastronormE
E12SH1112
Index
Part-no. Description Page
50.01.523 Water volume sensor .................................................. 33....................
40.04.114 Wiring interior light ..................................................... 21....................
46
2/15/2012
3 AC208V (240V) 60Hz UL
Deckblatt Elektrische Dokumentation, Cover sheet electrical Documentation
Die Elektrische Dokumentation besteht aus: 1. diesem Deckblatt, 2. dem Schaltplan und 3. der Legende der elektrischen Bauteile
The electric documentation contains: 1. this cover sheet, 2. the wiring diagram and 3. the bill of material (BOM)
Deckblatt-Nr.
Front Page No.
75-21214 Version 1
Typ / Type SCC WE 102E
Schaltplan
Wiring diagram
76-00494 Version 1
Spannung (SPL)
Voltage
3AC208 V 60 Hz
Legende
Legend electr. components
78-00740 Version 1
Geräteserialnr.
Serial number
E12SH1102 Version 1102
Erstellt am
Created at
Jul 18, 2011 5:59 PM Ersteller
Creator
SCHD
Gültig ab
Valid from
Aug 30, 2011 3:30 PM Änderung
Modification
0123456789
K1:1 / 2.00
K1:3 / 2.00
K1:5 / 2.00
Option
Sicotronic system
X0:PE
X0:N
X0:1 Eingang Sicotronic
X20:1 Nullleiter
X20:2 Eingang Sicotronic
X20:3 Gerät EIN
X20:4 Heizungsanforderung
ohne Option
Brücke 2-4
w/o option
Link 2-4
N
BU
XG1
33
N
2
+
11
XM5
M5
X0:2 Gerät EIN
X0:3 Heizungsanforderung
X75
M
M1
6,3A
M1-F2
6,3A
L1
Z1
L2
L3
VTVT
BKBK
OGOG
0
K1
N/O
YE/GNYE/GN
1
3
5
2
4
6
W31
F3
F4
A1
A2
S1
X7.2
11
BNGYRDBN
XS1
11
1
2
1
2
22
BKRD
33 44
22
Option Pot.-freier Kontakt
Option pot.-free contact
K1
N/O
A2-F1
2AT
A2-F2
2AT
X21
11
BN
.
PE
BUS
X19
22
BU
Y1
WH
33
22
11
M
~
44
11
55
22
66
33
BU
XY1
11
22
Y2
A1
A2
WH
BU
XY2
11
22
WH
BU
XY3
11
22
Y3
A1
A2
A1
A2
G1
XM1
M1-F1
W17
F1 8A
BN
K1
F2 8A
BU
12
34
56
13 14
L1
L2
L3
PE X0
K1
A1
A2
1314
N/O
K1:13 / 3.00
K1:A2 / 3.00
.00
.00
.00
.03
.03
442233
X.0
W32
GY
L1
-
.
W30
11
M12
22
1
2
X20
3
N
1
2
3
BU
11
22
33
44
22
55
11
BN
BU
OG
XM12
22
XY4
11
11
Y4
M
~
A1
A2
PE
Attention
After carrying out a voltage conversion,
change the connection on the control
transformer to the desired voltage input
208V
BU
66
22
240V
X18
M4
M
(208 or 240V)
W20
11
BU
WH
XM4
11
~
208V
240V
1b
1a
S13
1
BK
WH
3
22
X26
22
44
WH
22
BU
XM6
11
C1
.
M
~
M6
PE
GY
1
33
22
Erstellt von
76-00494

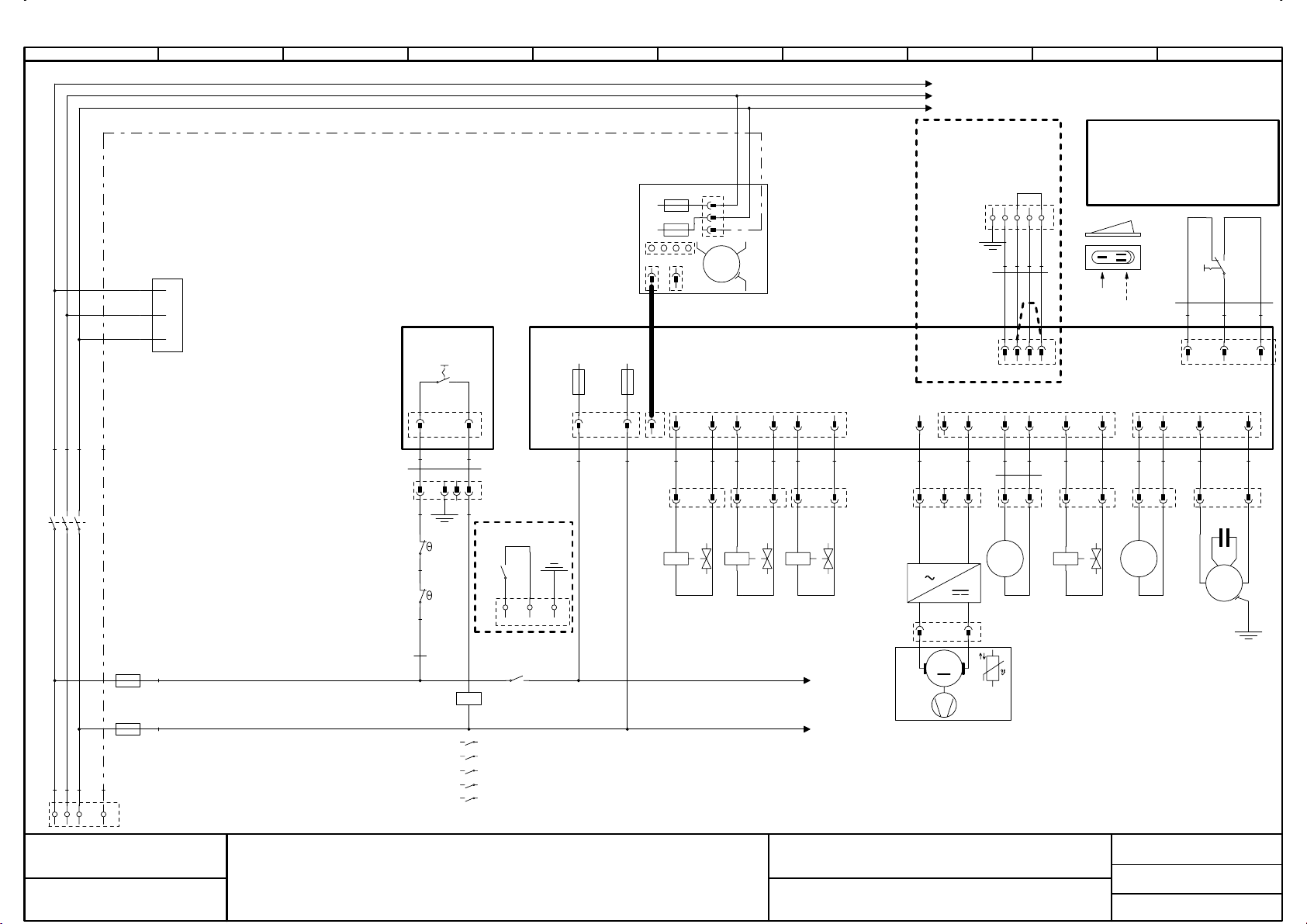

MODUL 1
SCC WE 102E-UL
Leistung/Power
1Version
3AC208 V 60 Hz
Created by
Datum
Date
Blatt
Page
SCHD
05.10.2011
1
1.07 / K1:1
1.07 / K1:3
1.07 / K1:5
0123456789
BK
OG
VT
X24
A2
HL2-
HL2+
D1-
D1+
44
33
22
11
HL1-
HL1+
D2-
D2+
88
77
66
55
BNBN
RDRD
OGOG
WHWHVT
BKBN
BNBK
RDOG
OGOG
33
22
A- A+
(D1)
WHBKVT
11
A2
V1
XV1
A1/B1
B2
BK
BK
0
44
B- B+
(HL2)
OGGY
BNBK
RDOG
OGOG
33
22
A- A+
(D1)
WHOGVT
11
A2
V2
XV2
A1/B1
B2
OGVT
OG
44
B- B+
(HL2)
VTWH
V3
XV3
44
33
A1/B1
B- B+
B2
(HL2)
VTVT
VT
22
A- A+
(D1)
V4
11
A2
BK
BKBK
BKBNBN
A1/B1
B2
(HL1)
BNBNGY
XV4
44
B- B+
RDRD
33
OGOG
22
A- A+
(D2)
GYGYBK
OGGY
BN
44
RD
XV5
V5
11
A1/B1
B- B+
A2
B2
(HL1)
OG
OG
33
OG
22
A- A+
(D2)
GYOG
11
A2
VTWH
GYVT
XV6
44BN33RD22
A- A+
OG
(D2)
11
A2
V6
A1/B1
B- B+
B2
(HL1)
VT
VT
Thermoelement Dampfgenerator
Thermocouple steam generator
R1
76-00494
BK
6
8
9
11
1
12
5
10
7
2
BK
3
4
6
8
9
11
1
3
12
5
10
7
2
4
R4
VT
OG
8
7
WH
12
4
11
3
BK
BN
HL1
18kW(6x3kW)
D1
R2
18kW(6x3kW)
D2

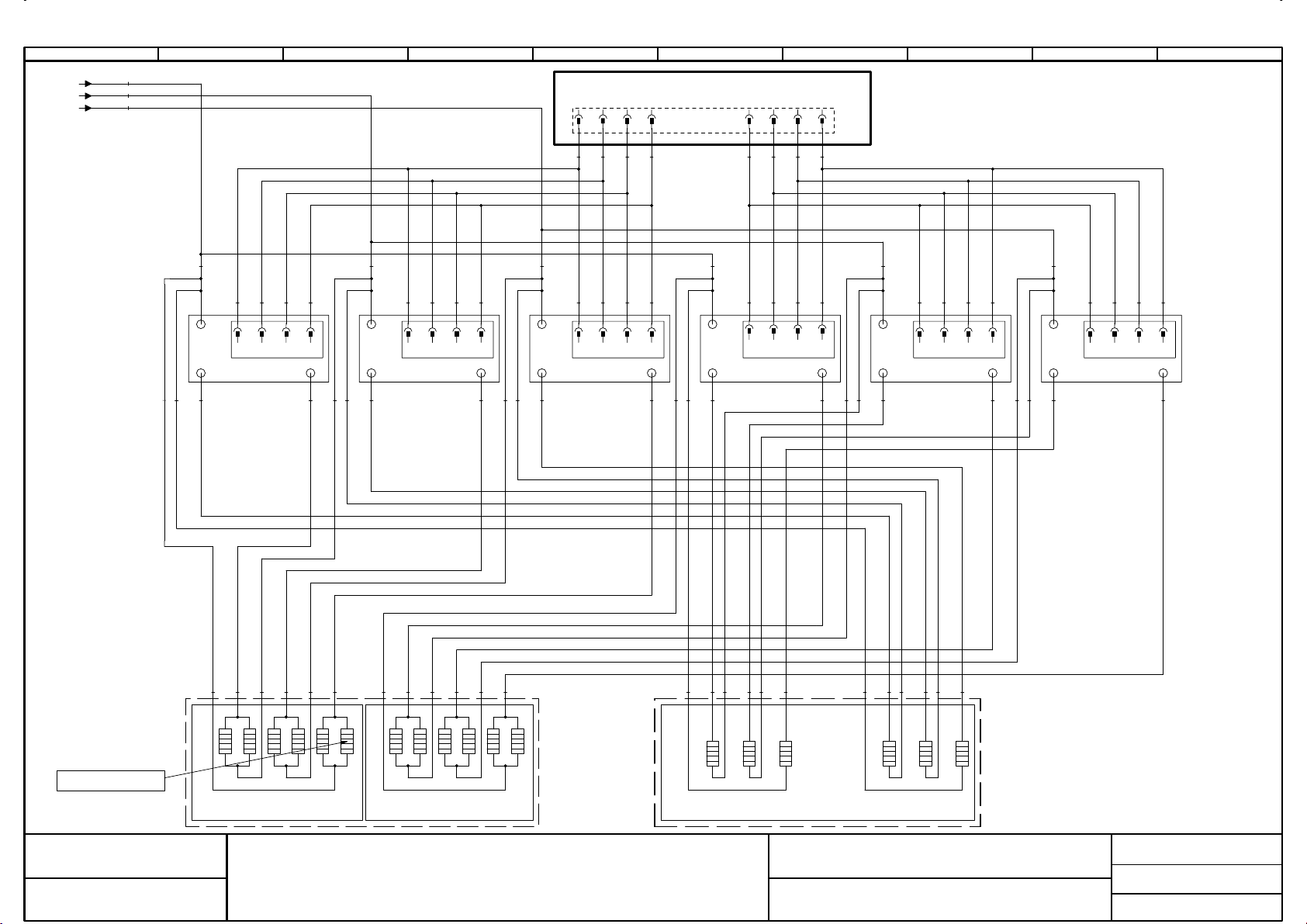

MODUL 2
36kW(6x6kW)
HL1/HL2
SCC WE 102E-UL
Heizung/Heating
1Version
3AC208 V 60 Hz
VT
GY
OG
6
5
WH
10
2
9
1
HL2
Erstellt von
Created by
Datum
Date
Blatt
Page
SCHD
05.10.2011
2
0123456789
P1
Signal
IN GND
XP1
11
S2
P
S12
22
33
M7
M
-+
Signal
S11
HALL
GND
IN
S3
H1
T2
W11
GY
GY
GY
A2
A2-F3
8A
X14
11
22
33
44
0
T1
T1-F1
2AT
PXT1
GY
GY
WH
WH
11,5V
18V
4
3
2
1
.
.
SXT1
.
.
.
.
250V
240V
230V
220V
7
6
5
4
3
T1-F2
5AT
.
208V
11
22
X1
.
0
200V
2
1
N
YE/GN
33
44
X12
33WH22WH11
GY
X3
WH
WH
WH
11
33
44 55
WH
66 77
X6
22
11
GN
11
22Y533
X11
22
11
GN
44
X25
X4
33B222
WH
X5
11
55
442233
GN
44 33B522
WH
88
11
22
33
X15
X2
.
11
GN
77
66
.
WH
YE/GN
55
.
BK
BN
WH
11WH22
X27
44
.
33
.
BU
GN
BUYE
11BN22
X13
22
.
11
.
OG
BK
BNYE/GN
11
22
X8
Option Thermoelement Sousvide
Option Thermocouple Sousvide
X2
77
.
.
W23
7
X2.0
X2.1
7
A1
X10
66
55
44
33
22
.
.
6
5
6
5
11
.
.
.
4
3
2
1
4
3
2
1
11S622 33 44 55 66
1.06 / K1:13
1.06 / K1:A2
BN
BU
76-00494
B1

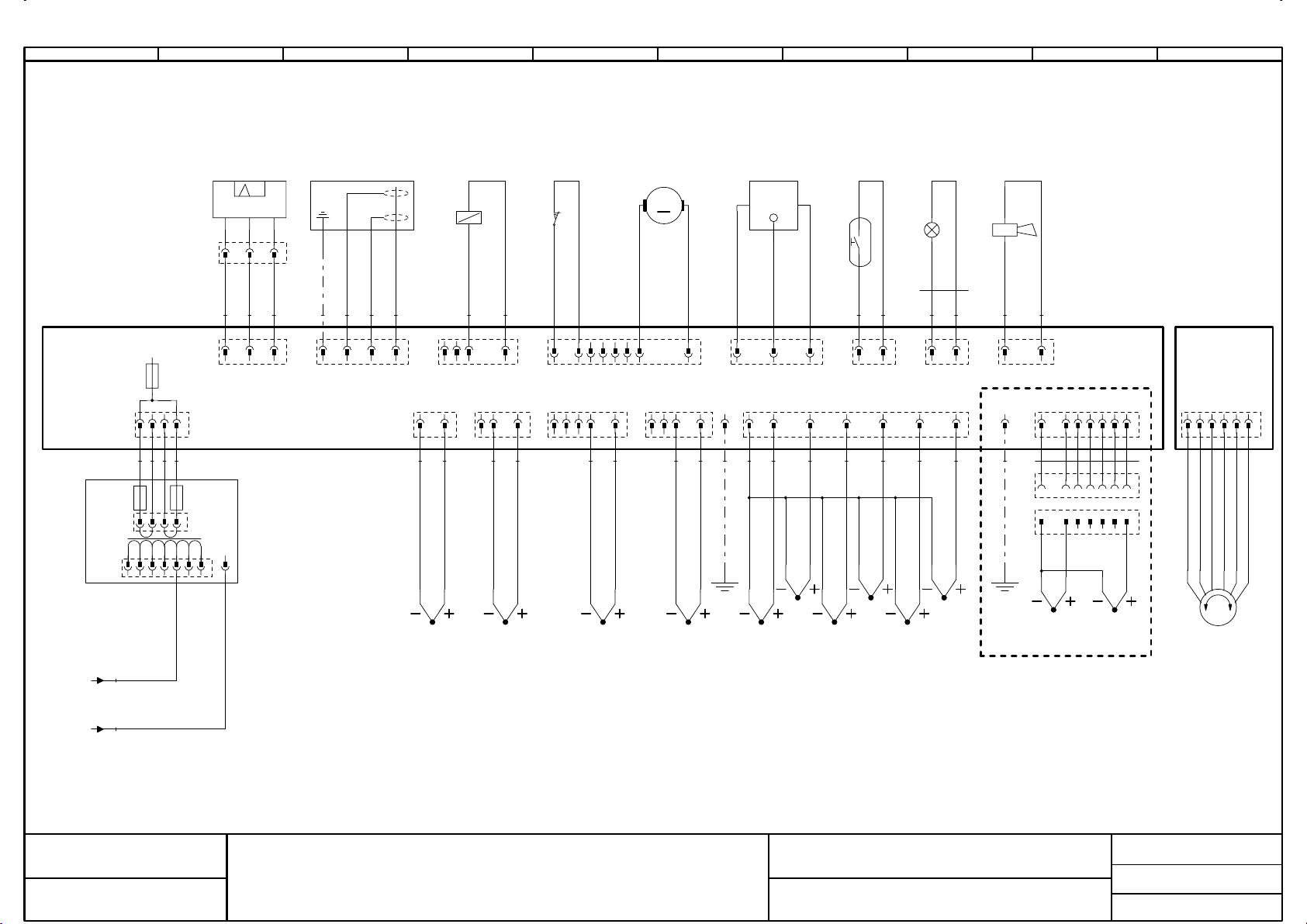

MODUL 3
Sensoren/Sensors
1Version
B4
B3
SCC WE 102E-UL
3AC208 V 60 Hz
B7
Erstellt von
Created by
Datum
Date
Blatt
Page
SCHD
05.10.2011
3
Positionsliste
Bill of material
Änderungsdatum 30.08.2011 Name SCC WE 102E-UL Dokument-Nr. 78-00740
Erzeuger ADT Spannung 3AC208 V 60 Hz Version 1
Seite 1 von
3
Name
Name
Artikelnr.
Item number
Artikelbezeichnung
Item description
Module
Modul
-A1 42.00.081 Interface Platine Interface PCB Modul 1
-A2 42.00.080 CPU SCC WE CPU SCC WE Modul 1
-A2-F1/F2 3019.0120 Sicherung A2 - 2AT Fuse A2 - 2AT Modul 1
-A2-F3 3019.0312 Sicherung A2 - 8AT Fuse A2 - 8AT Modul 3
-B1 40.03.488 Thermoelement Garraum Thermocouple interior cabinet Modul 3
-B2 54.01.169 Thermoelement Ablöschung Thermocouple quenching Modul 3
-B3 40.00.606 Thermoelement Kerntemperatur Thermocouple core sensor Modul 3
-B4 40.00.290 Thermoelement Feuchte Thermocouple humidity Modul 3
-B5 40.04.106 Thermoelement Dampfgenerator Thermocouple steam generator Modul 3
-F1/F2 40.01.588 Steuersicherung Control fuse Modul 1
-F3 40.01.329 Sicherheitstemperaturbegrenzer Gas:157°C/314°
F Elek.:183°C/360°F
Safety thermostat steam generator Gas: 157°C/
314°F Elec.: 183°C/360°F
Modul 1
-F4 40.01.482 Sicherheitstemperaturbegrenzer 360°C/680°F Safety thermostat interior cabinet 360°C/680°F Modul 1
-G1 40.03.257 Gleichrichter Kühllüfter DC converter cooling fan Modul 1
-H1 3024.0201 Garraumbeleuchtung Interior cabinet light Modul 3
-K1 40.03.666 Hauptschütz Main contactor Modul 1
-M1 40.03.513 Lüftermotor Fan motor Modul 1
-M12 56.00.451 Pumpe Pflegemittel Care pump Modul 1
-M4 44.00.207 SC-Pumpe SC-pump Modul 1
-M5 40.03.428 Kühllüfter Cooling fan Modul 1
-M6 56.00.185 CleanJet Pumpe SCC WE CleanJet pump SCC WE Modul 1
-M7 54.01.291 Kugelhahn Ablauf Drain valve Modul 3
-P1 3017.1011 Differenzdrucksensor Differential pressure sensor Modul 3
Positionsliste
Bill of material
Änderungsdatum 30.08.2011 Name SCC WE 102E-UL Dokument-Nr. 78-00740
Erzeuger ADT Spannung 3AC208 V 60 Hz Version 1
Seite 2 von
3
Name
Name
Artikelnr.
Item number
Artikelbezeichnung
Item description
Module
Modul
-R1 44.01.376 Dampfheizkörper Heating element steam Modul 2
-R2 44.01.376 Dampfheizkörper Heating element steam Modul 2
-R4 40.03.645 Heißluftheizkörper Heating element hot air Modul 2
-S1 TEXT Ein/Aus Schalter ON/OFF switch Modul 1
-S11 50.01.523 CDS-Sensor CDS-sensor Modul 3
-S2 44.01.291 Niveauelektrode Water level electrode Modul 3
-S3 40.00.335 Türkontaktschalter Door contact switch Modul 3
-S6 40.00.404 Zentrales Einstellrad Central dial Modul 3
-T1 40.03.348 Steuertrafo Control transformer Modul 3
-T1-F1 3019.0120 Sicherung Steuertrafo T1 2AT Fuse control transformer T1 2AT Modul 3
-T1-F2 3019.0126 Sicherung Steuertrafo T1 5AT Fuse control transformer T1 5AT Modul 3
-T2 40.04.034 SCC WE: Lautsprecher / CMP: Alarmsummer SCC WE: Speaker / CMP: Buzzer Modul 3
-V1-V12 40.00.453 Leistungshalbleiter Solid state relais Modul 2
-W11 40.04.114 Kabel: Garraumbeleuchtung Cable: interior cabinet light Modul 3
-W17 40.03.484 Kabel: Steuerstamm Cable: control harness Modul 1
-W20 40.03.981 Kabel: Spannungswahlschalter UL Cable: selector switch UL Modul 1
-W30 40.02.965 Kabel: Adapterkabel Pumpe Pflegemittel 61-102 Cable: adapter care pump 61-102 Modul 1
-W31 40.03.467 Kabel: Ein/Aus Schalter Cable: ON/OFF switch Modul 1
-X20 40.04.180 Sicotronic-Klemme Sicotronic link Modul 1
-Y1/Y3/Y4 50.01.050 Y1: Magnetventil Füllen / SCC WE Y3:
Beschwadung / Y4: Pflegemittel
Y1: Solenoid valve filling / SCC WE Y3:
moistening / Y4: care
Modul 1
-Y2 50.01.146 Magnetventil Ablöschung Solenoid valve quenching Modul 1
-Y5 22.00.725 Klimaventil Clima valve Modul 3
Positionsliste
Bill of material
Änderungsdatum 30.08.2011 Name SCC WE 102E-UL Dokument-Nr. 78-00740
Erzeuger ADT Spannung 3AC208 V 60 Hz Version 1
Seite 3 von
3
Name
Name
Artikelnr.
Item number
Artikelbezeichnung
Item description
Module
Modul
-Z1 40.02.425 Entstörfilter/Varistor Electronic noise filter Modul 1
Loading...
