Electrical unit
SCC 62E
Valid as of E62SE0404 up to E62SE....
X SCC 62E
Voltage 3 AC 200V 50-60Hz
Item no. Part no Reference Description
1 X1 Control panel
2 X2
3 X3 Clima Plus
4 X4
5 X5 Hot air heating
6 X6
7 X7 Interior cabinet
8 X8
9 X9 Water supply, quenching box
10 X10
11 X11 CleanJet
13 X13
14 X14 Miscellaneous
Electrical installation
Steam generator, Bypass
Motor and fan wheel
Door
Hand shower
Exterior cabinet
Version 2006 1
SCC 62E
Electrical unit
X Table of contents
Voltage: 3 AC 200V 50-60Hz
1 Control panel ..................................................................................................................3
1.A Control panel..........................................................................................................................................................4
2 Electrical installation .......................................................................................................5
2.A Contactor assembly ...............................................................................................................................................6
2.B Cable entry.............................................................................................................................................................8
2.B Cable entry.............................................................................................................................................................9
3 Clima Plus.....................................................................................................................10
3.A Hose set f. humidity control..................................................................................................................................11
4 Steam generator, Bypass .............................................................................................12
4.A Pump connection spout cpl..................................................................................................................................13
4.B Venting valve for steam generator .......................................................................................................................14
5 Hot air heating ..............................................................................................................15
6 Motor and fan wheel.....................................................................................................16
7 Interior cabinet..............................................................................................................17
7.A Interior cabinet .....................................................................................................................................................18
7.B Gasket frame w. glass a. gaskets ........................................................................................................................19
7.C Air baffle...............................................................................................................................................................20
7.C Air baffle...............................................................................................................................................................21
8 Door..............................................................................................................................22
8.A Door .....................................................................................................................................................................23
9 Water supply, quenching box........................................................................................24
10 Hand shower...............................................................................................................25
11 CleanJet......................................................................................................................26
13 Exterior cabinet...........................................................................................................27
13.A Exterior cabinet..................................................................................................................................................28
14 Miscellaneous.............................................................................................................29
2
SCC 62E
Valid as of E62SE0404 up to E62SE....
Electrical unit
1 Control panel
1 Control panel
X 1 Control panel 1
Voltage 3 AC 200V 50-60Hz
Item no. Part no Reference Description
A X1.A Control panel
1 87.00.000 Control panel insert with overlay
Attention! Individual parts shown might not be used in this component group!
Version 2006 3
SCC 62E
Valid as of E62SE0404 up to E62SE....
Electrical unit
1 Control panel
1.A Control panel
X 1.A Control panel 1
Voltage 3 AC 200V 50-60Hz
Item no. Part no Reference Description
1 42.00.002 Control pcb
2 1104.0121 Hex nut M4 self locking
3 10.00.355 Spacer black
4 2020.0400 Fixing device for cable harne ss
5 16.00.232 Dial f. pulse generator
6 40.02.087 Buzzer
6 3006.0107 Buzzer
7 5110.1029 Gasket mode switch
7 5110.1028 Gasket poti hot air, core temperature
8 40.00.404 Pulse generator
9 16.00.387 Mounting device f.sealing + sealing lip
10 1306.0218 Washer A4,3
11 1103.0122 Hex nut M3 self-locking
Attention! Individual parts shown might not be used in this component group!
Version 2006 4
SCC 62E
Valid as of E62SE0404 up to E62SE....
Electrical unit
2 Electrical installation
2 Electrical installation
X 2 Electrical installation 2
Voltage 3 AC 200V 50-60Hz
Item no. Part no Reference Description
A X2.A Contactor assembly
B 40.00.306 X2.B Cable entry
B 40.00.609 X2.B
1 4007.0620 Membrane DGC 29
2 4007.0621 Membrane DGC 36
3 40.00.453 Solid state relais
4 10.00.507 Pan head screw Torx 5/16" T20
5 10.00.444 Raised countersunk head screw Torx M4x8
6 1106.0803 Hex combination nut M6 galv
7 10.00.239 EJOT PT-Screw Torx 4x10
8 1105.0121 Hex combination nut M5 galv
9 42.00.007 External memory
10 40.00.049 Relay-I/O pcb
10 42.00.045 Relay-I/O pcb w/o Sicotronic
11 40.00.417 Fixing clip f. pcb
12 1104.0801 Cage nut M4
13 10.00.243 Spacer M4x8
14 1104.0120 Hex nut M4
15 10.00.112 Cable clip short
16 10.00.111 Cable clip long
17 10.00.471 Cable clip d10-12mm
18 40.01.068 Power supply cable 4x10mm²
18 40.01.875 Power supply cable 4x16mm² 3m
19 40.00.338 Sicotronic-terminal *screw typ*
20 40.01.776 Sicotronic-terminal *crimp type*
21 40.01.286 Fixing device f. cable guide
22 1106.0160 Hex nut M6
23 1206.0120 Tooth lock washer A6,4
24 40.00.471 Bus cable 0.8m
24 40.00.472 Bus cable 1.3m
Cable entry
Attention! Individual parts shown might not be used in this component group!
Version 2006 5
SCC 62E
Valid as of E62SE0404 up to E62SE....
Electrical unit
2 Electrical installation
2.A Contactor assembly
X 2.A Contactor assembly 2
Voltage 3 AC 200V 50-60Hz
Item no. Part no Reference Description
1 40.01.329 Dry up protector 160°
2 3014.0302 Hex nut M10 for dry-up protector
3 40.01.482 Safety temperature limiter 365°C
4 3014.0327 Hex nut M10x1,0
5 40.01.556 Contactor CL04A310M6-M
6 3101.1008 Cooling fan
7 10.00.238 Screw Torx 4x50
8 40.00.277 Control transformer
9 40.01.613 Varistor
10 4001.0224 Fuse 6.35x32mm
11 4001.1295 Fuse holder e 1003Si/1DS
12 10.00.240 Screw Torx 3x20
13 4001.1233 Terminal block yellow/green 35mm²
14 4001.1206 Terminal block 35mm² grey
15 2005.0106 Protective grid for cooling fan
16 40.01.562 Installation rail for Contactor 115mm
16 40.00.518 Installation rail for Contactor 95mm
17 10.00.239 EJOT PT-Screw Torx 4x10
18 10.00.111 Cable clip long
19 40.00.209 Cable buzzer
19 40.00.202 Cable CDS sensor
19 40.00.242 Cable contactor-SSR
19 40.01.302 Cable control harness
19 40.00.201 Cable control SSR
19 40.00.213 Cable control transformer sec.
19 40.00.210 Cable control transformer sec.
19 40.00.207 Cable differencial pressure switch
19 40.00.208 Cable humidity control
19 40.00.205 Cable level electrode
19 40.00.204 Cable SC pump
Attention! Individual parts shown might not be used in this component group!
Version 2006 6
SCC 62E
Valid as of E62SE0404 up to E62SE....
Electrical unit
2 Electrical installation
Item no. Part no Reference Description
19 40.00.203 Cable solenoid valve
X 2.A Contactor assembly 2
Voltage 3 AC 200V 50-60Hz
Attention! Individual parts shown might not be used in this component group!
Version 2006 7
SCC 62E
Valid as of E62SE0404 up to E62SE....
Electrical unit
2 Electrical installation
2.B Cable entry
X 2.B Cable entry 2
Voltage 3 AC 200V 50-60Hz
Item no. Part no Reference Description
1 40.00.391 Cable bushing f. cable entry
2 10.00.115 Allen screw M5x30
3 1305.0160 Washer A5,3x10mm
4 40.00.307 Cable entry
5 40.00.312 Clamp strap f. cable entry
Attention! Individual parts shown might not be used in this component group!
Version 2006 8
SCC 62E
Valid as of E62SE0404 up to E62SE....
Electrical unit
2 Electrical installation
2.B Cable entry
X 2.B Cable entry 2
Voltage 3 AC 200V 50-60Hz
Item no. Part no Reference Description
1 40.00.391 Cable bushing f. cable entry
2 10.00.076 Allen screw M5x35
3 1305.0160 Washer A5,3x10mm
4 40.00.307 Cable entry
5 40.00.312 Clamp strap f. cable entry
Attention! Individual parts shown might not be used in this component group!
Version 2006 9
SCC 62E
Valid as of E62SE0404 up to E62SE....
Electrical unit
3 Clima Plus
3 Clima Plus
X 3 Clima Plus 3
Voltage 3 AC 200V 50-60Hz
Item no. Part no Reference Description
A 22.00.234 X3.A Hose set f. humidity control
1 22.00.199 Inner humidity meas. Piece
2 22.00.318 Humidity control cpl. with motor
3 22.00.200 Outer humidity meas. Piece
4 22.00.198 Gasket f. hum. meas. Pipe
5 22.00.174 Hose d50x83
6 2066.0531 Hose clamp ø56
8 22.00.326 Mounting device f. pressure sensor
9 3017.1011 Pressure sensor for humidity control Huba 401
10 10.00.239 EJOT PT-Screw Torx 4x10
11 3101.1010 Humidity control motor
12 3016.0102 Micro switch
13 3101.1021 Protecting cap f.12VDC humidity motor
Attention! Individual parts shown might not be used in this component group!
Version 2006 10
SCC 62E
Valid as of E62SE0404 up to E62SE....
Electrical unit
3 Clima Plus
3.A Hose set f. humidity control
X 3.A Hose set f. humidity control 3
Voltage 3 AC 200V 50-60Hz
Item no. Part no Reference Description
1 4005.0101 Tie rap 145 mm
2 2110.1020 Silicon hose ø5x1.5 blue
3 2110.1019 Silicone hose ø5x1,5 "red"
4 1900.0203 Ceramic tube 8x5x60mm for
5 2112.1338 Silicone hose ø8x2x20
Attention! Individual parts shown might not be used in this component group!
Version 2006 11
SCC 62E
Valid as of E62SE0404 up to E62SE....
Electrical unit
4 Steam generator, Bypass
4 Steam generator, Bypass
X 4 Steam generator, Bypass 4
Voltage 3 AC 200V 50-60Hz
Item no. Part no Reference Description
A 8354.1320 X4.A Pump connection spout cpl.
B 8354.1304 X4.B Venting valve for steam generator
1 3002.0402 Filling level electrode 90 mm
2 44.00.172 Steam generator insolated
3 1106.0803 Hex combination nut M6 galv
4 44.00.295 Heating element
5 44.00.279 Gasket f. heating element
6 2066.0519 Hose clamp 35,6mm
7 2066.0526 Hose clamp ø46mm
8 44.00.207 Emptying pump
9 1006.0762 Hex screw M6x10
10 1306.0222 Washer A6,4x15x1,5
11 44.00.278 Fixing device f. pump steam generator
12 44.00.212 Drain hose steam generator
13 2066.0518 Hose clamp 30mm
14 40.00.291 Thermocouple steam generator
15 1104.0122 Hex combination nut M4 galv
16 2112.1006 Steam hose 50x7mm
17 2066.0504 Hose clamp 40-60mm
18 2066.0506 Hose clamp 20-32mm
19 1105.0120 Hex nut M5
20 1205.0120 Tooth lock washer A5,3
21 2920.1300 Level elektrode insert
22 10.00.414 Cable strap black 120°
23 44.00.280 Gasket f. heating element+Level elektrode insert
Attention! Individual parts shown might not be used in this component group!
Version 2006 12
SCC 62E
Valid as of E62SE0404 up to E62SE....
Electrical unit
4 Steam generator, Bypass

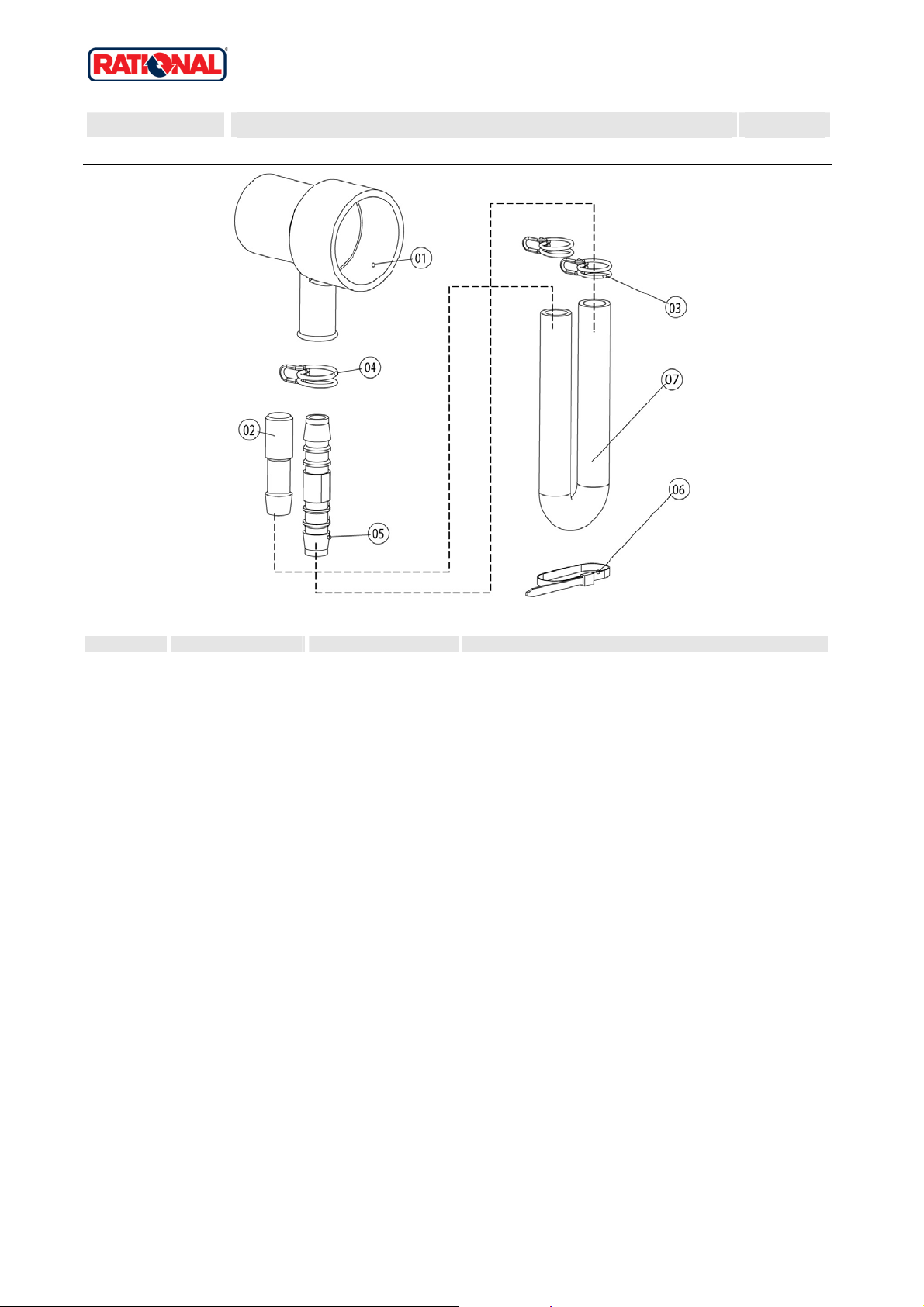

4.A Pump connection spout cpl.
X 4.A Pump connection spout cpl. 4
Voltage 3 AC 200V 50-60Hz
Item no. Part no Reference Description
1 2118.1000 Pump connection spout
2 2120.1259 Stop plug 10mm
3 2066.0527 Hose clamp ø14mm
4 2066.0530 Hose clamp ø16.4mm
5 2062.0331 Junction pressure hose GS 10
6 4005.0101 Tie rap 145 mm
Attention! Individual parts shown might not be used in this component group!
Version 2006 13
SCC 62E
Valid as of E62SE0404 up to E62SE....
Electrical unit
4 Steam generator, Bypass
4.B Venting valve for steam generator
X 4.B Venting valve for steam generator 4
Voltage 3 AC 200V 50-60Hz
Item no. Part no Reference Description
1 2062.0332 Receptacle for ventilation valve SG
2 2069.0108 Ventilation valve
3 2112.1310 Form hose for ventilation of steam generator
4 2066.0506 Hose clamp 20-32mm
Attention! Individual parts shown might not be used in this component group!
Version 2006 14
SCC 62E
Valid as of E62SE0404 up to E62SE....
Electrical unit
5 Hot air heating
5 Hot air heating
X 5 Hot air heating 5
Voltage 3 AC 200V 50-60Hz
Item no. Part no Reference Description
1 40.00.305 Mating flange f. heating assembly
2 40.00.254 Heating assembly
3 10.00.109 Hex screw M5x23
4 1106.0360 Cap nut M6, high shape
5 1306.0222 Washer A6,4x15x1,5
6 40.00.332 Gasket f. heating assembly
Attention! Individual parts shown might not be used in this component group!
Version 2006 15
SCC 62E
Valid as of E62SE0404 up to E62SE....
Electrical unit
6 Motor and fan wheel
6 Motor and fan wheel
X 6 Motor and fan wheel 6
Voltage 3 AC 200V 50-60Hz
Item no. Part no Reference Description
1 2120.1306 Spacer SW19x17
2 22.00.123 Flange f. motor shaft gasket
3 22.00.120 Mounting support f. gasket flange
4 22.00.083 Motor shaft gasket
5 1315.0101 Copper washer 6x10
6 1106.0220 Hex nut M6 flat
7 22.00.192 Fan weel d340x135
8 1008.0763 Hex screw M8x20
8 10.00.565 Hex screw M8x20
9 40.00.310 Exhaust pipe below
11 40.00.274 Fan motor
12 10.00.071 Hex nut M8
12 1108.0260 Hex nut M8
12 10.00.710 Hex nut M8 w. locking
13 1208.0260 Spring washer B8
14 1008.1005 Square necked mushroom head bolt 8x40
Attention! Individual parts shown might not be used in this component group!
Version 2006 16
SCC 62E
Valid as of E62SE0404 up to E62SE....
Electrical unit
7 Interior cabinet
7 Interior cabinet
X 7 Interior cabinet 7
Voltage 3 AC 200V 50-60Hz
Item no. Part no Reference Description
A X7.A Interior cabinet
B 40.00.091 X7.B Gasket frame w. glass a. gaskets
C 22.00.294 X7.C
C 22.00.380 X7.C Air baffle
1 40.00.520 Screen interior cabinet sensor
3 3024.0201 Halogen bulb for interior cabinet 300°C
4 40.00.211 Wiring interior light
5 20.00.395 Door gasket
6 40.00.294 Meat probe sensor SCC 62
7 1315.0104 Copper washer 16x20x1,5
8 10.00.422 Hex nut M16
9 3014.0162 Sealing cone for thermocouple
10 3014.0163 Gasket sleeve with nipple
11 40.00.395 Thermocouple interior cabinet
12 2005.0308 Outlet sieve
13 50.00.395 Nozzle f. moistening
14 50.00.394 Union nut M12x12
Air baffle
Attention! Individual parts shown might not be used in this component group!
Version 2006 17
SCC 62E
Valid as of E62SE0404 up to E62SE....
Electrical unit
7 Interior cabinet
7.A Interior cabinet
X 7.A Interior cabinet 7
Voltage 3 AC 200V 50-60Hz
Item no. Part no Reference Description
1 40.00.290 Thermocouple humidity
2 40.00.098 Reflector f. interior light
3 4001.1248 Porcelain connector 2-pin interior light
4 1330.0100 Clamp strap f. sensor
5 1106.0224 Hex nut M6 self locking
6 1306.0120 Washer A6,4
7 1104.0120 Hex nut M4
8 1204.0120 Tooth lock washer A4,3
9 2120.1277 Base for sensor connection
10 1603.0167 Tubular rivet 3,2x0.25x10
11 10.00.041 Rivet nut M5 hexagon closed
Attention! Individual parts shown might not be used in this component group!
Version 2006 18
SCC 62E
Valid as of E62SE0404 up to E62SE....
Electrical unit
7 Interior cabinet
7.B Gasket frame w. glass a. gaskets
X 7.B Gasket frame w. glass a. gaskets 7
Voltage 3 AC 200V 50-60Hz
Item no. Part no Reference Description
1 40.00.093 Outer gasket f. interior light
2 40.00.094 Inner gasket f. interior light
3 40.00.095 Glass pane f. interior light
4 40.00.096 Gasket frame f. interior light
5 10.00.682 Phillips countersunk-head screw M5x16
Attention! Individual parts shown might not be used in this component group!
Version 2006 19
SCC 62E
Valid as of E62SE0404 up to E62SE....
Electrical unit
7 Interior cabinet
7.C Air baffle
X 7.C Air baffle 7
Voltage 3 AC 200V 50-60Hz
Item no. Part no Reference Description
1 1304.0160 Washer A4,3
2 1604.0167 Rivet 4x10
3 22.00.332 Air sucking ring f. air baffle
4 2760.1370 Latch hook for air baffle
5 40.01.289 Fixing clip core temp. cable
6 10.00.515 Rivet 3,2x5 A4
6 1603.0168 Rivet 3,2x8 A4
6 1603.0168 Rivet 3,2x8 A4
Attention! Individual parts shown might not be used in this component group!
Version 2006 20
SCC 62E
Valid as of E62SE0404 up to E62SE....
Electrical unit
7 Interior cabinet
7.C Air baffle
X 7.C Air baffle 7
Voltage 3 AC 200V 50-60Hz
Item no. Part no Reference Description
1 40.01.289 Fixing clip core temp. cable
2 1304.0160 Washer A4,3
3 1604.0167 Rivet 4x10
4 22.00.332 Air sucking ring f. air baffle
5 2760.1370 Latch hook for air baffle
6 10.00.515 Rivet 3,2x5 A4
6 1603.0168 Rivet 3,2x8 A4
7 22.00.361 Deep-draw f. air baffle
Attention! Individual parts shown might not be used in this component group!
Version 2006 21
SCC 62E
Valid as of E62SE0404 up to E62SE....
Electrical unit
8 Door
8 Door
X 8 Door 8
Voltage 3 AC 200V 50-60Hz
Item no. Part no Reference Description
A 24.00.105 X8.A Door
1 24.01.100 Spring clip f. door lock
3 24.00.152 Door handle
4 24.00.176 Door lock
5 24.00.504 Lock cover
6 24.00.133 Door mounting support top
7 1008.0768 Ornamental screw M8x16
8 1308.0160 Washer A8,4
9 24.00.223 Door mounting support bottom
10 1006.1962 Countersunk screw Torx M6x16
11 10.00.090 Cap f. Torx T30
12 1006.0760 Hex screw M6x16
13 1106.0802 Cage nut M6
14 24.00.137 Door bolt
15 10.00.099 Hex screw M8x12
16 24.00.048 Door bolt
17 1008.0769 Ornamental screw M8x30
18 2001.0109 Compression spring
19 24.00.141 Holding bracket f. door catch
20 1306.0120 Washer A6,4
21 24.00.142 Door catch
22 1308.0162 Washer A8,4
23 24.01.200 Pan head screw Torx M4x12 T20
24 24.01.199 Slotted pan head screw M6x45 *WDS*
Attention! Individual parts shown might not be used in this component group!
Version 2006 22
SCC 62E
Valid as of E62SE0404 up to E62SE....
Electrical unit
8 Door
8.A Door
X 8.A Door 8
Voltage 3 AC 200V 50-60Hz
Item no. Part no Reference Description
1 24.00.198 Inner glass pane
2 24.00.147 Sleeve for door bolt top
3 24.00.146 Door setting bolt
4 24.00.502 Fixing device f. magnet with magnet
Attention! Individual parts shown might not be used in this component group!
Version 2006 23
Electrical unit
9 Water supply, quenching box
SCC 62E
Valid as of E62SE0404 up to E62SE....
X 9 Water supply, quenching box 9
9 Water supply, quenching
box
Voltage
3 AC 200V 50-60Hz
Item no. Part no Reference Description
1 54.00.221 Exhaust pipe
2 54.00.241 Rubber form piece venting pipe
3 40.00.287 Thermocouple quenching
4 50.00.138 Double solenoid valve
5 50.00.139 Single solenoid valve
6 50.00.070 Water distribution hor roll guide con.
7 50.00.071 Water distribution hor. w/o roll guide con.
8 50.00.086 Locking plate f. water distribution
9 50.00.078 Non return valve DW16/DN12
10 1900.0202 Water filter
11 2066.0205 Hose clamp 8-16x9 mm SW 7mm
12 8664.1301 T-fitting water connection
13 5110.1024 Gasket for G3/4" threaded joint
14 50.00.085 Plug-in spring f. hand shower roll guide
15 54.00.357 Ball valve drain SCC cpl.
16 10.00.511 O-ring for ball valve drain 46x3.5
17 10.00.512 O-ring for ball valve drain 26x3.5
19 54.00.228 Inspection lid f. quenching chamber
20 5012.0566 Gasket quenching chamber 0-ring
21 54.00.225 Clamping bar
22 2016.0940 Quenching nozzle rear double sprey
22 2016.0942 Quenching nozzle rear double sprey
23 2067.0050 Pressure hose d10mm
24 44.00.670 Water volume sensor with wire
25 2112.1346 Protecting hose ø28x2x70mm
26 2066.0516 Hose clamp 60-80 mm
29 2120.1277 Base for sensor connection
Attention! Individual parts shown might not be used in this component group!
Version 2006 24
SCC 62E
Valid as of E62SE0404 up to E62SE....
Electrical unit
10 Hand shower
10 Hand shower
X 10 Hand shower 10
Voltage 3 AC 200V 50-60Hz
Item no. Part no Reference Description
1 50.00.140 Hand shower roll guide
2 50.00.174 Connect. pipe f. hand shower roll guide
3 50.00.130 Hand shower
4 50.00.156 Clamp f. hand shower roll guide
5 1107.0100 Star lock ø4
6 50.00.279 Tulip for handshower
7 50.00.298 Tape f. tulip
8 50.00.537 Gasket f. connect.pipe hand shower roll guide
9 50.00.538 O-ring f. connect. pipe f. hand shower roll guide
Attention! Individual parts shown might not be used in this component group!
Version 2006 25
SCC 62E
Valid as of E62SE0404 up to E62SE....
Electrical unit
11 CleanJet
11 CleanJet
X 11 CleanJet 11
Voltage 3 AC 200V 50-60Hz
Item no. Part no Reference Description
1 12.00.319 Housing f. Cleaning pump
2 56.00.166 Pressure hose f. cleaning
3 2066.0521 Hose clamp 27mm
4 56.00.120 Suction hose f. cleaning
5 56.00.153 Pump f. cleaning UP30
Attention! Individual parts shown might not be used in this component group!
Version 2006 26
SCC 62E
Valid as of E62SE0404 up to E62SE....
Electrical unit
13 Exterior cabinet
13 Exterior cabinet
X 13 Exterior cabinet 13
Voltage 3 AC 200V 50-60Hz
Item no. Part no Reference Description
A X13.A Exterior cabinet
1 22.00.354 Spacer ring
1 8450.1310 Spacer ring
2 22.00.353 Vent cover
2 8455.1209 Vent cover
3 1110.0800 Cage nut M10
3 1110.0800 Cage nut M10
4 2022.0101 Grommet 18 mm
5 12.00.205 Upper part of pedestal
6 12.00.206 Lower part of pedestal
7 1328.0102 Safety washer A10,2
8 10.00.107 Allen screw M10x30
9 5013.0100 Edge protection profile
12 16.01.146 Bracket for door contact switch
Attention! Individual parts shown might not be used in this component group!
Version 2006 27
SCC 62E
Valid as of E62SE0404 up to E62SE....
Electrical unit
13 Exterior cabinet
13.A Exterior cabinet
X 13.A Exterior cabinet 13
Voltage 3 AC 200V 50-60Hz
Item no. Part no Reference Description
1 16.00.312 Top cover
2 1003.2265 Countersunk self tapping screw 4,2x16
3 1104.0820 Snap nut 4,2mm
4 16.00.146 Side panel right
5 1603.0166 Rivet 3,2x7,9 CNS closed
6 16.00.147 Side panel left
7 10.00.102 Hex self tapping screw B4,2x32
8 16.00.201 Back panel
9 16.00.297 Front panel
10 2002.0107 Tension spring for front panel
11 16.00.673 Air inlet filter
12 2039.0331 Cap for service door
13 16.00.186 Crossbar top
14 5105.1027 Gasket f. exhaust pipe d=54mm
15 16.00.329 Cover f. USB interface
16 10.00.103 EJOT PT-screw KA 3.5x10
17 16.00.338 Edge protection profile
18 10.00.460 EJOT PT-Screw Torx 3,5x14
19 1004.2160 Hex self tapping screw 4,2x16
20 16.00.322 Crossbar below f. tulip
21 40.00.335 Door switch
22 40.00.469 Interface cable USB 0.9m
23 50.00.296 Clip f. drip collector
24 50.00.300 Drip collector
25 50.00.303 Bushing drip collector
26 50.00.304 Drain drip collector
26 50.00.557 Drain drip collector
27 16.00.384 Bracket for door contact switch
Attention! Individual parts shown might not be used in this component group!
Version 2006 28
SCC 62E
Valid as of E62SE0404 up to E62SE....
Electrical unit
14 Miscellaneous
14 Miscellaneous
X 14 Miscellaneous 14
Voltage 3 AC 200V 50-60Hz
Item no. Part no Reference Description
1 60.62.001 Hinging rack left
2 60.62.002 Hinging rack right
3 10.00.448 Phillips countersunk-head screw M5x16
4 1008.0750 Hex screw M5x16
5 1004.0666 Hex screw M4x10
6 10.00.565 Hex screw M8x20
7 1208.0160 Tooth lock washer A8,4
17 42.00.029 USB-Memory-Stick
19 1105.0123 Hex combination nut M4
22 4019.0008 Sticker Electric/Danger
24 60.60.574 Positioning support f. core sensor
Attention! Individual parts shown might not be used in this component group!
Version 2006 29
Loading...
