Rational SCC201E PARTS LIST
SCC 201E
Valid as of E21SE0404 up to E21SE....
Electrical unit
X SCC 201E
Voltage 3 AC 200V 50-60Hz
Item no. Part no Reference Description
1 X1 Control panel
2 X2
3 X3 Clima Plus
4 X4
5 X5 Hot air heating
6 X6
7 X7 Interior cabinet
8 X8
9 X9 Water supply, quenching box
10 X10
11 X11 CleanJet
13 X13
14 X14 Miscellaneous
Electrical installation
Steam generator, Bypass
Motor and fan wheel
Door
Hand shower
Exterior cabinet
Version 2006 1
SCC 201E
Electrical unit
X Table of contents
Voltage: 3 AC 200V 50-60Hz
1 Control panel ..................................................................................................................3
1.A Control panel..........................................................................................................................................................4
2 Electrical installation .......................................................................................................5
2.A Contactor assembly ...............................................................................................................................................7
3 Clima Plus.......................................................................................................................9
3.A Hose set f. humidity control..................................................................................................................................10

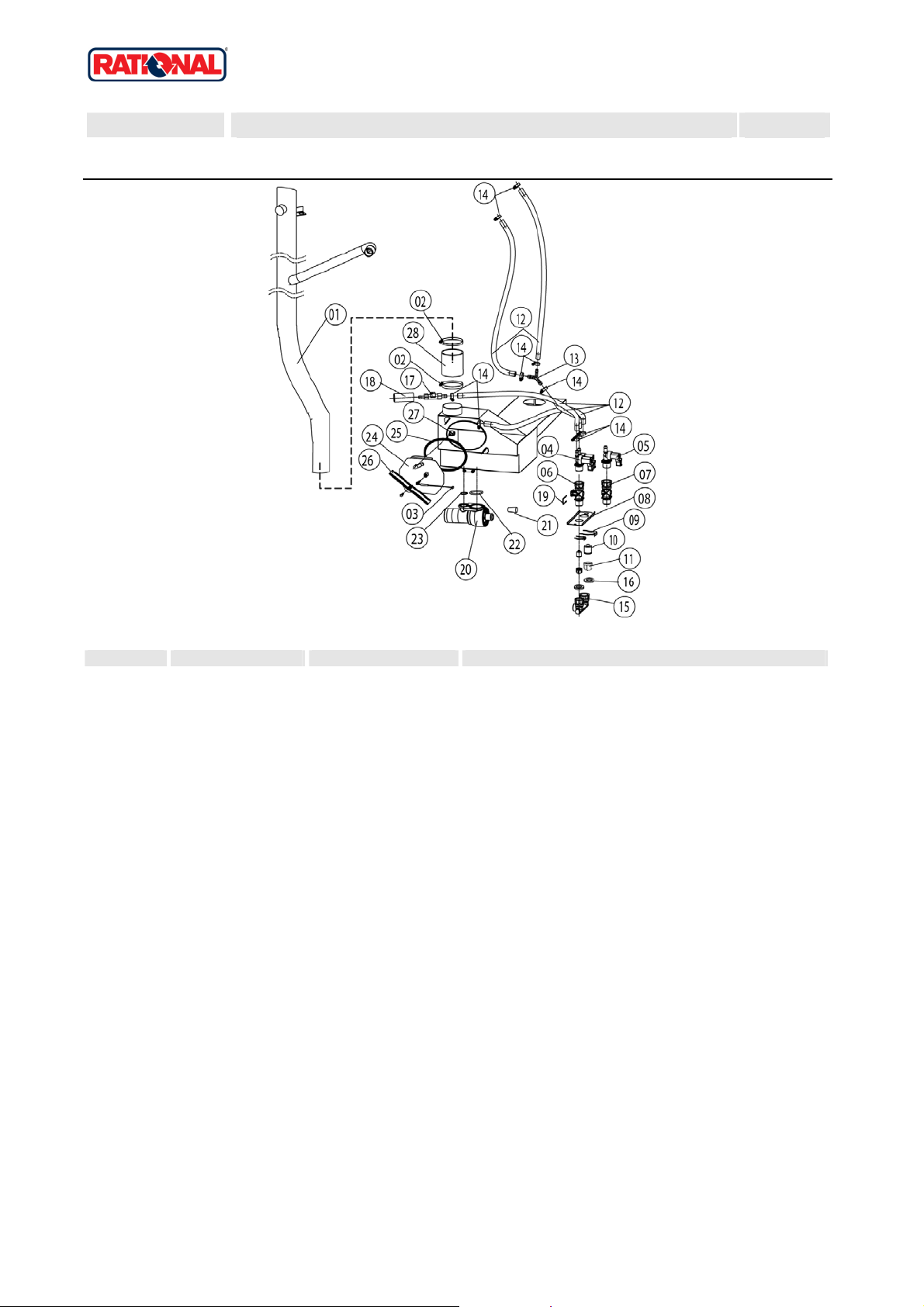

4 Steam generator, Bypass .............................................................................................11
4.A Pump connection spout cpl..................................................................................................................................12
4.B Venting valve for steam generator .......................................................................................................................13
5 Hot air heating ..............................................................................................................14
6 Motor and fan wheel.....................................................................................................15
7 Interior cabinet..............................................................................................................16
7.A Interior cabinet .....................................................................................................................................................17
7.B Gasket frame w. glass a. gaskets ........................................................................................................................18
7.C Air baffle...............................................................................................................................................................19
7.C Air baffle...............................................................................................................................................................20
8 Door..............................................................................................................................21
8.A Door .....................................................................................................................................................................23
8.C Door catch............................................................................................................................................................24
9 Water supply, quenching box........................................................................................25

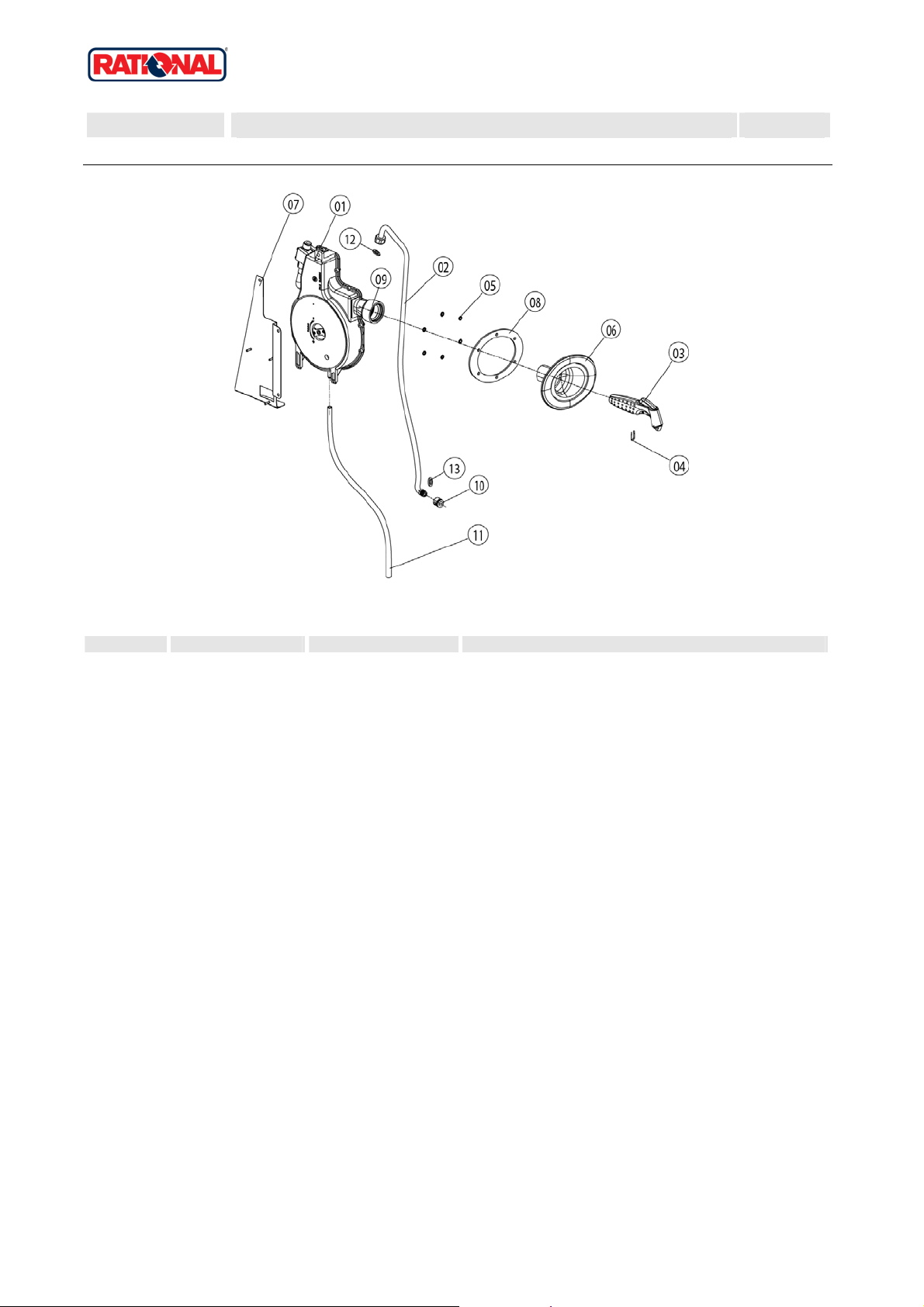

10 Hand shower...............................................................................................................26
11 CleanJet......................................................................................................................27

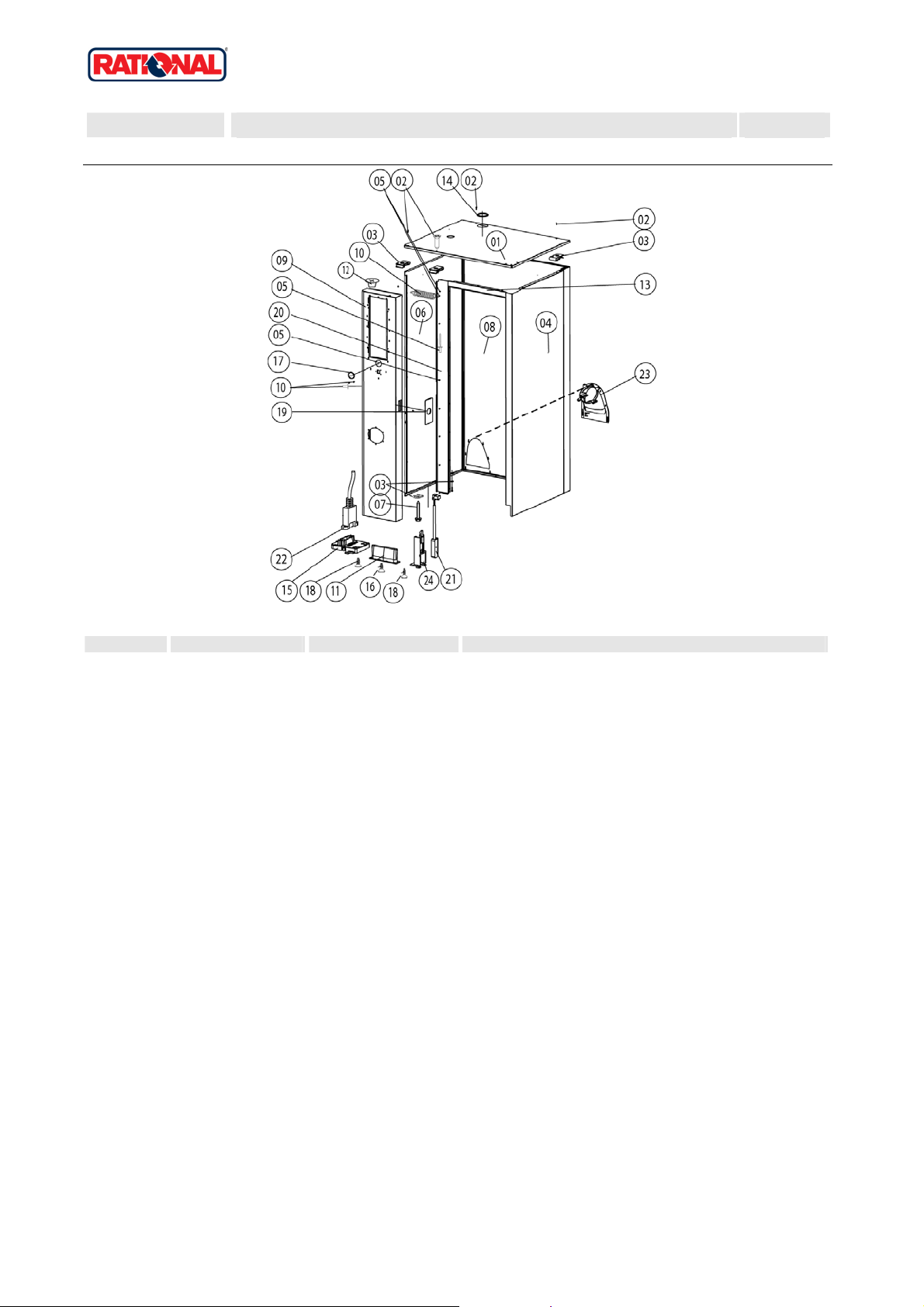

13 Exterior cabinet...........................................................................................................28
13.A Exterior cabinet..................................................................................................................................................29

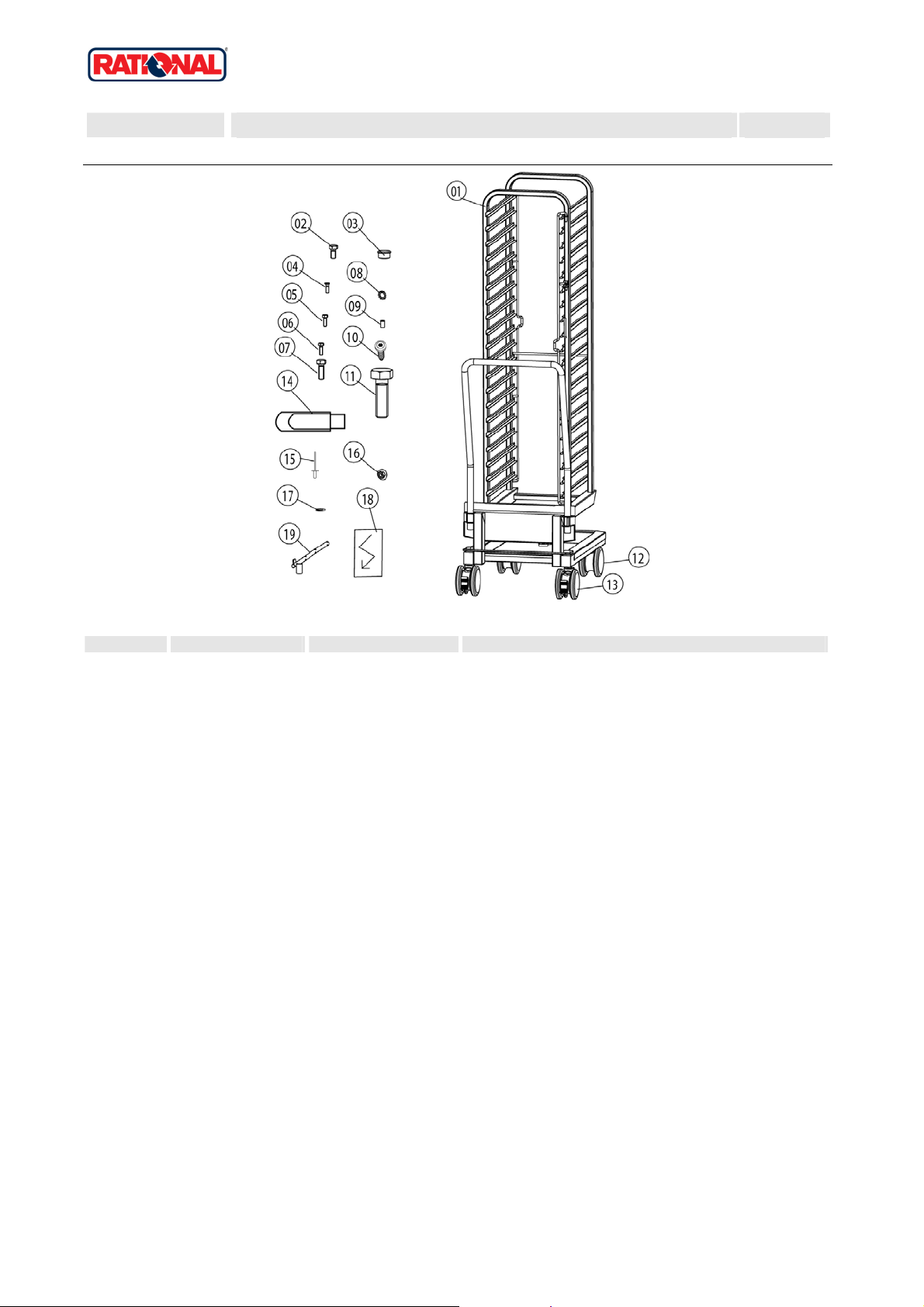

14 Miscellaneous.............................................................................................................30
2
SCC 201E
Valid as of E21SE0404 up to E21SE....
Electrical unit
1 Control panel
1 Control panel
X 1 Control panel 1
Voltage 3 AC 200V 50-60Hz
Item no. Part no Reference Description
A X1.A Control panel
1 87.00.000 Control panel insert with overla y
5 2039.0326 Spacer for pcb
Attention! Individual parts shown might not be used in this component group!
Version 2006 3
SCC 201E
Valid as of E21SE0404 up to E21SE....
Electrical unit
1 Control panel
1.A Control panel
X 1.A Control panel 1
Voltage 3 AC 200V 50-60Hz
Item no. Part no Reference Description
1 42.00.002 Control pcb
2 1104.0121 Hex nut M4 self locking
3 10.00.355 Spacer black
4 2020.0400 F ixing device for cable harness
5 16.00.232 Dial f. pulse generator
6 40.02.087 Buzzer
6 3006.0107 Buzzer
7 5110.1029 Gasket mode switch
7 5110.1028 Gasket poti hot air, core temperature
8 40.00.404 Pulse generator
9 16.00.387 Mounting device f.sealing + sealin g lip
10 1306.0218 Washer A4,3
11 1103.0122 He x nut M3 self-locking
Attention! Individual parts shown might not be used in this component group!
Version 2006 4
SCC 201E
Valid as of E21SE0404 up to E21SE....
Electrical unit
2 Electrical installation
2 Electrical installation
X 2 Electrical installation 2
Voltage 3 AC 200V 50-60Hz
Item no. Part no Reference Description
A X2.A Contactor assembly
1 4007.0620 Membrane DGC 29
2 10.00.510 Grommet 10/12/16-2
3 40.00.453 Solid state relais
4 10.00.507 Pan head screw Torx 5/16" T20
5 10.00.444 Raised countersunk head screw Torx M4x8
6 42.00.007 External memory
7 40.00.049 Relay-I/O pcb
7 42.00.045 Relay-I/O pcb w/o Sicotronic
8 40.00.417 Fixing clip f. pcb
9 1104.0801 Cag e nut M4
10 10.00.243 Spacer M4x8
11 1104.0120 Hex nut M4
12 40.01.579 Fixing clip f. pcb
13 10.00.112 Cable clip short
14 4005.0101 Tie rap 145 mm
15 10.00.111 Cable clip long
16 10.00.417 Fixing device for cable harness
17 10.00.065 Countersunk screw Torx T20 M4x12
18 10.00.471 Cable clip d10-12mm
19 4007.0632 Screwed cable gland M63x1.5(34-45mm)si.gr
20 4007.0635 F ixing nut for cable gland M63
21 40.01.355 Fixing device f. cable guide
22 1106.0160 Hex nut M6
23 1206.0120 Tooth lock washer A6,4
24 40.01.132 Center fixation f. contactor assembly
25 1106.0224 Hex nut M6 self locking
26 40.00.471 Bus cable 0.8m
26 40.00.472 Bus cable 1.3m
27 40.00.338 Sicotronic-terminal *screw typ*
Attention! Individual parts shown might not be used in this component group!
Version 2006 5
SCC 201E
Valid as of E21SE0404 up to E21SE....
Electrical unit
2 Electrical installation
Item no. Part no Reference Description
30 40.01.776 Sicotronic-terminal *crimp type*
31 1104.0400 Rivet nut M4
X 2 Electrical installation 2
Voltage 3 AC 200V 50-60Hz
Attention! Individual parts shown might not be used in this component group!
Version 2006 6
SCC 201E
Valid as of E21SE0404 up to E21SE....
Electrical unit
2 Electrical installation
2.A Contactor assembly
X 2.A Contactor assembly 2
Voltage 3 AC 200V 50-60Hz
Item no. Part no Reference Description
1 40.01.329 Dry up protector 160°
2 3014.0302 He x nut M10 for dry-up protector
3 40.01.482 Safety temperature limiter 365°C
4 3014.0327 Hex nut M10x1,0
5 40.01.558 Contactor CL07A300M6-M
6 40.00.474 Cooling fan D.C.
7 10.00.238 Screw Torx 4x50
8 40.00.277 Control transformer
9 40.01.613 Varistor
10 4001.0224 F use 6.35x32mm
11 4001.1295 F use holder e 1003Si/1DS
12 10.00.365 Pan head screw Torx M3x20
13 4001.1233 Terminal block yellow/green 35mm²
14 4001.1206 Terminal block 35mm² grey
15 40.00.592 Transformer f. cooling fan
16 1105.0120 Hex nut M5
17 1305.0160 Washer A5,3x10mm
18 40.01.272 Plug positioning bar I/O pcb
19 4001.1203 End plate for mounting rail
20 2620.370233 Installati on rail for Contactor 100mm
20 2620.380129 Installati on rail for Contactor 130mm
20 2816.1307 Installati on rail for Contactor 140mm
21 10.00.061 Pan head screw Torx T20 M4x12
22 10.00.111 Cable clip long
23 40.00.209 Cable buzzer
23 40.00.202 Cable CDS sensor
23 40.00.239 Cable contactor-SSR
23 40.01.304 Cable control harness
23 40.00.235 Cable control SSR
23 40.00.225 Cable control transformer sec.
Attention! Individual parts shown might not be used in this component group!
Version 2006 7
SCC 201E
Valid as of E21SE0404 up to E21SE....
Electrical unit
2 Electrical installation
Item no. Part no Reference Description
23 40.00.238 Cable differencial pressure switch
23 40.00.208 Cable humidity control
23 40.00.205 Cable level electrode
23 40.00.226 Cable SC pump
23 40.00.203 Cable solenoid valve
23 40.00.231 Cable transformer for cooling fan sec.
X 2.A Contactor assembly 2
Voltage 3 AC 200V 50-60Hz
Attention! Individual parts shown might not be used in this component group!
Version 2006 8
SCC 201E
Valid as of E21SE0404 up to E21SE....
Electrical unit
3 Clima Plus
3 Clima Plus
X 3 Clima Plus 3
Voltage 3 AC 200V 50-60Hz
Item no. Part no Reference Description

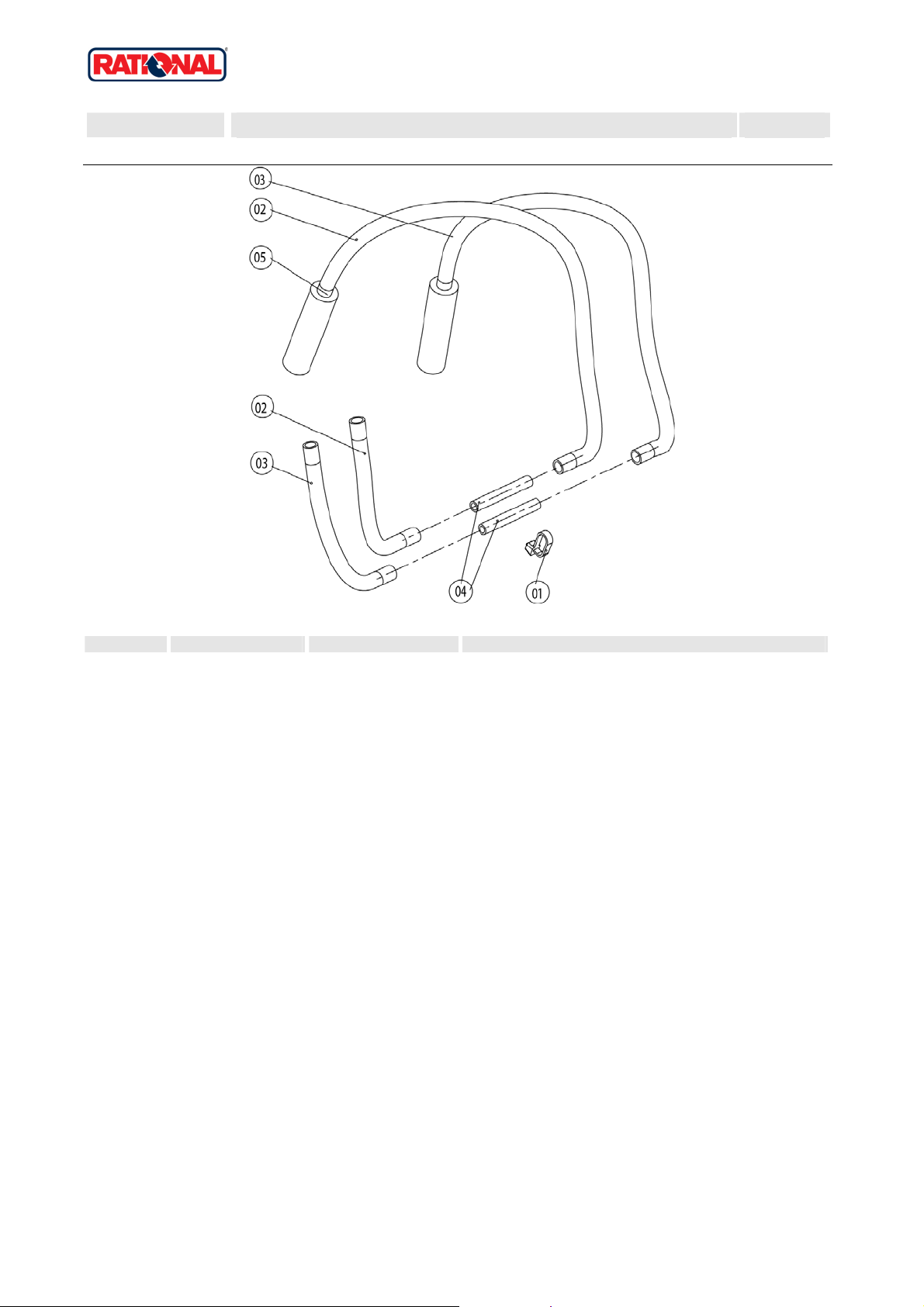

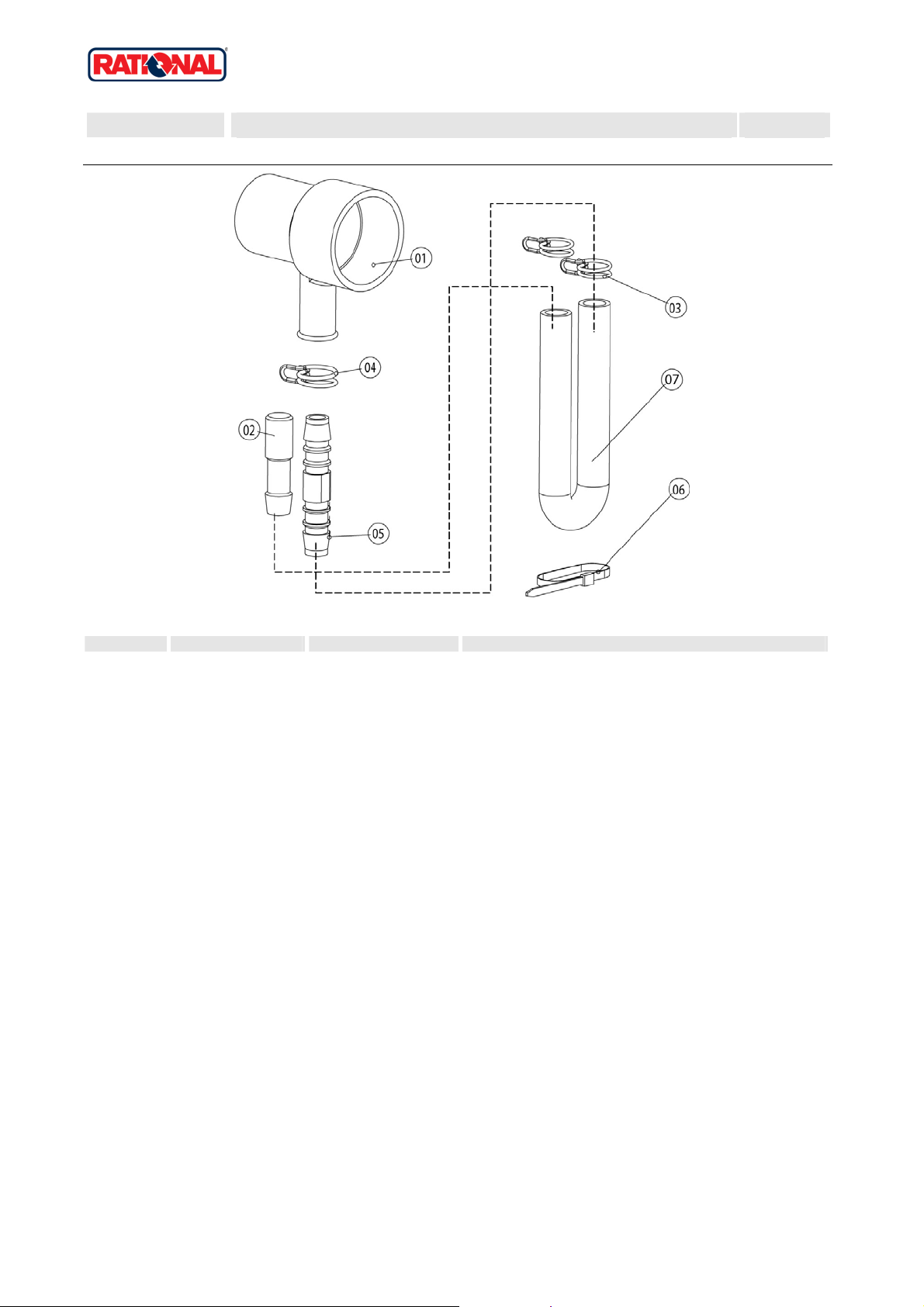

A 22.00.256 X3.A Hose set f. humidity control
1 22.00.199 Inner humidity meas. Piece
2 22.00.318 Humidity control cpl. with motor
3 22.00.200 Outer humidity meas. Piece
4 22.00.198 Gasket f. hum. meas. Pipe
5 22.00.214 Hose d50x202
6 2066.0531 Hose clamp ø56
7 2001.0124 Compression spring
9 3017.1011 Pressure se nsor for humidity control Huba 401
11 3101.1010 Humid ity control motor
12 3016.0102 Micro switch
13 3101.1021 Protecting ca p f.12VDC humidity motor
Attention! Individual parts shown might not be used in this component group!
Version 2006 9
