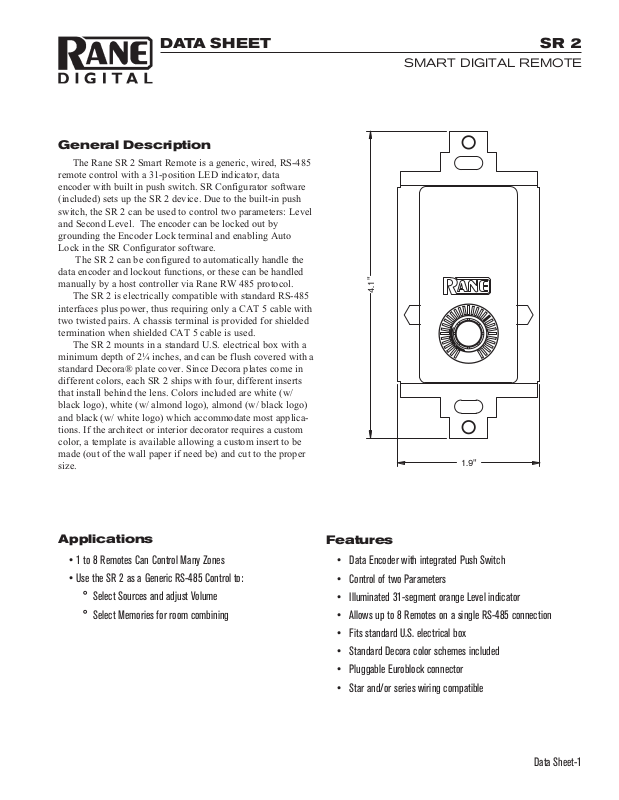

DATA SHEET

General Description

The Rane SR 2 Smart Remote is a generic, wired, RS-485
remote control with a 31-position LED indicator, data
encoder with built in push switch. SR Configurator software
(included) sets up the SR 2 device. Due to the built-in push
switch, the SR 2 can be used to control two parameters: Level
and Second Level. The encoder can be locked out by
grounding the Encoder Lock terminal and enabling Auto
Lock in the SR Configurator software.

The SR 2 can be configured to automatically handle the
data encoder and lockout functions, or these can be handled
manually by a host controller via Rane RW 485 protocol.

The SR 2 is electrically compatible with standard RS-485
interfaces plus power, thus requiring only a CAT 5 cable with
two twisted pairs. A chassis terminal is provided for shielded
termination when shielded CAT 5 cable is used.

The SR 2 mounts in a standard U.S. electrical box with a
minimum depth of 2¼ inches, and can be flush covered with a
standard Decora® plate cover. Since Decora plates come in
different colors, each SR 2 ships with four, different inserts
that install behind the lens. Colors included are white (w/
black logo), white (w/ almond logo), almond (w/ black logo)
and black (w/ white logo) which accommodate most applica­tions. If the architect or interior decorator requires a custom
color, a template is available allowing a custom insert to be
made (out of the wall paper if need be) and cut to the proper
size.

SR 2

SMART DIGITAL REMOTE

4.1"

1.9"

Applications

• 1 to 8 Remotes Can Control Many Zones

• Use the SR 2 as a Generic RS-485 Control to:
° Select Sources and adjust Volume
° Select Memories for room combining

Features

• Data Encoder with integrated Push Switch

• Control of two Parameters

• Illuminated 31-segment orange Level indicator

• Allows up to 8 Remotes on a single RS-485 connection

• Fits standard U.S. electrical box

• Standard Decora color schemes included

• Pluggable Euroblock connector

• Star and/or series wiring compatible

Data Sheet-1

SR 2

SMART DIGITAL REMOTE

Chassis Rear

Chassis Side

0.7"

4.1"

3.8"

1.9"

3.25"

-V+VB

A

ENCODER LOCK

0.15"

SR 2

RANE CORP.

MADE IN U.S.A.

PORT (RIP)

0

7

6

5

ADDRESS

4

N108

1

2

3

REMOTE INTERFACE

1.4"

1.95"

Note: Due to the width of the SR 2 and SR 3, they cannot be mounted immediately next to another SR 2 or SR 3 and have a
dual Decora plate fit the front. However, other remotes can be mounted next to the SR 2 or SR 3, such as the LRS 4, MRS 4,
VR 1 or VR 2. If you want two SR 2 or SR 3s next to each other, you will need two single gang boxes mounted with enough
space to allow room for the two decor plates.

retemaraPsnoitacificepStimiLstinUstnemmoC/snoitidnoC

epyT:O/I584-SR

rotcennoC..........kcolboruE

ecnadepmI..........k21nim

Ω

edoMevieceR

etaRduaB..........00483%1<spbetarduab584WR

0069%1<spbelbammargorP

00291%1<spbelbammargorP

00675%1<spbelbammargorP

002511%1<spbelbammargorP

tamroFataD..........18Ntibpots1,stibatad8,ytirapoN

tnemeriuqeRylppuSrewoP

egatloVylppuS.........7 nimCDVV-otdecnereferV+@egatlovCDmuminiM

61xamCDVV-otdecnereferV+@egatlovCDmumixaM

tnerruCylppuS..........541+AmeldinoitacinummoC

372+Amevitca.mmoc,noitanimreton,krowten584WR

gnitsiLycnegA)CME(ECCEE/633/98evitceridCME

tpmexE)ytefas(EC CEE/32/37DVL,1elcitrareptpmexE

noitcurtsnoC:tinUleetSsissahC

etanobracyloPsneL

eziS..........D"8.2xW"9.1xH"1.4)mc1.7xmc8.4xmc4.01(

thgieW..........zo8)gk32.0(

eziS:gnippihSD"2.7xW"57.11xH"6.3)mc81xmc03xmc2.9(

thgieW..........zo8bl1)gk96.0(

©Rane Corporation 10802 47th Ave. W., Mukilteo WA 98275-5098 USA TEL [phone] FAX [phone] WEB http://www.rane.com

Data Sheet-2

All features & specifications subject to change without notice. DOC 105610 PN 12594
