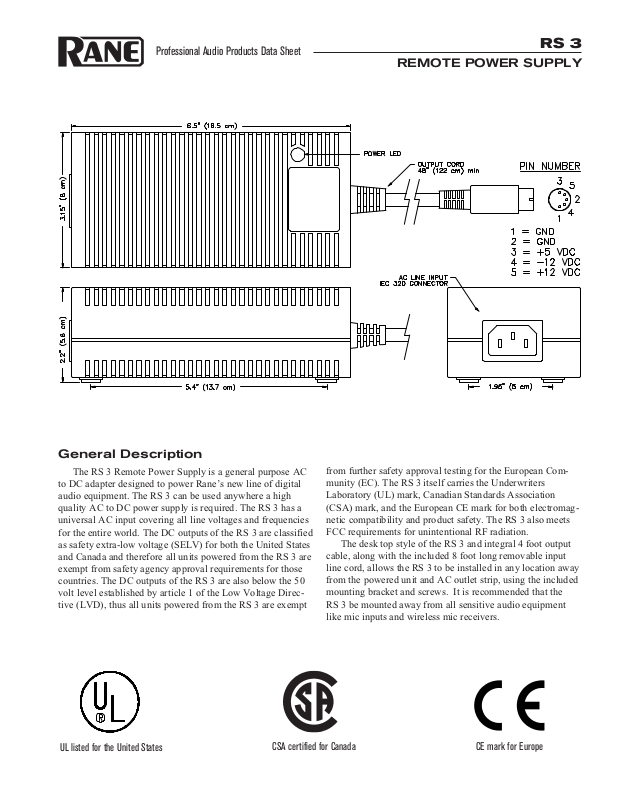

Professional Audio Products Data Sheet

RS 3

REMOTE POWER SUPPLY

General Description

The RS 3 Remote Power Supply is a general purpose AC
to DC adapter designed to power Rane’s new line of digital
audio equipment. The RS 3 can be used anywhere a high
quality AC to DC power supply is required. The RS 3 has a
universal AC input covering all line voltages and frequencies
for the entire world. The DC outputs of the RS 3 are classified
as safety extra-low voltage (SELV) for both the United States
and Canada and therefore all units powered from the RS 3 are
exempt from safety agency approval requirements for those
countries. The DC outputs of the RS 3 are also below the 50
volt level established by article 1 of the Low Voltage Direc­tive (LVD), thus all units powered from the RS 3 are exempt

UL listed for the United States

CSA certified for Canada

from further safety approval testing for the European Com­munity (EC). The RS 3 itself carries the Underwriters
Laboratory (UL) mark, Canadian Standards Association
(CSA) mark, and the European CE mark for both electromag­netic compatibility and product safety. The RS 3 also meets
FCC requirements for unintentional RF radiation.

The desk top style of the RS 3 and integral 4 foot output
cable, along with the included 8 foot long removable input
line cord, allows the RS 3 to be installed in any location away
from the powered unit and AC outlet strip, using the included
mounting bracket and screws. It is recommended that the
RS 3 be mounted away from all sensitive audio equipment
like mic inputs and wireless mic receivers.

CE mark for Europe

RS 3

Professional Audio Products Data Sheet

REMOTE POWER SUPPLY

Features and Specifications

Parameter Specifications Limit Units Conditions/Comments

Input voltage 85 - 270 VAC Absolute min/max
Input frequency 47 - 63 Hz Absolute min/max
Output voltage +5 (pin 3) .1 VDC

+12 (pin 4) VDC

-12 (pin 5) VDC

Output current +5 (pin 3) 3 A Rated load

+5 (pin 3) 4 A Peak load

-12 (pin 4) 800 mA Nominal

+12 (pin 5) 800 mA Nominal
Input cord U.S. 3-wire, 3-prong to IEC 320 Supplied cord
Output cord 5-wire, 5 pin DIN See diagram for more information
Output power 0 - 30 W
Enclosure Black high impact plastic With integral feet
Weight 20 oz (563 grams)
Agency Compliance UL UL1950 (file E132267)

CSA C22.2 No.223 (file LR57450-259)

CE-safety certified IEC950

CE-EMC EN55022 class B

FCC-certified Part 15 class B

©Rane Corporation 10802 47th Ave. W., Mukilteo WA 98275-5098 TEL [phone] FAX [phone] WEB http://www.rane.com

Printed in the U.S.A. on Recycled Paper

All features & specifications subject to change without notice 520-566 SEP97
