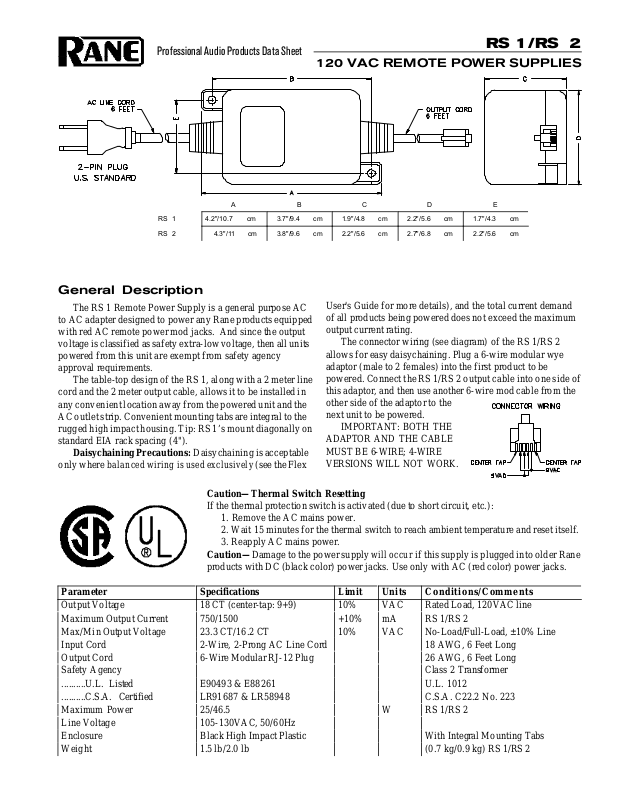

Rane RS 2 User Manual

Professional Audio Products Data Sheet

A B C D E

RS 1 4.2"/10.7 cm 3.7"/9.4 cm 1.9"/4.8 cm 2.2"/5.6 cm 1.7"/4.3 cm

RS 2 4.3"/11 cm 3.8"/9.6 cm 2.2"/5.6 cm 2.7"/6.8 cm 2.2"/5.6 cm

General Description

The RS 1 Remote Power Supply is a general purpose AC
to AC adapter designed to power any Rane products equipped
with red AC remote power mod jacks. And since the output
voltage is classified as safety extra-low voltage, then all units
powered from this unit are exempt from safety agency
approval requirements.

The table-top design of the RS 1, along with a 2 meter line
cord and the 2 meter output cable, allows it to be installed in
any convenient location away from the powered unit and the
AC outlet strip. Convenient mounting tabs are integral to the
rugged high impact housing. Tip: RS 1’s mount diagonally on
standard EIA rack spacing (4").

Daisychaining Precautions: Daisychaining is acceptable
only where balanced wiring is used exclusively (see the Flex

RS 1/RS 2

120 VAC REMOTE POWER SUPPLIES

User's Guide for more details), and the total current demand
of all products being powered does not exceed the maximum
output current rating.

The connector wiring (see diagram) of the RS 1/RS 2
allows for easy daisychaining. Plug a 6-wire modular wye
adaptor (male to 2 females) into the first product to be
powered. Connect the RS 1/RS 2 output cable into one side of
this adaptor, and then use another 6-wire mod cable from the
other side of the adaptor to the
next unit to be powered.

IMPORTANT: BOTH THE
ADAPTOR AND THE CABLE
MUST BE 6-WIRE; 4-WIRE
VERSIONS WILL NOT WORK.

Caution—Thermal Switch Resetting

If the thermal protection switch is activated (due to short circuit, etc.):

1. Remove the AC mains power.

2. Wait 15 minutes for the thermal switch to reach ambient temperature and reset itself.

3. Reapply AC mains power.

Caution—Damage to the power supply will occur if this supply is plugged into older Rane
products with DC (black color) power jacks. Use only with AC (red color) power jacks.

Parameter Specifications Limit Units Conditions/Comments

Out put Voltage 18 CT (center-tap: 9+9) 10% VAC Rated Load, 120VAC line
Maximum Output Current 750/1500 +10% mA RS 1/RS 2
Max/Min Output Voltage 23.3 CT/16.2 CT 10% VAC No-Load/Full-Load, ±10% Line
Input Cord 2-Wire, 2-Prong AC Line Cord 18 AWG, 6 Feet Long
Output Cord 6-Wire Modular RJ-12 Plug 26 AWG, 6 Feet Long
Safety Agency Class 2 Transformer

..........U.L. Listed E90493 & E88261 U.L. 1012

..........C.S.A. Certified LR91687 & L R58948 C.S.A. C22.2 No. 223

Maximum Power 25/46.5 W RS 1/RS 2
Line Voltage 105-130VAC, 50/60Hz
Enclosure Black High Impact Plastic Wit h Integral Mounting Tabs
Weight 1.5 lb/2.0 lb (0.7 kg/0.9 kg) RS 1/RS 2

RS 1/RS 2

Professional Audio Products Data Sheet

230 VAC REMOTE POWER SUPPLIES

A B C D E

RS 1 10.7 cm 9.4 cm 4.8 cm 5.6 cm 4.3 cm

RS 2 11 cm 9.6 cm 5.6 cm 6.8 cm 5.6 cm

General Description

The RS 1/RS 2 Remote Power Supply is a general purpose AC
to AC adapter designed to power any Rane products equipped with
red AC remote power mod jacks. The RS 1 and RS 2 meet the EN
60950 Safety Standard and comply with the European EMC
directive 89/336/EEC. And since the output voltage is classified as
safety extra-low voltage, then all units powered from this unit are
exempt from safety agency approval requirements.

The 230VAC version of the RS 1/RS 2 comes from the factory
with an integral mounted Eurocord.

The table-top design of the RS 1/RS 2, along with the two meter
line cord and the two meter output cable, allows installation in any
convenient location away from the powered unit and the AC outlet
strip. Convenient mounting tabs are integral to the rugged high

impact housing.

Parameter Specifications Limit Units Conditions/Comments

Out put Voltage 2x9 CT (center-tap: 9+9) 10% VAC Rated Load, 230 VAC line
Maximum Output Current 750/1500 +10% mA RS 1/RS 2
Max/Min Output Voltage 23.3 CT/16.2 CT 10% VAC No-Load/Full-Load, ±10% Line
Input Cord Class II, CEE 7/16 Eurocord, 2 Meters Long
Output Cord 6-Wire Modular RJ-12 Plug 26 AWG, 2 Meters Long
Safety Agency Class II Transformer

..........EMC European D irective 89/336/EEC E1 and E2 Environments

..........IEC Meets EN 60950 Standard TUV Approved With GS Mark

..........Scandinavian Approved Semko, Nemko

Maximum Power 20/46.5 W RS 1/RS 2
Line Voltage 190-250 VAC, 50 Hz
Enclosure Black High Impact Plastic Wit h Integral Mounting Tabs
Weight 0.7 kg/0.9 kg RS 1/RS 2

Daisychaining Precautions: Daisychaining is acceptable only

where balanced wiring is used exclusively (see the Flex User’s
Guide for more details), and the total current demand of all products

being powered does not exceed the maximum output current rating.

The connector wiring (see diagram) of the RS 1/RS 2 allows for
easy daisychaining. Plug a 6-wire modular wye adapter (male to 2
females) into the first product to be powered. Connect the RS 1/RS
2 output cable into one side of this adapter, and then use another 6­wire mod cable from the other side of the adapter to the next unit.

IMPORTANT: BOTH THE ADAPTER AND THE CABLE

MUST BE 6-WIRE; 4-WIRE VERSIONS WILL NOT WORK.

Caution—Thermal Switch Resetting

If the thermal protection switch is activated (short circuit, etc.):

1. Remove the AC mains power.

2. Wait 15 minutes for the thermal switch to reach ambient

temperature and reset itself.

3. Reapply AC mains power.

Caution—Use only with Rane products with AC (red color) power
jacks. Damage will occur into older DC (black color) power jacks.
Finnish Note: Laitteen verkkoliitantajomtoa ei voi vaihtaa johdon

viottuessa on koko verkkomuuntaja johtoineen vaimdettava uuteen.
Swedish Note: Anslutningssladden till denna transformator kan icke

ersattas. Om sladden skadas skall darfor transformatorn kasseras.

©Rane Corporation 10802 47th Ave. W., Mukilteo WA 98275-5098 TEL [phone] FAX [phone] WEB http://www.rane.com

Printed in the U.S.A. on Recycled Paper

All features & specifications subject to change without notice 520-290 MAY96
