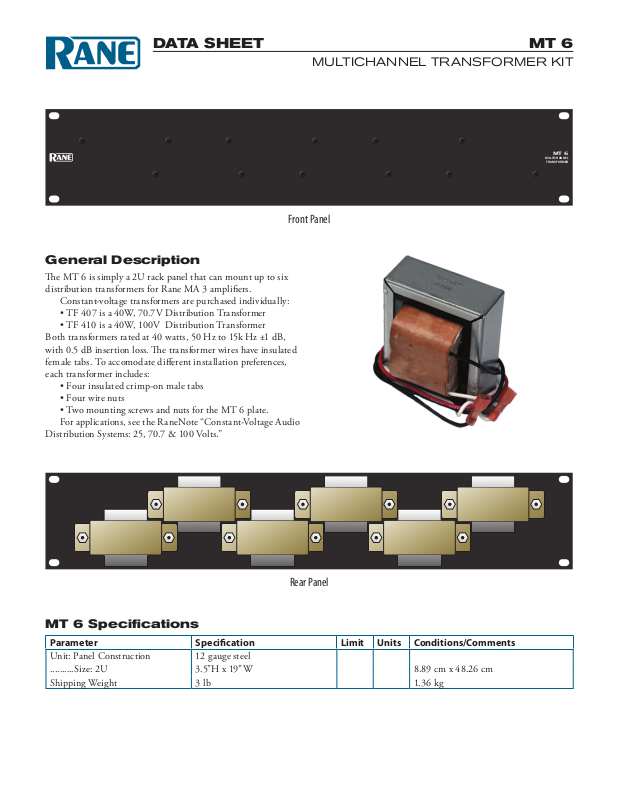

DATA SHEET

MT 6

MULTICHANNEL

TRANSFORMER

Front Panel

General Description

e MT 6 is simply a 2U rack panel that can mount up to six
distribution transformers for Rane MA 3 amplifiers.

Constant-voltage transformers are purchased individually:

• TF 407 is a 40W, 70.7V Distribution Transformer

• TF 410 is a 40W, 100V Distribution Transformer
Both transformers rated at 40 watts, 50 Hz to 15k Hz ±1 dB,
with 0.5 dB insertion loss. e transformer wires have insulated
female tabs. To accomodate different installation preferences,
each transformer includes:

• Four insulated crimp-on male tabs

• Four wire nuts

• Two mounting screws and nuts for the MT 6 plate.

For applications, see the RaneNote “Constant-Voltage Audio

Distribution Systems: 25, 70.7 & 100 Volts.”

MT 6

MULTICHANNEL TRANSFORMER KIT

Rear Panel

MT 6 Specifications

Parameter Specication Limit Units Conditions/Comments

Unit: Panel Construction 12 gauge steel

..........Size: 2U 3.5"H x 19"W 8.89 cm x 48.26 cm

Shipping Weight 3 lb 1.36 kg

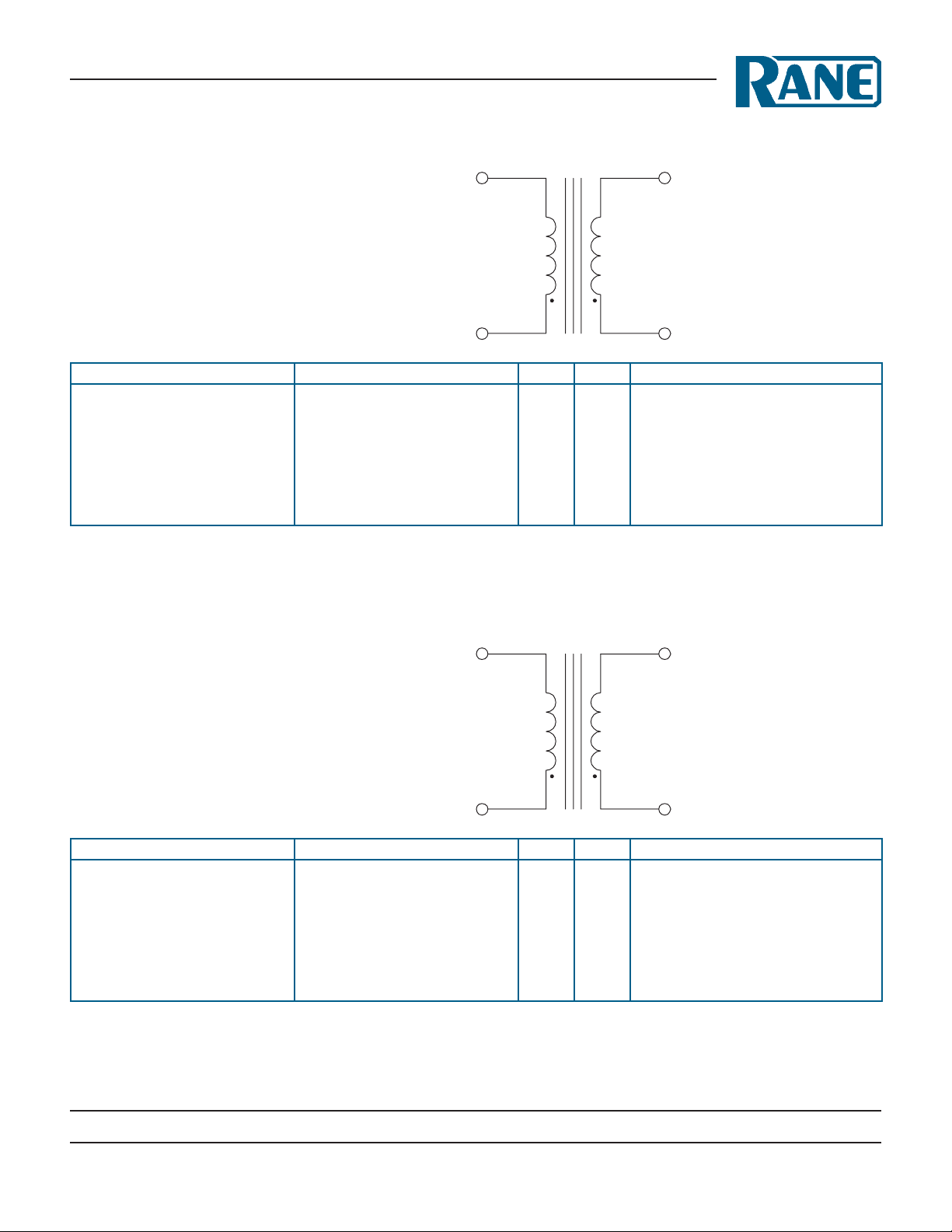

BLACK

RED

BLACK

WHITE

8 Ω 70.7 VOLT LINE

BLACK

RED

BLACK

WHITE

8 Ω 100 VOLT LINE

MT 6

MULTICHANNEL TRANSFORMER KIT

TF 407 Specifications

Parameter Specication Limit Units Conditions/Comments

Transformer Rating 40 Watts Maximum average power

..........Connectors 0.187" Female Insulated Terminal Includes male tabs and wire nuts

..........Wire 10" length inch U.L., C.S.A., 90C grade

Output Tap: Voltage 70.7 Vrms
Frequency Response 50 Hz to 15 kHz ±1 dB 8Ω
Insertion Loss .5 typ dB
Shipping Weight 3 lb 1.36 kg

TF 410 Specifications

Parameter Specication Limit Units Conditions/Comments

Transformer Rating 40 Watts Maximum average power

..........Connectors 0.187" Female Insulated Terminal May be removed to use wire nuts

..........Wire 10" length inch U.L., C.S.A., 90C grade

Output Tap: Voltage 100 Vrms
Frequency Response 50 Hz to 15 kHz ±1 dB 8Ω
Insertion Loss .5 typ dB
Shipping Weight 3 lb 1.36 kg

©Rane Corporation 10802 47th Ave. W., Mukilteo WA 98275-5098 USA TEL [phone] FAX [phone] WEB ww w.rane.com

All features & specifications subject to change without notice. PN 16910
