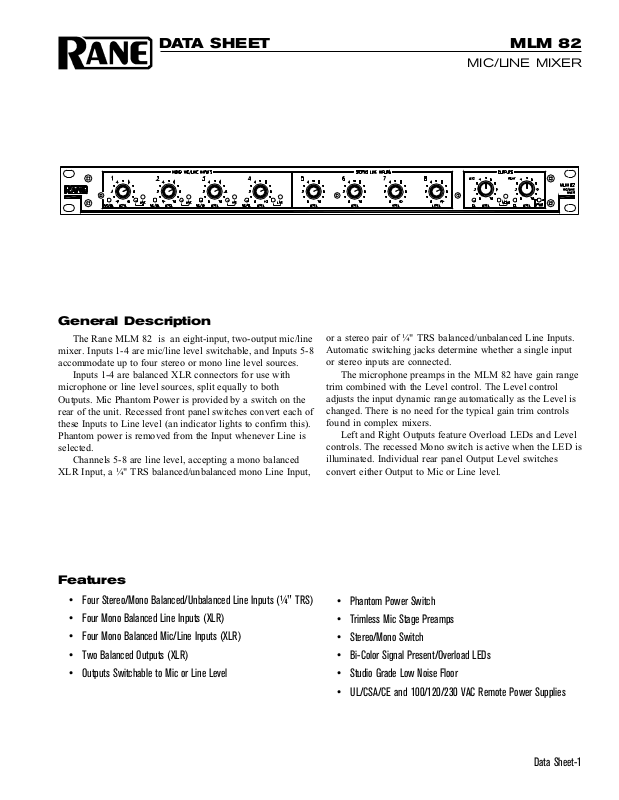

DATA SHEET

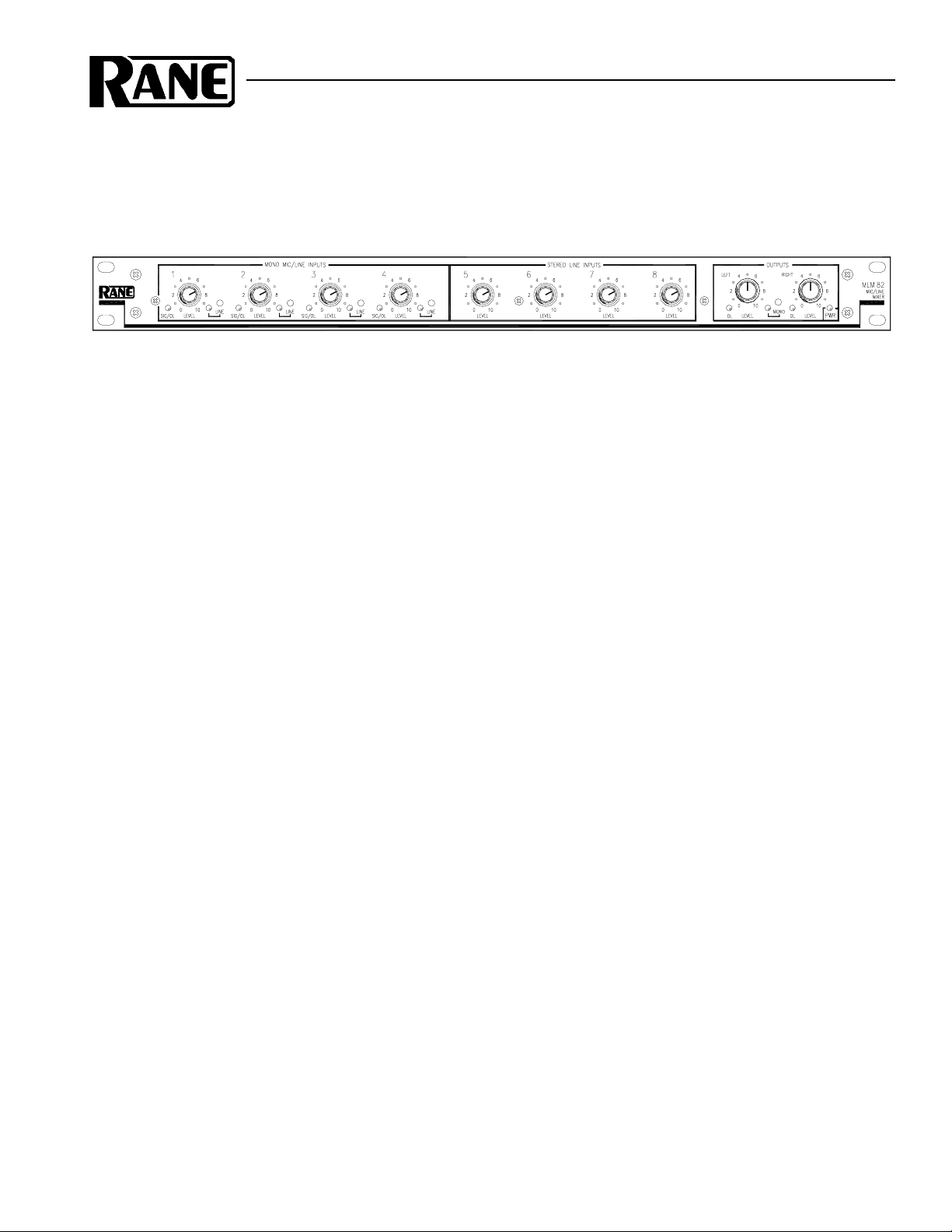

General Description

The Rane MLM 82 is an eight-input, two-output mic/line mixer. Inputs 1-4 are mic/line level switchable, and Inputs 5-8 accommodate up to four stereo or mono line level sources.

Inputs 1-4 are balanced XLR connectors for use with microphone or line level sources, split equally to both Outputs. Mic Phantom Power is provided by a switch on the rear of the unit. Recessed front panel switches convert each of these Inputs to Line level (an indicator lights to confirm this). Phantom power is removed from the Input whenever Line is selected.

Channels 5-8 are line level, accepting a mono balanced XLR Input, a ¼" TRS balanced/unbalanced mono Line Input,

MLM 82

MIC/LINE MIXER

or a stereo pair of ¼" TRS balanced/unbalanced Line Inputs. Automatic switching jacks determine whether a single input or stereo inputs are connected.

The microphone preamps in the MLM 82 have gain range trim combined with the Level control. The Level control adjusts the input dynamic range automatically as the Level is changed. There is no need for the typical gain trim controls found in complex mixers.

Left and Right Outputs feature Overload LEDs and Level controls. The recessed Mono switch is active when the LED is illuminated. Individual rear panel Output Level switches convert either Output to Mic or Line level.

Features

• Four Stereo/Mono Balanced/Unbalanced Line Inputs (¼" TRS)

• Four Mono Balanced Line Inputs (XLR)

• Four Mono Balanced Mic/Line Inputs (XLR)

• Two Balanced Outputs (XLR)

• Outputs Switchable to Mic or Line Level

• Phantom Power Switch

• Trimless Mic Stage Preamps

• Stereo/Mono Switch

• Bi-Color Signal Present/Overload LEDs

• Studio Grade Low Noise Floor

• UL/CSA/CE and 100/120/230 VAC Remote Power Supplies

Data Sheet-1

Page 2

MLM 82

MIC/LINE MIXER

Features and Specifications

Parameter Specification Limit Units Conditions/Comments

Inputs: Type Active Balanced

..........Connectors XLR & ¼" TRS

Mic Input Impedance 900 ohms Balanced 450 + 450

..........Mic Gain Range off to +60 dB

..........Line Gain Range off to +20 dB

..........Equivalent Input Noise -128 dBu 20 kHz bandwidth, 150 ohm termination

..........THD & Noise 0.02 max %

Stereo Line Input Impedance 20k ohms

..........Gain Range off to +0 dB

..........Signal-To-Noise Ratio 101 dB Input Level max, Output at 0 dB

Outputs: Type Active Balanced

..........Connectors XLR Pin 2 “+”

..........Impedance 200/100 ohms Line level Out/Mic level Out

..........Gain Range Off to +6 dB

..........Drive Level +24 dBu 600 ohm load balanced

Phantom Power +15 VDC Output Cable Length 1500 feet Line level, <50 pf per foot THD+Noise 0.005 0.002 % Frequency Response 10-150 kHz -3 dB Crosstalk 75 @ 10 kHz 2 dB re +4 dBu any Ch to any Ch, 20-20 kHz Unit: Agency Listing

..........120 VAC model Class 2 Equipment National Electrical Code

UL Exempt Class 2 equipment CSA Exempt Class 2 equipment

..........230 VAC model CE-EMC EMC directive 89/336/EEC

CE-Safety Exempt per Art. 1 of LVD 73/23/EEC Power Supply: Agency Listing Class 2 Equipment

..........120 VAC model UL File no. E88261

CSA File no. LR58948

..........230 VAC model CE-EMC EMC directive 89/336/EEC

CE-Safety LV directive 73/23/EEC Power Supply Requirement 18 VAC w/center tap 10% Vrms RS 1 (see data sheet)

..........Maximum Current 750 mA RMS Current from Remote Supply

Unit: Construction All Steel

..........Size 1.75"H x 19"W x 5.3"D (1U) (4.4 cm x 48.3 cm x 13.3 cm)

..........Weight 4 lb (3 kg)

Shipping: Size 4.25" x 20.3" x 13.75" (11 cm x 52 cm x 35 cm)

..........Weight 8 lb (5 kg)

Note: 0 dBu=0.775 Vrms

Data Sheet-2

Page 3

MLM 82

MIC/LINE MIXER

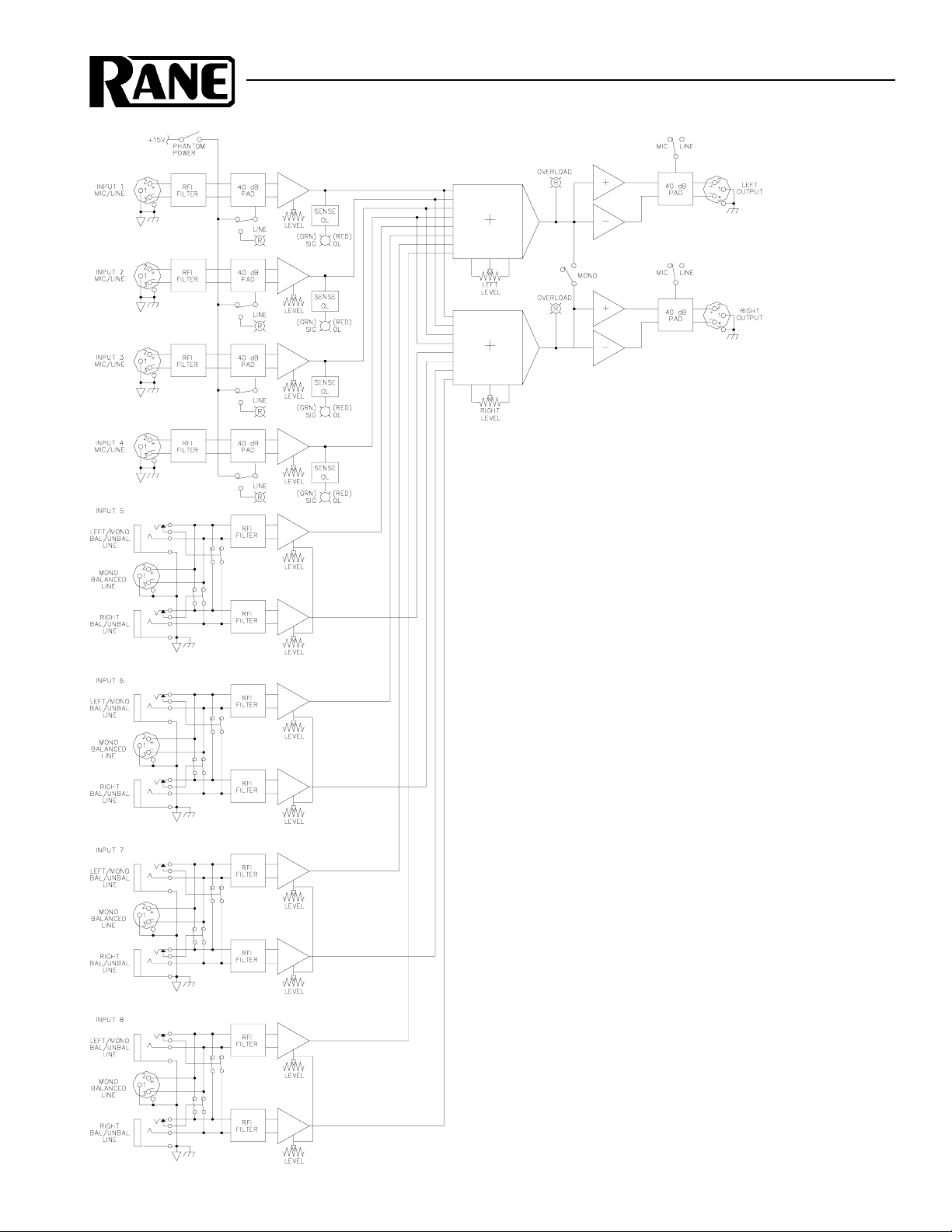

Block Diagram

Applications

The MLM 82 is a versatile mixer fitting well into any installation requiring ease of use and compact size: hotels, churches, conference rooms, schools, and rental sound systems. The studio-grade specifications of the MLM 82 allow it to find its way into many other applications such as submixing, recording and post-production. For the end user who only needs to control volume levels, the simplicity makes the MLM 82 the mixer of choice.

The mic/line switches on the front panel are recessed making any change intentional, and obviously Line when the LED is lit. The same is true for the Mono Output switch and LED.

The switching jacks for Inputs 5-8 make input mode automatic. When a stereo pair is inserted, the input is stereo. When a single jack is inserted, the input is mono. Mono inputs have a choice between balanced or unbalanced ¼" TRS, or XLR.

The Input Levels combine a trim pot with a standard level control. Unlike trims, these can be turned completely off when the Input is not wanted. The lack of a trim control is good news for those who are not familiar with setting both a trim and level properly. Full input dynamic range is retained in the circuit. The two-color Signal/Overload LEDs alert the user of proper levels. The LED glows green with signal applied and a correctly set Level control, but when the LED glows red, a counterclockwise rotary action is requested.

The MLM 82’s Outputs may be thought of as either stereo, or two mono output zones. The Left and Right Output Levels can each control a separate mono output zone. Depress the Mono switch for this application.

In cases where the only access to the house PA system is through a mic input jack, the MLM 82 fits right in. The Left and Right Outputs each have a rear panel Line/Mic switch, reducing the output level by 40 dB, thus saving the day.

Data Sheet-3

Page 4

MLM 82

MIC/LINE MIXER

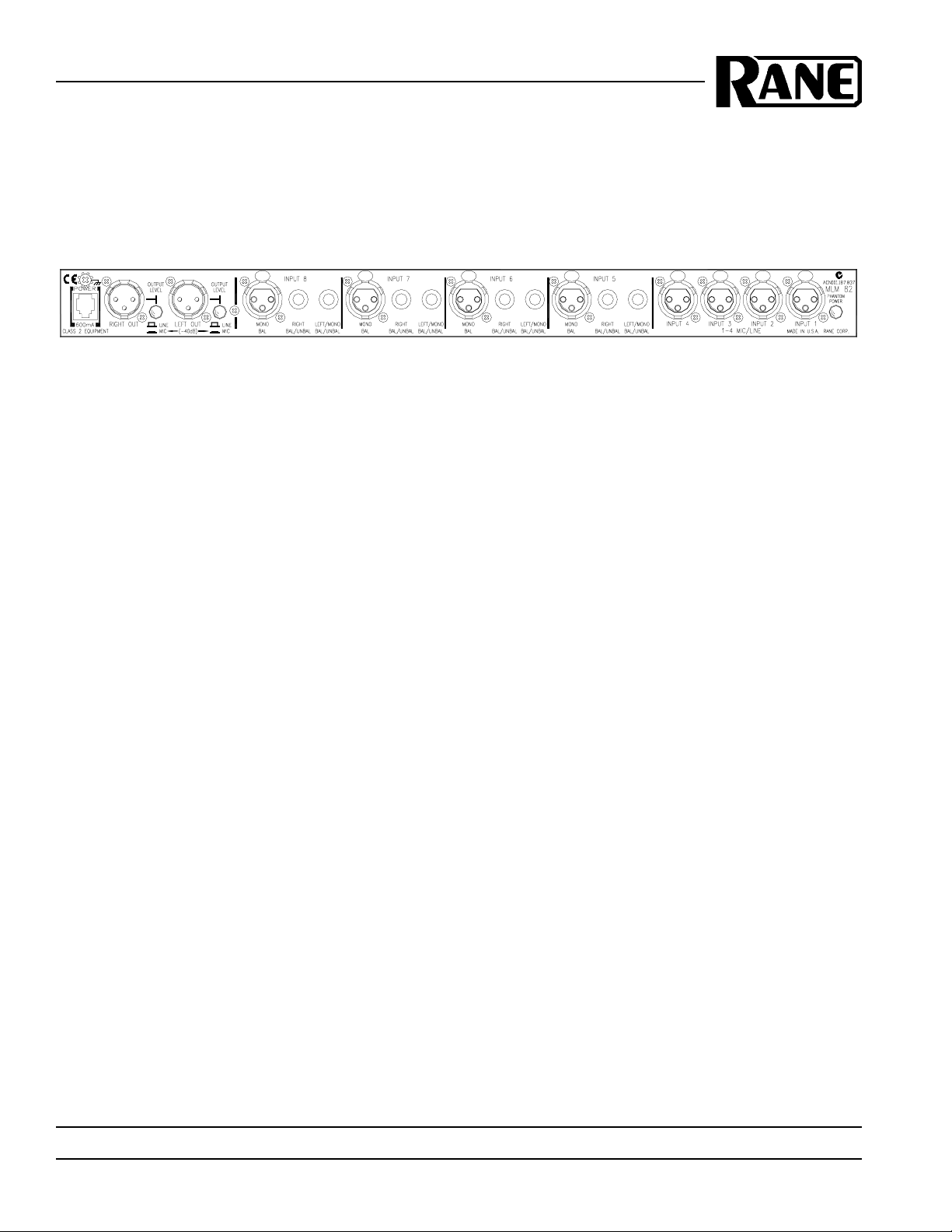

Rear Panel

Architectural Specifications

The mixer shall have eight (8) balanced input channels with two (2) balanced outputs. Four (4) of these shall be microphone or line level switchable, and shall include overload indicators on each input. The remaining four (4) inputs shall be be line level, accommodating stereo or mono signals.

The outputs shall be individually switchable to mic or line level. Individual output level controls and overload indicators shall be provided. The outputs shall be switchable

Available Accessories

• SC 1.7 Single Space Security Cover

to mono or stereo operation.

15V Phantom power shall be provided for the micro-

phone-selected inputs via a rear panel switch.

The unit shall be exempt from agency safety requirements and powered from a UL listed / CSA certified (120 VAC), or CE approved (230 VAC) remote power supply. The unit shall be constructed entirely from cold-rolled steel, and mount into a standard 19" 1U EIA rack.

The unit shall be a Rane MLM 82 Mic/Line Mixer.

Data Sheet-4

All features & specifications subject to change without notice. DOC 103225 PN 08425 11-98
