Rane MP2015 Data Sheet

DATA SH E ET

ROTARY MIXER

ROTARY MIXER

M P2015

M P2 015

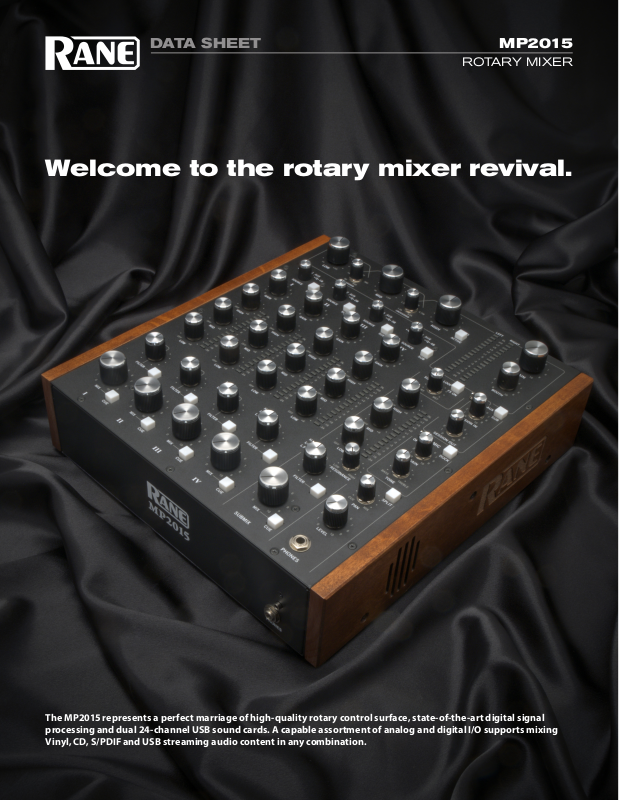

Welcome to the rotary mixer revival.

The MP2015 represents a perfect marriage of high-quality rotary control surface, state-of-the-art digital signal
processing and dual 24-channel USB sound cards. A capable assortment of analog and digital I/O supports mixing
Vinyl, CD, S/PDIF and USB streaming audio content in any combination.

Data She et-1

M P2 015

I

CUE

CUE

CUE

CUE

CUE

II

III

IV

IIIIII

IV

SUBMIX

MIX

MIX

MIX

MIX

MIX

FILTER

LOW

MID

HIGH

FILTER

FILTER

FILTER

FILTER

LEVEL

PAN

TONE

GAIN

SESSION OUT

SESSION IN

BOOTH

MAIN

LEFT

RIGHT

MIC

AUX

SPLIT

DUCK

SUB

SUB

ACTIVE

SUB

SUB

SUB

FX ON

SUB

MAIN

OFF

PHONES

LOW

MID

HIGH

LOW

MID

HIGH

LOW

MID

HIGH

GAIN

SOURCE

LOW

CROSSOVER

CROSSOVER

MID

SOURCE

SOURCE

SOURCE

GAIN

GAIN

GAIN

LOW

MID

HIGH

RESONANCE

FX LOOP

HIGH

ISO

ROTARY MIXER

Features

Different music genres often require different lter and
EQ congurations to properly deal with song content.
The MP2015 allows performers to adjust Filters, EQs
and the Isolator to suit their needs. Channel, Submix
and Isolator Filters can be stacked for truly amazing
isolation and manipulation of musical elements.

The Isolator EQ on

the Main mix has

powerful 3-band +10

dB to full-cut 24 dB

per octave filters

with fully adjustable

crossover points.

Each input channel

selects USB-A,

USB-B, PH/CD (1-4)

or a stereo line AUX.

• Deck 1 USB play­back channels 1-2.

• Deck 2 USB play­back channels 3-4.

• Deck 3 USB play­back channels 5-6.

• Deck 4 USB play­back channels 7-8.

3-band +6 dB to

full-cut 12 dB per

octave tone filters on

each input channel

and the Submix (with

selectable 300 / 3k or

150 / 6k Hz crossover

points in the user

control panel*).

A sweepable

Low-pass, Low/High-

pass, or High-pass 24

dB per octave filter

can activate on each

input channel and the

Submix channel,

along with a top panel

Resonance control.

0 dB

225

135 380

+10

∞

PH/CD 1 AUX

1A

456

3

2

1

0

OFF|+6 OFF|+6 OFF|+6 OFF|+6

OFF|+6 OFF|+6 OFF|+6 OFF|+6

OFF|+6 OFF|+6 OFF|+6 OFF|+6

456

3

2

1

80

1B

7

8

9

10 0

OL

+10

+7

+5

+3

+2

+1

0

-1

-2

-3

-5

-7

-10

-15

-24

3

7

2

8

1

9

10

640

PH/CD 2 AUX

2A

456

3

2

1

456

∞

2B

7

8

9

10 0

7

8

9

100

Each PH/CD input can be
switched to Phono level, CD
deck level, or S/PDIF with 128
dB dynamic range. An AUX
input from RCA jacks can be
assigned to any input channel.

0 dB

2.8k

1.7k 4.75k

OL

+10

+7

+5

+3

+2

+1

0

-1

-2

-3

-5

-7

-10

-15

-24

+10

PH/CD 3 AUX

3A

3

2

1

456

3

2

1

1.0k

456

10 0

100

∞

8.0k

PH/CD 4 AUX

3B

4A

7

3

8

2

9

1

OL

+10

+7

+5

+3

+2

+1

0

-1

-2

-3

-5

-7

-10

-15

-24

456

3

7

2

8

1

9

0 dB

456

Two USB ports can connect two
computers, each supporting 10 playback
and 14 record channels. Play stereo tracks
into input channels 1-4 and the Session In.
Simultaneously record decks 1-4, Submix,
Session In and the Main mix.

The Main Mix has a
16-segment stereo

OL

+10

+7

+5

+3

DRY WET

OFF|+6

OFF|+6

OFF|+6

+2

+1

0

-1

-2

-3

-5

-7

-10

-15

-24

LOW HIGH

+10

4B

7

8

9

10

OL

+10

+7

+5

+3

+2

+1

0

-1

-2

-3

-5

-7

-10

-15

-24

OL

+10

+7

+5

+3

+2

+1

0

-1

-2

-3

-5

-7

-10

-15

-24

456

3

2

1

0

456

3

2

1

0

2

2

2

BASS TREBLE

3

1

3

1

3

1

456

0

456

0

456

0

7

8

9

10

7

8

9

10

7

8

9

10

7

8

9

10

7

8

9

10

Meter, XLR Main
Outputs with a Level
control and TRS
Booth Outputs with a
Level control.

The Session Output
goes to S/PDIF and
RCA outputs for re­cording or chaining
mixers together. The
Session In source
may be RCA, S/PDIF
or USB AUX playback
channels 9-10. Send it
to the Submix channel
or the Main Mix with
the SUB button.

The Mic input
switches for line-level,
mic-level, and 48V
phantom. The DUCK
button temporarily
lowers the mix by 10
dB while turning the
mic on.

Cue any input

CUE MIX

456

3

7

2

456

3

7

2

8

9

100

7

1

8

9

0

100

8

9

1

0

10

channels or the
Submix with the CUE
switches and the
Headphone monitor.
Pan adjusts the
Cue/Main Mono Split
or Stereo Cueing.
Conveniently located

3.5mm and 1/4"
jacks are on the top
plate and front panel.

*The user control panel
supports MP2015 options
and status with a USB 2.0

computer connection.

Class compliant MIDI and

Audio means no driver is

required for Mac OSX. A

high performance universal

The unique Submix feature allows grouping any
number of inputs for easy multi-source mixing.
Control EQ, volume, gain, filtering and effects of
multiple channels with one set of controls vs.
having to deal with multiple knobs and buttons
on multiple channels. This can also be a 5th input
channel by activating SUB on the Session In.

ASIO driver is included to

run most DJ and DAW

software in Windows.

The bottom line: this mixer sounds fantastic with vinyl, CDs and music les.
The dynamic range is 116dB from line in to digital/USB out or digital/USB in to line out. THD+N is only 0.0009%.
All audio processing is 32-bit oating point with supported sample rates of 44.1 kHz, 48 kHz or 96 kHz.

Data Sheet-2

Description

Rane creates truly professional mixers for the world’s best artists
and nest sound systems. e new MP2015 lets you push harder
with greater audio headroom in volume and ltering than other
mixers. As an artist, the instruments you use undeniably inu­ence your expression, inspire creativity and transform good into
great. Like the world’s best piano or violin, this is an instrument
of powerful capability. To be the best, you play the best.

e MP2015 is the ultimate mixing instrument for today’s
forward-thinking DJ requiring the very best sound quality. is
mixing instrument combines powerful and unique features, clas­sic elegance, silky-smooth feel and rugged design.

e control ergonomics have an intuitive and comfortable
layout. e custom rotary potentiometers have exceptional feel,
rated for a million cycles. e back-lit push switches are the same
found on recording studio consoles. Durability extends to the
control labels that will never wear o after decades of use.

Let’s talk about sound. is mixer is an audiophile's dream,
meant to be appreciated on the highest-grade home stereo or
mega-club loudspeaker system. Specications are better than
most recording studio components. e very best A/D and
D/A converters are used, with a dynamic range of 116 dB and
THD+N at 0.0009%. All processing is 32-bit oating point at a
selectable 44.1, 48 or 96 kHz sample rate.

Each of the four Deck inputs selects between a turntable or
CD deck (analog or S/PDIF), an Aux line, USB port A or USB
port B. e S/PDIF inputs have a dynamic range of 128 dB with
ultra-low jitter. When using turntables, the RIA A curves are
extremely accurate, with steep rumble lters included. e Gain
control helps match Deck inputs to each other, with visual as­sistance from the 16-segment meters with peak-hold.

Two USB ports allow simultaneous connection of two com­puters, enabling back-to-back sets between laptop DJs running
dierent software without compromise or interruption. Each
USB port supports 10 playback and 14 record channels. is lets
most DAW programs simultaneously record all four decks, the
Sub mix, the Session input and the Main mix. e dynamics of
the MP2015 are perfect for DJs that prefer the uncompressed
sound of WAV and FLAC les.

M P2 015

ROTARY MIXER

A stack of customizable Filter sets make the MP2015 unique.
First, tailor each channel source with High, Mid and Low tone
controls with a range of +6 dB to full cut, whose crossover points
can be changed through USB in the control panel. en, each
source has a switchable High-pass, Low-pass or High/Low-pass
sweep eect Filter with an adjustable Resonance control. Finally,
a built-in 3-band Isolator Equalizer on the main outputs adjusts
each band from +10 dB to o, with adjustable Crossover points
between Low / Mid and Mid / High. e Isolator (ISO) easily
lets you play with the musical tension by emphasizing and isolat­ing specic elements (beat, bass, vocal, high-hat, etc.) to control
the ebb and ow during a mix. No other mixer on the market
allows this much tone control variance.

e Submix is great innovation for multi-track DJs, combin­ing 1 to 4 channels plus the Session Input into a Submix, thereby
controlling multiple tracks with one set of EQ, Filter, and vol­ume controls. is means turning one knob instead of trying to
turn several channel knobs at once. Quickly assign or un-assign
any Input to the Submix, which has its own meter, headphone
Cue, and USB record output. is is also where an external
eects unit can be mixed in, and assigned to the Submix or the
Main Mix. e Submix can also be used as a 5th input channel
from the Session Input. No other mixer on the market provides
this ease of multi-track use.

e studio-grade Mic input accepts either a condenser mic,
dynamic mic, or wireless receiver. 48V phantom power is avail­able for a condenser mic. A Duck switch temporarily reduces the
music volume for a professional voice-over, and a Tone control
helps varied mics sound clear over the music.

Rane doesn’t scrimp on the Main Mix, using balanced XLR
Main Outputs and TRS Booth Outputs, each with a Level
control. Session Outputs have their own Output Level control,
available on analog RCA jacks or a digital S/PDIF jack. Session
Inputs and Outputs also provide both analog and digital con­nections. e S/PDIF Session connections allow recording or
chaining mixers together without any analog conversion.

e headphone cue system allows mono Split or Stereo Cue/
Mix Panning, with headphone jacks conveniently located on the
front and top of the mixer.

Data Sheet-3

M P2 015

ROTARY MIXER

Specifications

All specications typical unless otherwise stated

Four Analog Deck Inputs Each is Phono-CD-S/PDIF switchable

....Analog Stereo RCA jacks Phono (RIAA) or CD (line-level)

........Phono Response RIAA +0.1/-0.2 dB, Gain: 31 dB at 1 kHz

............Butterworth 3rd-order Infrasonic (rumble) and 2nd-order Low-pass Filters

........Max Phono Input 12 6 mV

........Max Line Input 4 Vrms, all unbalanced inputs

....Digital S/PDIF RCA jacks Input 16-bit or 24-bit PCM only

........Dynamic range of 128 dB with ultra low jitter and 16:1 SRC conversion range

Analog Aux Input: Line Level Stereo unbalanced RCA jacks

Session Analog Input: Line Level Stereo unbalanced RCA jacks

Session S/PDIF Input / Output RCA jacks (Dynamic range of 128 dB)

....Input 16-bit or 24-bit PCM only Sample Rate 16 kHz to 144 kHz

Analog to Digital Converters 24-bit @ 44.1, 48, or 96 kHz

Digital to Analog Converters 24-bit @ 44.1, 48, or 96 kHz

Digital Signal Processing 32-bit oating point

...Dynamic Range

......Digital/USB Input to Line Output 116 dB A-weighted

......Line Input to Digital/USB Output 116 dB A-weighted

......Line Input to Line Output 113 dB A-weighted

...THD and Noise 0.0009%

USB 2.0 Audio Two independent ports

....Seven stereo record, Five stereo playback, Each Port

....Class Compliant No driver needed for Mac OSX

....High performance universal ASIO driver included for Windows

FlexFX Send / Return Stereo unbalanced ¼" TS (tip-sleeve) jacks

Mic Input Balanced ¼" TRS & XLR combo jack

....+48V Phantom Power switch Turn on for a condenser mic

....Mic / Line-level switch Choose Line to connect a wireless receiver

Line Outputs Main, Booth, Session, FlexFX Loop Send

....Frequency Response 20 Hz to 20 kHz ±0.25 dB

....Unbalanced jacks (Session & FlexFX) Max 4 Vrms

....Balanced jacks (Main & Booth) Max 8 Vrms

Universal Power Supply: 100 to 240 VAC Max 20 W, 50 Hz to 60 Hz

........Transient voltage and EMI protection, turn on muting and overload protection

Unit: Conformity CE, FCC, UL

Size: 35.5 cm x 33.3 cm x 8.3 cm 14˝ H x 13.1˝ W x 4.3˝ D (includes knobs)

....Weight: 5.8 kg 12.7 lb

Shipping Size: 19.7 cm x 38.1 cm x 49 cm 7.75˝ H x 15˝ W x 19.25˝ D

....Weight: 7 kg 15 lb

©Rane Corporation 10802 47th Ave. W., Mukilteo WA 98275-5000 USA TEL [phone] FAX [phone] WEB rane.com

Data Sheet-4

All features & specications subject to change without notice. 2-2015
