Rancilio Epoca E1, Epoca S1, Epoca S1 Tank Use And Maintenance

● E1

● S1

● S1 TANK

Macchina per caffè
Machine à café
Kaffeemaschinen
Coffee machine
Máquina para café
Máquina para café

Uso e manutenzione
Emploi et entretien
Gebrauch und Instandhaltung
Use and maintenance
Uso y manutención
Uso e manutenção

Gentile cliente,
grazie per averci accordato la Sua fiducia.

Siamo sicuri che il prodotto che Lei ha acquistato risponderà in pieno alle Sue aspettative, come
tutti gli altri articoli della produzione RANCILIO. Il prodotto che Lei si accinge ad usare è il risultato
di approfonditi studi e meticolose sperimentazioni fatte dalla RANCILIO per offrirLe quanto di più
funzionale, sicuro ed apprezzabile, anche sotto il profilo del design, si possa trovare sul mercato.
Il libretto di istruzioni per il corretto uso e manutenzione della macchina La aiuterà a sfruttare al
meglio le sue elevatissime possibilità e prestazioni.
Con l’augurio di poterLa sempre annoverare tra i nostri clienti, Le auguriamo una buona lettura.

IT

Cher Client,

Nous Vous remercions pour Votre confiance.

Nous sommes certains que le produit que Vous avez acheté correspondra entièrement à Vos désirs,
comme du reste tous les articles de la production RANCILIO. Le produit que Vous allez employer est
le résultat d’études approfondies et de méticuleux essais effectués par RANCILIO afin de pouvoir Vous
offrir le produit le plus fonctionnel, le plus sûr et le plus remarquable, également du point de vue design,
que l’on puisse trouver sur le marché. Le petit livre d’instructions pour l’emploi correct et l’entretien de
la machine Vous aidera à tirer le maximum de ses grandes possibilités et performances. Nous sommes
certains que nos explications sont claires et espérons, cher client, mériter Votre fidélité.

Sehr geehrte Kundin/sehr geehrter Kunde,
Zuerst möchten wir Innen für das uns entgegengebrachte Vertrauen danken.

Wir hoffen, dass das von Ihnen gekaufte Produkt Ihren Erwartungen in jeder Hinsicht entsprechen
wird-wie übrigens auch all unsere anderen Erzeugnisse. Das Produkt das Sie in Gebrauch nehmen
werden, ist das Resultat von sorgfältigen von RANCILIO Untersuchungen und Tests, um Ihnen in Bezug
auf Funktionalität, Sicherheit, Leitungsfähigkeit sowie Design ein Produkt anbieten zu können, das das
Beste auf Markt befindliche ist. Das Büchlein mit den Anwiesungen für eine korrekte Bedienung und
Wartung der Maschine wird Ihnen behilflich sein, das Beste aus Ihnem Gerät zu machen. Wir hoffen,
dass unsere Erklärungen verständlich sind und dass Sie auch in Zukunft zu unseren Kunden zählen
dürfen.
Mit freundlichen Grüssen.

Dear Customer,
First of all, thank you choosing RANCILIO.

We are confident that the product you have purchased will come up to all your expectations-just as all
our other products are designed to do. The product that you are about to use is the outcome of pain­staking research and tests. The Rancilio’s consistency assures quite sure that the equipment we have
supplied you with, is the most functional, safe and satisfactory of its kind to be found on the market, as
regards both its design and its efficency. The booklet of instructions for its correct use and maintenance
will help you to get the best possible service out of your machine. We trust you will find our explanations
clear and we may continue, in the future, to count you among our esteemed customers.

Muy estimado cliente:
muchas gracias por habernos acordado Su confianza.

Estamos seguros que el producto que Ud. ha adquirido responderà seguramente a Sus esperanzas,
asi como és por todos los demás articulos RANCILIO fabrica. El producto que Ud. se apresta a utilzar
és el resultado de particulares estudios y pruebas meticulosas hechas por la firma RANCILIO para
ofrecerle un producto funcional, seguro y apreciable, tambien por lo que se refiere al design, segu­ramente uno de los mejores que Ud. pueda encontrar en comercio. El manual de instrucciones para
utilizar correctamente y efectuar la manutención de la máquina, la ayudará a disfrutar a lo máximo las
elevadas posibilidades y prestaciones de la misma. Mientras confiamos que Ud. siga siendo siempre
Cliente nuetro, le deseamo una provechosa lectura.

FR

DE

EN

ES

PT

Prezado Cliente,

Obrigado por nos ter dado a sua confiança.

Temos certeza que o produto que Você comprou responderá totalmente as suas expectativas, como
todos os outros artigos da produção RANCILIO. O produto que Você está para usar é o resultado de
estudos profundos e experiências meticulosas feitas pela RANCILIO, para oferece-lhe quanto de mais
funcional, seguro e considerável, também sob o perfil do disign, que se possa encontrar no mercado. O
manual de instruções para o uso correto e manutenção da máquina lhe ajudará a desfrutar ao máximo
as suas elevadíssimas possibilidades e desempenhos.
Com o desejo de poder tê-lo sempre entre os nossos clientes, desejamo-lhe uma boa leitura.

Tratamento do lixo dos aparelhos elétricos e eletrônicos

Jogar o produtos seguindo as normas em vigor relativas à coleta diferencia-

da em centros de coleta apropriados.
Não tratar como simples lixo urbano.
Para qualquer informação necesssária contatar o construtor no endereço indicado
no manual de instruções.

O produto responde aos requisitos exigidos pelas novas diretrizes introdu­zidas para tutelar o ambiente e deve ser sucadato em modo apropriado ao
final do seu ciclo de vida.

Afvalbehandeling van de elektrische en elektronische apparatuur

Verwerk het product volgens de geldende normen m.b.t. de gescheiden

afval bij de voorbestemde vuilniscentrums.
Behandel het product niet als eenvoudig stadsvuil.
Neem contact op met de constructeur op het aangegeven adres in deze handleiding
voor nadere informaties.

Het product beantwoordt aan de door de nieuwe richtlijnen verlangde verei­sten ingevoerd ter bescherming van het milieu en moet op passende wijze op
het einde van zijn levenscyclus worden verwerkt.

Postępowanie z odpadami pochodzącymi z urządzeń elektrycznych/
elektronicznych

Produkt musi zostać poddany utylizacji zgodnie z obowiązującymi przepi­sami dotyczącymi segregowania odpadów w specjalnie do tego wyznaczonych miej­scach. Nie wyrzucać razem ze zwykłymi odpadami miejskimi.
W celu uzyskania jakichkolwiek informacji proszę skontaktować się z producentem
pod adresem podanym w instrukcji obsługi dla użytkownika.

Ten produkt odpowiada wymogom zawartym w nowych dyrektywach
wprowadzonych w celu ochrony środowiska i po zakończeniu cyklu eksploa­tacji musi zostać zutylizowany we właściwy sposób.

Obdelava odpadkov električnih in elektronskih naprav

Odlaganje izdelkov je potrebno vršiti v skladu z veljavnimi predpisi v zvezi z

selektivnim odlaganjem odpadkov v centrih za zbiranje odpadkov ki so temu

namenjeni. Ne odlagajte ga kot običajne smeti.
Za kakršnokoli informacijo kontaktirajte proizvajalca na naslovu, ki je naveden v
priročniku z navodili.

Izdelek odgovarja zahtevam novih smernic, ki so uvedene zaradi zaščite
življenske sredine in mora biti odložen na ustrezen način po koncu življenjske
dobe.

Kā utilizēt elektrisko/elektronisko iekārtu atkritumus

Iekārtu atkritumus nepieciešams utilizēt atbilstoši spēkā esošajiem noteikumiem,

kuri reglamentē dažādu veidu atkritumu utilizēšanu tikai speciālajās atkritumu

konteineros. Nemetiet šos atkritumus parastajos kopējos pilsētas atkritumu.
Lai saņemtu jebkuru informāciju, griezieties pie ražotāja, kura adrese uzrādīta
ekspluatācijas instrukcijā.

Dotais produkts atbilst jaunās direktīvas prasībām, kura attiecās uz
ekoloğisko drošību, un tas ir atbilstošā kārtībā utilizējams pēc tā, kad nobei­gsies tā derīguma termiņš.

Zacházení s odpady z elektrických / elektronických zařízení

Výrobek likvidujte podle současných předpisů o likvidaci tříděného odpadu

na k tomu určených skládkách.

Nezacházejte s ním jako s běžným obecním odpadem.
Potřebujete-li jakékoli informace, kontaktujte prosím výrobce na adrese uvedené v
návodu pro použití.

Výrobek odpovídá požadavkům nových směrnic zavedených pro ochranu
životního prostředí a zlikvidovat se na konci své životnosti musí příslušným
způsobem.

Zaobchádzanie s odpadmi z elektrických / elektronických zariadení

Výrobok likvidujte podľa súčasných predpisov o likvidácii triedeného odpa-

du na k tomu určených skládkach.

Nezaobchádzajte s ním ako s bežným komunálnym odpadom.
Ak potrebujete akékoľvek informácie, kontaktujte, prosím, výrobcu na adrese uve­denej v návode na použitie.

Výrobok zodpovedá požiadavkám nových smerníc zavedených pre ochra­nu životného prostredia a zlikvidovať sa na konci svojej životnosti musí
príslušným spôsobom.

Kur išmesti elektros \ elektroninės įrangos atliekas.

Šalinkite įrangos atliekas atitinkamai esamų taisyklių, kurios liečia tokios

rūšies atliekas apie specialias atliekų kaupimo vietas.

Nemeskite atliekas į paprastus miesto šiukšlių konteinerius. Papildomos informa­cijos kreipkitės į gamintoją nurodytu vartotojo instrukcijoje adresu .

Šis produktas atitinka įvestos ekologiniam saugumui naujos direktyvos
reikalavimams ir turi būti sunaikintas pasibaigus jo atitikties terminui.

Entsorgung von elektrischen und elektronischen Geräten

Das ist Produkt gemäß den geltenden Normen für die Mülltrennung bei den

zuständigen Sammelzentren zu entsorgen.
Nicht wie normalen Müll behandeln.
Weitere Informationen sind beim Hersteller unter der in der Gebrauchsanleitung an­gegebenen Adresse zu erhalten.

Das Produkt entspricht den Erfordernissen den neuen Richtlinien über den
Umweltschutz, und muss an seinem Lebensende entsprechend entsorgt wer­den.

Treatment of waste from electric/electronic equipment

Dispose of the product in accordance with current regulations concerning diffe-

rentiated waste disposal in dedicated waste disposal areas.
Do not treat as simple urban waste.
For any information please contact the manufacturer at the address specified in the user
manual.

The product complies with the requirements of the new directives introduced for
the environmental safeguard and must be disposed of appropriately at the end
of its life cycle.

Trattamento dei rifiuti delle apparecchiature elettriche ed elettroniche.

Smaltire il prodotto seguendo le norme vigenti relative allo smaltimento

differenziato presso centri di raccolta dedicati.
Non trattare come semplice rifiuto urbano.
Per qualsiasi informazione necessaria contattare il costruttore all’indirizzo indicato
nel libretto istruzioni.

Il prodotto risponde ai requisiti richiesti dalle nuove direttive introdotte a tutela
dell’ambiente e che deve essere smaltito in modo appropriato al termine del
suo ciclo di vita.

Traitement des ordures des équipements électriques et électroniques

Ecouler le produit conformément aux normes en vigueur concernant l’écou-

lement différencié auprès de centres de récolte dédiés.
Ne pas traiter comme simples ordures urbaines. Pour toute information nécessaire
contacter le constructeur à l’adresse indiquée dans le manuel d’emploi.

Le produit est conforme aux caractéristiques requises par les nouvelles direc­tives introduites pour la sauvegarde de l’environnement et doit être écoulé de
façon appropriée à la fin de son cycle de vie.

Tratamiento de los desechos de los equipos eléctricos y electrónicos

Eliminar el producto en los centros de recolección especializados, siguiendo

las normas vigentes relativas a la eliminación diferenciada.
No tratar como simple desecho urbano.
Para cualquier información necesaria, contacten al fabricante en la dirección indica­da en el manual de instrucciones.

El producto responde a los requisitos demandados en las nuevas directivas
introducidas para la protección del ambiente y debe ser eliminado de manera
apropiada al final de su ciclo de vida.

Behandling af affald fra elektrisk/elektronisk udstyr

Bortskaf produktet i overensstemmelse med nuværende reguleringer vedr.

forskellige affaldsprodukter på deponeringssteder dedikeret til affald.
Må ikke behandles som alm. byaffald.
Kontakt producenten på den specificerede adresse i brugerhåndbogen for yderligere
oplysninger.

Produktet er i overensstemmelse med de nye direktiver, introduceret for mi­ljøforanstaltningen og skal bortskaffes på behørig vis ved slutningen af dets
livscyklus.

Avfallshantering av elektriska och elektroniska apparate

Nedskrota produkten genom att följa gällande normer för differentierad sa-

nering på seriösa uppsamlingsställen.
Behandla det inte som vanligt tätortsavfall.
Vid behov av ytterligare information, var vänlig ta kontakt med tillverkaren på den
adress som anges i bruksanvisningen.

Produkten motsvarar de krav som ställs i de nya miljödirektiven och den
måste nedskrotas på ett lämpligt sätt i slutet av sin livscykel.

Behandling av avfall fra elektrisk/elektronisk utstyr

Produktet skal avhendes i samsvar med gjeldende forskrifter angående dif-

ferensiert avfallsavhending på dediserte avfallsavhendingsområder.

Det må ikke behandles som vanlig byavfall.
For videre opplysninger vennligst kontakt fabrikanten på adressen som er angitt i
bruksanvisningen.

Produktet etterkommer kravene i de nye miljødirektivene og skal avhendes
på en passende måte etter avsluttet bruk.

Elektri- ja elektronseadmete jäätmete töötlemine

Tootest lahtisaamist peab läbi viima vastavalt käibivatele eeskirjadele, mis

käsitlevad jäätmetest eristatud lahtisaamist selleks mõeldud jäätmetest
lahtisaamise alades.
Mitte töödelda nagu tavalisi majapidamisjäätmeid.
Mistahes informatsiooni saamiseks pöörduge palun tootja poole aadressil, mis on
märgitud kasutaja käsiraamatus.

Toode vastab uuetele nõutele, mis on esitletud keskkonna kaitsmiseks ja sel­lest peab reeglipäraselt lahti saama selle elutsükli lõpus.

Sähköisten ja elektronisten laitteiden jätteiden käsittely

Hävitä tuote noudattaen seuraavia voimassa olevia lajitellun jätteiden käsit­telyä koskevia määräyksiä asianmukaiseen jätteidenkäsittelylaitokseen.

Älä käsittele sitä tavallisena kaupunkijätteenä.
Mitä tahansa tietoja varten ota yhteyttä valmistajaan ohjekirjassa olevaan osoittee-

seen.

Tuote on uusien ympäristöä suojaavien direktiivien vaatimusten mukainen ja
se tulee hävittää asianmukaisella tavalla sen käyttöiän päätyttyä.

Az elektromos és elektronikai készülékek hulladékkezelése

A terméket az erre a célra kijelölt gyűjtőhelyekre adja le követve a szelektív

hulladékgyűjtéssel kapcsolatos jelenlegi jogszabályokat.
Ne kezelje közönséges városi hulladékként.
Bárminemű információért forduljon a gyártóhoz, melynek címét a használati útmu­tatóban találja.

A termék megfelel a környezet védelme érdekében újonnan bevezetett
irányelvek követelményeinek és ennek megfelelően kell kezelni az élettar­tamának végeztével.

EUROPEAN UNION ONLY

Il presidente - The president

20010 Villastanza di Parabiago (MI)

Viale della Repubblica 40

DICHIARAZIONE DI CONFORMITA’ CE - DECLARATION DE CONFORMITE CE

EG-KONFORMITÄTSERKLÄRUNG - EC DECLARATION OF CONFORMITY

DECLARACIÓN DE CONFORMIDAD CE - DECLARAÇÃO DE CONFORMIDADE CE

Noi RANCILIO Macchine per caffè S.p.A.

Dichiariamo sotto la nostra responsabilità che il prodotto: Macchina per caffè per uso professionale

Déclarons, sous notre responsabilité, que le produit : Machine à café d’utilisation professionnel

Wir erklären auf unsere Verantwortung, daß das Produkt: Kaffeemaschine für Beruflichgebrauch

Declare under our responsibility that the product: Espresso coffee makers for commercial use

Declaramos bajo nuestra responsabilidad que el producto: Máquina para café de uso profesional

Declaramos sob a nossa responsabilidade que o produto: Máquina para café para uso profissional

La presente dichiarazione perde la sua validità se la macchina viene modificata senza la nostra espressa autorizzazione.

La présente déclaration perd sa validité dès lors que la machine est modifiée sans notre expresse autorisation.

Die vorliegende Erklärung verliert ihre Gültigkeit, wenn die Maschine ohne unsere ausdrückliche Genehmigung verändert wird.

The present declaration will become invalid should the machine be modified without our specific authorization.

La presente declaración pierde su validez si la máquina es modificada sin nuestra expresa autorización.

A presente declaração perde a validade se a máquina é modificada sem a nossa expressa autorização.

al quale è riferita questa Dichiarazione, secondo quanto prescritto dalle direttive specifiche:

à laquelle se réfère cette déclaration, selon les prescriptions des directives spécifiques.

auf das sich diese Erklärung bezieht, Entsprechend der Vorschriften der spezifischen Richtlinien.

to which this declaration relates is, according to the provisions of the specific directives:

al cual se refiere esta Declaración, de acuerdo con lo prescrito por las específicas directivas:

ao qual se refere esta Declaração, segundo quanto prescrito pelas específicas diretrizes:

98/37/CE

Direttiva macchina - Direttiva machine - Richtlinie Maschine - Makers directive - Directiva máquina - Diretriz da máquina:

73/23/CEE, 93/68/CEE

Direttiva Bassa Tensione - Direttiva Basse Tension - Niederspannungsrichtline - Low Voltage Directive - Directiva Baja Tensiòn - Diretriz Baixa Tensão:

89/336/CEE, 93/68/CEE, 92/31/CEE

Direttiva EMC - Direttiva EMC - Richtlinie EMC - EMC Directive - Directiva EMC - Diretriz EMC

97/23/CE

Direttiva attrezzatura a pressione (PED)-Directive sur les appareillages sous pression (PED)-Richtlinie für unter Druck stehende Geräte (PED) Pressure

device directive (PED) - Directiva equipos de presión (PED) - Diretriz aparelhagem de pressão (PED)

è conforme alle seguenti norme: - conforme aux normes suivantes :

In Übereinstimmung mit den folgenden Normen: - it complies with the following norms:

es conforme a las siguientes normas: - É conforme as seguintes normas:

EN 60335-1, EN 60335-2-75, EN 55014-1, EN 55014-2, EN 61000-3, EN 61000-4, EN 50366

Norme EN armonizzate - Normes EN harmonisées - Harmonisierte EN-Norme - Harmonized EN norms - Normas EN armonizadas - Normes EN Harmonia

N°MODULO MD-CER.01

7

M

Fig. 1

Fig. 2

Descrizione attrezzatura a pressione-Description de l’appareillage sous pression-Beschreibung der unter Druck stehenden Geräte-

Pressure device description-Descripción de los equipos de presión - Descrição dos equipamentos de pressão

Pressione - Pression

Druck - Pressure

Presión - Pressão

Temperatura - Température

Temperatur - Temperature

Temperatura - Temperatura

Fluido - Fluide
Flüssig - Fluid
Fluido - Fluído

Capacità lt-Capacité lt-Fähigkeit lt-

Capacity lt-Potencia lt- Potência it

Caldaia - Chaudière
Kessel - Boiler
Caldera - Caldeira

0,18/1,8 Mpa/bar

131,2 C°

Acqua/Vapore - Eau/Vapeur
Wasser/Dampf - Water/Steam
Agua/Vapor - Água/Vapor

4

Pressione - Pression
Druck - Pressure
Presión - Pressão

Temperatura - Température
Temperatur - Temperature
Temperatura - Temperatura

Fluido - Fluide
Flüssig - Fluid
Fluido - Fluído

Capacità-Capacité
Fähigkeit -Capacity
Potencia-Potência

Numero scambiatore -Numéro de l’échangeur
Nummer des Austauschers­Exehanger number-Número intercambiador
Número Intercambiador

Scambiatore -Echangeur
Austauscher -Exchanger
Intercambiador
Intercambiador

1.2/12 Mpa/bar 131,2 C°

Acqua - Eau
Wasser- Water
Agua - Água

0.095 1

8

1

2

3

4

5

6

7

9

10

8

mod. S1

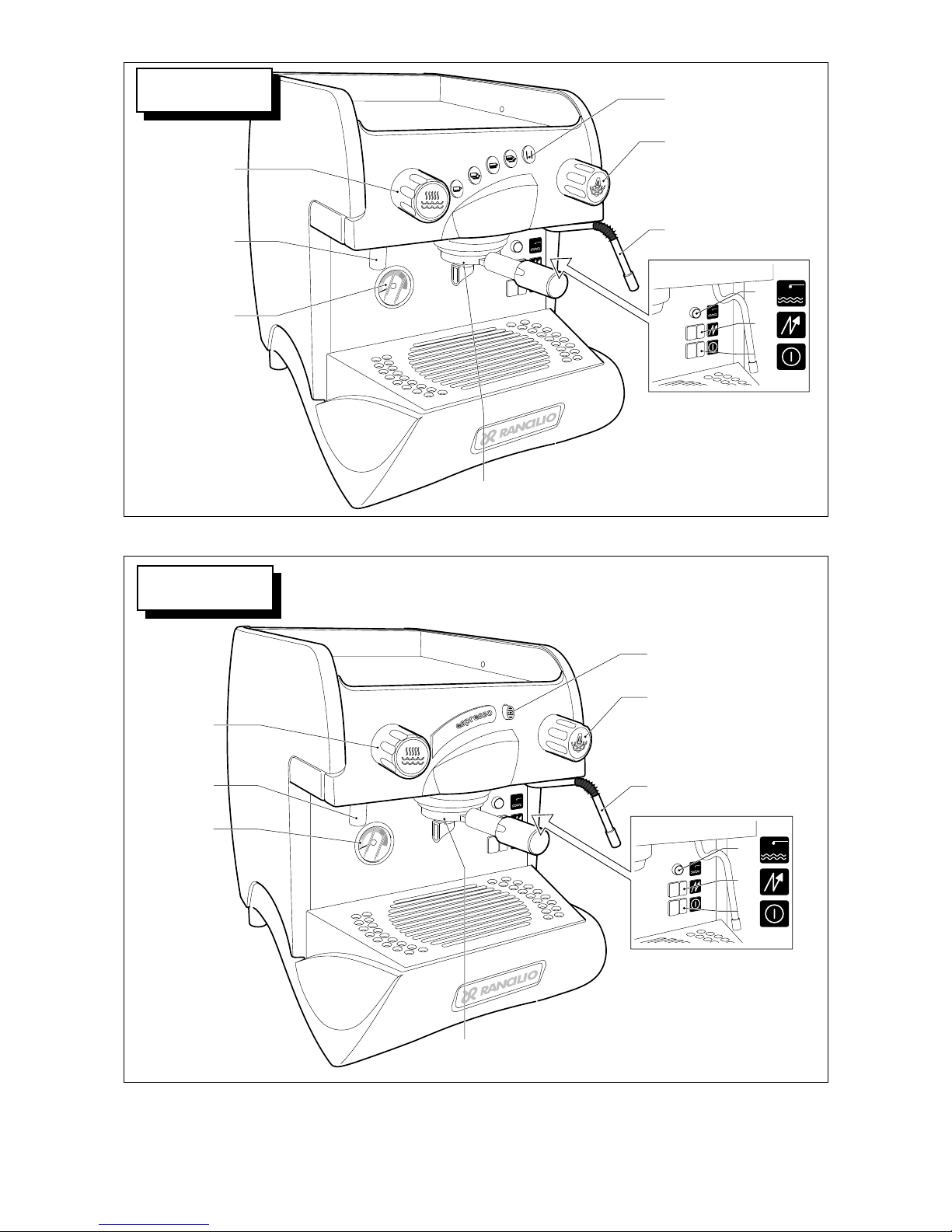

Fig. 3.a

1

2

3

4

5

6

7

9

10

8

mod. E1

Fig. 3

9

Fig. 4

Fig. 5

4

L

ova

t

o

L

2 (3/8"G)

1 (Ø30mm)

1

2

3

4

5

6

7

9

10

8

11

12

mod. S1 TANK

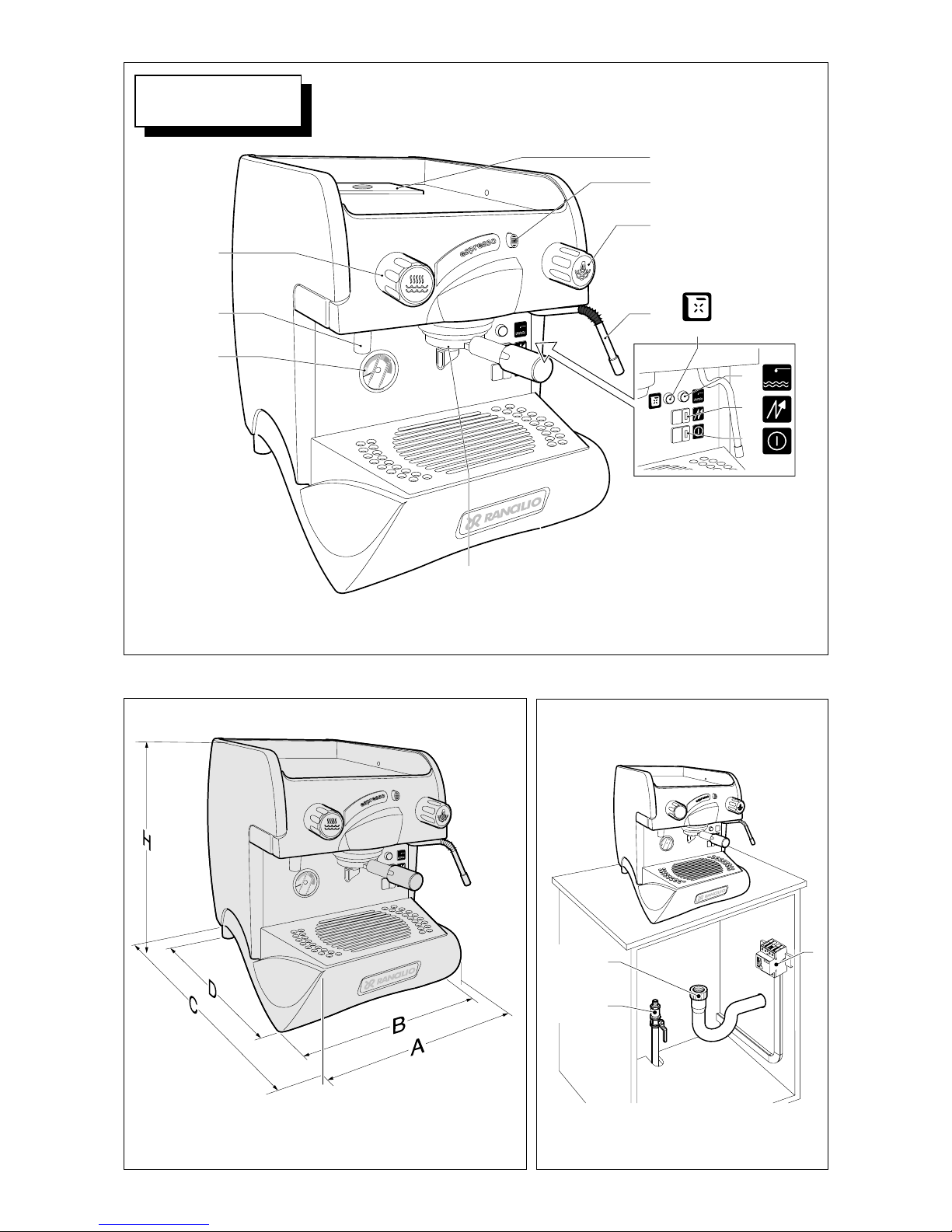

Fig. 3.b

10

4

mod. E1 - S1

mod. S1 TANK

mod. S1 TANK

1

2

2

3

5

6

7

8

8

9

1

A

B

C

D

E

Fig. 6

11

A

B

C

Fig. 7

Fig. 8

Fig. 9 Fig. 10

Fig. 11

12

1

2

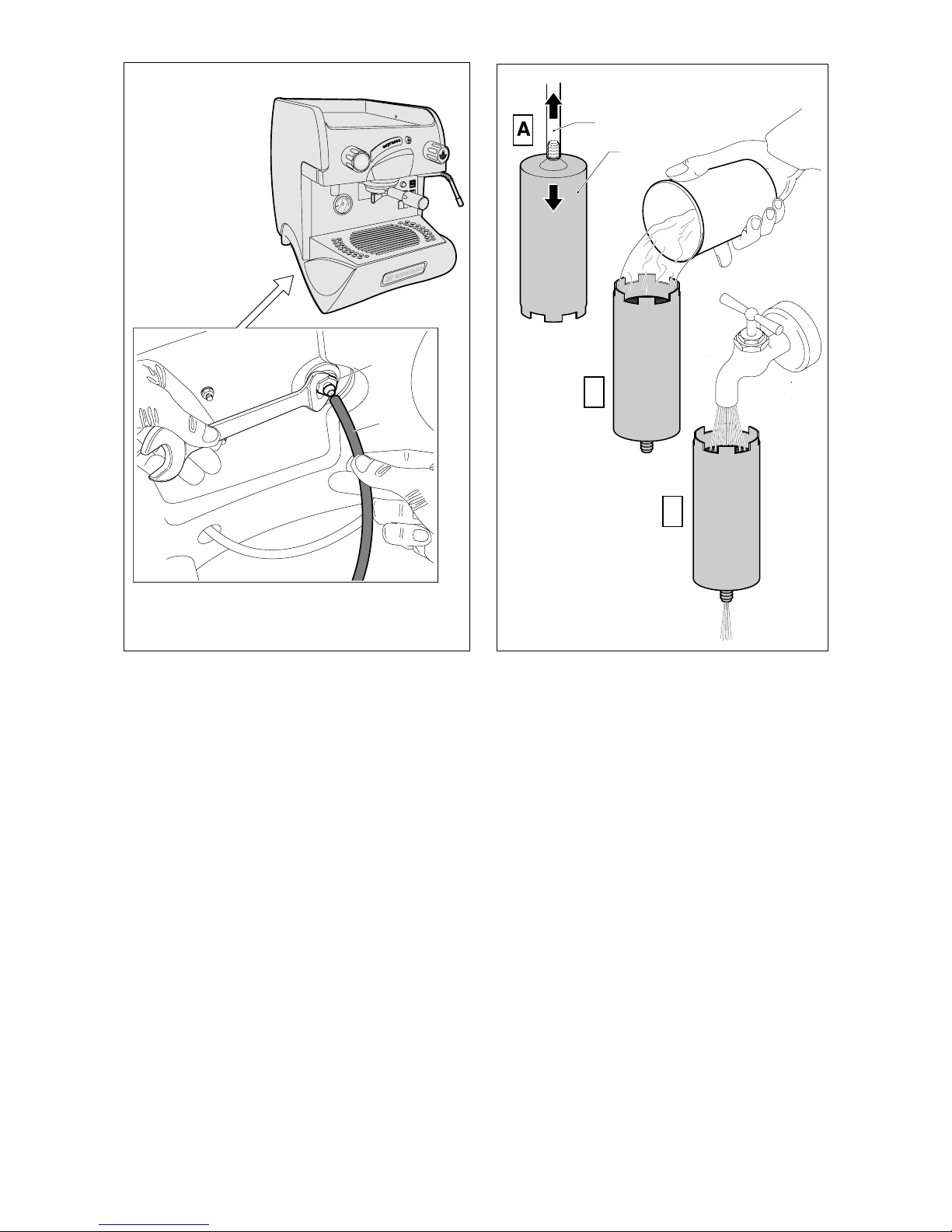

Fig. 12

B

C

2

1

Fig. 13

46

EN ENGLISH

CONTENTS

Machine identification data ..........................47

1. General safety rules ..................................47

2. Description .................................................48

2.1. Specifications and composition ............48

2.2. Machine equipment ..............................48

2.3. Mechanical protective devices ..............49

2.4. Electric safety devices ..........................49

2.5. Aerial noise ...........................................49

2.6. Vibrations ..............................................49

3. Technical data ............................................49

3.1. Dimensions and weights .......................49

4. Use ..............................................................49

4.1. Precautionary measures ......................50

5. Transport ....................................................50

5.1. Packaging .............................................50

5.2. Inspection on receipt ............................50

6. Installation .................................................50

6.1.Connections to be made by the user .....50

6.1.1. Water supply .....................................50

6.1.2. Electric supply ...................................51

6.2. Connections .........................................51

7. Operation ...................................................52

7.1. Controls ................................................52

7.2. Control instruments ..............................52

7.3. Starting up ............................................52

8. Use ..............................................................53

8.1. Preparing coffee ...................................53

8.2. Preparing cappuccino ...........................53

8.3. . Warming a beverage ...........................53

8.4. Preparing tea, camomile, etc.............. ..53

9. Adjustments and settings of the dose ....54

9.1.For models E1 .......................................54

9.1.1. Adjusting the dose .............................54

10. Maintenance ...............................................54

10.1. Daily ....................................................54

10.2. Weekly ................................................55

10.3. Periodical ............................................55

10.3.1. Renewal of water ...........................55

10.3.2. Softener regeneration ......................55

11. Stopping the machine ...............................56

12. Troubleshooting ........................................56

The operations marked with this symbol
are to be undertaken exclusively by an
installation technician

The operations marked with this symbol are
to be undertaken by the user.

SCHEMI ELETTRICI
SCHEMAS ELECTRIQUES
SCHALTPLANE

WIRING DIAGRAMS 79-84

ESQUEMAS ELECTRICOS
ESQUEMAS ELÉTRICOS

SCHEMI IDRAULICI
SCHÉMAS HYDRAULIQUES
HYDRAULIKPLÄNE

HYDRAULIC DIAGRAMS 85-88

ESQUEMAS HIDRÁULICOS
ESQUEMAS HIDRÁULICOS

IT ITALIANO 13 -23
FR FRANCAIS 24-34
DE DEUTSCH 35-45

EN ENGLISH 46-56

ES ESPAÑOL 57-67
PT PORTUGUÊS 68-78

47

NAME: Coffee machine, EPOCA series
MODEL: E1 - S1 - S1 TANK
VERSIONS: 1 GROUP

The label illustrated on the EC Declaration of Conformity of this instruction manual corresponds to the identifi­cation label placed on the machine (Fig.2).

Label identification (Fig.1):
1 Manufacturer

2 Model and version
3 Voltage
4 EC conformity mark (if required)
5 Serial number
6 Boiler data
7 Machine total absorption
8 Protection level
9 Motor power
10 Heating element power
11 Frequency
12 Conformity marks
13 Year of manufacture

Symbols

Warning signal. The instructions which refer to this signal must be followed with great care in order to
avoid accidents or damage to the machine.

This manual is an integral and essential part of the product and must be delivered to the user. The warnings
contained in it must be read carefully, as they supply important indications relating to the safety of installa­tion, use and maintenance. Keep this manual for future reference.

1. GENERAL SAFETY RULES

● Don’t leave the packing elements (plastic bags,
expanded polystyrene, nails, cardboard, etc.)
within the reach of children, as these elements
are potential sources or danger.

● Check that the data on the machine corresponds
to that of the electrical supply network, before
connecting the equipment.

● Adaptors, multiple sockets and /or extensions must
not be used.

● In doubt, request an accurate control of the plant
by qualified personnel. The electric plant must be
provided with the following safety devices:

- efficient earth connection;

- section of conductors suitable for absorption
capacity

- efficient earth leakage protection circuit
breaker.

● Install the machine on a water repellent surface
(laminate, steel, ceramic, etc.) away from heat
sources (oven, cooking stove, fireplace, etc.) and
in conditions in which the temperature may not go
below 5°C. KEEP WARM.

● Do not leave the machine exposed to atmosphe­ric agents or place them in damp rooms such as
bathrooms.

● Do not obstruct the suction or dispersion grilles
and do not cover with cloths, etc.

● Keep the packed machine in a dry place, not
exposed to atmospheric agents and in conditions
in which the temperature does not go below 5°C.
Do not stack more than three items of the same
kind. Do not place heavy items on the packa­ging.

● In an emergency, such as the breaking out of a fire,
unusual noise, overheating, etc., take immediate
action, disconnecting the power and closing gas
and water taps.

● Only use original spare parts in order to avoid
compromising the safety and proper functioning
of the machine.

Erroneous installation can cause damage
to people, animals and things for which the
manufacturer cannot be considered respon­sible

48

2. DESCRIPTION

The machines in the EPOCA series have been desi­gned to prepare express coffee and hot beverages.
A positive-displacement pump inside the machine
powers the heater in which the water is heated. By
pressing the appropriate buttons, water is supplied
to the spouts in the form of hot water or steam, ac­cording to needs.

The water to be used for the beverages is supplied
directly by the water supply, pressurized by the pump
and immediately heated by the steam produced by
the boiler or from an incorporated tank containing a
softener for softening the water by trapping calcium
salts.

2.1. Specifications and composition (Fig.3 - 3.a - 3.b)

The machine is composed of a steel carrying struc­ture on which the mechanical and electrical compo­nents are fitted. These are completely covered with
panels made of painted polyurethane and stainless

steel.
The beverages are dispensed at the front of the

machine, where all the buttons, control devices and
dispensers are to be found.
There is a cup-warming plate on the top of the ma­chine.

Legend:
A Semiautomatic system; manual dispensing start

and stop.

B Automatic system; electronic control of coffee

doses dispensed.

C N. of coffee dispensing units.
D N. of steam spouts.
E N. of hot water spouts.

1 Steam tap
2 Steam spout
3 Hot water tap
4 Hot water spout
5 Coffee dispensing unit
6 Coffee dispensing button
7 Boiler water level indicator
8 Gauge
9 Power on-off switch and led
10 Switch and boiler resistance engagement light.
11 Water-tank
12 Water shortage pilot light

2.2. Machine equipment

MOD. E1-S1 MOD. S1 TANK

1 dose filter holder

1 1

2 dose filter holder

1 1

Filters

2 2

Disk for cleaning

1 1

1 mt. supply pipe

1 -

1,5 mt. supply pipe

1 -

1,5 mt. drainage pipe

1 -

Pipe connections

1 1

Doser and presser

1 1

Instruction manual

1 1

Brush

1 1

A B C D E

E1 (Fig.3)

- ok 1 1 1

S1 (Fig.3.a)

ok - 1 1 1

S1 TANK (Fig.3.b)

ok - 1 1 1

49

MOD. E1-S1 MOD. S1 TANK

A mm

385 385

B mm

355 355

C mm

565 565

D mm

400 400

H mm

485 485

Boiler capacity in litr.

3,9 3,9

Litres water in tankt

- 2

Machine weight kg

35 28

Water inlet

3/8” -

Ømm drainage

30 -

Packaging
Volume m

3

0.193 0.193

Dimension LxPxH mm

495x690x575 495x690x575

Gross weight kg

40 33

3. TECHNICAL DATA

3.1. Dimensions and weights (Fig.4)

2.3. Mechanical protective devices

The machine is equipped with the following protective
devices:

● complete panelling protection of all the parts
subject to heat and of the steam and hot water
supplier;

● work surface provided with grill and tray to collect
spilt liquids;

● expansion valve in the hydraulic system and valve
on the boiler to avoid overpressure;

● nonreturn valve on the hydraulic system to avoid
flowing back to the main supply.

2.4. Electric safety devices

The safety devices provided are:

● 5V low tension push buttons an the E1 control key
panel;

● thermal protection on the pump motor;

● safe resistance thermal.

2.5. Aerial noise

Noise level in the working place does not usually
exceed 70dB(A).

2.6. Vibrations

The machine is supplied with rubber vibration dam­ping feet. In normal working conditions, the machine
does not produce vibrations harmful to the operator
and the environment.

The user must not:

● touch the hot surfaces and dispensing areas;

● place liquids containers on the machine;

● put his hands under the spouts during use;

● transport the machine or carry out maintenance

operations when the plug is connected or when
the machine is hot;

● wash the machine with water or steam jet;

● dip completely or partially the machine in water;

● use the machine if the cable is damaged;

● touch the machine when his hands or feet are wet

or damp;

● use the machine when there are children in its
proximity;

● allow the machine to be used by children or unfit
people;

● obstruct the suction or dispersal grilles with cloth
or any other thing;

● do not use the machine when wet or very damp.

4. USE

The machine have been designed, manufactured and
protected to be used to make express coffee and hot
beverages (tea, cappuccino, etc.). Any other use is to
be considered unsuitable and therefore dangerous.

The manufacturer cannot be held respon­sible for any damage caused to people
or things due to unsuitable, erroneous or
irrational use of the machine.

The operator must always follow the indications con­tained in this manual. In the case of a failure or if the
machine is not working properly, switch it off and do
not attempt any direct repair. Refer exclusively to a
service centre.

You’ll find all the technical data on electric
connection, on the machine identification
label Fig. 1.

50

6. INSTALLATION

The appliance is only to be installed in locations
where use and maintenance is restricted to trained
personnel.

The machines are fitted with height adjustable feet
(only rear).

The support surface shall be levelled, dry, smooth,
steady and stable and at such a height that the cup­warming surface is at over 150 cm from ground. Do
not use water jets or install where water jets are
used.

In order to guarantee normal operation, the machine
must be installed in areas that the environmental
temperature is between +5°C ÷ +32°C end humidity
of not over 70%.

It does not need to be anchored to the surface and it
does not require any technical operations to dampen
vibrations in order to operate properly.

4.1. precautionary measures

This machine may only be used with foodstuffs. It
cannot be used for heating liquids or grinding any other
kind of product that could damage and pollute it.

The manufacturer cannot be held responsible
for damage to people or things caused by
unsuitable, erroneous or irrational use.

5. TRANSPORT

5.1. Packaging

The machine is delivered in a strong cardboard box
with internal protection.

The packaging bears symbols which must be obser­ved during handling and stocking of the item.

Always keep the package in a vertical position
during transport. Do not turn it over or lay it
on its side and avoid bumping and exposure
to atmospheric agents.

5.2. Inspection on receipt

Check that the machine received corresponds to
the one indicated on the delivery note, including any
accessories.
Check that it has not been damaged during transport
and, if so, inform the forwarder and our customer
service office immediately.

The packing elements (plastic bags, expan­ded polystyrene, nails, cardboard, etc.) must
not be left within reach of children as they are
potential sources of danger. Do not dispose
of the packing elements in the environment;
consign them to firms authorized for their
disposal.

It is recommended to leave the area around the ma­chine free to facilitate its use and the performance
of any maintenance operations.

If the machine is wet or very damp, wait until it is
completely dry before installing or using it. It is
always necessary to request an accurate control to
qualified service people in order to find any possible
damage to the electric components.

Reserve an area near the machine for the installa­tion of the coffee grinding and dosage machine (see
relevant documentation).
The machine is usually equipped with a water sof­tener, type DP2 or DP4, which must be connected
by the user in compliance with the laws in force.
Should a different softener be installed, refer to the
documentation of the relevant product.
A dreg drawer should be fitted by the installer.

6.1. Connections to be made by the
user.

Hook-up must be carried out by qualified
personnel in full accordance with federal,
state and local regulations.

6.1.1. Water supply (Mod.E1 - S1) (Fig.5)

This equipment is to be installed to
comply with the applicable federal, state

or local plumbing codes.

Connections must be installed close to the machine.

● Water drainage pipe 1, having a minimum internal
diameter of 30 mm, equipped with a water-trap
accessible for inspection.

● Water supply pipe 2, with a 3/8"G cut-off tap.

Make sure that the maximum supply pressure
does not exceed 6.5 bar; otherwise, install a
pressure reducer.

51

6.2. Connections

● Place the machine on the horizontal sur­face previously prepared.

Before connecting, thoroughly wash the mains water
pipes:

● Leave the water supply taps running at full pres­sure for several minutes.

● Connect to the mains water supply.

● Connect the machine to the socket.

Thoroughly wash all the water pipes of the machi­ne:

● Leave the water supply taps running at full pres­sure.

● Switch on main switch 1: wait until the boiler fills
up to the level set.

● Switch on main switch 2 to begin heating the water
in the boiler.

● Operate each unit in order to allow the water to
escape for about one minute; repeat the operation
twice.

● Deliver steam from the steam jets for about one
minute.

● Deliver hot water for about one minute; repeat the
operation twice.

● Switch off switches 1 and 2.

● Empty the water from the boiler: see point 10.3

IMPORTANT

Should the machine not deliver water for over
24 hours, wash the internal components be­fore beginning work, repeating the operations
as described above

ATTENTION

Please be informed that in order to avoid
pressure falls during the boiler filling we fitted
into the filling solenoid valve a restription Ø

1.25 mm.
If, during the installation, the machino get in

security mode (the on/off selection on the
touch pad will flash) reset the machine using
the main switch.

6.1.2. Electric supply

The machine is supplied ready for connection
according to the required electrical specifi-

cations.
Before connecting the machine ensure that the plate

details (fig. 1) comply with those of the electric distri­bution network.

The electrical connection cable must be directly
connected to the connection provided according to
current legislation. Ensure that the earthing system
is efficient and in compliance with current legal re­quirements.

The earthing system and the lightening protection
system must be realized in accordance with the
provisions of current legislation.

For the supply network use a cable in compliance with
standards with protective conductor (earthing wire).

For single phase power supply use a cable with 3
conductors (phase + neutral + earth).

In both cases it is necessary to provide an automatic
differential switch (Fig. 6) at the start of the power
cable, complete with magnetic release elements in
accordance with the identification plate details (Fig.

1). The contacts must have an opening of equal or
over 3 mm and with dispersed current protection of
30 mA.
Remember that each machine must be fitted with its
own safety elements.

WARNING:

Should the power supply cable be damaged
it is to be replaced by the manufacturer or by
its technical assistance service or by person
with equivalent qualification, in order to pre­vent any risks.

52

7.3. Starting up (Fig.6)
Model S1

● Turn on the water supply tap 2 (Fig.5).

● Turn on main switch 1.

The pump for boiler filling will activate .
Orange LED (8) ON

● When the level is reached, the pump stops, the
LED switches OFF, turn the esistance switch 2;
water is heated in the boiler; then, operate the unit
until the water is dispensed.

● Wait for the machine to reach its working pressure,
gauge needle 7, and to reach the correct thermal
balance.

Model E1

● Turn on the water supply tap 2 (Fig.5).

● Turn on main switch 1 and resistance switch 2.

The pump for boiler filling will activate
Orange LED (8) ON

● Only after reaching the level (orange LED (8) ON)
the resistances for water heating in the boiler are
powered,then activate the group until water comes
out.

● During the heating phase the leds of the keys
switch on in sequence from left to right until the
working pressure is reached.

Only when the rated pressure is reached it is

possible to adjust the dosesl.

7. OPERATION

7.1. Controls (Fig.6)

1 Main switch.

Two-position switch with led.
Turn on the switch, led on, the machine is turned
(apart from the boiler) and the pump is turned on
to fill the boiler;

2 Boiler resistance switch.

Two-position switch with led.
On activating the switch, the led comes on, and
power is supplied to the resistance for the boiler
water.

3 Coffee dispenser switch (mod. S1 - S1 TANK)
On pressing the button, continuous coffee dispen-

sing begins and the led comes on.

On re-pressing the switch, the coffee delivery stops

and the led goes out.

4 Electronic coffee delivery button panel.(mod.

E1). Five buttons with relative led:

A Press the button for a second, led on, release
button; a small coffee is dispensed.

The led turns off and dispensing ceases.
B Press the button for a second, led on, release

the button; a big cup of coffee is dispensed.
The led turns off and dispensing ceases.
C Press the button for a second, led on, release

the button; two small coffees ar dispensed from the
same unit.

The led turns off and dispensing ceases.
D Press the button for a second, led on, release

the button; two big cups of coffee are dispensed
from the same unit.

The led turns off and dispensing ceases.
E Press the button for a second, led on, release

the button; coffee is continuously dispensed.
Press the button for a second, led off, release

button; continuous dispensing of coffee ceases.
To interrupt dispensing taking place by pressing
A-B-C-D, hold button E down until the relative led

turns off.

5 Hot water supply tap

Tap: turn in an anticlockwise direction to open and
clockwise to close.

6 Steam supply handwheel.

Tap: turn in an anticlockwise direction to open and

clockwise to close.

7.2. Control instruments (Fig.6)

7 Gauge with mobile needle on a fixed dial with a

scale and colour indicator areas.
Visual control of the boiler pressure.

8 Boiler water level indicator
9 Tank water level indicator (Mod.S1 TANK)

Model S1 TANK with autonomous tan

(Fig.7)

● Open the lid on the water-tank and check that the
softener A has been inserted in the dip pipe B;

● Ensure that the air trap C has been inserted in the
appropriate housing;

If the air trap is not properly positioned, the
machine may not heat or properly indicate
the lack of water in the tank.

● Fill the tank with 2 litres of water and close the lid;
Check the LED (9 - Fig.6)

● Turn on main switch 1; the boiler is filled and is
activated.

Once the boiler is filled,turn resistance switch 2;

the water is heated; then, operate the unit until the
water is dispensed.

● Wait for the machine to reach its working pressure,
gauge needle 7 - Fig.6, and to reach the correct
thermal balance.

53

8. USE

The machine has a top shelf on which the
cups are kept and heated, ready for use.
This is very important to obtain good coffee as the
pre-warmed cup stops the coffee from growing cold
too quickly.

8.1. Preparing coffee

● Unclamp the filter-holder from the dispensing unit

and knock any grouts out into the drawer espe­cially provided for this purpose, taking care not to
damage the rim of the filter.

● Use the filter for 1 or 2 coffees, according to

need.

● Fill the filter with the measure of coffee, level it off

and press it down gently with the presser.

● Remove any ground coffee that has stuck to the

rim of the filter while pressing.

If ground coffee is left on the rim of the filter, a
leaktight seal is not ensured, with consequent

leaking of water and coffee grounds.

● Lock the filter-holder into the dispensing unit firmly

to obtain a leaktight seal.

● Place the cups under the spouts and start pouring

using control 3 or button panel 4 according to
model (Fig.6).

● When the coffee has been poured, leave the filter-

holder attached to the dispensing unit until the next
coffee is required.

When pouring, beware of the hot parts of the
machine, especially the coffee dispensing
units, the steam and hot water spouts. Do not
put your hands for any reason under the units
and the spouts when they are operating.

The grinding of the coffee beans is of fundamental
importance to the making of good coffee, and the
granular texture of the resulting grounds should be
such that it takes 25-30 seconds to produce the
beverage. If the coffee is ground too coardsely the
coffee will be pale in colour and weak in flavour, with
only a very small amount of white cream, and if the
grounds are too fine, the coffee will be dark with no
cream. Good coffee can only be made if the beans
are freshly and uniformly ground (only possible when
the blades of the coffee grinder are sharp) and are
then measured out into the correct quantities (roughly
6 grams per measure).
The importance of freshly ground coffee beans is due
to the fact that once ground, they rapidly lose their
aromatic qualities, and fats present in the beans go
rancid.

8.2. Preparing cappuccino (Fig.8)

● Make cup of cappuccino with the express coffee.

● Use a high and narrow jug, half-filled with milk.

● Place the jug under the spout so that the nozzle

touches the bottom.

● Turn on the steam tap (6 - Fig.6) and lower the jug
so that the nozzle is almost at the surface of the
milk.

● Continuously move the jug up and down so that
the nozzle moves in and out of the milk, causing
it to froth.

● Turn off the steam tap and pour the milk into the
cup.

Immediately after carrying out this operation,
clean the spout with a sponge or a clean
cloth so that the milk does not dry on it. Be
careful as the spout is hot and may burn
your hand.

8.3. Heating a beverage

● Immerse the steam spout into the liquid to be
heated.

● Gradually turn on the steam tap 6 (Fig.6); the
steam that bursts in the liquid heats it to the desired
temperature.

● Turn off the steam tap when the desired tempera­ture has been reached.

Immediately after carrying out this operation,
clean the spout with a sponge or clean cloth.
Be careful as the spout is hot and may burn
your hand.

8.4. Preparing tea, camomile, etc.

● Place the jug under the hot water spout and turn
the water tap 5. When the desired quantity has
been obtained, turn off the tap.

● Add the beverage desired.

When purified water is used, these beverages often
assume a darker colour.
Should the user prefer a lighter coloured drink, draw
fresh water from an ordinary tap and proceed with
the heating phase as described in point 8.3.

54

9. ADJUSTMENT AND SETTING OF THE
DOSE (where available)

9.1. Models E1

It is possible to adjust the dose of coffee dispensed
E1 models.

9.1.1. Adjusting the dose

The coffee dose adjustments are made by acting
on the group keyboads with machine at rated pres­sure.

1 Press the button E on the panel and hold it down

for 8-10 seconds until water stops flowing from
the dispensing unit and the led of the continuons
button begins flashing.

2 It is necessary to act as to make 1 or 2 cups in or-

der to reach the correct coffee amount adjustment
in the cup.

3 Put the filter-holder (with ground coffee) on the left

unit and the cup under the spout.

4 Operate the selected button (i.e. button A for one

small cup).

5 One the required coffee amount in the cup has

been reached, press the stop button E. Coffe will
stop pouring and the microprocessor will store the
dose.

6 Press the continuous button E again; the led will go

out and the machine will store the new quantity.

7 Make the coffee and check the cup amount in order

to check that programming is correct.

If some doses have to be changed (B-C-D), once
at point 5 repeat the instructions in points 3-4-5 for
each dose, remembering to use the filter-holder with
relevant filter and freshly ground coffee.
Then carry out point 6 and repeat point 7 to check
all changed doses.

10. MAINTENANCE

Maintenance operations have to be carried

out when the machine is off and cold and
the plug is disconnected. Some particular
operations have to be effected when the
machine is operating.
Do not clean the machine by using metal or
abrasive devices, such as steel wool, metal
brushes, needles, etc. or general detergents
(alcohol, solvents, etc.)
When necessary, use special detergents for
coffee machines that can be bought in spe­cialized service centres.

10.1. Daily (Fig.9)

Use a clean cloth or sponge that does not leave hairs
or fluff (preferably cotton or linen).

● Carefully clean the outside surface, following the
grain of the satin finish on the parts in stainless
steel.

● Clean the steam and hot water spouts, check that the
nozzles are not encrusted (if they become encrusted,
be careful not to deform or damage them).

● Clean the spray units and the seals under the ca­sing of the delivery units using the special brush
supplied

● Remove the filter-holders of the machine and re­move the filters and the clamp which secures the
filter, use a brush to remove any coffee deposits
and rinse with hot water in order to dissolve any
grease deposits.

Model S1 TANK

Operation to be carried out when the ma­chine is off and cold and the plug is discon­nected.

● Remove the lid on the water-tank;

● Remove the air trap C and softener A (Fig.7);

● Take out the water-tank, empty and clean it;

● Thoroughly rinse the water-tank and replace it in

the machine;

● Place the air trap in its guide and the softener
horizontally on the bottom of the water-tank;

● Fill the tank with clean water and close the lid.

If the air trap is not in the correct position,
the machine cannot heat or indicate a lack
of water in the tank.

55

10.3. Periodical maintenance

Operation to be carried out with
the machine under pressure.

● Discharge the water from the boiler with hot water
delivery switch 5

● Wait until the machine has returned to heat equi­librium before reuse.

10.2. Weekly

Operations to be carried out with the machine
operative and under pressure.

● Place the supplied blind filter in the filter-holder,
put in a spoonful of detergent in powder for coffee
machines and fit the filter-holder in the unit to be
cleaned.

● Press the coffee dispensing button and draw water
for approx. 30 seconds.

● Stop and start dispensing several times until clean
water comes out of the discharge unit tube.

● Remove the filter-holder, take out the blind filter and
insert a normal one.Replace the filter-holder on the
unit and rinse by drawing water several times.

● Make a coffee to eliminate any unpleasant taste.

Cleaning the filters and delivery heads

Operation to be carried out when the machine is off
and cold.

● Prepare a solution of 4 sachets of detergent powder
Code 69000124 dissolved in a litre of boiling water
in a stainless steel, plastic or glass recipient (NOT
ALUMINIUM OR IRON).

● Remove the filters and immerse them with the filter
holders in the prepared solution, leaving them for
at least 10/20 minutes (all night is better).

● Remove them from the container and rinse them
thoroughly in running water.

Tank cleaning (Fig.10 - 11)

● Remove the cup-stand grille 1 (Fig.10) and
clean.

● Check and clean the drainage sump 3 (Fig.11),
removing any sludge with the help of a spoon.

10.3.1. Renewal of water in the boiler

(Fig.12)

To be carried out only by qualified person-

nel.

● Turn off the machine and wait for the pressure in
the boiler to diminish (gauge needl on “0”).

● Insert a rubber hose (1) into the hose-end fitting
(2)

● Loosen the hose-end fitting (2).

● Allow the water to flow out completely; then, close

the fitting (2) and remove the rubber hose (1).

● Refill the boiler (paragraph 7.3.).

10.3.2. Regeneration

Softener DP2 - DP4

Regenerate the water softener within the time-limi­ts specified for the softener as follows:

DP2

nr.1 regeneration per month for 500 coffees/day;
nr.2 regenerations per month (once a fortnight) for

1000 coffees/day.

DP4

nr.1 regeneration per month for 1000 coffees/day;
nr.2 regenerations per month (once a fortnight) for

2000 coffees/day.

This table has been drawn up according to a water har­dness of 25 degress calculated on the French scale.

See the documentation included with the softener
for the instructions for use.

Model S1 TANK (Fig.13)

Operation to be carried out when the machi­ne is off and cold and with the plug discon­nected.

To be effected after the consumption of approx.15
litres of water (average hardness calculated as 35
degress on the French scale) or at least once a
month.

● Prepare a solution in a glass of water adding three
teaspoons of fine salt (the salt must be properly
dissolved).

● Drain the water-tank, see point 10.2.

● Slide the softener 1 (Fig.13) off the rubber tubing

2 and turn it over.

56

11. STOPPING THE MACHINE

A - Temporary stop

● Carry out cleaning and maintenance operations.

● Wind up the cable and fasten it to the machine

with sticky tape.

● Cover the machine and place it in a dry room. Do
not leave it exposed to atmospheric agents and
do not allow it to be touched by children or unift
persons.

To disconnect from the main power supply, consult
qualified personnel.

B - Definitive stop

● Besides carrying out the operations necessary for
a temporary stop, cut off the cable, pack the ma­chine in cardboard, polystyrene or other packing
material and consign it to firms authorized for its
disposal or to second-hand goods dealers.

12. PROBLEMS AND REMEDIES

Check operations to be carried out by the
user with the plug disconnected.
For any type of problem or inconvenience
not specifically indicated, disconnect the
plug and contact our service centre without
attempting any direct repairs.

A) The machine does not start:

- check that the plug is connected;

- In case of power failure wait for the power to return
and check if the earth leakage protection circuit
breaker or the main switch is on;

- check the condition of the plug and the supply
cable; if damaged have them replaced by qualified
personnel.

B) There is water under the machine:

- check that the drainage tray is not obstructed.

C) Slow dispensing:

- check that the filters and delivery heads are
clean;

- check that the coffee is not too finely ground.

D) Irregular steam delivery:

- check that the nozzles are not obstructed.

● Pour the solution through the filter and the resin,
letting it flow down freely.

● Wait about 5 minutes, then hold the softener un­der a tap and rinse it with water. When the water
coming out of the softener is no longer salty, the
resins are regenerated and the softener is ready
for use once again.

● Put the softener back on the rubber tube and
replace it horizontally on the bottom of the tank.

● On completion of this operation, the machine can
be started up again by repeating the procedure
described in paragraph 7.3.
