Rancilio Classe 6E Compact Specification

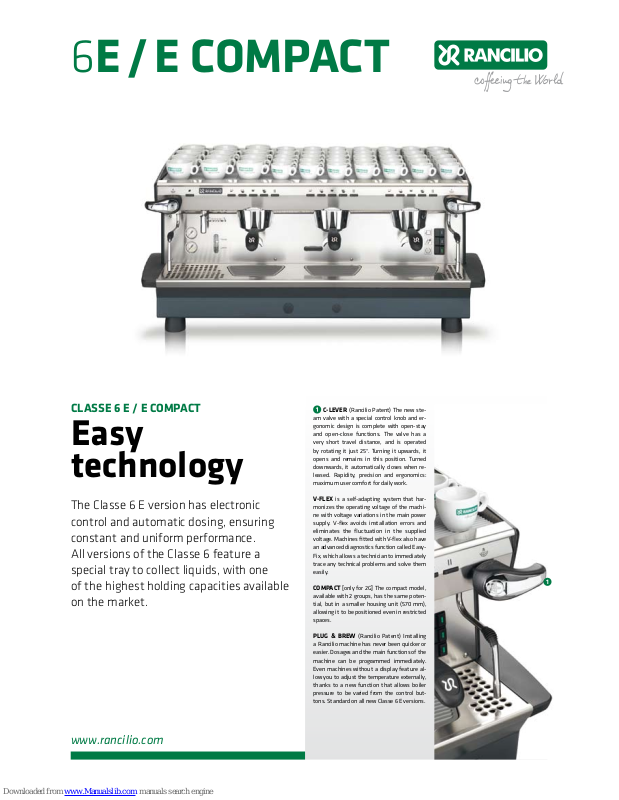

6E / E COMPACT

C-LEVER

(Rancilio Patent) The new ste­am valve with a special control knob and er­gonomic design is complete with open-stay
and open-close functions. The valve has a
very short travel distance, and is operated
by rotating it just 25°. Turning it upwards, it
opens and remains in this position. Turned
downwards, it automatically closes when re­leased. Rapidity, precision and ergonomics:
maximum user comfort for daily work.

V-FLEX is a self-adapting system that har-

monizes the operating voltage of the machi­ne with voltage variations in the main power
supply. V-flex avoids installation errors and
eliminates the fluctuation in the supplied
voltage. Machines fitted with V-flex also have
an advanced diagnostics function called Easy­Fix, which allows a technician to immediately
trace any technical problems and solve them
easily.

COMPACT [only for 2G] The compact model,

available with 2 groups, has the same poten­tial, but in a smaller housing unit (570 mm),
allowing it to be positioned even in restricted
spaces.

PLUG & BREW (Rancilio Patent) Installing

a Rancilio machine has never been quicker or
easier. Dosages and the main functions of the
machine can be programmed immediately.
Even machines without a display feature al­low you to adjust the temperature externally,
thanks to a new function that allows boiler
pressure to be varied from the control but­tons. Standard on all new Classe 6 E versions.

CLASSE 6 E / E COMPACT

Easy
technology

The Classe 6 E version has electronic
control and automatic dosing, ensuring
constant and uniform performance.
All versions of the Classe 6 feature a
special tray to collect liquids, with one
of the highest holding capacities available
on the market.

www.rancilio.com

Technical Features

ENDOWMENTS: 1 filter holder for 2 cups per group, 1 filter holder for 1 cup,

2 steam wands, 1 hot water dispenser programmable for dosage time, coee tamper,
measuring scoop and washing disks, foot extensions.

ACCESSORISES: DP automatic or manual water softener, MD dosing grinder,
interchangeable sides.

Endowments, accessories

stainless steel and steel panels painted metallic grey

Colors

Technical Data

ITALIA | Rancilio Macchine per caè s.p.a. - Viale della Repubblica 40 - 20010 Villastanza di Parabiago - Milano Italy tel [phone] - fax [phone] - [e-mail] - www.rancilio.it
SPAGNA | Rancilio Espana, s.a. - Gran Vía de Carlos III, 84 3ª - Edificio Trade - 08028 Barcelona Spain - tel. [phone] - fax [phone] - [e-mail] - www.rancilio.com
USA | Rancilio North America Inc. - 8102 S.Lemont Rd. #1200 - Woodridge, IL 60517 USA - tel [phone] - fax [phone] - [e-mail] - www.rancilio.com
ASIA | Asian Market Access HK Ltd - 601 Tak Woo House - 17-19 D’aguilar Street Central - Hong Kong - tel [phone] - fax [phone] - www.rancilio.com

6E . TECHNICAL FEATURES

6E . FEATURES

Standard

On demand

independent heat exchangers

electr ic heating

incorporated volumetric pump

boiler pressure gauge

automatic water level control

electronic boiler temperature/pressure control

reduction to 2/3 of maximum power

housing in stainless steel

2 GROUPS COMPACT

boiler

boiler power

weight

voltage

120 / 220-240 / 380-415 3N

3200 W (120 V) - 3000 W

Hz

50/60

2 GROUPS

boiler

boiler power

weight

voltage

120 / 220-240 / 380-415 3N3200 W (120 V) - 6000 W

Hz

50/60

3 GROUPS

boiler

boiler power

weight

voltage

220-240 / 380-415 3N6000 W

Hz

50/60

27.1(22.4) x 19.6 x 19.2 inch

dimensions

(wxdxh)

1.3 USgal

121 Lb

33.4(28.7) x 19.6 x 19.2 inch

dimensions

(wxdxh)

2.8 USgal

136. 6 Lb

42.9(38.1) x 19.6 x 19.2 inch

dimensions

(wxdxh)

4.2 USgal

207.2 Lb
