Quikserv QSP-713S Service Manual

Service Manual

QSP-713S

QSP-713S

Service Manual

Click the Procedure to View

Operation and Maintenance Procedures 2
Disassembly Procedures for QSP-713S 3
Disassembly Procedures for QSP-713S Continued 4
Replacement Parts 5
Warranty Service Policy 6

Quikserv Corp.© quikserv.com • 1-800-388-8307 • Fax [phone]

1

Service Manual

QSP-713S

Operation and Maintenance Procedures

Operation and Maintenance Procedures
QSP-713S

Operation Procedures

• Unlock all locking mechanisms and ensure
that drawer is free of obstructions.

• Operate the drawer and return to closed
position. The self-locking push handle will
provide daytime security.

General Cleaning Guidelines

• All drawers should be kept clean and free of
debris.

• Slide rails should be frequently cleaned, oiled,
and checked for debris and build-up.

• Allcleaning uidsand applicatorsshould be

non-abrasive.

QSP-713S

Quikserv Corp.© quikserv.com • 1-800-388-8307 • Fax [phone]

2

Service Manual

QSP-713S

Disassembly Procedures for QSP-713S

1. Slide liner top as far to one side as possible
and remove by pulling upwards.

2. Slider drawer outward and remove black hole
plugs each side of white inner liner. Slide
inner liner until the holes line up with the roller
bearings. Using a 3/16” allen head wrench,
remove both bearings.

Quikserv Corp.© quikserv.com • 1-800-388-8307 • Fax [phone]

3. While drawer is in the open position locate
the 4 screws holding the rails to the bottom of
liner. Remove all 4 screws.

4. Remove the 4 screws holding the back panel
of the drawer. Remove panel.

3

Service Manual

Disassembly Procedures for QSP-713S Continued

QSP-713S

5. Hold head of shoulder bolt (see Dia.1) to
keep from turning and loosen nut on inside of
drawer both sides. After removing nuts push
shoulder bolts out of white liner. Then remove
handle.

6. Push drawer liner out the front of drawer.

Quikserv Corp.© quikserv.com • 1-800-388-8307 • Fax [phone]

7. For reassembly reverse the procedures
outline above.

SPECIAL NOTE: Make sure the handle clip is
under side rail lock tab so drawer handle will un­lock Slide rails when lifted see step 7 and diagram

4

Key No. Part No. Description

A 8007 Speaker
B 8024 Microphone
C 8026 Call Button
D 3898 Lid
E 8001 Slide Rails
F 3897 Door Guide Covers Left & Right

G 5058 Cam Follower Bearing

Key No. Part No. Description

A 8819 Bearing Block
B 1075 Lead Screw
C 1056 Extension Spring
D 1076 Super Nut
E 1077 Coupling
F 4458 Motor
G 1078 ACI Push Button

H 4459 Motor Drive

I 1083 Terminal Block

J 0000 Lock Bar

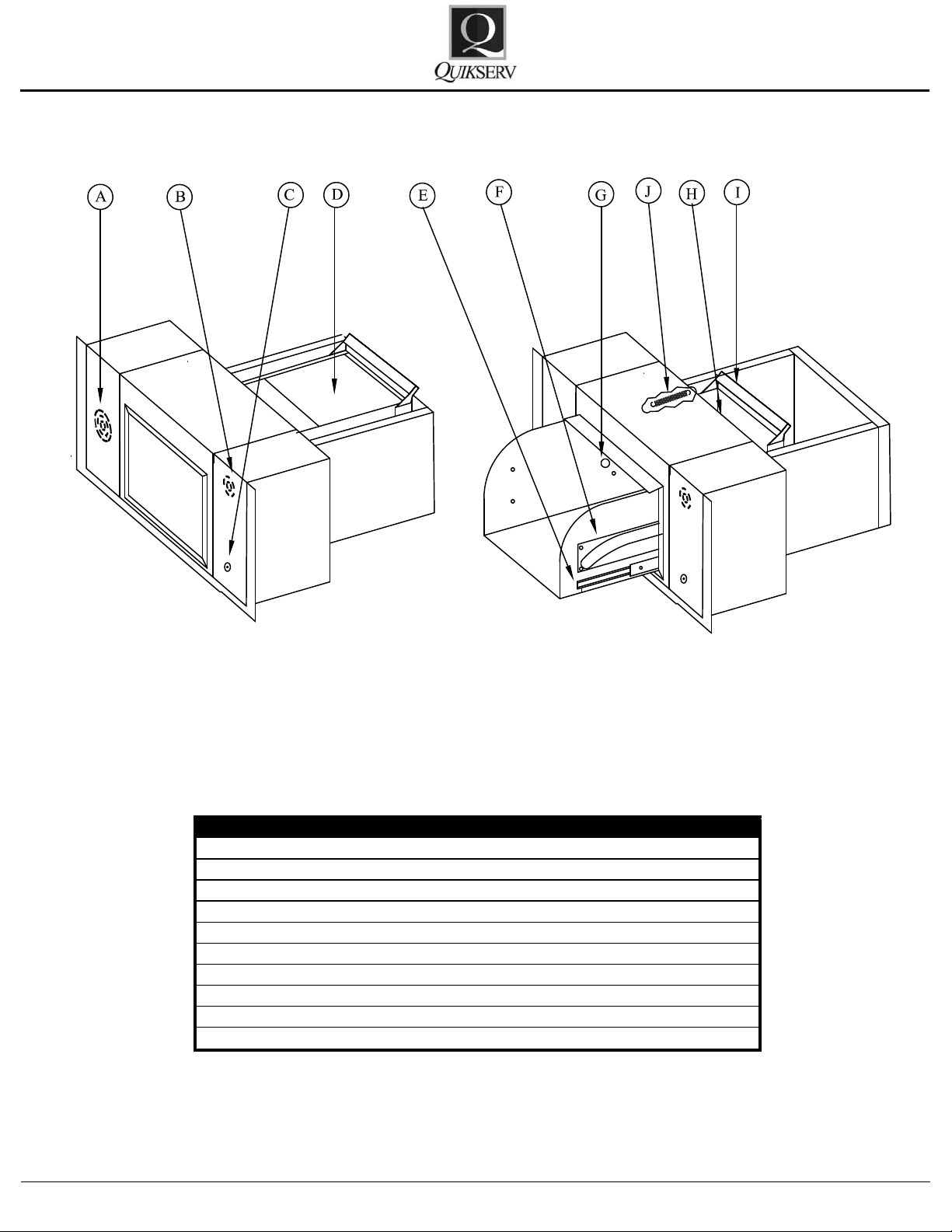

Ke

y

No. Part No. Description

A 8007 S

p

eaker

B 8024 Micro

p

hone
C 8026 Call Button
D 3898 Lid
E 8001 Slide Rails
F 3897 Door Guide Covers Left & Ri

g

ht

G 5058 Cam Follower Bearin

g

H 8523 Lock Bar

I 8307 Handle

J 1056 Spring

Service Manual

Parts Break Down

QSP-713S

Quikserv Corp.© quikserv.com • 1-800-388-8307 • Fax [phone]

5

Service Manual

Warranty Service Policy

QSP-713S

1. Quikserv Corp. MUST be notied of a war­ranty situation before any work is performed.
Otherwise, Quikserv Corp. will not be respon­sible to pay for unauthorized work.

2. Quikserv Corp. requires the following on each
invoice submitted: an itemized account of work
performed detailing hours charged and parts
used, along with a short detailed description
of the problem noted.

3. Quikserv Corp. will authorize a set dollar
amount to be invoiced prior to performing ser­vices that will be rendered. This amount will
be determined from the initial call to the ser­vice company as a fair maximum. If additional
amounts are to be invoiced, they must be dis­cussed with Quikserv Corp. prior to invoicing.

4. A service technician on a warranty service call
needs to call our customer service department
at [phone] or [phone] before
leaving the job site.

5. A service company representative needs to
call the store where the work is to be per­formed prior to going to that store. Set up a
date and approximate time of arrival and if it
is foreseen that the agreed upon time cannot
be met, contact the store and make other ar­rangements.

7. QuikservCorp.needstobenotiedofanyex­tra parts - either to be sent back or to be kept
by the service technician. Any parts that were
replaced must be returned to Quikserv Corp.
if required verbally or on the service work or­der copy supplied with the parts sent by Qui­kserv Corp. If the parts are not returned, the
part cost + mark up will be deducted from the
service invoice.

8. A purchase order number will be given either
verbally or on the service work order from
Quikserv Corp. Please use this on all invoic­ing.

9. Work required on a window unit not covered
under Quikserv’s warranty must be reported
to Quikserv Corp. before work is begun.

10. Quikserv’s payment terms are net 30. The in­formation above will help us assure the fast-

est and most efcient service possible. For

further information or if you have any ques­tions, please do not hesitate to contact us at
[phone].

Customer Service Department

6. Warranty parts sent to service companies are
parts previously decided on that should cover
the necessary repairs. Additional parts will be

sentuponnoticationtoQuikservCorp.

Quikserv Corp.© quikserv.com • 1-800-388-8307 • Fax [phone]

6
