11.00 "
10.00 "
2.00"
Drawing Name: Scale:
Rev.Drawn By:
Quikserv Corp.
P.O. Box 40466
Houston TX 77240
1-800-388-8307
www.quikserv.com
Date:
QS-1110 INSTALLATION
12/26/2010
BC
N/A

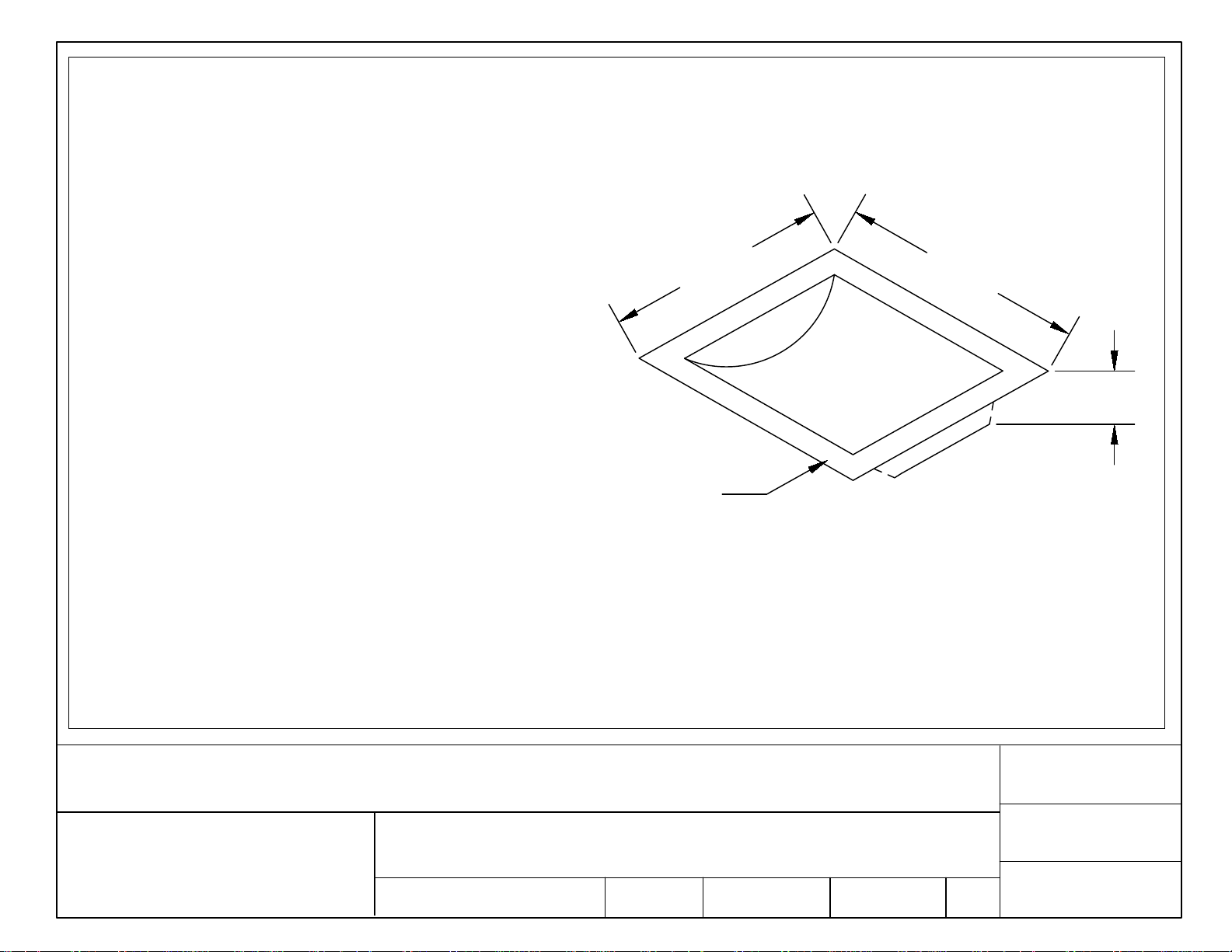

QS-1110 Deal Tray Installation Drawing
Job Name:
Actual Dimension:
Rough Opening:
11" (W) X 10" (L)
9-1/2" (W) X 8-1/2" (L)
NOTE:THIS DRAWING EMBODIES A CONFIDENTIAL PROPRIETY DESIGN ORIGINATED AND OWNED BY QUIKSERV CORP., AND IS SUBMITTED UNDER A CONFIDENTIAL
RELATIONSHIP. ALL PATENT, MANUFACTURING, SALE RIGHTS REGARDING THE SAME ARE RESERVED EXCEPT TO THE EXTENT RIGHTS ARE EXPRESSLY GRANTED TO
OTHERS. THE RECIPIENT AGREES BY ACCEPTING THESE DRAWINGS NOT TO SUPPLY OR DISCLOSE ANY INFORMATION REGARDING THEM TO ANY UNAUTHORIZED PERSON.
1) QUIKSERV DEAL TRAYS MUST BE INSTALLED LEVEL
AND SQUARE TO WORK PROPERLY.
2) ANCHOR SCREWS, SILICONE OR CLIPS TO BE SUPPLIED
3) CUT HOLE IN COUNTER TOP 9-1/2" x 8-1/2"
SO DEAL TRAY FITS FLUSH TO COUNTER TOP.
4) DEAL TRAY CAN BE SILICONED, SCREW APPLIED OR
THE USE OF STANDARD KITCHEN SINK CLIPS CAN
BE USED TO SECURE DEAL TRAY.
5) SILICONE ALL EXTERIOR AND INTERIOR JOINTS.
6) ALL OTHER TYPE OF ANCHORING TO BE APPROVED
BY CERTIFIED ENGINEER.
TYPICAL
QS-1110 DEAL TRAY INSTALLATION
1" FLANGE
BY CONTRACTOR.
(SEE ROUGH OPENING SIZE BELOW)
