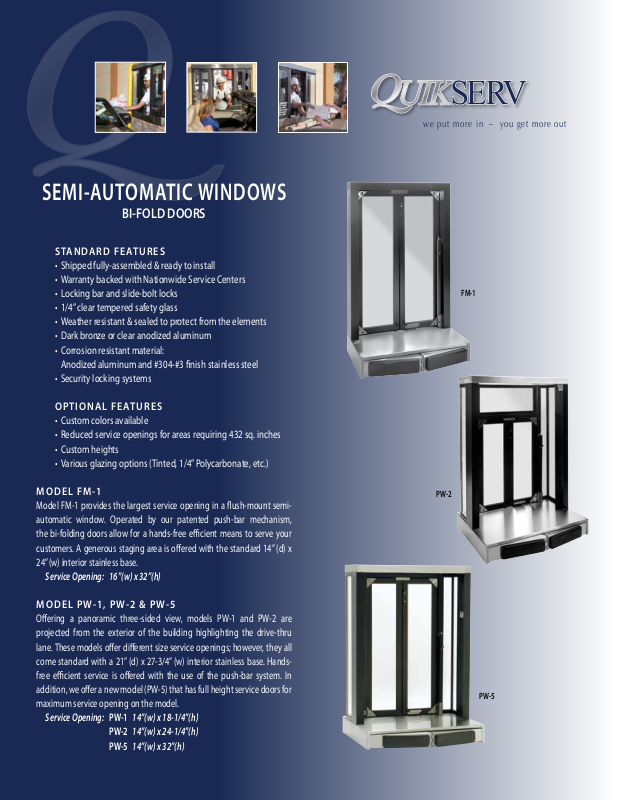

SEMI-AUTOMATIC WINDOWS

BI-FOLD DOORS

STANDARD FEATURES

• Shipped fully-assembled & ready to install

• Warranty backed with Nationwide Service Centers

• Locking bar and slide-bolt locks

• 1/4” clear tempered safety glass

• Weather resistant & sealed to protect from the elements

• Dark bronze or clear anodized aluminum

• Corrosion resistant material:
Anodized aluminum and #304-#3 nish stainless steel

• Security locking systems

OPTIONAL FEATURES

• Custom colors available

• Reduced service openings for areas requiring 432 sq. inches

• Custom heights

• Various glazing options (Tinted, 1/4” Polycarbonate, etc.)

we put more in – you get more out

FM-1

MODEL FM-1

Model FM-1 provides the largest service opening in a ush-mount semi­automatic window. Operated by our patented push-bar mechanism,
the bi-folding doors allow for a hands-free ecient means to serve your
customers. A generous staging area is oered with the standard 14” (d) x
24” (w) interior stainless base.
Service Opening: 16”(w) x 32”(h)

MODEL PW-1, PW-2 & PW-5

Oering a panoramic three-sided view, models PW-1 and PW-2 are
projected from the exterior of the building highlighting the drive-thru
lane. These models oer dierent size service openings; however, they all
come standard with a 21” (d) x 27-3/4” (w) interior stainless base. Hands­free ecient service is oered with the use of the push-bar system. In
addition, we oer a new model (PW-5) that has full height service doors for
maximum service opening on the model.
Service Opening: PW-1 14”(w) x 18-1/4”(h)

PW-2 14”(w) x 24-1/4”(h)
PW-5 14”(w) x 32”(h)

PW-2

PW-5

MODEL FM-1

ROUGH OPENING: 24-3/8”(w) x 38-7/8”(h)
SERVICE OPENING: 16”(w) x 32”(h)

MODEL PW-1, PW-2 & PW-5

ROUGH OPENING: 28-1/8”(w) x 40-3/8”(h)
SERVICE OPENING: PW-1 14”(w) x 18-1/4”(h)
PW-2 14”(w) x 24-1/4”(h)

MAIN VIEW MAIN VIEW

PW-5 14” (w) x 32”(h)

SIDE VIEW SIDE VIEW

ALL QUIKSERV PRODUCTS ARE SHIPPED FULLYASSEMBLED and READY TO INSTALL.
