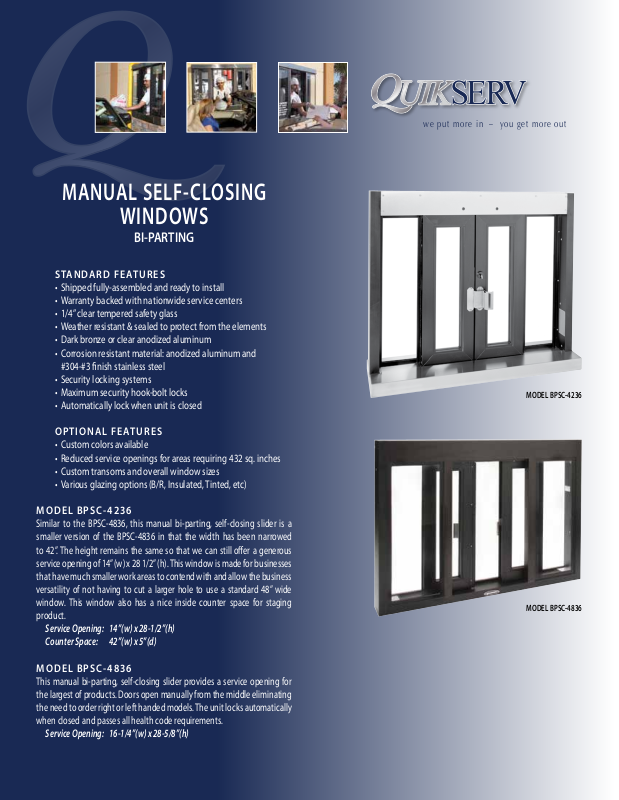

MANUAL SELF-CLOSING

WINDOWS

BI-PARTING

STANDARD FEATURES

• Shipped fully-assembled and ready to install

• Warranty backed with nationwide service centers

• 1/4” clear tempered safety glass

• Weather resistant & sealed to protect from the elements

• Dark bronze or clear anodized aluminum

• Corrosion resistant material: anodized aluminum and
#304-#3 nish stainless steel

• Security locking systems

• Maximum security hook-bolt locks

• Automatically lock when unit is closed

we put more in – you get more out

MODEL BPSC-4236

OPTIONAL FEATURES

• Custom colors available

• Reduced service openings for areas requiring 432 sq. inches

• Custom transoms and overall window sizes

• Various glazing options (B/R, Insulated, Tinted, etc)

MODEL BPSC-4236

Similar to the BPSC-4836, this manual bi-parting, self-closing slider is a
smaller version of the BPSC-4836 in that the width has been narrowed
to 42”. The height remains the same so that we can still oer a generous
service opening of 14” (w) x 28 1/2” (h). This window is made for businesses
that have much smaller work areas to contend with and allow the business
versatility of not having to cut a larger hole to use a standard 48” wide
window. This window also has a nice inside counter space for staging
product.
Service Opening: 14”(w) x 28-1/2”(h)

Counter Space: 42”(w) x 5”(d)

MODEL BPSC-4836

This manual bi-parting, self-closing slider provides a service opening for
the largest of products. Doors open manually from the middle eliminating
the need to order right or left handed models. The unit locks automatically
when closed and passes all health code requirements.
Service Opening: 16-1/4”(w) x 28-5/8”(h)

MODEL BPSC-4836

MODEL BPSC-4236

ROUGH OPENING: 42-3/8”(w) x 36-3/8”(h)
SERVICE OPENING: 14”(w) x 28-1/2”(h)

MAIN VIEW MAIN VIEW

MODEL BPSC-4836

ROUGH OPENING: 48-3/8”(w) x 36-3/8”(h)
SERVICE OPENING: 16-1/4”(w) x 28-5/8”(h)

SIDE VIEW SIDE VIEW

ALL QUIKSERV PRODUCTS ARE SHIPPED FULLYASSEMBLED and READY TO INSTALL.
