SHIPPING PIN
FIG. C
FIG. A
1" PVC TUBE
ANCHOR SCREWS
BY OTHERS.
TO BE SUPPLIED
TOP VIEW
FIG. B
1" PVC TUBE
EXTERIOR VIEW SHOWN
Drawing Name: Scale:
Rev.Drawn By:
Quikserv Corp.
11441 Brittmoore Park Dr
Houston TX 77041
1-800-388-8307
www.quikserv.com
Date:

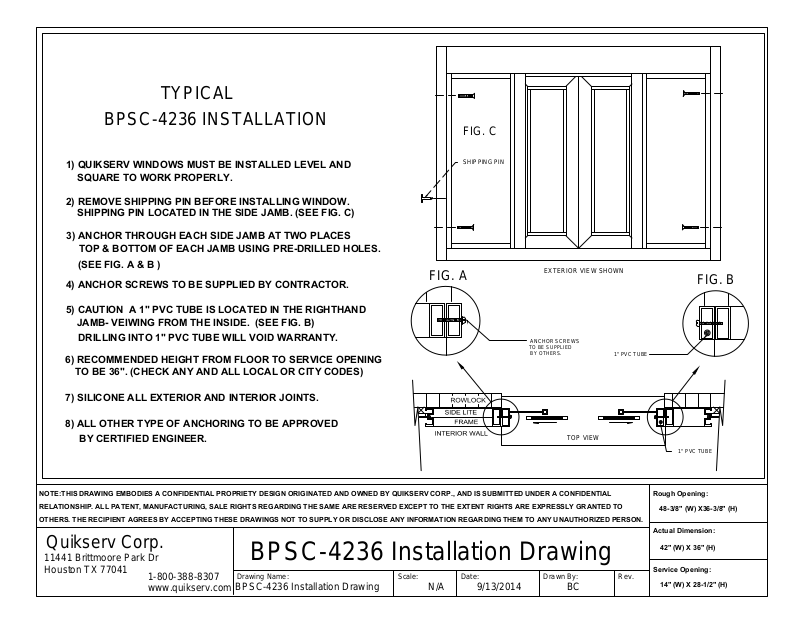

BPSC-4236 Installation Drawing
9/13/2014
BC
N/A
BPSC-4236 Installation Drawing
Rough Opening:
Actual Dimension:
Service Opening:
NOTE:THIS DRAWING EMBODIES A CONFIDENTIAL PROPRIETY DESIGN ORIGINATED AND OWNED BY QUIKSERV CORP., AND IS SUBMITTED UNDER A CONFIDENTIAL
RELATIONSHIP. ALL PATENT, MANUFACTURING, SALE RIGHTS REGARDING THE SAME ARE RESERVED EXCEPT TO THE EXTENT RIGHTS ARE EXPRESSLY GRANTED TO
OTHERS. THE RECIPIENT AGREES BY ACCEPTING THESE DRAWINGS NOT TO SUPPLY OR DISCLOSE ANY INFORMATION REGARDING THEM TO ANY UNAUTHORIZED PERSON.
48-3/8" (W) X36-3/8" (H)
42" (W) X 36" (H)
14" (W) X 28-1/2" (H)
BY CERTIFIED ENGINEER.
(SEE FIG. A & B )
JAMB- VEIWING FROM THE INSIDE. (SEE FIG. B)
TOP & BOTTOM OF EACH JAMB USING PRE-DRILLED HOLES.
3) ANCHOR THROUGH EACH SIDE JAMB AT TWO PLACES
8) ALL OTHER TYPE OF ANCHORING TO BE APPROVED
TO BE 36". (CHECK ANY AND ALL LOCAL OR CITY CODES)
6) RECOMMENDED HEIGHT FROM FLOOR TO SERVICE OPENING
DRILLING INTO 1" PVC TUBE WILL VOID WARRANTY.
5) CAUTION A 1" PVC TUBE IS LOCATED IN THE RIGHTHAND
2) REMOVE SHIPPING PIN BEFORE INSTALLING WINDOW.
SQUARE TO WORK PROPERLY.
1) QUIKSERV WINDOWS MUST BE INSTALLED LEVEL AND
TYPICAL
BPSC-4236 INSTALLATION
7) SILICONE ALL EXTERIOR AND INTERIOR JOINTS.
4) ANCHOR SCREWS TO BE SUPPLIED BY CONTRACTOR.
SHIPPING PIN LOCATED IN THE SIDE JAMB. (SEE FIG. C)
