DDS-4 / DAT 72
Installing the Desktop and Internal Tape Drive
Congratulations. You have purchased the
finest, most reliable digital data storage
(DDS) drive available. The DDS-4 and
DAT 72 DDS drives represent Quantum’s
commitment to engineering reliable and
durable tape drive products that
implement leading-edge technology
designed for computer environments that
require high-performance, high-capacity
data storage, the DDS-4 and DAT 72 drives
are based on a 3.5-inch mechanism and
are available as internal, desktop, and
rackmount tape drives. The drives
combine established Digital Audio Tape
(DAT) technology, high-density recording,
and hardware data-compression
capabilities with Quantum’s proven
computer-grade design to provide
unmatched reliability and performance
characteristics among DDS products.
Table of Contents
• Installing the Desktop Tape Drive .....1
• Installing the Internal Tape Drive......2
Installing the Desktop Tape Drive 0
1 Unpack the contents of your drive package. If any item is damaged, please
contact your place of purchase immediately.
Figure 1 External Drive
2 In addition to the contents included with your desktop tape drive, you need the
following items:
• A SCSI host bus adapter that is properly installed and configured in a host
computer.
• A 50-to-68 pin adapter, if your computer has a narrow SCSI interface
connector.
• Backup application software that supports the tape drive. For a list of the
latest backup software applications tested with the DDS-4 and DAT 72 tape
drives, please visit our Web site at
3 Review the drive's default settings and change them if necessary: (For detailed
setting information and the location of switches, please refer to your User's
Guide on the CD-ROM.)
•SCSI ID: 6
• Parity Checking: Enabled
• Terminator Power: Supplied to the SCSI bus
• Data Compression: Enabled
• Media Recognition (DDS-4 drives only): Enabled
• Power-On Self-Test: Enabled
• Host Operating System: Windows 98/Me/XP/NT/2000/2003 Server
• SCSI Interface Compatibility (DDS-4 drives only): Wide SCSI
• Vendor ID: SEAGATE DAT
4 Connect a SCSI interface cable to the drive. You can use either connector to
attach the drive to the host computer or to another SCSI device.
www.quantum.com/support
.
DDS-4 / DAT 72 Installing the Desktop and Internal Tape Drive
Figure 1 SCSI Termination
Examples of the External Tape
Drive
68-pin wide SCSI
connectors
Figure 2 SCSI Termination
Examples of the External Tape
Drive
External tape drive
SCSI ID selector
SCSI terminator
5 Check the SCSI termination.
SCSI device
(termination
enabled)
External tape drive
External SCSI device
SCSI controller
(termination enabled)
Example 1: SCSI termination in a
system that has only external SCSI devices.
6 Connect a power cable to the AC power connector on the
back of the tape drive. Connect the other end of the power
cable to a working AC outlet.
7 Turn on the computer, turn on the tape drive, and verify
that the tape drive is operating properly.
8 Register your tape drive at
registration
.
http://www.quantum.com/
Installing the Internal Tape Drive 0
Important Safety Precautions
Your internal tape drive has very sensitive components that are
prone to damage from electrostatic discharge (ESD). Use
extreme care when handling the drive, as it can be damaged by
SCSI controller
(termination disabled)
Internal SCSI device
(termination enabled)
Example 2: SCSI termination in a system
that has both internal and external SCSI devices.
ESD. Before handling the drive, read these ESD instructions to
prevent damage to the drive.
• Wear an ESD-preventive grounding wrist strap or observe
similar ESD precautions when working with the drive. Be
sure the wrist strap makes good skin contact. Do not
remove the wrist strap until you finish working with the
drive.
• Avoid contact between the drive, other equipment, and
clothing. The wrist strap only protects the equipment from
ESD voltages on the body; ESD voltages on clothing can
still cause damage.
• When the drive is not being used, keep it in its antistatic
bag.
• Before you remove the drive from the antistatic bag, touch
a metal or grounded surface to discharge any static
electricity buildup from your body.
2
DDS-4 / DAT 72 Installing the Desktop and Internal Tape Drive
• Hold the drive by its edges only. Avoid touching any
exposed parts on the printed circuit board.
• Always place the drive on top of or inside the antistatic
bag to reduce the chance of ESD damage.
OTE: If you have a desktop drive, see Installing the
N
Desktop Tape Drive for installation
instructions.
3 Before proceeding with the installation, gather the tools
1 Unpack the contents of your drive package. If any item is
damaged, please contact your place of purchase
immediately.
2 In addition to the contents included with your tape drive,
you need the following items:
• A SCSI host bus adapter (for SCSI drives) or SATA host
bus adapter (for SATA drives) that is properly installed
and configured in a host computer
You may need additional items, depending on your installation requirements.
Figure 3 Internal Jumper and
Switch Settings
• A 3.5-inch or 5.25-inch half-height bay
• A SCSI ribbon cable or a SATA data cable
• Backup application software that supports the tape
drive. For a list of the latest backup software
applications tested with the internal DDS-4 and DAT
72 tape drives, please visit our Web site at
www.quantum.com/support
.
you will need to install the internal tape drive into the
computer mounting bay. The following list identifies some
of the tools you will need:
• Phillips screwdriver
• Flatblade screwdriver, if your computer uses flathead
screws
• TORX screwdriver, if your computer uses TORX screws
• Computer documentation, which you can refer to
during the installation
O
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
9
9
10
10
Default settings shown
Default settings shown
Front of drive
Front of drive
Data compression (DC)
O
Data compression (DC)
N
N
SCSI DC control
SCSI DC control
Media recognition
Media recognition
Self Test
Self Test
Operating-system
Operating-system
configuration
configuration
switches
switches
Wide/Narrow SCSI
Wide/Narrow SCSI
Inquiry String support
Inquiry String support
SCSI ID=0
SCSI ID=1
SCSI ID=2
SCSI ID=3
SCSI ID=4
SCSI ID=5
SCSI ID=6
SCSI ID=7
Default jumper settings shown (SCSI ID 6,
Default jumper settings shown
parity checking enabled, and termination
(SCSI ID 6, parity checking enabled,
power disabled)
and termination power disabled)
Pins: Function:
Pins: Function:
1-2 SCSI ID bit 0
1-2 SCSI ID bit 0
3-4 SCSI ID bit 1
3-4 SCSI ID bit 1
5-6 SCSI ID bit 2
5-6 SCSI ID bit 2
7-8 SCSI ID bit 3
7-8 SCSI ID bit 3
9-10 Parity checking
9-10 Parity checking
11-12Termination Power
11-12 Termination Power
SCSI ID=8
SCSI ID=9
SCSI ID=10
SCSI ID=11
SCSI ID=12
SCSI ID=13
SCSI ID=14
SCSI ID=15
Parity enable
Term. power
3
DDS-4 / DAT 72 Installing the Desktop and Internal Tape Drive
For SCSI drives only -
4 Review the drive's default settings and change them if
necessary: (For detailed setting information, please refer to
your User's Guide on the CD-ROM.)
• Parity Checking: Enabled
• Terminator Power: Supplied to the SCSI bus
• Data Compression: Enabled
• Media Recognition (DDS-4 drives only): Enabled
• Power-On Self-Test: Enabled
•Vendor ID: SEAGATE DAT
• Host Operating System: Windows 98, Windows Me,
Windows XP, Windows NT, Windows 2000/2003 Server
•SCSI ID: 6
• SCSI Interface Compatibility (DDS-4 drives only):
• Wide SCSI

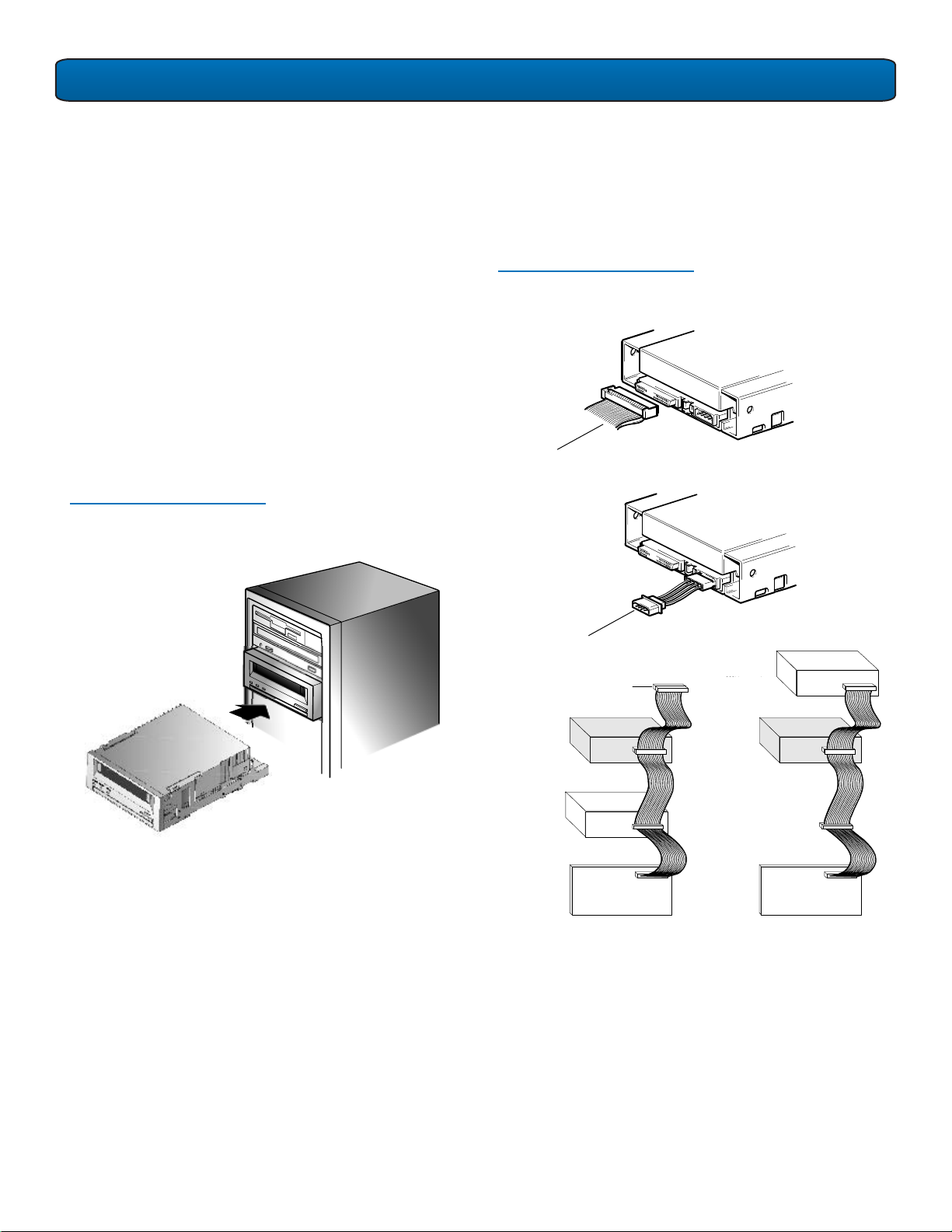

Figure 4 Mounting Internal Tape
Drive
last device on the SCSI bus (the drive does not provide
SCSI termination); the SCSI bus must be terminated
properly.
b Connect a 4-pin power cable from the computer’s
internal power supply to the power connector on the
back of the internal tape drive.
Figure 5 SCSI Termination
Internal Drive
SCSI interface connector
5 Turn off your computer, remove its covers and power cord,
and select a mounting bay for the drive. Depending on
your drive, select a 3.5-inch or 5.25-inch bay.
6 Mount the drive into the bay and secure using the supplied
screws.
7 Install the data and power connectors:
For SCSI drives only a Connect a SCSI interface cable to the drive.
The internal tape drives can be used with a Wide SCSI
interface, either Low Voltage Differential (LVD) or
Single-ended (16-bit Wide mode). The tape drive
automatically detects whether the SCSI bus is LVD or
single ended. Be sure the internal tape drive is not the
Power connector
SCSI terminator
Tape drive
T ape driv e
(no termination)
(no te r min ation )
SCSI device
SCSI d e vic e
(termination
( te r min at io n
disa b led )
disabled)
SCSI T e r mina to r
SCSI controller
(termination
SCSI Controller
(te r mination ena b led )
enabled)
SCSI d e vic e
SCSI controller
( te r min ati o n
(termination
ena b led )
enabled)
Tape drive
T ape driv e
(no termination)
(no te r mi na tio n )
SCSI controller
(termination
SCSI Controller
(te r mination ena b led )
enabled)
4
DDS-4 / DAT 72 Installing the Desktop and Internal Tape Drive
For SATA drives only a Connect one end of the SATA data cable to the
SATA data connector on the drive.
b Connect the other end of the SATA data cable to
the SATA data connector on the SATA card or
mainboard SATA connector.
c Connect one end of the SATA power supply
conversion adapter cable to a 4-pin power cable
from the computer’s internal power supply.
d Connect the other end of the adapter cable to the
drive.

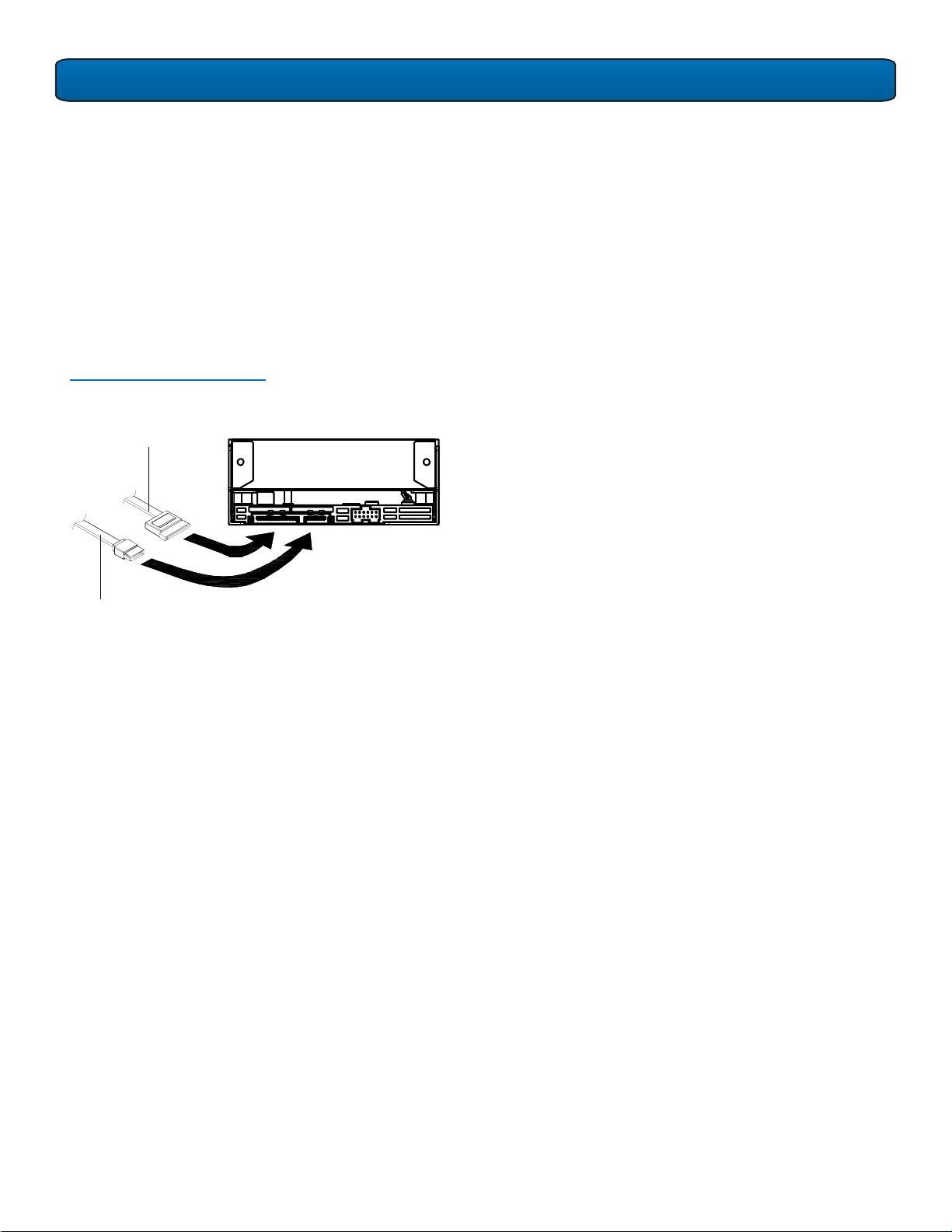

Figure 6 SATA Connections
Power cable
Data cable
8 Replace the computer covers and power cord, turn on
the computer, and verify that the internal tape drive is
operating properly.
9 Register your tape drive at
registration
.
http://www.quantum.com/
5
