Quantum TX043A011, Bigfoot TX - 4.0AT Manual

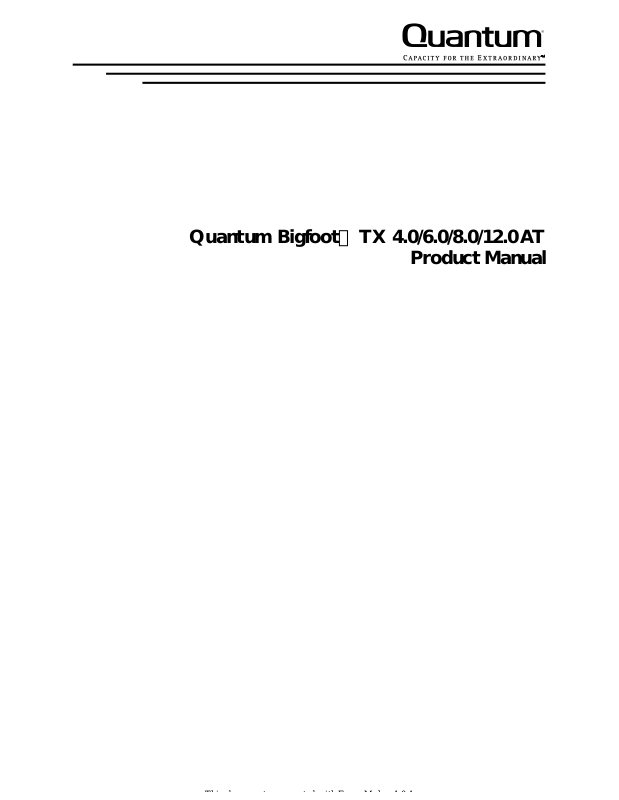

Quantum Bigfoot  TX 4.0/6.0/8.0/12.0 A T

Product Manual

Quantum Bigfoot  TX 4.0/6.0/8.0/12.0 A T

Product Manual

October, 1997

81-114592-01

Quantum reserves the right to make changes and improvements to its products, without incurring any
obligation to incorporate such changes or improvements into units previously sold or shipped.

You can request Quantum publications from your Quantum Sales Representative or order them directly
from Quantum.

Publication Number: 81-114592-01

UL/CSA/VDE/TUV

UL standard 1954 recognition granted under File No. E78016
CSA standard C22.2-950 certification granted under File No. LR49896
TUV Rheinland EN 60 950
Tested to FCC Rules for Radiated and Conducted Emissions, Part 15, Sub Part J, for Class-B Equipment.

SERVICE CENTERS

Quantum Service Center Quantum Asia-Pacific Pte. Ltd.
715 Sycamore Avenue 50 Tagore Lane #b1-04
Milpitas, California Singapore, 2678
Phone: [phone] Phone: [phone]
Fax: [phone] Fax: [phone]
http://www.quantum.com

PATENTS

These products are covered by or licensed under one or more of the following U.S. Patents:
4,419,701; 4, 538,193 4,625,109; 4,639,798; 4,647,769; 4,647,997; 4,661,696; 4,669,004; 4,675,652;
4,703,176; 4,730,321; 4,772,974; 4,783,705; 4,819,153; 4,882,671; 4,920,442; 4,920,434; 4,982,296;
5,005,089; 5,027,241; 5,031,061; 5,084,791; 5,119,254; 5,160,865; 5,170,229; 5,177,771; Other U.S. and
Foreign Patents Pending.



1997 Quantum Corporation. All rights reserved. Printed in U.S.A.

Quantum, the Quantum logo, and AIRLOCK are trademarks of Quantum Corporation, registered in the
U.S.A. and other countries. Capacity for the extraordinary, Quantum Bigfoot, AutoTransfer, AutoRead,
AutoWrite, DisCache, DiskWare, Defect Free Interface, and WriteCache are trademarks of Quantum
Corporation. All other brand names of trademarks are the property of their manufacturers.

This product or document is protected by copyright and distributed under licenses restricting its use,
copying, distribution, and decompilation. No part of this product or document may be reproduced in any
form by any means without prior written authorization of Quantum and its licensors, if any.

RESTRICTED RIGHTS LEGEND: Use, duplication, or disclosure by the government is subject to restrictions
as set forth in subparagraph (c)(1)(ii) of the Rights in Technical Data and Computer Software clause at
DFARS 252.227-7013 and FAR 52.227-19.

THIS PUBLICATION IS PROVIDED “AS IS’ WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR
IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY,
FITNESS FOR A PARTICULAR PURPOSE, OR NON-INFRINGEMENT.

Chapter 1

ABOUT THIS MANUAL

1.1 AUDIENCE DEFINITION............................................................................................................. 1-1

1.2 MANUAL ORGANIZATION ....................................................................................................... 1-1

1.3 TERMINOLOGY AND CONVENTIONS...................................................................................... 1-1

1.4 REFERENCES............................................................................................................................... 1-3

Chapter 2

GENERAL DESCRIPTION

2.1 PRODUCT OVERVIEW ............................................................................................................... 2-1

2.2 KEY FEATURES .......................................................................................................................... 2-1

2.3 STANDARDS AND REGULATIONS (Pending) ........................................................................ 2-3

Table of Contents

Chapter 3

INSTALLATION

3.1 SPACE REQUIREMENTS............................................................................................................ 3-1

3.2 UNPACKING INSTRUCTIONS.................................................................................................... 3-2

3.3 JUMPER SETTINGS.................................................................................................................... 3-3

3.3.1 Cable Select (CS) Jumper .................................................................................................3-5

3.3.2 Drive Select (DS) Jumper .................................................................................................3-5

3.3.3 Park (PK) Jumper ..............................................................................................................3-5

3.4 IDE-BUS ADAPTER.................................................................................................................... 3-6

3.4.1 40-Pin IDE-Bus Connector ..............................................................................................3-6

3.4.2 Adapter Board ...................................................................................................................3-6

3.5 MOUNTING.................................................................................................................................. 3-7

3.5.1 Orientation .........................................................................................................................3-7

3.5.2 Mounting Screw Clearance ..............................................................................................3-8

3.5.3 Ventilation .........................................................................................................................3-9

3.6 COMBINATION CONNECTOR.................................................................................................... 3-9

3.6.1 DC Power .........................................................................................................................3-10

3.6.2 IDE-Bus Interface Connector .........................................................................................3-10

3.6.3 8-Pin Jumper Connector ................................................................................................3-10

3.7 DRIVE INSTALLATION ............................................................................................................ 3-12

3.7.1 For Systems With A Motherboard IDE Adapter .........................................................3-12

3.7.2 For Systems With An IDE Adapter Board ...................................................................3-12

3.8 TECHNIQUES IN DRIVE CONFIGURATION........................................................................... 3-14

3.8.1 1024 Cylinder Limitation on Older Computer Systems .............................................3-14

3.8.2 Newer Computer Systems with Extended BIOS Translation .....................................3-14

3.8.3 Formatted Capacity ........................................................................................................3-14

3.9 SYSTEM STARTUP AND OPERATION................................................................................... 3-15

Chapter 4

SPECIFICATIONS

4.1 SPECIFICATION SUMMARY ..................................................................................................... 4-1

4.2 FORMATTED CAPACITY ........................................................................................................... 4-3

4.3 DATA TRANSFER RATES.......................................................................................................... 4-3

4.4 TIMING SPECIFICATIONS......................................................................................................... 4-4

4.5 POWER......................................................................................................................................... 4-5

4.5.1 Power Sequencing ............................................................................................................4-5

4.5.2 Power Reset Limits ...........................................................................................................4-5

4.5.3 Power Requirements .........................................................................................................4-6

4.6 ACOUSTICS ................................................................................................................................. 4-7

4.7 MECHANICAL DIMENSIONS .................................................................................................... 4-7

4.8 ENVIRONMENTAL CONDITIONS.............................................................................................. 4-8

4.9 SHOCK AND VIBRATION .......................................................................................................... 4-8

4.10 RELIABILITY ............................................................................................................................... 4-9

4.11 DISK ERRORS.............................................................................................................................. 4-9

Chapter 5

BASIC PRINCIPLES OF OPERATION

5.1 QUANTUM BIGFOOT TX DRIVE MECHANISM...................................................................... 5-1

5.1.1 Base Casting Assembly ....................................................................................................5-3

5.1.2 DC Motor Assembly ..........................................................................................................5-3

5.1.3 Disk Stack Assemblies ......................................................................................................5-3

5.1.4 Headstack Assembly .........................................................................................................5-4

5.1.5 Rotary Positioner Assembly ............................................................................................5-4

5.1.6 Automatic Actuator Lock ................................................................................................5-4

5.1.7 Air Filtration .....................................................................................................................5-4

5.2 DRIVE ELECTRONICS................................................................................................................. 5-6

5.2.1 µ Controller .........................................................................................................................5-7

5.2.2 DCIIA ..................................................................................................................................5-7

5.2.3 Read/Write ASIC .............................................................................................................5-10

5.2.4 PreAmplifier and Write Driver ......................................................................................5-11

5.3 SERVO SYSTEM........................................................................................................................ 5-12

5.3.1 General Description ........................................................................................................5-12

5.3.2 Servo Burst and Track Information ..............................................................................5-12

5.4 READ AND WRITE OPERATIONS .......................................................................................... 5-13

5.4.1 The Read Channel ...........................................................................................................5-13

5.4.2 The Write Channel ..........................................................................................................5-13

5.4.3 Interface Control .............................................................................................................5-14

5.5 FIRMWARE FEATURES ........................................................................................................... 5-14

5.5.1 Disk Caching ...................................................................................................................5-14

5.5.2 Track and Cylinder Skewing .........................................................................................5-16

5.5.3 Error Detection and Correction .....................................................................................5-17

5.5.4 Defect Management ........................................................................................................5-23

Chapter 6

IDE BUS INTERFACE AND ATA COMMANDS

6.1 INTRODUCTION .......................................................................................................................... 6-1

6.2 SOFTWARE INTERFACE............................................................................................................ 6-1

6.3 MECHANICAL DESCRIPTION ................................................................................................... 6-1

6.3.1 Drive Cable and Connector ..............................................................................................6-1

6.4 ELECTRICAL INTERFACE .......................................................................................................... 6-1

6.4.1 IDE Bus Interface ..............................................................................................................6-1

6.4.2 Host Interface Timing .......................................................................................................6-9

6.5 REGISTER ADDRESS DECODING........................................................................................... 6-20

6.6 REGISTER DESCRIPTIONS ...................................................................................................... 6-22

6.6.1 Control Block Registers ..................................................................................................6-22

6.6.2 Command Block Registers .............................................................................................6-23

6.7 COMMAND DESCRIPTIONS.................................................................................................... 6-27

6.7.1 Recalibrate—1xh ..............................................................................................................6-27

6.7.2 Read Sectors—20h (with retry), 21h (without retry) ...................................................6-27

6.7.3 Write Sector—30h (with retry), 31h (without retry) ...................................................6-28

6.7.4 Read Verify Sectors—40h (with retry), 41h (without retry) .......................................6-28

6.7.5 Format Track—50h ..........................................................................................................6-28

6.7.6 Seek—7xh .........................................................................................................................6-30

6.7.7 Execute Drive Diagnostic—90h .....................................................................................6-30

6.7.8 Initialize Drive Parameters 91h ....................................................................................6-31

6.7.9 DOWNLOAD MICROCODE .............................................................................................6-31

6.7.10 Read Multiple—C4h .........................................................................................................6-42

6.7.11 Write Multiple—C5h .......................................................................................................6-42

6.7.12 Set Multiple Mode—C6h .................................................................................................6-43

6.7.13 Read Buffer—E4h ............................................................................................................6-43

6.7.14 Write Buffer—E8h ...........................................................................................................6-43

6.7.15 Power Management Commands ...................................................................................6-44

6.7.16 Identify Drive—ECh .........................................................................................................6-46

6.7.17 Set Features EFh .............................................................................................................6-50

6.7.18 Set Features (Ultra DMA/33) .........................................................................................6-50

6.7.19 Read Defect List ..............................................................................................................6-51

6.7.20 Configuration ..................................................................................................................6-53

6.8 ERROR REPORTING.................................................................................................................. 6-58

Glossary.................................................................................................................................................................................................G-1

Index.........................................................................................................................................................................................................I-1

List of Figures

FIGURE

Figure 3-1 Quantum Bigfoot TX 4.0/6.0/8.0 AT Mechanical Dimensions....................................... 3-1

Figure 3-2 Packaging for a 1-Pack Shipping Container.................................................................... 3-2

Figure 3-3 Connector and Jumper Locations....................................................................................... 3-3

Figure 3-4 Jumper Locations on the Drive Interface Connector....................................................... 3-4

Figure 3-5 Quantum Bigfoot TX 4.0/6.0/8.0/12.0 AT Mounting Dimension s (in millimeters)......... 3-7

Figure 3-6 Mounting Screw Clearance................................................................................................. 3-8

Figure 3-7 DC Power and IDE-Bus Combination Connector............................................................. 3-9

Figure 3-8 Drive Power Supply and IDE-Bus Interface Cables........................................................ 3-13

Figure 3-9 Drive Installation................................................................................................................ 3-13

Figure 5-1 Quantum Bigfoot TX 6.0/8.0 AT Hard Disk Drive Exploded View................................ 5-2

Figure 5-2 HDA Air Filtration................................................................................................................ 5-5

Figure 5-3 Quantum Bigfoot TX 4.0/6.0/8.0/12.0 AT Hard Disk Drive Block Diagram................. 5-6

Figure 5-4 DCIIA Block Diagram........................................................................................................... 5-7

Figure 5-5 Read/Write ASIC Block Diagram...................................................................................... 5-10

Figure 5-6 Sector Data Field with ECC Check Bytes ......................................................................... 5-18

Figure 5-7 Byte Interleaving ................................................................................................................. 5-18

Figure 5-8 Correctable and Uncorrectable Double-Burst Errors ........................................................ 5-20

Figure 5-9 Correctable and Uncorrectable Triple-Burst Errors .......................................................... 5-21

Figure 5-10 Nine Correctable Random Burst Errors............................................................................ 5-22

Figure 6-1 PIO Interface Timing.......................................................................................................... 6-10

Figure 6-2 Multiword DMA Bus Interface Timing............................................................................ 6-11

Figure 6-3 Initiating a Data In Burst .................................................................................................. 6-13

Figure 6-4 Sustained Data In Burst..................................................................................................... 6-13

Figure 6-5 Host Pausing a Data In Burst............................................................................................ 6-14

Figure 6-6 Device Terminating a Data In Burst................................................................................. 6-15

Figure 6-7 Host Terminating a Data In Burst.................................................................................... 6-16

Figure 6-8 Initiating a Data Out Burst................................................................................................ 6-17

Figure 6-9 Sustained Data Out Burst.................................................................................................. 6-17

Figure 6-10 Device Pausing a Data Out Burst..................................................................................... 6-18

Figure 6-11 Host Terminating a Data Out Burst.................................................................................. 6-18

Figure 6-12 Device Terminating a Data out Burst.............................................................................. 6-19

Figure 6-13 Host Interface RESET Timing............................................................................................ 6-19

DESCRIPTION

PAGE

List of Tables

TABLE

Table 3-1 Quantum Bigfoot TX 4.0/6.0/8.0/12.0 AT Jumper Options............................................. 3-5

Table 3-2 Mating Power Connectors................................................................................................. 3-10

Table 3-3 Logical Addressing Format ............................................................................................... 3-15

Table 4-1 Quantum Bigfoot TX 4.0/6.0/8.0/12.0 AT Specifications............................................... 4-1

Table 4-2 Quantum Bigfoot TX 4.0/6.0/8.0/12.0 AT Performance Specifications........................ 4-2

Table 4-3 Formatted Capacity.............................................................................................................. 4-3

Table 4-4 Timing Specifications .......................................................................................................... 4-4

Table 4-5 Power On Reset Thresholds................................................................................................. 4-5

Table 4-6 Typical Power and Current Consumption......................................................................... 4-6

Table 4-7 Acoustical Characteristics – Sound Pressure.................................................................... 4-7

Table 4-8 Acoustical Characteristics—Sound Power.......................................................................... 4-7

Table 4-9 Mechanical Dimensions....................................................................................................... 4-7

Table 4-10 Environmental Specifications............................................................................................. 4-8

Table 4-11 Shock and Vibration Specifications................................................................................... 4-8

Table 4-12 E rror Rates............................................................................................................................. 4-9

Table 5-1 Quantum Bigfoot TX 4.0/6.0/8.0/12.0 AT Cylinder Contents ........................................ 5-3

Table 5-2 Track and Cylinder Skews................................................................................................. 5-17

Table 6-1 Drive Connector Pin Assignments (J1, Section C)........................................................... 6-3

Table 6-2 Series Termination for Ultra DMA/33................................................................................ 6-6

Table 6-3 Signal Line Definitions........................................................................................................ 6-7

Table 6-4 Interface Signal Name Assignments.................................................................................. 6-8

Table 6-5 PIO Host Interface Timing................................................................................................... 6-9

Table 6-6 Multiword DMA Host Interface Timing........................................................................... 6-10

Table 6-7 Ultra DMA Data Transfer Timing Requirements............................................................ 6-11

Table 6-8 Host Interface RESET Timing............................................................................................ 6-19

Table 6-9 I/O Port Functions and Selection Addresses................................................................... 6-21

Table 6-10 Command Block Register Initial Values.......................................................................... 6-21

Table 6-11 Device Control Register Bits.............................................................................................. 6-22

Table 6-12 Drive Address Register Bits............................................................................................... 6-23

Table 6-13 Error Register Bits .............................................................................................................. 6-24

Table 6-14 Drive Head Register Bits.................................................................................................... 6-25

Table 6-15 Status Register Bits............................................................................................................. 6-26

Table 6-16 Quantum Bigfoot TX 4.0/6.0/8.0/12.0 AT Command Codes and Parameters ............ 6-29

Table 6-17 Diagnostic Codes ................................................................................................................ 6-30

Table 6-18 Device attributes data structure........................................................................................ 6-38

Table 6-19 Individual attribute data structure................................................................................... 6-38

Table 6-20 Valid Count Range............................................................................................................. 6-45

Table 6-21 Identify Drive Parameters.................................................................................................. 6-46

Table 6-22 Transfer/Mode Values........................................................................................................ 6-50

Table 6-23 READ DEFECT LIST LENGTH Command Bytes .............................................................. 6-51

Table 6-24 READ DEFECT LIST Command Bytes .............................................................................. 6-52

Table 6-25 DEFECT LIST Data Format ................................................................................................ 6-52

Table 6-26 Defect Descriptor................................................................................................................ 6-53

Table 6-27 Status Byte of the Defect Descriptor................................................................................ 6-53

Table 6-28 Accessing the READ CONFIGURATION Command........................................................ 6-54

Table 6-29 Accessing the SET CONFIGURATION Command............................................................ 6-54

DESCRIPTION

PAGE

Table 6-30 Accessing the SET CONFIGURATION WITHOUT SAVING TO DISK Command......... 6-55

Table 6-31 Configuration Command Format ..................................................................................... 6-56

Table 6-32 Command Errors................................................................................................................. 6-58

Chapter 1

ABOUT THIS MANUAL

This chapter gives an overview of the contents of this manual, including the intended
audience, manual organization, and terminology and conventions. In addition, it
provides a list of other references that might be helpful to the reader.

1.1 AUDIENCE DEFINITION

The Quantum Bigfoot  TX 4.0/6.0/8.0/12.0 AT product manual is intended for several
audiences including the original equipment manufacturer (OEM), distributor, installer,
and end user. The manual provides you with information about installation, principles of
operation, interface command implementation, and maintenance.

1.2 MANUAL ORGANIZATION

This manual provides information about installation, principles of operation, and
interface command implementation. It is organized into the following chapters:

• Chapter 1—About This Manual

• Chapter 2—General Description

• Chapter 3—Installation

• Chapter 4—Specifications

• Chapter 5—Basic Principles of Operation

• Chapter 6—IDE-Bus Interface and ATA Commands

In addition, this manual contains a glossary of terms and an index to help you locate
important information.

1.3 TERMINOLOGY AND CONVENTIONS

In the Glossary at the back of this manual, you can find definitions for many of the terms
used in this manual. In addition, the following abbreviations are used in this manual:

• ASIC Application Specific Integrated Circuit

• bpi bits per inch

• CRC Cyclic Redundancy Check

• dB decibels

• dBA decibels, A weighted

• DPA Drive Parameter Analysis

Quantum Bigfoot TX 4.0/6.0/8.0/12.0 AT

1-1

About This Manual

• ECC Error Correcting Code

• fci flux changes per inch

• GB Gigabyte (1 GB = 1,000 MB or 1,000,000,000 bytes when
referring to disk storage and 1,073,741,824 bytes in all other
cases)

• HDA Head Disk Assembly

• Hz Hertz

• KB Kilobytes

• LSB Least Significant Bit

• mA milliamperes

• MB Megabytes (1 MB = 1,000,000 bytes when referring to disk
storage and 1,048,576 bytes in all other cases)

• Mbit/s Megabits per second

• MB/s Megabytes per second

• MHz Megahertz

• ms milliseconds

• MR Magnetoresistive

• MSB Most Significant Bit

• mv millivolts

• ns nanoseconds

• S.M.A.R.T. Self-Monitoring, Analysis, and Reporting Technology

• TBD To be determined

• tpi tracks per inch

• UDMA Ultra DMA

• µ s microseconds

• V Volts

The typographical and naming conventions used in this manual are listed below.
Conventions that are unique to a specific table appear in the notes that follow that table.

Typographical Conventions:

• Names of Bits: Bit names are presented in initial capitals. An example is

the Host Software Reset Bit.

• Commands: Interface commands are listed as all capitals. An example is

WRITE LONG.

• Parameters: Parameters are given as initial capitals when spelled out, and

are given as all capitals when abbreviated. Examples are Prefetch Enable
(PE) and Cache Enable (CE).

• Hexadecimal Notation: The hexadecimal notation is given in 9-point

subscript form. An example is 30

1-2 Quantum Bigfoot TX 4.0/6.0/8.0/12.0 AT

.

H

1 -3 •

Signal Negation: A signal name that is defined as active low is listed with

a minus sign following the signal. An example is RD–.

• Messages: A message that is sent from the drive to the host is listed in all
capitals. An example is BUS DEVICE RESET.

Naming Conventions:

• Host: In general, the system in which the drive resides is referred to as the
host. The AT/IDE host adapter is considered to be part of the host

• Computer Voice: This refers to items you type at the computer keyboard.
These items are listed in 10-point, all capitals, Courier font. An example is
An example is FORMAT C:/S .

1.4 REFERENCES

For additional information about the AT interface, refer to:

About This Manual

• IBM Technical Reference Manual #6183355, March 1986

• ATA Common Access Method Specification-4 (ATA-4) Revision 16.

Quantum Bigfoot TX 4.0/6.0/8.0/12.0 AT

About This Manual

1-4 Quantum Bigfoot TX 4.0/6.0/8.0/12.0 AT



Chapter 2

GENERAL DESCRIPTION

This chapter summarizes general functions and key features of the Quantum Bigfoot TX 4.0/6.0/

8.0/12.0 AT hard disk drives, as well as the applicable standards and regulations it meets.

2.1 PRODUCT OVERVIEW

Quantum Bigfoot TX 4.0/6.0/8.0/12.0 AT hard disk drives are part of a family of high­performance, 20.32 mm-high (0.80 in) and 25.4 mm-high (1.0 in), hard disk drives
manufactured to meet the highest product quality standards. Quantum Bigfoot TX 4.0/6.0/

8.0/12.0 AT hard disk drives use nonremovable, 130 mm (5 1/4-in) hard disks. These drives
can be used in IBM
Attachment (ATA) Interface either on an adapter board or on the system motherboard.

PC/AT-compatible host computer systems, which provide an AT

Note: Sometimes, the ATA Interface is referred to as the AT Bus or IDE Interface .

Quantum Bigfoot TX 4.0/6.0/8.0/12.0 AT hard disk drives feature an embedded IDE drive
controller and use ATA commands. The drive manages media defects and error recovery
internally, so these operations are transparent to the user.

The innovative design of Quantum Bigfoot TX 4.0/6.0/8.0/12.0 AT hard disk drives enables
Quantum to produce a family of low-cost, high-reliability drives.

2.2 KEY FEATURES

Quantum Bigfoot TX 4.0/6.0/8.0/12.0 AT hard disk drives include the following key features:

General

• Formatted storage capacity of 4.0 GB (1-disk); 6.0 GB, and 8.0 GB (2-disks); or

12.0 GB (3-disks)

• Industry-standard, 130 mm (5 1/4-in) form factor

• Low-profile, 20.32 mm (0.80 in), height (1- and 2-disks) or 25.4 mm (1.00 in)

height (3-disks)

• Emulation of IBM

• Embedded servo design

• Fast ATA-4 support

• 16/17 PRML recording code

• MR heads



PC/AT



task file register and all ATA fixed-disk commands

Quantum Bigfoot TX 4.0/6.0/8.0/12.0 AT

2-1

General Description

Performance

• New Ultra ATA interface with Quantum-patented Ultra DMA/33 protocol
supporting burst data transfer rates of 33 MB/s

• Data transfer rates of up to 16 MB/s using PIO Mode 4 with IORDY or 16
MB/s using multiword DMA Mode 2

• Average seek time of 12 ms

• Average rotational latency of 7.50 ms

• 1:1 interleave on read/write operations

• 128K buffer with 70 Kbyte adaptive segmentation cache. Look-ahead
DisCache



feature with continuous prefetch, and WriteCache  write-

buffering capabilities

• Support for all ATA data transfer modes with PIO Mode 4 and multiword
DMA mode 2, and Ultra DMA modes 0, 1, and 2

• AutoWrite, AutoRead, and AutoTransfer

Reliability

• Power-Up Self diagnostic firmware

• 224-bit, interleaved Reed-Solomon Error Correcting Code (ECC), with
cross-checking and double- and triple-burst correction for bursts up to 96
bits in length

• Double-burst ECC correction on-the-fly

• 300,000 hour Mean Time Between Failure (MTBF) in the field

• Automatic retry on read errors

• 40,000 Contact Start/Stop cycles (controlled) at ambient

• Defect-free interface

• Reassignment of defective sectors discovered in the field, without
reformatting

• High-performance, in-line defective sector skipping (for factory defects)

• Patented AIRLOCK



automatic shipping lock and dedicated landing zone

• S.M.A.R.T. 4 system

• Patented magnetic latch

Versatility

• Power-saving modes

• Downloadable firmware (DiskWare)

• Cable select feature

• Common CD-ROM cable ready

• Ability to daisy-chain two drives on the interface

• Multi-Sector AutoRead and Multiple AutoWrite transfer

• LBA mode addressing/Extended CHS mode

2-2 Quantum Bigfoot TX 4.0/6.0/8.0/12.0 AT

2.3 STANDARDS AND REGULATIONS

Quantum Bigfoot TX 4.0/6.0/8.0/12.0 AT hard disk drives satisfy the following standards
and regulations under 5.25 Series Safety name:

• Tested to CISPR22 EN55022-4, which meets Federal Communications
Commission (FCC) Rules for Radiated and Conducted Emissions, Part 15,
Sub Part J, for Class B Equipment in an enclosure.

• Underwriters Laboratory (U.L.): Standard 1950. Information technology
equipment including business equipment.

• Canadian Standards Association (CSA): Standard C22.2 No. 950.
Information technology equipment including business equipment.

• European Standards: Technischer Überwachungs Verein (TÜV). Standard
EN 60 950 and IEC 950. Information technology equipment including
business equipment in an enclosure.

• Tested to EMC Directives (89/336/EEC) EU 50022 and EN50002-1 marked
with “CS” mark

• Tested to comply with Australian requirements to carry C-Tick logo

General Description

Quantum Bigfoot TX 4.0/6.0/8.0/12.0 AT 2-3

General Description

2-4 Quantum Bigfoot TX 4.0/6.0/8.0/12.0 AT

T

Chapter 3

INSTALLATION

his chapter explains how to unpack, configure, mount, and connect th e
Quantum Bigfoot TX 4.0/6.0/8.0/12.0 AT hard disk drive prior to operation. It also
explains how to start up and operate the drive.

3.1 SPACE REQUIREMENTS

Quantum ships the Quantum Bigfoot TX 4.0/6.0/8.0/12.0 AT hard disk drives without a
faceplate. Figure 3-1 shows the external dimensions of the Quantum Bigfoot TX 4.0/6.0/

8.0/12.0 AT drive. The Quantum Bigfoot TX 4.0/6.0/8.0 AT drive has a thickness of 20.32
mm (0.80 in.), and the Quantum Bigfoot TX 12.0 AT drives are 25.4 mm (1-inch) thick.
The other dimensions of the Quantum Bigfoot TX 12.0 AT hard disk drives are the same
as those of the Quantum Bigfoot TX 4.0/6.0/8.0 AT drive, shown below.

Figure 3-1

203.2 mm
(8.0 in.)

146.1 mm
(5.75 in.)

20.32 mm (0.80 in.) 1-, and 2-Disks

25.40 mm (1.00 in.) 3-Disks

Quantum Bigfoot TX 4.0/6.0/8.0 AT Mechanical Dimensions

Bigfoot TX 4.0/6.0/8.0/12.0 AT 3-1

Installation

3.2 UNPACKING INSTRUCTIONS

CAUTION: The maximum limits for physical shock can be exceeded

if the drive is not handled properly. Special care should be
taken not to bump or drop the drive.

1. Open the shipping container.

2. Remove the upper protective packaging pad from the box.
Figure 3-2 shows the packaging for th e Quantum Bigfoot TX 4.0/6.0/8.0/12.0

AT hard disk drives in a 1-pack shipping container . (A 10-pack shipping

container for the Quantum Bigfoot TX 4.0/6.0/8.0 AT drive, and a 8-pack
shipping container for the Quantum Bigfoot TX 12.0 AT is available for
multiple drive shipments and has the same type of protective packaging.)

3. Remove the drive from the box.

CAUTION: During shipment and handling, the drive is packed in an

antistatic electrostatic discharge (ESD) bag to prevent
electronic component damage to ESD sensitive devices.
Remove the drive from the ESD bag only when you are ready
to install it. To avoid accidental damage to the drive, do not
touch PCB components and do not use a sharp instrument to
open the ESD bag.

4. Save the packaging materials for possible future use.

Bigfoot TX

Hard Disk

Drive

Container

Figure 3-2

Packaging for a 1-Pack Shipping Container

3-2 Bigfoot TX 4.0/6.0/8.0/12.0 AT

3.3 JUMPER SETTINGS

The configuration of a Quantum Bigfoot TX 4.0/6.0/8.0 AT hard disk drives depend on
the host system into which it is to be installed. This section describes the jumper setting
options you must take into account prior to installation. Figure 3-3 shows the connector
and jumper locations.

Front of Drive

Installation

Top

Back of Drive

3–Disk (12.0 GB)

Top

Back of

Drive

IDE Bus

Interface Header

1–, and 2–Disks
(4.0, 6.0 and 8.0 GB)

Top

Back of

Drive

IDE Bus

Interface Header

Jumper Pin 1

ATA Pin 1

Jumper Pin 1

ATA Pin 1

PCB

DS CS PK

Jumper
Header

Jumper
Header

DS

DC Power
Connector

DC Power

Connector

not

CS PK

used

41.98

8.58 REF

4.18

25.40

4.18

20.32

Figure 3-3

not

DS CS PK

used

41.98

8.58 REF

Connector and Jumper Locations

Bigfoot TX 4.0/6.0/8.0/12.0 AT 3-3

Installation

Figure 3-4 shows the details of the interface connector, which has an embedded
8-pin jumper connector.

40-pin IDE Connector

Pin 40

Reserved

Pin 1

DS CS

8-pin Jumper
Connector

not

PK

used

4-pin Power
Connector

Pin 1

Master
(Default Setting)

Slave

Cable Select

Master with
Slave Present

Figure 3-4

Jumper Locations on the Drive Interface Connector

The 8-pin embedded connector has three jumper locations. The DS and CS/SP jumper
locations provide a way to configure the drive’s mode of operation. The PK jumper
provides a location to store or park a jumper when not in use.

•

DS—Drive Select

•

CS—Cable Select
PK — Park or Store position

•

Table 3-1 defines the jumper configurations for the drive and the operational modes that
result from the configurations.

3-4 Bigfoot TX 4.0/6.0/8.0/12.0 AT

Park

Installation

Table 3-1

CS DS PK

0 0 X X Drive is configured as a Slave
0 1 X X Drive is configured as a Master
1 1 X X Drive is configured as a Master, with an attached Slave that

1 1 X X Drive is configured as a Master, with an attached Slave
1 0 X open Drive is configured as a Slave
1 0 X ground Drive is configured as a Master

Note: In Table 3-1, a “0” indicates that the jumper is removed, a “1”

Quantum Bigfoot TX 4.0/6.0/8.0/12.0 AT

Cable

Pin 28

supports DASP

indicates that the jumper is installed, and X indicates the jumper
setting does not matter.

DESCRIPTION

Jumper Options

3.3.1 Cable Select (CS) Jumper

When the CS jumper is installed, the drive uses pin 28 of the interface connector to
determine if the drive is a master or a slave. If pin 28 of the interface connector is
grounded, the drive is configured as a Master; if pin 28 of the connector is left open, an
internal pullup brings the pin high, and the drive is configured as a Slave. If the CS and
DS jumpers are both installed, the drive is configured as a Master with an attached Slave.

When the drive is configured as a Master (DS or CS jumper installed and Cable Select
signal set to 0) the SP jumper indicates to the drive that a slave is present. The SP jumper
should be installed on the Master drive only if the Slave drive does not use the Drive
Active/Slave Present (DASP) signal to indicate its presence.

3.3.2 Drive Select (DS) Jumper

For systems that do not support the Cable Select feature, a drive can be configured as a
Master or Slave by removing the CS jumper and using only the DS jumper. If the DS
jumper is installed, the drive is configured as a Master; if it is removed, the drive is
configured as a Slave.

3.3.3 Park (PK) Jumper

The PARK position is used as a place to store a jumper for a Slave drive in systems that
do not support Cable Select.

Bigfoot TX 4.0/6.0/8.0/12.0 AT 3-5

Installation

3.4 IDE-BUS ADAPTER

There are two ways you can configure a system to allow the Quantum Bigfoot TX 4.0/

6.0/8.0/12.0 AT hard disk drives to communicate over the IDE-bus of an IBM or IBM­compatible PC:

1. Connect the drive to a 40-pin IDE-bus connector (if available) on the
motherboard of the PC.

2. Install an IDE-compatible adapter board in the PC and connect the drive to the
adapter board.

3.4.1 40-Pin IDE-Bus Connector

Many of the later design PC motherboards have a built-in 40-pin, IDE-bus connector,
that is compatible with the 40-pin IDE interface of the Quantum Bigfoot TX 4.0/6.0/8.0/

12.0 AT hard disk drives. If the motherboard has an IDE connector, simply connect a 40­pin ribbon cable between the drive and the motherboard.

You should also refer to the motherboard instruction manual, and refer to Chapter 6 of
this manual to ensure signal compatibility.

3.4.2 Adapter Board

If your PC motherboard does not contain a built-in, 40-pin IDE-bus interface connector,
you must install an IDE-bus adapter board and connecting cable to allow the drive to
interface with the motherboard. Quantum does not supply such an adapter board, but
they are available from several third-party vendors.

Please read over carefully the instruction manual for the adapter board you purchase, as
well as Chapter 6 of this manual to ensure signal compatibility between the adapter board
and the drive. Also, make sure that the adapter board jumper settings are appropriate.

3-6 Bigfoot TX 4.0/6.0/8.0/12.0 AT

3.5 MOUNTING

Drive mounting orientation, clearance, and ventilation requirements are described in the
following subsections. For mounting, “M3 screws are required”. To avoid stripping the
mounting-hole threads, the maximum torque applied to the screws must not exceed 5
kg-cm.

3.5.1 Orientation

The mounting holes on the Quantum Bigfoot TX 4.0/6.0/8.0/12.0 AT har d disk drives
allow the drive to be mounted in any orientation.

Installation

146.05±0.5

139.70±0.33.18

Bottom

M3x5mm deep (4x)

25.40±0.5

10.00±0.2

47.40±0.479.20±0.2

203.20±1

20.32±0.5

10.00±0.2

M3x5mm deep (4x)

Figure 3-5

Bottom

3–Disks

Quantum Bigfoot TX 4.0/6.0/8.0/12.0 AT Mounting Dimension

Bigfoot TX 4.0/6.0/8.0/12.0 AT 3-7

Bottom M3x5mm deep (4x)

1–, and

2–Disks

s (in millimeters)

Installation

3.5.2 Mounting Screw Clearance

The printed-circuit board assembly (PCBA) is very close to the mounting hole.
Figure 3-6 shows the 1-inch version of the Quantum Bigfoot TX 4.0/6.0/8.0/12.0 AT and
specifies the clearance between the screws in the mounting holes and the PCBA. Do not
use mounting screws longer than the maximum lengths specified in Figure 3-6. The
specified screw length allows full use of the mounting-hole threads, while avoiding
damaging or placing unwanted stress on the PCBA.

5.00 mm (0.196 in) maximum

1.01 mm (0.040 in) minimum

Mounting Screw

Mounting Bracket

Figure 3-6

Mounting Screw Clearance

CAUTION: The PCBA is very close to the mounting holes. Do not exceed

the specified length for the mounting screws. The specified
screw length allows full use of the mounting-hole threads, while
avoiding damaging or placing unwanted stress on the PCBA.
Figure 3-6 specifies the minimum clearance between the PCBA
and the screws in the mounting holes. To avoid stripping the
mounting-hole threads, the maximum torque applied to the
screws must not exceed 5 kg-cm.

3-8 Bigfoot TX 4.0/6.0/8.0/12.0 AT

3.5.3 Ventilation

The Quantum Bigfoot TX 4.0/6.0/8.0/12.0 AT hard disk drives operates without a cooling
fan, provided the ambient air temperature does not exceed 55 ° C (131 ° F).

3.6 COMBINATION CONNECTOR

As shown in Figure 3-7, there is a three-section combination connector mounted on the
back edge of the PCBA. The connector contains a 40-pin IDE interface, an 8-pin jumper
block, and a 4-pin power connector.

Installation

Pin 1

40-pin IDE Connector

Pin 40

Figure 3-7

DC Power and IDE-Bus Combination Connector

8-pin Jumper
Connector

4-pin Power
Connector

Pin 1

Bigfoot TX 4.0/6.0/8.0/12.0 AT 3-9

Installation

3.6.1 DC Power

The recommended mating connectors for the +5 Vdc and +12 Vdc input power are listed
in Table 3-2.

Table 3-2

4-Pin
Connector

PIN

NUMBER

1 +12 Vdc 4-Pin Connector:

2 +12 Vdc

3 +5 Vdc

4 +5 Vdc

VOLTAGE

LEVEL

Return
(Ground)

Return
(Ground)

3.6.2 IDE-Bus Interface Connector

On the Quantum Bigfoot TX 4.0/6.0/8.0/12.0 AT hard disk drives, the IDE-bus interface
cable connector is a 40-pin Universal Header, as shown in Figure 3-7.

See Chapter 6, “IDE-Bus Interface and ATA Commands,” for more detailed information
about the required signals. Refer to Table 6-1 for the pin assignments of the IDE-bus
connector.

Mating Power Connectors

MATING CONNECTOR

TYPE AND PART NUMBER

(OR EQUIVALENT)

AMP P/N 1-480424-0
Loose piece contacts:

AMP P/N 61173-4

Strip contacts:
AMP P/N 350078-4

For mating with the 40-pin connector, recommended cable connectors include the
following parts or their equivalents:

AMP receptacle with strain relief P/N 1-499506-0
AMP receptacle without strain relief P/N 1-746193-0

To key the 40-pin cable connector, you must plug the hole that corresponds to pin 20.
Other recommended part numbers for the mating connector include:

40-Pin Connector 3M 3417-7000 or equivalent
Strain Relief 3M 3448-2040 or equivalent
Flat Cable (Stranded 28 AWG) 3M 3365-40 or equivalent
Flat Cable (Stranded 28 AWG) 3M 3517-40 (shielded) or equivalent

3.6.3 8-Pin Jumper Connector

On the Quantum Bigfoot TX drives a shunt with 8 pins is the 8-pin jumper connector.
The default configuration when the drive is shipped from the factory is set for the
Quantum drive to be a Master. For mating with the 8-pin jumper connector the
recommended part number is 22-109945.

3-10 Bigfoot TX 4.0/6.0/8.0/12.0 AT

3.7 DRIVE INSTALLATION

You can install the Quantum Bigfoot TX 4.0/6.0/8.0/12.0 AT hard disk drives in an AT­compatible system in two ways:

3.7.1 For Systems With A Motherboard IDE Adapter

You can install the Quantum Bigfoot TX 4.0/6.0/8.0/12.0 AT hard disk drives in an AT­compatible system that contains a 40-pin IDE-bus connector on the motherboard.

To connect the drive to the motherboard, use a 40-pin ribbon cable. Ensure that pin 1 of
the drive is connected to pin 1 of the motherboard connector.

3.7.2 For Systems With An IDE Adapter Board

To install a Quantum Bigfoot TX 4.0/6.0/8.0/12.0 AT hard disk drives in an AT­compatible system without a 40-pin IDE-bus connector on its motherboard, you need a
third-party IDE-compatible adapter board.

3.7.2.1 Adapter Board Installation

Carefully read the manual that accompanies your adapter board before installing it. Make
sure that all the jumpers are set properly and that there are no addressing or signal
conflicts. Install the adapter board in your system according to the adapter board manual.

Installation

3.7.2.2 Connecting the Adapter Board and the Drive

Use a 40-pin ribbon cable to connect the drive to the board. See Figure 3-8. To connect
the drive to the board:

1. Insert the 40-pin cable connector into the mating connector of the adapter
board. Make sure that pin 1 of the connector matches with pin 1 on the cable.

2. Insert the other end of the cable into the header on the drive. When inserting
this end of the cable, make sure that pin 1 of the cable connects to pin 1 of
the drive connector.

3. Secure the drive to the system chassis by using the mounting screws, as shown
in Figure 3-9.

Bigfoot TX 4.0/6.0/8.0/12.0 AT 3-11

Installation

Pin 1

IDE-Bus
Interface Cable

IDE-Bus
Interface
Connector

40-Pin Header

Center

Key Slot

Pin 1

Jumper
Connector

DC Power
Connector
Pin 1

Figure 3-8

Power
Supply
Cable

Bevel

Drive Power Supply and IDE-Bus Interface Cables

Mounting Holes

IDE-Bus
Interface Cable

Side View

of Bay

Quantum
Bigfoot TX Drive

Mounting Screws
(2 on each side)

Figure 3-9

3-12 Bigfoot TX 4.0/6.0/8.0/12.0 AT

Drive Installation

3.8 TECHNIQUES IN DRIVE CONFIGURATION

3.8.1 1024 Cylinder Limitation on Older Computer Systems

Because MS-DOS uses the computer's ROM BIOS to access the hard drive, the cylinder
limitation of 1024 from the AT ROM BIOS will only be viewed by the MS-DOS Operating
System. The CMOS System Setup is able to scan the total number of cylinders, but the
BIOS is still limited to use only 1024 cylinders. The following are some techniques to
resolve this difficulty.

•

Use a third party software program that translates the hard drive
parameters to an acceptable configuration for MS-DOS.

Use a hard disk controller that translates the hard drive parameters to an

•

appropriate setup for both MS-DOS and the computer system's ROM BIOS.

3.8.2 Newer Computer Systems with Extended BIOS Translation

Some newer computer systems allow the user to configure disk drives that go beyond the
528 MB (528,482,304 bytes) barrier. Here are formulas to translate drives with a
maximum capacity of 8.4 GB (8,422,686,720 bytes):

Installation

xcyl = cyl / n xcyl is defined as a new cylinder translation
xhead = head * n xhead is defined as a new head translation
xsec = sec = 63 xsec is defined as a new sector translation

where n = 2, 4, 8, ..., a power of 2

n is chosen to reduce the number of cylinders to be less than or equal to 1024. However,
sectors must equal 63 and the number of heads cannot exceed 255.

Note: Be advised that the previous information is dependent upon the

capabilities of the computer system, hard disk controller, and/or
software programs. Some configurations may not provide the user
proper operation of the disk drive. All other documentation should
be examined prior to the hard drive installation.

3.8.3 Formatted Capacity

The capacity of Quantum hard disk drives are specified in “millions of bytes.” However,
some programs, such as FDISK, still use the old standard of “megabytes,” In the
“megabytes” measurement, the total byte capacity is divided by 1.024 x 1.024.

In the case of the Quantum Bigfoot TX 4.0 AT hard disk drive, the capacity in “millions
of bytes” is 4,018,775,040. (8,960 cylinders x 15 heads x 63 sectors x 512 bytes). The
“megabyte” capacity is 3,832,602,539 (4,018,775,040 / (1.024 x 1.024)).

Bigfoot TX 4.0/6.0/8.0/12.0 AT 3-13

Installation

3.9 SYSTEM STARTUP AND OPERATION

Once you have installed the Quantum Bigfoot TX 4.0/6.0/8.0/12.0 AT hard disk drive and
adapter board (if required) in the host system, you are ready to partition and format the
drive for operation. To set up the drive correctly, follow these steps:

1. Power on the system.

2. Run the SETUP program. This is generally on a Diagnostics or Utilities disk, or
within the system’s BIOS. Some system BIOS have an auto-detecting feature
making SETUP unnecessary.

The SETUP program allows you to enter the types of optional hardware installed—such
as the hard disk drive type, the floppy disk drive capacity, and the display adapter type.
The system’s BIOS uses this information to initialize the system when the power is
switched on. For instructions on how to use the SETUP program, refer to the system
manual for your PC.

3. Enter the appropriate parameters.

During the AT system CMOS setup, you must enter the drive type for the
Quantum Bigfoot TX 4.0/6.0/8.0/12.0 AT hard disk drives. This procedure allows the
system to recognize the drive by translating its physical drive geometry parameters such
as cylinders, heads, and sectors per track, into a logical addressing mode.

Quantum Bigfoot TX 4.0/6.0/8.0/12.0 AT drives can work with different BIOS drive-type
tables of various host systems. You can choose any drive type that does not exceed the
capacity of the drive. Table 3-3 gives the logical parameters that provide the maximum
capacity on Quantum Bigfoot TX 4.0/6.0/8.0/12.0 AT hard disk drives.

Table 3-3

Quantum

Bigfoot TX

4.0 GB

Logical Cylinders 8,306 12,459 15,574 23,361
Logical Heads 15 15 16 16
Logical Sectors/Track 63 63 63 63
Total Number Logical

Sectors
Logical Capacity 4,018,775,040 6,028,162,560 8,037,679,104 12,056,518,656

7,849,170 11,773,755 15,698,592 23,547,888

Logical Addressing Format

Quantum

Bigfoot TX

6.0 GB

Quantum

Bigfoot TX

8.0 GB

Quantum

Bigfoot TX

12.0 GB

To match the logical specifications of the drive to the drive type of a particular BIOS,
consult the system’s drive-type table. This table specifies the number of cylinders, heads,
and sectors for a particular drive type.

4. Boot the system using the operating system installation disk—for example,

MS-DOS —then follow the installation instructions in the operating system

manual.

3-14 Bigfoot TX 4.0/6.0/8.0/12.0 AT

Chapter 4

SPECIFICATIONS

This chapter gives a detailed description of the physical, electrical, and environmental
characteristics of the Quantum Bigfoot TX 4.0/6.0/8.0/12.0 AT hard disk drives.

4.1 SPECIFICATION SUMMARY

Table 4-1 gives a summary of the Quantum Bigfoot TX 4.0/6.0/8.0/12.0 AT hard disk
drives.

Table 4-1

DESCRIPTION

Capacity (formatted) 4,018 MB 6,028 MB 8,037 MB 12,056 MB
Nominal rotational speed (rpm)
Number of disks
Number of R/W heads

Data Organization

Zones per surface
Tracks per surface
Total tracks

Sectors per track

Inside zone

Outside zone
Total User Sectors
Bytes per sector

Number of tracks per cylinder

Recording

Recording technology

Maximum linear density

Maximum Recording Density

Encoding method

Interleave

Quantum Bigfoot TX 4.0/6.0/8.0/12.0 AT Specifications

Quantum

Bigfoot TX

4.0 GB

4,000 4,000 4,000 4,000

1223
2346

15 15 15 15

11,490 11,490 11,490 11,490

22,980 34,470 45,960 68,940

224 224 224 224
403 403 403 403

7,849,170 11,773,755 15,698,592 23,547,888

512 512 512 512

2346

Multiple Zone Multiple Zone Multiple Zone Multiple Zone

194,186 fci 194,186 fci 194,186 fci 194,186 fci

182,763 (bpi) 182,763 (bpi) 182,763 (bpi) 182,763 (bpi)

PRML 16/17 PRML 16/17 PRML 16/17 PRML 16/17

1:1 1:1 1:1 1:1

Quantum

Bigfoot TX

6.0 GB

Quantum

Bigfoot TX

8.0 GB

Quantum

Bigfoot TX

12.0 GB

Quantum Bigfoot TX 4.0/6.0/8.0/12.0 AT

4-1

Specifications

Table 4-1

Track density (avg.)
Effective areal density

Table 4-2

Quantum Bigfoot TX 4.0/6.0/8.0/12.0 AT Performance Specifications

Performance

Typical Seek times

Average seek
Track-to-track sequential
Full stroke

Sequential Head Switch

Rotational Latency

Data Transfer rate

Disk to Read Buffer

Read/Write Buffer to IDE-bus

(PIO Mode)

Quantum Bigfoot TX 4.0/6.0/8.0/12.0 AT Specifications

9,000 tpi 9,000 tpi 9,000 tpi 9,000 tpi

1,645 Mbit/in

DESCRIPTION

1

2

2

1,645 Mbit/in

Without IORDY 6.0 MB/s max.

2

1,645 Mbit/in

Quantum Bigfoot TX

4.0/6.0/8.0/12.0 GB

12.0 ms

2.5 ms
24 ms

2.0 ms

7.50 ms

91.29 to 141.73 Mbit/s

2

1,645 Mbit/in

2

With IORDY 16.67 MB/s max.
Read/Write Buffer to IDE-bus (DMA Mode) 16.67 MB/s max.
Read/Write Buffer to IDE-bus (Ultra DMA Mode) 33.33 MB/s max.
Buffer size (The upper 32K is used for firmware) 128 KB

Projected MTBF
Contact Start/Stop Cycles

3

300,000 hrs

40,000

Auto head-park method AirLock/MagLatch

1. Seek times are at nominal conditions and include settling for read.

2. Disk to read buffer transfer rate is zone-dependent.

3. CSS specifications assume a duty cycle of one power off operation for every four idle
spin-down.

4-2 Quantum Bigfoot TX 4.0/6.0/8.0/12.0 AT

4.2 FORMATTED CAPACITY

At the factory, the Quantum Bigfoot TX 4.0/6.0/8.0/12.0 AT hard disk drives receive a
low-level format that creates the actual tracks and sectors on the drive. Table 4-3 shows
the capacity resulting from this process. For operation with DOS, UNIX, or other
operating systems, formatting done at the user level may result in less capacity than the
physical capacity shown in Table 4-3.

Table 4-3

Specifications

Formatted Capacity

Quantum

Bigfoot TX

4.0 GB

Number of 512-byte
sectors

7,849,170 11,773,755 15,698,592 23,547,888

4.3 DATA TRANSFER RATES

Data is transferred from the disk to the read buffer at a rate up to 6.5 MB/s in bursts.
Data is transferred from the read buffer to the AT bus at a rate of up to 6.0 MB/s,
using programmed I/O without IORDY. If IORDY is used, then this transfer rate can
be increased to 16.67 MB/s. Refer to paragraph 6.6.15 IDENTIFY DRIVE command
for additional information. Using the Multiword DMA protocol, transfer rates of

16.67 MB/s are achievable (burst mode only). Using the Ultra DMA protocol transfer
rates of 33.33 MB/s are achievable (burst mode only).

Quantum

Bigfoot TX

6.0 GB

Quantum

Bigfoot TX

8.0 GB

Quantum

Bigfoot TX

12.0 GB

Quantum Bigfoot TX 4.0/6.0/8.0/12.0 AT

4-3

Specifications

4.4 TIMING SPECIFICATIONS

Table 4-4 illustrates the timing specifications of the Quantum Bigfoot TX 4.0/6.0/8.0/12.0
AT

hard disk drive.

Table 4-4

Timing Specifications

Parameter

Single Track Seek

3

Sequential Cylinder Switch Time
Sequential Head Switch Time

5

Random Average (Read or Seek)

Typical Nominal

2.5 ms 3.5 ms

4

2.5 ms 3.5 ms

2.0 ms 3.0 ms

6

12.0 ms 13.0 ms

1

Maximum W orst Case

Random Average (Write) 15.0 ms 18.0 ms
Full-Stroke Seek 24.0 ms 30.0 ms
Average Rotational Latency 7.50 ms —

Quantum Bigfoot TX 4.0/6.0/8.0/12.0 GB

Power On

7

to Drive Ready
Power On to Interface Ready
Standby

10

to Drive Ready 8/8/8/11 seconds 30 seconds

8

9

10/10/10/13 seconds 30 seconds
10/10/10/13 seconds 30 seconds

Drive Ready to Shutdown 10/12/12/20 seconds 30 seconds

1. Nominal conditions are as follows:

• Nominal temperature (25 ° C)

• Nominal supply voltages (12.0V, 5.0V)

• No applied shock or vibration

2. Worst-case conditions are as follows:

• Worst-case temperature extremes (4 ° C and 71 ° C)

• Worst-case supply voltages (12V ± 10%, 5V ± 5%)

3. Seek time is defined as the time required for the actuator to seek and settle on-track. It is measured
by averaging 5000 seeks of the indicated type as shown in this table. The seek times listed include
head settling time, but do not include command overhead time or rotational latency delays.

4. Sequential Cylinder Switch Time is the time from the conclusion of the last sector of a cylinder to
the first logical sector on the next cylinder.

5. Sequential Head Switch Time is the time from the last sector of a track to the beginning of the first
logical sector of the next track of the same cylinder.

6. Average seek time is the average of 5000 random seeks. When a seek error occurs, recovery for
that seek can take up to seven seconds.

7. Power On is the time from when the supply voltages reach operating range to when the drive is
ready to accept any command.

8. Drive Ready is the condition in which the disks are rotating at the rated speed and the drive is able
to accept and execute commands requiring disk access without further delay.

9. Interface Ready is the condition in which the drive is ready to accept any command, before the
disks are rotating at rated speed.

10. Standby is the condition in which the microprocessor is powered, but not the HD A. When the host
sends the drive a standby command, the drive parks the heads away from the data zone and spins
down to a complete stop.

11. After the maximum worst-case time of 30 seconds it is safe to move the disk drive.

2

11

4-4 Quantum Bigfoot TX 4.0/6.0/8.0/12.0 AT

4.5 POWER

The Quantum Bigfoot TX 4.0/6.0/8.0/12.0 AT hard disk drives operate from two supply
voltages:

• +12V ± 10%

• +5V ± 5%

The allowable ripple and noise is 250 mV for the +12 Vdc supply and 150 mV for the +5
Vdc supply.

4.5.1 Power Sequencing

You can apply the power in any order or manner, or short or open either the power or
power- return line with no loss of data or damage to the disk drive. However, data may
be lost in the sector being written at the time of power loss. The drive can withstand
transient voltages of +10% to –10% from nominal while powering up or down.

4.5.2 Power Reset Limits

When powering up, the drive remains reset (inactive) until both V
exceeded. When powering down, the drive becomes reset when either supply voltage
drops below the V

LT

threshold. See Table 4-5.

Specifications

reset limits are

HT

Table 4-5

Power On Reset Thresholds

DC VOL T AGE THRESHOLD THRESHOLD

+5V +12V

Max Min Max Min

1

V

LT

1

V

HT

1

H

YST

1. V

and V

LT

2. Includes a 100 mV Peak-Peak ripple on 5V or 250 mV Peak-Peak ripple on 12V to maximize or minimize
values.

HT

130 mV (typ) 130 mV (typ) 250 mV (typ) 250 mV (typ)

values are rounded to the nearest 0.05 V; H

2

4.65 V

4.15 V 9.35 V

4.75 V 4.25 V

1

1

values are rounded to the nearest 5 mV.

YST

9.50 V 8.45 V

8.30 V

1

Quantum Bigfoot TX 4.0/6.0/8.0/12.0 AT

4-5

Specifications

4.5.3 Power Requirements

Table 4-6 lists the voltages and corresponding current for the various modes of operation
of the Quantum Bigfoot TX 4.0/6.0/8.0/12.0 AT hard disk drives.

MODE OF

OPERATION

Startup
Maximum Seek
Operating

1

(peak) 2200 600 2200 600 2200 600 27.0 27.0 27.0

2

3

Read/Write on Track

5

Idle
Standby
Sleep

6

7

Notes:

Table 4-6

Typical Power and Current Consumption

Typical

T ypical A verage Current

(mA rms)

8

Average

Power

(Watts)

Quantum

Bigfoot TX

4.0 GB

Quantum

Bigfoot TX

6.0/8.0 GB

Quantum

Bigfoot TX

12.0 GB

Quantum

Bigfoot TX

4.0 GB

Quantum

Bigfoot TX

6.0/8.0 GB

+12V +5V +12V +5V +12V +5V

750 550 900 550 900 550 11.8 13.6 13.6
400 550 600 550 675 550 7.6 10.0 10.9

4

300 600 375 600 425 600 6.6 7.5 8.1
300 500 375 500 425 500 6.1 7.0 7.6

10 325 10 325 10 325 1.4 1.4 1.4
10 250 10 250 10 250 1.0 1.0 1.0

1. Startup is stated as the peak (>10 ms) power required during spindle startup. This power
will be required for less than 6 seconds.

Quantum

Bigfoot TX

4.0 GB

2. Maximum Seek is for continuous random seek operations with 7.5 ms delay between
seek complete indication and the next seek command.

3. Operating mode is defined when data is being read from or written to the disk.
It is computed based on 40% seeking, 30% on-track reading and 30% on-track writing.

4. Read/Write/Ontrack is defined as 50% read operations and 50% write operations on a
single physical track.

5. Idle is when the drive is not reading, writing, or seeking, the motor is up to speed and
the DRIVE READY condition exists. Actuator is residing on last track accessed.

6. STANDBY is when the motor is stopped, actuator parked, and all electronics except the
interface control is in a low power state. STANDBY will occur after a programmable
time-out from the last host access. Drive ready and seek complete status exist. The drive
will leave STANDBY upon receipt of a command that requires disk access.

7. Sleep is when the spindle and actuator motors are off with the heads latched in the
landing zone. The microprocessor has also entered the halt or power-down state.
Receipt of a reset causes the drive to transition from the sleep to the standby mode.

8. Current is rms. (except for startup)

4-6 Quantum Bigfoot TX 4.0/6.0/8.0/12.0 AT

4.6 ACOUSTICS

Table 4-6 and Table 4-7 specifies the acoustical characteristics of the Quantum Bigfoot
TX 4.0/6.0/8.0/12.0 AT hard disk drives.

Specifications

Table 4-7

OPERATING MODE MEASURED NOISE DISTANCE

Idle On Track 35 dbA (typical)

Seeking Random 38 dbA (typical)

Table 4-8

Operating Mode

Idle On Track 3.9 Bels (typical)

Seeking Random 4.5 Bels (typical)

Acoustical Characteristics – Sound Pressure

39 dbA (maximum)

42 dbA (maximum)

Acoustical Characteristics—Sound Power

(Sound Power per ISO 7779)

4.2 Bels (maximum)

4.8 Bels (maximum)

4.7 MECHANICAL DIMENSIONS

Table 4-8 specifies the mechanical dimensions of the Quantum Bigfoot TX 4.0/6.0/8.0/

12.0 AT hard disk drives. Dimensions measurements do not include the faceplate.

Table 4-9

Mechanical Dimensions

1 m (39.3 in)
1 m (39.3 in)

1 m (39.3 in)
1 m (39.3 in)

Measured Noise

Dimension Millimeters Inches

Height
Quantum Bigfoot TX 4.0/6.0/8.0 AT
Quantum Bigfoot TX 12.0 AT

Width 146.0 mm 5.75 in
Depth 203.2 mm 8.0 in

W eight

Model Grams Pounds

Quantum Bigfoot TX 4.0 AT
Quantum Bigfoot TX 6.0/8.0 AT

Quantum Bigfoot TX 12.0 AT 1,202 2.650

20.3 mm

25.4 mm

987 2.175

1,032 2.275

Quantum Bigfoot TX 4.0/6.0/8.0/12.0 AT

0.80 in

1.00 in

4-7

Specifications

4.8 ENVIRONMENTAL CONDITIONS

Table 4-10 summarizes the environmental specifications for the Quantum Bigfoot TX 4.0/

6.0/8.0/12.0 AT hard disk drive.

Table 4-10

Environmental Specifications

PARAMETER OPERATING NONOPERATING

Temperature

1

5°C to 55°C
32° F to 131°F

Temperature Gradient

1

24°C/hr

75.2 °F/hr

Humidity
Maximum Wet Bulb

1

5% to 85% rh

30°C (86°F)
Humidity Gradient 30%/hr 30%/hr
Altitude

2

–200 m to 3,000 m

(–650 to 10,000 ft.)
Altitude Gradient 1.5 kPa/min. 8 kPa/min.

1. No condensation

2. Altitude is relative to sea level

4.9 SHOCK AND VIBRATION

The Quantum Bigfoot TX 4.0/6.0/8.0/12.0 AT hard disk drives can withstand levels of
shock and vibration applied to any of its three mutually perpendicular axes, or principal
base axes, as specified in Table 4-10. A functioning drive can be subjected to specified

operating levels of shock and vibration. When a drive has been subjected to specified
nonoperating levels of shock and vibration, with power to the drive off, there will be no

change in performance at power on.

–40°C to 75°C
–40°C to 167°F

48°C/hr

118.4 °F/hr
5% to 95% rh

46°C (115°F)

–200 m to 12,000 m
(–650 to 40,000 ft.)

When packed in either the 1-pack, 8-pack, or 10-pack shipping container, Quantum
Bigfoot TX 4.0/6.0/8.0/12.0 AT drives can withstand a drop from 30 inches onto a
concrete surface on any of its surfaces, six edges, or three corners.

Table 4-11

Shock

Shock and Vibration Specifications

10G, 1/2 sine wave, 11 ms
10G, 1/2 sine wave, 1, 2, 3 ms

Vibration

0.5 octave/minute sweep

0.5 octave/minute sweep

1

1G p-p, 5-300 Hz

0.5G p-p, 300 - 400 Hz

1. No unrecovered errors.

4-8 Quantum Bigfoot TX 4.0/6.0/8.0/12.0 AT

OPERATING NONOPERATING

70G, 11ms, 1/2 sine wave
200 G, 2 ms, 1/2 sine wave
70 Gs not to exceed (for packag­ing)
15,000 rad/s2 rotational,
2 ms duration

2G p-p, 5-500 Hz

4.10 RELIABILITY

Mean Time Between Failures (MTBF): The projected field MTBF is 600,000 Power On

Preventive Maintenance (PM): Not required
Start/Stop: 40,000 cycles (minimum)

Component Life: 5 Years

4.11 DISK ERRORS

Table 4-11 provides the error rates for the Quantum Bigfoot TX 4.0/6.0/8.0/12.0 AT hard
disk drives.

Specifications

Hours (POH). The Quantum MTBF numbers
represent Bell-Core TR-TSY-000332 MTBF
predictions and represent the minimum MTBF
that Quantum or a customer would expect from
the drive.

Table 4-12 E

ERROR TYPE

Retry recovered read errors

1

Triple-burst ECC recovered errors
Uncorrectable data errors

Seek Errors

4

3

Notes:

1. Retry recovered read errors are those that require multi read retries for data

correction. Errors corrected by ECC on-the-fly are not considered recovered read
errors. Read-on-arrival is disabled to meet this specification.

2. Triple-burst ECC recovered errors are those read errors which require the triple

burst error correction algorithm to be applied for data correction. This correction is
typically applied only after the programmed retry count is exhausted.

3. Uncorrectable data errors are those errors that are not correctable using an error

correcting code (ECC) or retries. The drive terminates retry reads either when a
repeating error pattern occurs or after eight unsuccessful retries and application of
triple burst error correction.

rror Rates

MAXIMUM NUMBER OF

ERRORS

2

1 error per 109 bits read
1 error per 1012 bits read
1 error per 1014 bits read

1 error per 106 seeks

4. Seek errors occur when the actuator fails to reach (or remain) over the

requested cylinder or if the drive executes a recalibration routine to
find the requested cylinder.

Quantum Bigfoot TX 4.0/6.0/8.0/12.0 AT 4-9

Specifications

4-10 Quantum Bigfoot TX 4.0/6.0/8.0/12.0 AT

Chapter 5

BASIC PRINCIPLES OF OPERATION

This chapter describes the operation of Quantum Bigfoot TX 4.0/6.0/8.0/12.0 AT
functional subsystems. It is intended as a guide to the operation of the drive, rather than
a detailed theory of operation.

5.1 QUANTUM BIGFOOT TX DRIVE MECHANISM

This section describes the drive mechanism. Section 5.2 describes the drive electronics.
The Quantum Bigfoot TX 4.0/6.0/8.0/12.0 AT hard disk drives consist of a mechanical
assembly and a PCB as shown in Figure 5-1. The drawing is illustrated with two disks,
showing the Quantum Bigfoot TX 6.0/8.0 AT drive configuration. The Quantum Bigfoot
TX 12.0 AT hard disk drive contains three hard disks, and the Quantum Bigfoot TX 4.0
AT hard disk drive contains one hard disk.

The head/disk assembly (HDA) contains the mechanical subassemblies of the drive, which
are sealed under a metal cover. The HDA consists of the following components:

• Base casting

• DC motor assembly

• Disk stack assembly

• Headstack assembly

• Rotary positioner assembly

• Automatic actuator lock

• Air filter

The drive is assembled in a Class-100 clean room.

CAUTION: To ensure that the air in the HDA remains free of contamination,

never remove or adjust its cover and seals. Tampering with the
HDA will void your warranty.

The Quantum Bigfoot TX 4.0/6.0/8.0/12.0 AT drives are a one-, two-, or three-disk
product family. The Quantum Bigfoot TX 4.0 AT hard disk drive contains one magnetic
disk and two read/write heads. The Quantum Bigfoot TX 6.0/8.0 AT drives contain two
magnetic disks and three/four read/write heads, and the Quantum Bigfoot TX 12.0 AT
drive contains three magnetic disks and six read/write heads.

Quantum Bigfoot TX 4.0/6.0/8.0/12.0 AT 5-1

Basic Principles of Operation

Cover

Diskstack
Assembly

Spacer

Rotary
Positioner
Assembly

Auto­matic
Actuator
Lock

DC
Spindle
Motor

Air Filter

Base
Casting

Figure 5-1 Quantum Bigfoot TX 6.0/8.0 AT Hard Disk Drive Exploded View

Headstack
Assembly

5-2 Quantum Bigfoot TX 4.0/6.0/8.0/12.0 AT

Basic Principles of Operation

5.1.1 Base Casting Assembly

A single-piece, aluminum-alloy base casting provides a mounting surface for the drive
mechanism and PCB. The base casting also acts as the flange for the DC motor assembly.
To provide a contamination-free environment for the HDA, a gasket provides a seal
between the base casting and the metal cover that encloses the drive mechanism.

5.1.2 DC Motor Assembly

Integral with the base casting, the DC motor assembly is a fixed-shaft, brushless DC
spindle motor that drives the counter-clockwise rotation of the disks.

5.1.3 Disk Stack Assemblies

The disk stack assembly in the Quantum Bigfoot TX 4.0 AT hard disk drive consists of
one disk secured by a disk clamp. The Quantum Bigfoot TX 6.0/8.0 AT hard disk drive
contains two disks, and the Quantum Bigfoot TX 12.0 AT hard disk drive contains three
disks. The disks have an overcoat of sputtered hydrogenated carbon or other Quantum­approved material.

A carbon overcoat lubricates the disk surface, to prevent head and media wear due to
head contact with the disk surface during head takeoff and landing. Head contact with
the disk surface occurs only in the landing zone outside of the data area, when the disk
is not rotating at full speed. The landing zone is located at the inner diameter of the disk,
beyond the last cylinder of the data area.

The Quantum Bigfoot TX 4.0/6.0/8.0/12.0 AT hard disk drives have 11,578 tracks
per recording surface. Of these tracks, 88 are used for system data, leaving 11,490
for user data. The data tracks are divided into 15 recording zones. The drive uses
multiple zone recording, where each data track contains between 224 and 403
sectors, depending on the recording zone. The sectors per track allocation for each
zone is provided in Table 5-1.

Table 5-1 Quantum Bigfoot TX 4.0/6.0/8.0/12.0 AT Cylinder Contents

CYLINDER
CONTENT

System Data 0 20 0 224 76.55

User Data 1 766 0 - 765 403 141.73

System Data 15 68 11,490 - 11,558 N/A N/A

ZONE

2 766 766 - 1,531 398 140.05
3 766 1,532 - 2,297 395 139.18
4 766 2,298 - 3,063 387 136.47
5 766 3,064 - 3,829 379 133.48
6 766 3,830 - 4,595 369 129.94
7 766 4,596 - 5,361 360 126.63
8 766 5,362 - 6,127 350 122.98

9 766 6,128 - 6,893 338 119.22
10 766 6,894 - 7,659 327 115.16
11 766 7,660 - 8,425 315 110.85
12 766 8,426 - 9,191 302 106.39
13 766 9,192 - 9,957 289 101.82
14 766 9,958 - 10,723 274 96.66
15 766 10,724 - 11,489 261 91.29

NUMBER

1

TRACKS

OF

CYLINDER AREA

SECTORS

PER

TRACK

DATA RATE

(Mbit/s)

1. For user data, zone 15 is the innermost zone and zone 1 is the outermost zone.

Quantum Bigfoot TX 4.0/6.0/8.0/12.0 AT 5-3

Basic Principles of Operation

5.1.4 Headstack Assembly

The headstack assembly consists of read/write heads, an E-block and coil joined together
by insertion molding to form an E-block/coil subassembly, bearings, and a flex circuit.
Read/write heads mounted to spring-steel flexures are swage mounted onto the rotary
positioner assembly arms. The E-block is a single piece, die-cast design.

The flex circuit exits the HDA between the base casting and the cover. A cover gasket
seals the gap. The flex circuit connects the headstack assembly to the PCB. The flex
circuit contains a read preamplifier/write driver IC.

5.1.5 Rotary Positioner Assembly

The rotary positioner, or rotary voice-coil actuator, is a Quantum-proprietary design that
consists of an upper permanent magnet plate and lower flux plate bolted to the base
casting, a rotary single-phase coil molded around the headstack mounting hub, and a
bearing shaft. The single bi-polar magnet consists of two alternating poles and is bonded
to each magnet plate. A resilient crash stop prevents the heads from being driven into
the spindle or off the disk surface

Current from the power amplifier induces a magnetic field in the voice coil. Fluctuations
in the field around the permanent magnet cause the voice coil to move. The movement
of the voice coil positions the heads over the requested cylinder.

5.1.6 Automatic Actuator Lock

To ensure data integrity and prevent damage during shipment, the drive uses a dedicated
landing zone and Quantum’s patented Airlock
landing zone whenever the disks are not rotating. It consists of an air vane mounted near
the perimeter of the disk stack and a locking arm that restrains the actuator arm
assembly.

When DC power is applied to the motor and the disk stack rotates, the rotation generates
an airflow on the surface of the disk. As the flow of air across the air vane increases with
disk rotation, the locking arm pivots away from the actuator arm, enabling the headstack
to move out of the landing zone. When DC power is removed from the motor, an
electronic return mechanism automatically pulls the actuator into the landing zone,
where the Airlock holds it in place.

5.1.7 Air Filtration

The Quantum Bigfoot TX 4.0/6.0/8.0/12.0 AT hard disk drives are Winchester-type
drives. The heads fly very close to the media surface. Therefore, it is essential that the air
circulating within the drive be kept free of particles. Quantum assembles the drive in a
Class-100, purified air environment, then seals the drive with a metal cover. When the
drive is in use, the rotation of the disks forces the air inside of the drive through an
internal filter.

The highest air pressure within the HDA is at the outer perimeter of the disks. A constant
stream of air flows through a 0.3-micron circulation filter positioned in the base casting.
As illustrated in Figure 5-2, air flows through the circulation filter in the direction of disk
rotation. This design provides a continuous flow of filtered air when the disks rotate.



. The Airlock holds the headstack in the

5-4 Quantum Bigfoot TX 4.0/6.0/8.0/12.0 AT

Basic Principles of Operation

0.3-Micron

Circulation

Filter

Disk
Rotation

Air Flow

Figure 5-2 HDA Air Filtration

Quantum Bigfoot TX 4.0/6.0/8.0/12.0 AT 5-5

Basic Principles of Operation

5.2 DRIVE ELECTRONICS

Advanced circuit (Very Large Scale Integration) design and the use of miniature surface­mounted devices and proprietary VLSI components enable the drive electronics,
including the IDE bus interface, to reside on a single printed circuit board assembly
(PCBA).

Figure 5-3 contains a simplified block diagram of the Quantum Bigfoot TX 4.0/6.0/8.0/

12.0 AT hard disk drive electronics.
The only electrical component not on the PCBA is the PreAmplifier and Write Driver IC.

It is on the flex circuit (inside of the sealed HDA). Mounting the preamplifier as close as
possible to the read/write heads improves the signal-to-noise ratio. The flex circuit
(including the PreAmplifier and Write Driver IC) provides the electrical connection
between the PCB, the rotary positioner assembly, and read/write heads.

HARD DISK
ASSEMBLY

RDX RDY

PREAMP &
WRITE

WR DATA

DRIVER

HD SEL

VOICE

COIL

MOTOR

SPINDLE

MOTOR

PCB

VREF OUT

SPINDLE/VCM

POWER ASIC

RD DATA

WR DATA

µ CONTROLLER

ADDR

–RESET

VCM/Spindle Control

DATA

PWM

FILTER

READ/WRITE

ASIC

SERIAL

RD/WR DATA

BUS

SERIAL BUS

REF
CLK

DISK

CONTROLLER

and IDE

INTERFACE

ASIC

B ADDR B DATA

–POR

(0-7) (0-15)

DRAM

(64K X 16)

DATA (0-15)

IDE BUS

SCSI CONTROL BUS

–WE

Figure 5-3 Quantum Bigfoot TX 4.0/6.0/8.0/12.0 AT Hard Disk Drive Block Diagram

5-6 Quantum Bigfoot TX 4.0/6.0/8.0/12.0 AT

Basic Principles of Operation

5.2.1

µ Controller

The µ Controller provides local processor services to the drive electronics under program
control. The µ Controller manages the resources of the Disk Controller and IDE Interface
ASIC (Applied Specific Integrated Circuit), the Read/Write ASIC, and the Spindle/VCM
Driver. In addition, it controls the head selection process.

An internal 32 Kbyte ROM contained within the µ Controller provides program code that
the µ Controller executes to complete a drive spinup and recalibration procedure, after
which the µ Controller reads additional control code from the disk (DiskWare) and stores
it in the buffer DRAM (Dynamic Random Access Memory).

5.2.2 DCIIA

The DCIIA (Disk Controller and IDE Interface ASIC) shown in Figure 5-4 provides control
functions to the drive under the direction of the µ Controller.

HDA

PREAMP & WRITE

DRIVER

Burst Gates

DISK CONTROLLER &
IDE INTERFACE
ASIC (DCIIA)

READ/WRITE

ASIC

Serial Bus

RD/WR
Gates

RD/WR

Clock

Burst

RD/WR

Data

ACTUATOR

DRIVER

ADDRESS

ADDRESS/

DATA

µCONTROLLER

SERVO

CONTROLLER

PWM

µCONTROLLER

INTERFACE

BUFFER

CONTROLLER

B ADDR B DATA

BUFFER

DRAM

(64K x 16)

SERIAL

INTERFACE

Figure 5-4 DCIIA Block Diagram

FORMATTER

ECC

A/D

CONVERTER

IDE

INTERFACE

CONTROLLER

40 MHz

DATA

IDE BUS

COMMANDS

Quantum Bigfoot TX 4.0/6.0/8.0/12.0 AT 5-7

µ

Basic Principles of Operation

The DCIIA is a proprietary ASIC developed by Quantum. The DCIIA has eight functional
modules (described below):

• 8-bit A/D Converter

• Error Correction Control

• Sequencer

• Buffer Controller

• µ Controller Interface

• Servo Controller, including PWM

• Serial Interface

• IDE Interface Controller

5.2.2.1 A/D Converter

The Analog to Digital converter (A/D) receives multiplexed burst analog inputs from the
Read/Write ASIC. The A/D is used to sample the demodulated position information (burst
inputs) and convert it to a digital signal the Servo Controller uses to position the HDA
actuator.

5.2.2.2 Error Correction Control

The Error Correction Control block utilizes a Reed-Solomon encoder/decoder circuit that
is used for disk read/write operations. It uses a total of 28 redundancy bytes organized
as 24 ECC (Error Correction Code) bytes and four cross-check bytes. The ECC uses eight
bits per symbol and three interleaves. This allows triple-burst error correction of at least
65, and as many as 96 bits in error.

5.2.2.3 Formatter

The sequencer controls the operation of the read and write channel portions of the DCIIA.
To initiate a disk operation, the µ Controller loads a set of commands into the WCS
(writable control store) register. Loading and manipulating the WCS is done through the

Controller Interface registers.

The sequencer also directly drives the read and write gates (
ASIC and the R/W Preamplifier, as well as passing write data to the Precompensator
circuit in the Read/Write ASIC.

5.2.2.4 Buffer Controller

The buffer controller supports a 128 Kbyte buffer, which is organized as 64 K x 16 bits.
The 16-bit width implementation provides a 60 MB/s maximum buffer bandwidth. This
increased bandwidth allows the µ Controller to have direct access to the buffer,
eliminating the need for a separate µ Controller RAM IC.

The buffer controller supports both drive and host address rollover and reloading, to
allow for buffer segmentation. Drive and host addresses may be separately loaded for
automated read/write functions.

RG

WG

,

) of the Read/Write

The Buffer Controller operates under the direction of the µ Controller.

5-8 Quantum Bigfoot TX 4.0/6.0/8.0/12.0 AT

µ

µ

Basic Principles of Operation

5.2.2.5

Controller Interface

The µ Controller Interface provides the means for the µ Controller to read and write data
to the DCIIA modules to control their operation, or supply them with needed information.
It consists of both physical and logical components.

The physical component of the interface comprises the 16-bit MAD (Multiplexed
Address/Data) bus, four additional address lines, read and write strobe, an address latch
enable (ALE) signal, and a wait control line.

The logical component of the interface comprises internal control and data registers
accessible to the µ Controller. By writing and reading these registers, the µ Controller loads
the Sequencer, controls and configures the Buffer controller, and passes coded servo
information to the Servo Controller.

5.2.2.6 Servo Controller

The Servo Controller contains a 13-bit Digital to Analog converter (D/A), in the form of
a Pulse Width Modulator (PWM). The PWM signal is output to the Actuator Driver to
control the motion of the actuator. The Servo Controller also decodes raw data from the
disk to extract the current position information. The position information is read by the

Controller, and is used to generate the actuator control signal that is sent to the PWM.
The actuator driver is an analog power amplifier circuit external to the DCIIA. The Servo
Controller operates under the direction of the µ Controller.

5.2.2.7 Serial Interface

The Serial Interface provides a high speed Read/Write interface path to the Read/Write
ASIC under the direction of the µ Controller.

5.2.2.8 IDE Interface Controller

The IDE Interface Controller portion of the DCIIA provides data handling, bus control,
and transfer management services for the IDE interface. Configuration and control of the
interface is accomplished by the µ Controller across the MAD bus. Data transfer
operations are controlled by the DCIIA Buffer Controller module.

Quantum Bigfoot TX 4.0/6.0/8.0/12.0 AT 5-9

Basic Principles of Operation

5.2.3 Read/Write ASIC

The Read/Write ASIC shown in Figure 5-5 provides write data precompensation and read
channel processing functions for the drive. The Read/Write ASIC receives the RD GATE
signal, reference oscillator, serial programming, and servo burst and sample gates from
the DCIIA. The Read/Write ASIC sends decoded read data and the read reference clock,
and receives write data from the DCIIA. This a highly integrated circuit which is
completely under digital control from the DCIIA.

The Read/Write ASIC comprises 11 main functional modules (described below):

• Pre-Compensator

• Variable Gain Amplifier (VGA)

• Butterworth Filter

• FIR Filter

• Flash A/D Converter

• Viterbi Detector

• ENDEC

• Servo Detector and Sample/Hold

• Clock Synthesizer

• PLL

• Serial Interface

PREAMP

&

WRITE

HDA

SERIAL

INTERFACE

DCIIA

INTERFACE

SERIAL

VGA

WRITE

PREAMP

SYNTHESIZER

BUTTERWORTH

CLOCK

SEQUENCER

FILTER

CONTROLLER

FILTER

ENDEC

PLL

SERVO

Figure 5-5 Read/Write ASIC Block Diagram

READ/WRITE ASIC

FIR

SERVO DETECTOR

CONVERTER

FLASH

ADC

VITERBI

DETECTOR

SAMPLE/HOLD

A/D

5-10 Quantum Bigfoot TX 4.0/6.0/8.0/12.0 AT

5.2.3.1 Pre-Compensator

The pre-compensator introduces pre-compensation to the write data received from the
sequencer module in the DCIIA. The pre-compensated data is then passed to the R/W Pre­Amplifier and written to the disk. Pre-compensation reduces the write interference from
adjacent write bit.

5.2.3.2 Variable Gain Amplifier (VGA)

Digital and analog controlled AGC function with input attenuator for extended range.

5.2.3.3 Butterworth Filter

Continuous time data filter which can be programmed for each zone rate.

5.2.3.4 FIR Filter

Digitally controlled and programmable filter for partial response signal conditioning.

5.2.3.5 Flash A/D Converter

Provides very high speed digitization of the processed read signal.

Basic Principles of Operation

5.2.3.6 Viterbi Detector

Decodes ADC result into binary bit stream.

5.2.3.7 ENDEC

Provides 16/17 code conversion to NRZ. Includes preamble and sync mark generation
and detection.

5.2.3.8 Servo Detector and Sample/Hold

Peak detection with weighted averaging and multiple sample and hold of servo bursts.

5.2.3.9 Clock Synthesizer

Provides programmable frequencies for each zone data rate.

5.2.3.10 PLL

Provides digital read clock recovery.

5.2.3.11 Serial Interface

High speed interface for digital control of all internal blocks.

5.2.4 PreAmplifier and Write Driver

The PreAmplifier And Write Driver provides write driver and read pre-amplifier
functions, and R/W head selection. The write driver receives precompensated write data
from the PreCompensator module in the Read/Write ASIC. The write driver then sends
this data to the heads in the form of a corresponding alternating current. The read pre­amplifier amplifies the low-amplitude differential voltages generated by the R/W heads
and transmits them to the VGA module in the Read/Write ASIC. Head select is determined
by the µ Controller.

Quantum Bigfoot TX 4.0/6.0/8.0/12.0 AT 5-11

Basic Principles of Operation

5.3 SERVO SYSTEM

5.3.1 General Description

The servo system controls the positioning of the read/write heads and holds the read/
write heads on track during read/write operations. The servo system also compensates for
thermal offsets between heads on different surfaces, and any shock and vibration the
drive is subjected to.

The Quantum Bigfoot TX 4.0/6.0/8.0/12.0 AT hard disk drives use a sectored servo
system. Positioning information is radially encoded in evenly-spaced servo bursts on
each track. These servo burst wedges provide radial position information for each data
head. Because the drive uses multiple zone recording, where each zone has a different bit
density, split data fields are necessary to optimally utilize the non-servo area of the disk.
The split data fields are achieved by special processing through the DCIIA, and their
presence is transparent to the host system. The servo area remains phase coherent across
the surface of the disk, even though the disk is divided into various data zones. The main
advantage of the sectored servo systems is that the data heads are also servo heads, which
means that sectored servo systems eliminate the problems of static and dynamic offsets
between heads on different surfaces.

The Quantum Bigfoot TX 4.0/6.0/8.0/12.0 AT hard disk drive servo system is also
classified as a digital servo because track following compensation is done in firmware.
The bump detect, on-track, velocity profiles, and other “housekeeping” tasks are also
done in firmware.

Magneto-Resistive (MR) head technology is used to achieve high tracks per inch (TPI).
MR technology employs separate read and write elements, which are not guaranteed to
have colinear track centers with respect to a line drawn tangent to any of the concentric
tracks. For this reason, the servo system is designed to track at different locations for read
and write operations to maximize signal and minimize adjacent track interference,
respectively.

The A, B, C, and D bursts are written in two passes per track in 1/2 track steps. Non­linearities associated with narrow MR read stripe versus pitch are calibrated out by a
series of special factory written wedges called Hawk tracks. Fine position is decoded by
using the A-B phase around even track centers and C-D around odd track centers. With
reference to even track center, B-C is used around the +50% offset and A-D is used
around -50% offset. Two calibrated slopes are used, one for A-B and C-D and one for B­C and A-D.

5.3.2 Servo Burst and Track Information

Positional information is encoded on all tracks on all data surfaces. All data heads are
also servo heads. The areas with servo/position information are called wedge areas. These
wedge areas are evenly spaced radially around the disk, like spokes on a wheel.

Every wedge consists of five separate fields:

1. Automatic Gain Control (AGC)

2. Sync

3. Servo Address Mark (SAM)

4. Track Number

5. Burst Area

5-12 Quantum Bigfoot TX 4.0/6.0/8.0/12.0 AT

Because a phase-lock-loop is not used in the servo wedge area, time discrimination is
used. Timing for all four fields is generated from the same crystal reference. The clock
has a period of 25 ns, and will be referred to as T. Data is encoded in the following
manner:

Servo Data Bit “0” = 10 000 010 0
Servo Data Bit “1” = 10 010 000 0
Because each digit has a width of T, the length of a servo bit is 9T.

5.4 READ AND WRITE OPERATIONS

The following paragraphs provide descriptions of the read channel, write channel, and
IDE interface control operations.

5.4.1 The Read Channel

The drive has one read/write head for each data surface (two for the Quantum Bigfoot TX

4.0 AT drive, three for the Quantum Bigfoot TX 6.0 AT drive, four for the Quantum
Bigfoot TX 8.0 AT drive, and six for the Quantum Bigfoot TX 12.0 AT). The signal path
for the read channel begins at the read/write heads. As the magnetic flux transitions
recorded on a disk pass under a head, they generate low-amplitude, differential output
voltages. These read signals pass from the read/write head to the flex circuit's read
preamplifier, which amplifies the signal. To ensure a high signal to noise ratio,
preamplification occurs on the flex circuit because of its proximity to the heads.

Basic Principles of Operation

The flex circuit transmits the preamplified signal from the HDA to the drive PCB. On the
PCB, the Read/Write ASIC further processes the read signal to reduce ambiguities (for
example, drop-ins, drop-outs, and peak shift). In addition, it converts the signal from the
serial encoded head data to a synchronized data stream, with its accompanying clock.
The Read/Write ASIC then sends the resynchronized and decoded data output to
Quantum's proprietary Disk Controller and IDE Interface ASIC (DCIIA).

The DCIIA manages the flow of data between on the Read/Write ASIC and its IDE
Interface Controller. It also controls data access for the external RAM buffer. The DCIIA
format provides a serial bit stream. This NRZ (Non-Return to Zero) serial data is converted
to an 8-bit byte. The Sequencer module identifies the data as belonging to the target
sector. Data is presented to the host in a 16-bit word.

After a full sector is read, the DCIIA checks to see if the firmware needs to apply ECC on­the-fly or single-, double-, or triple-burst correction to the data. The buffer controller
section of the DCIIA stores the data in the Cache and transmits the data to the IDE
Interface Controller module, which transmits the data to the IDE bus.

5.4.2 The Write Channel

For the write channel, the signal path follows the reverse order of that for the read
channel. The host presents a 16-bit word of data, by means of the IDE bus, to the DCIIA
IDE Interface Controller. The Buffer Controller section of the DCIIA stores the data in the
cache. Because data can be presented to the drive at a rate that exceeds the rate at which
the drive can write data to a disk, data is stored temporarily in the cache. Thus, the host
can present data to the drive at a rate that is independent of the rate at which the drive
can write data to the disk.

Upon correct identification of the target address, the data is shifted to the Sequencer
where an error correcting code is generated and appended. The Sequencer then converts

Quantum Bigfoot TX 4.0/6.0/8.0/12.0 AT 5-13

Basic Principles of Operation

the bytes of data to a serial bit stream. The DCIIA transmits the data to the Read/Write
ASIC where the data is encoded and precompensated to reduce intersymbol interference.
The data is then transmitted to the Write Driver by means of the write data lines.

The drive's DCIIA switches the Preamplifier Write Driver IC to write mode and selects a
head. Once the Write driver receives a write gate signal, it transmits current reversals to
the head, which induces magnetic transitions on the disk.

5.4.3 Interface Control

The interface with the host system is through a 40-pin IDE interface connector. The DCIIA
IDE Interface Controller module implements the IDE interface logic. Operating under the
drive's µ processor control, the DCIIA receives and transmits words of data over the IDE
bus.

The DCIIA Buffer Controller writes data to or reads data from the Cache over 16 data
lines. Under µ Controller direction, the DCIIA controls the transfer of data and handles
the addressing of the Cache. The internal data transfer rate to and from the Cache is

33.33 MB/s. This high transfer rate allows the DCIIA to communicate over the IDE
interface at a PIO data transfer rate of 6.67 MB/s without using IORDY, up to 16.67
MB/s with PIO using IORDY, or a DMA transfer rate of up to 33.33 MB/s using Ultra
DMA while it simultaneously controls disk-to-RAM transfers and microcontroller
access to control code stored in the buffer RAM.

5.5 FIRMWARE FEATURES

This section describes the following firmware features:

• Disk caching

• Track and cylinder skewing

• Error detection and correction

• Defect management

5.5.1 Disk Caching

The Quantum Bigfoot TX 4.0/6.0/8.0/12.0 AT hard disk drives incorporate DisCache, a
70 K disk cache, to enhance drive performance. This integrated feature is user­programmable and can significantly improve system throughput. Read and write
caching can be enabled or disabled by using the Set Configuration or Set Features
command.

5.5.1.1 Adaptive Caching

The cache buffer for the Quantum Bigfoot TX drives feature adaptive segmentation for
more efficient use of the buffer’s RAM. With this feature, the buffer space used for read
and write operations is dynamically allocated. The cache can be flexibly divided into
several segments, under program control. Each segment contains one cache entry.

A cache entry consists of the requested read data plus its corresponding prefetch data.
Adaptive segmentation allows the drive to make optimum use of the buffer, the amount
of stored data can be increased.

5.5.1.2 Read Cache

DisCache anticipates host-system requests for data and stores that data for faster access.
When the host requests a particular segment of data, the caching feature uses a prefetch
strategy to “look ahead” and automatically store the subsequent data from the disk into

5-14 Quantum Bigfoot TX 4.0/6.0/8.0/12.0 AT

Basic Principles of Operation

high-speed RAM. If the host requests this subsequent data, the RAM is accessed rather
than the disk.

Since typically 50 percent or more of all disk requests are sequential, there is a high
probability that subsequent data requested will be in the cache. This cached data can be
retrieved in microseconds rather than milliseconds. As a result, DisCache can provide
substantial time savings during at least half of all disk requests. In these instances,
DisCache could save most of the disk transaction time by eliminating the seek and
rotational latency delays that dominate the typical disk transaction. For example, in a 1K
data transfer, these delays make up to 90 percent of the elapsed time.

DisCache works by continuing to fill its cache memory with adjacent data after
transferring data requested by the host. Unlike a noncaching controller, Quantum’s disk
controller continues a read operation after the requested data has been transferred to the
host system. This read operation terminates after a programmed amount of subsequent
data has been read into the cache segment.

The cache memory consists of an 70 K DRAM buffer allocated to hold the data, which
can be directly accessed by the host by means of the READ and WRITE commands. The
memory functions as a group of segments (ring buffers) with rollover points at the end
of each segment (buffer). The unit of data stored is the logical block (that is, a multiple
of the 512 byte sector). Therefore, all accesses to the cache memory must be in multiples
of the sector size.The following commands force emptying of the cache:

• RESET

• WRITE LONG

• EXECUTE DRIVE DIAGNOSTIC

• FORMAT TRACK

• READ CONFIGURATION

• READ DEFECT LIST

• READ LONG

• IDENTIFY DRIVE

• SET CONFIGURATION

• WRITE BUFFER

• SLEEP

5.5.1.3 Write Cache

When a write command is executed with write caching enabled, the drive stores the data
to be written in a DRAM cache buffer and immediately sends a GOOD STATUS message
to the host before the data is actually written to the disk. The host is then free to move
on to other tasks, such as preparing data for the next data transfer, without having to
wait for the drive to seek to the appropriate track or rotate to the specified sector.

While the host is preparing data for the next transfer, the drive immediately writes the
cached data to the disk, usually completing the operation in less than 20 ms after issuing
GOOD STATUS. With WriteCache, a single-block, random write, for example, requires
only about 3 ms of host time. Without WriteCache, the same operation would occupy the
host for about 20 ms.

WriteCache allows data to be transferred in a continuous flow to the drive rather than as
individual blocks of data separated by disk access delays. This is achieved by taking
advantage of the ability to write blocks of data sequentially on a disk that is formatted
with a 1:1 interleave. This means that as the last byte of data is transferred out of the

Quantum Bigfoot TX 4.0/6.0/8.0/12.0 AT 5-15

Basic Principles of Operation

write cache and the head passes over the next sector of the disk, the first byte of the of
the next block of data is ready to be transferred, thus there is no interruption or delay in
the data transfer process.

The WriteCache algorithm fills the cache buffer with new data from the host while
simultaneously transferring the data to the disk that the host previously stored in the
cache.

5.5.1.4 Performance Benefits

In a drive without DisCache, there is a delay during sequential reads because of the
rotational latency even if the disk actuator already is positioned at the desired cylinder.
DisCache eliminates this rotational latency time (7.50 ms on average) when requested
data resides in the cache.

Moreover, the disk must often service requests from multiple processes in a multitasking
or multiuser environment. In these instances, while each process might request data
sequentially, the disk drive must share time among all these processes. In most disk
drives, the heads must move from one location to another. With DisCache, even if
another process interrupts, the drive continues to access the data sequentially from its
high-speed memory. In handling multiple processes, DisCache achieves its most
impressive performance gains, saving both seek and latency time when desired data
resides in the cache.

The cache can be flexibly divided into several segments, under program control. Each
segment contains one cache entry. A cache entry consists of the requested read data plus
its corresponding prefetch data.

The requested read data takes up a certain amount of space in the cache segment so the
corresponding prefetch data can essentially occupy the rest of the space within the
segment. The other factors determining prefetch size are the maximum and minimum
prefetch. The drive’s prefetch algorithm dynamically controls the actual prefetch value
based on the current demand, with the consideration of overhead to subsequent
commands.

5.5.2 Track and Cylinder Skewing

Track and cylinder skewing in the Quantum Bigfoot TX 4.0/6.0/8.0/12.0 AT drives
minimizes latency time and thus increases data throughput.

5.5.2.1 Track Skewing

Track skewing reduces the latency time that results when the drive must switch read/
write heads to access sequential data. A track skew is employed such that the next logical
sector of data to be accessed will be under the read/write head once the head switch is
made and the data is ready to be accessed. Thus, when sequential data is on the same
cylinder but on a different disk surface, a head switch is needed but not a seek. Since the
sequential head-switch time is well defined on the Quantum Bigfoot TX 4.0/6.0/8.0/12.0
AT drives, the sector addresses can be optimally positioned across track boundaries to
minimize the latency time during a head switch. See Table 5-2.

5.5.2.2 Cylinder Skewing

Cylinder skewing also is used to minimize the latency time associated with a single­cylinder seek. The next logical sector of data that crosses a cylinder boundary is
positioned on the drive such that after a single-cylinder seek is performed, and when the
drive is ready to continue accessing data, the sector to be accessed is positioned directly
under the read/write head. Therefore, the cylinder skew takes place between the last
sector of data on the last head of a cylinder and the first sector of data on the first head
of the next cylinder. Since the wedge-to-wedge time is constant over the entire disk, a

5-16 Quantum Bigfoot TX 4.0/6.0/8.0/12.0 AT

Basic Principles of Operation

single set of track and cylinder skew offsets will fulfill the requirement for all recording
zones. See Table 5-2.

Table 5-2 Track and Cylinder Skews

Note: 1. A wedge-to-wedge time of 133.929 µ s is used, calculated using

5.5.2.3 ID-less Format

The Quantum Bigfoot TX 4.0/6.0/8.0/12.0 AT hard disk drives utilize an ID-less format.
The ID-less format has several advantages over the traditional “ID After Wedge” or “ID
Before Sector” methods of tracking the location of the actuator. For example, the lack of
an ID field written on the disk gains approximately 4% of the overall track “real estate,”
which increases the total capacity. Secondly, since no IDs have to be read or corrected in
case of an error, overall throughput is increased

In the ID-less environment, the track and cylinder skewing is based on units of wedges
instead of the traditional sectors. The DCIIA ASIC contains a “Wedge Skew Register” to
assist the task of skewing where the skew offset must now be calculated with every read/
write operation. The firmware programs the skew offset into this register every time the
drive goes to a new track. The DCIIA ASIC then adds this value to the wedge number in
the sector descriptor, effectively relocating the “first sector” of the track away from the
index. For example, if, without skew, sector 0 is to be found following wedge 0, then if
the skew register is set to 10, sector will be found following wedge 10.

Skew T ype Switch

Time

W edge

Offset

Track Skew 3.5 ms 26 ms

Cylinder Skew 4.0 ms 30 ms

worst-case spindle variation (-0.25%) to provide a safety margin.

2. Wedge offsets are rounded up.

5.5.3 Error Detection and Correction

As disk drive areal densities increase, obtaining extremely low error rates requires a new
generation of sophisticated error correction codes. Quantum Bigfoot TX 4.0/6.0/8.0/12.0
AT hard disk drive series implement 224-bit triple-burst Reed-Solomon error correction
techniques to reduce the uncorrectable read error rate to less than one bit in 1 x 10
read.

When errors occur, an automatic retry, a double-burst, and a more rigorous triple-burst
correction algorithm enable the correction of any sector with three bursts of four
incorrect bytes each, or up to 12 multiple random one-byte burst errors. In addition to
these advanced error correction capabilities, the drive uses an additional cross-checking
code and algorithm, to double check the main ECC correction. This greatly reduces the
probability of a miscorrection.

Quantum Bigfoot TX 4.0/6.0/8.0/12.0 AT 5-17

14

bits

Basic Principles of Operation

5.5.3.1 Background Information on Error Correction Code and ECC On-the-Fly

A sector on the Quantum Bigfoot TX 4.0/6.0/8.0/12.0 AT drive is comprised of 512 bytes
of user data, followed by four cross-checking (XC) bytes (32 bits), followed by 24 ECC
check bytes (192 bits). The four cross-checking bytes are used to double check the main
ECC correction and reduce the probability of miscorrection. Errors of up to 64 bits within
one sector can be corrected “on-the-fly,” in real time as they occur, allowing a high
degree of data integrity with no impact on the drive’s performance.

The drive does not need to re-read a sector on the next disk revolution or apply ECC for
those errors that are corrected on-the-fly. Errors corrected in this manner are invisible to
the host system.

When errors cannot be corrected on-the-fly, an automatic retry, and a more rigorous
triple-burst error correction algorithm enables the correction of any sector with three
bursts of four incorrect bytes each (up to 12 contiguous bytes), or up to 12 multiple
random one-byte burst errors. In addition to this error correction capability, the drive’s
implementation of an additional cross-checking code and algorithm double checks the
main ECC correction, and greatly decreases the likelihood of miscorrection.

The 24 ECC check bytes shown in Figure 5-6 are used to detect and correct errors. The
cross-checking and ECC data is computed and appended to the user data when the sector
is first written.

12345

d 1d 2d 3d 4d 5

512 data bytes 24 ECC bytes

Figure 5-6 Sector Data Field with ECC Check Bytes

To obtain the ECC check byte values, each byte (including cross-checking and ECC bytes)
within the sector is interleaved into one of three groups, where the first byte is in
interleave 1, the second byte is in interleave 2, the third byte is in interleave 3, the fourth
byte is in interleave 1, the fifth byte is in interleave 2, and so on, as shown in Figure 5-7.

d1

Interleave 1
Interleave 2
Interleave 3

Interleave 4

d5

d2

d6

d3

d4 d8 d511 xc3 ecc3 ecc7 ecc11 ecc15• • • • ecc19 ecc23

• • • •

d7

Note: ECC interleaving is not the same as the sector interleaving that is

done on the disk.

512 513 516

d 512 xc 1

cross-check

d508

• • • •

d509

d512

d510

xc1

xc2

xc4

ecc4

ecc1

ecc2

Figure 5-7 Byte Interleaving

4

bytes

ecc5

ecc6

xc 2 • • • •• • • • • •

ecc8

ecc9

ecc10

ecc12

ecc13

518517

ecc 2ecc 1

ecc16

ecc14

ecc17

ecc18

ecc20

ecc21

540

ecc 24

ecc24• • • •

ecc22

5-18 Quantum Bigfoot TX 4.0/6.0/8.0/12.0 AT

Basic Principles of Operation

Each of the four interleaves is encoded with six ECC bytes, resulting in the 24 ECC bytes
at the end of the sector. The four cross checking bytes are derived from all 512 data bytes.
The combination of the interleaving, and the nature of the ECC formulas enable the drive
to know where the error occurs.

Because the ECC check bytes follow the cross checking bytes, errors found within the
cross-checking bytes can be corrected. Due to the power and sophistication of the code,
errors found within the ECC check bytes can also be corrected.

Each time a sector of data is read, the Quantum Bigfoot TX 4.0/6.0/8.0/12.0 AT drives
will generate a new set of ECC check bytes and cross-checking bytes from the user data.
These new check bytes are compared to the ones originally written to the disk. The
difference between the newly computed and original check bytes is reflected in a set of
24 syndromes and four cross checking syndromes, which correspond to the number of
check bytes. If all the syndrome values equal zero, the data was read with no errors, and
the sector is transferred to the host system. If any of the syndromes do not equal zero, an
error has occurred. The type of correction the drive applies depends on the nature and
the extent of the error.

High speed on-the-fly error correction saves several milliseconds on each single-, or
double- burst error, because there is no need to wait for a disk revolution to bring the
sector under the head for re-reading.

Correction of Single-, or Double-Burst Errors On-the-Fly

Single-burst errors may have up to four erroneous bytes (32 bits) within a sector,
provided that each of the four bytes occur in a different interleave.

The Quantum Bigfoot TX 4.0/6.0/8.0/12.0 AT drives have the capability to correct
double-burst errors on-the-fly as well. Double-burst errors can be simply viewed as two
spans of errors within one sector. More specifically, correctable double-burst errors must
have two or fewer erroneous bytes per interleave.

The drive’s Reed-Solomon ECC corrects double-burst errors up to 64 bits long, (provided
that the error consists of two or fewer bytes residing in each of the interleaves).

Quantum Bigfoot TX 4.0/6.0/8.0/12.0 AT 5-19

Basic Principles of Operation

Double-Burst Error Examples

In the example shown in Figure 5-8 C, the 58-bit error is uncorrectable since it occupies
more than two erroneous bytes per interleave.

The other two 64-bit errors, shown in Figure 5-8 A and B, are correctable because no
more than two error bytes of the entire error reside in any one of the interleaves.

Note: Any 57-bit error burst can be corrected on-the-fly using double-

Byte 1

• • •

Interleave

A

3

Interleave

4

32 bits 32 bits

burst error correction because no more than two bytes can occupy
each interleave.

CORRECTABLE

Interleave1Interleave

2

Interleave1Interleave2Interleave

• • •
3

Interleave

4

Byte 526

• • •

Byte 1

B

Byte 1

C

• • •

CORRECTABLE (On-the-Fly)

• • •

Interleave2Interleave

• • •

Interleave2Interleave

3

Interleave1Interleave2Interleave3Interleave

4

4

Interleave

1

64 bits

UNCORRECTABLE

Interleave2Interleave

3

Interleave

Interleave1Interleave2Interleave3Interleave

4

Interleave1Interleave

4

56 bits

1 bit

1 bit

Figure 5-8 Correctable and Uncorrectable Double-Burst Errors

Correction of Triple-Burst Errors

Through sophisticated algorithms, Quantum Bigfoot TX 4.0/6.0/8.0/12.0 AT drives have
the capability to correct triple-burst errors, even though the probability of their
occurrence is low. Triple-burst errors can be simply viewed as three spans of errors within
one sector. More specifically, correctable triple-burst errors must have three or fewer
erroneous bytes per interleave, and will not be corrected on-the-fly.

The drive’s Reed-Solomon ECC corrects triple-burst errors up to 96 bits long, (provided
that the error consists of three or fewer bytes residing in each of the interleaves).

If the triple-burst correction is successful, the data from the sector can be written to a
spare sector, and the logical address will be mapped to the new physical location.

Byte 526

• • •

2

Byte 526

• • •

5-20 Quantum Bigfoot TX 4.0/6.0/8.0/12.0 AT

Triple-Burst Error Examples

Interleave1Interleave2Interleave

A

Interleave1Interleave2Interleave

B

32 bits

Interleave1Interleave2Interleave

C

Basic Principles of Operation

In the example shown in Figure 5-9 C, the 90-bit error is uncorrectable since it occupies
more than three erroneous bytes per interleave.

The other two 96-bit errors, shown in Figure 5-9 A and B, are correctable because no
more than three error bytes of the entire error reside in any one of the interleaves.

Note: Any 89-bit error burst can be corrected using triple-burst error

correction because no more than three bytes can occupy each in­terleave.

CORRECTABLE

Interleave

3

Interleave

3

4

Interleave

3

4

Interleave

4

Interleave2Interleave3Interleave

1

96 bits

CORRECTABLE

Interleave1Interleave2Interleave

• • •

UNCORRECTABLE

Interleave

Interleave2Interleave

1

88 bits

32 bits

3

3

Interleave

4

Interleave1Interleave2Interleave3Interleave

4

Interleave

4

Interleave

1

Interleave1Interleave2Interleave

• • •

Interleave2Interleave3Interleave4Interleave

32 bits

4

Interleave

3

4

1

1 bit

1 bit

Figure 5-9 Correctable and Uncorrectable Triple-Burst Errors

Quantum Bigfoot TX 4.0/6.0/8.0/12.0 AT 5-21

Basic Principles of Operation

Multiple Random Burst Errors

The drive’s ECC can correct up to 96 bits of multiple random errors, provided that the
incorrect bytes follow the guidelines for correctable triple-burst errors. Up to 64 bits of
multiple random errors can be corrected on-the-fly, provided that the incorrect bytes
follow the guidelines for correctable double-burst errors. Up to 24 bits of multiple
random errors can be corrected on-the-fly if two bytes per interleave contains an error.
If more than three bytes in any one interleave are in error, the sector cannot be corrected.
Figure 5-10 shows an example of a correctable random burst error consisting of 12 bytes
(96 bits). This random burst error is correctable because no more than three bytes within
each interleave are in error.

INTERLEAVE 1

1
5
9

•

•

•

85
89
93

•

•

•

INTERLEAVE 2

2
6

10

•

•

•

86
90
94

•

•

•

INTERLEAVE 3

3
7

11

•

•

•

87
91
95

•

•

•

INTERLEAVE 4

4
8

12

•

•

•

88
92
96

•

•

•

505

506
510 511509 512

513 XC 515 XC

•

•

•

BYTE CONTAINING AN ERROR

Figure 5-10 Nine Correctable Random Burst Errors

5-22 Quantum Bigfoot TX 4.0/6.0/8.0/12.0 AT

514 XC

•

•

•

507

•

•

•

508

516 XC

•

•

•

5.5.3.2 ECC Error Handling

When a data error occurs, the Quantum Bigfoot TX 4.0/6.0/8.0/12.0 AT hard disk drives
check to see if the error is correctable on-the-fly. This process takes about 200 µs. If the
error is correctable on-the-fly, the error is corrected and the data is transferred to the host
system.

If the data is not correctable on-the-fly, the sector is re-read in an attempt to read the
data correctly without applying the triple-burst ECC correction. Before invoking the
complex triple-burst ECC algorithm, the drive will always try to recover from an error by
attempting to re-read the data correctly. This strategy prevents invoking correction on
non-repeatable errors. Each time a sector in error is re-read a set of ECC syndromes is
computed. If all of the syndrome values equal zero, the data was read with no errors, and
the sector is transferred to the host system. If any of the syndrome values do not equal
zero, an error has occurred, the syndrome values are retained, and another re-read is
invoked.

Note: Non-repeatable errors are usually related to the signal to noise ratio

of the system. They are not due to media defects.

When the sets of syndromes from two consecutive re-reads are the same, a stable
syndrome has been achieved. This event may be significant depending on whether the
automatic read reallocation or early correction features have been enabled. If the early
correction feature has been enabled and a stable syndrome has been achieved, triple­burst ECC correction is applied, and the appropriate message is transferred to the host
system (e.g., corrected data, etc.).

Basic Principles of Operation

Note: These features can be enabled or disabled through the ATA Set

Configuration command. The EEC bit enables early ECC triple-burst
correction if a stable syndrome has been achieved before all of the
re-reads have been exhausted. The ARR bit enables the automatic
reallocation of defective sectors.

If the automatic read reallocation feature is enabled, the drive, when encountering triple­burst errors, will attempt to re-read up to 8 times the retry count set in the AT
Configuration bytes.

Note: The Quantum Bigfoot TX 4.0/6.0/8.0/12.0 AT drives are shipped

from the factory with the automatic read reallocation feature en­abled so that any new defective sectors can be easily and automat­ically reallocated for the average AT end user.

5.5.4 Defect Management

The Quantum Bigfoot TX 4.0/6.0/8.0/12.0 AT drives allocate thousands of sectors at the
end of the physical drive to accommodate inline sparing of defective sectors. In the
factory, the media is scanned for defects. If a sector is found to be defective, the address
of the sector is added to the drive’s defect list. Sectors located physically subsequent to
the defective sector are assigned logical block addresses such that a sequential ordering
of logical blocks is maintained. The inline sparing technique is maintained in an attempt
to eliminate slow data transfer that would result from a single defective sector on a
cylinder. All factory defective sectors are inline spared.

Defects that occur in the field are known as grown defects. If such a defective sector is
found in the field, inline sparing is not performed on these grown defects. Instead, the
sector is reallocated to an available spare sector on a nearby cylinder.

Quantum Bigfoot TX 4.0/6.0/8.0/12.0 AT 5-23

Basic Principles of Operation

Sectors are considered to contain grown defects if the triple-burst ECC algorithm must
be applied to recover the data. If this algorithm is successful, the corrected data is stored
in the newly allocated sector. If the algorithm is not successful, a pending defect will be
added to the defect list. Any subsequent read to the original logical block will return an
error if the read is not successful. A host command to over-write the location will result
in 10 write/read/verifies of the suspect location. If any of the 10 write/read/verifies fail,
the new data will be written to a spare sector, and the original location will be added to
the permanent defect list. If all 10 write/read/verifies pass, data will be written to the
location, and the pending defect will be removed from the list.

5-24 Quantum Bigfoot TX 4.0/6.0/8.0/12.0 AT

Chapter 6

IDE BUS INTERFACE AND ATA COMMANDS

This chapter describes the interface betweenQuantum Bigfoot TX 4.0/6.0/8.0/12.0 AT
hard disk drives and the IDE bus. The commands that are issued from the host to control
the drive are listed, as well as the electrical and mechanical characteristics of the
interface.

6.1 INTRODUCTION

Quantum Bigfoot TX 4.0/6.0/8.0/12.0 AT hard disk drives use the standard IBM PC IDE
bus interface, and are compatible with systems that provide an IDE interface connector
on the motherboard. It may also be used with a third-party adapter board in systems that
do not have a built-in IDE adapter. The adapter board plugs into a standard 16-bit
expansion slot in an AT-compatible computer. A cable connects the drive to the adapter
board.

6.2 SOFTWARE INTERFACE

The Quantum Bigfoot TX 4.0/6.0/8.0/12.0 AT drives are controlled by the Basic Input/
Output System (BIOS) program residing in an IBM PC AT, or compatible PC. The BIOS
communicates directly with the drive’s built-in controller. It issues commands to the drive
and receives status information from the drive.

6.3 MECHANICAL DESCRIPTION

6.3.1 Drive Cable and Connector

The hard disk drive connects to the host computer by means of a cable. This cable has a
40-pin connector that plugs into the drive, and a 40-pin connector that plugs into the
host computer. At the host end, the cable plugs into either an adapter board residing in
a host expansion slot or an on-board IDE adapter.

6.4 ELECTRICAL INTERFACE

6.4.1 IDE Bus Interface

A 40-pin IDE interface connector on the motherboard or an adapter board provides an
interface between the drive and a host that uses an IBM PC AT bus. The IDE interface
contains bus drivers and receivers compatible with the standard AT bus. The AT-bus
interface signals D8–D15, INTRQ, and IOCS16– require the IDE adapter board to have an
extended I/O-bus connector.

The IDE interface buffers data and control signals between the drive and the AT bus of
the host system, and decodes addresses on the host address bus. The Command Block
Registers on the drive accept commands from the host system BIOS.

Quantum Bigfoot TX 4.0/6.0/8.0/12.0 AT 6-1

IDE Bus Interface and ATA Commands

Note: Some host systems do not read the Status Register after the drive

issues an interrupt. In such cases, the interrupt may not be
acknowledged. To overcome this problem, you may have to
configure a jumper on the motherboard or adapter board to allow
interrupts to be controlled by the drive’s interrupt logic. Read your
motherboard or adapter board manual carefully to find out how to
do this.

6.4.1.1 Electrical Characteristics

All signals are transistor-transistor logic (TTL) compatible—with logic 1 greater than 2.0
volts and less than 5.25 volts; and logic 0 greater than 0.0 volts and less than 0.8 volts.
Neither the adapter board, motherboard interface, or drives require terminating resistors
when drive is operating in PIO and standard DMA modes.

Note: Series termination resistors are required at both the host and the

device for operation in any of the Ultra DMA/33 modes. Table 6-2
describes recommended values for series termination at the host
and the device.

6.4.1.2 Drive Signals

The drive connector (J1, section C) connects the drive to an adapter board or onboard IDE
adapter in the host computer. J1, section C is a 40-pin shrouded connector with two rows
of 20 pins on 100-mil centers. J1 has been keyed by removing pin 20. The connecting
cable is a 40-conductor flat ribbon cable, with a maximum length of 18 inches.

Table 6-1 describes the signals on the drive connector (J1, section C). The drive does not
use all of the signals provided by the IDE bus. Table 6-4 shows the relationship between
the drive connector (J1, section C) and the IDE bus.

Note: In Table 6-1, the following conventions apply:

A minus sign follows the name of any signal that is asserted as
active low.
Direction (DIR) is in reference to the drive.
IN indicates input to the drive.
OUT indicates output from the drive.
I/O indicates that the signal is bidirectional.

6-2 Quantum Bigfoot TX 4.0/6.0/8.0/12.0 AT

IDE Bus Interface and ATA Commands

Table 6-1

SIGNAL NAME DIR PIN DESCRIPTION

Reset RESET– IN 1 Drive reset signal from the host system, inverted on

Ground Ground — 2 Ground between the host system and the drive.
Data Bus I/O 3–18 An 8/16-bit, bidirectional data bus between the host

DD0 17 Bit 0
DD1 15 Bit 1
DD2 13 Bit 2
DD3 11 Bit 3
DD4 9 Bit 4
DD5 7 Bit 5
DD6 5 Bit 6
DD7 3 Bit 7
DD8 4 Bit 8
DD9 6 Bit 9
DD10 8 Bit 10
DD11 10 Bit 11
DD12 12 Bit 12
DD13 14 Bit 13
DD14 16 Bit 14

DD15 18 Bit 15
Ground Ground — 19 Ground between the host system and the drive.
Keypin KEYPIN — 20 Pin removed to key the interface connector.
DMA Request DMARQ OUT 21 Asserted by the drive when it is ready to exchange

Ground Ground — 22 Ground between the host system and the drive.
I/O Write DIOW– IN 23 The rising edge of this write strobe provides a clock

Ground Ground — 24 Ground between the host system and the drive.
I/O Read DIOR– IN 25 The rising edge of this read strobe provides a clock for

Drive Connector Pin Assignments (J1, Section C)

the adapter board or motherboard. Asserted for at
least 300 ns during start up and deasserted thereafter,
unless some event subsequently requires that the drive
be reset.

and the drive. D0–D7 are used for 8-bit transfers, such
as registers and ECC bytes.

data with the host. The direction of the data transfer is
determined by DIOW– and DIOR–. DMARQ is used in
conjunction with DMACK–

for data transfers from the host data bus (DD0–DD7 or
DD0–DD15) to a register or to the drive’s data port.

data transfers from a register or the drive’s data port
to the host data bus (DD0–DD7 or DD0–DD15). The
rising edge of DIOR– latches data at the host.

Quantum Bigfoot TX 4.0/6.0/8.0/12.0 AT 6-3

IDE Bus Interface and ATA Commands

SIGNAL NAME DIR PIN DESCRIPTION

Ground Ground — 26 Ground between the host system and the drive.
I/O Channel Ready IORDY OUT 27 When the drive is not ready to respond to a data

transfer request, the IORDY signal is asserted active
low to extend the host transfer cycle of any host
register read or write access. When IORDY is
deasserted, it is in a high-impedance state and it is the
host’s responsibility to pull this signal up to a high
level (if necessary).

Cable Select — 28 A signal from the host that allows the drive to be

configured as drive 0 when the signal is 0 (grounded),
and as drive 1 when the signal is 1 (high).

DMA Acknowledge DACK1– IN 29 Used by the host to respond to the drive’s DMARQ

signal. DMARQ signals that there is more data

available for the host.
Ground Ground — 30 Ground between the host system and the drive.
Interrupt Request INTRQ OUT 31 An interrupt to the host system. Asserted only when

the drive microprocessor has a pending interrupt, the

drive is selected, and the host clears nIEN in the

Device Control Register. When nIEN is a 1 or the drive

is not selected, this output signal is in a high-

impedance state, regardless of the presence or absence

of a pending interrupt.

INTRQ is deasserted by an assertion of RESET–, the

setting of SRST in the Device Control Register, or

when the host writes to the Command Register or

reads the Status Register.

When data is being transferred in programmed I/O

(PIO) mode, INTRQ is asserted at the beginning of each

data block transfer. Exception: INTRQ is not asserted

at the beginning of the first data block transfer that

occurs when any of the following commands

executes: FORMAT TRACK, Write Sector, WRITE

BUFFER, or WRITE LONG.
16-Bit I/O IOCS16– OUT 32 An open-collector output signal. Indicates to the host

system that the 16-bit data port has been addressed

and that the drive is ready to send or receive a 16-bit

word. When transferring data in PIO mode, if IOCS16–

is not asserted, D0–D7 are used for 8-bit transfers; if

IOCS16– is asserted, D0–D15 are used for 16-bit data

transfers.
Drive Address Bus A 3-bit, binary-coded address supplied by the host

when accessing a register or the drive’s data port.
Bit 1 DA1 IN 33
Bit 0 DA0 IN 35
Bit 2 DA2 IN 36

6-4 Quantum Bigfoot TX 4.0/6.0/8.0/12.0 AT

IDE Bus Interface and ATA Commands

SIGNAL NAME DIR PIN DESCRIPTION

Passed Diagnostics PDIAG– I/O 34 Drive 0 (Master) monitors this Drive 1 (Slave) open-

collector output signal, which indicates the result of a
diagnostics command or reset. Each drive has a 10K
pull-up resistor on this signal.

Following the receipt of a power-on reset, software
reset, or RESET– drive 1 negates PDIAG– within 1 ms.
PDIAG– indicates to drive 0 that drive 1 is busy
(BSY=1). Then, drive 1 asserts PDIAG– within 30
seconds, indicating that drive 1 is no longer busy
(BSY=0) and can provide status information.
Following the assertion of PDIAG–, drive 1 is unable
to accept commands until drive 1 is ready (DRDY=1)—
that is, until the reset procedure for drive 1 is
complete.

Following the receipt of a valid EXECUTE DRIVE
DIAGNOSTIC command, drive 1 negates PDIAG–
within 1 ms, indicating to drive 0 that it is busy and
has not yet passed its internal diagnostics. If drive 1 is
present, drive 0 waits for drive 1 to assert PDIAG– for
up to 5 seconds after the receipt of a valid EXECUTE
DRIVE DIAGNOSTIC command. Since PDIAG–
indicates that drive 1 has passed its internal
diagnostics and is ready to provide status, drive 1
clears BSY prior to asserting PDIAG–.

If drive 1 fails to respond during reset initialization,
drive 0 reports its own status after completing its
internal diagnostics. Drive 0 is unable to accept
commands until drive 0 is ready (DRDY=1)—that is,
until the reset procedure for drive 0 is complete.

Chip Select 0 CS1FX– IN 37 Chip-select signal decoded from the host address bus.

Used to select the host-accessible Command Block
Registers.

Chip Select 1 CS3FX– IN 38 Chip select signal decoded from the host address bus.

Used to select the host-accessible Control Block
Registers.

Quantum Bigfoot TX 4.0/6.0/8.0/12.0 AT 6-5

IDE Bus Interface and ATA Commands

SIGNAL NAME DIR PIN DESCRIPTION

Drive Active/Slave
Present

Ground Ground — 40 Ground between the host system and the drive.

DASP– I/O 39 A time-multiplexed signal that indicates either drive

activity or that drive 1 is present. During power-on

initialization, DASP– is asserted by drive 1 within 400

ms to indicate that drive 1 is present. If drive 1 is not

present, drive 0 asserts DASP– after 450 ms to light

the drive-activity LED.

An open-collector output signal, DASP– is deasserted

following the receipt of a valid command by drive 1

or after the drive is ready, whichever occurs first. Once

DASP– is deasserted, either hard drive can assert

DASP– to light the drive-activity LED. Each drive has

a 10K pull-up resistor on this signal.

If an external drive-activity LED is used to monitor

this signal, an external resistor must be connected in

series between the signal and a +5 volt supply in order

to limit the current to 24 mA maximum.

Table 6-2

SIGNAL HOST TERMINA TION DEVICE TERMINA TION

DIOR–/HDMARDY–/HSTROBE 33 Ω

DIOW–/STOP 33 Ω

CS0–, CS1– 33 Ω

DA0, DA1, DA2 33 Ω

DMACK– 33 Ω

DD 15 through DD0 33 Ω

DMARQ 82 Ω

INTRQ 82 Ω

IORDY/DDMARDY–/DSTROBE 82 Ω

Note: Only those signals requiring termination are listed in this table. If

a signal is not listed, series termination is not required for operation
in an Ultra DMA/33 mode.

Series Termination for Ultra DMA/33

82 Ω
82 Ω
82 Ω
82 Ω
82 Ω
33 Ω
33 Ω
33 Ω
22 Ω

6-6 Quantum Bigfoot TX 4.0/6.0/8.0/12.0 AT

6.4.1.3 IDE Bus Signals

See Table 6-4 for the relationship between the drive signals and the IDE bus.

Signal Line Definitions (Ultra DMA/33)

Several existing ATA signal lines are redefined during the Ultra DMA/33 protocol to
provide new functions. These lines change from old to new definitions the moment the
host decides to allow a DMA burst, if the Ultra DMA/33 transfer mode was previously
chosen via Set Features. The drive becomes aware of this change upon assertion of the
–DMACK line. These lines revert back to their original definitions upon the deassertion
of –DMACK at the termination of the DMA burst.

IDE Bus Interface and ATA Commands

Table 6-3

NEW DEFINITION OLD DEFINITION

DMARQ = DMARQ

–DMACK = –DMACK

(These two signals remain unchanged to ensure backward compatibility with

–DMARDY

STROBE

STOP = –DIOW

Signal Line Definitions

PIO modes)

= IORDY on WRITE commands

= –DIOR on READ commands

= –DIOR on WRITE commands

= IORDY on READ commands

Quantum Bigfoot TX 4.0/6.0/8.0/12.0 AT 6-7

IDE Bus Interface and ATA Commands

Table 6-4

J1 PIN

NUMBER

28 CABLE SELECT —> CSEL
37 CHIP SELECT 0 —> CS0–
38 CHIP SELECT 1 <—> CS1–
17 DATA BUS BIT 0 <—> DD0
15 DATA BUS BIT 1 <—> DD1
13 DATA BUS BIT 2 <—> DD2
11 DATA BUS BIT 3 <—> DD3

9 DATA BUS BIT 4 <—> DD4
7 DATA BUS BIT 5 <—> DD5
5 DATA BUS BIT 6 <—> DD6
3 DATA BUS BIT 7 <—> DD7
4 DATA BUS BIT 8 <—> DD8
6 DATA BUS BIT 9 <—> DD9

8 DATA BUS BIT 10 <—> DD10
10 DATA BUS BIT 11 <—> DD11
12 DATA BUS BIT 12 <—> DD12
14 DATA BUS BIT 13 <—> DD13
16 DATA BUS BIT 14 <—> DD14
18 DATA BUS BIT 15 <—> DD15
39 DEVICE ACTIVE OR SLAVE

35 DEVICE ADDRESS BIT 0 —> DA0
33 DEVICE ADDRESS BIT 1 —> DA1
36 DEVICE ADDRESS BIT 2 —> DA2
29 DMA ACKNOWLEDGE —> DMACK–
21 DMA REQUEST <— DMARQ
31 INTERRUPT REQUEST <— INTRQ
25 I/O READ

DMA ready on data in bursts (see note 2)

Data strobe on data out bursts (see note 2)

27 I/O READY

DMA ready on data out bursts (see note 2)

Data strobe on data in bursts (see note 2)

DESCRIPTION HOST DIR DEV ACRONYM

(DEVICE 1) PRESENT

Interface Signal Name Assignments

(See Note 1) DASP–

—>
—>
—>

<—
<—
<—

HDMARDY–

DDMARDY–

DIOR–

HSTROBE

IORDY

DSTROBE

23 I/O WRITE

STOP (see note 2)

34 PASSED DIAGNOSTCS (See Note 1) PDIAG–

1 RESET —> RESET
32 I/O CS16 <— IOCS16

Note: 1.See signal descriptions for information on source of these signals.

2.Used during Ultra DMA protocol only.

3.Pins numbered 2, 19, 22, 24, 26, 30, and 40 are ground.

4.Pin number 20 is the Key Pin.

6-8 Quantum Bigfoot TX 4.0/6.0/8.0/12.0 AT

—>
—>

DIOW–

STOP

6.4.2 Host Interface Timing

6.4.2.1 Programmed I/O (PIO) Transfer Mode

The PIO host interface timing shown in Table 6-5 is in reference to signals at 0.8 volts
and 2.0 volts. All times are in nanoseconds, unless otherwise noted. Figure 6-1 provides
a timing diagram.

IDE Bus Interface and ATA Commands

Table 6-5

SYMBOL DESCRIPTION MIN/MAX

PIO Host Interface Timing

MODE 4

(local bus)

1

4.0/6.0/8.0 A T

t0 Cycle Time min 120 120
t1 Address Valid to DIOW–/DIOR–Setup min 25 25
t2 DIOW–/DIOR– Pulsewidth (8- or 16-bit) min 70 70

t2i DIOW–/DIOR– Negated Pulsewidth min 25 25

t3 DIOW–Data Setup min 20 20
t4 DIOW– Data Hold min 10 10
t5 DIOR– Data Setup min 20 20

t5a DIOR– to Data Valid max — —

t6 DIOR– Data Hold min 5 5

t6z DIOR– Data Tristate max 30 30

t7 Address Valid to IOCS16– Assertion max N/A N/A
t8 Address Valid to IOSC16– Deassertion max N/A N/A
t9 DIOW–/DIOR– to Address Valid Hold min 10 10
tA IORDY

2

Setup Time min 35 35
tB IORDY Pulse Width max 1250 1250
tR Read Data Valid to IORDY active

min 0 0

(if IORDY is initially low after tA)

1. ATA Mode 4 timing is listed for reference only.

2. Transfer rates above 6 MB/s require the use of IORDY.

QUANTUM

Bigfoot TX

Quantum Bigfoot TX 4.0/6.0/8.0/12.0 AT 6-9

IDE Bus Interface and ATA Commands

Address

t 7

IOCS16

DIOW­DIOR-

IORDY

Read Data

Write Data

t 1

t A

t 5a

t 2

t B

t R

t 5

t 3

Figure 6-1

6.4.2.2 Multiword DMA Transfer Mode

The multiword DMA host interface timing shown in Table 6-6 is in reference to signals
at 0.8 volts and 2.0 volts. All times are in nanoseconds, unless otherwise noted.
Figure 6-2 provides a timing diagram.

t 0

t 8

t 9

t 2i

t 6z

t 6

t 4

PIO Interface Timing

Table 6-6

SYMBOL DESCRIPTION MIN/MAX

Multiword DMA Host Interface Timing

MODE 2

(local bus)

QUANTUM

1

Bigfoot

AT

t0 Cycle Time min 120 120
tD DIOR–/DIOW– Pulsewidth min 70 70
tE DIOR– to Data Valid max – –
tF DIOR– Data Hold min 5 5
tFz DIOR– Data Tristate

2

max 20 20
tG DIOW– Data Setup min 20 20
tH DIOW– Data Hold min 10 10
tI DMACK to DIOR–/DIOW– Setup min 0 0
tJ DIOR–/DIOW– to DMACK– Hold min 5 5
tK DIOR–/DIOW– Negated Pulsewidth min 25 25
tL DIOR–/DIOW– to DMARQ Delay max 35 35
tz DMACK– Data Tristate

3

max 25 25

1. ATA Mode 2 timing is listed for reference only.

2. The Quantum Bigfoot TX 4.0/6.0/8.0/12.0 AT drive tristates after each word transferred.

3. Symbol tz only applies on the last tristate at the end of a multiword DMA transfer cycle.

6-10 Quantum Bigfoot TX 4.0/6.0/8.0/12.0 AT

DMARQ
DMACK-

t 0

IDE Bus Interface and ATA Commands

t L

DIOW­DIOR-

Read DD0-15

Write DD0-15

NAME

t L

t E t F

t G t H

Figure 6-2

Table 6-7

MODE 0

(ns)

MIN MAX MIN MAX MIN MAX

Multiword DMA Bus Interface Timing

Ultra DMA Data Transfer Timing Requirements

MODE 1

(ns)

t Fz

t Kt D

MODE 2

(ns)

t J

t Z

COMMENTS

Tcyc 114 75 55 Cycle time (from STROBE edge to

STROBE edge)

T2cyc 235 156 117 Two cycle time (from rising edge to

next rising edge or from falling edge to
next falling edge of STROBE)

Tds 15 10 7 Data setup time (at receiver)

Tdh 5 5 5 Data hold time (at receiver)

Tdvs 70 48 34 Data valid setup time (at sender) - time

from data bus being valid until STROBE
edge

Tdvh 6 6 6 Data valid hold time (at sender) - time

from STROBE edge until data may go
invalid

Tfs 0 230 0 200 0 170 First STROBE - time for device to send

first STROBE.

Tli 0 150 0 150 0 150 Limited interlock time - time allowed

between an action by one agent (either
host or device) and the following action
by the other agent

Quantum Bigfoot TX 4.0/6.0/8.0/12.0 AT 6-11

IDE Bus Interface and ATA Commands

NAME

MODE 0

(ns)

MIN MAX MIN MAX MIN MAX

MODE 1

(ns)

MODE 2

(ns)

COMMENTS

Tmli 20 20 20 Interlock time with minimum

Tui 0 0 0 Unlimited interlock time
Taz 10 10 10 Maximum time allowed for outputs to

release
Tzah 20 20 20 Minimum delay time required for
Tzad 0 0 0

output drivers turning on (from released

state)
Tenv 20 70 20 70 20 70 Envelope time (all control signal

transitions are within the DMACK

envelope by this much time)

Tsr 50 30 20 STROBE to DMARDY- response time to

ensure the synchronous pause case

(when the receiver is pausing)

Trfs 75 60 50 Ready-to-final-STROBE time (this long

after receiving DMARDY- negation, no

more STROBE edges may be sent)

Trp 160 125 100 Ready-to-pause time—time until a

receiver may assume that the sender has

paused after negation of DMARDY-

Tiordyz 20 20 20 Pull-up time before allowing IORDY to

be released

Tziordy 0 0 0 Minimum time device shall wait before

driving IORDY
Tack 20 20 20 Setup and hold times before assertion

and negation of DMACK-

Tss 50 50 50 Time from STROBE edge to STOP

assertion (when the sender is stopping)

Notes:

1. The timing parameters Tui and Tli indicate device-to-host or host-to-device
interlocks, that is, one agent (either host or device) is waiting for the other agent to
respond with a signal on the bus before proceeding. Tui is an unlimited interlock,
or one which has no maximum time value. Tli is a limited time-out, or one which
has a defined maximum.

2. All timing parameters are measured at the connector of the device to which the
parameter applies. For example, the sender shall stop toggling STROBE Trfs ns
after the negation of DMARDY-. Both STROBE and DMARDY- timing
measurements are taken at the connector of the sender.

3. All timing measurement switching points (low to high and high to low) are to
be taken at 1.5V.

Figures 6-3 through 6-12 define the timings associated with all phases of Ultra DMA
transfers.

Table 6-7 contains the values for the timings for each of the Ultra DMA transfer modes.

6-12 Quantum Bigfoot TX 4.0/6.0/8.0/12.0 AT

DMARQ

(device)

DMACK-

(host)

STOP

(host)

HDMARDY-

(host)

DSTROBE

(device)

DD(15:0)

Tui

Tack

Tack

Tziordy

Taz

Tenv

Tenv

Tzad
Tzad

IDE Bus Interface and ATA Commands

Tfs

Tfs

Tdvs

Tdvh

DA0, DA1, DA2,

CS0-, CS1-

DSTROBE

at device

DD(15:0)

at device

DSTROBE

at host

DD(15:0)

at host

Tdh

Tack

Figure 6-3

Tcyc Tcyc

Tdvh

Figure 6-4

Initiating a Data In Burst

T2cyc

Tdvs Tdvs

Tdvh

Tds Tdh Tds

Sustained Data In Burst

T2cyc

Tdvh

Tdh

Note: DD(15:0) and DSTROBE signals are shown at both the host and the device

to emphasize that cable settling time as well as cable propagation delay
shall not allow the data signals to be considered stable at the host until well
after they are driven by the device.

Quantum Bigfoot TX 4.0/6.0/8.0/12.0 AT 6-13

IDE Bus Interface and ATA Commands

DMARQ
(device)

DMACK-

(host)

STOP

(host)

HDMARDY

(host)

DSTROBE

(device)

DD(15:0)

(device)

Note: The host knows the burst is fully paused Trp ns after HDMARDY- is negated and

Trp

Tsr

Trfs

Figure 6-5

Host Pausing a Data In Burst

may then assert STOP to terminate the burst. Tsr timing need not be met for an
asynchronous pause.

6-14 Quantum Bigfoot TX 4.0/6.0/8.0/12.0 AT

DMARQ
(device)

DMACK-

(host)

STOP

(host)

HDMARDY-

(host)

DSTROBE

(device)

Tss

Taz

Tli

Tli

Tzah

Tli

IDE Bus Interface and ATA Commands

Tdvs

Tmli

Tack

Tack

Tiordyz

Tdvh

DD(15:0)

DA0, DA1, DA2,

CS0-, CS1-

Figure 6-6

CRC

Tack

Device Terminating a Data In Burst

Quantum Bigfoot TX 4.0/6.0/8.0/12.0 AT 6-15

IDE Bus Interface and ATA Commands

DMARQ
(device)

DMACK-

(host)

Trp

STOP

(host)

HDMARDY-

(host)

Trfs

DSTROBE

(device)

DD(15:0)

Tli

Tli

Taz

Tzah

Tmli

Tmli

Tdvs

CRC

Tdvh

Tack

Tack

Tiordyz

DA0, DA1, DA2,

CS0-, CS1-

Figure 6-7

Tack

Host Terminating a Data In Burst

6-16 Quantum Bigfoot TX 4.0/6.0/8.0/12.0 AT

DMARQ
(device)

DMACK-

(host)

STOP
(host)

Tui

Tack Tenv

IDE Bus Interface and ATA Commands

DDMARDY-

(device)

HSTROBE

(host)

DD(15:0)

(host)

DA0, DA1, DA2,

CS0-, CS1-

HSTROBE

at host

DD(15:0)

at host

Tziordy Tli

Tack

Tack

Figure 6-8

Tcyc Tcyc

Tdvh

Initiating a Data Out Burst

T2cyc

Tdvs Tdvs

Tdvh

Tui

Tdvs

Tdvh

T2cyc

Tdvh

HSTROBE

at device

DD(15:0)
at device

Note: DD(15:0) and HSTROBE signals are shown at both the device and the host to

Tdh

Tds Td h

Figure 6-9

Tds

Sustained Data Out Burst

Tdh

emphasize that cable settling time as well as cable propagation delay shall not
allow the data signals to be considered stable at the device until well after they
are driven by the host.

Quantum Bigfoot TX 4.0/6.0/8.0/12.0 AT 6-17

IDE Bus Interface and ATA Commands

DMARQ
(device)

DMACK-

(host)

STOP

(host)

DDMARDY-

(device)

HSTROBE

(host)

DD(15:0)

(host)

Tsr

Trfs

Trp

Figure 6-10

Device Pausing a Data Out Burst

Note: The device knows the burst is fully paused Trp ns after DDMARDY- is negated

and may then negate DMARQ to terminate the burst. Tsr timing need not be met
for an asynchronous pause.

DMARQ

(device)

DMACK-

(host)

Tss

STOP

(host)

DDMARDY-

(device)

HSTROBE

(host)

DD(15:0)

(host)

DA0, DA1, DA2,

CS0-, CS1-

Tli

Tli

Tli

Tmli

Tack

Tiordyz

Tack

Tdvs

Tdvh

CRC

Tack

Figure 6-11

Host Terminating a Data Out Burst

6-18 Quantum Bigfoot TX 4.0/6.0/8.0/12.0 AT

DMARQ

(device)

DMACK-

(host)

TmliTrp
Tmli

IDE Bus Interface and ATA Commands

tM

STOP
(host)

DDMARDY-

(device)

Trfs

HSTROBE

(host)

DD(15:0)

(host)

DA0, DA1, DA2,

CS0-, CS1-

Figure 6-12

Device Terminating a Data out Burst

6.4.2.3 Host Interface RESET Timing

The host interface RESET timing shown in Table 6-8 is in reference to signals at 0.8 volts
and 2.0 volts. All times are in nanoseconds, unless otherwise noted. Figure 6-13 provides
a timing diagram.

Tli

Tli

Tack

Tiordyz

Tack

Tdvs

Tdvh

CRC

Tack

Table 6-8

Host Interface RESET Timing

SYMBOL DESCRIPTION MINIMUM MAXIMUM

RESET– Pulse width

t MRESET-

Figure 6-13

Host Interface RESET Timing

300 —

Quantum Bigfoot TX 4.0/6.0/8.0/12.0 AT 6-19

IDE Bus Interface and ATA Commands

6.5 REGISTER ADDRESS DECODING

The host addresses the drive by using programmed I/O. Host address lines A0–A2, chip­select CS1FX– and CS3FX–, and IOR– and IOW– address the disk registers. Host address
lines A3–A9 generate the two chip-select signals, CS1FX– and CS3FX–.

• Chip Select CS1FX– accesses the eight Command Block Registers.

• Chip Select CS3FX– is valid during 8-bit transfers to or from the Alternate
Status Register.

The drive selects the primary or secondary command block addresses by setting Address
bit A7.

Data bus lines 8–15 are valid only when IOCS16– is active and the drive is transferring
data. The drive transfers ECC information only on data bus lines 0–7. Data bus lines 8–
15 are invalid during transfers of ECC information.

I/O to or from the drive occurs over an I/O port that routes input or output data to or from
selected registers, by using the following encoded signals from the host:

CS1FX–, CS3FX–, DA2, DA1, DA0, DIOR–, and DIOW–.
The host writes to the Command Block Registers when transmitting commands to the

drive, and to the Control Block Registers when transmitting control, like a software reset.
Table 6-9 lists the selection addresses for these registers.

6-20 Quantum Bigfoot TX 4.0/6.0/8.0/12.0 AT

IDE Bus Interface and ATA Commands

Table 6-9 I/O Port Functions and Selection Addresses

FUNCTION HOST SIGNALS

CONTROL BLOCK REGISTERS CS1FX– CS3FX– DA2 DA1 DA0

READ (DIOR–)

Data Bus High Impedance Not Used N
Data Bus High Impedance Not Used N A

WRITE

(DIOW–)

1

NX

3

2

XX

0XX
Data Bus High Impedance Not Used N A 1 0 X
Alternate Status Device Control N A 1 1 0
Drive Address Not Used N A 1 1 1

COMMAND BLOCK REGISTERS

READ (DIOR–)

WRITE

(DIOW–)

Data Port Data Port A N 0 0 0
Error Register Features A N 0 0 1
Sector Count Sector Count A N 0 1 0
Sector Number
LBA Bits 0–7
Cylinder Low

5

4

LBA Bits 8–15
Cylinder High
LBA Bits 16–23
Drive/Head

4

LBA Bits 24–27

4

5

4

5

5

Sector Number A N 0 1 1
LBA Bits 0–7 A N 0 1 1
Cylinder Low A N 1 0 0
LBA Bits 8–15 A N 1 0 0
Cylinder High A N 1 0 1
LBA Bits 16–23 A N 1 0 1
Drive/Head A N 1 1 0

LBA Bits 24–27 A N 1 1 0
Status Command A N 1 1 1
Invalid Address Invalid Address A A X X X

1. N = signal deasserted

2. X = signal either asserted or deasserted

3. A = signal asserted

4. Mapping of registers in CHS mode

5. Mapping of registers in LBA mode

After power on or following a reset, the drive initializes the Command Block Registers to
the values shown in Table 6-10.

Table 6-10

Command Block Register Initial Values

REGISTER VALUE

Error Register 01
Sector Count Register 01
Sector Number Register 01
Cylinder Low Register 00
Cylinder High Register 00
Drive/Head Register 00

Quantum Bigfoot TX 4.0/6.0/8.0/12.0 AT 6-21

IDE Bus Interface and ATA Commands

6.6 REGISTER DESCRIPTIONS

The Quantum Bigfoot TX 4.0/6.0/8.0/12.0 AT hard disk drives emulate the ATA Command
and Control Block Registers. Functional descriptions of these registers are given in the
next two sections.

6.6.1 Control Block Registers

6.6.1.1 Alternate Status Register

The Alternate Status Register contains the same information as the Status Register in the
command block. Reading the Alternate Status Register does not imply the
acknowledgment of an interrupt by the host or clear a pending interrupt. See the
description of the Status Register in section 6.6.2.8 for definitions of bits in this register.

6.6.1.2 Device Control Register

This write-only register contains two control bits, as shown in Table 6-11.

Table 6-11

BIT MNEMONIC DESCRIPTION

7 Reserved –
6 Reserved –
5 Reserved –
4 Reserved –
3 1 Always 1
2 SRST
1 nIEN
0 0 Always 0

1. SRST = Host Software Reset bit. When the host sets this
bit, the drive is reset. When two drives are daisy­chained on the interface, this bit resets both drives
simultaneously.

2. nIEN = Drive Interrupt Enable bit. When nIEN equals 0
or the host has selected the drive, the drive enables the
host interrupt signal INTRQ through a tristate buffer to
the host. When nIEN equals 1 or the drive is not
selected, the host interrupt signal INTRQ is in a high­impedance state, regardless of the presence or absence
of a pending interrupt.

Device Control Register Bits

1

2

Host software reset bit
Drive interrupt enable bit

6-22 Quantum Bigfoot TX 4.0/6.0/8.0/12.0 AT

6.6.1.3 Drive Address Register

The Drive Address Register returns the head-select addresses for the drive currently
selected. Table 6-12 shows the Drive Address bits.

IDE Bus Interface and ATA Commands

Table 6-12

Drive Address Register Bits

BIT MNEMONIC DESCRIPTION

7 HiZ

6 nWTG
5 nHS3

1

2

3

High Impedance bit

Write Gate bit

Head Address msb
4 nHS2 –
3 nHS1 –
2 nHS0 Head Address lsb
1 nDS1

4

Drive 1 Select bit
0 nDS0 Drive 0 Select bit

1. HiZ = High Impedance bit. When the host
reads the register, this bit will be in a high
impedance state.

2. nWTG = Write Gate bit. When a write

operation to the drive is in progress, nWTG
equals 0.

3. nHS0–nHS3 = Head Address bits. These bits
are equivalent to the one’s complement of the
binary-coded address of the head currently
selected.

4. nDS0–nDS1 = Drive Select bits. When drive 1

is selected, nDS1 equals 0. When drive 0 is
selected, nDS0 equals 0.

6.6.2 Command Block Registers

6.6.2.1 Data Port Register

All data transferred between the device data buffer and the host passes through the Data
Port Register. The host transfers the sector table to this register during execution of the
FORMAT TRACK command. Transfers of ECC bytes during the execution of READ LONG
or WRITE LONG commands are 8-bit transfers.

6.6.2.2 Error Register

The Error Register contains status information about the last command executed by the
drive. The contents of this register are valid only when the Error bit (ERR) in the Status
Register is set to 1. The contents of the Error Register are also valid at power on, and at
the completion of the drive’s internal diagnostics, when the register contains a status
code. When the error bit in the Status Register is set to 1, the host interprets the Error
Register bits as shown in Table 6-13.

Quantum Bigfoot TX 4.0/6.0/8.0/12.0 AT 6-23

IDE Bus Interface and ATA Commands

Table 6-13 Error Register Bits

MNEMONIC BIT DESCRIPTION

BBK 7 Bad block detected in the required sector’s ID field.

UNC 6 Uncorrectable data error encountered.

– 5 Not used.

IDNF 4 Requested sector’s ID field not found.

– 3 Not used.

ABRT 2 Requested command aborted due to a drive status error, such as Not

Ready or Write Fault, or because the command code is invalid.

TK0NF 1 Track 0 not found during execution of RECALIBRATE command.

AMNF 0 Data Address Mark not found after correct ID field format.

6.6.2.3 Sector Count Register

The Sector Count Register defines the number of sectors of data to be transferred across
the host bus for a subsequent command. If the value in this register is 0, the sector count
is 256 sectors. If the Sector Count Register command executes successfully, the value in
this register at command completion is 0. As the drive transfers each sector, it decrements
the Sector Count Register to reflect the number of sectors remaining to be transferred. If
the command’s execution is unsuccessful, this register contains the number of sectors
that must be transferred to complete the original request.

When the drive executes an INITIALIZE DRIVE PARAMETERS or Format Track command,
the value in this register defines the number of sectors per track.

6.6.2.4 Sector Number Register

The Sector Number Register contains the ID number of the first sector to be accessed by
a subsequent command. The sector number is a value between one and the maximum
number of sectors per track. As the drive transfers each sector, it increments the Sector
Number Register. See the command descriptions in section 6.7 for information about the
contents of the Sector Number Register after successful or unsuccessful command
completion.

In LBA mode, this register contains bits 0 to 7. At command completion, the host updates
this register to reflect the current LBA bits 0 to 7.

6.6.2.5 Cylinder Low Register

The Cylinder Low Register contains the eight low-order bits of the starting cylinder
address for any disk access. On multiple sector transfers that cross cylinder boundaries,
the host updates this register when command execution is complete, to reflect the current
cylinder number. The host loads the least significant bits of the cylinder address into the
Cylinder Low Register.

In LBA mode, this register contains bits 8 to 15. At command completion, the host
updates this register to reflect the current LBA bits 8 to 15.

6.6.2.6 Cylinder High Register

The Cylinder High Register contains the eight high-order bits of the starting cylinder
address for any disk access. On multiple sector transfers that cross cylinder boundaries,
the host updates this register at the completion of command execution, to reflect the
current cylinder number. The host loads the most significant bits of the cylinder address
into the Cylinder High Register.

6-24 Quantum Bigfoot TX 4.0/6.0/8.0/12.0 AT

In LBA mode, this register contains bits 16 to 23. At command completion, the host
updates this register to reflect the current LBA bits 16 to 23.

6.6.2.7 Drive/Head Register

The Drive/Head Register contains the drive ID number and its head numbers. By
executing the INITIALIZE DRIVE PARAMETERS command, the host defines the contents
of the Drive/Head Register.

In LBA mode, this register contains bits 24 to 27. At command completion, the host
updates this register to reflect the current LBA bits 24 to 27.

Table 6-14 shows the Drive/Head Register bits.

IDE Bus Interface and ATA Commands

Table 6-14

Drive Head Register Bits

MNEMONIC BIT DESCRIPTION

Reserved 7

L6

1

Always 1

2

0 for CHS mode
1 for LBA mode

Reserved 5 Always 1

DRV 4

3

0 indicates the Master drive is selected
1 indicates the Slave drive is selected

HS3 3

4

Most significant Head Address bit in CHS mode
Bit 27 of the LBA Address in LBA mode

HS2 2 Head Address bit for CHS mode

Bit 26 of the LBA Address in LBA mode

HS1 1 Head Address bit for CHS mode

Bit 25 of the LBA Address in LBA mode

HS0 0 Least significant Head Address bit in CHS mode

Bit 24 of the LBA Address in LBA mode

1. Bits 5–7 define the sector size set in hardware (512 bytes).

2. Bit 6 is the binary encoded Address Mode Select. When bit 6 is set to 0,

addressing is by CHS mode. When bit 6 is set to 1, addressing is by LBA mode.

3. Bit 4 (DRV) contains the binary encoded drive select number. The Master is the

primary drive; the Slave is the secondary drive

4. In CHS mode, bits 0–3 (HS0–HS3) contain the binary encoded address of the

selected head. At command completion, the host updates these bits to reflect
the address of the head currently selected. In LBA mode, bits 0–3 (HS0–HS3)
contain bits 24–27 of the LBA Address. At command completion, the host
updates this register to reflect the current LBA bits 24 to 27.

6.6.2.8 Status Register

The Status Register contains information about the status of the drive and the controller.
The drive updates the contents of this register at the completion of each command. When
the Busy bit is set (BSY=1), no other bits in the Command Block Registers are valid. When
the Busy bit is not set (BSY=0), the information in the Status Register and Command
Block Registers is valid.

Quantum Bigfoot TX 4.0/6.0/8.0/12.0 AT 6-25

IDE Bus Interface and ATA Commands

When an interrupt is pending, the drive considers that the host has acknowledged the
interrupt when it reads the Status Register. Therefore, whenever the host reads this
register, the drive clears any pending interrupt. Table 6-15 defines the Status Register
bits.

6.6.2.9 Command Register

The host sends a command to the drive by means of an 8-bit code written to the
Command Register. As soon as the drive receives the command in its Command Register,
it begins execution of the command. Table 6-16 lists the hexadecimal command codes
and parameters for each executable command. The code F0h is common to all of the
extended commands. Each of these commands is distinguished by a unique subcode. For
a detailed description of each command, see Section 6.7, "COMMAND DESCRIPTIONS,"
found later in this chapter.

Table 6-15

MNEMONIC BIT DESCRIPTION

BSY 7 Busy bit. Set by the controller logic of the drive whenever the

drive has access to and the host is locked out of the Command
Block Registers.
BSY is set under the following conditions:

• Within 400 ns after the deassertion of RESET- or after SRST is set in
the Device Control Register. Following a reset, BSY will be set for no
longer than 30 seconds.

• Within 400 ns of a host write to the Command Block Registers with a
Read, READ LONG, READ BUFFER, SEEK, RECALIBRATE, INITIALIZE
DRIVE PARAMETERS, Read Verify, Identify Drive, or EXECUTE DRIVE
DIAGNOSTIC command.

• Within 5 µsec after the transfer of 512 bytes of data during the execu­tion of a Write, Format Track, or WRITE BUFFER command, or 512
bytes of data and the appropriate number of ECC bytes during the ex­ecution of a WRITE LONG command.

When BSY=1, the host cannot write to a Command Block Register and
reading any Command Block Register returns the contents of the Status
Register.

DRDY 6 Drive Ready bit. Indicates that the drive is ready to accept a command.

When an error occurs, this bit remains unchanged until the host reads the
Status Register, then again indicates that the drive is ready. At power on, this
bit should be cleared, and should remain cleared until the drive is up to speed
and ready to accept a command.

DWF 5 Drive Write Fault bit. When an error occurs, this bit remains unchanged un-

til the host reads the Status Register, then again indicates the current write
fault status.

DSC 4 Drive Seek Complete bit. This bit is set when a seek operation is complete

and the heads have settled over a track. When an error occurs, this bit re­mains unchanged until the host reads the Status Register, when it indicates
the current seek-complete status.

DRQ 3 Data Request bit. When set, this bit indicates that the drive is ready to trans-

fer a word or byte of data from the host to the data port.

CORR 2 Corrected Data bit. The drive sets this bit when it encounters and corrects a

correctable data error. This condition does not terminate a multisector read
operation.

IDX 1 Index bit. This bit is set when the drive detects the index mark, once per disk

revolution.

Status Register Bits

6-26 Quantum Bigfoot TX 4.0/6.0/8.0/12.0 AT

MNEMONIC BIT DESCRIPTION

ERR 0 Error bit. When set, this bit indicates that the previous command resulted in

an error. The other bits in the Status Register and the bits in the Error Register
contain additional information about the cause of the error.

6.7 COMMAND DESCRIPTIONS

The Quantum Bigfoot TX 4.0/6.0/8.0/12.0 AT hard disk drives support all standard ATA
drive commands. The drive decodes, then executes, commands loaded into the Command
Block Register. In applications involving two hard drives, both drives receive all
commands. However, only the selected drive executes commands—with the exception of
the EXECUTE DRIVE DIAGNOSTIC command, as explained below. The procedure for
executing a command on the selected drive is as follows:

4. Wait for the drive to indicate that it is no longer busy (BSY=0).

5. Load the required parameters into the Command Block Register.

6. Activate the Interrupt Enable (–IEN) bit.

IDE Bus Interface and ATA Commands

7. Wait for the drive to set RDY (RDY=1).

8. Write the command code to the Command Register.

Execution of the command begins as soon as the drive loads the Command Block
Register. The remainder of this section describes the function of each command. The
commands are listed in the same order they appear in Table 6-16.

6.7.1 Recalibrate—1xh

The RECALIBRATE command moves the read/write heads from any location on the disk
to cylinder 0. On receiving this command, the drive sets the BSY bit and issues a seek
command to cylinder 0. The drive then waits for the seek operation to complete, updates
status, negates BSY, and generates an interrupt. If the drive cannot seek to cylinder 0, it
posts the message TRACK 0 NOT FOUND.

6.7.2 Read Sectors—20h (with retry), 21h (without retry)

The Read Sectors command reads from 1 to 256 sectors, beginning at the specified sector.
As specified in the Command Block Register, a sector count equal to 0 requests 256
sectors. When the drive accepts this command, it sets BSY and begins execution of the
command.

6.7.2.1 Read Long—22h (with retry), 23h (without retry)

When the Long bit is set in the command code, a READ LONG command executes,
returning the data and the ECC bytes contained in the data field of the requested sector.
During a READ LONG operation, the drive does not check the ECC bytes to determine if
a data error of any kind has occurred.

6.7.2.2 Multiple Sector Reads

Multiple sector reads set DRQ. After reading each sector, the drive generates an interrupt
when the sector buffer is full and the drive is ready for the host to read the data. Once
the host empties the sector buffer, the drive immediately clears DRQ and sets BSY.

Quantum Bigfoot TX 4.0/6.0/8.0/12.0 AT 6-27

IDE Bus Interface and ATA Commands

If an error occurs during a multiple sector read, the read terminates at the sector in which
the error occurred. The Command Block Register contains the cylinder, head, and sector
numbers of the sector in which the error occurred. The host can then read the Command
Block Register to determine what kind of error has occurred, and in which sector. Whether
the data error is correctable or uncorrectable, the drive loads the data into the sector
buffer.

6.7.3 Write Sector—30h (with retry), 31h (without retry)

The WRITE SECTOR command writes from 1 to 256 sectors, beginning at the specified
sector. As specified in the Command Block Register, a sector count equal to 0 requests
256 sectors. When the drive accepts this command, it sets DRQ and waits for the host to
fill the sector buffer with the data to be written to the drive. The drive does not generate
an interrupt to start the first buffer-fill operation. Once the buffer is full, the drive clears
DRQ, sets BSY, and begins execution of the command.

6.7.3.1 Write Long

When the Long bit is set in the command code, a WRITE LONG command writes the data
and the ECC bytes directly from the sector buffer. The drive does not generate the ECC
bytes itself.

6.7.3.2 Multiple Sector Writes

The MULTIPLE SECTOR WRITES command sets DRQ. The drive generates an interrupt
whenever the sector buffer is ready to be filled. When the host fills the sector buffer, the
drive immediately clears DRQ and sets BSY.

If an error occurs during a multiple sector write operation, the write operation terminates
at the sector in which the error occurred. The Command Block Register contains the
cylinder, head, and sector numbers of the sector in which the error occurred. The host can
then read the Command Block Register to determine what kind of error has occurred, and
in which sector.

—32h (with retry), 33h (without retry)

6.7.4 Read Verify Sectors—40h (with retry), 41h (without retry)

The execution of the READ VERIFY SECTORS command is identical to that of the READ
SECTORS command. However, the Read Verify command does not cause the drive to set
DRQ, the drive transfers no data to the host, and the Long bit is invalid. On receiving the
READ VERIFY command, the drive sets BSY. When the drive has verified the requested
sectors, it clears BSY and generates an interrupt. On command completion, the Command
Block Registers contain the cylinder, head, and sector numbers of the last sector verified.

If an error occurs during a multiple sector verify operation, the read operation terminates
at the sector in which the error occurred. The Command Block Registers contain the
cylinder, head, and sector numbers in which the error occurred.

6.7.5 Format Track—50h

The host specifies the track addresses by writing to the Cylinder and Head Registers.
When the drive accepts a FORMAT TRACK command, it sets the DRQ bit, then waits for
the host to fill the sector buffer. When the buffer is full, the drive clears DRQ, sets BSY,
and begins command execution. The contents of the sector buffer are ignored and not
written to the disk, and will be ignored.

On the Quantum Bigfoot TX 4.0/6.0/8.0/12.0 AT hard disk drives, the FORMAT TRACK
command writes zeroes to the data fields in the sectors on the specified logical track. The
drive writes no headers at these locations. The Sector Count register contains the number
of sectors per track.

6-28 Quantum Bigfoot TX 4.0/6.0/8.0/12.0 AT

IDE Bus Interface and ATA Commands

Table 6-16 Quantum Bigfoot TX 4.0/6.0/8.0/12.0 AT Command Codes and Parameters

COMMAND PARAMETER

NAME CODE SC SN CY DS HD FR

RECALIBRATE 1Xh V
READ SECTORS, with retry 20h VVVVV
READ SECTORS, no retry 21h VVVVV
READ LONG, with retry 22h VVVVV
READ LONG, no retry 23h VVVVV
WRITE SECTORS, with retry 30h VVVVV
WRITE SECTORS, no retry 31h VVVVV
WRITE LONG, with retry 32h VVVVV
WRITE LONG, no retry 33h VVVVV
READ VERIFY SECTORS, with retry 40h VVVVV
READ VERIFY SECTORS, no retry 41h VVVVV
FORMAT TRACK 50h V V V V
SEEK 7Xh VVVV
EXECUTE DRIVE DIAGNOSTIC 90h
INITIALIZE DRIVE PARAMETERS 91h V V V
DOWNLOAD MICROCODE 92h VVVVV
SMART B0h V V
READ MULTIPLE C4h VVVVV
WRITE MULTIPLE C5h VVVVV
SET MULTIPLE MODE C6h V V
READ DMA, with retry C8h VVVVV
READ DMA, no retry C9h VVVVV
WRITE DMA, with retry CAh VVVVV
WRITE DMA, no retry CBh VVVVV
STANDBY IMMEDIATE E0h V
IDLE IMMEDIATE E1h V
STANDBY MODE (AUTO POWER-DOWN) E2h V V
IDLE MODE (AUTO POWER-DOWN) E3h V V
READ BUFFER E4h V
CHECK POWER MODE E5h V V
SLEEP MODE E6h V
WRITE BUFFER E8h V
IDENTIFY DRIVE ECh V
READ DEFECT LIST—extended cmnd. F0h VVVVV
READ CONFIGURATION—extended cmnd. F0h VVVVV
SET CONFIGURATION—extended cmnd. F0h VVVVV

Note: The following information applies to Table 6-16:

SC = Sector Count Register
SN = Sector Number Register
CY = Cylinder Low and High Registers
DS = Drive Select bit (Bit 4 of Drive/Head Register)
HD = 4 Head Select Bits (Bits 0–3 of Drive Head Register)
V = Must contain valid information for this command
FR = Features Register

Quantum Bigfoot TX 4.0/6.0/8.0/12.0 AT 6-29

IDE Bus Interface and ATA Commands

6.7.6 Seek—7xh

The SEEK command causes the actuator to seek to the track to which the Cylinder and
Drive/Head registers point. When the drive receives this command in its Command Block
Registers, it performs the following functions:

1. Sets BSY

2. Initiates the seek operation

3. Resets BSY

4. Sets the Drive Seek Complete (DSC) bit in the Status Register

The drive does not wait for the seek to complete before it sends an interrupt. If the BSY
bit is not set in the Status Register, the drive can accept and queue subsequent commands
while performing the seek. If the Cylinder registers contain an illegal cylinder, the drive
sets the ERR bit in the Status Register and the IDNF bit in the Error Register.

6.7.7 Execute Drive Diagnostic—90h

The EXECUTE DRIVE DIAGNOSTIC command performs the internal diagnostic tests
implemented on the drive. Drive 0 sets BSY within 400 ns of receiving of the command.

If Drive 1 is present:

• Both drives execute diagnostics.

• Drive 0 waits up to six seconds for drive 1 to assert PDIAG–.

• If drive 1 does not assert PDIAG– to indicate a failure, drive 0 appends 80h
with its own diagnostic status.

• If the host detects a drive 1 diagnostic failure when reading drive 0 status,
it sets the DRV bit, then reads the drive 1 status.

If Drive 1 is not present:

• Drive 0 reports only its own diagnostic results.

• Drive 0 clears BSY and generates an interrupt.

If drive 1 fails diagnostics, drive 0 appends 80h with its own diagnostic status and loads
that code into the Error Register. If drive 1 passes its diagnostics or no drive 1 is present,
drive 0 appends 00h with its own diagnostic status and loads that code into the Error
Register.

The diagnostic code written to the Error Register is a unique 8-bit code. Table 6-17 lists
the diagnostic codes.

Table 6-17

DIAGNOSTIC

CODE

01h No Error Detected
02h Formatter Device Error
03h Sector Buffer Error
04h ECC Circuitry Error
05h Controlling Microprocessor Error

8Xh Drive 1 Failed

Diagnostic Codes

DESCRIPTION

6-30 Quantum Bigfoot TX 4.0/6.0/8.0/12.0 AT

6.7.8 Initialize Drive Parameters 91h

The INITIALIZE DRIVE PARAMETERS command enables the host to set the logical
number of heads and the logical number of sectors per track. On receiving the command,
the drive sets the BSY bit, saves the parameters, clears BSY, and generates an interrupt.

The only two register values used by this command are the Sector Count Register, which
specifies the number of sectors; and the Drive/Head Register, which specifies the number
of heads, minus 1. The DRV bit assigns these values to drive 0 or drive 1, as appropriate.

This command does not check the sector count and head values for validity. If these
values are invalid, the drive will not report an error until another command causes an
illegal access.

6.7.9 DOWNLOAD MICROCODE

COMMAND CODE - 92h
TYPE - Optional
PROTOCOL - PIO data out
INPUTS - The head bits of the device/head register will always be set to zero. The cylinder

high and low registers will be set to zero. The sector number and the sector count are used
together as a 16-bit sector count value. The feature register specifies the subcommand
code.

IDE Bus Interface and ATA Commands

Register 76543210

Features Subcommand code

Sector Count Sector count (low order)

Sector Number Sector count (high order)

Cylinder Low 00h

Cylinder High 00h

Device/Head 1 1 D 0000

Command 92h

NORMAL OUTPUTS- None. required.
ERROR OUTPUTS- Aborted command if the device does not support this command or did

not accept the microcode data. Aborted error if subcommand code is not a supported
value.

Status Register Error Register

DRDY DF CORR ERR BBK UNC IDNF ABRT TK0NF AMNF

VV V V

PREREQUISITES - DRDY set equal to one.
DESCRIPTION - This command enables the host to alter the device’s microcode. The data

transferred using the DOWNLOAD MICROCODE command is vendor specific.
All transfers will be an integer multiple of the sector size. The size of the data transfer is

determined by the contents of the Sector Number register and the Sector Count register.
The Sector Number register will be used to extend the Sector Count register, to create a

Quantum Bigfoot TX 4.0/6.0/8.0/12.0 AT 6-31

IDE Bus Interface and ATA Commands

sixteen bit sector count value. The Sector Number register will be the most significant
eight bits and the Sector Count register will be the least significant eight bits. A value of
zero in both the Sector Number register and the Sector Count register will indicate no
data is to transferred. This allows transfer sizes from 0 bytes to 33, 553, 920 bytes in 512
byte increments.

The Features register will be used to determine the effect of the DOWNLOAD MICROCODE
command. The values for the Feature Register are:

01h — download is for immediate, temporary use
07h — save downloaded code for immediate and future use.

Either or both values may be supported. All other values are reserved.

6.7.9.1 SMART B0h

SMART DISABLE OPERATIONS

COMMAND CODE - B0h
TYPE - Optional - SMART Feature set. If the SMART feature set is implemented, this

command shall be implemented.

PROTOCOL - Non-data command
INPUTS - The Features register shall be set to D9h. The Cylinder Low register shall be set

to 4Fh. The Cylinder High register shall be set to C2h.

Register 76543210

Features D9h

Sector Count

Sector Number

Cylinder Low 4Fh

Cylinder High C2h

Device/Head 1 1 D

Command B0h

NORMAL OUTPUTS - None
ERROR OUTPUTS - If the device does not support this command, if SMART is not enabled

or if the values in the Features, Cylinder Low or Cylinder High registers are invalid, an
Aborted command error is posted.

Status Register Error Register

DRDY DF CORR ERR BBK UNC IDNF ABRT TK0NF AMNF

VV V

PREREQUISITES - DRDY set equal to one. SMART enabled.

6-32 Quantum Bigfoot TX 4.0/6.0/8.0/12.0 AT

IDE Bus Interface and ATA Commands

DESCRIPTION - This command disables all SMART capabilities within the device
including any and all timer functions related exclusively to this feature. After receipt of
this command the device will disable all SMART operations. Attribute values will no
longer be monitored or saved by the device. The state of SMART (either enabled or
disabled) will be preserved by the device across power cycles.

Upon receipt of the SMART DISABLE OPERATIONS command from the host, the device
sets BSY, disables SMART capabilities and functions, clears BSY and asserts INTRQ.

After receipt of this command by the device, all other SMART commands, with the
exception of SMART ENABLE OPERATIONS, are disabled and invalid and shall be aborted
by the device (including SMART DISABLE OPERATIONS commands), returning the
Aborted command error.

6.7.9.2 SMART ENABLE/DISABLE ATTRIBUTE AUTOSAVE

COMMAND CODE - B0h

TYPE - Optional - SMART Feature set. If the SMART feature set is implemented, this
command is optional and not recommended.

PROTOCOL - Non-data command
INPUTS - The Features register shall be set to D2h. The Cylinder Low register shall be set

to 4Fh. The Cylinder High register shall be set to C2h. The Sector Count register is set to
00h to disable attribute autosave and a value of F1h is set to enable attribute autosave.

Register 76543210

Features D2h

Sector Count 00h or F1h

Sector Number

Cylinder Low 4Fh

Cylinder High C2h

Device/Head 1 1 D

Command B0h

NORMAL OUTPUTS - None
ERROR OUTPUTS - If the device does not support this command, if SMART is disabled or

if the values in the Features, Cylinder Low or Cylinder High registers are invalid, an
Aborted command error is posted.

Status register Error register

DRDY DF CORR ERR BBK UNC IDNF ABRT TK0NF AMNF

VV V

PREREQUISITES - DRDY set equal to one. SMART enabled.

Quantum Bigfoot TX 4.0/6.0/8.0/12.0 AT 6-33

IDE Bus Interface and ATA Commands

DESCRIPTION - This command enables and disables the optional attribute autosave
feature of the device. Depending upon the implementation, this command may either
allow the device, after some vendor specified event, to automatically save its updated
attribute values to non-volatile memory; or this command may cause the autosave
feature to be disabled. The state of the attribute autosave feature (either enabled or
disabled) will be preserved by the device across power cycles.

A value of zero written by the host into the device’s Sector Count register before issuing
this command will cause this feature to be disabled. Disabling this feature does not
preclude the device from saving attribute values to non-volatile memory during some
other normal operation such as during a power-on or power-off sequence or during an
error recovery sequence.

A value of F1h written by the host into the device’s Sector Count register before issuing
this command will cause this feature to be enabled. Any other meaning of this value or
any other non-zero value written by the host into this register before issuing this
command is vendor specific. The meaning of any non-zero value written to this register
at this time will be preserved by the device across power cycles.

If the SMART ENABLE/DISABLE ATTRIBUTE AUTOSAVE command is supported by the
device, upon receipt of the command from the host, the device sets BSY, enables or
disables the autosave feature (depending on the implementation), clears BSY and asserts
INTRQ.

If this command is not supported by the device, the device shall abort the command upon
receipt from the host, returning the Aborted command error.

During execution of the autosave routine the device shall not assert BSY nor deassert
DRDY. If the device receives a command from the host while executing its autosave
routine it must respond to the host within two seconds.

6.7.9.3 SMART ENABLE OPERATIONS

COMMAND CODE - B0h

TYPE - Optional - SMART Feature set. If the SMART feature set is implemented, this
command shall be implemented.

PROTOCOL - Non-data command
INPUTS - The Features register shall be set to D8h. The Cylinder Low register shall be set

to 4Fh. The Cylinder High register shall be set to C2h.

Register 76543210

Features D8h

Sector Count

Sector Number

Cylinder Low 4Fh

Cylinder High C2h

Device/Head 1 1 D

Command B0h

NORMAL OUTPUTS - None

6-34 Quantum Bigfoot TX 4.0/6.0/8.0/12.0 AT

IDE Bus Interface and ATA Commands

ERROR OUTPUTS - If the device does not support this command or if the values in the
Features, Cylinder Low or Cylinder High registers are invalid, an Aborted command error
is posted.

Status register Error register

DRDY DF CORR ERR BBK UNC IDNF ABRT TK0NF AMNF

VV V

PREREQUISITES -DRDY set equal to one.
DESCRIPTION - This command enables access to all SMART capabilities within the

device. Prior to receipt of this command attribute values are neither monitored nor saved
by the device. The state of SMART (either enabled or disabled) will be preserved by the
device across power cycles. Once enabled, the receipt of subsequent SMART ENABLE
OPERATIONS commands shall not affect any of the attribute values.

Upon receipt of this command from the host, the device sets BSY, enables SMART
capabilities and functions, clears BSY and asserts INTRQ.

6.7.9.4 SMART READ ATTRIBUTE THRESHOLDS

COMMAND CODE - B0h
TYPE - Optional - SMART Feature set. If the SMART feature set is implemented, this

command is optional and not recommended.

PROTOCOL - PIO data in
INPUTS - The Features register shall be set to D1h. The Cylinder Low register shall be set

to 4Fh. The Cylinder High register shall be set to C2h.

Register 76543210

Features D1h

Sector Count

Sector Number

Cylinder Low 4Fh

Cylinder High C2h

Device/Head 1 1 D

Command B0h

NORMAL OUTPUTS - None
ERROR OUTPUTS - If the device does not support this command, if SMART disabled or

if the values in the Features, Cylinder Low or Cylinder High registers are invalid, an

Quantum Bigfoot TX 4.0/6.0/8.0/12.0 AT 6-35
