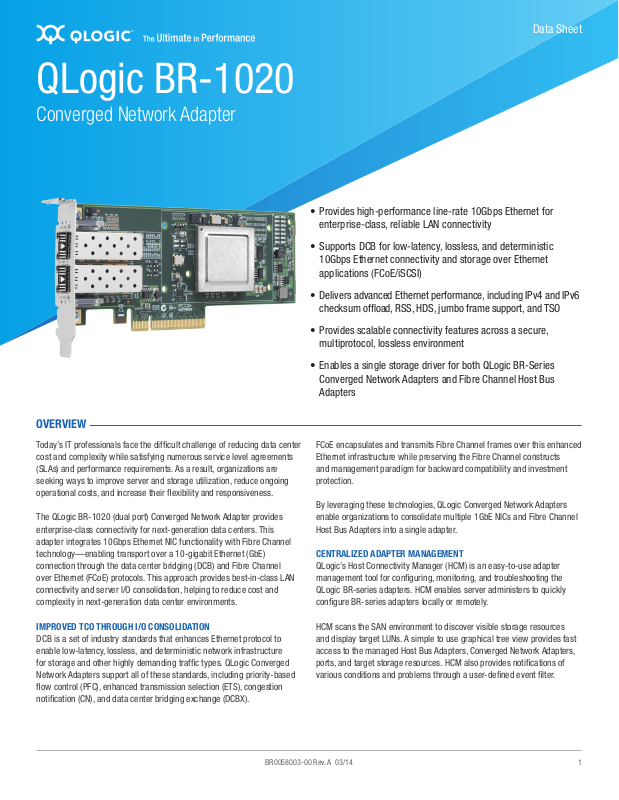

QLogic BR-1020 User Manual

QLogic BR-1020
Converged Network Adapter
Data Sheet
• Provides high-performance line-rate 10Gbps Ethernet for enterprise-class, reliable LAN connectivity
• Supports DCB for low-latency, lossless, and deterministic 10Gbps Ethernet connectivity and storage over Ethernet applications (FCoE/iSCSI)
• Delivers advanced Ethernet performance, including IPv4 and IPv6 checksum ofoad, RSS, HDS, jumbo frame support, and TSO
OVERVIEW
Today’s IT professionals face the difcult challenge of reducing data center cost and complexity while satisfying numerous service level agreements (SLAs) and performance requirements. As a result, organizations are seeking ways to improve server and storage utilization, reduce ongoing operational costs, and increase their exibility and responsiveness.
The QLogic BR-1020 (dual port) Converged Network Adapter provides enterprise-class connectivity for next-generation data centers. This adapter integrates 10Gbps Ethernet NIC functionality with Fibre Channel technology—enabling transport over a 10-gigabit Ethernet (GbE) connection through the data center bridging (DCB) and Fibre Channel over Ethernet (FCoE) protocols. This approach provides best-in-class LAN connectivity and server I/O consolidation, helping to reduce cost and complexity in next-generation data center environments.
• Provides scalable connectivity features across a secure, multiprotocol, lossless environment
• Enables a single storage driver for both QLogic BR-Series Converged Network Adapters and Fibre Channel Host Bus Adapters
FCoE encapsulates and transmits Fibre Channel frames over this enhanced Ethernet infrastructure while preserving the Fibre Channel constructs and management paradigm for backward compatibility and investment protection.
By leveraging these technologies, QLogic Converged Network Adapters enable organizations to consolidate multiple 1GbE NICs and Fibre Channel Host Bus Adapters into a single adapter.
CENTRALIZED ADAPTER MANAGEMENT
QLogic’s Host Connectivity Manager (HCM) is an easy-to-use adapter management tool for conguring, monitoring, and troubleshooting the QLogic BR-series adapters. HCM enables server administers to quickly congure BR-series adapters locally or remotely.
IMPROVED TCO THROUGH I/O CONSOLIDATION
DCB is a set of industry standards that enhances Ethernet protocol to enable low-latency, lossless, and deterministic network infrastructure for storage and other highly demanding trafc types. QLogic Converged Network Adapters support all of these standards, including priority-based ow control (PFC), enhanced transmission selection (ETS), congestion notication (CN), and data center bridging exchange (DCBX).
BR0058003-00 Rev. A 03/14 1
HCM scans the SAN environment to discover visible storage resources and display target LUNs. A simple to use graphical tree view provides fast access to the managed Host Bus Adapters, Converged Network Adapters, ports, and target storage resources. HCM also provides notications of various conditions and problems through a user-dened event lter.
QLogic BR-1020
Data Sheet
In addition to providing a graphical interface, QLogic also provides a powerful command line interface, BCU CLI, for scripting and task automation.
For holistic data center-wide management, QLogic HCM is tightly integrated with Brocade Network Advisor (BNA) to provide end-to­end conguration and management of the entire SAN infrastructure. Administrators can launch QLogic HCM from within BNA to provide single­pane-of-glass management of QLogic BR-series adapters and Brocade Fibre Channel switches.
QLogic also provides open APIs and standards-based interfaces for integration with popular third-party applications.
UNMATCHED PERFORMANCE
The explosive growth of server virtualization and high-bandwidth applications, such as video-on-demand and high performance computing (HPC), is leading to increased performance demands, making 10Gbps connectivity a key requirement. Recent advances in server technology, including Intel® Nehalem processors, now enable servers to run more workloads, increasing consolidation and virtualization ratios. With more VMs deployed per server, network bandwidth and storage I/O requirements are higher than ever before.
QLogic Converged Network Adapters are full-featured 10GbE NICs that deliver 10Gbps line-rate performance per port. They provide stateless networking ofoads such as TCP checksum and segmentation ofoads for improved performance and more efcient CPU usage. Additional CPU cycles can then be dedicated to additional application processing.
QLogic Converged Network Adapters deliver full hardware-based FCoE ofoad to provide superior performance for storage applications, with up to twice the performance of competitive offerings in real-world application scenarios.
With server virtualization, multiple applications share a physical switch port. Furthermore, applications can move across the virtualized server infrastructure based on a number of user-dened policies and in response to dynamic business requirements. Virtualization hypervisors implement virtual switching technologies to connect the VMs to the network, and to move data between VMs.
Virtual machine optimized ports (VMOPs) ofoad the hypervisor of essential virtual switching tasks, such as incoming packet classication and sorting tasks, helping to reduce latency and improve throughput while freeing CPU cycles that can be used to further scale an organization’s virtualization environment.
QLogic Converged Network Adapters support N_Port ID virtualization (NPIV) with up to 255 virtual ports, and are qualied with all major hypervisor solutions in the industry.
Optimal Support for Windows Server 2012
QLogic Converged Network Adapters’ support of Windows Server® 2012 policy-based quality of service (QoS) enables administrators to specify network bandwidth controls based on application type, users, and servers for the physical network. In addition, support of Hyper-V® QoS enables cloud hosting providers and enterprises to deliver predictable network performance for multiple types of trafc for VMs on Windows Server 2012 servers equipped with QLogic BR-1020 adapters running in DCB mode.
MAXIMIZING INVESTMENTS
To help optimize technology investments, QLogic and its partners offer complete solutions that include professional services, technical support, and education. For more information, contact a QLogic sales partner or visit www.qlogic.com.
Ultimately, this means that businesses of all sizes can scale their virtual server deployments and virtualize highly demanding applications with greater condence, resulting in better server resource utilization and lower capital and operational costs.
OPTIMIZED FOR VIRTUAL ENVIRONMENTS
In non-virtualized environments, applications are tied to physical servers, which in turn connect to physical switch ports in a “static” manner. Applying network policies or monitoring application performance is simple because the applications are permanently associated with the physical ports.
BR0058003-00 Rev. A 03/14 2
QLogic BR-1020
Data Sheet
Host Specications
Server Platform
• Intel (IA32, IEM64T); AMD® (x86, 64); Oracle®/Sun® (x86, SPARC®)
Bus Interface
• PCI Express® Gen 2.0
• Compatible (x8) with MSI-X and INTx
FCoE Specications
Protocols
• FC-SP, FC-LS, FC-GS, FC-FS2, FC-FDMI, FC-CT, FCP, FCP-2, FCP-3, FC-BB-5.1
Performance
• Up to 500K IOPS per port (1M IOPS per dual-port adapter)
Logins
Support for 2,048 logins and 4,096 exchanges
Class of Service
Class 3, Class 2 control frames supported
Ethernet Specications
DCB Support
• Priority-based ow control (PFC: 802.1Qbb)
• Enhanced transmission selection (ETS: 802.1Qaz)
• Congestion notication (802.1Qau)
• DCBX
Software
Management
• QLogic Host Connectivity Manager (HCM)
• QLogic BCU CLI
Operating Systems
• For the latest applicable operating system information, see http://driverdownloads.qlogic.com.
Management APIs
SNIA HBA API v2.0, SMI-S, and FDMI-1
Physical Specications
Transceivers
• 10Gbps Ethernet LC-style pluggable (SFP+), SR (850nm) and LR 10km (1310nm), hot-swappable
• 10Gbps Ethernet direct-attached active Twinax SFP+ copper cable (1m, 3m, 5m), hot-swappable
Form Factor
• Low-prole MD2 form factor PCI Express card:
16.77cm × 6.89cm (6.60in. × 2.71in.)
Distance Support
• 26 meters at 10Gbps on 62.5µm multimode ber
• 82 meters at 10Gbps on 50µm (OM2) multimode ber
• 300 meters at 10Gbps on 50µm (OM3) multimode ber
• 10 kilometers at 10Gbps on 9µm single-mode ber
• 5 meters at 10Gbps over active Twinax cable
Power Dissipation
8.5W
Operating Voltage
3.3V
Agency Approvals
United States
• CSA 60950-1-03 First Ed; ANSI C63.4; cCSAus; FCC Class B
Canada
UL60950-1, First Ed; ICES-003 Class B; cCSAus
Japan
CISPR22 Class B and JEIDA (Harmonics); VCCI-B
European Union
• EN60950-1; EN55022 Class B and EN55024; TÜVBauart, CE Mark
Australia, New Zealand
• EN55022 and CISPR22 Class B or AS/NZS; ISPR22; C-Tick
Russia
IEC60950-1; 51318.22-99 and .24-99; GOST Mark
Korea
KN22 and KN24; KCC Mark Class B
Taiwan
CNS 14336(94); CNS 13438(95) Class A; BSMI Mark
Performance
10Gbps full-duplex line rate
Frame Sizes
• All standard Ethernet frame sizes supported, including: 9,600-byte jumbo frames; mini-jumbo frames
Ethernet Acceleration
• IPv4/IPv6, TCP, and user datagram protocol (UDP) checksum ofoad; IPv4 header checksum ofoad; TCP segmentation ofoad (TSO); receive side scaling (RSS); header data split (HDS); VLAN insertion/ stripping and ltering
1 See documentation for full list of supported protocols.
BR0058003-00 Rev. A 03/14 3
Environment and Power Requirements
Airow
45 linear feet/minute (LFM)
Operating Temperature
0º C/32º F to 50º C/122º F (dry bulb)
Non-operating Temperature
–43º C/–40º F to 73º C/163º F (dry bulb)
Operating Humidity
5% to 93% (relative, non-condensing)
Non-operating Humidity
5% to 95% (relative, non-condensing)
Ordering Information
BR-1020-0010 (dual port)
• Ships in a single pack with low-prole and standard brackets, and SR/SW SFP+ transceivers
BR-1020-1010 (dual port)
• Ships in a single pack with low-prole and standard brackets, and Twinax SFP+ transceivers
QLogic BR-1020
READY
Data Sheet
NOTICES
Brocade Network Advisor (BNA) is a management solution from Brocade that enables unied management across SAN and IP networks. Brocade Server Application Optimization (SAO) is an optional feature available on Brocade switches. SAO works with QLogic BR series adapters to enhance application performance and VM scalability. Licenses for Brocade's BNA and SAO products can be purchased separately through Brocade Corporation.
DISCLAIMER
Reasonable efforts have been made to ensure the validity and accuracy of these performance tests. QLogic Corporation is not liable for any error in this published white paper or the results thereof. Variation in results may be a result of change in conguration or in the environment. QLogic specically disclaims any warranty, expressed or implied, relating to the test results and their accuracy, analysis, completeness or quality.
