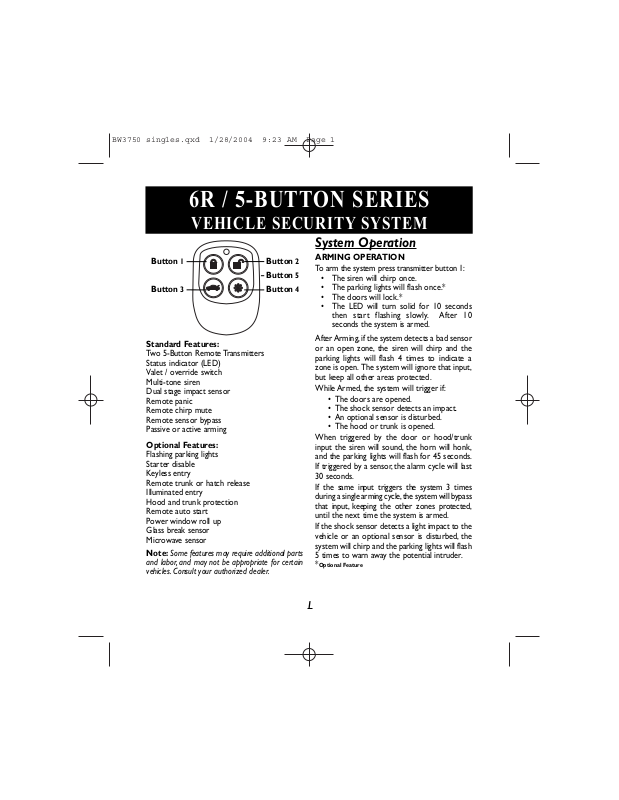

Pyle PWD203 User Manual
6R / 5-BUTTON SERIES
VEHICLE SECURITY SYSTEM
Button 1 Button 2
Button 5
Button 3 Button 4
Standard Features:
Two 5-Button Remote Transmitters
Status indicator (LED)
Valet / override switch
Multi-tone siren
Dual stage impact sensor
Remote panic
Remote chirp mute
Remote sensor bypass
Passive or active arming
Optional Features:
Flashing parking lights
Starter disable
Keyless entry
Remote trunk or hatch release
Illuminated entry
Hood and trunk protection
Remote auto start
Power window roll up
Glass break sensor
Microwave sensor
Note: Some features may require additional parts
and labor, and may not be appropriate for certain
vehicles. Consult your authorized dealer.
System Operation
ARMING OPERATION
To arm the system press transmitter button 1:
• The siren will chirp once.
• The parking lights will flash once.*
• The doors will lock.*
• The LED will turn solid for 10 seconds
then start flashing slowly. After 10
seconds the system is armed.
After Arming, if the system detects a bad sensor
or an open zone, the siren will chirp and the
parking lights will flash 4 times to indicate a
zone is open. The system will ignore that input,
but keep all other areas protected.
While Armed, the system will trigger if:
• The doors are opened.
• The shock sensor detects an impact.
• An optional sensor is disturbed.
• The hood or trunk is opened.
When triggered by the door or hood/trunk
input the siren will sound, the horn will honk,
and the parking lights will flash for 45 seconds.
If triggered by a sensor, the alarm cycle will last
30 seconds.
If the same input triggers the system 3 times
during a single arming cycle, the system will bypass
that input, keeping the other zones protected,
until the next time the system is armed.
If the shock sensor detects a light impact to the
vehicle or an optional sensor is disturbed, the
system will chirp and the parking lights will flash
5 times to warn away the potential intruder.
Optional Feature
*
1
PASSIVE ARMING
The passive arming feature allows the system to
automatically arm after closing all doors. The
Passive Arming feature requires the ignition to
have been on for at least 10 seconds prior to
exiting the vehicle. This enables the key to be
turned on then off quickly to avoid passive
arming in the event of refueling, washing the
vehicle, etc. The Passive Arming feature may be
enabled during installation.
To arm the system passively:
1. Turn the ignition key off (make sure
ignition was on for at least 10 seconds).
2. Exit the vehicle and close all doors.
• The LED flashes rapidly indicating that
the system is preparing to arm. (The
system can be armed at any time by
pressing transmitter button 1.)
• If the optional countdown feature is
programmed, the siren will chirp every
2 seconds until armed.
• The siren will chirp 30 seconds after
the last door is closed to indicate the
system is armed. NOTE: Opening the
hood/trunk or a door resets the passive
arming timer.
• The doors will lock.†*
† If Passive Locking was enabled during installation.
DISARMING OPERATION
To disarm the system press transmitter button 2.
• The siren will chirp twice.
• The parking lights will flash twice.*
• The doors will unlock.†*
• The dome light will turn on for 30
seconds.*
If the Passenger Unlock Feature is installed, pressing
†
the unlock button will unlock only the driver's door.
Pressing the unlock button again unlocks all doors.
TAMPER ALERT
If the alarm was triggered while away from the
vehicle, the siren will chirp 3 times and the
parking lights will flash 3 times on disarming for
tamper indication. After disarming the alarm,
enter vehicle and turn ignition on.The LED will
flash the zone that was triggered 3 times (see
LED TAMPER ALERT INDICATIONS).
AUTO REARM
The Auto Rearm feature allows the system to
automatically re-arm itself and lock the doors*
in the event the system is disarmed and a
door is not opened within 30 seconds. This
programmable feature may be enabled during
installation.
SILENT ARMING/DISARMING
Press transmitter button 5 (the Shift Button)
then the Arm or Disarm button for one-time
silent operation.The system can also be
programmed for full-time silent operation
during installation.
IGNITION LOCK*
The ignition locking feature automatically locks
the doors 5 seconds after the ignition key is
turned on, and automatically unlocks when the
ignition key is turned off. To avoid locking keys
in the vehicle, the ignition locking feature will be
cancelled if a door is open when the ignition is
turned on. This feature may be disabled during
installation.
Optional feature
*
REMOTE PANIC
In the event of an emergency (PANIC) situation,
the system’s siren can be triggered for 30
seconds to attract attention.To activate the Panic
Feature, press transmitter button 1 for 3
seconds:
2
• The siren will sound.
• The parking lights will flash*.
Press button 1 to exit panic mode and rearm
the system. Press button 2 to exit panic mode
and disarm the system. The Panic Feature will
not operate when the ignition is on.
EMERGENCY OVERRIDE
If the transmitter becomes lost or fails to
operate, the system can be disarmed by using
the emergency override feature.
To override the system:
1. Enter the vehicle.
• Because the system is armed, the siren
will sound.
2. Turn on the ignition key.
3. Press the Valet switch for 3 seconds.
• The siren will stop sounding.
• The starter defeat will be bypassed.
• The system will enter valet mode.
VALET MODE
When the system is placed into the Valet Mode
the security system will be disabled. However,
the optional keyless entry and auxiliary
features will still function if installed. The valet
feature may be accessed using the valet switch
or using the remote transmitter.
To enter or exit valet mode using the switch:
1. Be sure the system is disarmed.
2. Turn the ignition key on.
3. Press and hold the valet switch for 3
seconds.
• The siren will chirp once to enter valet
or twice for exit.
• The LED will turn on solid indicating
the system is in valet mode, or turn off
indicating valet mode exit.
To enter or exit valet mode using the remote:
1. Be sure the ignition key is off.
2. Press transmitter button 2 then button 1
and hold for 3 seconds..
• The siren will chirp once to enter valet
or twice for exit.
• The LED will turn on solid indicating
the system is in Valet Mode, or turn off
indicating Valet Mode exit.
OPTIONAL TRUNK RELEASE
Press button 3 for approximately 2 seconds to
open the trunk.
OPTIONAL TRUNK DISARM
The trunk disarm feature allows the alarm to
disarm automatically whenever transmitter
button 3 is used to activate the optional trunk
release. This eliminates having to first disarm
the alarm before activating the trunk release.
This feature must be programmed during
installation.
REMOTE SENSOR BYPASS
To arm the system and bypass the shock sensor,
press button 1 to arm, then within 2 seconds
press button 4. The siren will chirp once and
sensors will be ignored until the system is
disarmed and rearmed.
OPTIONAL ANTI-CARJACK FEATURE
The optional anti-carjacking feature provides
added security with three operating modes:
Active, Passive, and Full-time. The Anti-Carjacking
feature may be enabled during installation.
Active. Press transmitter button 4 with the
ignition on to manually activate the anticarjacking feature. Press button 4 again to
deactivate the Activ
e carjack feature.
3
Passive. When selected, the anti-carjacking
feature will activate whenever a door is opened
while the ignition is on. Press the valet switch
3 times to deactive the Passiv
carjack feature.
e
Full-time. When selected, the anti-carjacking
feature will automatically activate each time the
ignition is turned on. Press the valet switch 3
times to deactive the Full-time
carjack feature.
If the carjack feature is triggered:
• The parking lights will flash two times.
• 90 seconds later the parking lights will
flash, the horn will honk, and the siren will
sound for 5 minutes.
• The starter kill will turn on and remain on
until the carjack feature is deactivated.
Transmitter Functions with Shift Key
(Button 5) pressed 1 time:
Button 1 Silent Arm
Button 2 Silent Disarm
Button 3 Auxiliary function 3
Button 4 Car Locator feature (flashes parking
lights, chirps siren, and honks horn 5 times)
Transmitter Functions with Shift Key
(Button 5) pressed 2 times:
Button 1 Arm car 2; press 3 seconds for panic
Button 2 Disarm car 2; press twice for optional
Passenger Unlock feature
Button 3 Auxiliary function 1 for car 2
Button 4 Auxiliary function 2 for car 2
TRANSMITTER FUNCTIONS
Button 1 Arm; press 3 seconds for panic
Button 2 Disarm; press twice for optional
Passenger Unlock feature
Button 3 Auxiliary function 1
Button 4 Auxiliary function 2
STATUS INDICATOR (LED)
FUNCTION
On Solid = Valet Mode
Slow Flash = System Armed
Rapid Flash when disarmed =
Passive Arming
Rapid Flash when armed =
Tamper Alert
On Solid when not in valet =
Open Zone
S
LED TAMPER ALERT
INDICATIONS
(after turning on ignition)
1 Flash = optional sensor
2 Flashes = shock sensor
4 Flashes = door
5 Flashes = hood or trunk
Example: flash-flash-pause-flash-
flash-pause = shock sensor
Transmitter Functions with Shift Key
(Button 5) pressed 3 times:
Button 1 Silent Arm car 2
Button 2 Silent Disarm car 2
Button 3 Auxiliary function 3 for car 2
Button 4 Car Locator feature for car 2
PARKING LIGHT
INDICATIONS
1 Flash = System Armed
2 Flashes = System Disarmed
3 Flashes = Tamper Alert
4 Flashes = Open Zone
Indication (after arming)
5 Flashes = Warn Away
On Solid = System Disarmed
(optional programming for 30
second output on disarm)
4
