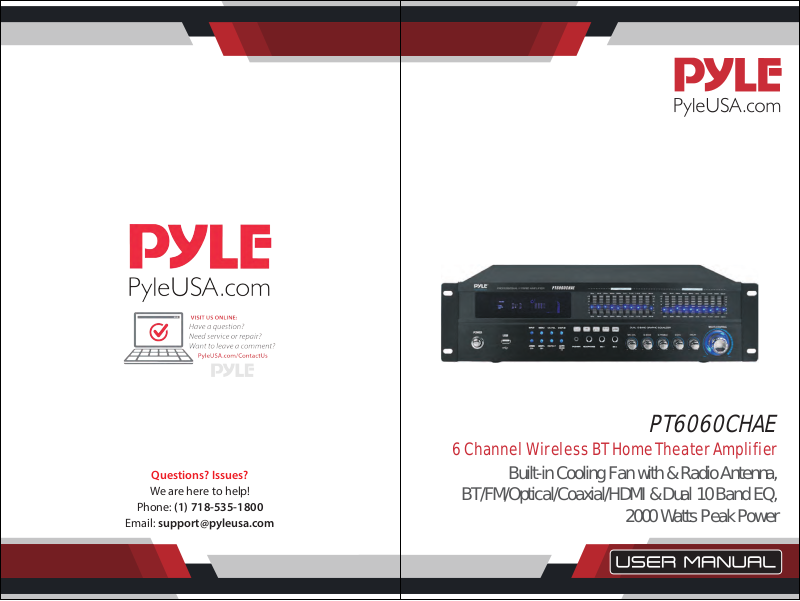

Page 1
PT6060CHAE
6 Channel Wireless BT Home Theater Amplifier
Questions? Issues?
We are here to help!
Phone: (1) 718-535-1800
Email: [email protected]
Built-in Cooling Fan with & Radio Antenna,
BT/FM/Optical/Coaxial/HDMI & Dual 10 Band EQ,
2000 Watts Peak Power
Page 2
Front and Back Panel
1. LED Digital Display
2. Left Equalizer
3. Right Equalizer
4. Power ON/OFF Switch
5. USB Reader
6. Previous Song/Previous Station
7. Repeat Function
8. Input Selector
9. Next Song/Next Station
10. Menu
11. FM Mode: Auto scanAudio
Input Mode: Play/Pause
12. DISP. M
13. Channel Volume Control
14. IPOD/MP3 Inputs Jack
15. Headphones Input
16. Mic 1 & Mic 2 Input
17. Delay Control
18. Echo Control
19. Treble Volume Control
20. Bass Volume Control
21. Mic Volume Control
22. Master Volume Control
23. Coaxial Input Jack
24. Optical Input Jack
25. HDMI Input
26. HDMI Output
27. Cooling Fan
28. 120V/240V Voltage Selector
29. FM Radio Antenna
30. AC-3 Inputs
31. DVD Input (L/R)
32. Subwoofer Output
33. Speaker Output
34. AC 120V/240V Input
Remote Control Functions
1. Mute button
2. Input button: Switch between input
sources.
3. Numeric key pad: In USB mode, use to
manually select tracks. In radio mode
use to manually select stored stations.
4. Scan button: Scan between stations.
5. Spectrum display mode.
6. Menu button: Controls function of
Master Volume (Volume, Bass, Treble,
Balance)
7. Master Volume + button: Increases
volume level.
8. Previous button: Move back through
tracks from USB Input
9. Play/Pause button: Play and pause
music from USB Input
10. Channel mode volume
11. Stop button: Stops music playing
from USB input
12. Tuning Forward button: Move forward
through radio stations.
13. Reset button: Resets volume to 20dB
14. Memory button: Allows user to save
selected stations.
15. Stereo/Mono button: Toggles
between Stereo and Mono modes.
16. Next button: Move forward through
tracks from USB input
17. Master Volume - button: Decreases
volume level.
18. Repeat button: Repeats current track
from USB Input
19. Tuning Back button: Move back
through radio stations.
www.PyleUSA.com
2
www.PyleUSA.com
3
Page 3
WIRELESS BT STREAMING OPERATION INSTRUCTION:
External devices which have a built-in Wireless BT feature can be connected
to this amplier wirelessly to play through the amplier's speakers. If your
amp is connected to speakers, you will hear audible tones which will help
for connecting.
1. Press the "INPUT" button located on the front panel and select "BT" mode.
2. Turn ON the Wireless BT of your external device.
3. Search for available BT devices and make sure to be within range of your
amp, and wait for your device to select "Pyle Speaker" on the pairing
devices lists of Wireless BT networks.
4. The unit is automatically ready to pair with your devices when you hear
audible tones.
5. Now you can play music on your external device through the amplier.
Features:
• Wireless BT Streaming Ability
• Built-in USB Playback
• VFD Display
• FM Radio
• IPOD/MP3(3.5mm) Input
• MIC/HDMI/AC-3/DVD Inputs
• BT Home Theater Amplier
• Compact Home Theater-Stereo Receiver Style
• Built-in BT for Wireless Music Streaming
• Speaker Output
• Optical/Coaxial Digital Signal Inputs
• Multi-Channel Audio Input Selection
• MP3/WAV Audio Files Support
• Connect & Stream Audio from External Devices
• Front Panel Audio Control Center
• Radio Station Auto-Search Scan
• Spectrum Mode Functions
• Repeat Audio File Functions
• Channel Volume Adjustable
• Treble, Bass, Echo, Master & Microphone Volume Control
Wireless BT Connectivity:
• Receives Wireless Signal for Audio Streaming
• Simple & Hassle-Free Pairing Setup
• Integrated Antenna for Extended Wireless Range
• Works with All of Today’s Latest Devices
(Smartphones, Tablets, Laptops, Computers, etc.)
• Wireless BT Version: 5.0
• Wireless BT Network Name: 'Pyle Speaker'
• Wireless Range: 40'+ Ft.
What's in the Box:
• Desktop Stereo Amplier
• Remote Control
• FM Antenna
• Handles
Technical Specs:
• Power Output: 2000 Watts Peak Power
• Operating Voltage: 120V/240V
• Remote Control Battery: Need 2x ’AAA’ Battery (not included)
• MAX Power Output: 80 Watt x6 (@ 4 Ohm)
• RMS Power Output: 70W*3+50W*3 (@ 4 Ohm)
• Tone Control: Bass, f=100Hz +/-12dB, Treble, f=10 KHz +/-12dB
• Tone Control for Mic: Bass, f=100Hz +/-8dB, Treble, f=10 KHz +/-8dB
• Frequency Response: 20Hz-20 kHz
• Frequency Adjustment: +/-2dB
• Signal to Noise Ratio: >75 dB
• T.H.D.: <0.5%
• Radio Station Presets: Up to 40 Stations
• Separation Degree: >45dB
• Power Supply: 120V/240V, Switchable
• Dimensions (L x W x H): 16.93'' x 11.81'' x 4.72'' -inches
www.PyleUSA.com
4
www.PyleUSA.com
5
