Pyle PT270AIU Datasheet

PT270AIU

300 Watt Stero Receiver

with Built-In iPod Docking Station

Questions? Issues?

We are here to help!

Phone: [phone]

Email: [e-mail]

-AM-FM Tuner, USB/SD Card Readers
and Subwoofer Control

Please read these operating instructions carefully before use.

They will acquaint you fully with its features.

This product adopts highly advanced digital techniques, high powered, four

-channel outputs to be the media center of your living room. It includes an

AM/FM tuner, MP3/iPod input jack, headphone jack. This Pyle Pro hybrid

amplier also has sub-out and pre-outs for a variety of applications.

WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC
SHOCK. DON'T EXPOSE THIS EQUIPMENT TO RAIN OR
MOISTURE.

TO REDUCE THE RISK OF FIRE OR ELECTRIC
SHOCK AND ANNOYING INTERFERENCE, USE
THE RECOMMENDED ACCESSORIES ONLY.

THIS DEVISE IS INTENDED FOR CONTINUOUS
OPERATION!

*Designs and specications are subject to change without notice.

PRECAUTIONS

1. Power Source: The unit should be connected to a power supply AC-110/60Hz,

AC-220V/50Hz.

2. Ventilation: The unit should be situated so that its location or position does

not interfere with its proper ventilation. Place the unit at least 10cm away from

the walls.

3. Water and moisture: The unit should not be used near water-for example,

near a swimming pool, in a wet basement, etc.

4. Electric Shock: If a metal objects, such as a hair pin or a needle, comes into

contact with the inside of this appliance, a dangerous electric shock may result.

For families with children, never permit children to put anything, especially

metal, inside this unit.

5. Enclosure Removal: Do not open the unit as this might result in damage to

the circuitry or electrical shock. If a foreign object should get into the unit,

contact your dealer or service company.

6. Abnormal Smell: If an abnormal smell or smoke is detected, immediately turn

the power OFF and pullout the power cord. Contact your dealer or nearest

service station.

FEATURES

• PRE-Amp with AM/FM Tuner

• CPU management of all functions, remote sensor

• Digital uorescent output displays all the functions

• Separate gain control of pre-amp and subwoofer

• All the blue lights and blue rings gain control through LED Dimmer

• AM/FM Quartz synthesized Tuner, auto station seek and store, 50 stations

storage, with both manuaI and automatic tuning

• lpod/Mp3 Input with cable

• Digital karaoke system

• Over heat, over current protection

www.PyleUSA.com

1

How to replace the preset radio stations?

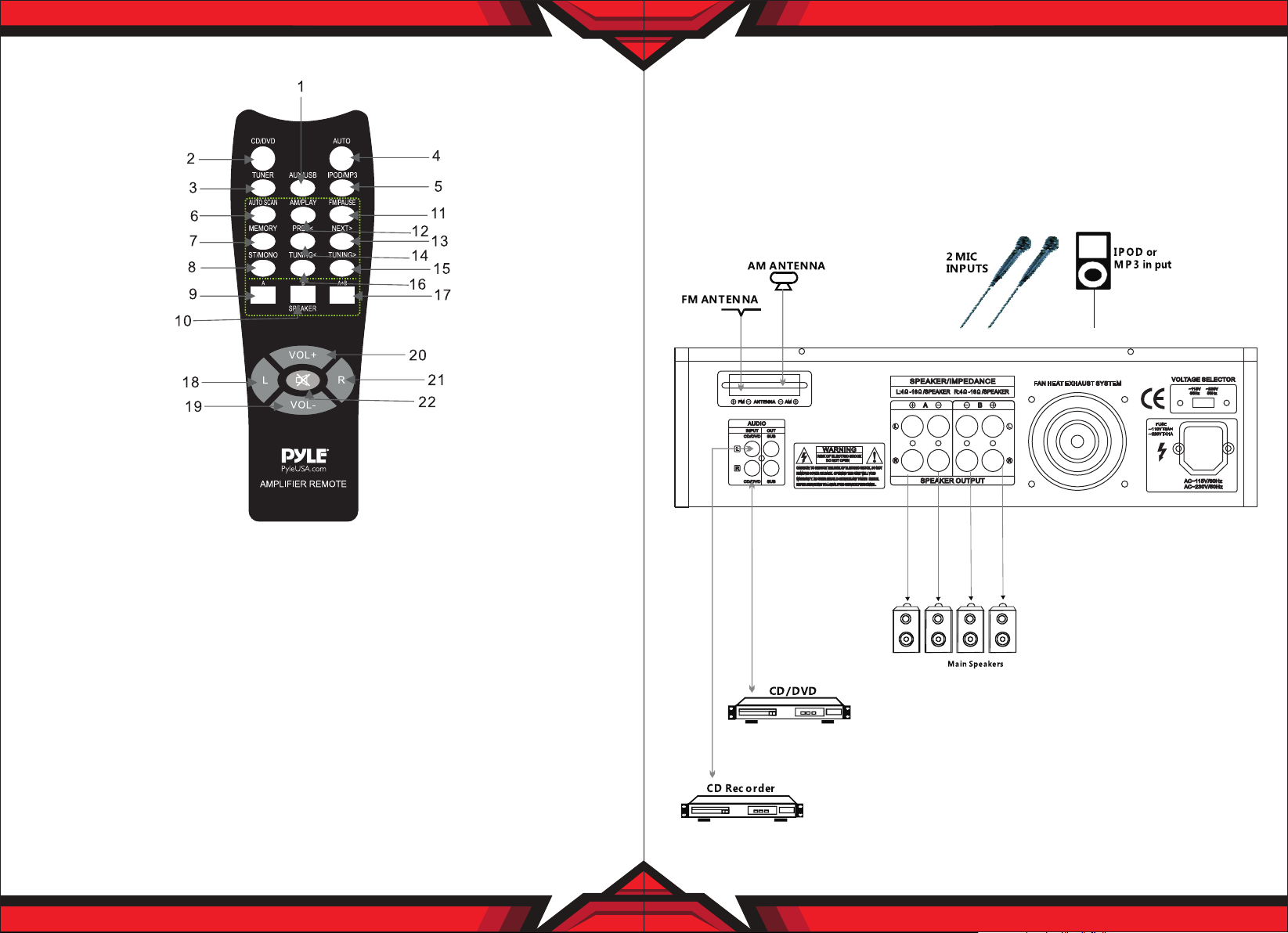

Use the remote control to set the radio stations.

NOTE: The preset radio stations can’t be deleted, BUT CAN BE REPLACED.

Operations Steps:

1. Press TUNER MODE on the remote control

2. Pres AM/FM, and select FM

3. Press PRE/NEXT to select the stations you don’t want to keep;

4. Press TUNING again choose the radio stations you want to save

5. Press MEMORY to save the new stations

In this way, you can replace the preset radio stations.
