Proteam Proclean Owner's Manual

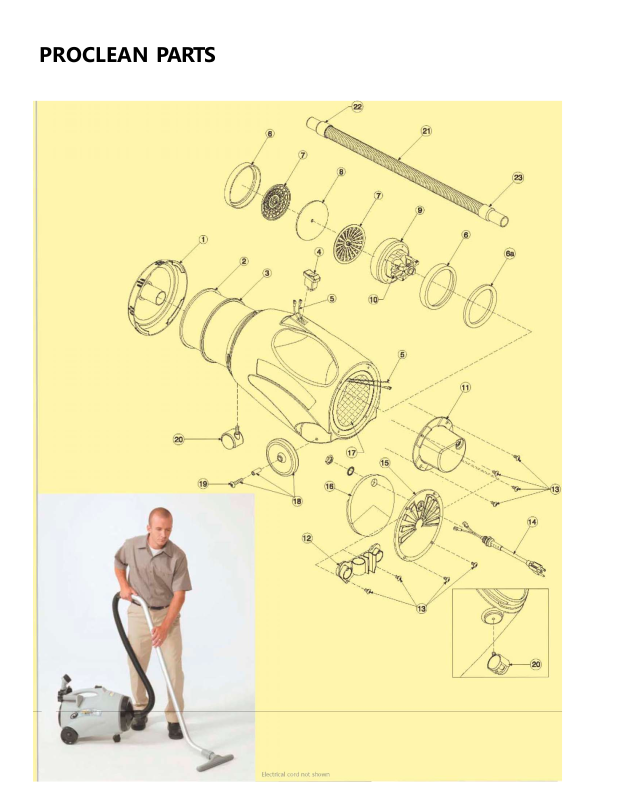

PROCLEAN PARTS

Order # ProClean

1 103318 Top Cap, Black 1 each

2 103189 672 Sq. In. Intercept Micro Filter 10/pack

3 103115 Micro Cloth Filter 1 each

4 103669 Double Pole Switch 1 each

5 103212 Wire Harness Assembly: 3 Wires and Strain Relief 1 set

6 103265 Motor Seal Kit: Set of Two 1 set

6a 103188 Motor Spacer 1 each

7 102784 Dome Filter w/ Filter Media 1 each

8 101949 Replacement Foam Media for Dome Filter 1 each

102761 High Filtration Disc (Optional) 2/pack

9 103329 1340 Watt Motor/Fan (120V) w/ Crimps 1 each

10 101720 Carbon Brush Replacement Set for 1340 Watt Motor 1 set

11 103121 Motor Mount 1 each

12 103117 Tool Dock 1 each

13 103266 Motor Mount and Vented Exhaust Cover Screw Kit 1 set

14 103215 Power Cord (18" 16/3) Assembly Complete w/ Strain Relief

w/ Locknut and Washer

15 103365 Vented Exhaust Cover, Black 1 each

16 103256 Exhaust Foam 1 each

17 103123 Rear Foam Diffuser 1 each

103124 Foam Inlet Damper A (not shown) 1 each

103125 Foam Inlet Damper B (not shown) 1 each

18 103267 Rear Wheel Assembly Kit: 2 Wheels, 2 Spacers, 2 Screws 1 set

19 103268 Rear Wheel Mounting Screw Kit: 2 Screws 1 set

20 103114 Swivel Caster 1 each

21 103172 78" Static Dissipating Hose w/Cuffs (Black) VA" 1 set

22 100694 Replacement Swivel Cuff (Black) 11/2"

22 Replacement Swivel Cuff (Black) 11/2"

23 103150 Replacement Long Swivel Cuff (Black) 11/2" 1 each

Quant

1 each

1 each
