OWNER’S MANUAL
AIRMOVER/CARPET DRYER
ProBlitz™
SKU: 107132
Model: 1071320
ProBlitz™ XP
SKU: 107133
Model: 1071330
SP6769-1 PROTEAM ProBlitz 8/15/11 9:19 AM Page 2
TABLE OF CONTENTS
ProBlitz/ProBlitz XP
AirMover/Carpet Dryer
Air Mover Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Motor Specifications and Electrical Requirements. . . . . . 5
Electrical Cord Care . . . . . . . . . . . . . . . . . . . . . . . . . 5
Carton Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Features and Operation . . . . . . . . . . . . . . . . . . . . . . . 7
Storage and Transportation. . . . . . . . . . . . . . . . . . . . . 8
Cleaning Your Air Mover . . . . . . . . . . . . . . . . . . . . . . 9
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

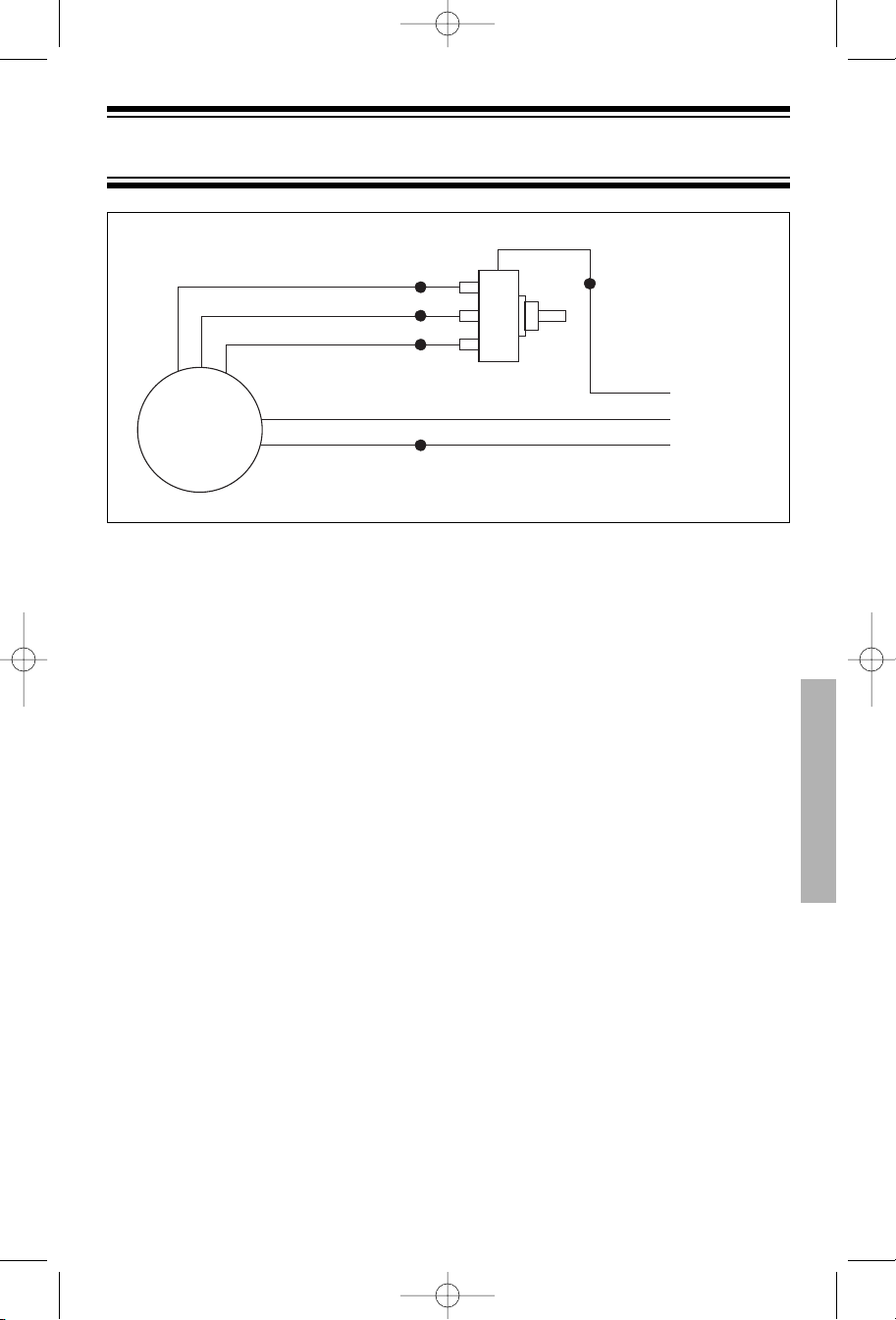

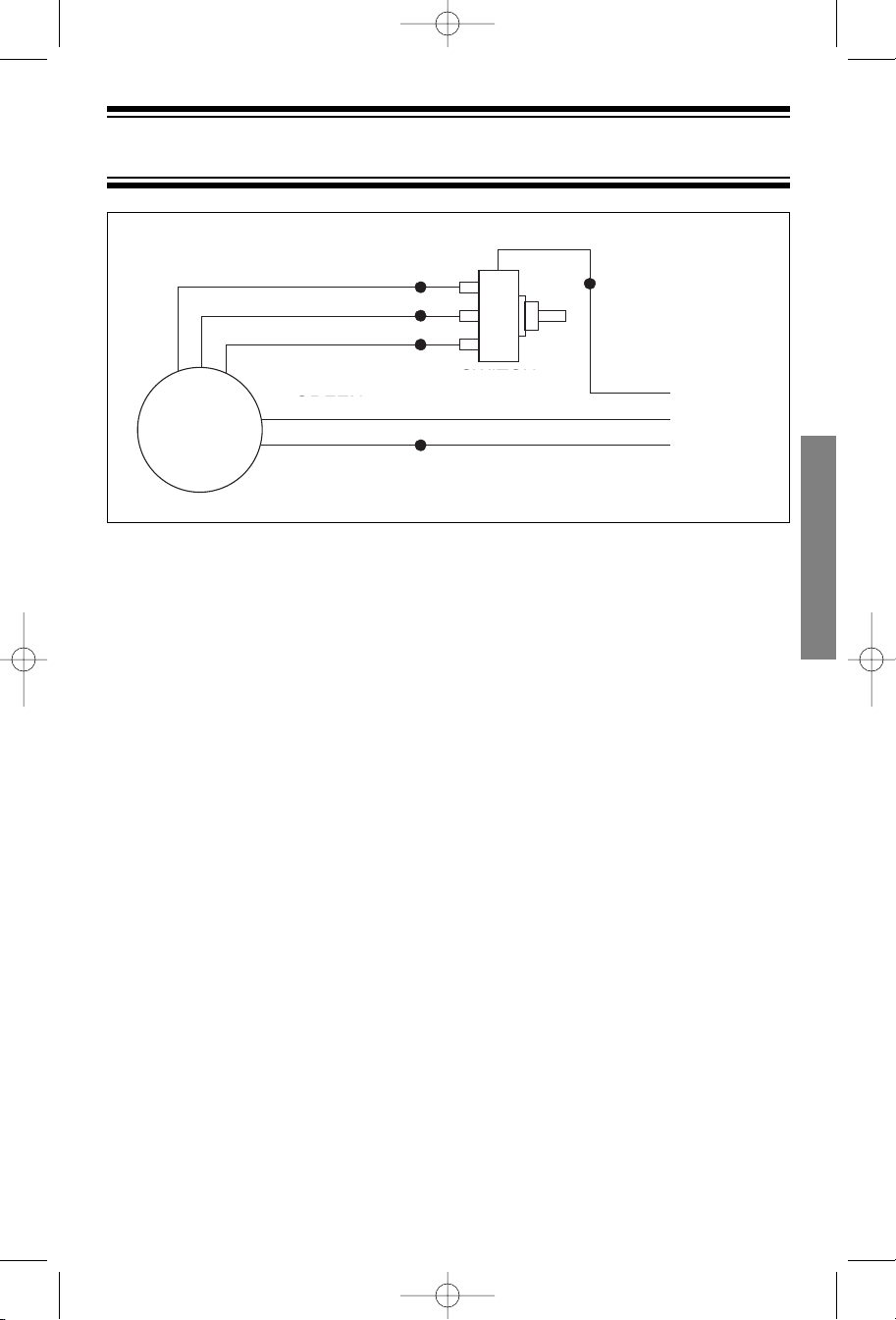

Wiring Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

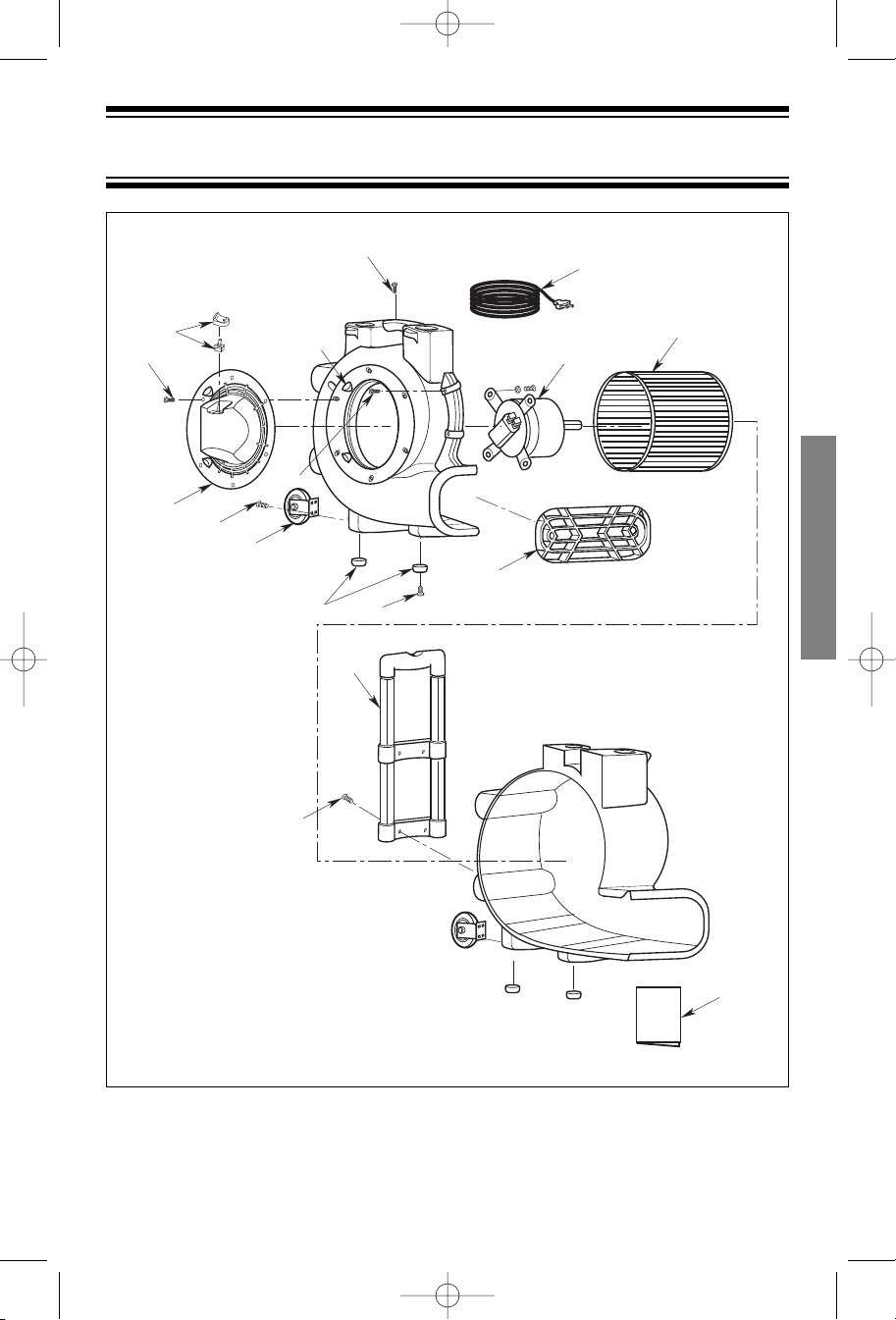

Air Mover/Carpet Dryer Repair Parts. . . . . . . . . . . . . . 12
Air Mover/Carpet Dryer Assembly. . . . . . . . . . . . . . . . 13
Limited Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Español . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Français Canadienne . . . . . . . . . . . . . . . . . . . . . . . . . . 33
INSPECTION
Carefully unpack and inspect your new ProTeam AirMover/Carpet Dryer
for shipping damage. Each unit is tested and thoroughly inspected before
shipping. All returns must have a Return Authorization Number (RAN).
To request an RAN or to ask questions regarding any shipping damage,
contact ProTeam at:
(866) 888.2168 or customerservice.proteam@emerson.com
This Owner’s Manual has important information for the use and safe
operation of this machine. Read this manual carefully before starting the
machine. Keep this manual available at all times and instruct all users to
read this manual. If instructions are not followed, an injury may occur or
equipment, furniture or buildings may become damaged.
For new manuals please contact ProTeam, Inc. at:
customerservice.proteam@emerson.com
P.O. Box 7385, Boise, ID 83707
(866) 888.2168
or visit www.pro-team.com for a downloadable version.
The contents of this manual are based on the latest product information
available at the time of publication. ProTeam reserves the right to make
changes or improvements to its machines without notice.
E
N
G
L
S
H
E
S
P
A
˜
N
O
L
F
R
A
N
Ç
A
I
S
I
2 Pr
oTeam
SP6769-1 PROTEAM ProBlitz 8/15/11 9:19 AM Page 3
IMPORTANT SAFETY INSTRUCTIONS
Safety is a combination of using common sense, staying alert, and knowing how your
air mover works.
Safety Signal Words
DANGER: Indicates a hazardous situation which, if not avoided, will result in
!
death or serious injury.
WARNING: Indicates a hazardous situation which, if not avoided, could result in
!
death or serious injury
CAUTION: Indicates a hazardous situation which, if not avoided, could result in
!
minor or moderate injury
When using your air mover, always follow basic safety precautions including the
following:
!
WARNING:
- To reduce the risk of fire, electric shock, or injury:
• Read and understand this manual and all labels on the air mover before operating.
Use only as described in this manual.
•
• To reduce the risk of electric shock, do not expose to rain, or immerse in or use in
standing water. Store indoors only.
• Use only with GFCI-protected outlets.
• Do not stack air movers more than 2 units high.
• Do not use an extension cord with this air mover.
• Electrical appliances can ignite flammable vapors or dust. Do not use near
combustible liquids, gases, or dusts.
• Do not leave plugged into outlet when not in use or when servicing. Turn off
before unplugging.
• To reduce the risk of stirring up and inhaling toxic vapors, do not use near toxic or
hazardous materials.
• Never operate with safety grills removed.
• This unit has an automatically-operated protective device which may shut down
the unit during operation. Unplug before servicing or cleaning.
• Do not use with solid state speed control device.
• Do not allow to be used as a toy. Close attention is necessary when used by or
near children.
• Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.
• Do not use with damaged cord, plug, or other parts.
• If your air mover is not working as it should, has missing parts, has been dropped,
damaged, left outdoors, or dropped into water, contact Customer Service.
• Do not pull or carry by cord, use cord as handle, close a door on cord, or pull cord
around sharp edges or corners. Keep cord away from heated surfaces.
• Do not run cord under carpeting. Do not cover cord with throw rugs, runners, or
similar coverings. Do not route cord under furniture or appliances. Arrange cord
away from traffic area and where it will not be tripped over.
• Do not handle plug, switch, or the air mover with wet hands.
.
.
READ AND SAVE THESE INSTRUCTIONS
ProTeam 3
SP6769-1 PROTEAM ProBlitz 8/15/11 9:19 AM Page 4
IMPORTANT SAFETY INSTRUCTIONS
• Do not lift air mover by retractable handle.
• Do not use retractable handle and wheels for going up and down stairs.
Use carrying handle on top of motor housing.
• Do not use unit as a hand truck or moving dolly.
!
• Do not put any object into air intake openings.
• Keep hair, loose clothing, fingers, and all parts of body away from openings and
moving parts.
• Direct air discharge only at work area. Do not direct air at bystanders.
!
CAUTION:
• For dusty operations, wear dust mask.
• Do not move or carry air mover when it is operating.
• Only operate on a level and stable surface to prevent it from falling and possibly
causing injury or damage to unit.
Observe the following warnings that appear on the motor housing of your air mover:
!
WARNING: To reduce the risk of electric shock, connect only to a GFCI
protected outlet. Do not expose to water or r
CAUTION:
!
• This fan has an automatic motor shutoff device; it may restart without notice.
o reduce the risk of injury, unplug before servicing.
T
• Do not use an extension cord with this fan.
!
WARNING: TO REDUCE THE RISK OF TIP-OVER DURING ST
STACK 2-HIGH ONLY.
ain.
ORAGE OR TRANSPORT,
READ AND SAVE THESE INSTRUCTIONS
4 ProTeam
SP6769-1 PROTEAM ProBlitz 8/15/11 9:19 AM Page 5
MOTOR SPECIFICATIONS AND
ELECTRICAL REQUIREMENTS
115 Volt, 60 Hz. Air Mover Information
This air mover is provided with a 3-speed, 115 volt, 60 Hz induction motor with a
grounding conductor. It is thermally protected and will automatically shut down if
over-heated. Once it cools, the motor will restart automatically if not unplugged.
In the event of a malfunction or breakdown, grounding provides a path of least
resistance for electric current to reduce the risk of electric shock. This air mover is
equipped with an electric cord having an equipment grounding conductor and a
grounding plug. The plug must be plugged into a matching outlet that is properly
installed and grounded in accordance with all local codes and ordinances.
Do not modify the plug provided. If it will not fit the outlet, have the proper outlet
installed by a qualified electrician.
ELECTRICAL CORD CARE
When air mover use is complete, unplug the cord and wrap it around cord wrap tabs
on top of the housing. If the power cord is damaged, it must be replaced by
ProTeam or the local ProTeam authorized dealer to reduce the risk of accident.
NEVER stretch the cord tightly between the air mover and the outlet. A cord that is
stretched or pulled will not function properly and creates an electrical and tripping
hazard.
DO NOT wind up the cord by wrapping it around your hand and elbow.
Use only the designated ProTeam replacement cord.
Cord jacket type should be SJTW or better.
ProTeam 5
Retractable
SP6769-1 PROTEAM ProBlitz 8/15/11 9:19 AM Page 6

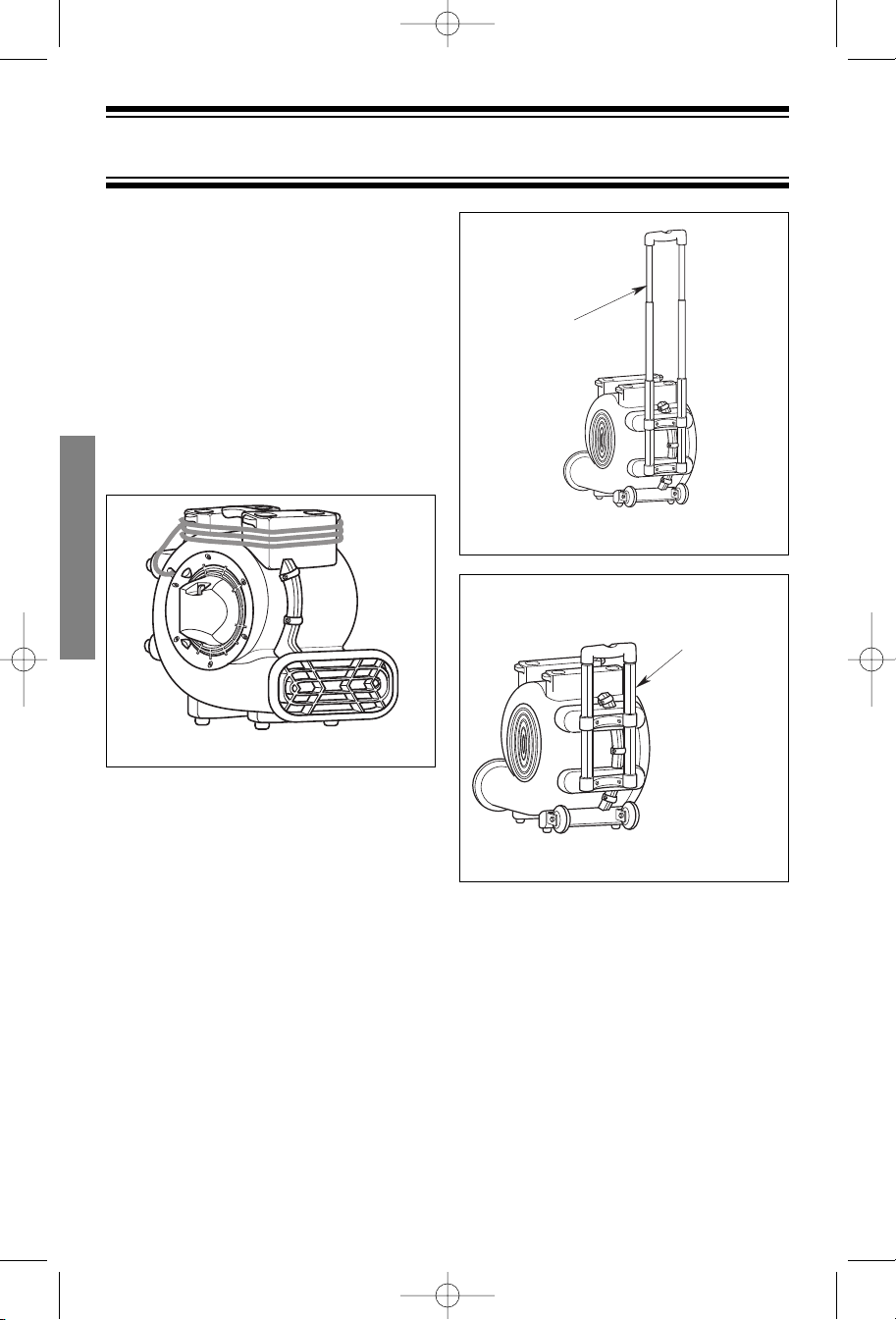

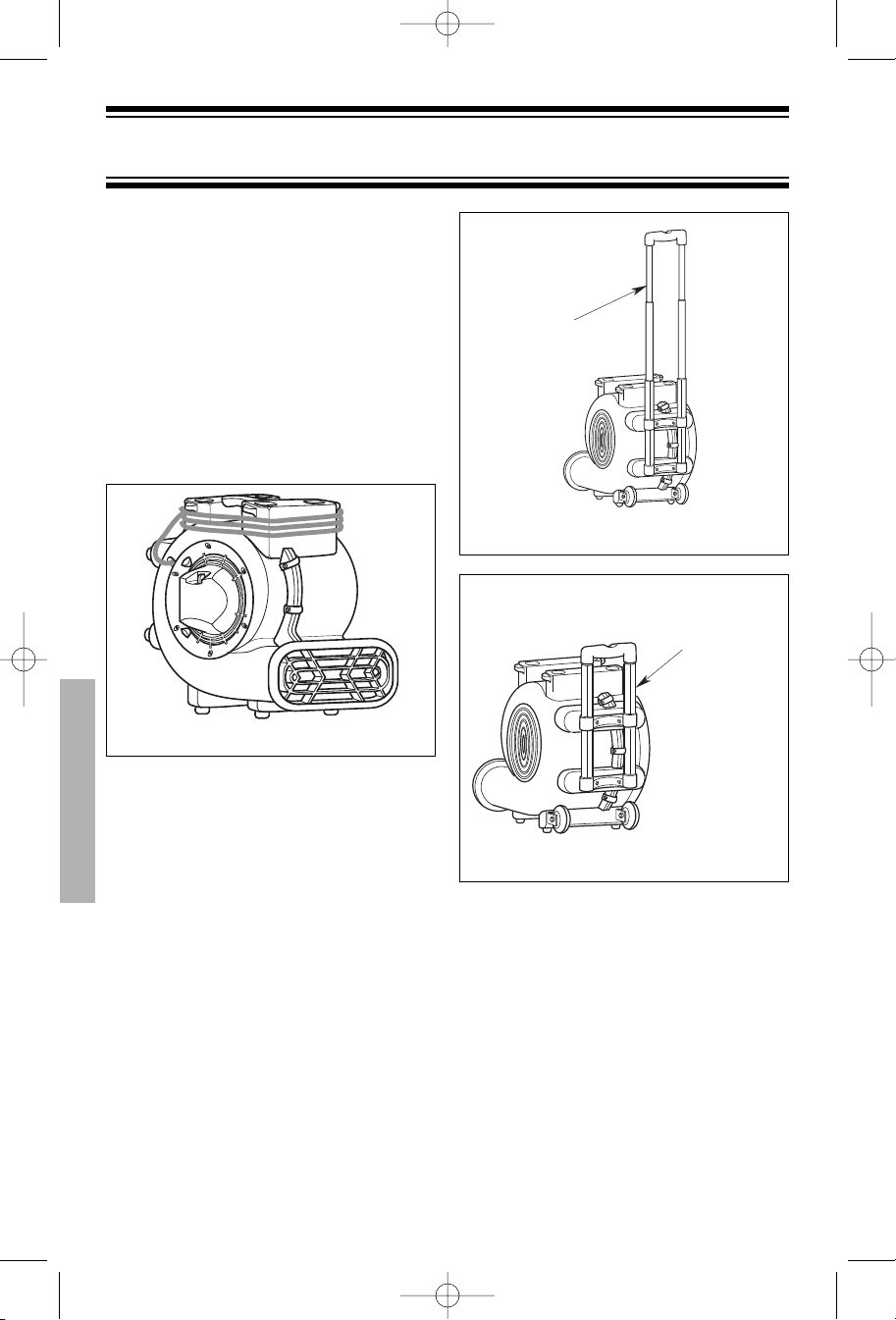

CARTON CONTENTS
Carefully unpack and inspect your air
mover/Carpet Dryer.
Contact ProTeam Customer Service if any
parts are damaged or missing.
If your air mover includes a retractable
handle (ProBlitz XP), it comes packaged
with the retractable handle in a locked,
downward position.
ProBlitz
Handle Up
Position
Retractable
Handle
Unlocked
ProBlitz XP
Handle Down
Position
Handle
Locked
ProBlitz XP
6 ProTeam
SP6769-1 PROTEAM ProBlitz 8/15/11 9:19 AM Page 7

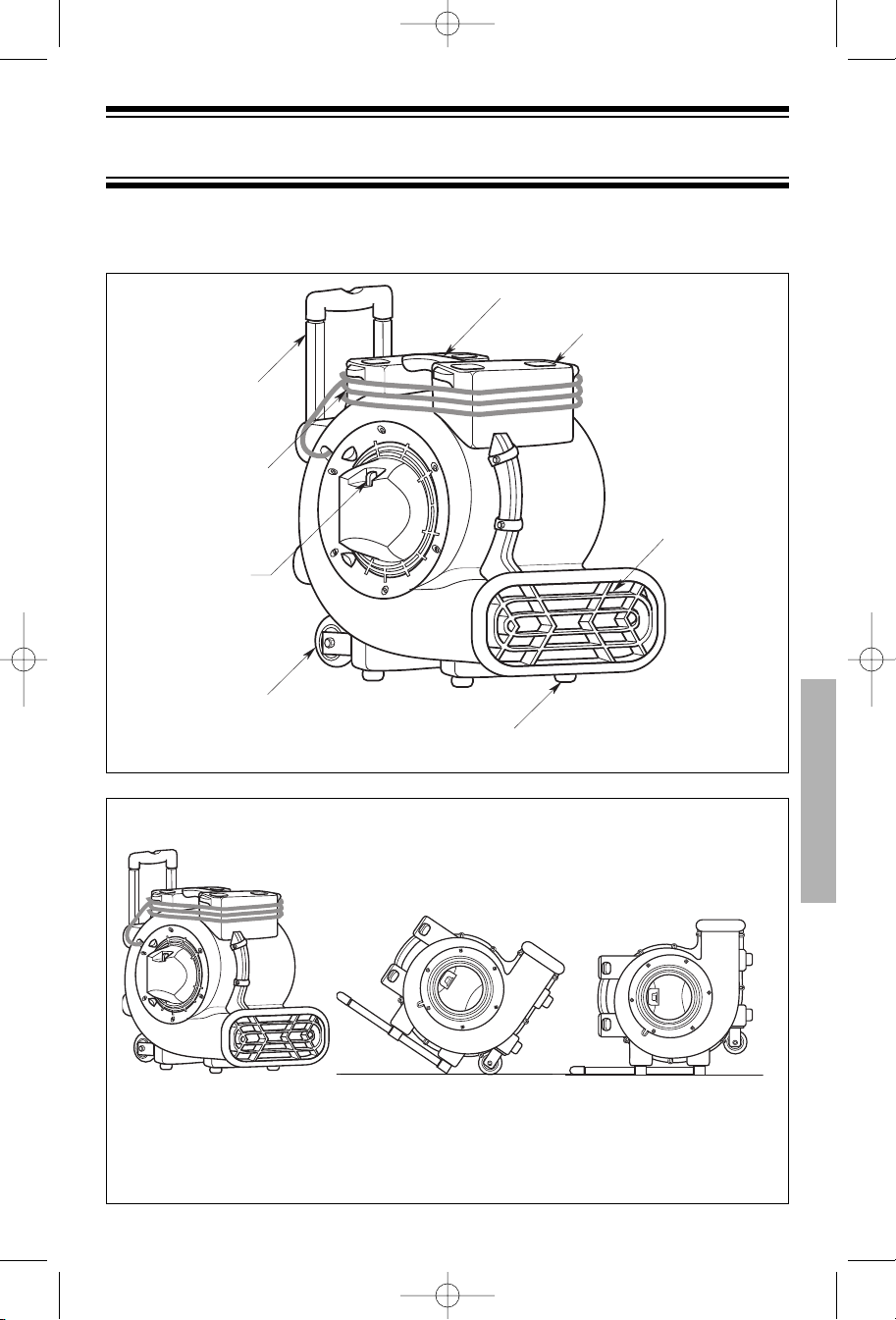

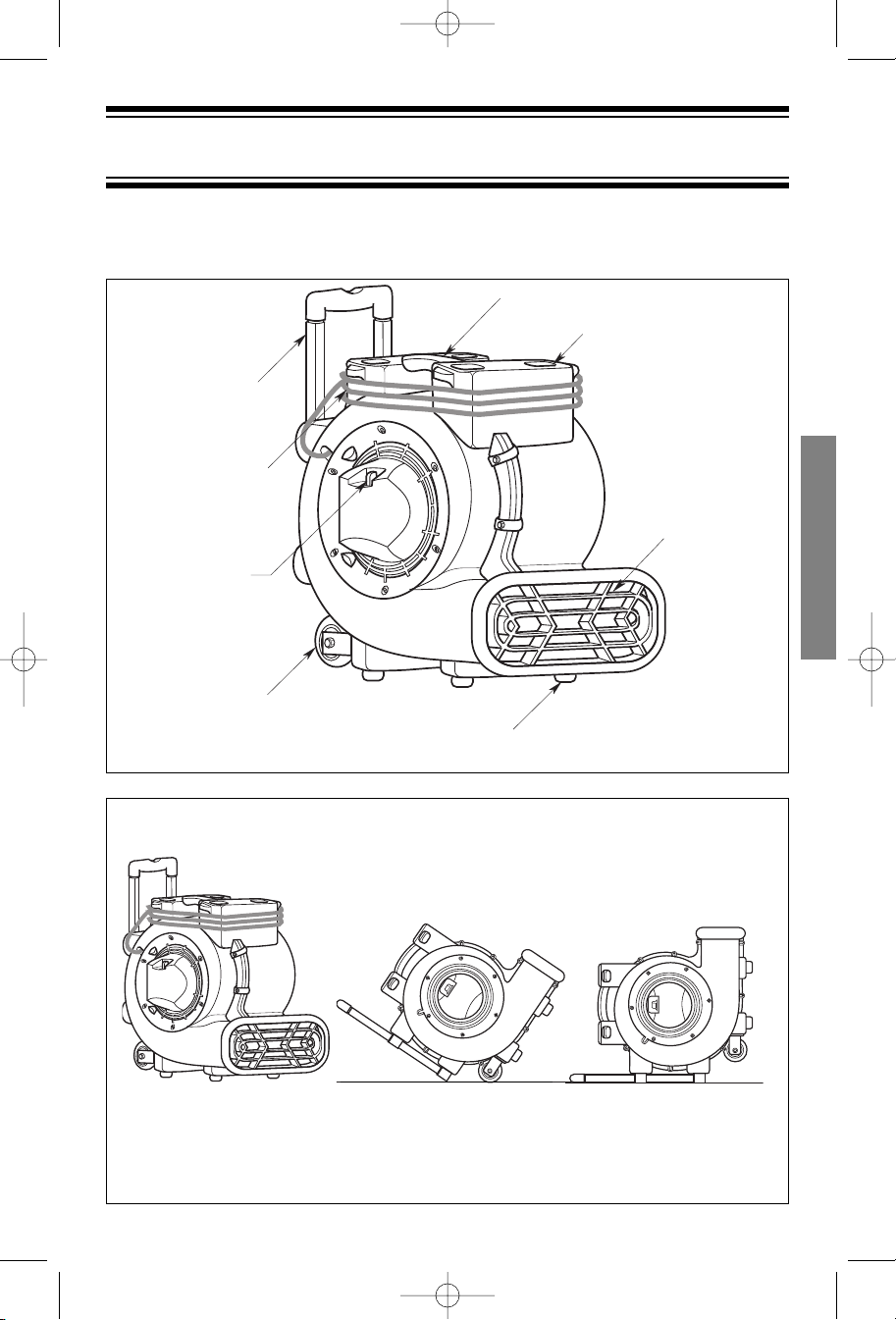

FEATURES AND OPERATIONS
Air Movers/Carpet Dryers are designed to move large volumes of air. They are used to
dry wet carpets, floors and furniture. They may also be used for ventilation.
Carrying Handle
Recessed
Stacking Pads (4)
Retractable
Handle
(ProBlitz XP)
Cord Wrap
Area
Air Outlet
3-Speed
ON/OFF
Switch
Wheels (2)
(ProBlitz XP)
ProBlitz XP Shown
Place ProBlitz AirMover in desired operating position:
Floor & Carpet
ProBlitz XP Shown
ProTeam 7
Foot Bumpers (8)
(Qty. 4 in Model ProBlitz XP)
45°
Walls & Furniture
NOTE: Collapse retractable
handle for safety
90°
Ceilings & Ventilation
NOTE: Collapse retractable
handle for safety
SP6769-1 PROTEAM ProBlitz 8/15/11 9:19 AM Page 8

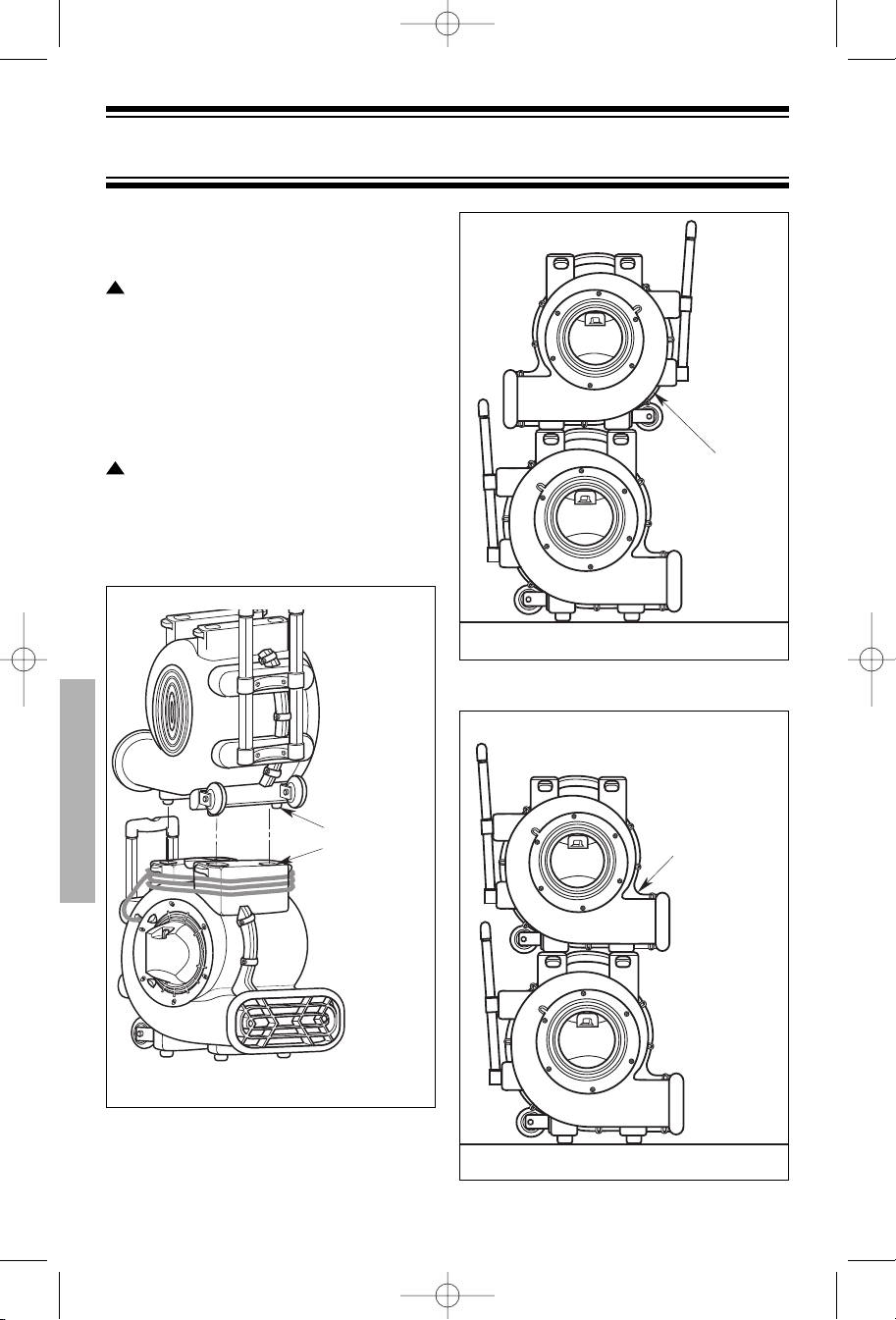

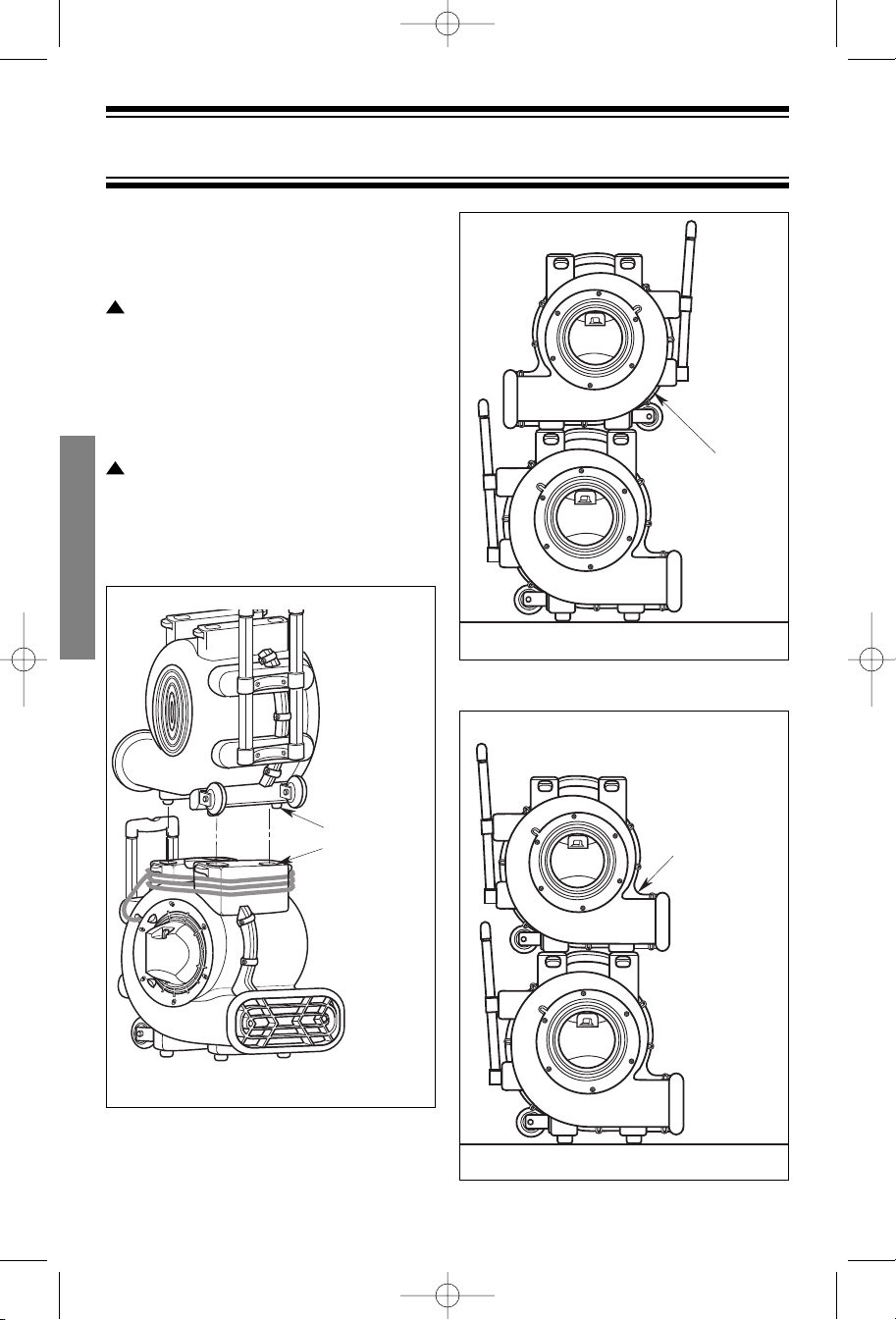

STORAGE AND TRANSPORTATION
When stacking units, position the four
foot bumpers on the recessed, stacking
pads (Figure A).
!
CAUTION: Be sure to secure
air mover with strapping/rope/tiedowns
when storing or transporting in a
vehicle.
The ProBlitz AirMovers stack in either
of the orientations shown in Figures
B and C.
!
CAUTION: Do not operate air mover
when stacked on top of each other.
Do not stack more than 2 high.
PREFERRED POSITION
Air Mover Units
Stacked 2 High
Only
ProBlitz XP Shown
Figure B
ALTERNATE POSITION
Foot
Bumpers (4)
Recessed
Stacking
Pads (4)
ProBlitz XP Shown
Air Mover Units
Stacked 2 High
Only
Figure A
ProBlitz XP Shown
Figure C
8 ProTeam
SP6769-1 PROTEAM ProBlitz 8/15/11 9:19 AM Page 9
STORAGE AND TRANSPORTATION

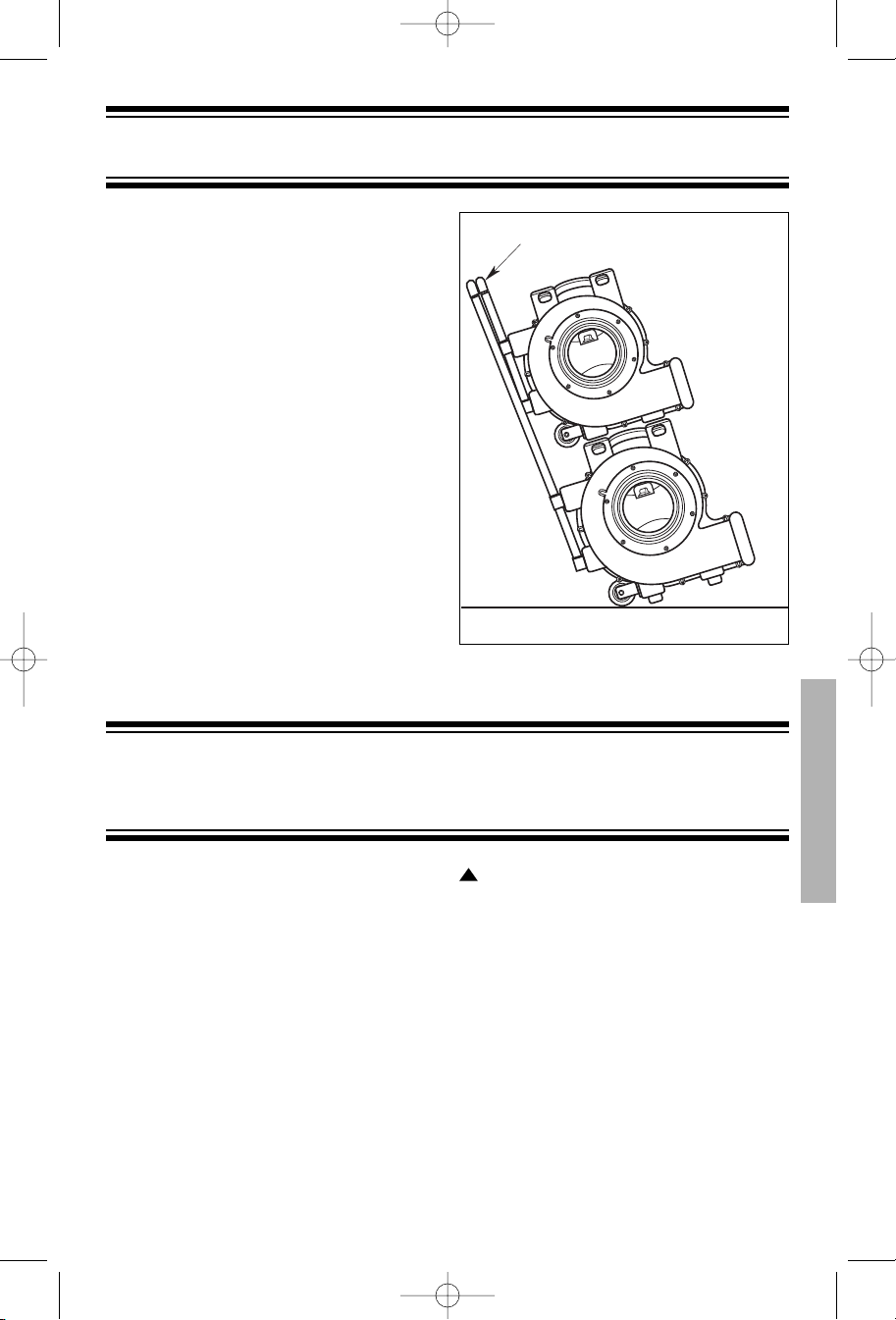

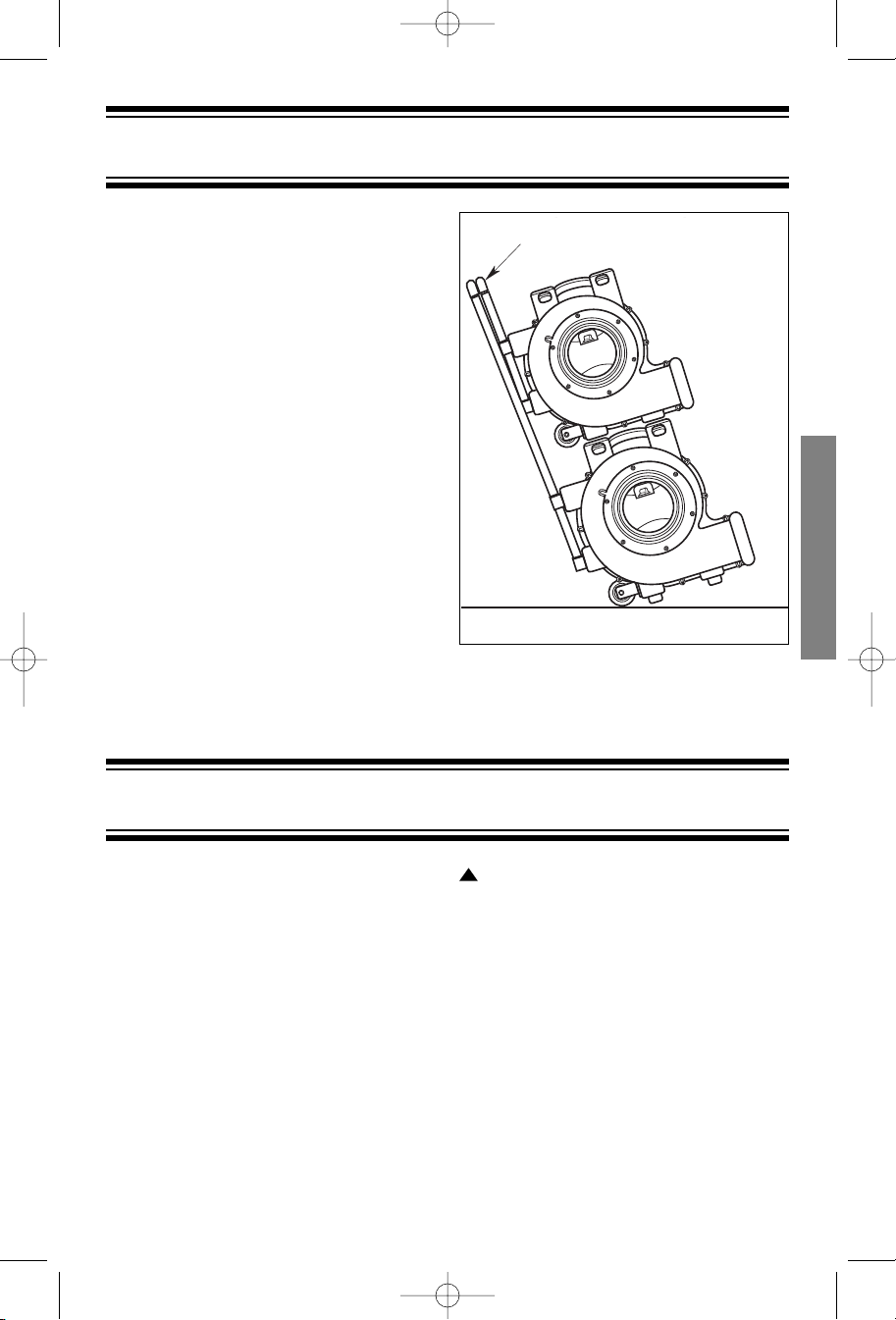

ProBlitz XP Transportation:
To transport the units in a stacked
position, fully extend the bottom air
mover handle (Figure D).
Grasp handles of each unit firmly, and
tilt units backwards and move to desired
location.
During Transportation,
Firmly Grasp Both Handles
ProBlitz XP Shown
Figure D
CLEANING YOUR AIR MOVER
If the polypropylene housing becomes
soiled, it may be wiped off with a damp
cloth.
ProTeam 9
!
WARNING: After servicing, any safety
device (including grilles, impeller, etc.)
should be reinstalled or remounted.
SP6769-1 PROTEAM ProBlitz 8/15/11 9:19 AM Page 10
TROUBLESHOOTING
PROBLEM CAUSE SOLUTION
Unit will not run. 1. No power to unit. 1. Plug unit in. Check circuit breaker.
2.
Switch not on. 2. Place in “ON” position.
3. Switch is faulty. 3. Replace switch.
4. Faulty/broken cord or 4. Perform continuity check, using
motor wire. volt/amp meter. Repair/replace
faulty broken wire.
Unit runs but air 1. Unit has been severely jolted 1. Remove motor and replace
mover makes causing blower wheel to rub damaged motor or motor mounts,
loud scraping against housing. as needed.
noise. 2. Unit has been severely jolted 2. Replace blower wheel or damaged
causing housing to deform. housing.
Unit runs but 1. Severe jolt has bent motor 1. Remove and replace motor.
vibrates shaft, causing unit to be out of
excessively. balance.
2. Blower wheel blade damaged. 2. Replace blower wheel if necessary.
3. Dirt built up on one side of 3. Clean blower wheel blades.
air mover blower wheel.
Unit runs but 1. Blower wheel is jammed 1. Remove motor and replace
blower wheel against housing. damaged motor mounts. Replace
does not turn. blower wheel if necessary.
2. Capacitor wire has broken/ 2. Repair/replace wires/motor as
come loose, capacitor has necessary.
failed.
3. Housing has been damaged 3. Replace housing/unit as necessary.
such that it presses on blower
wheel.
Unit runs briefly, 1. Motor bearings are failing or 1. Replace motor.
then shuts off motor has developed an
on overload. internal electrical fault.
2. Intake grille and /or exhaust 2. Remove obstruction.
grille is obstructed.
10 ProTeam
RED (LOW)
BLUE (MED)
BLACK (HI)
MOTOR
GREEN
WHITE
SWITCH
POWER
CORD
BLACK
SP6769-1 PROTEAM ProBlitz 8/15/11 9:19 AM Page 11
WIRING DIAGRAM
ProTeam 11
SP6769-1 PROTEAM ProBlitz 8/15/11 9:19 AM Page 12
AIR MOVER REPAIR PARTS
ProBlitz ProBlitz XP
107132 107133 DESCRIPTION QTY. USED
1 510141 510141 Switch & Knob Assembly 1 each
2 833658 833658 Inlet Grill 1 each
3 820563-7 820563-7 Screws, Inlet Grill 6 each
4 833673 833673 Threaded Inserts - Housing 4 each
5 820563-7 820563-7 Screws - Handle Housing 2 each
6 820563-13 820563-13 Screws - Housing Assembly 10 each
7 — 510140 Wheel Assembly 2 each
8 — 820563-7 Screws - Wheel Bracket 8 each
9 833690 833690 Foot Bumper 8 each
*Note: Only four (4) required for ProBlitz XP
10 820563-7 820563-7 Screws - Foot Bumper 8 each
*Note: Only four (4) required for ProBlitz XP
11 833659 833659 Exhaust Grill 1 each
12 833674 833674 Motor 1 each
13 833675 833675 Cord w/Plug 1 each
14 833660 833660 Blower Wheel 1 each
15 — 833691 Retractable Handle 1 each
16 — 820563-7 Screws - Retractable Handle 4 each
17 SP6769 SP6769 Owner’s Manual 1 each
12 ProTeam
5
SP6769-1 PROTEAM ProBlitz 8/15/11 9:19 AM Page 13
AIR MOVER ASSEMBLY
13
1
3
2
8
7
16
4
6
11
9
10
15
12
14
17
ProTeam 13
SP6769-1 PROTEAM ProBlitz 8/15/11 9:19 AM Page 14
PROBLITZ AIRMOVER WARRANTY
This limited warranty applies to the following ProTeam, Inc. commercial air movers: ProBlitz
and ProBlitz XP.
If you have any questions or need assistance regarding the warranty of your product, please
call ProTeam Customer Service department at (866) 888-2168 7:30 a.m. - 5:00 p.m. Mountain
Time.
PROTEAM®- Limited Warranty
ProTeam, Inc., located at P.O. Box 7385, Boise, ID 83707 (“ProTeam”) warrants to the original
purchaser only (“you”) subject to the exclusions described below, that the ProBlitz AirMover
component parts and motors listed below will be free from defects in material and
workmanship beginning on the original date of purchase and continuing for the period set forth
below (each a “Warranty Period”). This limited warranty terminates if the original purchaser
transfers the ProBlitz AirMover to any other person or entity.
Parts Warranties - ProBlitz AirMovers
• Molded body parts on all ProBlitz AirMovers - Expected lifetime of the ProBlitz AirMover
Product.
• All other component parts, including motor assembly on ProBlitz AirMovers - 3 years.
What is Not Covered - Warranty Exclusions
This limited warranty does not extend to and expressly excludes:
• Normal wear and tear and/or replacement attachments or accessories, including, without
limitation, hoses, filters, switches, and other attachments to the ProTeam Product.
• Damage or burnout of the ProTeam Product motor resulting from failure to clear a blockage
occurring during the normal course of use.
• Loss or damage to the ProTeam Product resulting from conditions beyond ProTeam's control
including without limitation, misuse, accident, abuse, neglect, negligence (other than
ProTeam's), overuse beyond intended capacity, or unauthorized modification or alteration.
• Loss or damage to the ProTeam Product resulting from failure to follow the required
maintenance schedule, or failure to use the ProTeam Product in accordance with ProTeam's
written instructions, guidelines or the terms of its Owner's Manual.
What We Will Do to Correct Problems
If a claim made during the Warranty Period is covered under this limited warranty, ProTeam or
your local ProTeam authorized dealer will, at ProTeam's sole option, (a) repair the defective
portion of the ProTeam Product or (b) replace the entire ProTeam Product. THE SOLE AND
EXCLUSIVE REMEDY FOR BREACH OF THIS LIMITED WARRANTY SHALL BE LIMITED TO REPAIR OR
REPLACEMENT OF THE PROTEAM PRODUCT.
No Other Express Warranty Applies
THE LIMITED WARRANTIES PROVIDED ABOVE ARE THE SOLE AND EXCLUSIVE WARRANTIES
PROVIDED BY PROTEAM TO THE ORIGINAL PURCHASER, AND ARE IN LIEU OF ALL OTHER
WARRANTIES, WRITTEN OR ORAL, EXPRESS OR IMPLIED, WHETHER ARISING BY OPERATION OF
LAW OR OTHERWISE, INCLUDING, WITHOUT LIMITATION, WARRANTIES OF MERCHANTABILITY OR
FITNESS FOR A PARTICULAR PURPOSE, WHETHER OR NOT THE PURPOSE HAS BEEN DISCLOSED
AND WHETHER OR NOT THE PROTEAM PRODUCT HAS BEEN SPECIFICALLY DESIGNED OR
MANUFACTURED FOR YOUR USE OR PURPOSE. No employee, agent, dealer, or other person is
authorized to alter this limited warranty or make any other warranty on behalf of ProTeam.
The terms of this limited warranty shall not be modified by ProTeam, the original owner, or
their respective successors or assigns.
14 ProTeam
SP6769-1 PROTEAM ProBlitz 8/15/11 9:19 AM Page 15
PROBLITZ AIRMOVER WARRANTY
How to Notify Us
If you discover that your ProTeam Product has a defect that you believe is covered by this
limited warranty, you must notify ProTeam or the ProTeam authorized dealer who sold you the
ProTeam Product within the applicable Warranty Period. You may contact ProTeam Customer
Service department at (866) 888-2168 between the hours of 7:30 a.m. and 5:00 p.m. Mountain
Time or at any time via the fax number or the email address listed in your Owner's Manual or
on our website. In order for a warranty claim to be processed as quickly as possible, we
suggest that you complete the “Registration Card” made available to you on the ProTeam
website at www.pro-team.com. If you do not choose to register your ProTeam Product, in order
to make a warranty claim, you will need to provide a copy of your sales receipt or other proof
of purchase showing the purchase date to ProTeam or your local ProTeam authorized dealer.
Repair and Replacement Procedures
Please call the Customer Service department number above or visit the ProTeam website to
find the ProTeam authorized dealer nearest you. If there is no local ProTeam authorized dealer,
our Customer Service department will give you the name and address of the nearest field
service representative or will provide you with instructions for shipping your ProTeam Product
to the ProTeam repair facility. ProTeam or your local ProTeam authorized dealer will determine
whether your claim is covered by this limited warranty, subject to the limitations or exclusions
described in this limited warranty, or has exceeded the applicable Warranty Period. Your local
ProTeam authorized dealer will repair your ProTeam Product, ship your ProTeam Product to the
dealer's or ProTeam's repair facility, or contact ProTeam for a replacement ProTeam Product.
The decision to replace your ProTeam Product is at the sole discretion of ProTeam. Repairs or
modifications made to the ProTeam Product by other than ProTeam, its authorized repair
facility or a local authorized dealer will nullify this limited warranty. Coverage under this
limited warranty is conditioned at all times upon the original purchaser's compliance with
these required notification and repair procedures.
Limitation of Liability
TO THE EXTENT PERMITTED BY LAW, IN NO EVENT SHALL PROTEAM BE LIABLE FOR ANY
INCIDENTAL, SPECIAL, INDIRECT, OR CONSEQUENTIAL DAMAGES, INCLUDING ANY ECONOMIC
LOSS, WHETHER RESULTING FROM NONPERFORMANCE, USE, MISUSE OR INABILITY TO USE THE
PROTEAM PRODUCT OR PROTEAM'S NEGLIGENCE. SELLER SHALL NOT BE LIABLE FOR DAMAGES
CAUSED BY DELAY IN PERFORMANCE AND IN NO EVENT, REGARDLESS OF THE FORM OF THE
CLAIM OR CAUSE OF ACTION (WHETHER BASED IN CONTRACT, INFRINGEMENT, NEGLIGENCE,
STRICT LIABILITY, OTHER TORT OR OTHERWISE), SHALL PROTEAM'S LIABILITY TO BUYER AND;
OR ITS CUSTOMERS EXCEED THE PRICE PAID BY THE ORIGINAL OWNER FOR THE PROTEAM
PRODUCT. The term "consequential damages" shall include, but not be limited to, loss of
anticipated profits, business interruption, loss of use or revenue, cost of capital or loss or
damage to property or equipment.
Some states do not allow the exclusion or limitation of incidental or consequential damages,
so the above limitation may not apply to you.
This limited warranty gives you specific legal rights, and you may also have other rights which
vary from State to State.
ProTeam and ProBlitz are trademarks of Emerson.
ProTeam 15
Loading...
