Extra Large Capacity Backup Battery
with Ultra-Fast Dual USB Charging Ports
12000mAh Li-Polymer . ShakeView Technology
Cloy-12
Charge your devices on-the-go with this powerful 12000mAh li-polymer backup battery:
Cloy-12. Extremely sleek & lightweight, Cloy-12 is easy to carry around. Charge all your USB
powered devices with the ultra-fast dual USB charging ports. Moreover, Cloy-12 features unique
ShakeView Technology i.e. simply shake Cloy-12 in order to view the amount of battery left. With
Cloy-12, convenience is at its best.
Introduction
• Cloy-12 back-up battery
• USB Charging Cable
• User Guide
Packaging Contents
• Battery Capacity: 12000mAh
• Battery Type: Li-Polymer
• Input: 5V, 2A
• Output: 5V, 2A
5V, 2A
• Charging Time: 7-8 hours
Specification
Features
• Powerful Backup Battery: Powerful 12000mAh li-polymer backup battery
• Charging on-the-go: Charge your devices on-the-go with Cloy-12
• Compact & Lightweight: Compact & lightweight, Cloy-12 is easy to carry around
• Ultra-Fast Dual USB Ports: Charge your USB powered devices with the ultra-fast dual USB ports
• ShakeView Technology: Simply shake Cloy-12 in order to view the amount of battery left
• Simultaneous Charging: Charge two USB powered devices simultaneously
• Compatibility: Cloy-12 is compatible with all USB powered smartphones & tablets
• Safe & Reliable: Cloy-12 is totally safe & reliable as it features over-charging & short-circuit protection
• Available in a variety of colors: Cloy-12 is available in a variety of colors
English
1
English
Please read all safety instructions and warnings thoroughly before using this product. Improper
use of this product may result in damage to this or attached products.
1. Do not disassemble the back-up battery or attempt to fix it.
2. Kindly use an original charging cable provided to charge the product.
3. Do not attempt to replace any part of this Back-up battery or battery inside.
4. Do not crush, puncture, dispose of in fire, short the contacts or expose the battery to water or
other liquids.
5. Do not connect input and output in reverse.
6. Do not store or use the battery in a high temperature environment, including intense sunlight
or heat.
7. Avoid drops, bumps, abrasions and impacts.
8. If there is any reason to believe that there is damage to the battery, discontinue use
immediately.
9. If you find that the battery is too hot, or is emitting an odor, or is deformed, punctured or
exhibits any suspicious or abnormal behavior, discontinue use immediately and contact our
customer service.
10. Always charge this product before extended storage.
Precautions:
2
• Cloy-12 comes with an innovative Shake-View Technology. In order to view the remaining
power left, simply shake Cloy-12 back-up battery and view the Battery Level LED Indicator.
1. Checking the remaining power left in Cloy-12 back-up battery
• Connect one end of the Micro-USB Cable to Cloy-12
and the other end to a desktop/laptop or a USB Power
Adapter. The Battery Level LED Indicator’s will light up
indicating that the back-up battery is charging
normally.
2. Charging Cloy-12 back-up battery
Operation Instructions
1 2 3 4
<=25% <=50% <=75% <=100%
No of LED’s Active
% of power remaining
1. 2A USB Output Port
2. Battery Level LED Indicator
3. Micro-USB Input Port
4. 2A USB Output Port
Appearance & Interface Description
1
2
3
4
English
3
English

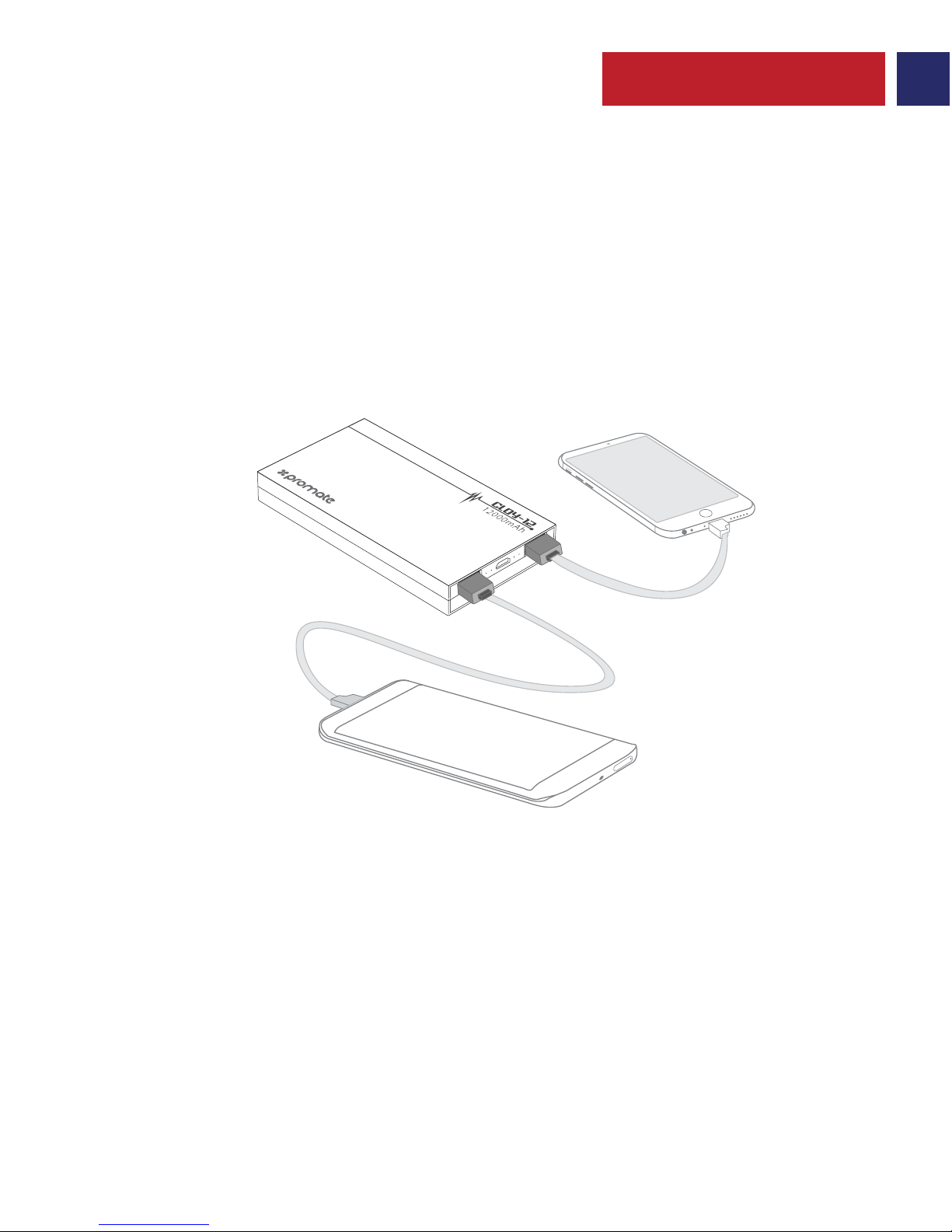

3. Charging USB chargeable devices using Cloy-12
• There are 2 USB ports available on Cloy-12. Use the 2A output port to charge smartphones
and the 2A output port to charge small tablets. Plug the USB cable into the required USB
output port on Cloy-12 back-up battery and the other end into the device. The back-up
battery would automatically start charging the connected device.
4
1. Puerto de Salida USB 2A
2. Indicador LED del Nivel de Batería
3. Puerto de Entrada Micro-USB
4. Puerto de Salida USB 2A
Descripción del Aspecto y la Interfaz
• Cloy-12 viene con una Tecnología Shake-View (Agitar-Ver) innovadora. Para ver la energía
res-tante, simplemente agite la batería de respaldo Cloy-12 y vea el indicador LED de nivel de
bate-ría.
1. Cómo verificar la energía restante en la batería de respaldo Cloy-12
• Conecte un extremo del Cable Micro-USB a
Cloy-12 y el otro extremo a un ordenador de
escrito-rio/portátil o a un Adaptador de
Corriente USB. El indicador LED de nivel de
batería se encende-rá para indicar que la batería
de respaldo se está cargando normalmente.
2. Cómo cargar la batería de respaldo Cloy-12
Instrucciones de Operación:
1 2 3 4
<=25% <=50% <=75% <=100%
No. de LED activo
% de energía restante
1
2
3
4
Spanish
5
Spanish
3. Cómo cargar dispositivos por medio de USB usando Cloy-12
• Hay dos puertos USB disponibles en Cloy-12. Use el puerto de salida 2A para cargar teléfonos
in-teligentes o el puerto de salida 2A para cargar tabletas pequeñas. Enchufe el cable USB al
puerto de salida USB requerido en la batería de respaldo de Cloy-12 y el otro extremo en el
dis-positivo. La batería de respaldo empezará a cargar automáticamente el dispositivo
conectado.
6
1. Port de sortie USB 2A
2. Indicateur LED de Niveau de Batterie
3. Port d'entrée Micro-USB
4. Port de sortie USB2A
Description de l’Apparence et de l'interface:
• Cloy - 12 est livré avec une technologie innovante Shake- Vue. Pour voir la puissance restante,
secouez tout simplement la batterie de secours Cloy - 12 et regardez l’Indicateur LED de niveau
de batterie.
1. Vérification de l’énergie restante dans la batterie de secours Cloy - 12
• Branchez une extrémité du câble micro-USB au
Cloy - 12 et l'autre extrémité à un ordinateur de
bureau /ordinateur portable ou d'un adaptateur
secteur USB. L’indicateur LED de niveau de batterie
s’allume, indiquant que la batterie de secours s’est
mise en charge normalement.
2. Chargement de la batterie de secours Cloy - 12
Mode d'emploi:
1 2 3
4
<=25% <=50% <=75%
<=100%
Nbre of LEDs Actifs
% de puissance restante
1
2
3
4
French
7
French
3. Chargement des appareils à périphériques USB en utilisant Cloy – 12
• Il existe 2 ports USB disponibles sur Cloy - 12. Utilisez le port de sortie de 2A pour charger les
smartphones et le port de sortie de 2A pour charger les petites tablettes. Branchez le câble USB
sur le port de sortie USB indiqué sur la batterie de secours Cloy - 12 et l'autre extrémité sur
l’appareil. La batterie de secours va automatiquement commencer à charger l'appareil connecté.
8
