Pro Lite ZF01-D User Manual

ZF01-D Wireless Module

Operation Manual

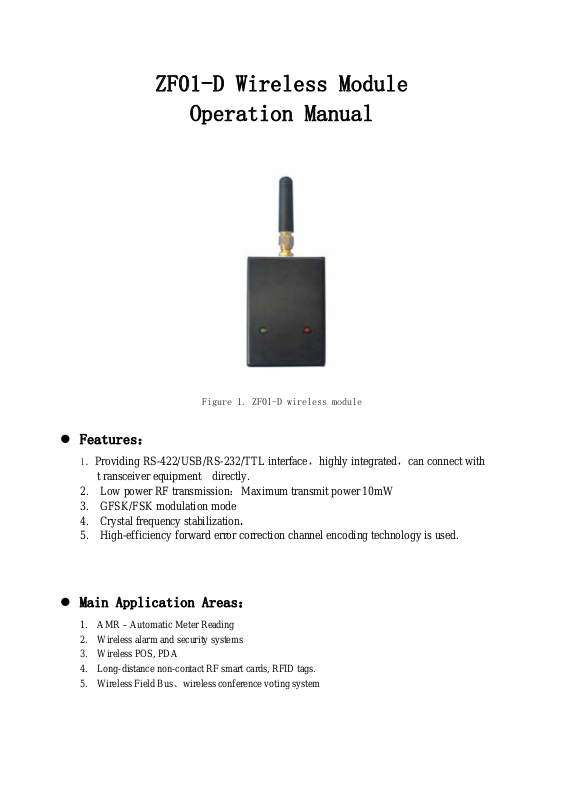

Figure 1. ZF01-D wireless module

z Features：

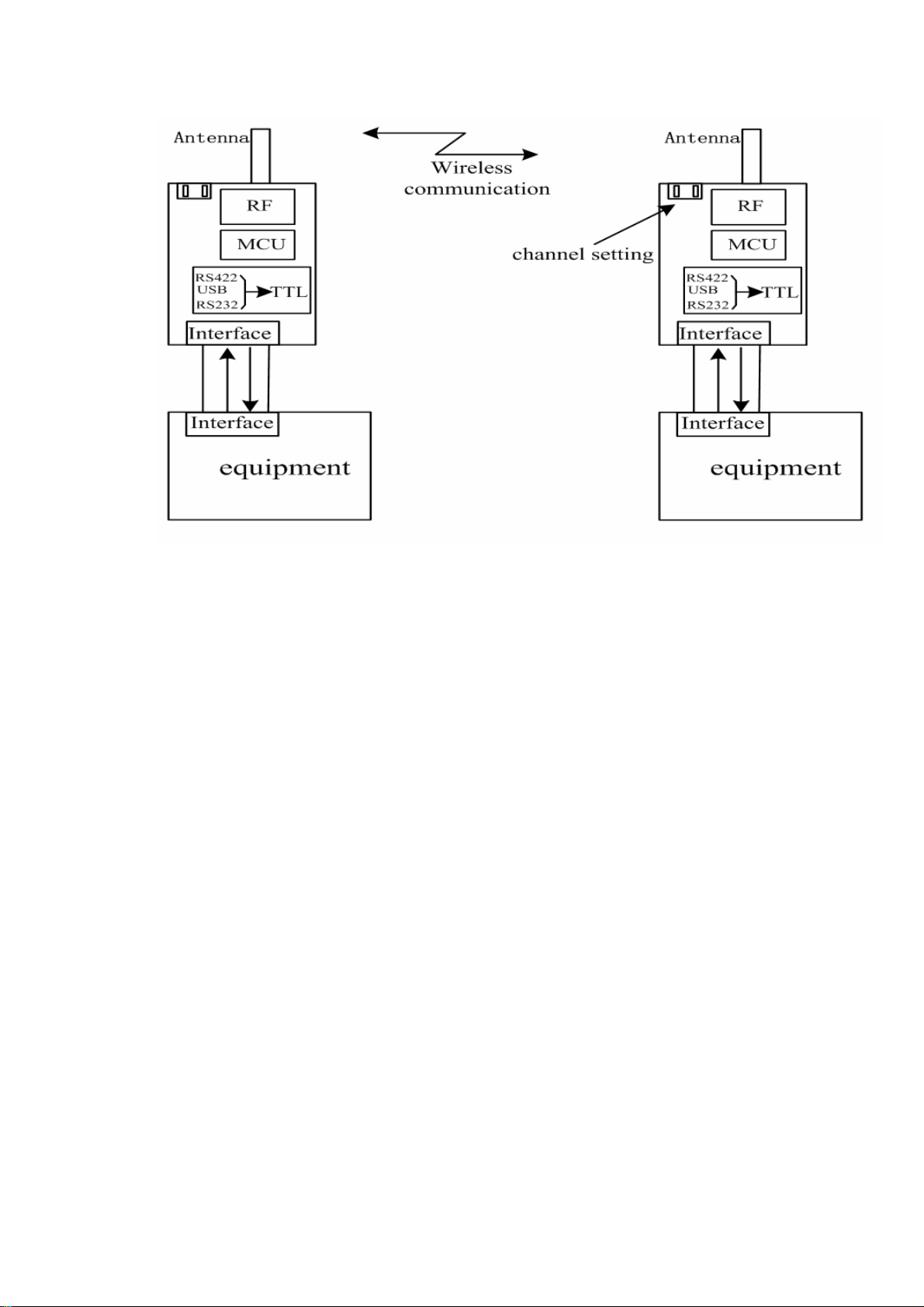

1．Providing RS-422/USB/RS-232/TTL interface，highly integrated，can connect with

t ransceiver equipment directly.

2. Low power RF transmission：Maximum transmit power 10mW

3. GFSK/FSK modulation mode

4. Crystal frequency stabilization.

5. High-efficiency forward error correction channel encoding technology is used.

z Main Application Areas：

1. AMR – Automatic Meter Reading

2. Wireless alarm and security systems

3. Wireless POS, PDA

4. Long-distance non-contact RF smart cards, RFID tags.

5. Wireless Field Bus、wireless conference voting system

z Main Technical Specifications：

RF channels(MHz)

modulation mode

baud rate 9600bps

output power 10mW

Interface data
format

Power supply DC 3.6V---5V

overall dimensions 70 X 45 X 17 mm

433.050, 433.640, 434.410,434.910

GFSK

UART ,8E1/8N1 data format

Channel

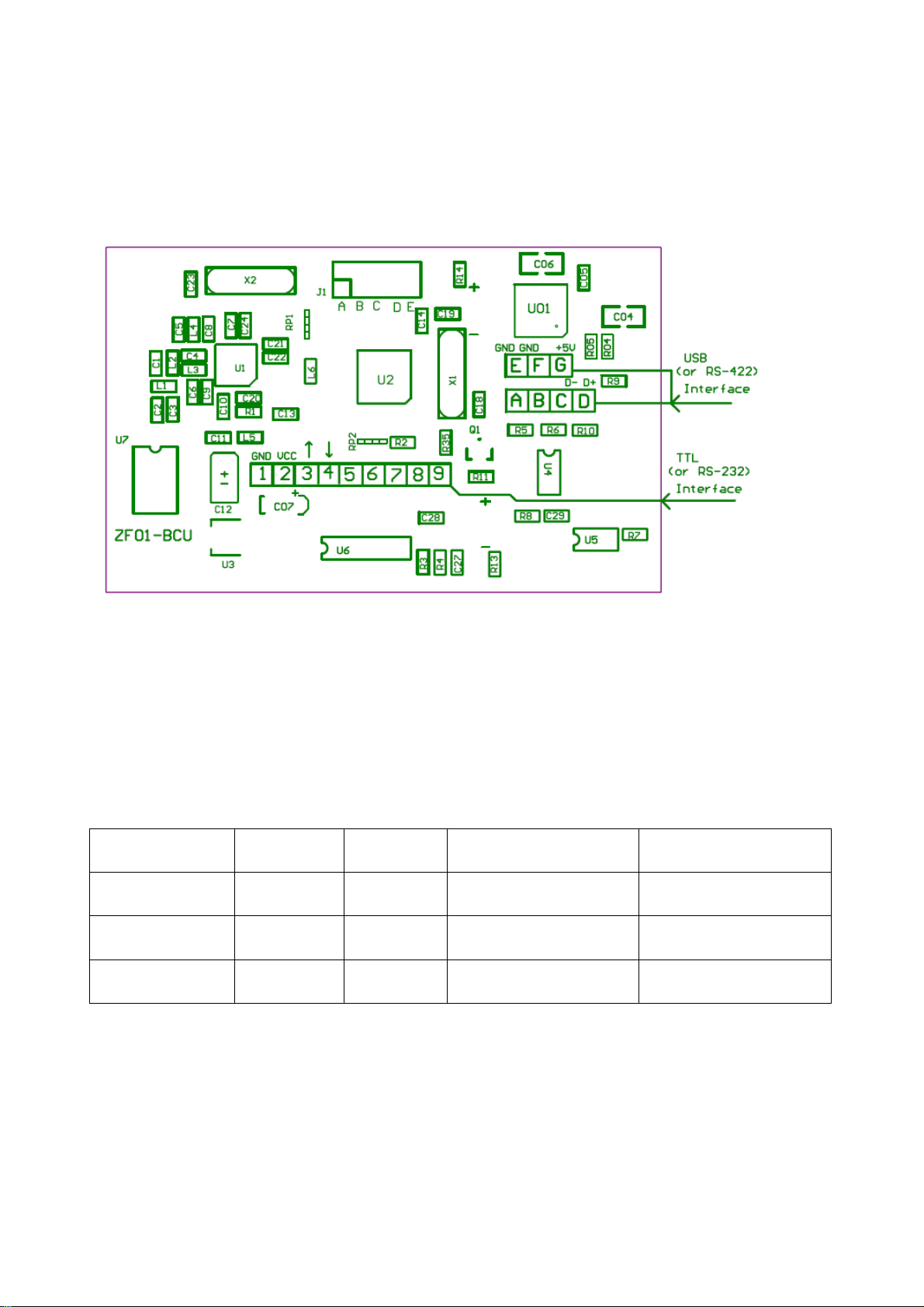

Figure2. interface and sizes
