PROLiNK PRO850SFCU Quick Start Manual

BEFORE GETTING STARTED

This document is designed to aid you to get started with the device. If you experience problems following
these guides or need further information pertaining to the device, please visit our website at
www.prolink2u.com. All specifications are subject to the manufacturer’s configuration at the time of
shipping and may change without prior notice, written or otherwise.

Quick Start Guide

Line Interactive UPS

MODEL NO:

PRO850SFCU

Version 1.00

(English / Indonesian)

EN 1

CAUTION:

To prevent the risk of fire or electric shock, install in a temperature and humidity controlled
indoor area free of conductive contaminants. (See the specifications for the acceptable
temperature and humidity range.)
To reduce the risk of overheating the UPS, DO NOT cover the UPS' cooling vents and avoid
exposing the unit to direct sunlight or installing the unit near heat emitting appliances such as
space heaters or furnaces.
DO NOT attach non-computer-related items, such as medical equipment, life-support
equipment, microwave ovens, or vacuum cleaners to UPS.

DO NOT plug the UPS input into its own output.
DO NOT allow liquids or any foreign object to enter the UPS. DO NOT place beverages or any

other liquid-containing vessels on or near the unit.
In the event of an emergency, press the OFF button and disconnect the power cord from the
AC power supply to properly disable the UPS.
DO NOT attach a power strip or surge suppressor to the UPS.
If the UPS is with metal chassis, for safety purpose, grounding is a must during UPS
installation in order to reduce leakage current below 3.5mA.
Attention hazardous through electric shock. Also with disconnection of this unit from the
mains, hazardous voltage still may be accessible through supply from battery. The battery
supply should be therefore disconnected in the plus and minus pole at the quick connectors
of the battery when maintenance or service work inside the UPS is necessary.
Servicing of batteries should be performed or supervised by personnel knowledgeable of
batteries and the required precautions. Keep unauthorized personnel away from batteries.
When replacing the batteries, use the same number and type of batteries.
Internal 1 block of 12VDC VRLA (Valve-Regulated Lead–Acid) battery.
DO NOT dispose of batteries in a fire. The battery may explode. DO NOT open or mutilate the
battery or batteries. Released electrolyte is harmful to the skin and eyes.
Unplug the UPS prior to cleaning and DO NOT use liquid or spray detergent.
A battery can present a risk of electric shock and high short circuit current. The following
precaution should be observed before replacing batteries:

1.

2.

3.

4.

5.

6.

7.

8.

9.

10.

11.

12.

13.

14.

15.

i.
ii.
iii.
iv.
v.

Remove watches, rings, or other metal objects.
Use tools with insulated handles.
Wear rubber gloves and boots.
Do not lay tools or metal parts on top of batteries.
Disconnect charging source prior to connecting or disconnecting batteries terminal.

1. Important Safety Warning

EN 2

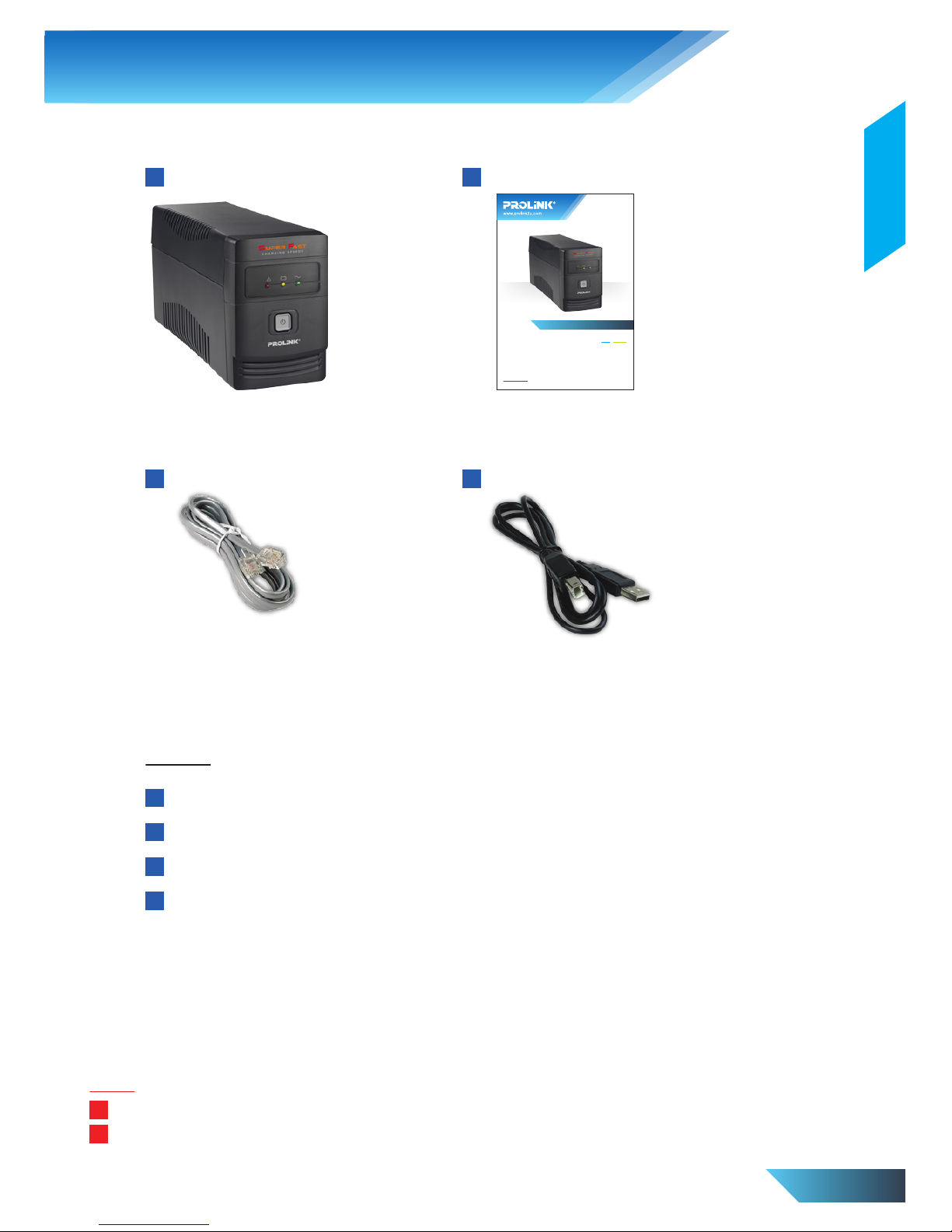

2. Package Contents

Note:

1

The illustrations in this document may appear different from your model.

2

If any of above item is not packed in your package when open, please consult your reseller immediately.

One (1) unit of Line Interactive UPS

1

One (1) piece of Quick Start Guide

2

One (1) unit RJ11 cable (optional)

3

One (1) unit USB cable (optional)

4

Items:

21

3

(optional)

4

(optional)

BEFORE GETTING STARTED

This document is designed to aid you to get started with the device. If you experience problems following
these guides or need further information pertaining to the device, please visit our website at
www.prolink2u.com. All specifications are subject to the manufacturer’s configuration at the time of
shipping and may change without prior notice, written or otherwise.

Quick Start Guide

Line Interactive UPS

MODEL NO:

PRO850SFCU

Version 1.00

(English / Indonesian)

English

EN 3

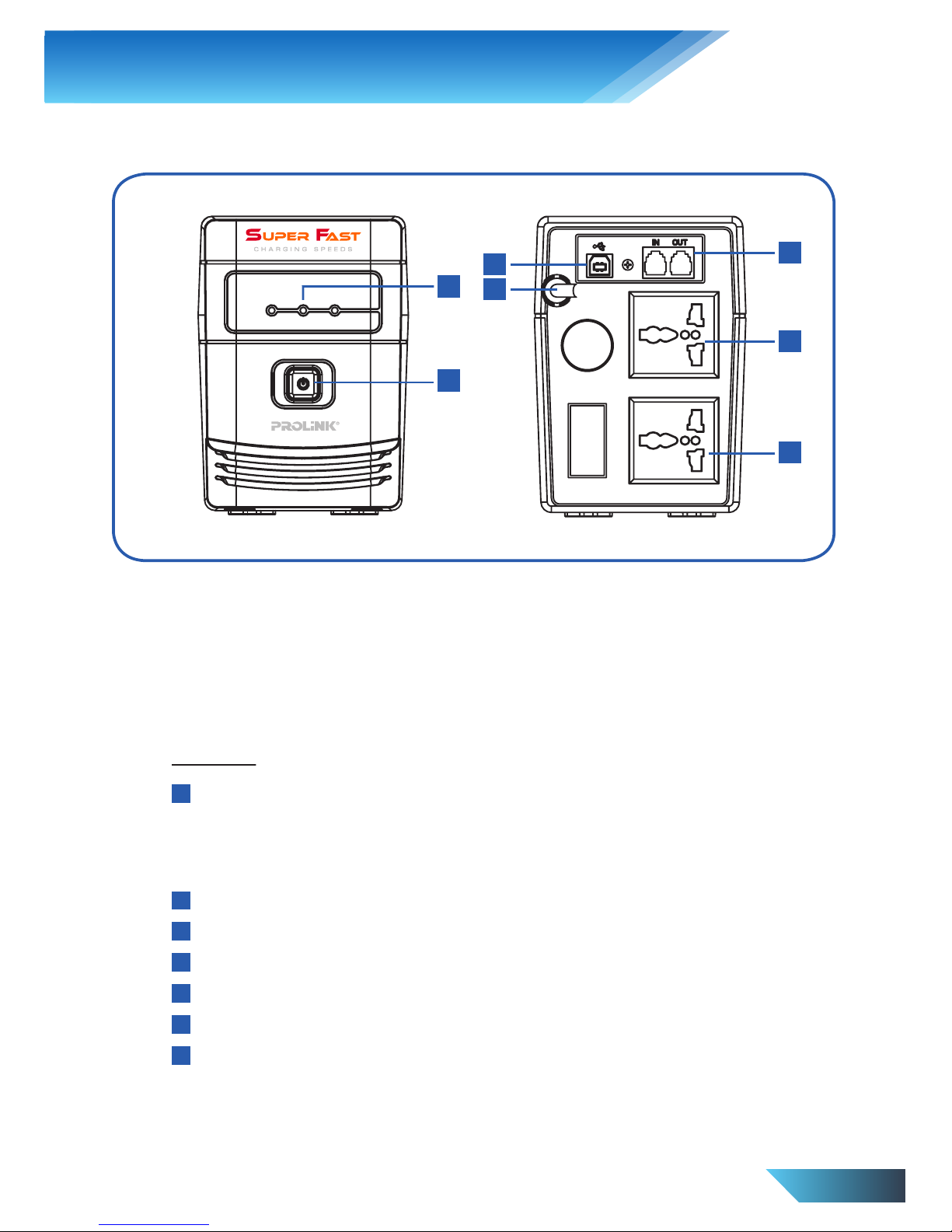

3. Overview

3
4

6

7

5

1

2

Legend:

LED Indication:

1

Power Switch

2

USB port

3

4 Power AC Input

5

RJ11 Ports: Modem/Fax Protection

6

Backup Outlets

• Fault LED : Red lighting

• Battery mode LED : Yellow flashing

• AC mode LED : Green lighting

7

Backup Outlets

EN 4

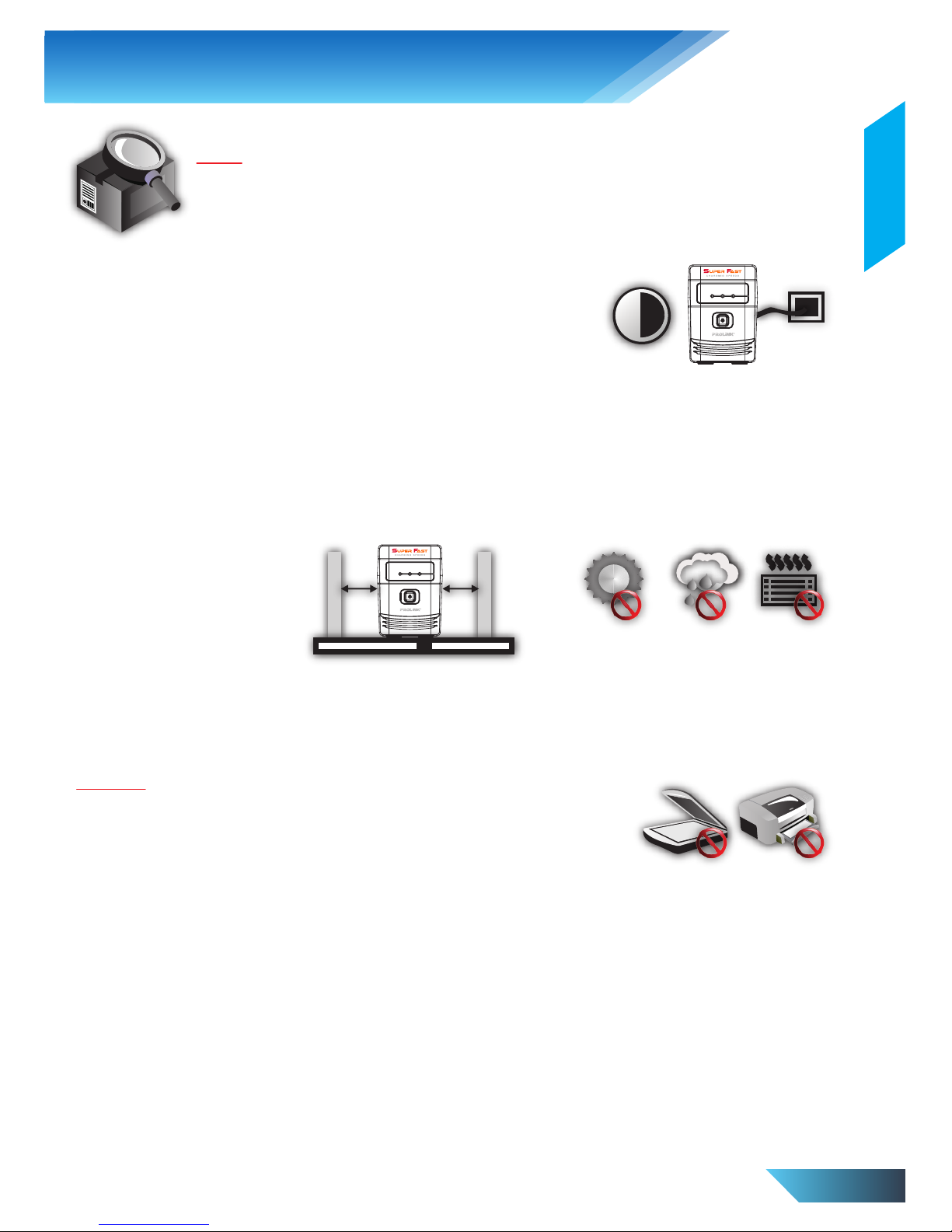

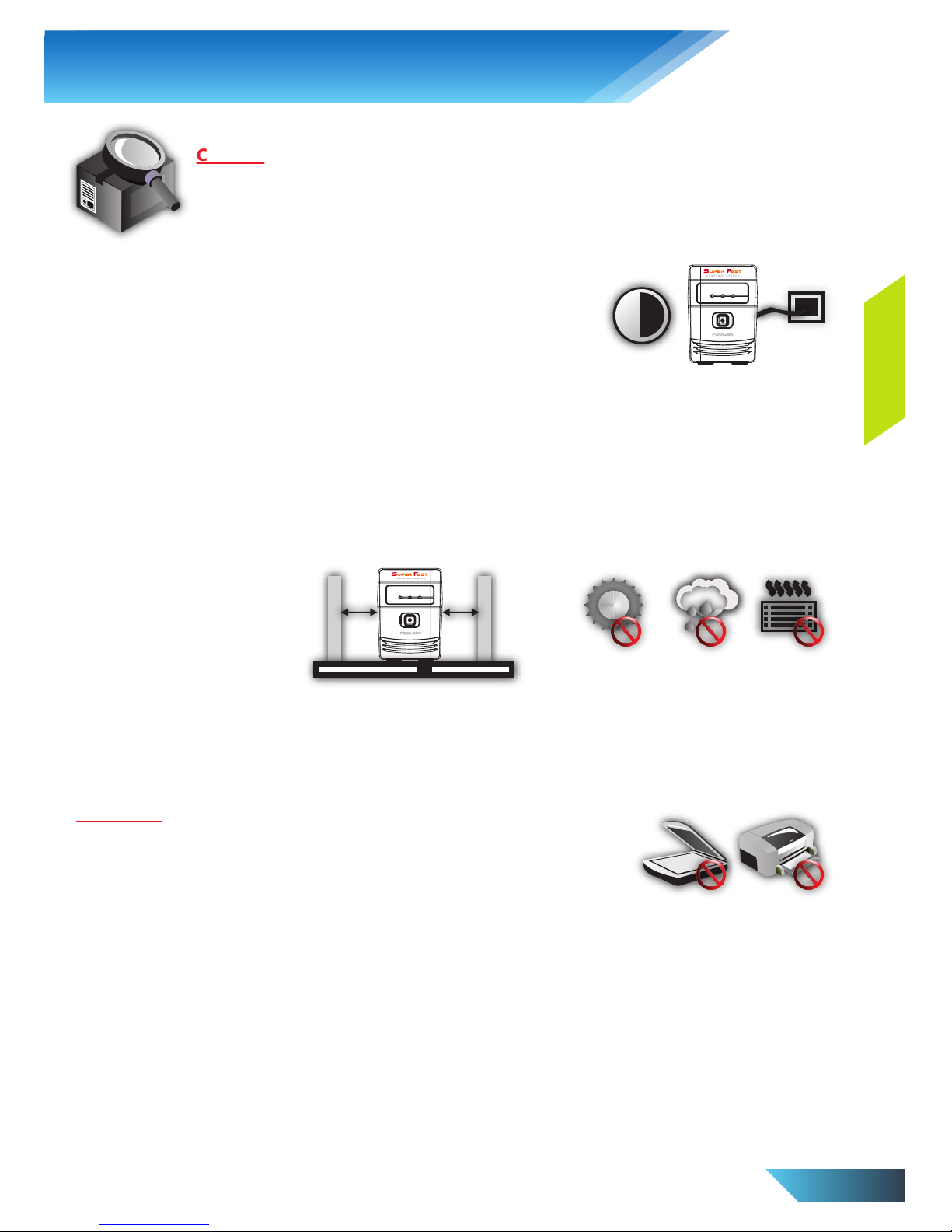

Connect Communication Cable

To allow for unattended UPS shutdown/start-up and status monitoring, connect the
communication cable one end to the USB port and the other to the communication port of
your PC. With the monitoring software installed, you can schedule UPS shutdown/start-up
and monitor UPS status through PC.

Turn On/Off the Unit

Turn on the UPS unit by pressing the power switch. Turn off the UPS unit by pressing again the
power switch.

20cm 20cm

Placement & Storage Conditions

Install the UPS in a protected area that is free of excessive dust and has adequate air flow. Please
place the UPS away from other units at least 20 cm to avoid interference. DO NOT operate the
UPS where the temperature and humidity is outside the specific limits. (Please check the specs for
the limitations.)

6 Hours

Connect to Utility and Charging

Plug in the AC input cord to the wall outlet. For the best results,
suggest to charge the battery at least 6 hours before initial use. The
unit charges its battery while connecting to the utility.

Connect the Loads

Plug in the loads to output receptacles on the rear panel of the UPS. Simply turn on the power
switch of UPS unit, and then devices connected to the UPS will be protected by UPS unit.

CAUTION:

NEVER connect a laser printer or scanner to the UPS unit. This may cause the damage

of the unit.

Note:

Before installation, please inspect the unit. Be sure that nothing inside the package
is damaged.

4. Installation & Initial Startup

English

EN 5

Use the table below to solve minor problems.

Replace the battery with the same
type of battery.

Press the power switch again to
turn on the UPS.

Problem Possible Cause Solutions

No LED display on
the front panel

Low battery. Charge the UPS at least 6 hours.

Battery fault.

The UPS is not turned on.

Alarm continuously
sounds when the
main is normal.

The UPS is overload.

Remove some loads first. Before
reconnecting equipment, please
verify that the load matches the
UPS capability specified in the
specs.

When power fails,
back-up time is
shortening.

The UPS is overload. Remove some critical load.

Battery voltage is too low. Charge the UPS at least 6 hours.

Battery defect.

It might be
due to high temperature
operation environment, or
improper operation to
battery.

Replace the battery with the same
type of battery.

The main is normal
but LED is flashing.

Power cord is loose.

Reconnect the power cord
properly.

Please follow steps below to download and install monitoring software:

Go to the website http://www.power-software-download.com
Click ViewPower software icon and then choose your required OS to download the software.
Follow the on-screen instructions to install the software.
When your computer restarts, the monitoring software will appear as an orange plug icon
located in the system tray, near the clock.

1.

2.

3.

4.

6. Troubleshooting

5. Software Download & Installation

CAPACITY

INPUT

OUTPUT

BATTERY

PROTECTION/
MONITORING

INTERFACE

GENERAL

Voltage Range
Frequency
Phase

Voltage Range
Battery Mode
Frequency
Waveform

Transfer Time

Type
Backup Time
Recharge Time

Short Circuit Protection
Surge Protection
Alarm
Overload Protection

Intelligent Battery
Management

USB Connector
Software

Noise Level
Temperature
Humidity
Power Factor
Built in AVR

850VA

140 - 300VAC ±5%
50Hz/60Hz (Auto-sensing)
Single + GND

230VAC +12% -14%
230VAC ±10%

50Hz ±1% (Battery Mode)
Simulated Sine Wave (Battery Mode)
Sine Wave (AC Mode)
Typical 2 - 6ms

12V/10AH - 1pc
8 - 30 mins depending on load
2 - 4 hours recover to 90% capacity

Yes (Line Mode and Battery Mode)
Yes
Audible & Visual
Line Mode -

>120% change to fault mode immediately

Battery Mode -

>120% shutdown immediately
Prevent overcharging of battery
Protect battery and prolong battery life

AC Fault, Battery Low, Shutdown UPS

Support Windows® 2000/2003/XP/Vista/2008/7, Linux,
Unix, and MAC

<40dB

0˚C - 40˚C

0 - 90%
Up to 0.7
TRUE Full AVR (3 steps)

100 - 120% 5mins change to fault mode

100 - 120% 5 secs shutdown

EN 6

7. Specications

English

ID 1

1. Peringatan Penting Keselamatan

PERHATIAN:

Untuk mencegah resiko kebakaran atau sengatan listrik, pasang pada daerah yang suhu dan
kelembabannya terkontrol (Lihat spesifikasi untuk rentang suhu dan kelembaban yang
ditentukan.)
Untuk mengurangi resiko overheating dari UPS, JANGAN menutup ventilasi UPS dan
menempatkan pada daerah yang terkena sinar matahari langsung atau menempatkan dekat
dengan peralatan yang memancarkan panas.
JANGAN menghubungkan perangkat yang tidak berhubungan dengan computer, seperti
peralatan medis, oven microwave, atau vacuum pembersih pada UPS.

JANGAN menyambung input UPS ke output UPS itu sendiri.
JANGAN biarkan cairan atau benda asing masuk kedalam UPS. JANGAN menempatkan

minuman atau cairan dekat dengan unit.
Dalam keadaan darurat, tekan tombol OFF dan cabut kabel power dari sumber listrik untuk
memastikan UPS benar benar dalam kondisi tidak aktif.
JANGAN menambatkan power strip/surge pada UPS.
Jika UPS menggunakan casing dari bahan logam, untuk tujuan keselamatan, grounding
menjadi keharusan disaat menginstal UPS untuk mengurangi kebocoran arus dibawah 3.5mA.
Perhatian tersengat listrik sangat berbahaya. Juga dengan melepaskan unit ini dari sumber
listrik, tegangan berbahaya masih tersimpan pada baterai. Kabel baterai juga harus dilepas
disaat melakukan perawatan atau perbaikan UPS jika diperlukan.
Perbaikan pada baterai harus dilakukan oleh personil yang memiliki pengetahuan tentang
baterai dan tindakan pencegahan jika diperlukan. Jauhkan dari personil yang tidak mengerti.
Ketika mengganti baterai, gunakan nomor dan jenis baterai yang sama.
1 blok internal dari 12VDC baterai VRLA (Valve-Regulated Lead-Acid).
JANGAN membuang baterai kedalam api. Baterai dapat meledak. JANGAN membuka atau
merusa baterai. Elektrolit yang terlepas berbahaya bagi kulit dan mata.
Cabut UPS sebelum melakukan pembersihan dan JANGAN gunakan deterjen cair atau spray.
Baterai dapat menimbulkan resiko sengatan listrik dan hubungan singkat. Perhatikan
beberapa pencegahan berikut sebelum mengganti baterai:

1.

2.

3.

4.

5.

6.

7.

8.

9.

10.

11.

12.

13.

14.

15.

i.
ii.
iii.
iv.
v.

Lepaskan jam tangan, cincin, atau benda logam lainnya.
Gunakan alat yang terisolasi.
Pakailah sarung tangan dan sepatu bot dari bahan karet.
Jangan meletakan peralatan atau logam diatas baterai.
Cabut kabel yang terhubung langsung ke sumber listrik sebelum menyambung/mencabut kabel terminal
pada baterai.

ID 2

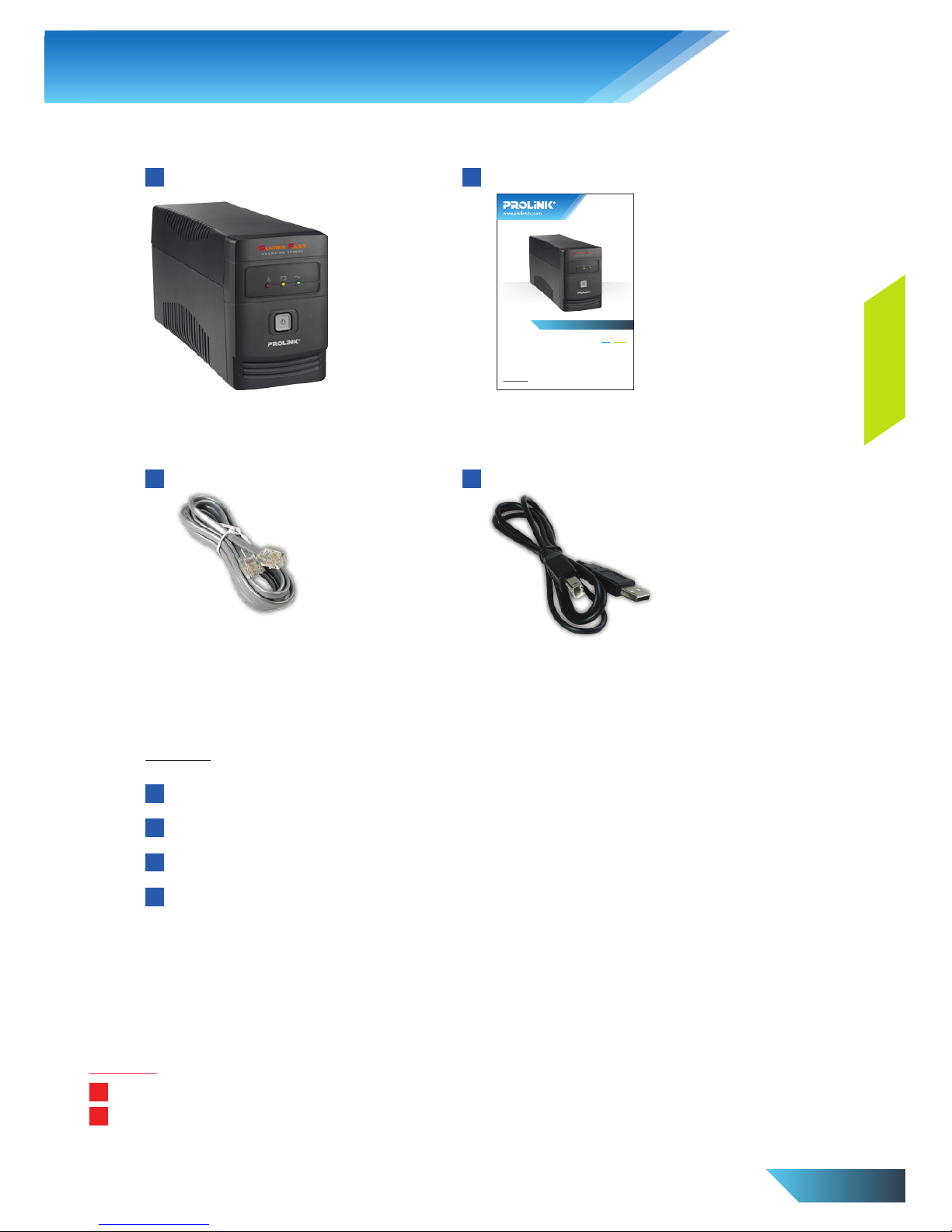

2. Isi Perangkat

Catatan:

1

Ilustrasi dalam dokumen ini mungkin tampak berbeda dari model anda.

2

Jika salah satu item di atas tidak dikemas dalam paket anda ketika terbuka, silakan berkonsultasi dengan
reseller anda segera.

Satu (1) unit of Line Interactive UPS1

Satu (1) piece Lembar Panduan Singkat

2

Satu (1) unit kabel RJ11 (optional)

3

Satu (1) unit kabel USB (optional)

4

Items:

21

3

(optional)

4

(optional)

BEFORE GETTING STARTED

This document is designed to aid you to get started with the device. If you experience problems following
these guides or need further information pertaining to the device, please visit our website at
www.prolink2u.com. All specifications are subject to the manufacturer’s configuration at the time of
shipping and may change without prior notice, written or otherwise.

Quick Start Guide

Line Interactive UPS

MODEL NO:

PRO850SFCU

Version 1.00

(English / Indonesian)

Indonesian

3
4

6

7

5

1

2

ID 3

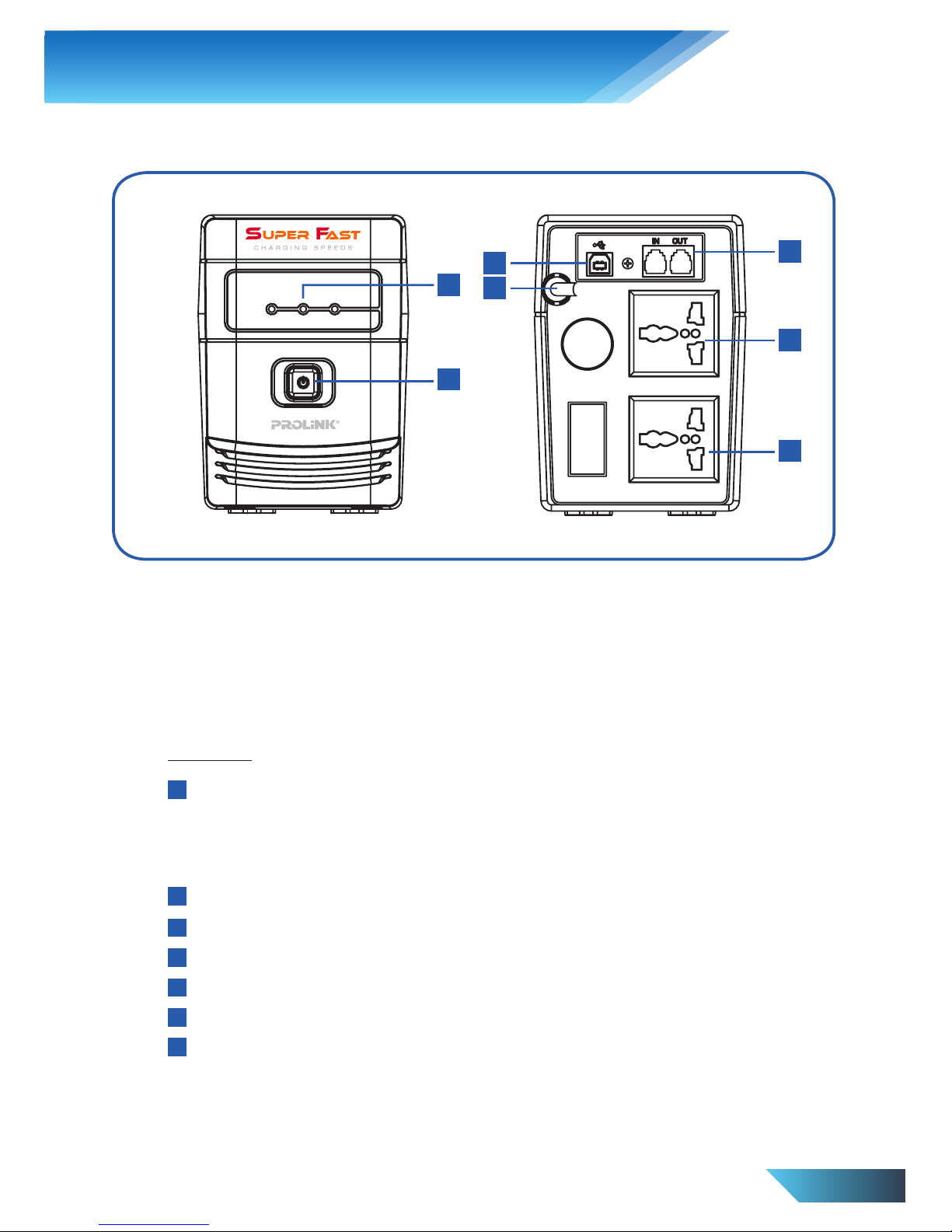

3. Ikhtisar

Legend:

Indikator LED:

1

Power Switch

2

Port USB

3

4 Power AC Input

5

Port RJ11: Modem / Perlindungan Faks

6

Konektor Output

• LED fault : Menyala Merah

• LED modus baterai : Berkedip Kuning

• LED modus AC : Menyala Hijau

Konektor Output

7

ID 4

4. Instalasi Dan Sebelum Memulai

Hubungkan Kabel Komunikasi

Untuk memungkinkan untuk auto shutdown/startup pada UPS dan monitoring status,
sambungkan kabel komunikasi pada port USB lalu ke port komunikasi pada PC anda. Dengan
software monitoring yang terinstal, anda dapat membuat jadwal untuk menshutdown/start-up
dan memonitor UPS anda melalui PC.

Menghidupkan/Mematikan Unit

Menghidupkan UPS dengan menekan tombol power. Mematikan UPS dengan menekan kembali
tombol power.

Penempatan & Penyimpanan

Penempatan UPS sebaiknya berada pada daerah yang bebas debu dan memiliki sirkulasi udara
yang baik. Harap menempatkan UPS minimal 20 cm dari unit yang lain untuk menghindari
interferensi. JANGAN menjalankan UPS disaat suhu dan kelembaban berada diluar batas yang
telah ditentukan. (Silahkan periksa spesifikasi untuk mengetahui batasan.)

20cm 20cm

Sambungkan ke Listrik dan Charging

Sambungkan kabel power ke sumber listrik. Untuk hasil yang
terbaik, disarankan untuk mencharge baterai minimal 6 jam
sebelum digunakan. Unit akan tercharge ketika terhubung ke
sumber listrik.

6 Hours

Menghubungkan ke Beban

Sambungkan beban pada konektor output yang berada pada panel belakang UPS. Hidupkan
tombol power UPS, dan kemudian perangkat yang terhubung ke UPS akan terlindung oleh UPS.

PERHATIAN:

JANGAN menghubungkan printer laser atau scanner ke UPS. Hal ini akan

menyebabkan kerusakan unit.

Catatan:

Sebelum melakukan instalasi, mohon unit diperiksa. Pastikan tidak ada yang rusak
didalam kemasan.

Indonesian

5. Software Download & Instalasi

ID 5

Please follow steps below to download and install monitoring software:

Pergi ke situs http://www.power-software-download.com
Klik ikon perangkat lunak ViewPower dan kemudian memilih OS yang dibutuhkan untuk
men-download perangkat lunak.
Ikuti petunjuk pada layar untuk menginstal perangkat lunak.
Ketika restart komputer anda, software monitoring akan muncul sebagai ikon plug jeruk yang
terletak di baki sistem, dekat jam.

1.

2.

3.

4.

6. Permasalahan

Use the table below to solve minor problems.

Ganti baterai dengan jenis yang
sama.

Tekan saklar daya lagi untuk
menghidupkan UPS.

Masalah Kemungkinan Solusi

Tidak ada LED yang
menyala pada panel
depan.

Baterai lemah. Charge UPS minimal 6 jam.

Baterai rusak.

UPS belum dihidupkan.

Alarm secara terus
menerus berbunyi
ketika sumber listrik
normal.

UPS overload.

Lepaskan beberapa beban yang
terhubung ke UPS. Sebelum
dipasang kembali, harap pastikan
beban masih dapat diterima oleh
UPS yang sesuai pada spesifikas.

Ketika sumber listrik
terputus, waktu
back-up sangat
pendek.

UPS overload. Lepaskan beberapa beban critical.

Tegangan baterai sangat rendah. Charge UPS minimal 6 jam.

Baterai rusak. Mungkin
disebabkan karena suhu
ruangan yang tinggi, atau
operasi yang tidak layak pada
baterai.

Ganti baterai dengan jenis yang
sama.

Listrik normal tetapi
LED berkedip.

Kabel power longgar.

Hubungkan kembali kabel power
dengan benar.

7. Spesikasi

ID 6

CAPACITY

INPUT

OUTPUT

BATTERY

PROTECTION/
MONITORING

INTERFACE

GENERAL

Voltage Range
Frequency
Phase

Voltage Range
Battery Mode
Frequency
Waveform

Transfer Time

Type
Backup Time
Recharge Time

Short Circuit Protection
Surge Protection
Alarm
Overload Protection

Intelligent Battery
Management

USB Connector
Software

Noise Level
Temperature
Humidity
Power Factor
Built in AVR

850VA

140 - 300VAC ±5%
50Hz/60Hz (Auto-sensing)
Single + GND

230VAC +12% -14%
230VAC ±10%

50Hz ±1% (Battery Mode)
Simulated Sine Wave (Battery Mode)
Sine Wave (AC Mode)
Typical 2 - 6ms

12V/10AH - 1pc
8 - 30 mins depending on load
2 - 4 hours recover to 90% capacity

Yes (Line Mode and Battery Mode)
Yes
Audible & Visual
Line Mode -

>120% change to fault mode immediately

Battery Mode -

>120% shutdown immediately
Prevent overcharging of battery
Protect battery and prolong battery life

AC Fault, Battery Low, Shutdown UPS

Support Windows® 2000/2003/XP/Vista/2008/7, Linux,
Unix, and MAC

<40dB

0˚C - 40˚C

0 - 90%
Up to 0.7
TRUE Full AVR (3 steps)

100 - 120% 5mins change to fault mode

100 - 120% 5 secs shutdown

Indonesian

PROLiNK® is a trademark of FIDA INTERNATIONAL (S) PTE LTD and is manufactured under its authority. All other brands, products, services, logos and
company names mentioned herein are trademarks of their respective owners. All specifications, designs and contents are subject to changes without prior
notice. © Copyright 2013. PROLiNK® all rights reserved.

Worldwide Customer Care Centers

INDONESIA Office

PT PROLiNK INTIDATA NUSANTARA
Walk-In : Jl. Cideng Barat No. 79, Jakarta Pusat 10150, Indonesia.
Telephone : [phone]
Email Support : [e-mail]

MALAYSIA Office

FIDA SYSTEMS (M) SDN BHD
Walk-In : 29 Jalan USJ 1/31, 47600 Subang Jaya, Selangor Darul Ehsan, Malaysia.
Telephone : [phone]
Email Support : [e-mail]

SINGAPORE Office

FIDA INTERNATIONAL (S) PTE LTD
Walk-In : Block 16 Kallang Place #06-02, Kallang Basin Industrial Estate, Singapore 339156.
Telephone : [phone]
Email Support : [e-mail]

Technical Support Hotline

INDONESIA : [phone]
MALAYSIA : [phone]
SINGAPORE : [phone]

Note: Closed on Saturdays, Sundays and local/regional Public Holidays.

Register Online For Your Product Warranty @ www.prolink2u.com/register
