ShareHub Device Server
Version 2.00
(English)
BEFORE GETTING STARTED
This UM is designed to aid you to get started with the device. If you experience problems following these guides or need further information pertaining to the device, please visit our website at www.prolink2u.com. All specifications are subject to the manufacturer’s configuration at the time of shipping and may change without prior notice, written or otherwise.
Table of Contents
Table of Contents.............................................................................................................................................................. |
1 |
||
1. Introduction .................................................................................................................................................................. |
1 |
||
1.1. About 3 Models Described in this Manual........................................................................................................ |
1 |
||
2. Product Overview.......................................................................................................................................................... |
2 |
||
2.1. |
Package Contents.............................................................................................................................................. |
2 |
|
2.2. |
Setup CD............................................................................................................................................................ |
2 |
|
2.2.1. |
Start-up Procedures .................................................................................................................................. |
2 |
|
2.2.2. |
Physical Description .................................................................................................................................. |
2 |
|
2.2.3. |
Supported USB Devices............................................................................................................................. |
3 |
|
3. Basic Installation ........................................................................................................................................................... |
4 |
||
3.1. |
Connecting the Hardware ................................................................................................................................. |
4 |
|
3.2. |
Wireless connection .......................................................................................................................................... |
4 |
|
3.2.1. |
Preliminary................................................................................................................................................ |
4 |
|
3.2.2. |
Set Wireless Configuration Using ShareHub Device Servers Control Center............................................ |
4 |
|
3.3. Assigning an IP Address to the Server............................................................................................................... |
7 |
||
3.3.1. |
Preliminary................................................................................................................................................ |
7 |
|
3.3.2. |
IP Address.................................................................................................................................................. |
7 |
|
3.3.3. |
Methods for Setting the IP Address.......................................................................................................... |
8 |
|
3.3.4. |
Server Names and Server Name Rules...................................................................................................... |
8 |
|
3.3.5. |
Setting the IP Address Using DHCP ........................................................................................................... |
8 |
|
3.3.6. |
Setting the IP Address Using the ShareHub Device Servers Control Center............................................. |
8 |
|
4. Using the ShareHub Device Servers............................................................................................................................ |
11 |
||
4.1. |
Introduction .................................................................................................................................................... |
11 |
|
4.2. |
Connect & Disconnect..................................................................................................................................... |
11 |
|
4.3. |
Subnet Issue.................................................................................................................................................... |
11 |
|
4.4. Installation of USB Device Driver .................................................................................................................... |
12 |
||
4.5. Using the ShareHub Device Servers................................................................................................................ |
13 |
||
4.6. |
Auto-Connect Printer...................................................................................................................................... |
14 |
|
4.7. |
Network Scanner............................................................................................................................................. |
16 |
|
4.8. |
USB Storage..................................................................................................................................................... |
18 |
|
4.9. |
Request to Connect......................................................................................................................................... |
19 |
|
4.10. |
|
Quitting the ShareHub Device Servers Control Center............................................................................... |
19 |
4.11. |
|
Limitations................................................................................................................................................... |
19 |
5. File Server |
.................................................................................................................................................................... |
20 |
|
5.1. |
Preliminary...................................................................................................................................................... |
20 |
|
5.2. Connecting ..................................................................................................USB Mass Storage to the Server |
20 |
||
5.3. |
Supported .....................................................................................................................................Codepages |
20 |
|
5.3.1. .................................................................................................................................. |
What is codepage? |
20 |
|
5.3.2. .................................................................................................... |
Filename Encoding of FAT File System |
20 |
|
5.3.3. ........................................................................................... |
When do you need to configure codepage? |
20 |
|
5.3.4. ....................................................................................................... |
Configuring the Server’s Codepages |
21 |
|
5.4. Using ...........................................................................Shared Storages by SMB/CIFS Method for Windows |
21 |
||
5.5. Using .....................................................................................Shared Storage by FTP Methods for Windows |
22 |
||
5.5.1. ................................................................................ |
Use Microsoft IE to the shared USB Mass Storages |
22 |
|
5.5.2. ................................................................................................................ |
Use Microsoft Dos’s FTP client |
22 |
|
6. The Servers’ ..............................................................................................................................................Web Pages |
23 |
||
6.1. |
Introduction .................................................................................................................................................... |
23 |
|
6.2. Using .........................................................................................................................the Server’s Web Pages |
23 |
||
6.2.1. .......................................................................................................................... |
Displaying Server Status |
23 |
|
6.2.2. .............................................................................................................. |
Setting up Server Configuration |
24 |
|
7. Troubleshooting.......................................................................................................................................................... |
26 |
||
7.1. |
LED .................................................................................................................................................Indicators |
26 |
|
7.2. |
Firewall............................................................................................................................................................ |
26 |
|
8. Restore Factory .............................................................................................................................................Defaults |
27 |
||
8.1. Using .........................................................................................................................the Server’s Web Pages |
27 |
||
8.2. |
Using .............................................................................................................................................Init Button |
27 |
|
8.3. |
Default ...................................................................................................................................Parameters List |
27 |
|
9.3.1. ................................................................................................................................ |
General Information |
27 |
|
9.3.2. ...................................................................................................................................................... |
TCP/IP |
27 |
|
9.3.3. ......................................................................................................................................... |
User Accounts |
27 |
|

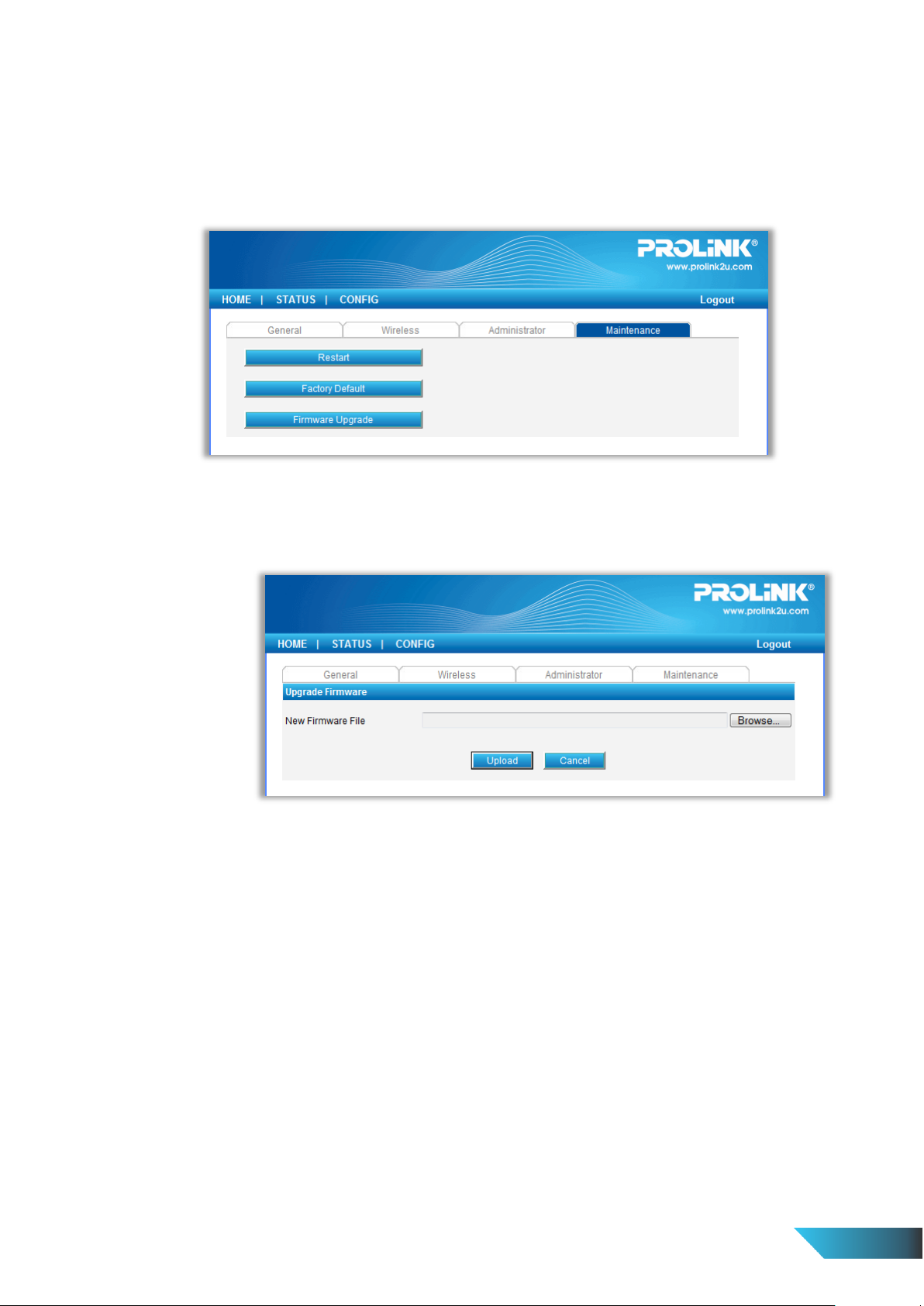

9. Upgrade Firmware ...................................................................................................................................................... |
28 |
||
Procedure .............................................................................A: Using the ShareHub Device Servers Control Center |
28 |
||
Procedure .............................................................................................B: Using the Init Button and the TFTP Client |
28 |
||
10. The Init Button .......................................................................................................................................................... |
29 |
||
Appendix G. Technical ..........................................................................................Support |
Error! Bookmark not defined. |
||
1. Introduction
Thank you for purchasing PROLiNK® ShareHub Device Servers (PPS2101/PPS2101N/PPS2104N). This Server is designed to connect your Multifunction Printer, Scanner, Fax, Hard Drive, iPhone, iPod, USB Speaker, USB CD, and USB DVD to your network, allowing all network users’ access to these shared USB devices.
1.1. About 3 Models Described in this Manual
This manual provides introductory information as well as detailed instructions on how to set up and manage PROLiNK® ShareHub Device Servers (PPS2101/PPS2101N/PPS2104N) in various network environments. The following table shows the differences among the 4 models. All 3 models have a 10/100 Mbit/sec LAN port. However, PPS2101/PPS2101N has only one USB port, while PPS2104N have four USB ports. Compared with PPS2101, both PPS2101N and PPS2104N have an additional wireless module (802.11b/g/n). Except for the wireless configuration, most configuration and operations are the same for PPS2101 and PPS2101N/PPS2104N. Similarly, almost all of the configuration and operations are the same for these models except that only one USB device can be connected to PPS2101/PPS2101N while at most four USB devices can be connected to PPS2104N. Unless explicitly specified, all instructions in the manual apply to PPS2101, PPS2101N, and
PPS2104N.
Model |
LAN |
Wireless |
USB Port(s) |
PROLiNK® PPS2101 |
Yes |
No |
1 |
PROLiNK® PPS2101N |
Yes |
Yes |
1 |
PROLiNK® PPS2104N |
Yes |
Yes |
4 |
To fully benefit from this document, you should be familiar with basic networking principles. The instructions described in this manual are based on the settings in a new Server. To reload the Factory Parameters, you can reset this Server back to Factory Default, which will restore most of the settings. For details, please refer to the chapter “Restore Factory Defaults”.
EN 1
2. Product Overview
2.1.Package Contents
Verify that nothing is missing from the package by using the checking list below. Please contact your dealer if anything is missing or damaged. All packing materials are recyclable. Please confirm the items in the package below:
1.ShareHub Device Servers (either PPS2101, PPS2101N or PPS2104N)
2.Quick Installation Guide
3.Power Adaptor (either 12V/1A for PPS2101/PPS2101N, or 12V/1.5A for PPS2104N)
4.Setup CD (ShareHub Device Servers Control Center and User’s Manual and Quick Installation Guide)
2.2.Setup CD
This CD provides easy-to-use ShareHub Device Servers Control Center software, and the User’s Manual and Quick Installation Guide.
2.2.1.Start-up Procedures
If your computer is configured to auto start CDs, this CD will start automatically when inserted. You can also navigate to the CD and start the autorun.exe file from within the Windows file manager.
2.2.2.Physical Description
|
|
Power Adaptor Connector |
|
|
|
For DC IN 12V/1A or DC IN 12V/1.5A power adaptor |
|
||||
|
|
|
|
|
|
||||||
|
|
Init Button |
|
|
|
For restoring the parameters to the default values |
|
||||
|
|
Ethernet Connector |
|
|
|
Connected to a twisted pair category 5 cable |
|
||||
|
|
Wireless Station 2,3 |
|
|
|
IEEE 802.11 b/g/n wireless station with antenna |
|
||||
|
|
USB Host Ports |
|
|
|
USB 1.1/2.0 low, full, and Hi-Speed compliant |
|
||||
|
|
|
|
|
|
||||||
|
|
|
|
|
|
|
|
|
|
Lit while power is applied. If it is not lit, or if it |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Power Indicator |
|
|
|
blinks, there is a problem with this Server or |
|
|
|
|
|
|
|
|
|
|
|
power adapter. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Lit while network is applied. If it is not lit, it |
|
|
|
|
|
|
|
Link Status 1 |
|
|
|
indicates that this server does not connect to |
|
|
|
|
|
|
|
|
|
|
|
the network. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Status Indicator 1 |
|
|
|
Blinks to indicate network activity. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Blinks to indicate wired network activity. If it is |
|
|
|
|
|
|
|
|
|
|
|
lit, it indicates the wired network is applied. If it |
|
|
|
|
|
|
|
|
|||||
|
|
Indicators |
|
|
|
LAN Indicator 2,3 |
|
|
|
||
|
|
|
|
|
|
|
|
is not lit, it indicates that the server does not |
|
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
connect to the wired network. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Blinks to indicate wireless network activity. If it |
|
|
|
|
|
|
|
WLAN Indicator 2,3 |
|
|
|
is lit, it indicates the wireless network is applied. |
|
|
|
|
|
|
|
|
|
|
|||
|
|
|
|
|
|
|
|
|
If it is not lit, it indicates that the server does |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
not connect to the wireless network. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Lit while a USB device connects to a USB Port |
|
|
|
|
|
|
|
USB Indicator |
|
|
|
of this Server. If it is not lit, or if it blinks, there |
|
|
|
|
|
|
|
|
|
|
|
is a problem with the USB device or this Server. |
|
|
|
|
|
|
|
|
|
|
|
|
|
Notice
1 – PPS2101 only, 2 – PPS2101N only, 3 – PPS2104N only
EN 2
2.2.3.Supported USB Devices
The PROLiNK® ShareHub Device Servers supports the following types of USB devices.
USB Printer
USB multifunction printer (MFP/AIO)
USB scanner
USB storage (like USB external HD and flash disk)
USB speaker
USB CD
USB DVD
iPod
iPhone
EN 3
3. Basic Installation
3.1.Connecting the Hardware
a)Make sure that your USB devices are switched off and that the Server’s Power Adapter is disconnected.
b)Connect the USB devices to the USB ports with the USB cables.
c)Connect the Server to the network with a twisted-pair category 5 cable, 10baseT or 100baseTX.
d)Turn on the USB devices and make sure it is ready for use.
e)Connect the Power Adapter to the Server. The power indicator will light up and USB1 and USB2 indicators will flash in turn. (For PPS2101/PPS2101N, only USB1 indicator will flash.) When the Link indicator lights up, the Server is correctly connected to the network. When USB1 and USB2 indicators stop flashing, the Server starts to work normally.
3.2.Wireless connection
3.2.1.Preliminary
a)Before you can access wireless network, wireless parameters should be set correctly. You have to setup the first wireless parameter set through LAN (wired) connection.
b)Wireless access can be set as infrastructure (station) mode, which need an access point to route network messages with the same SSID.
c)Wireless access can be secured by WEP (64/128), WPA-PSA (TKIP/AES), and WPA2-PSK (AES).
d)In infrastructure mode, if network administrator wants to change any security related parameters, PPS2101N/PPS2104N should be changed first, and then access point. If parameters mismatch causes wireless access is not allowed, you have to modify those parameters through LAN connection.
e)In infrastructure mode, the maximal transfer rate is 150 MBits depending on access point’s capability.
3.2.2.Set Wireless Configuration Using ShareHub Device Servers Control Center
a)Install ShareHub Device Servers Control Center. It is available in the Setup CD.
b)Start ShareHub Device Servers Control Center and Auto-searching ShareHub Device Servers window will appear.
Note:
If the wireless parameters are not correct or not set yet, you have to use LAN to access ShareHub Device Servers Control Center.
EN 4
c)If the tool finds ShareHub Device Servers in your local area network, then you have to select a server from the server list.
d)Double click the highlighted server (or click the “Configure Server” button) to get the server’s web pages. Click CONFIG icon.
e) Login with administrator ID (default: admin) and its password (default: admin).
EN 5
f)Click Wireless icon.
g)In order to join an existing wireless network, you have to set the correct SSID, and the correct security method with the correct key information.
h)If the wireless network is secured by WEP64 or WEP128, key index and WEP key must be set correctly.
EN 6
i)If the wireless network is secured by WPA-PSK or WPA2-PSK, the key formats, shared key and encryption must be set correctly.
j)Click Submit to save your settings. And the server will reboot.
k)You have now finished the procedure of setting the wireless parameters.
After properly configuring the wireless parameters, you can remove the network cable and reboot the
PPS2101N/PPS2104N. The PROLiNK® PPS2101N/PPS2104N will then connect to your wireless network. PPS2101N/PPS2104N will detect if a network cable is plugged-in or not. If a network cable is plugged-in, PPS2101N/PPS2104N will always connect to the network through the network cable. Otherwise it will always connect to the network through wireless module. Once PPS2101N/PPS2104N connects to the network, either by network cable or by wireless module, all operations to use ShareHub Device Servers are exactly the same.
3.3.Assigning an IP Address to the Server
3.3.1.Preliminary
If you have a DHCP server on your network, your Server will receive an IP address automatically. The IP address will then appear on the ShareHub Device Servers Control Center or on the page of configuration report that you printed earlier. If your DHCP server does not give an IP address to the Server, the Server will use the automatic private IP addressing IP: 169.254.0.0. ~ 169.254.255.255
If you are not working in a DHCP network, you need to manually set the Server’s IP address.
3.3.2.IP Address
Unless you are assigning an IP address using DHCP, you must obtain an unused IP address from your network administrator.
EN 7
