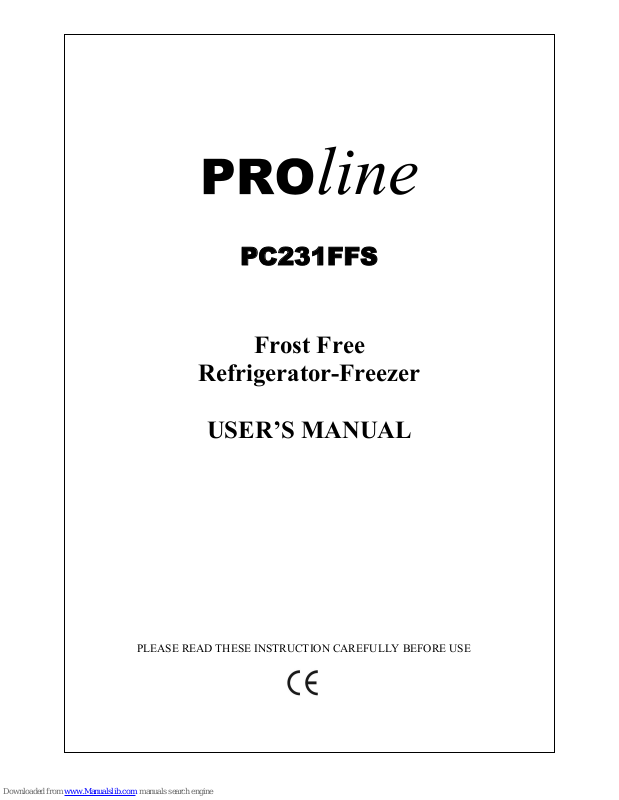

Proline PC231FFS User Manual

line

PC231FFS

Frost Free

Refrigerator-Freezer

USER’S MANUAL

PLEASE READ THESE INSTRUCTION CAREFULLY BEFORE USE

THANK YOU FOR PURCHASING THIS PROLINE PRODUCT

This booklet contains the information you will require to install and operate your new
appliance.
It is important and worthwhile spending time to fully read this booklet so you will
understand how to operate the appliance safely and efficiently.
Please keep this booklet in a safe place so that you can refer to it when required.

Safety information

This information is provided in the interest of your safety. Please read the following
carefully before carrying out the installation or use of the appliance.

If you are discarding an old freezer or refrigerator with a lock / catch fitted to the
door, ensure that it is left in a safe condition to prevent the entrapment of young
children.

As old refrigeration equipment may contain CFC’s which will damage the ozone
layer, when disposing of any refrigeration equipment please contact your local waste
disposal department for advice on the correct method of disposal

This appliance must only used for its intended purpose i.e. the freezing and storage of
domestic edible foodstuffs and should not be used for any other purpose

If the power cable requires replacement, this must only be undertaken by a suitably
qualified person, as special purpose tools are required.

Installation

Position the appliance and allow to stand for two to three hours before it is turned on
for the first time to allow the system to settle. Do not position next to any heat source
e.g. cooker, boiler or in direct sunlight etc.

A clearance of 10 cm must be left between the sides of the appliance and any adjacent
cabinets or walls to allow for adequate air circulation. The appliance is not designed
for recessed installation (“building in”).

Install on a good firm level surface, and any unevenness of the floor should be
corrected prior to installation, slight unevenness can be overcome by adjusting the
front feet.

NOTE: If the appliance is positioned on a carpet, soft floor covering you should re­adjust the front feet once the appliance has had time to settle.

Please note that the doors on this appliance can not be reversed.

2

ELECTRICAL CONNECTION

For your safety please read the following information

Warning: This appliance must be earthed.

This appliance operates from a 3-pin 13-amp plug. The voltage rating is 220-240 volts
and should be protected by a 13-amp fuse either in the plug or distribution board.

The appliance is supplied with a rewireable 13 amp 3-pin plug fitted with a 13amp
fuse. Should the fuse require replacement, it must be replaced with a fuse rated at 13
amp and approved to BS1362.

If the mains plug is unsuitable for the socket outlet in your home or is removed for
any other reason, then the cut off plug should be disposed of safely to prevent the
hazard of electric shock.

There is a danger of electric shock if the cut off plug is inserted into any 13-amp
socket outlet.

How to wire a 13 amp plug.

Important

The wires in the mains lead on this appliance are coloured in accordance with the
following code:

Green and Yellow - Earth
Blue – Neutral
Brown – Live

As the colours may not correspond with the markings identifying
the terminals in your plug proceed as follows.

The green and yellow wire must be connected to the terminal in the plug which is
marked with the letter E or with the earth symbol or coloured green and yellow.

The blue wire must be connected to the terminal marked N or coloured black.

The brown wire must be connected to the terminal marked L or coloured red.

3

Instructions for use

Remove all packing materials and wash the interior of the appliance using lukewarm
water containing a little bicarbonate of soda in the proportion of 1 teaspoon to 1.2
litres (2 pints) of water. Do not use detergents or soaps as they may taint the food.
After cleaning, dry all parts thoroughly.

Temperature Control

The refrigerator is designed to maintain an internal storage temperature in the
refrigerator compartment between +2C to + 5C.
To enable adjustment of the temperature in the appliance it is fitted with an adjustable
thermostat located in the fridge compartment, which can be adjusted from setting 1
(warmest) to 7 (coldest). For normal working temperature it is recommended to adjust
the thermostat control to the midway position, after a few hours readjust the
thermostat to the desired temperature. There is also an off position “OFF”. Which
turns OFF/ON the refrigerator freezer compartment. Please Note this dose not
disconnect the appliance from the mains supply. To do this you must remove the
mains plug from the socket.
To obtain a lower internal temperature turn the thermostat temperature control
clockwise to a higher number. To obtain a higher internal temperature turn the
thermostat control anticlockwise to a lower number. However, the internal
temperature and temperature control setting is dependent on a number of factors:

1. Varying ambient temperatures.

2. The number of times the appliance doors is opened and how long the doors remain

open.

3. The amount and temperature of the food and drink introduced into the appliance.

4. The weather conditions and time of year e.g. summer/winter.

5. The positioning of the appliance and an adequate air circulation to the sides and

back of the cabinet.

Never place hot or warm foods into the cabinet or leave the doors open for longer than
necessary as this will raise the temperature and cause excessive amounts of moisture
thus increasing the amount of ice in the refrigerator / freezer compartment.

The Internal Light

The internal light will automatically switch ON and OFF whenever the refrigerator
door is opened or closed. To change the light bulb please see the chapter on changing
the light bulb.

4

Storage of fresh food in the refrigerator

Food should always be covered tightly with foil, plastic film, placed in bags or stored
in airtight containers. This will prevent food from dehydrating and prevent the strong
smell of some foods transferring to milder ones.
To store raw meat wrap in polythene bags or airtight containers and place on the
lowest shelf.
Do not allow raw meat to come into contact with cooked foods. For safety, only store
raw meat for two or three days. Fruit and vegetables should be thoroughly cleaned
and placed in the vegetable/ salad bin.
Milk and other liquids should be sealed with lids and placed in the bottle shelf on the
door.

Store frozen food

When using the freezer for the first time or after defrosting, turn the thermostat
temperature control to setting 7 for at least two hours before introducing the food to
be stored, Then adjust to your preferred setting.
All frozen food products you purchase should be placed in the freezer as soon as
possible to avoid the frozen food from defrosting.
Storage recommendations printed on the packaging of frozen food by the
manufactures should always be followed.

Freezing fresh food

Ensure that your freezing operations are carried out under the most hygienic
conditions, as freezing alone does not sterilise the food. Never put hot or even warm
foodstuffs into the freezer. Prior to storing the food, pack it in plastic bags, aluminium
foil or freezer containers and place into the freezer without putting them in contact
with food that has already been frozen. See the technical data sheet at the rear of this
booklet for the maximum permissible amount in kilograms of fresh food that can be
frozen in any 24 hour period with a room temperature of 25C Never freeze more than
the maximum permissible.

Making ice cubes

Pour water into the ice cube tray until it is two thirds full and place into the freezer.
Ice cubes will form in approximately 2 to 3 hours. The ice cube can be easily removed
by twisting the ice cube tray or running under cold water for a short time.

5

Refrigerator / Freezer defrost process

The refrigerator defrosting process is carried out automatically every time the
compressor stops.
The defrost water drains from the cabinet into a tray placed on the top of the
compressor to the rear of the unit where it evaporates.
The freezer, which is cooled by ventilation, is first cooled by the evaporator and then
sent to the freezer compartment through ventilators.

When the air has circulated in the freezer compartment it is absorbed by the
evaporator which keeps its humidity in the form of frost.
Periodically (defrost cycle) the frost on the evaporator is dissolved and automatically
taken to the tray on top of the compressor were the water evaporates.

The great advantage of this system is the total absence of ice and frost on the walls of
the freezer compartment.
Not only the refrigerator but also the freezer no longer requires the periodical and
tiresome manual defrosting operations.

6

Warning : The refrigerating system must not be damaged at any time.

Cleaning and maintenance

Before any cleaning or maintenance is carried out you must disconnect the appliance
from the mains supply by removing the plug, never remove the plug by pulling on the
mains cord, remove the plug by pulling on the plug itself.
It is recommended that when cleaning the appliance, both the inside and outside, can
be cleaned using warm water and a little bicarbonate of soda. 1 teaspoon to 1.2 litres
of water.
If the appliance is not to be used for a long period of time then it is recommended to
remove all the food stuff, clean the inside of the appliance and leave the door open to
allow the air to circulate thus avoiding unpleasant odours.

Changing the light bulb
Note. Light bulbs are not covered by the warranty

Disconnect the appliance from the mains supply.
Slide the cover lamp cover towards you to gain accesses to the lamp holder.
Unscrew the light bulb in an anticlockwise direction from the holder.
Replace the bulb with one of the correct type and size (10 watt SES E14 base).
Replace the cover by sliding the cover towards the rear of the cavity.
Reconnect the appliance to the mains supply.

If there is a power failure for a short time less than 16 hrs keep the door closed
Frozen food should not be affected if the failure lasts for less than 16 hrs.
Extra protection can be given by covering the appliance with two or three thick
blankets.
If a long power failure is anticipated, try to get the foodstuff into another appliance or
cold store, if possible.
If the power cut is longer than 16 hrs then check the content of the freezer.
If the food as defrosted cook and refreeze the food or it should be eaten immediately.
Never refreeze food that as been defrosted.

If the appliance is not operating correctly.

Please check the following points:
Is there a power failure? (Check by turning on a house light)
Has the fuse blown or has the circuit breaker tripped.
Has the door been closed correctly?
Check the thermostat as been set correctly.
Is the mains plug in the wall socket correctly and the socket is switch on.

7

Do’s and don’ts

Do- keep raw meat and poultry below cooked food and dairy products.
Do- Leave lettuce, cabbage, parsley and cauliflower on the stem.
Do- Wrap cheese firstly in greaseproof paper and then in a polythene bag, excluding

As much air as possible. For best results, take out of the fridge compartment an hour
before eating.
Do- Wrap raw meat and poultry loosely in polythene or aluminium foil. This prevents
drying.

Do- Wrap fish and offal in polythene bags.
Do- Wrap food with a strong odour or which may dry out, in polythene bags, or

aluminium foil or place in airtight container.

Do- Wrap bread well to keep it fresh.
Do- Chill white wines, beer, larger and mineral water before serving.
Do- Check contents of the low temp compartment every so often.
Do- Keep food for as short a time as possible and adhere to “best before” and “Use

by” etc. dates.
Do- Store commercially prepared food in accordance with the instructions given on
the packets.
Do- Always choose high quality fresh food and be sure it is thoroughly clean before
Storing it.
Do- Wrap all food in aluminium foil or food quality polythene bags and make sure
any air is excluded.

Do-Keep ventilation openings, in the appliance enclosure clear of obstruction.
Do-ensure that frozen food does not rise in temperature while defrosting, a rise in

temperature during defrosting may shorten the storage life of your food.

Don’t- Cover the shelves with any protective materials which may obstruct air
circulation.
Don’t- Store poisonous or any dangerous substances in your fridge. It has been
designed for the storage of edible foodstuffs only.

Don’t- Consume food which has been refrigerated for an excessive length of time.
Don’t- Store cooked and fresh food together in the same container. They should be

packaged and stored separately.

Don’t- Let defrosting food or food juices drip onto already stored food.
Don’t- leave the door open for long periods, as this will make the appliance more

costly to run and cause excessive ice formation.

Don’t- Use sharp edged objects such as knives or forks to remove the ice.
Don’t- Never use hairdryers, or electrical appliances for defrosting only use item

recommended by the manufacturer.

Don’t- put hot food into the appliance. Let it cool down first.
Don’t- put liquid-filled bottles or sealed cans containing carbonated liquids into the

freezer section, as they may burst.
Don’t- Give children ice cream and water ices direct from the freezer section. The
low temperature may cause ‘freezer burns’ on the lips.
Don’t- Try to keep frozen food which has thawed; it should be eaten within 24 hours
or cooked and refrozen.

Don’t- Damage the refrigerant circuit at any time

8

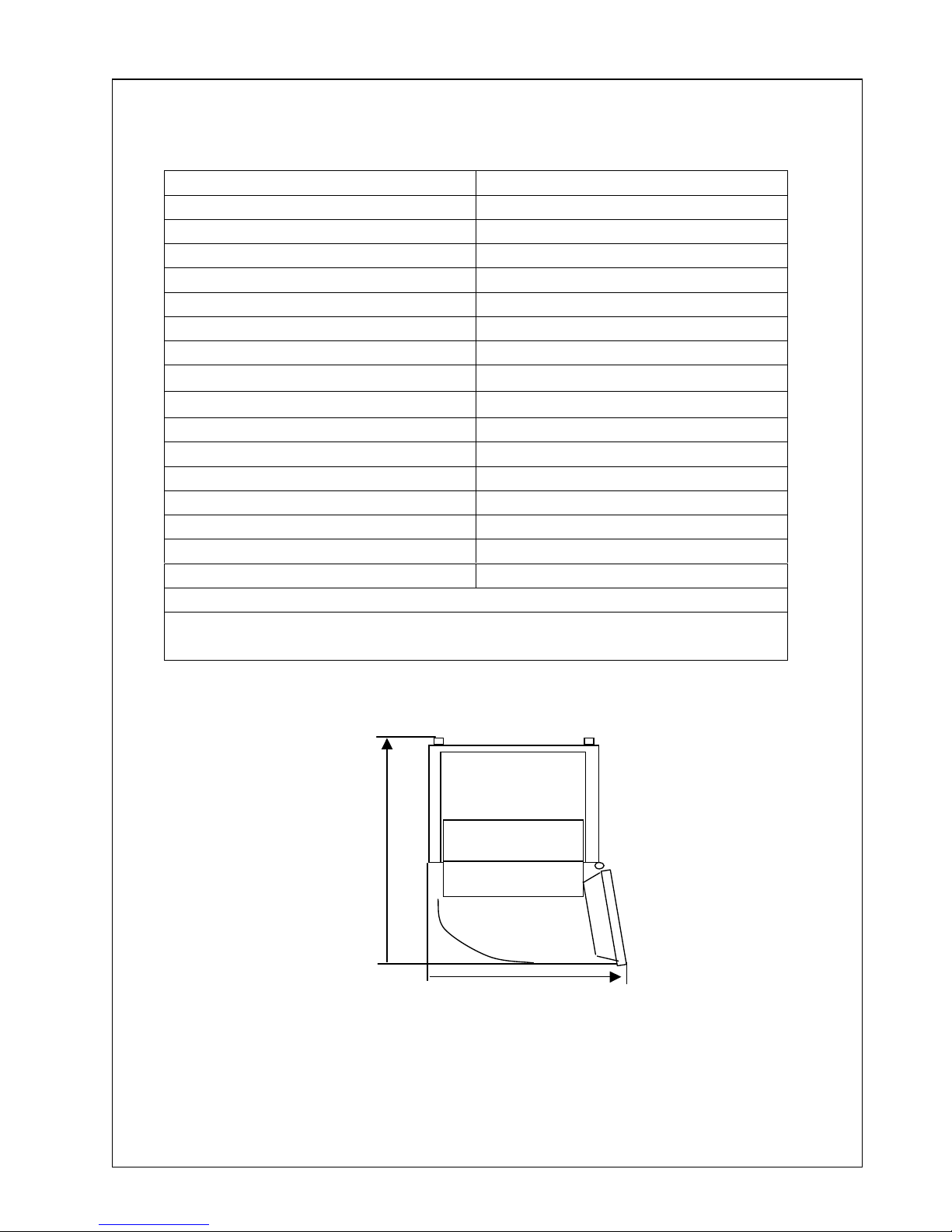

Technical data

Brand

PROLINE

Appliance type

Refrigerator Freezer

Star rating

4 Star Freezer

Total gross volume (l.)

241.5 Litres

Total usable volume (l.)

230 Litres

Freezer usable volume (l.)

90 Litres

Refrigerator useful volume

140 Litres

Freezing capacity (kg/24h)

3.5 Kg

Defrost wattage

145w

Climate Class +Ambient Range

Class N , Range 16 - 32’C

Energy class (1)

A

Power consumption (kWh/year) (2)

314 kWh/year

Supply voltage (Vac/Hz)

220-240V AC / 50 Hz

Noise [dB(A)re 1 pW]

39 dB(A)

Refrigerating agent

HC-600a

Outside dimensions (W x D x H)

550mm x 600mm x 1725mm

Refrigerating Blowing Gas

Cyclopentane

(1) Energy class: A…..G (A=economical…G=less economical)
(2) The real power consumption depends on using conditions and
appliance location.

Max depth 1120 mm

1010mm

9

Environmental notes

Disposal of packaging materials
Do not dispose of packaging materials with normal household waste. These materials
are recyclable and should be sorted (e.g. cardboard, plastic, polystyrene) and disposed
of in accordance with local regulations.

The PROLINE policy is one of continuous development and for this reason we
reserve the right to change specifications without prior notice.

Help line number 0113 2793520 during normal office hours. (You can not book a
service call through this number).

If you require a Service Engineer to call
The number is 08705 425425

Waste electrical products must
not be disposed of with
household waste. This
equipment must be returned to
the retail store for safe disposal,
or if that is not possible it can be

taken to your local recycling centre

This appliance is designed to the food-grade standards conforms with

(European directive 89/109/EU)

This appliance has been developed, manufactured and marketed in compliance with:

Low voltage directive 73/23/EU

Directive EMC 89/336/EU

Marking directive CE 93/68/EU

Energy efficiency directive 96/57/EU

All maintenance, including replacing the mains power cable, must only be undertaken

by a suitably qualified personnel.

Our policy is one of continuous development and for this reason we reserve the right

to change specifications without prior notice.

10
