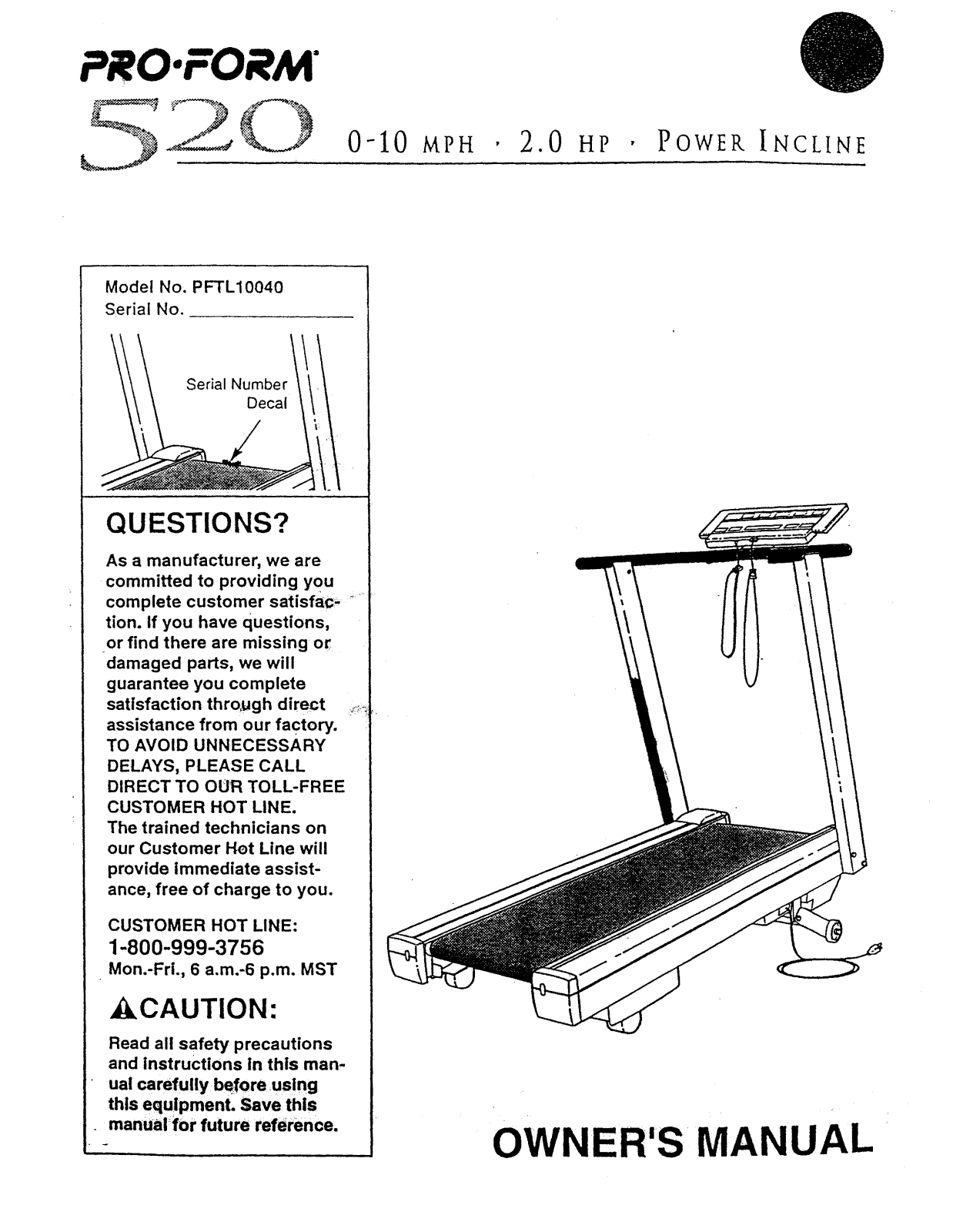

ProForm PFTLIO040 User Manual
PRO.FORM
0-10
Model No. PFTLIO040
Serial No.
Decal
QUESTIONS?
As a manufacturer, we are
committed to providing yo u
complete customer satisfac, _'•
tion. If you have questions,
or find there are missing or
damaged parts, we will
guarantee you complete
satisfaction thro,ugh direct
assistance from our factory.
TO AVOID UNNECESSARY
DELAYS, PLEASE CALL
DIRECT TO OUR TOLL-FREE
CUSTOMER HOT LINE.
The trained technicians on
our Customer Hot Line will
provide immediate assist-
ance, free of charge to you.
MPH
• 2.0 HP , POWER INCLINE
CUSTOMER HOT LINE:
1-800-999-3756
Mon.-Frl., 6 a.m.-6 p.m. MST
IkCAUTION:
Read all safety precautions
and instructions in thls man-
ual carefully before using
this equipment. Save this
manual for future reference.
OWNER'S MANUAL

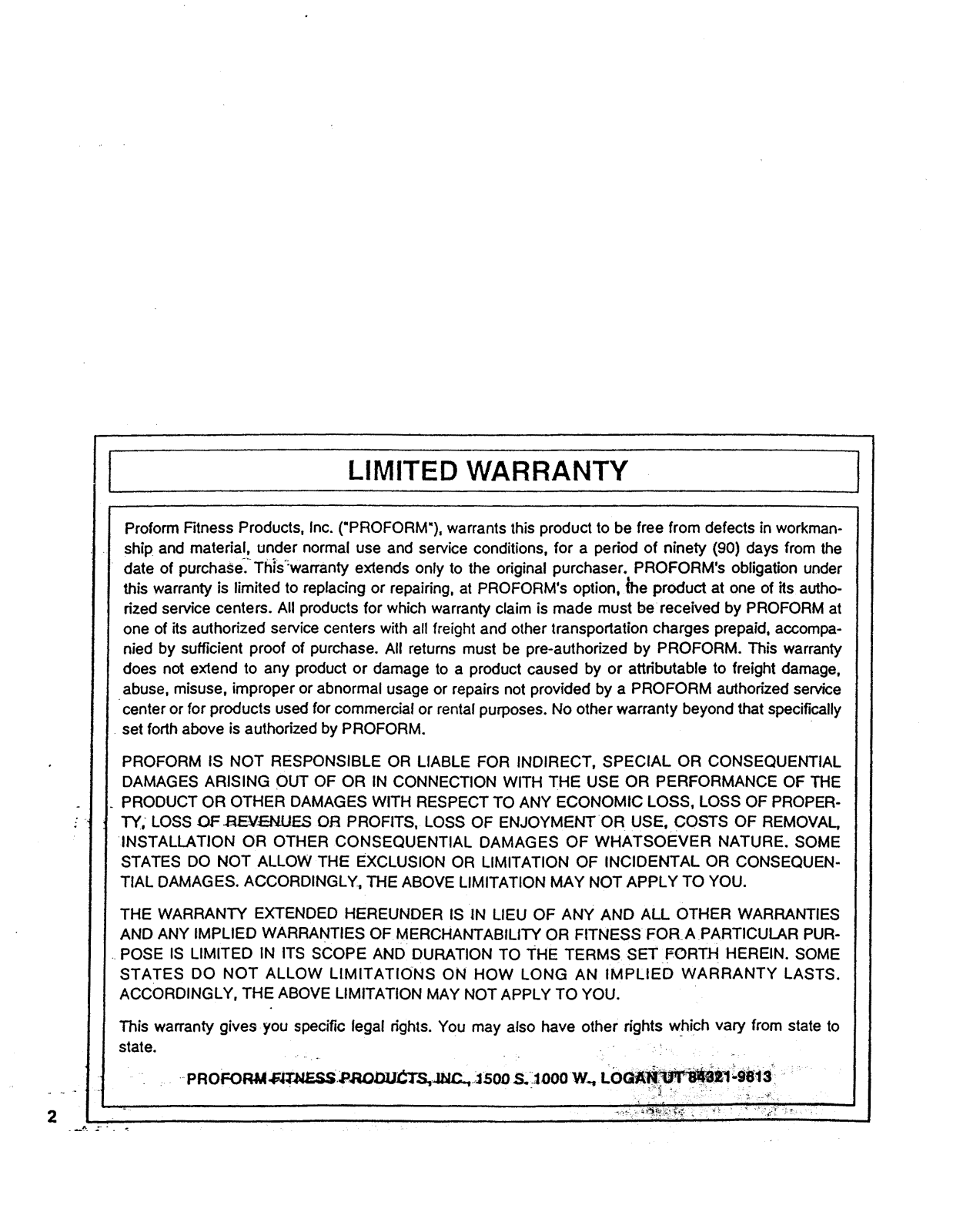

LIMITED WARRANTY 1
Proform Fitness Products, Inc. ('PROFORM"), warrants thisproduct to be free from defects in workman-
ship and material, under normal use and service conditions, for a period of ninety (90) days from the
date of purchase_."Th|s':warranty extends only to the original purchaser. PROFORM's obligation under
this warranty is limited to replacing or repairing, at PROFORM's option, _he product at one of its autho-
rized service centers. All products for which warranty claim is made must be received by PROFORM at
one of its authorized service centers with all freight and other transportation charges prepaid, accompa-
nied by sufficient proof of purchase. All returns must be pre-authorized by PROFORM. This warranty
does not extend to any product or damage to a product caused by or attributable to freight damage,
abuse, misuse, improper or abnormal usage or repairs not provided by a PROFORM authorized service
center or for products used for commercial or rental purposes. No other warranty beyond that specifically
set forth above is authorized by PROFORM.
PROFORM IS NOT RESPONSIBLE OR LIABLE FOR INDIRECT, SPECIAL OR CONSEQUENTIAL
DAMAGES ARISING OUT OF OR IN CONNECTION WITH THE USE OR PERFORMANCE OF THE
PRODUCT OR OTHER DAMAGES WITH RESPECT TO ANY ECONOMIC LOSS, LOSS OF PROPER-
"i'Y; LOSS OF-P-,EV_NLtES OR PROFITS, LOSS OF ENJOYMENT OR USE, COSTS OF REMOVAL,
INSTALLATION OR OTHER CONSEQUENTIAL DAMAGES OF WHATSOEVER NATURE. SOME
STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUEN-
TIAL DAMAGES. ACCORDINGLY1 THE ABOVE LIMITATION MAY NOT APPLY TO YOU.
THE WARRANTY EXTENDED HEREUNDER IS IN LIEU OF ANY AND ALL OTHER WARRANTIES
AND ANY IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PUR-
POSE IS LIMITED IN ITS SCOPE AND DURATION TO THE TERMS SET FORTH HEREIN. SOME
STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS.
ACCORDINGLY, THE ABOVE LIMITATION MAY NOT APPLY TO YOU.
This warranty gives you specific legal rights. You may also have other rights which vary from state to
state.
-PROFORM._,i.TNF...SS.,PJ;I,O_JblC_ _:1500SoJO00 W., LOG;___-'I _g_1:13
2
PRO.FORM"
0-10 MPH , 2.0 HP , POWER INCLINE

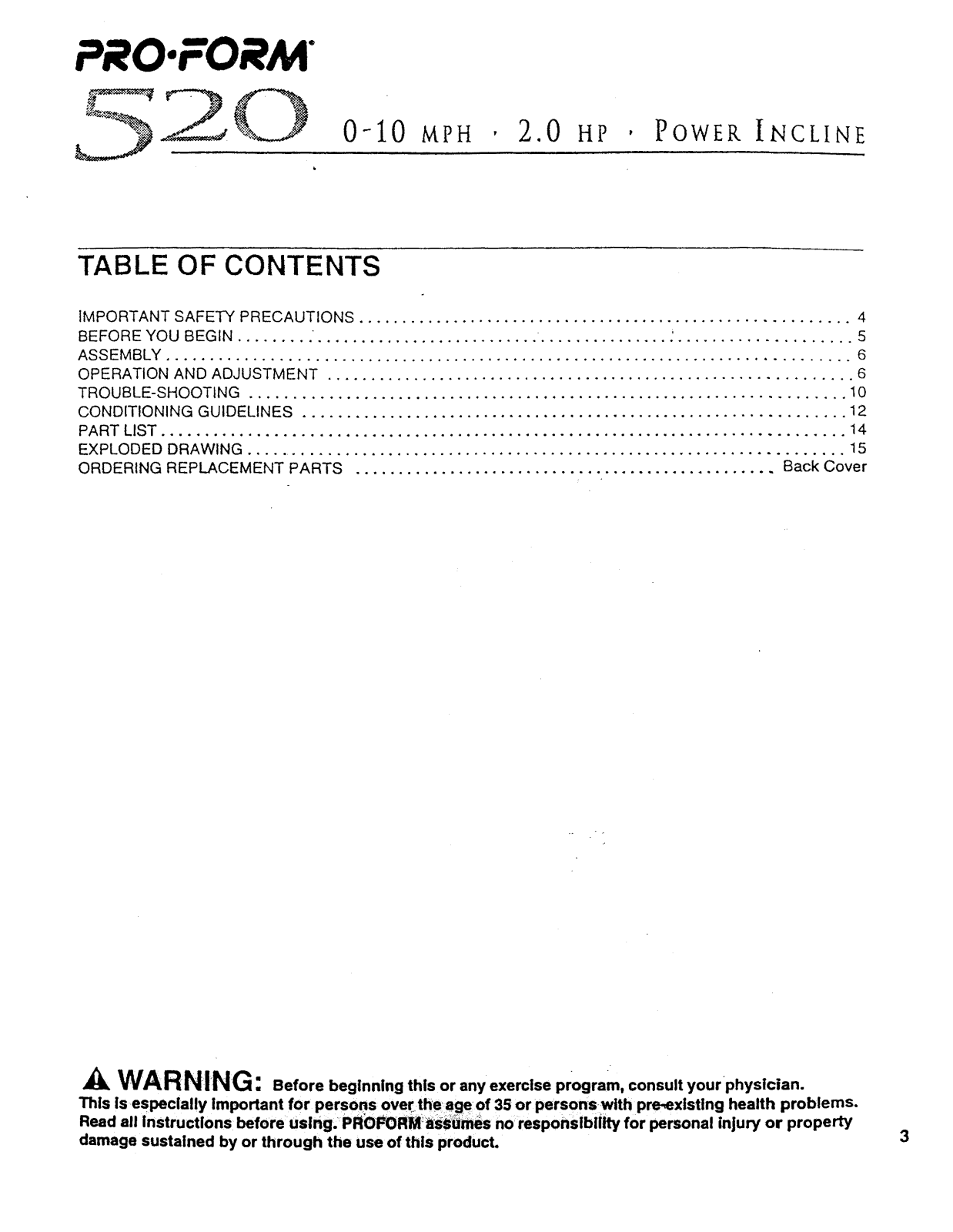

TABLE OF CONTENTS
IMPORTANT SAFETY PRECAUTIONS ......................................................... 4
BEFORE YOU BEGIN ......... .......................... ............... : .................... 5
ASSEMBLY ............................................................................... 6
OPERATION AND ADJUSTMENT ............................................................. 6
TROUBLE-SHOOTING ..................................................................... 10
CONDITIONING GUIDELINES ............................................................... 12
PART LIST ............................................................................... 14
EXPLODED DRAWING ...................................................................... 15
ORDERING REPLACEMENT PARTS ................................................. Back Cover
_k WARNING: Before beginning this or any exercise program, consult yourphysician.
This is especially Important for persons over the age of 35 or personswith preexisting health problems.
Read all instructions before using; PROleORM!_a's_es no responsibiilty for personal injury or property
damage sustained by or through the use of thls product.

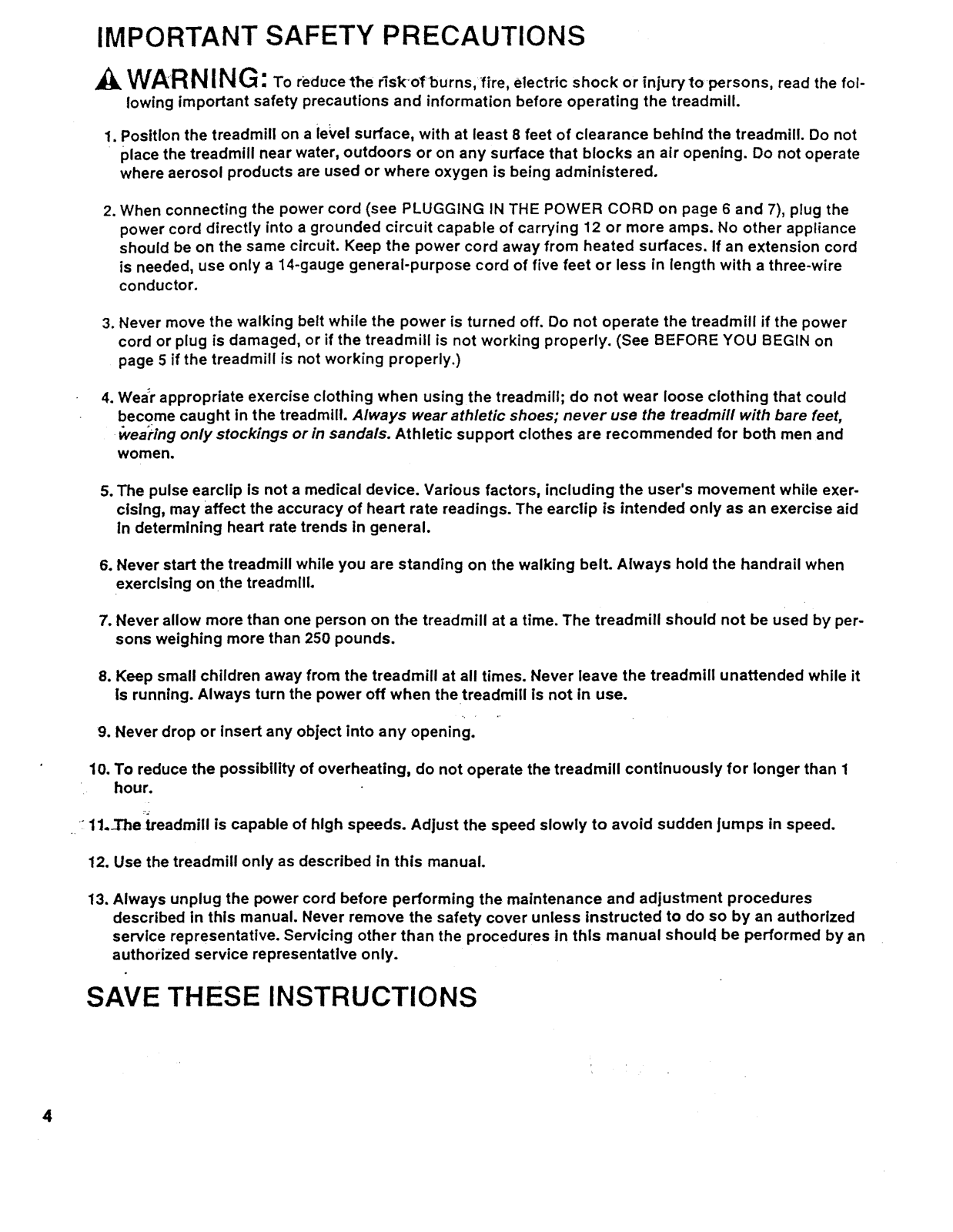

IMPORTANT SAFETY PRECAUTIONS
WAR NING: To reduce the risk Ofburns, fire, electric shock or injury topersons, read the fol-
lowing important safety precautions and information before operating the treadmill.
1. Position the treadmill on a ie_,el surface, with at least 8 feet of clearance behind the treadmill. Do not
place the treadmill near water, outdoors or on any surface that blocks an air opening. Do not operate
where aerosol products are used or where oxygen is being administered.
.
When connecting the power cord (see PLUGGING IN THE POWER CORD on page 6 and 7), plug the
power cord directly into a grounded circuit capable of carrying 12 or more amps. No other appliance
should be on the same circuit. Keep the power cord away from heated surfaces. If an extension cord
is needed, use only a 14-gauge general-purpose cord of five feet or less in length with a three-wire
conductor.
3. Never move the walking belt while the power is turned off. Do not operate the treadmill if the power
cord or plug is damaged, or if the treadmill is not working properly. (See BEFORE YOU BEGIN on
page 5 if the treadmill is not working properly.)
4. Wear appropriate exercise clothing when using the treadmill; do not wear loose clothing that could
become caught in the treadmill. Always wear athletic shoes; never use the treadmill with bare feet,
vvea'}ing only stockings or in sandals. Athletic support clothes are recommended for both men and
women.
5. The pulse earclip is not a medical device. Various factors, including the user's movement while exer-
cising, may affect the accuracy of heart rate readings. The earclip is intended only as an exercise aid
in determining heart rate trends in general.
6. Never start the treadmill while you are standing on the walking belt. Always hold the handrail when
exercising on the treadmill
7. Never allow more than one person on the treadmill at a time. The treadmill should not be used by per-
sons weighing more than 250 pounds.
8. Keep small children away from the treadmill at all times. Never leave the treadmill unattended while it
is running. Always turn the power off when the treadmill is not in use.
9. Never drop or insert any object into any opening.
10. To reduce the possibility of overheating, do not operate the treadmill continuously for longer than 1
hour.
: 11o_e treadmill is capable of high speeds. Adjust the speed slowly to avoid sudden Jumps in speed.
12. Use the treadmill only as described in this manual.
13. Always unplug the power cord before performing the maintenance and adjustment procedures
described in this manual. Never remove the safety cover unless instructed to do so by an authorized
service representative. Servicing other than the procedures in thls manual should be performed by an
authorized service representative only.
SAVE THESE INSTRUCTIONS
4

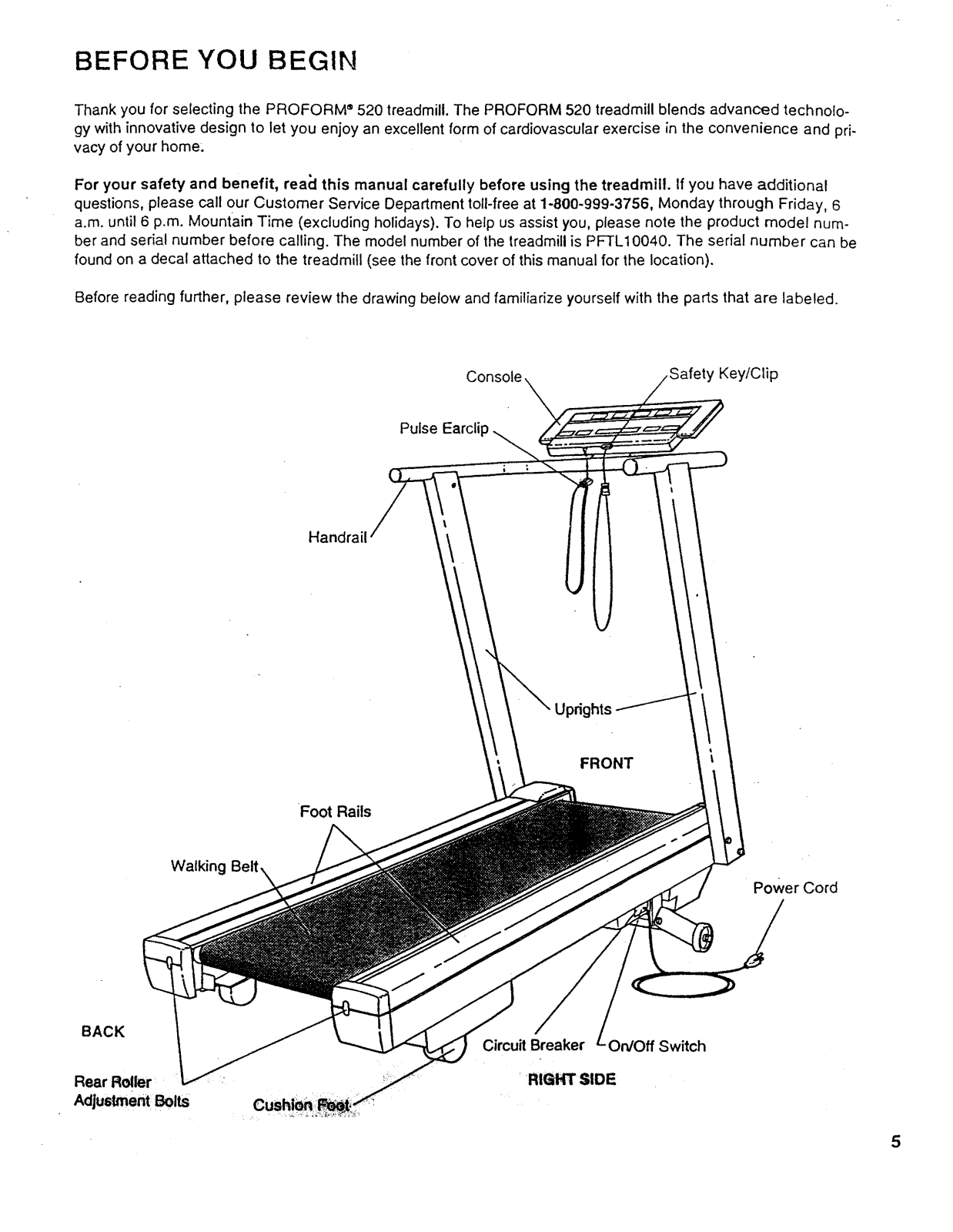

BEFORE YOU BEGIN
Thank you for selecting the PROFORM ®520 treadmill. The PROFORM 520 treadmill blends advanced technolo-
gy with innovative design to let you enjoy an excellent form of cardiovascular exercise in the convenience and pri-
vacy of your home:
For your safety and benefit, read this manual carefully before using the treadmill. If you have additional
questions, please call our Customer Service Department toll-free at 1-800-999-3756, Monday through Friday, 6
a.m. until 6 p.m. Mountain Time (excluding holidays). To help us assist you, please note the product model num-
ber and serial number before calling. The model number of the treadmill is PFTL10040. The serial number can be
found on a decal attached to the treadmill (see the front cover of this manual for the location).
Before reading further, please review the drawing below and familiarize yourself with the pads that are labeled.
Key/Clip
C°ns°le _
Pulse Earclip
Walking
Handrail
FRONT
Foot Rails
Power Cord
BACK
Rear Roller
Adjustment Bolts
Circuit Breaker On/Off Switch
RI_ SIDE
5
