Proel MQ6 USER’S MANUAL

MQ6

6 Channel Mixer

USER’S MANUAL

MANUALE D’USO

96MAN0132-R E V. 30/18

ENGLISH

ITALIANO

SUMMARY - ENGLISH

DISPOSAL OF OLD ELECTRICAL & ELECTRONIC EQUIPMENT ................................................................. 3

GENERAL SAFETY INSTRUCTIONS .......................................................................................................... 3

IN CASE OF FAULT ................................................................................................................................... 3

PACKAGING, SHIPPING AND COMPLAINT .............................................................................................. 3

WARRANTY AND PRODUCTS RETURN ................................................................................................... 3

MAINTENANCE AND DISCLAIMER .......................................................................................................... 4

POWER SUPPLY ...................................................................................................................................... 4

CONFORMITY ......................................................................................................................................... 4

INTRODUCTION ...................................................................................................................................... 5

DESCRIPTION .......................................................................................................................................... 5

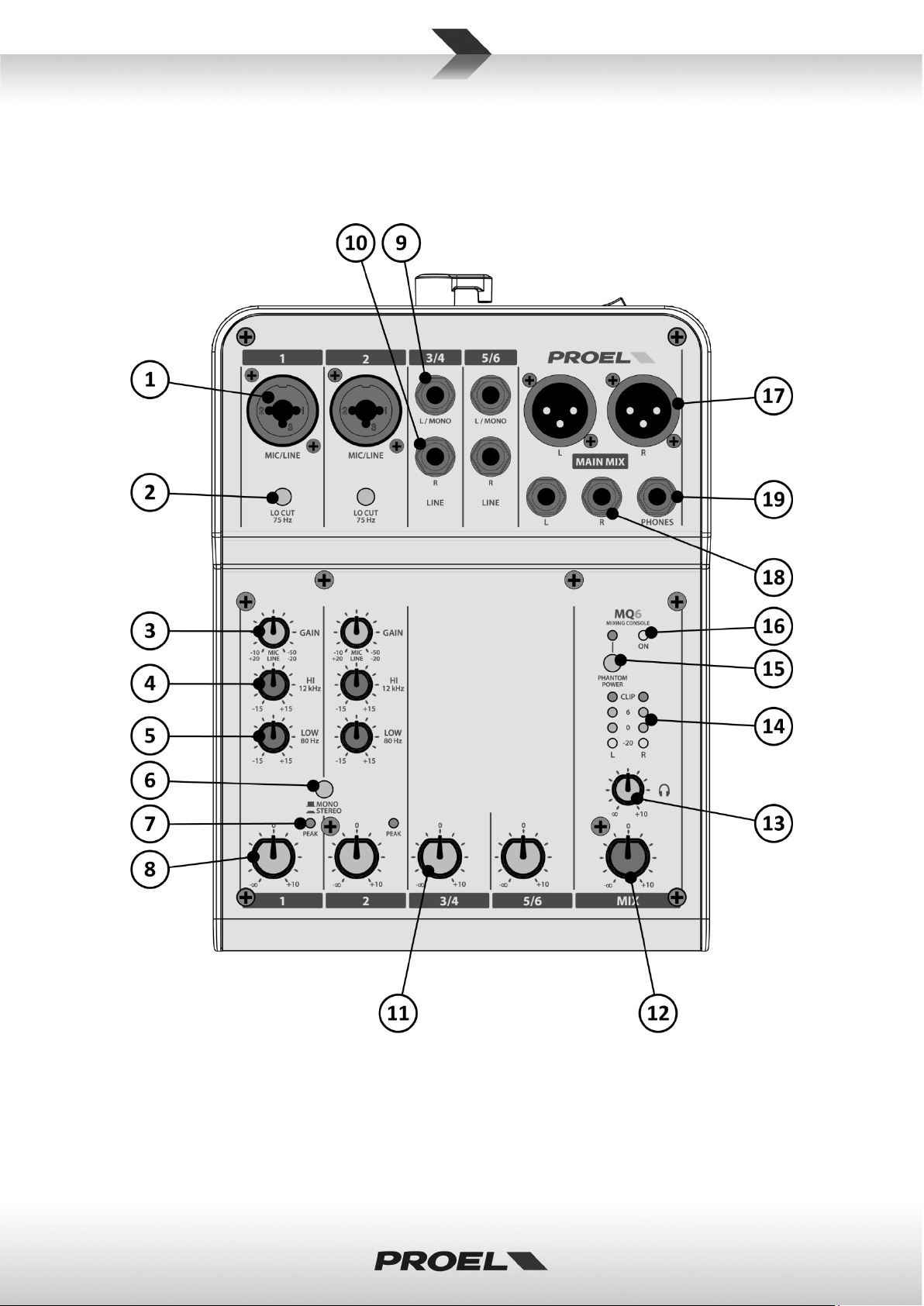

INSTRUCTIONS ....................................................................................................................................... 5

1. MIC-XLR / LINE-JACK combo input (ch. 1 / 2) ............................................................................. 5

2. LO CUT switch (ch. 1 / 2) ............................................................................................................. 5

3. CHANNEL GAIN control (ch. 1 / 2) ............................................................................................... 6

4. EQ section HIGH control (ch. 1 / 2) ............................................................................................. 7

5. EQ section LOW control (ch. 1 / 2) .............................................................................................. 7

6. MONO/STEREO switch (ch. 1 / 2) ................................................................................................ 7

7. PEAK detector (ch. 1 / 2) ............................................................................................................. 7

8. FADER LEVEL control (ch. 1 / 2) ................................................................................................... 7

9. LINE LEFT/MONO jack input (ch. 3-4 / 5-6) ................................................................................. 7

10. LINE RIGHT jack input (ch. 3-4 / 5-6) ....................................................................................... 7

11. FADER LEVEL control (ch. 3-4 / 5-6) ......................................................................................... 7

12. MAIN MIX FADER control ........................................................................................................ 7

13. PHONES LEVEL control ............................................................................................................ 7

14. L & R LEVEL meters .................................................................................................................. 7

15. +48V phantom switch and LED ................................................................................................ 8

16. ON led ...................................................................................................................................... 8

17. MAIN MIX L & R XLR output (balanced) .................................................................................. 8

18. MAIN MIX L & R jack output (balanced).................................................................................. 8

19. PHONES stereo jack output ..................................................................................................... 8

20. 18V~ supply socket input ........................................................................................................ 8

21. POWER switch ......................................................................................................................... 8

22. Power cable hook .................................................................................................................... 8

TECHNICAL SPECIFICATION .................................................................................................................... 9

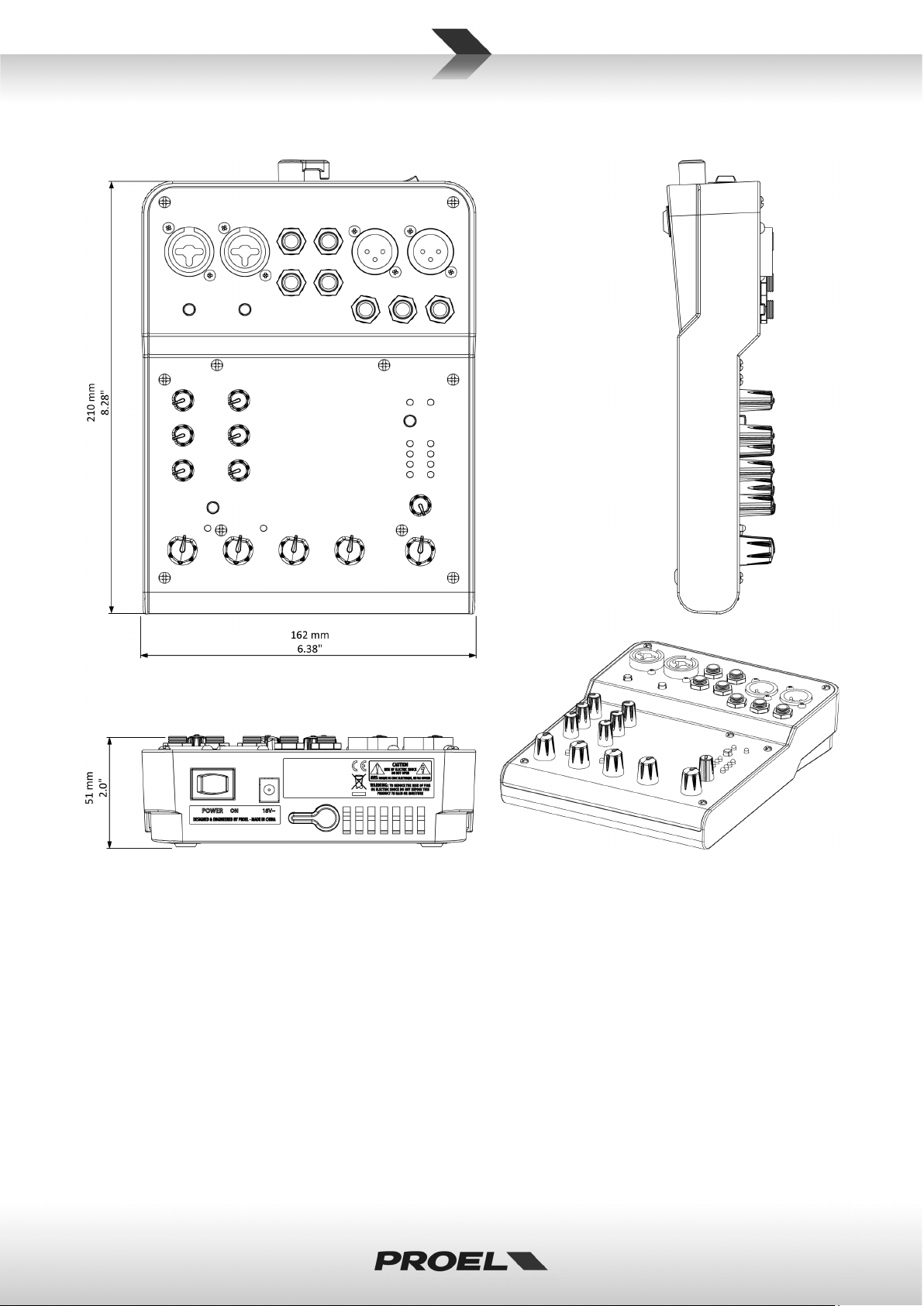

Mechanical Dimensions ....................................................................................................................... 18

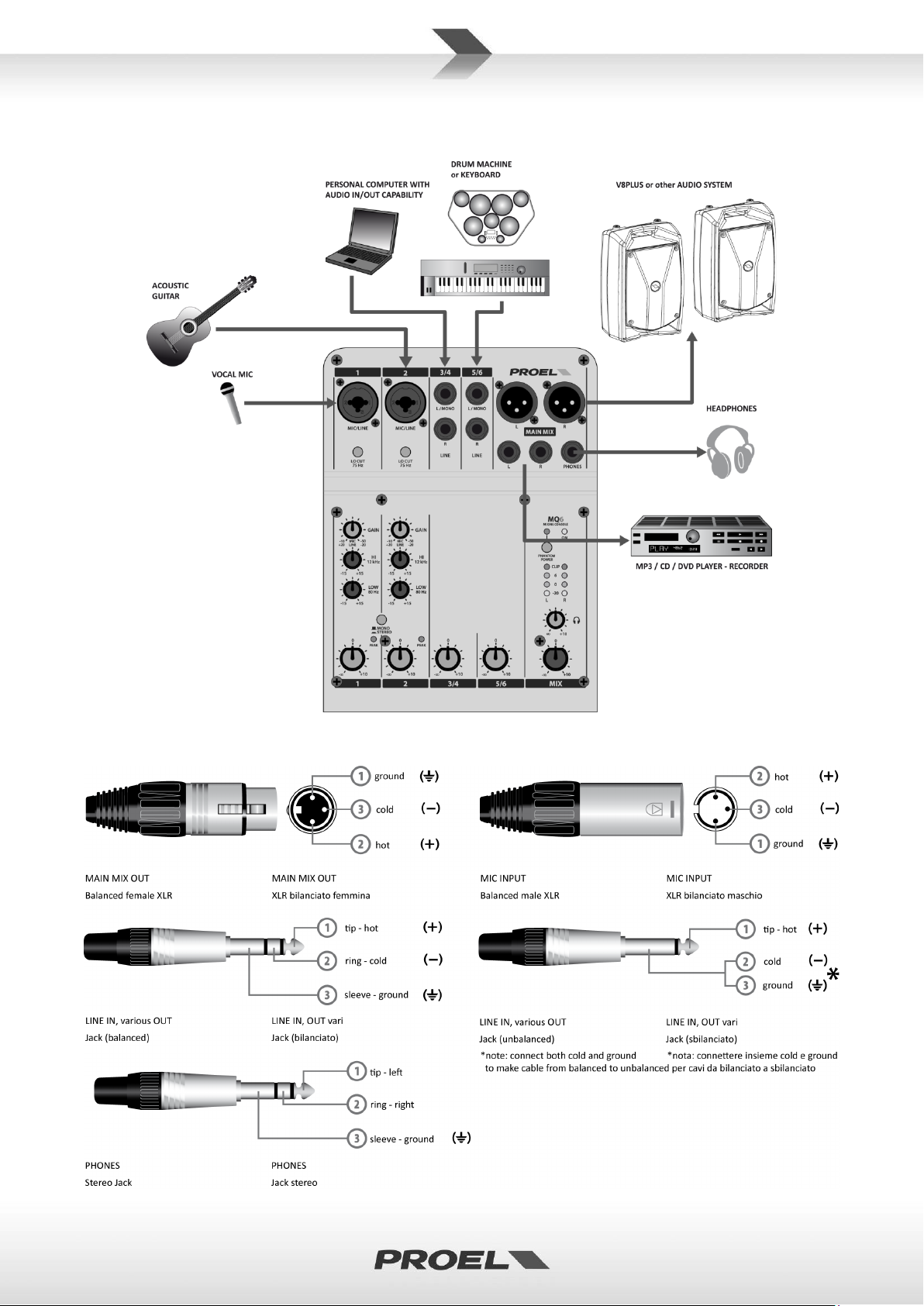

Configurations Example ....................................................................................................................... 19

Connectors ........................................................................................................................................... 19

DISPOSAL OF OLD ELECTRICAL & ELECTRONIC EQUIPMENT

This marking shown on the product or its literature, indicates that it should not be disposed with other household wastes at the end of its working life. To prevent possible harm to the enviroment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources.

Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take this item for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal.

GENERAL SAFETY INSTRUCTIONS

• CAUTION - Before using this product read carefully the following safety instructions. Take a look of this

manual entirely and preserve it for future reference. When using any electric product, basic precautions should always be taken, including the following:

• To reduce the risk, close supervision is necessary when the product is used near children.

• Protect the apparatus from atmospheric agents and keep it away from water, rain and high humidity places.

• This product should be site away from heat sources such as radiators, lamps and any other device that generate heat.

• Care should be taken so that objects and liquids do not go inside the product.

• The product should be connected to a power supply only of the type described on the operating

instructions or as marked on the product.

IN CASE OF FAULT

• In case of fault or maintenance this product should be inspected only by qualified service personnel when:

• Liquids have spilled inside the product.

• The product has fallen and been damaged.

• The product does not appear to operate normally or exhibits a marked change in performance.

• Do not operate on the product, it has no user-serviceable parts inside.

• Refer servicing to an authorized maintenance centre.

PACKAGING, SHIPPING AND COMPLAINT

• This unit package has been submitted to ISTA 1A integrity tests. We suggest you control the unit

conditions immediately after unpacking it.

• If any damage is found, immediately advise the dealer. Keep all unit packaging parts to allow inspection.

• Proel is not responsible for any damage that occurs during shipment.

• Products are sold “delivered ex warehouse” and shipment is at charge and risk of the buyer.

• Possible damages to unit should be immediately notified to forwarder. Each complaint for manumitted

package should be done within eight days from product receipt.

WARRANTY AND PRODUCTS RETURN

• Proel products have operating warranty and comply their specifications, as stated by manufacturer.

• Proel warrants all materials, workmanship and proper operation of this product for a period of two years

from the original date of purchase. If any defects are found in the materials or workmanship or if the product fails to function properly during the applicable warranty period, the owner should inform about these defects the dealer or the distributor, providing receipt or invoice of date of purchase and defect

detailed description. This warranty does not extend to damage resulting from improper installation,

FCC COMPLIANCE NOTICE

This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions:

misuse, neglect or abuse. Proel S.p.A. will verify damage on returned units, and when the unit has been properly used and warranty is still valid, then the unit will be replaced or repaired. Proel S.p.A. is not responsible for any "direct damage" or "indirect damage" caused by product defectiveness.

MAINTENANCE AND DISCLAIMER

• Clean only with dry cloth.

• Proel products have been expressly designed for audio application, with signals in audio range (20Hz to

20kHz). Proel has no liability for damages caused in case of lack of maintenance, modifications, improper use or improper installation non-applying safety instructions.

• Proel S.p.A. reserves the right to change these specifications at any time without notice.

• Proel S.p.A. declines any liability for damages to objects or persons caused by lack of maintenance,

improper use, installation not performed with safety precautions and at the state of the art.

POWER SUPPLY

• Do not place the power adaptor and its cord near heat sources such as heaters or radiators, and do not

excessively bend or otherwise damage the cord, place heavy objects on it, or place it in a position where anyone could walk on, trip over, or roll anything over it.

• Before connecting the product to the mains outlet make certain that the mains line voltage matches that

shown on the name plate of the adaptor and that the AC outlet is protected by a residual current circuit breaker, a voltage tolerance of up to ±10% is acceptable.

• If you intend to use the device in an area other than in the one you purchased, the included power

adaptor may not be compatible.

• Use the supplied adaptor only. Using the wrong adaptor can result in damage to the device or

overheating.

• When setting up the device, make sure that the AC outlet you are using is easily accessible. If some

trouble or malfunction occurs, immediately turn the power off and disconnect the plug from the outlet. Even when the power is turned off, electricity is still flowing to the product at the minimum level. When you are not using the product for a long time or before electrical storms, make sure to unplug the power cord from the wall AC outlet to reduce the risk of electric shock or fire.

CONFORMITY

• The product is in compliance with CE Directive LVD 2014 / 35 / CE as stated in EN 60065 standard.

• The product is in compliance with CE Directive EMC 2014 / 30 / CE as stated in EN 55103-1 and EN

55103-2 standards.

(1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.

CAUTION: Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

INTRODUCTION

Thank you for choosing this PROEL product and for your trust in our brand, synonymous of professionalism, accuracy, high quality and reliability. All our products are CE approved and designed for continuous use in professional applications.

DESCRIPTION

MQ is a series of mixers created by PROEL to offer in a very compact and stylish package a high input density, a full set of features and a superior audio quality, at a very convenient price point. The MQ series includes 5 models with 6, 10, 12 and 16 inputs, able to satisfy most of the sound reinforcement applications. Carefully designed and engineered in Italy by PROEL R&D, MQ mixers are hosted in ultra-rugged cases, providing extended durability for a stage-proof use.

The smallest models of the series, MQ6 and MQ6FX, offer in an ultra-compact format the performance of professional consoles, delivering a clean and accurate sound. The MQ6FX, despite its small size, includes a high-quality 24-bit DSP able to provide musicians and performers with studio-grade effects.

MQ10FX, together with 3-band EQ and one-knob intelligent COMPRESSORS, offers also 100 DSP presets with a convenient LED display for the selection.

MQ12USB additional features include an USB audio I/O interface and extended mixing capability with MONITOR send, STEREO GROUP bus and 45mm control faders.

The top-of-the-line MQ16USB feature 16 inputs and 12 microphone channels together with sweep mids and one-knob intelligent COMPRESSORS on mono channels, 4 AUX sends, STEREO GROUP bus and 60mm control faders.

Optional padded carrying bags and metal brackets for 19” rack mounting are available for selected models.

INSTRUCTIONS

1. MIC-XLR / LINE-JACK combo input (ch. 1 / 2)

This is a female MIC-XLR / LINE-JACK combo connector that accepts a balanced microphone XLR input from almost any type of microphone, or a balanced or unbalanced line level JACK input signal from almost any line source.

The MIC-XLR input is wired as follows:

Pin 1 = shield or ground Pin 2 = + positive or "hot" Pin 3 = - negative or "cold"

The LINE-JACK input is wired as follows:

Tip = + positive or "hot" Ring = - negative or "cold" Sleeve = shield or ground

When connecting an unbalanced signal, wire them as follows:

Pin2 / Tip = + positive or "hot" Pin 1-3 / Sleeve = shield or ground

2. LO CUT switch (ch. 1 / 2)

This switch cuts bass frequencies below 75 Hz at a rate of 18 dB per octave. We recommend that you use the LO CUT filter on every microphone application except kick drum, bass guitar, bassy synth patches or recordings. These aside, there isn’t much down there that you want to hear and filtering it out makes the low stuff you do want much more crisp and tasty. Not only that, but the LO CUT filter can help reduce the

possibility of feedbacks in live situations and it helps to conserve the amplifier power. Another way to use the LO CUT filter is in combination with the LOW EQ on vocals during live performances. Many times, bass shelving EQ can really benefit voices. Trouble is, adding LOW EQ also boosts stage rumble, mic handling clunks, and breath pops.

3. CHANNEL GAIN control (ch. 1 / 2)

The gain control adjusts the input sensitivity of the mic and line inputs. This allows the signal from mics and instruments to be adjusted to optimal internal levels. If the signals are plugged into the XLR input there is a 0 dB of gain with the knob turned all way down, rising up to 40 dB of gain fully up. When connected to the jack input of any channels, there is 20 dB of attenuation all way down and 20 dB of gain fully up.
