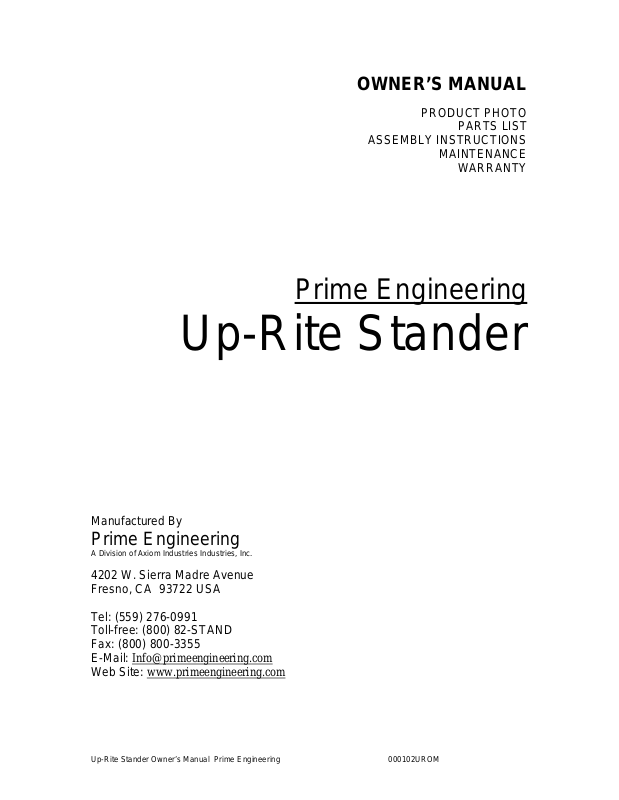

Prime Engineering Up-Rite Stander User Manual

OWNER’S MANUAL

PRODUCT PHOTO

PARTS LIST

ASSEMBLY INSTRUCTIONS

MAINTENANCE

WARRANTY

Prime Engineering

Up-Rite Stander

Manufactured By

Prime Engineering

A Division of Axiom Industries Industries, Inc.

4202 W. Sierra Madre Avenue Fresno, CA 93722 USA

Tel: [phone]
Toll-free: (800) 82-STAND
Fax: [phone]
E-Mail: [email protected]
Web Site: www.primeengineering.com

Up-Rite Stander Owner’s Manual Prime Engineering 000102UROM

Up-Rite Stander

A Product designed by Therapists for Therapists

RAY ASSEMBLY (4)

T

PRODUCT DIMENSIONS:

Up-Rite I Up-Rite II Up-Rite III

Base Size: 20” wide X 20” long Base Size: 24” wide X 24” long Base Size: 32” wide X 32” long
Tray Size: 18” wide x 14.5 deep Tray Size: 21” wide x 17.5 deep Tray size: 24” wide x 21 deep
Patient Height: up to 36” Patient Height: up to 48” Patient Height: up to 60”

Note: Child height should not excee d hei g ht of stan der .

IP SUPPORT STRAP (3)

H

NEE BRACKET (2)

K

END CAPS

(6)

HEEL PAD

U

P-RITE POLE (1B)

(8)

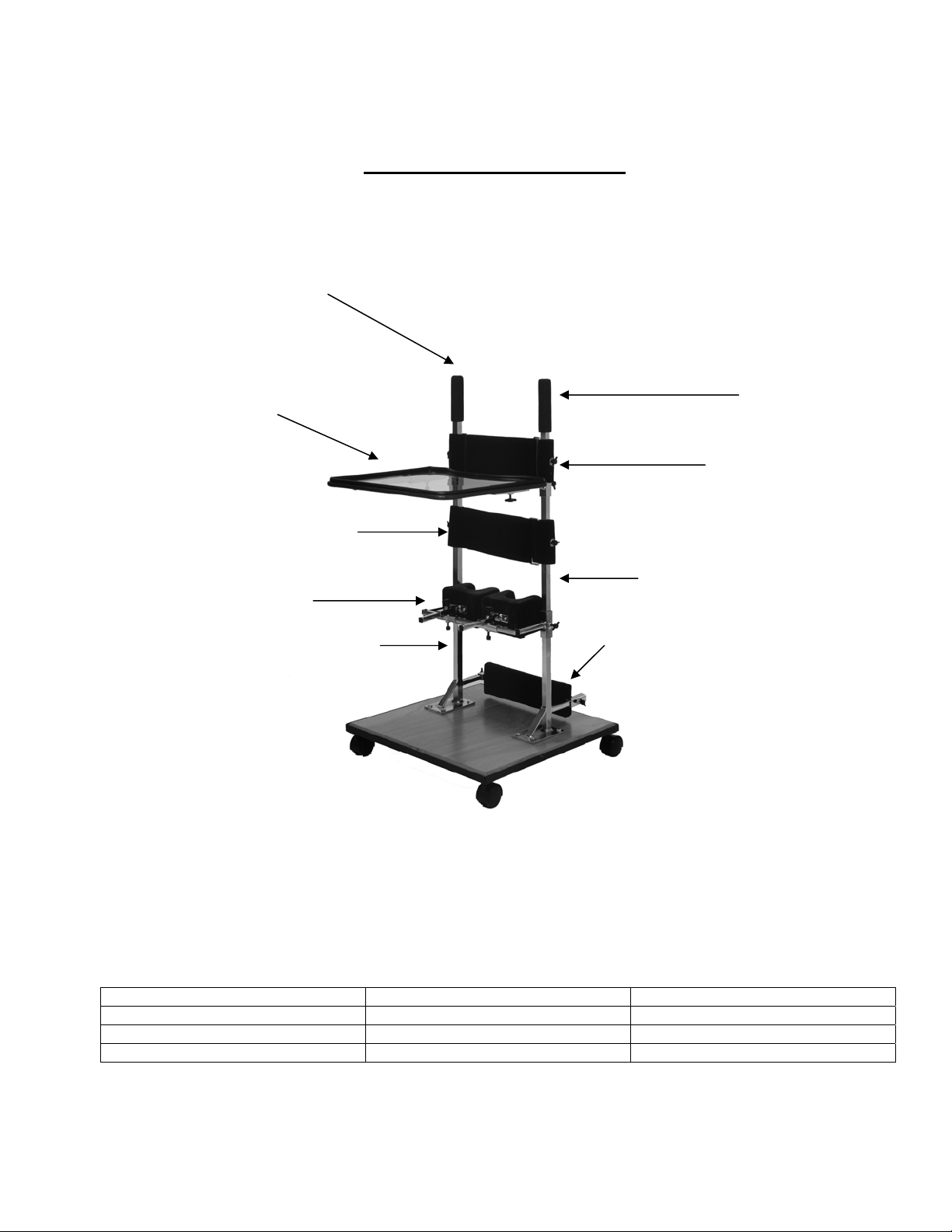

* Photo shown with optional – WHEELED CASTER BASE

UP-RITE POLE

(1A)

FOAM GRIPS

(7)

(5) CHEST SUPPORT STRAP

Up-Rite Stander Owner’s Manual Prime Engineering 000102UROM

Prime Engineering

Up-Rite Stander

Owners Manual – Intro

Congratulation’s on your selection of the Up-Rite Stander for your standing
needs.

The Up-Rite Stander is a therapist designed standing system for children
requiring good midline positioning for proper weight bearing and activities
involving the upper extremities.

Carefully read all instructions and notes before assembling or using your Up-

Rite Stander.

Stand with us for good positioning, posture and increased function…every
day…you deserve the best health standing can offer!

This owner’s manual is organized into the following sections:

1. Product Photo and Specifications.

2. Parts List

3. Assembly Instructions

4. Maintenance and Warranty

We’ve designed the Up-Rite Stander for easy assembly.
Each Up-Rite Stander is pre-assembled at Prime
Engineering to insure that everything works properly.
If, however, you have any problems or require for
assistance, please give us a call at 1-800-82-STAND.

Up-Rite Stander Owner’s Manual Prime Engineering 000102UROM

The Up-Rite Stander comes partially assembled.

Package contains:

2 – Up-Rite Poles
1 – Hip Support Strap
1 – Chest Support Strap
2 – Foam Grips
1 – Tray Assembly
2 – Knee Pads with Brackets
1 – Heel Pad
1 pkg. – T-Knobs

When ordered Up-Rite III carton B contains:
Two – Up-Rite Poles

Parts List

Up-Rite Stander Owner’s Manual Prime Engineering 000102UROM

ASSEMBLY

INSTRUCTIONS

Set-up and assembly on your Up-Rite Stander is easy when you follow these
directions:

1) Attach the Up-Rite pole (1A) and (1B) to the base. The poles are correct when

heel pad brackets face the back of the base.

2) The kneepad brackets would be on top of the bar on the Up-Rite II (medium)

and Up-Rite III (large) stander. There will be two thumb-locking screws on the
top and one on the bottom of the knee pad brackets. The kneepads should be
placed in these brackets. Staples in the kneepads should be facing down.

3) The Hip Support Strap (2) loops through the D-Ring then Velcro towards the

back of the base to the clients left.

4) The tray assembly (4) should be placed on the poles with the ribbed side up and

toward the front of the stander. Thumb-locking screws underneath the tray
will adjust the tray’s depth.

5) The Chest Support Strap (5) has a double adjustability. The front part of the

strap is threaded through D-Ring and Velcro’s to the client’s right. The back
strap goes through the D-Ring and attaches to the client’s left.

6) End Caps (6) should be placed on the top of the Up-Rite poles.

7) Foam Grips (7) slide easily over the end caps. A silicone lubricant can be used to

assist in process, if needed.

8) Slip heel pad (8) onto the back brackets of the Up-Rite poles. The staples on

the back of the heel pad should be facing the wood base.

Up-Rite Stander Owner’s Manual Prime Engineering 000102UROM

General Maintenance

1. Periodically insure nuts and bolts are secured properly.

2. Keep moving parts clean for free movement. The Up-Rite Stander does

not require lubrication.

3. Use soft cloth when cleaning tabletop.

4. All fabrics should be hand washed with mild soap and water, then allowed

to air dry.

CAUTION

CHILDREN SHOULD NOT BE LEFT UNATTENDED IN THE STANDER.

Accessory base with caster should be braced against solid surface before
engaging the locks.

Up-Rite Stander Owner’s Manual Prime Engineering 000102UROM

UP-RITE I, II, III

Limited Warranty

Effective February 1, 2002

Warranty coverage is extended to the original purchaser for as long as the original purchaser owns the

Prime Engineering system. This warranty is in effect for the Up-Rite (the product) standing frames.
Prime Engineering, Inc. (“the Company”) shall repair, or replace the Product that fails due to defect in

material, or workmanship per the following schedule:

Frames: Lifetime to the original purchaser subject to the following terms, limitations and conditions.
Straps: One year to the original purchaser subject to the following terms, limitations and conditions.
Other Components: Upholstery, plastic parts, painted surfaces, rubber parts, bearings, casters and

other parts not specifically identified above, all of which are warranted against defects in material and
workmanship for three months from the original purchase date, subject to the following terms and
conditions, and limitations.

Warranty Conditions. This warranty shall be in effect from the original purchase date to the

consumer. The warranty registration form should be fully completed by the original retail purchaser /
user or their agent, and received by Prime Engineering at its address set forth on the registration form
no later than three months after the original purchase date. Any defective Product shall be delivered to
Prime Engineering, or its local authorized dealer, at purchaser's expense for warranty inspection.
Return freight charges shall be prepaid by Prime Engineering. You may contact Prime Engineering at
[phone] for authorized dealers in or near your location.

Limitations and Exclusions. The warranty provided above shall not apply to (a) a serial

numbered Product if the serial number has been removed or defaced; (b) any Product subjected to
negligence, abuse, misuse, improper operation, maintenance, or storage, or damages beyond Prime
Engineering’s control, as determined by Prime Engineering; (c) defects arising from purchaser's failure
to follow instructions. Any Changes or Additions to the Product of unauthorized parts not

manufactured or furnished by Prime Engineering. The repair or replacement by Prime

Engineering for a defective Part or Product shall be purchaser's sole and exclusive
remedy under the warranty

are not the responsibility of Prime Engineering.

. Repair labor/service charges are not covered by this warranty and

The foregoing Warranty is exclusive and in lieu of all other warranties,
express, implied, or statutory, including warranties of merchantability and
fitness for a particular purpose and design. In no event shall Prime
Engineering be liable for any consequential or incidental damages.

Some states do not allow limitations on how long an implied warranty lasts or the exclusion or
limitations of incidental or consequential damages, so the above limitations or exclusions may not
apply to you. This warranty gives you specific legal rights, and you may also have other rights that
vary from state to state.

Prime Engineering

A division of Axiom Industries, Inc.

4202 W. Sierra Madre Avenue
Fresno, CA 93722 USA
Toll-free: 800-827-8263
Fax: [phone]
E-mail: [email protected]

Website: www.primeengineering.com

Up-Rite Stander Owner’s Manual Prime Engineering 000102UROM
