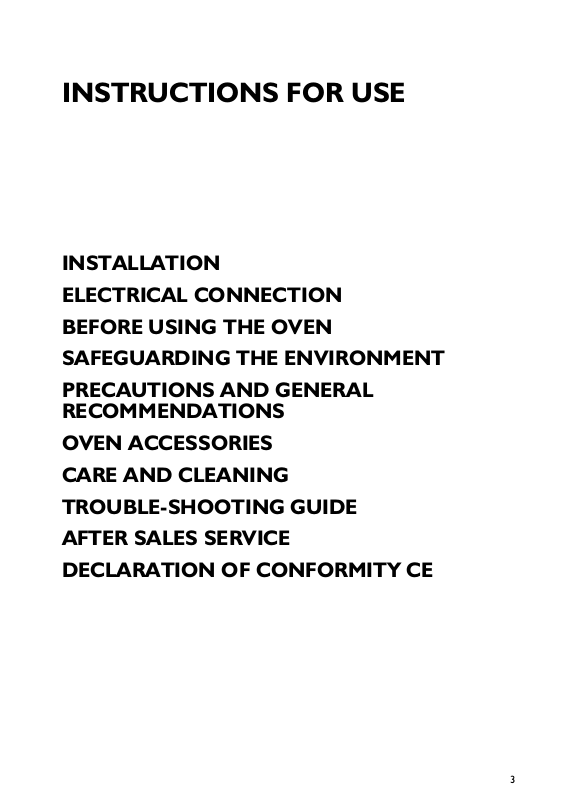

INSTRUCTIONS FOR USE
INSTALLATION
ELECTRICAL CONNECTION
BEFORE USING THE OVEN
SAFEGUARDING THE ENVIRONMENT
PRECAUTIONS AND GENERAL
RECOMMENDATIONS

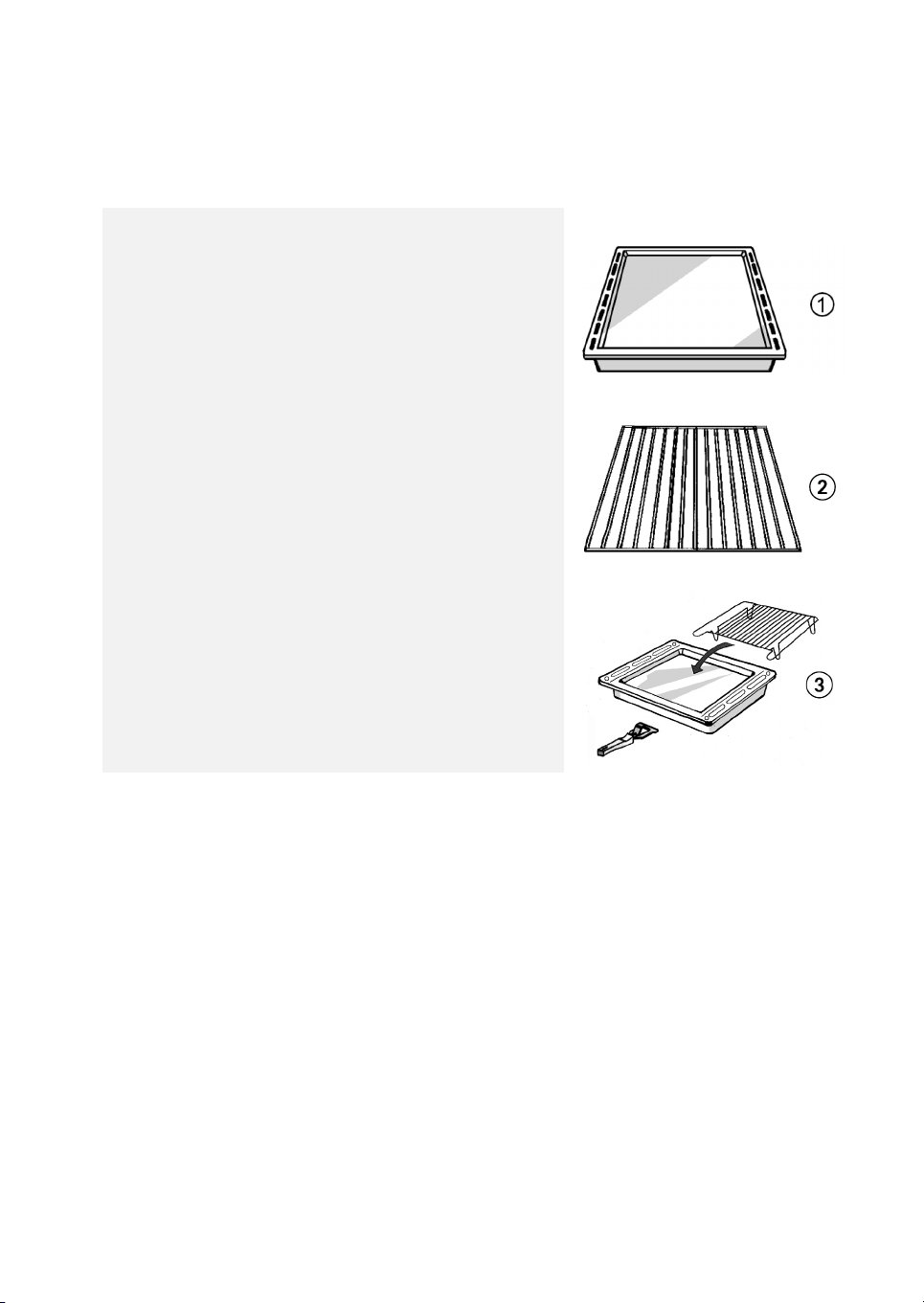

OVEN ACCESSORIES

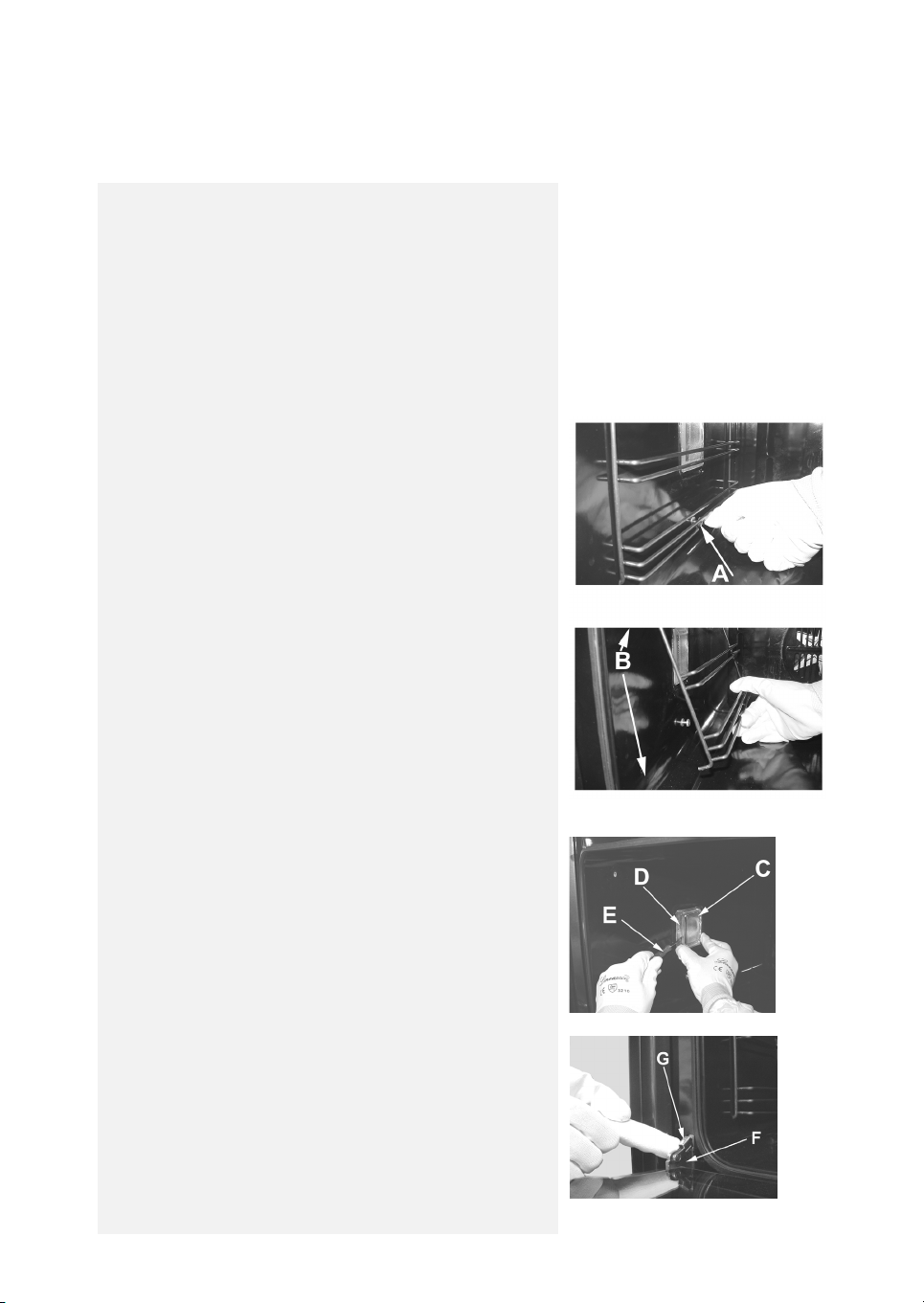

CARE AND CLEANING
TROUBLE-SHOOTING GUIDE
AFTER SALES SERVICE
DECLARATION OF CONFORMITY CE
3
INSTALLATION
Technical information for the installer
• The oven has been designed to be installed under a worktop surface.
• Do not lift the oven by the handle, but hold it by the sides.
• Make sure that the appliance was not damaged during transport.
• The oven and unit dimensions are shown in the below figures.
• The units in contact with the oven must be heat-resistant (min. 85°C).
• If the plastic laminates or the sealing material are not sufficiently heat resistant, this may result in the formation of
bubbles, deformation of the surface or detachment of the coating.
• Insert the oven in the unit cavity, lifting it by the sides and being careful not to trap the power cable.
• The oven and housing dimensions are illustrated in the below figures.
• For correct ventilation, follow the ventilation opening directions shown in the figure 1.
• Two systems can be used to fit your appliance to a chosen furniture layout:
A. Between two side panels of two distinct cabinet units without the aid of a support shelf, by fitting four support
steel brackets provided with the product. (fig. 3).
B. Between two side panels each fixed to the side of a cabinet unit without the aid of a support shelf. In this case only
the two lower support brackets will be necessary (fig. 4).
Note: In both of the above cases you must measure 717 mm from the underside of the worktop and mark the correct
position of the lower support brackets before fixing them to the sides. With reference to (fig. 3), ensure the side
support brackets are positioned 40 mm from the front of the cabinet door exterior surface, as illustrated, before
securing them to the cabinet sides. If necessary, this product can be installed in a housing unit (fig. 2). The housing unit
will not be a standard one but will have to be of a size that can accommodate the full height of the oven - minimum
height 717 mm. This housing unit will need to fulfil the ventilation requirements.
• Fasten the oven using the screws.
Top
NOTE:
Always remove
the rear panel
of the housing
unit
Rear
Wall
Oven
Fig. 1
M
i
n
0
.
0
6
Fig. 3 Fig. 4
5
6
0
717
E
D
I
S
4
0
S
R
E
N
N
U
R
665
5
2
Front of
oven
BACK EDGE OF SUPPORT
SHELF (WHEN APPLICABLE)
5
8
5
4
9
5
5
708
5
Important
Fig. 2
4
5
2
2
715
5
6
5
-
2
6
5
M
i
n
.
5
6
0
717
M
i
n
5
6
.
5
-
2
6
5
5
6
0
717
4
0
S
R
E
N
N
U
R
4
5
665
708
5
2
5
4
5
665
708
5
2
5
5
4
5
2
8
8
2
5
9
5
715
5
4
5
2
2
5
9
5
715
4
ELECTRICAL CONNECTION
• Warning: This appliance must be earthed.
• Electrical installation must comply with all relevant
local and national regulations. Make sure that the
voltage supply is the same as the voltage shown on the
rating plate positioned on the lower part of the front
of the oven.
• This appliance must be connected to an a. c. single
phase 230V, 50Hz electricity supply.
• The total rated load is 4.120 kW, connect the
appliance accordingly.
• Fit an all-pole On/Off switch between the appliance
and the power supply with minimum contact
separation of 3 mm.
• If necessary, the electrical power cable must be
replaced exclusively with a power cable having
identical characteristics to the original supplied by the
manufacturer. This operation must be performed by
the After Sales Service or a qualified electrician.
BEFORE USING THE OVEN
• For best use of this oven read the instructions for use
carefully and keep them in a safe place.
• Remove the cardboard and polystyrene protection
from inside the oven.
• Clean the inside of the oven with non abrasive soap
and warm water.
• Remove the accessories from the oven and heat it at
the maximum temperature for about 1 hour to
remove the odour and fumes from the insulating
material and the protective greases.
• The window should be kept open during this
operation.
SAFEGUARDING THE ENVIRONMENT
1. Packing
• The packaging material is 100% recyclable, as
confirmed by the recycling symbol .
2. Oven
• This appliance is marked according to the European
directive 2002/96/EC on Waste Electrical and
Electronic Equipment (WEEE).
By ensuring this product is disposed of correctly, you
will help prevent potential negative consequences for
the environment and human health, which could
otherwise be caused by inappropriate waste handling
of this product.
The symbol on the product, or on the documents
accompanying the product, indicates that this appliance
may not be treated as household waste. Instead it shall
be handed over to the applicable collection point for
the recycling of electrical and electronic equipment.
Disposal must be carried out in accordance with local
environmental regulations for waste disposal.
For more detailed information about treatment,
recovery and recycling of this product, please contact
your local city office, your household waste disposal
service or the shop where you purchased the product.
