InstructionSheet
Part No ..................................................... 143640100
Sheet 1 of 2
IMPORTANT SAFETY INFORMATION. READ AND FOLLOW ALL SAFETY INSTRUCTIONS. Follow label information and
instructions concerning Wet or Damp Locations, installation near combustible materials, insulation, building materials, and
proper lamping. Do not install in areas subject to combustible vapors or gases. Before wiring to power supply and during
servicing or relamping, turn off power at fuse or circuit breaker. All servicing or relamping must be performed
by qualified service personnel. Product must be grounded to avoid potential electric shock or other
potential hazard. Product must be mounted in locations and at heights and in a manner consistent with
its intended use, and in compliance with the National Electrical Code and local building codes. The use
of accessory equipment not recommended by the manufacturer or installed contrary to instructions may cause an unsafe
condition. Do not block light emanating from product in whole or part, as this may cause an unsafe condition. Do not allow
items such as drapes, curtains, screens or the like to come into contact with the product or to block light from the product, as
this may cause an unsafe condition.
WARNING - This product contains chemicals known to the State of California to cause cancer, birth defects and/or other
reproductive harm. Thoroughly wash hands after installing, handling, cleaning, or otherwise touching this product.
INSTALLATION INSTRUCTIONS
DPRL, DPRVML, ALA12
INSTRUCTIONS FOR DPRL & DPRVML
1. LOOSEN 2 HEX SCREWS AT BOTTOM OF HEATSINK OF THE FIXTURE HALFWAY.
2. PASS RETAINER THROUGH DIFFUSER AS SHOWN . ALIGN RETAINER MOUNTING
KEYHOLES TO HEATSINK SCREWS, TURN RETAINER CLOCKWISE, AND TIGHTEN
SCREWS.
www.prescolite.com Prescolite TollFree Technical Support 1.888.PRS.4TEC Hours: 8am - 5pm ET
DIFFUSER/GLASS
REFRACTOR
RETAINER
HEATSINK
8-32 HEX HEAD
SCREWS (2)
(SUPPLIED)
INSTRUCTIONS FOR CLEANING:
USE A DAMP CLOTH FOR CLEANING INSIDE OF DIFFUSER.
INSTRUCTIONS FOR ALA12
NOTE: INSTALL LENS ASSEMBLY (ALA12) AFTER
ASSEMBLING ACRYLIC DIFFUSER ASSEMBLY
(PRESCOLITE CAT. NO. DPRL OR DPRVML)
1. FIT LENS TO DIFFUSER APERTURE AS SHOWN AND
STRETCH BAND/SPRING ASSEMBLY OVER DIFFUSER RIM
AND LENS RIM.
2. ALA12 IS NOT TO BE USED ON DPRG.
SEE PAGE 2 FOR FIGURE OF FULLY INSTALLED FIXTURE.
LENS (INSTALL
ONLY IF ALA12 IS
BAND/SPRING
ASSEMBLY
(INSTALL ONLY IF
ALA12 IS PROVIDED)
701 Millennium Blvd, Greenville, SC 29607
With representatives offices in principal cities throughout North America.
Copyright 2013,
07/9/13
, All Rights Reserved - Printed in U.S.A.
PROVIDED)
InstructionSheet
Part No ..................................................... 143640100
Sheet 2 of 2
www.prescolite.com Prescolite TollFree Technical Support 1.888.PRS.4TEC Hours: 8am - 5pm ET

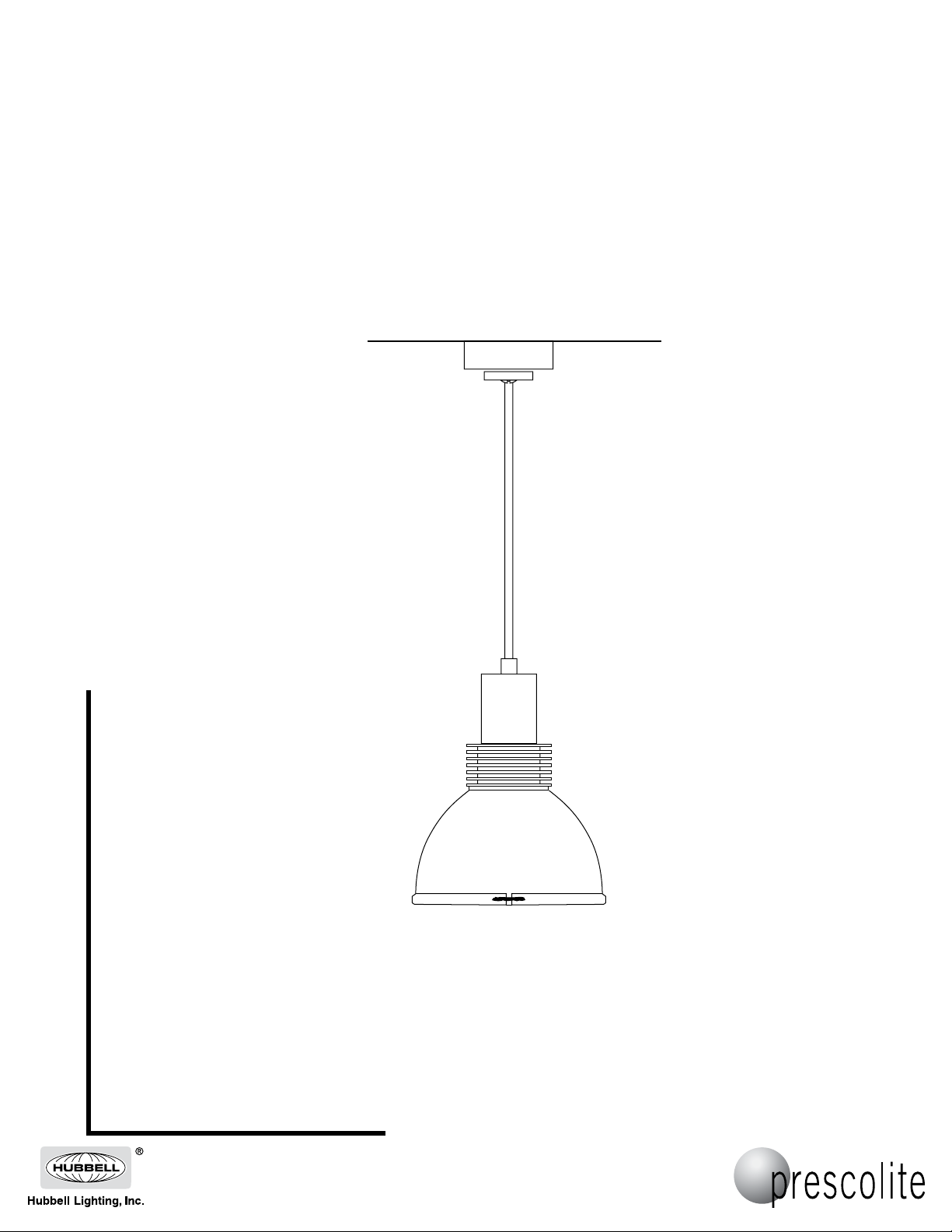

FULLY INSTALLED
DIFFUSER ASSEMBLY
701 Millennium Blvd, Greenville, SC 29607
With representatives offices in principal cities throughout North America.
Copyright 2013,
07/9/13
, All Rights Reserved - Printed in U.S.A.
