IMPORTANT SAFETY INFORMATION. READ AND FOLLOW ALL SAFETY INSTRUCTIONS. Follow label information
and instructions concerning Wet or Damp Locations, installation near combustible materials, insulation, building materials,
and proper lamping. Do not install in areas subject to combustible vapors or gases. Before wiring to power supply and
during servicing or relamping, turn off power at fuse or circuit breaker. All servicing or relamping must be performed by
qualified service personnel. Product must be grounded to avoid potential electric shock or other potential hazard.
Product must be mounted in locations and at heights and in a manner consistent with its intended use, and in
compliance with the National Electrical Code and local building codes. The use of accessory equipment not
recommended by the manufacturer or installed contrary to instructions may cause an unsafe condition. Do not block light
emanating from product in whole or part, as this may cause an unsafe condition. Do not allow items such as drapes,
curtains, screens or the like to come into contact with the product or to block light from the product, as this may cause an
unsafe condition.

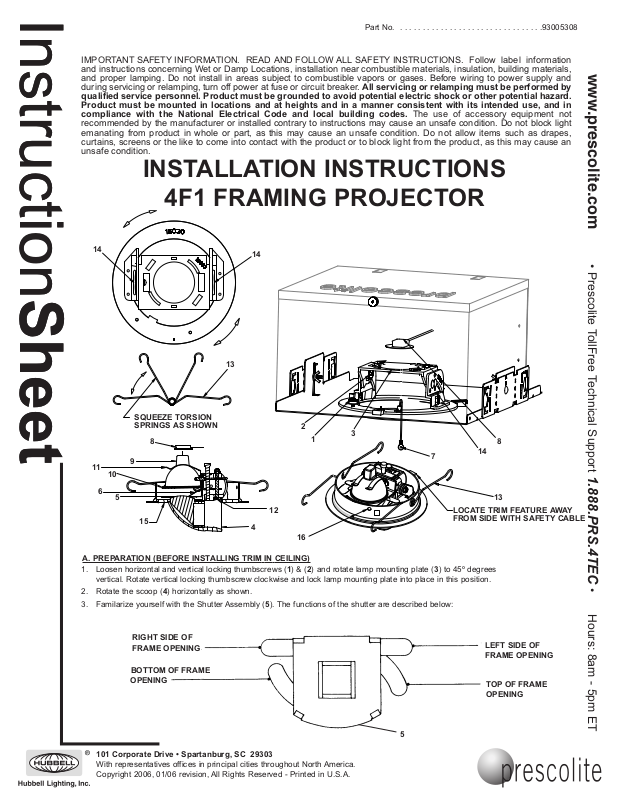

INSTALLATION INSTRUCTIONS
4F1 FRAMING PROJECTOR
Part No. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .93005308
www.prescolite.com • Prescolite TollFree Technical Support 1.888.PRS.4TEC • Hours: 8am - 5pm ET
14
11
14
13
SQUEEZE TORSION
SPRINGS AS SHOWN
8
9
10
6
5
12
15
4
16
2
1
3
7
LOCA
FROM SIDE WITH SAFETY CABLE
8
14
13
TE TRIM FEA
TURE
A
WAY

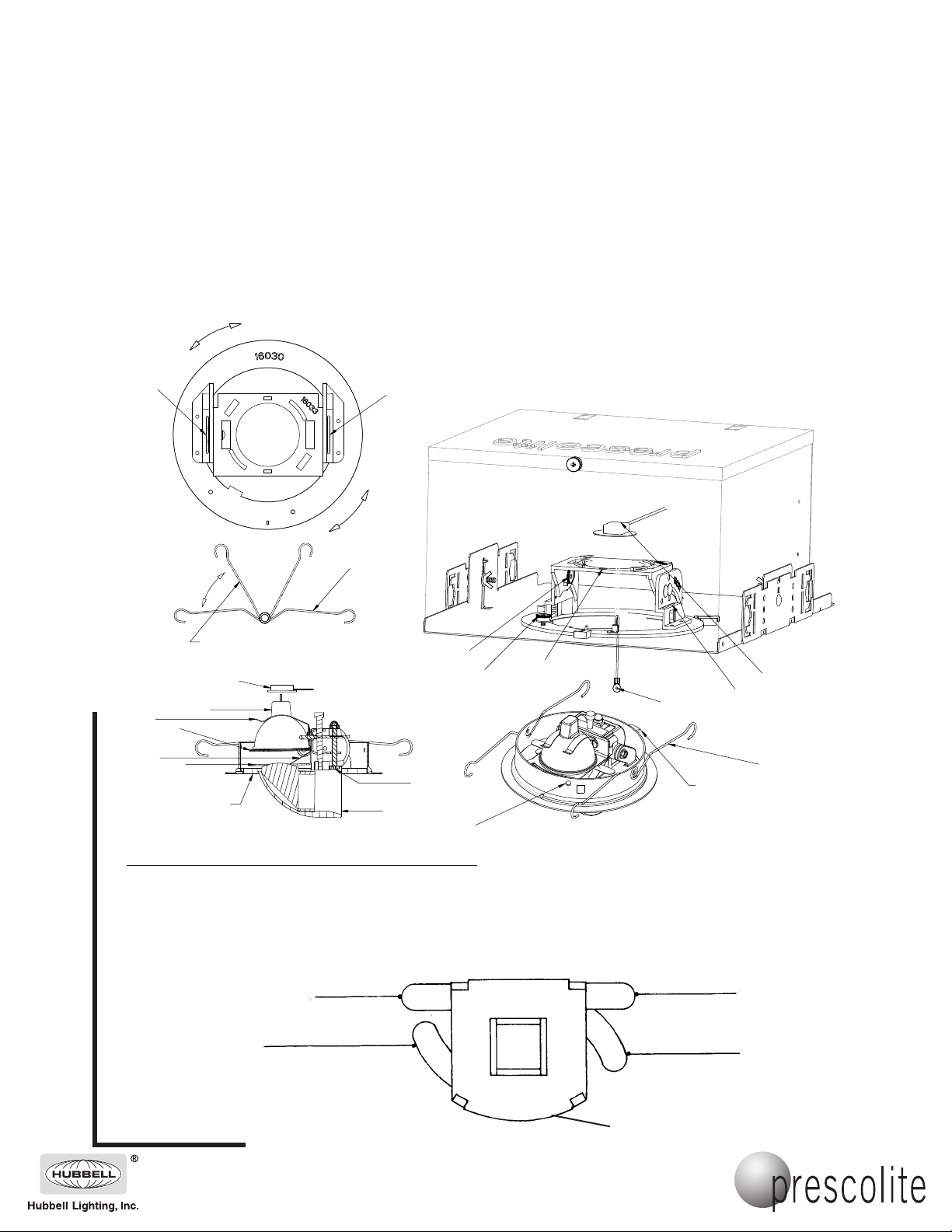

A. PREPARA
Loosen horizontal and vertical locking thumbscrews (
1.
vertical. Rotate vertical locking thumbscrew clockwise and lock lamp mounting plate into place in this position.
2. Rotate the scoop (
3. Familarize yourself with the Shutter Assembly (
101 Corporate Drive • Spartanburg, SC 29303
With representatives of
Copyright 2006, 01/06 revision, All Rights Reserved - Printed in U.S.A.
TION (BEFORE INSTALLING TRIM
4) horizontally as shown.
RIGHT SIDE OF
FRAME OPENING
BOTTOM OF FRAME
OPENING
fices in principal cities throughout North
IN CEILING)
1) & (2) and rotate lamp mounting plate (3) to 45º degrees
5). The functions of the shutter are described below:
5
America.
LEFT SIDE OF
FRAME OPENING
TOP OF FRAME
OPENING
InstructionSheet
4. Move the shutters and remember, because of the optics in this fixture, the shutter for the right side of the frame is on the left side of
the Shutter Ass’y., and the shutter for the left side of the frame is on the right side of the Shutter Ass’y.
CAUTION! Do not completely pull out the shutters from the Shutter Assembly.
5. The Shutter Assembly (
Assembly from below the shutter springs (
Removal of the Shutter Assembly (
ALLATION INTO HOUSING A4MR OR A4SMR
B. INST
1. Remove screw (16) and pull the Safety Cable (7) through opening in Plaster Frame and attach to Trim using Screw (16).
2. Pull out the socket (
the way, arching will occur, causing premature lamp burnout.
3. Slide lamp (9) between lamp holder (10) and lamp spring (11) as shown.
4. Squeeze the two Torsion Springs (13) together and insert ends into slots on both Brackets (14) as shown.
Push Trim towards ceiling until the Torsion Springs force the Trim against the ceiling line.
5.
8) from the housing and attach the socket to the Bi-Pin prongs on the lamp (9). Note: If pins are not pushed in all
Part No. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .93005308
www.prescolite.com • Prescolite TollFree Technical Support 1.888.PRS.4TEC • Hours: 8am - 5pm ET
5) can be removed from the fixture by pulling up the curved end about 1/8" and then by pulling out the
6).
5) is required only to replace the Assembly with a mask or glass slide. See section E. Masking.
C. ADJUSTMENT OF TRIM
1. Turn on power.
2. Rotate trim by horizontally by pulling trim slightly away from ceiling.
3. Adjust scoop (
4. Adjust shutters as described in section A-3. WARNING: Do not touch lamp during trim and shutter adjustment, as high lamp
temperatures can cause severe burns. Never attempt to make adjustments after fixture has been under power for longer than 3 min.
To make adjustments, always turn off power and let fixture cool down first.
5. Adjust the focus with the phillips head screw (
adjustment screw.
D. FINAL ADJUSTMENT
1. Push up the trim into the housing by holding the scoop (4) with one hand. Readjust the scoop after the face plate (15) is flush
with the ceiling.
E. MASKING
1. Instead of the Shutter Assembly, a mask can be used to frame odd-shaped objects.
2. A masking kit is available from Prescolite. Order: MASKING KIT, CAT. NO. LV20.
4) to the center of the picture.
12). If you feel resistance during focus adjustment, change your direction of turning the
101 Corporate Drive • Spartanburg, SC 29303
With representatives of
Copyright 2006, 01/06 revision, All Rights Reserved - Printed in U.S.A.
fices in principal cities throughout North
America.
InstructionSheet

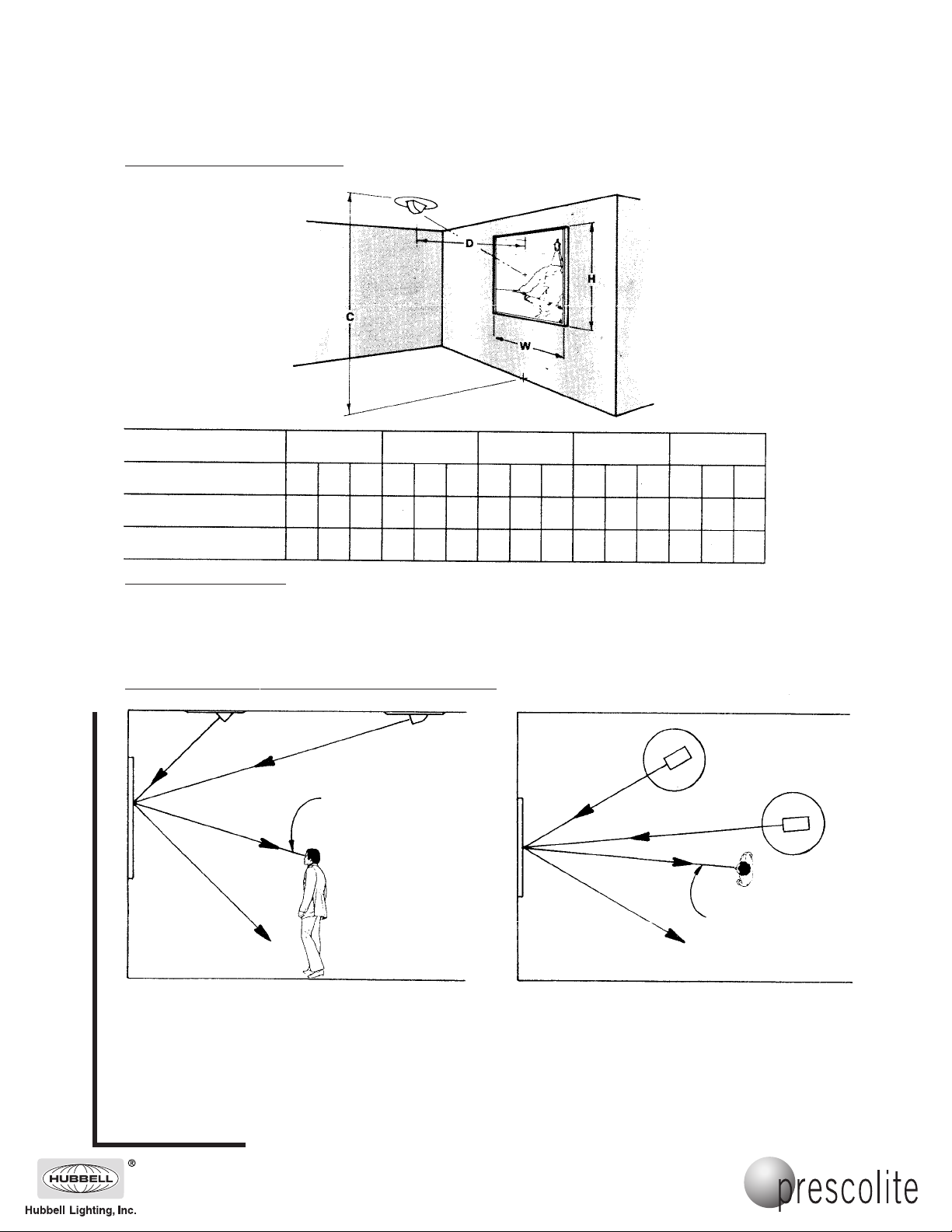

F. MAXIMUM FRAMING DIMENSIONS
Part No. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .93005308
www.prescolite.com • Prescolite TollFree Technical Support 1.888.PRS.4TEC • Hours: 8am - 5pm ET
Fixture to Wall
Distance (D) Feet
Floor to Ceiling
Height (C) Feet
Maximum Height of
Picture (H) Inches
Maximum Width of
Picture (W) Inches
2
8
46
17
12
10
4
12
10
8
81
8145
29
34
34
6
8
55
43
12
10
76
46
46
8
10
58 59
8
12
84846868
59
10
8
86
73
12
10
95
99
74
73
G. PATTERNS AND SLIDES
Patterns and slides for projection on walls are available from other manufacturers. Contact your Prescolite representative for information.
WARNING: Do not use photographic slides in this framing projector. The high temperature inside the fixture will ruin the slide and also
may cause a fire hazard. Only use patterns and logos silkscreened with high temperature paint (180°C, 350°F) on glass.
If sharp focus is desired on all parts of a projected pattern, the pattern itself must be confined within a 0.625" diameter circle. If some lack
of focus is acceptable or desirable at the edges (cloud patterns, etc..), then the pattern can be as large as 0.875" diameter.
H. HELPFUL HINTS TO LOCATE THE FIXTURE IN THE CEILING
Beam
Position A
A
Beam B
Reflection B
Reflection A
Position B
A
B
B
A
Side View
Glare
Plan View
If the Framing Projector is used on a glossy oil painting or picture with a protective glass, an objectionable glare from the picture might be
o reduce or eliminate this glare, consider the following:
experienced.
T
The angle of the reflected light from the picture is the same as the angle of the light beam focused onto the picture. The Side View above
illustrates how two dif
ferent Projector positions can af
Sometimes it is not practical to position the Projector as shown in Position
fect the glare in the viewer’s eye. Naturally, Position A would be preferrable.
An alternate method to reduce the glare is
.
in the Side V
A
iew
shown in the Plan View. By mounting the Projector to the side, rather than in front of the picture, the glare can also be reduced or
eliminated.
101 Corporate Drive • Spartanburg, SC 29303
With representatives of
fices in principal cities throughout North
America.
Copyright 2006, 01/06 revision, All Rights Reserved - Printed in U.S.A.
