ProtEX-MAX PD8-154 & 158 Alarm Annunciators
Instruction Manual
• 8 Field Selectable Sequences
• All Common ISA Sequences
• 4 or 8-Point (Channel) Monitoring
• Free Replaceable Message Labels
• Type 4X, NEMA 4X, IP65 Front
• Universal Power Supply 85-265 VAC
• 12-36 VDC/12-24 VAC Power Option
• 2 SPDT Relays
• 24 VDC Isolated Power Supply (AC Models)
• Multiple-Unit First-Out Indication
• 3 Pushbutton Operation
• Sunlight Readable Indication
PRECISION DIGITAL CORPORATION
233 South Street • Hopkinton MA 01748 USA
Tel (800) 343-1001 • Fax (508) 655-8990
www.predig.com
Page 2
ProtEX-MAX PD8-154 & 158 Alarm Annunciators Instruction Manual
CAUTION: Read complete instructions prior
WARNING: Risk of electric
• This product is not recommended for life support applications or applications
product.
!
Disclaimer
The information contained in this document is subject to change without notice. Precision Digital
makes no representations or warranties with respect to the contents hereof, and specifically disclaims
any implied warranties of merchantability or fitness for a particular purpose.
Warning!
to installation and operation of the meter.
where malfunctioning could result i n personal injury or property loss. Anyone
using this product for such applications does so at his/her own risk. Precision
Digital Corporation shall not be held liable for damages resulting from such
improper use.
• Failure to follow installation guidelines could result in death or serious injury.
Make sure only qualified personnel per fo rm the installation.
• Never remove the instrument cover in explosive environments when the circuit is
live.
• Cover must be fully engaged to meet flameproof/explosion-proof requirements.
• Information in this manual supersedes all enclosure, compliance, and agency
approval information included in additi o nal product manuals included with this
shock or personal injury.
Limited Warranty
Precision Digital Corporation warrants this product against defects in material or workmanship for the
specified period under “Specifications” from the date of shipment from the factory. Precision Digital’s
liability under this limited warranty shall not exceed the purchase value, repair, or replacement of the
defective unit.
Registered Trademarks
All trademarks mentioned in this document are the property of their respective owners.
© 2018-2019 Precision Digital Corporation. All rights reserved.
2
Page 3
ProtEX-MAX PD8-154 & 158 Alarm Annunciators Instruction Manual
Table of Contents
Table of Contents ---------------------------------- 3
Table of Figures ------------------------------------ 3
Introduction ------------------------------------------ 4
Ordering Information ------------------------------ 4
Quick Setup Guide --------------------------------- 4
Sequence Selection ----------------------------------- 4
NO/NC Inputs-------------------------------------------- 4
Basic Connections ------------------------------------ 5
Specifications --------------------------------------- 6
General ---------------------------------------------------- 6
Inputs ------------------------------------------------------ 6
Relays ----------------------------------------------------- 6
Product Ratings and Approvals ------------------ 7
Compliance Information ------------------------- 8
Safety Information --------------------------------- 9
Installation -------------------------------------------- 9
Unpacking ---------------------------------------------- 10
Pre-Installed Conduit/Stopping Plug ---------- 10
Mounting ----------------------------------------------- 10
Cover Jam Screw ------------------------------------ 10
Connections ------------------------------------------- 11
Required & Factory Wired Connections ------ 11
Connector Labeling -------------------------------- 14
Power Connections -------------------------------- 14
Signal Connections -------------------------------- 14
Relays and 24 V Output Connections --------- 15
Switching Inductive Loads ----------------------- 16
External Pushbutton Connections ------------- 17
Multiple Unit First-Out Indication Connections
---------------------------------------------------------- 17
Setup and Programming ------------------------18
Overview ------------------------------------------------ 18
SafeTouch Buttons ---------------------------------- 18
Front Panel Pushbuttons and Status LED
Indicators ----------------------------------------------- 19
Full Function Test ----------------------------------- 19
Multiple Unit First-Out Indication --------------- 19
Shared Front Panel Buttons---------------------- 20
Table of Figures
Figure 1: Integrated Vigilante II (PD8-154-6 &
PD8-158-6) Required Connections ............. 12
Figure 2: Integrated Vigilante II (PD8-154-7 &
PD8-158-7) Required Connections ............. 13
Figure 3. Connector Labeling for PD158-6R2-1 14
Figure 4. Power Connections............................. 14
Figure 5. NO/NC Contact Inputs ........................ 14
Figure 6. Open Collector NPN Transistor I np uts
....................................................................... 15
Figure 7. Relay & 24 V Output Connections ..... 15
Figure 8. AC and DC Loads Protection ............. 16
Annunciator Sequence Selection --------------- 20
Sequence Programming -------------------------- 20
Sequence Descriptions --------------------------- 21
Normally Open/Normally Closed Input Setup
------------------------------------------------------------- 21
Programming NO/NC Inputs --------------------- 21
NO/NC Programming Example ----------------- 22
Relay Operation -------------------------------------- 23
Relay 1 Operation ---------------------------------- 23
Relay 2 Operation ---------------------------------- 23
Relay Fail-Safe -------------------------------------- 23
Programming Relay Fail-Safe ------------------- 23
Relay Fail-Safe Programming Example------- 24
Relay Operation Overview ----------------------- 25
Audible Horn Enable/Disable -------------------- 25
Enabling/Disabling Silence Option ------------- 26
No Lock-In Sequence Option -------------------- 26
Reset to Factory Defaults ------------------------- 27
Service ----------------------------------------------- 27
Mounting Dimensions -------------------------- 28
Troubleshooting ---------------------------------- 28
Troubleshooting Tips ------------------------------- 28
Full Sequence Descriptions------------------- 29
Features ---------------------------------------------- 29
Sequence Condition Descriptions -------------- 29
LED Condition Descriptions ---------------------- 29
ISA Sequence A -------------------------------------- 30
Relay Operation -------------------------------------- 30
ISA Sequence F2A ----------------------------------- 31
ISA Sequence F1A ----------------------------------- 32
ISA Sequence F3A ----------------------------------- 33
Sequence F3A Switch Positions ---------------- 33
Input Follower Indication -------------------------- 35
ISA Sequence M -------------------------------------- 35
ISA Sequence F1M----------------------------------- 36
ISA Sequence F2M----------------------------------- 37
EU Declaration of Conformity ---------------- 39
Figure 9. Low Voltage DC Loads Protection .... 16
Figure 10. External Pushbutton Connections .. 17
Figure 11. System with Multiple Units Share
First-Out ........................................................ 17
Figure 12. Shared Pushbutton Connections .... 20
Figure 13. DIP Switch Location ......................... 20
Figure 14: Enclosure Dimensions – Front View
....................................................................... 28
Figure 15: Enclosure Dimensions – Side Cross
Section View ................................................. 28
3
Page 4
ProtEX-MAX PD8-154 & 158 Alarm Annunciators Instruction Manual
85-265 VAC* Model
12-36 VDC* Model
Description
PD8-154-6R2-1
PD8-154-7R2-0
Vigilante® II 4-Point Annunciator
PD8-158-6R2-1
PD8-158-7R2-0
Vigilante® II 8-Point Annunciator
*All models may be powered from AC or DC, see Specifications for details.
Model
Description
PDX6901
Snubber 0.01μF, 470Ω, Flexible Leads
ISA A
ISA F2A
Introduction
The ProtEX-MAX PD8-150 offers all the functionality of the Vigilante II PD150 as a fully FM, CSA, ATEX,
and IECEx approved explosion-proof product. It provides alarming and monitoring capabilities for all of
your level, pressure, flow, and other process switches. These explosion-proof alarm annunciators are
available in two models; the PD8-154 has four (4) inputs and the PD8-158 has eight (8) inputs. Each
model accepts inputs from relays, float switches, digital outputs, and many other discrete (on/off) devices.
They can be field programmed for all common ISA alarm sequences including first out indication and
provide alarm signaling through front panel LEDs and a built in audible horn. Additional audible devices
may be triggered through the use of relays. The silence, acknowledge, and reset functions can be
operated without opening the housing by using the built-in SafeTouch through-glass buttons. Custom
printed message labels can be included with your order at no additional charge.
Ordering Information
WARNING - Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Accessories
Quick Setup Guide
The following overview details how to set up the annunciator for most common uses.
Sequence Selection
The two most common sequences are ISA A and ISA
F2A. Select the sequence using the four-position switch
on the rear of the unit above the signal connector. For
complete sequence details, see page 29.
NO/NC Inputs
Each input can be set for normally open (NO) or normally closed (NC) contacts. Each input channel is
programmed individually. The default setting is for all inputs to be NO.
To set inputs to NC:
1. Press and hold ACK and RESET for 3 seconds until all LEDs cycle.
2. Press ACK within 3 seconds of release. All LEDs will blink. If ACK is not pressed within 3
seconds, the unit will return to run mode.
3. Press ACK again within 3 seconds of release. If ACK is not pressed within 3 seconds, the unit
will return to run mode.
The LED for the channel being programmed will display brightly on or off. All other channel indication
LEDs will be at low intensity to indicate programming mode.
4. Press the RESET pushbutton to turn LED 1 off for a NO input, or on for a NC input for channel 1.
5. Press ACK to accept the input type and program channel 2.
6. Repeat steps 4 and 5 for all input channels.
7. Press and hold ACK for five seconds to return to normal operation with the programmed input
types.
4
Page 5
ProtEX-MAX PD8-154 & 158 Alarm Annunciators Instruction Manual
Use copper wire with 60°C or 60/75°C insulation for all

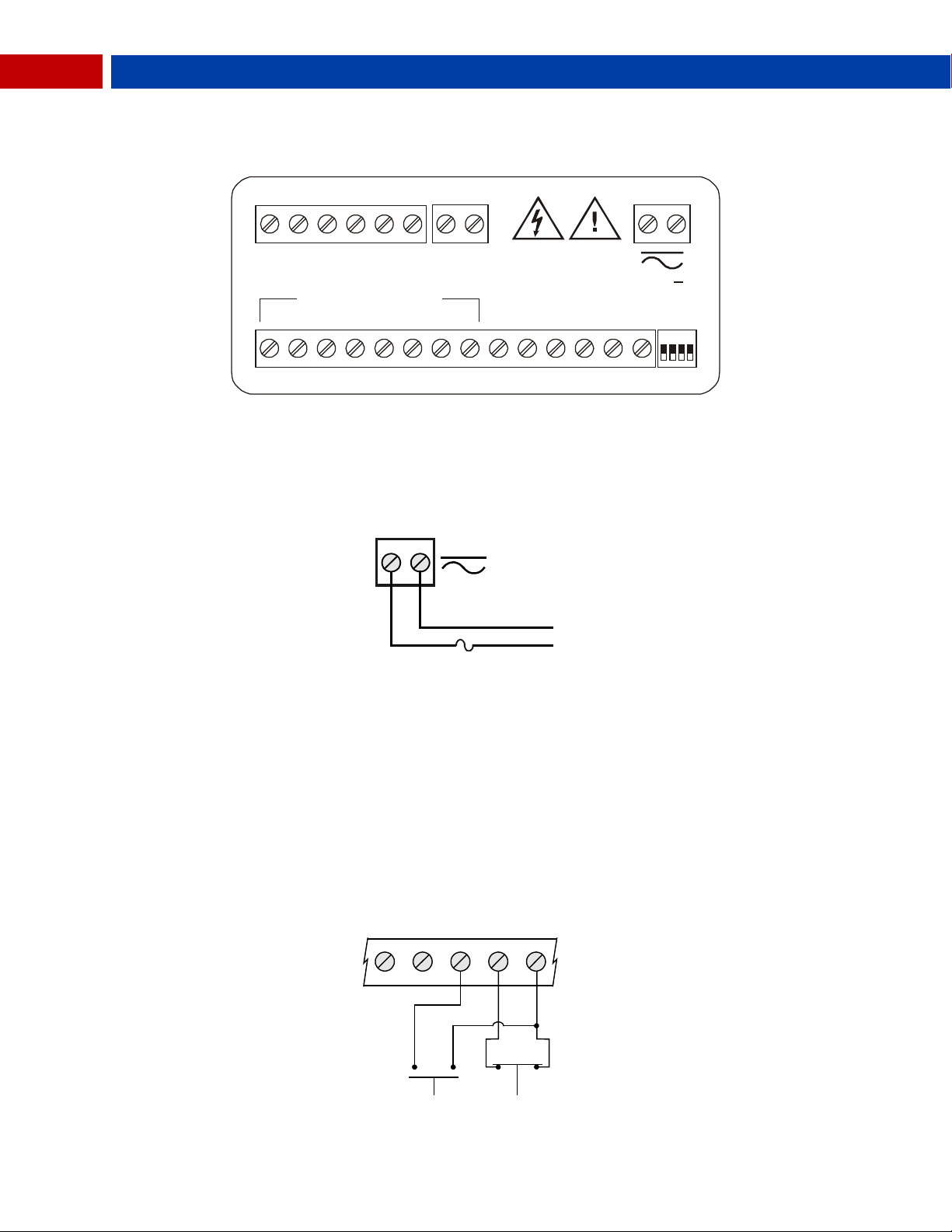

Basic Connections
All connections are made to removable screw terminal connectors located at the rear of the
instrument. For complete connection details, see page 14.
line voltage connections. Observe all safety regulations.
Electrical wiring should be performed in accordance with
all applicable national, state, and local codes to prevent
damage to the instrument and ensure personnel safety.
Connector Labeling
The connectors label, affixed to the instrument, shows the location of all connectors available with
requested configuration. See Figure 2, page 14.
Power Connections
Power connections are made to a two-terminal connector labeled POWER. The instrument will operate
regardless of DC polarity connection. The + and - symbols are only a suggested wiring convention.
Signal Connections
Input signal connections are made to a 14-terminal connector at terminals labeled INPUT CHANNELS.
The COM (common) terminal is the return for all input channels.
Normally Open (NO) or Normally Closed (NC) Switches
All channels are initially set for normally open contacts. Each contact is wired across an input channel and
common.
Relays and 24 V Output Connections
Relay connections are made to a six-terminal connector labeled RELAY1, RELAY2. The COM (common)
terminals of the relays should not be confused with the COM (common) terminal of the signal connector.
The 24 VDC output is available at the connector labeled 24V OUT, next to the relays connector.
Additional Information
For additional setup and wiring information, please see the complete details further in this manual.
5
Page 6
ProtEX-MAX PD8-154 & 158 Alarm Annunciators Instruction Manual
Display
One green LED power indicator.
Alarm
Custom printed adhesive clear labels.
Programming
Rear 4-position switch for sequence
operation.
Audible Alarm
dampened by the explosion-proof enclosure.
Noise Filter
40 ms debounce on inputs (including SIL,
ACK, and RST).
Shared FirstOut Systems
1 ms unit-to-unit delay. Maximum of 200
units in the shared first-out system.
Non-Volatile
All programmed settings are stored in nonif power is lost.
Power
85-265 VAC, 50/60 Hz
or 12-36 VDC, 12-24 VAC, 6 W max
Fuse
Required external fuse: UL Recognized, 5 A
share one 5 A fuse
Isolated
24 VDC ± 10% @ 200 mA max
only.
Isolation
4 kV input/output-to-power line.
Overvoltage
Installation Overvoltage Category II:
Category III
Environmental
Operating temperature range: -40 to 65°C
Relative humidity: 0 to 90% non-condensing
Connections
Screw terminals accept 12 to 22 AWG wire
Enclosure
labeling during installation.
Mounting
Four slotted flanges for wall mounting or
page 28.
Tightening
Torque
Screw terminal connectors: 5 lb-in (0.56
Nm)
Overall
Dimensions
6.42" x 7.97" x 8.47" (W x H x D)
(163 mm x 202 mm x 215 mm)
Approximate
Weight
16.0 lbs (7.26 kg)
Warranty
3 years parts & labor
Extended
Warranty
1 or 2 years, refer to the Price List for
details.
Input Types
NO or NC switches: No external excitation
HIGH = 2.4 to 28 VDC
Update Rate
state clear
Sequences
Input follower, ISA Sequences A, F1A, F2A,
Standard ISA-18.1-1979 R2004.
Sequence
per ISA Standard ISA-18.1-1979 R2004.
Rating
2 SPDT (Form C); rated 3 A @ 30 VDC or
125/250 VAC for inductive loads
Electrical
A suppressor (snubber) should be
0.01 µF/470 Ω, 250 VAC (PDX6901).
Relay
Relay 1: Alarm state until alarm i s
indicating alarm condition.
Fail-Safe
power failure, relay will go to alarm state.
Specifications
Except where noted all specifications apply to operation at +25°C.
General
PD8-154; Four red LED channel/point
indicators.
PD8-158; Eight red LED channel/point
indicators.
NPS 1½" to 2½" or DN 40 to 65 mm pipe
mounting. See Mounting Dimensions on
Messages
Methods
Memory
Options
Power Supply
Category
Area: PD8-154, 1.25" x .60" (32 mm x 15
mm), 4 messages
PD8-158, 1.25" x .25" (32 mm x 6
mm), 8 messages
User specified size and length, up to 4 lines
(PD8-154) or 2 lines (PD8-158) of 14
characters of size 9 fonts.
selection and horn operation. Three front
panel pushbuttons for NO/NC input
selection, sequence options, and sequence
85 dB internal horn. The use of an external
explosion-proof horn is recommended due
to the internal horn's audibility being
volatile memory for a minimum of ten years
90-265 VDC, 20 W max
max, slow blow. Up to 6 annunciators may
Standard on 85-265 VAC powered units
Local level with smaller transient
overvoltages than Installation Overvoltage
Shipping
Inputs
Options
Relays
Noise
Suppression
required
Open collector transistor (NPN):
Open circuit voltage approximately 3.3 VDC
Logic Levels: LOW = 0 to 0.9 VDC
41 ms following alarm state; 1 ms for alarm
F3A, M, F1M, F2M and F3M per ISA
A, F1A, F2A, F3A, M, F1M, F2M, and input
follower with selectable options -1 (silence
pushbutton), -4 (no lock-in), and -6 (no horn)
3 A @ 250 VAC resistive load; 1/14 HP @
connected to each relay contact switching
inductive loads to prevent
disruption to the microprocessor’s operation.
Recommended suppressor value:
Storage temperature range: -40 to 85°C
Explosion-proof die cast aluminum with
glass window, corrosion resistant epoxy
coating, color: blue.
NEMA 4X, 7, & 9, IP68.
Default conduit connections: Four ¾" NPT
threaded conduit openings and two ¾" NPT
metal conduit plugs with 12 mm hex key
fitting installed. Additional conduit opening
configurations may be available; verify
quantity and sizes on specific device
Operation
Operation
6
acknowledged.
Relay 2: Alarm state while any channel
Programmable
Independent for each relay
Note: In fail-safe mode, relay coil is
energized in non-alarm condition. In case of
Page 7
ProtEX-MAX PD8-154 & 158 Alarm Annunciators Instruction Manual
FM
Enclosure: Type 4X; IP66
Certificate Number: 3047283
CSA
Class I, Division 1, Groups B, C, D
Certificate Number: 2531731
II 2 G D
Certificate number: Sira 12ATEX1182
Ex d IIC T* Gb
Certificate Number: IECEx SIR 12.0073
Product Ratings and Approvals
Class I, Division 1, Groups B, C, D
Class II, Division 1, Groups E, F, G
Class III, Division 1, T5/T6
Class I, Zone 1, AEx d, IIC Gb T5/T6
Zone 21, AEx tb IIIC T90°C; Ta -40°C to +65° C
T6 Ta = -40°C to +60°C; T5 Ta = -40°C to +65°C
Class II, Division 1, Groups E, F, G
Class III, Division 1
Class I Zone 1 Ex d IIC
Zone 21 Ex tb IIIC T90°C
-40°C < Tamb. < +60° C; Temperature Code T6
-40°C < Tamb. < +65° C; Temperature Code T5
Enclosure Type 4X & IP66
ATEX
Ex d IIC T* Gb
Ex tb IIIC T90°C Db IP68
Ta = -40°C to +*°C
*T6 = -40°C to +60°C
*T5 = -40°C to +65°C
IECEx
Ex tb IIIC T90°C Db IP68
Ta = -40°C to +*°C
*T6 = -40°C to +60°C
*T5 = -40°C to +65°C
Special Conditions for Safe Use:
Use suitably certified and dimensioned cable entry device and/or plug. The equipment shall be
installed such that the supply cable is protected from mechanical damage. The cable shall not
be subjected to tension or torque. If the cable is to be terminated within an explosive
atmosphere, then appropriate protection of the free end of the cable shall be provided. Cable
must be suitable for 90°C.
Year of Construction
This information is contained within the serial number with the first four digits representing the
year and month in the YYMM format.
For European Community: The ProtEX-MAX must be installed in accordance with the ATEX
directive 94/9/EC, and the product certificate Sira 12ATEX1182.
7
Page 8
ProtEX-MAX PD8-154 & 158 Alarm Annunciators Instruction Manual
UL File Number
Front Panel
Low Voltage
Class A ITE emissions requirements
Emissions
Emissions
EMC heavy industrial generic immunity standard
2.0 - 2.7 GHz 1 V/m 80% AM (1 kHz)
Transients
Discharge
RFI - Conducted
10V, 0.15-80 MHz, 1kHz 80% AM
AC Surge
±2kV Common, ±1kV Differential
Surge
1KV (CM)
Magnetic Field
70%V for 25 periods
Interruptions
Compliance Information
Safety
UL Listed
Directive
USA and Canada
UL 508 Industrial Control Equipment
E160849
UL Type 4X, NEMA 4X, IP65; panel gasket provided
EN 61010-1:2010
Safety requirements for measurement, control, and laboratory use
Electromagnetic Compatibility
Emissions
Radiated
AC Mains
Conducted
Immunity
RFI - Amplitude
Modulated
Electrical Fast
EN 55022:2010
Class A
Class A
EN 61326-1:2013
Measurement, control, and laboratory equipment
EN 61000-6-2:2005
80 -1000 MHz 10 V/m 80% AM (1 kHz)
1.4 - 2.0 GHz 3 V/m 80% AM (1 kHz)
±2kV AC mains, ±1kV other
Electrostatic
Power-Frequency
Voltage Dips 40%V for 5 & 50 periods
Voltage
±4kV contact, ±8kV air
30 A/m 70%V for 0.5 period
<5%V for 250 periods
8
Page 9
ProtEX-MAX PD8-154 & 158 Alarm Annunciators Instruction Manual
WARNINGS
• Read complete instructions prior to installation and operation of the instrument.
Disconnect from supply before opening enclosure. Keep
Safety Information
• Installation and service should be performed only by trained service personnel. Service
requiring replacement of internal sub-components must be performed at the factory.
• Disconnect from supply before opening enclosure. Keep cover tight while circuits are alive.
Conduit seals must be installed within 18" (450mm) of the enclosure or within 2" (50mm) for
Zone installations.
• Verify that the operating atmosphere of the instrument is consistent with the appropriate
hazardous locations certifications.
• If the instrument is installed in a high voltage environment and a fault or installation error
occurs, high voltage may be present on any lead
• Read all product labels completely and follow all instructions and requirements listed on the
labels for installation or service.
Installation
Install in accordance with applicable local and national regulations (e.g. NEC).
For Installation in USA: The ProtEX-MAX must be installed in accordance with the National Electrical
Code (NEC) NFPA 70.
For Installation in Canada: The ProtEX-MAX must be installed in accordance with the Canadian
Electrical Code CSA 22.1. All power supplies below 36 V and input circuits must be derived from a CSA
Approved Class 2 source.
For European Community: The ProtEX-MAX must be installed in accordance with the ATEX directive
94/9/EC and the product certif icate Sira 12ATEX1182.
cover tight while circuits are alive. Conduit seals must be
WARNING
Wiring connectors are accessed by opening the enclosure. To access electrical connectors, remove the 2
captive screws and then remove the electronics module. Connectors are on the rear of the electronics
module.
installed within 18" (450mm) of the enclosure or within 2"
(50mm) for Zone installations.
9
Page 10
ProtEX-MAX PD8-154 & 158 Alarm Annunciators Instruction Manual
In hazardous areas, conduit and conduit/stopping plugs require
WARNING
Unpacking
Remove the instrument from packing box. Inspect the packaging and contents for damage. Report
damages, if any, to the carrier.
If any part is missing or the instrument malfunctions, please contact your supplier or the factory for
assistance.
Pre-Installed Conduit/Stopping Plug
The PD8-158 is supplied with two pre-installed conduit plugs for installations that do not require the use of
all conduit entries. The conduit/stopping plugs include an internal 12mm hexagonal socket recess for
removal. The pre-installed plugs and their installation are included in the hazardous area approvals for
the PD8 Series enclosure.
the application of non-setting (solvent free) thread sealant. It is
WARNING
critical that all relevant hazardous area guidelines be followed
for the installation or replacement of conduit or plugs.
Mounting
The ProtEX-MAX has four slotted mounting flanges that should be used for pipe mounting or wall
mounting. Refer to Mounting Dimensions, pag e 28 for details.
Do not attempt to loosen or remove flange bolts
while the instrument is in service.
Cover Jam Screw
The cover jam screw should be properly installed once the instrument has been wired and tested in a
safe environment. The cover jam screw is intended to prevent the removal of the instrument cover in a
flameproof environment without the use of tools. Using a M2 hex wrench, turn the screw clockwise until
the screw contacts the aluminum enclosure. Turn the screw an additional 1/4 to 1/2 turn to secure the
cover. Caution: Excess torque may damage the threads and/or wrench.
10
Page 11
ProtEX-MAX PD8-154 & 158 Alarm Annunciators Instruction Manual
• Static electricity can damage sensitive components.
Connections
WARNINGS
• Observe safe handling precautions for static-sensitive
components.
• Use proper grounding procedures/codes.
• If the instrument is installed in a high voltage environment
and a fault or installation error occurs, high voltage may be
present on any lead or terminal.
• Follow all fusing and wiring precautions requirements for
the instrument integrated to the PD8 Series model number
being connected.
To access the connectors, remove the enclosure cover and unscrew the two captive screws that fasten
the electronics module. Signal connections are made to de-pluggable connectors on the back of the
electronics module.
Some connectors may be provided already connected. These connections are required for proper
operation of the ProtEX-MAX, and should not be removed unless instructed to by this manual.
Wires marked as being used for testing purposes should be removed.
Grounding connections are made to the two ground screws provided on the base – on e internal and one
external.
After all connections have been completed and verified, apply power to the unit.
Required & Factory Wired Connections
The ProtEX-MAX comes with several pre-wired connections. These connections are detailed on the
following pages, and must be maintained in order for the instrument to function properly.
For details on the required wiring to maintain basic ProtEX-MAX functions, refer to the appropriate section
for the specific ProtEX-MAX model number.
Observe all safety regulations. Electrical wiring should be
performed in accordance with all agency requirements and
WARNING
applicable national, state, and local codes to prevent
damage to the meter and ensure personnel safety.
11
Page 12
ProtEX-MAX PD8-154 & 158 Alarm Annunciators Instruction Manual
NOTICE
!
Required Connections on PD8-154-6 and PD8-158-6 Series Models
ProtEX-MAX units with Vigilante II integrated functionality have two factory wired connectors. Four wires
connect the remote switch inputs of the annunciator. Two wires connect the DC power supply on the main
meter electronics to the ProtEX-MAX connector board. These must remain connected as shown for the
SafeTouch Buttons to function on these models.
The connections described in this section must
remain connected for the SafeTouch buttons to
function.
Figure 1: Integrated Vigilante II (PD8-154-6 & PD8-158-6) Required Connections
12
Page 13
ProtEX-MAX PD8-154 & 158 Alarm Annunciators Instruction Manual
NOTICE
!
Required Connections on PD8-154-7 and PD8-158-7 Series Models
Low voltage PD8-154-7 and PD8-158-7 models require low voltage power to be supplied to the power
supply connector on the ProtEX-MAX connector board as well as to the integrated Vigilante II
connections as described in the Vigilante II Instruction Manual.
In addition, four wires connect the remote switch inputs of the annunciator to the ProtEX-MAX connector
board. These wires must remain connected for the SafeTouch buttons to function.
The connections described in this section must
remain connected for the SafeTouch buttons to
function.
Figure 2: Integrated Vigilante II (PD8-154-7 & PD8-158-7) Required Connections
13
Page 14
ProtEX-MAX PD8-154 & 158 Alarm Annunciators Instruction Manual
24V OU T
DW1837
POWER
INPUT CHANNELS
6 58 7 4
C NONO NC NC C
RELAY2 RELAY1
P+ P-
+
2 13 COM ACK RST
1 2 43
FI FO
OFF
ON
SIL
AC or DC
POWER
Recommended External Fuse:
5 A max, Slow Blow
POWER CONNECTOR
+ -
COM
SIGNAL CONNECTOR
CH3
CH1CH2
CH4
NO
CONTACT
NC
CONTACT
Connector Labeling
The connectors label, affixed to the instrument, shows the location of all connectors available with
requested configuration.
Figure 3. Connector Labeling for PD158-6R2-1
Power Connections
Power connections are made to a two-terminal connector labeled POWER on Figure 3. The instrument
will operate regardless of DC polarity connection. The + and - symbols are only a suggested wiring
convention.
Figure 4. Power Connections
Signal Connections
Input signal connections are made to a 14-terminal connector at terminals labeled INPUT CHANNELS on
Figure 3. The COM (common) terminal is the return for all types of input signals.
Normally Open (NO) or Normally Closed (NC) Switches
The following figure shows an example of normally open or normally closed contact inputs.
Programming a channel for a normally open or normally closed contact is done with the front panel
pushbuttons (see page 21). All channels are initially set for normally open contacts. Each contact is wired
across an input channel and common.
14
Figure 5. NO/NC Contact Inputs
Page 15
ProtEX-MAX PD8-154 & 158 Alarm Annunciators Instruction Manual
COM
SIGNAL CONNECTOR
CH3
CH1CH2
CH4
NPN
Transistor
C
B
E
C
B
E
24V OUT
P+ P-
RELAY 2 RELAY 1
NC NCC NO CNO

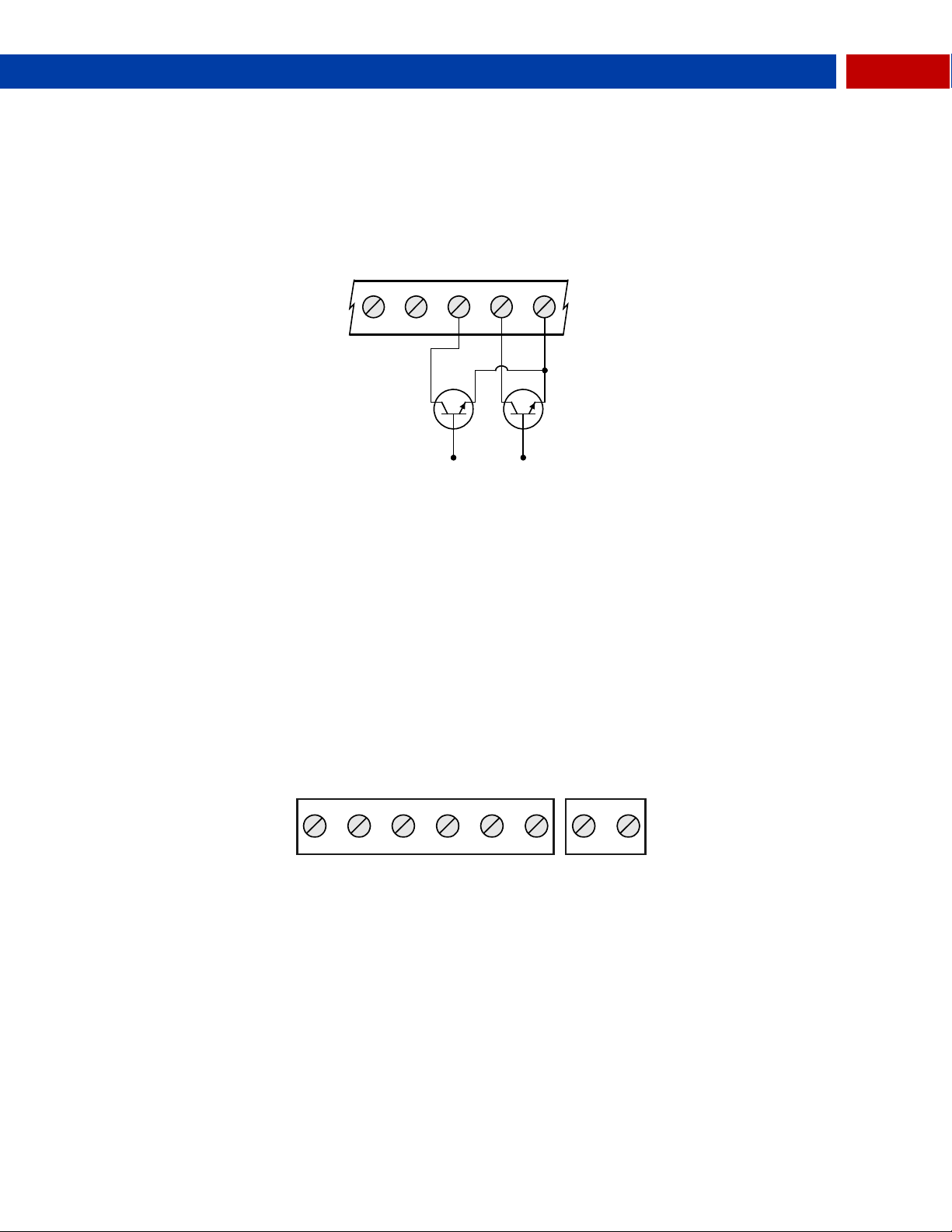

Open Collector NPN Transistor
Each transistor collector is connected to a separate input channel and all emitters connected to common.
All channels are factory set for transistor inputs normally in the cutoff or “off” state. For normally
active/saturation state or “on” transistors, program inputs for normally closed input operation; see page
21. Open circuit voltage is approximately 3.3 VDC provided by a 47 kΩ internal pullup resistor. The
following figure shows an example of open collector NPN transistor inputs.
Figure 6. Open Collector NPN Transistor Inputs
Logic Level Inputs
Each logic level input is connected to an input channel with common as the return.
Logic level inputs are factory set for normally high active logic level inputs. For normally low input logic
levels, program inputs for normally closed input operation, see page 21.
Logic Level Low: 0 to 1.4 VDC
Logic Level High: 1.5 to 28 VDC
Input Impedance: Approximately 47 kΩ
Relay connections are made to a six-terminal connector labeled RELAY1, RELAY2 on Figure 3. The
COM (common) terminals of the relays should not be confused with the COM (common) terminal of the
signal connector. The 24 VDC output is available at the connector labeled 24V OUT, next to the relays
connector.
Relays and 24 V Output Connections
Figure 7. Relay & 24 V Output Connections
15
Page 16
ProtEX-MAX PD8-154 & 158 Alarm Annunciators Instruction Manual
RELAY 1
NC
NO
C
C
R
C
R
+
-
L
O
A
D
RELAY 1
NC
NO
C
+
-
L
O
A
D
Use a diode with a reverse
Switching Inductive Loads
The use of suppressors (snubbers) is strongly recommended when switching inductive loads to prevent
disrupting the microprocessor’s operation. The suppressors also prolong the life of the relay contacts.
Suppression can be obtained with resistor-capacitor (RC) networks assembled by the user or purchased
as complete assemblies. Refer to the following circuits for RC network assembly and installation:

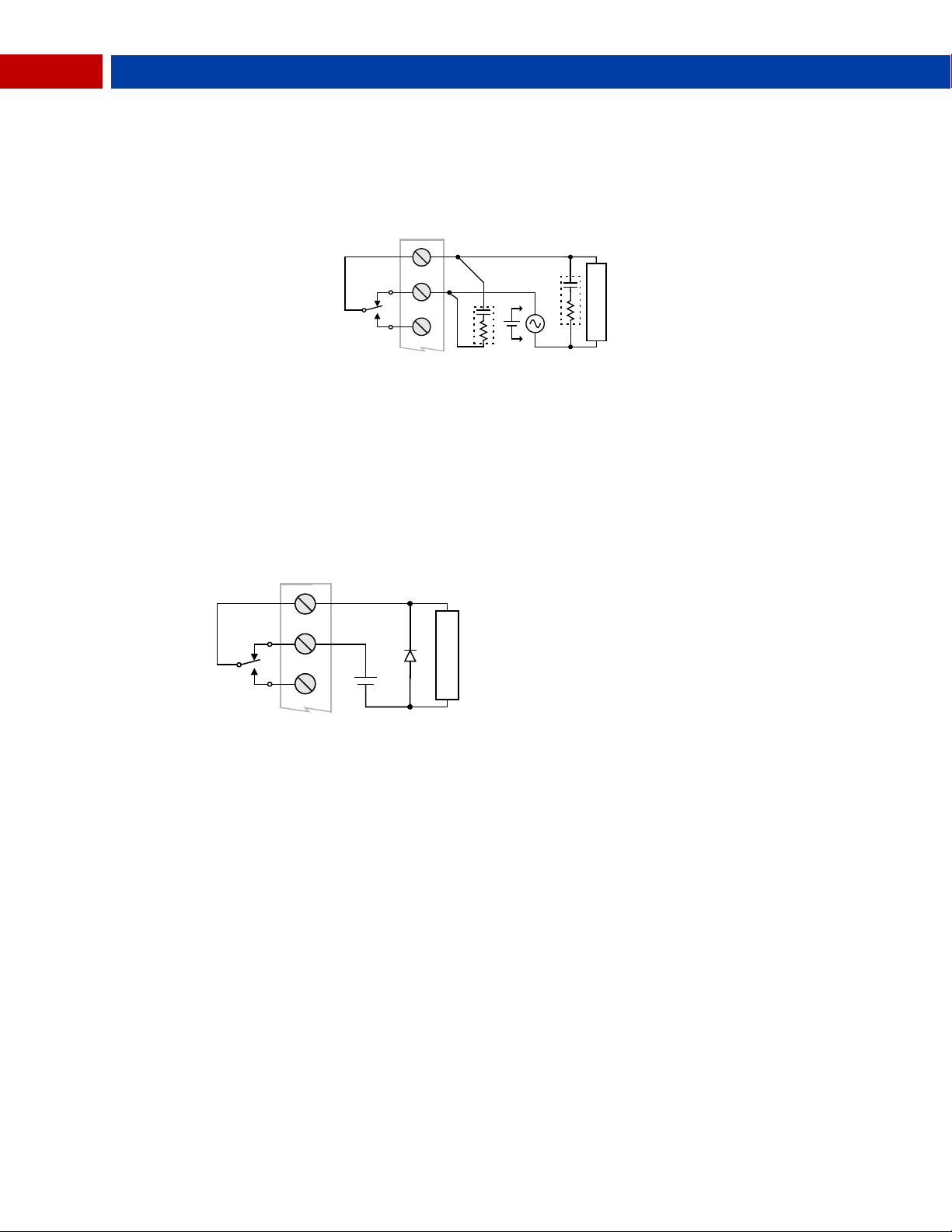

Figure 8. AC and DC Loads Protection
Choose R and C as follows:
R: 0.5 to 1 Ω for each volt across the contacts
C: 0.5 to 1 µF for each amp through closed contacts
Notes:
1. Use capacitors rated for 250 VAC.
2. RC networks may affect load release time of solenoid loads. Check to confirm proper operation.
3. Install the RC network at the meter's relay screw terminals. An RC network may also be installed
across the load. Experiment for best results.
breakdown voltage two to
three times the circuit voltage
and forward current at least
as large as the load current.
Figure 9. Low Voltage DC Loads Protection
RC Networks Available from Precision Digital
RC networks are available from Precision Digital and should be applied to each relay contact switching an
inductive load. Part number: PDX6901.
16
Page 17
ProtEX-MAX PD8-154 & 158 Alarm Annunciators Instruction Manual
External Input Type
Active When
Switch/Contact
Closed
Open Collector (OC)
On
TTL
Low
INPUT CONNECTOR
SIL
RSTACK
COM
Push-
Buttons
UNIT 2
FI
SIL
RST
ACK
COM
FO
FI
SIL
RST
ACK
COM
FO
UNIT 1 UNIT 3
FI
SIL
RST
ACK
COM
FO
External Input Types
The external Silence (SIL), Acknowledge (ACK), and Reset (RST) inputs may be: contacts (i.e.
pushbuttons, relay contacts, etc.), open collector inputs (OC), or TTL signals. However, throughout this
manual, the term “pushbutton” is used to describe these external inputs. Please refer to the chart below
for signal logic.

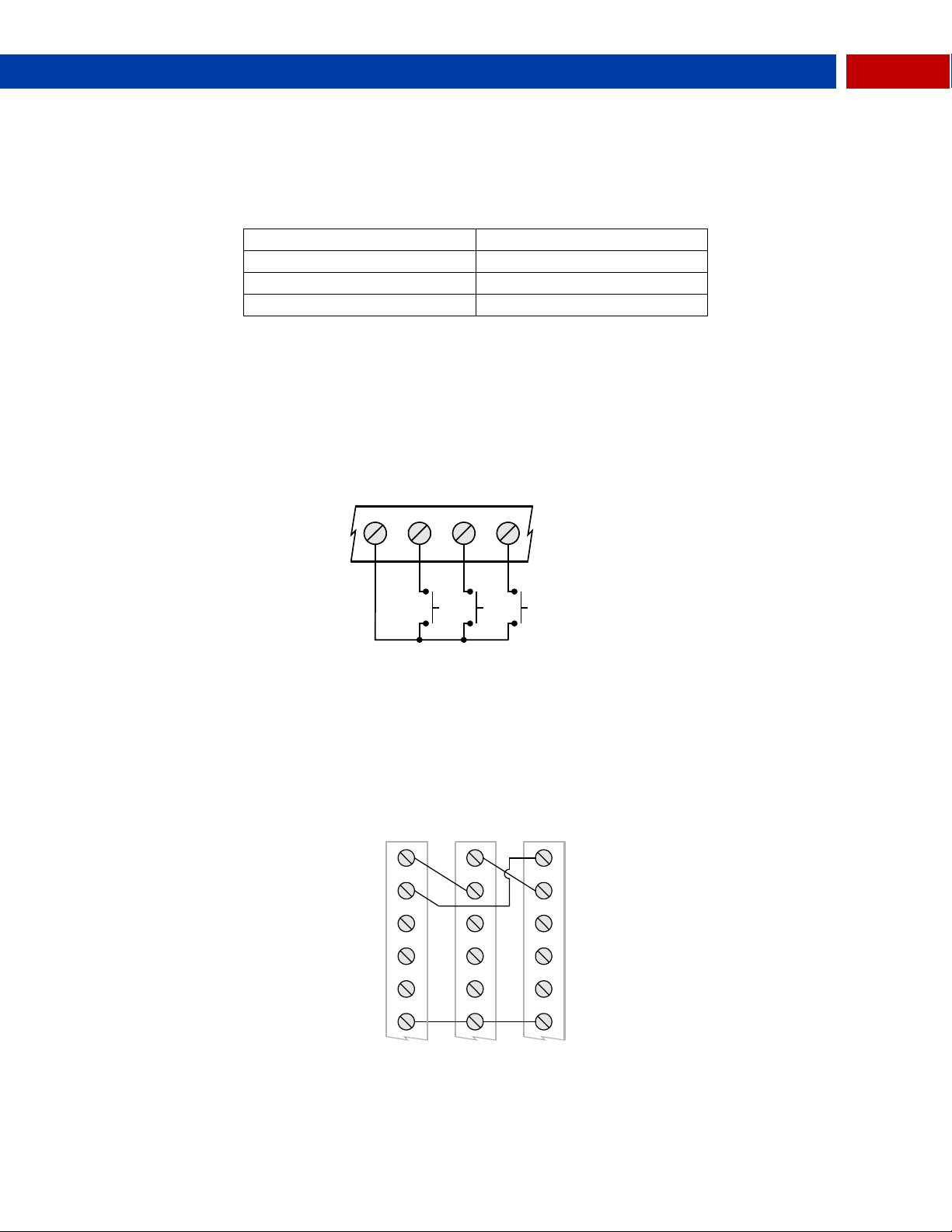

External Pushbutton Connections
The front panel pushbuttons may also be triggered with pushbuttons connected to the signal connector
terminals shown in Figure 3. Switch SIL to common for the silence pushbutton, ACK to common for the
acknowledge pushbutton, and RST to common for the reset pushbutton.
The following figure shows external pushbutton wiring connections. Do not wire-short the external
pushbutton contacts to common.
Multiple PD8-158 and PD8-154 units can keep a single first-out channel indicated for all connected units.
An unlimited number of units may be connected. It is recommended that all units follow the same
sequence.
The following figure shows shared first-out indication wiring connections for 3 units. Up to 200 units may be
connected for first-out indication.
Figure 10. External Pushbutton Connections
Multiple Unit First-Out Indication Connections

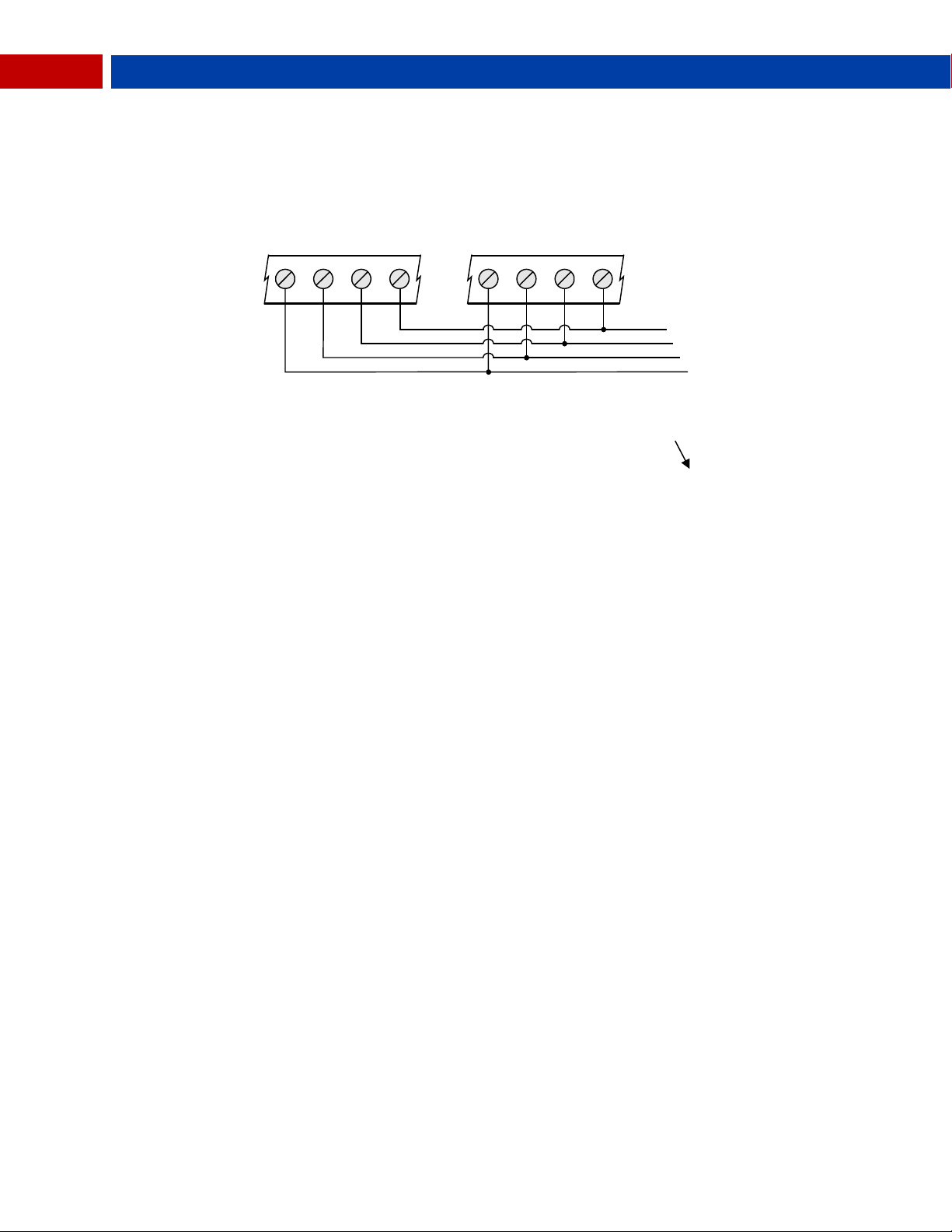

Figure 11. System with Multiple Units Share First-Out
17
Page 18
ProtEX-MAX PD8-154 & 158 Alarm Annunciators Instruction Manual
Take caution when cleaning the window glass as it may result in
for proper configuration prior to system restart.
Setup and Programming
Overview
There are no jumpers involved in the setup process of the annunciator. The sequence selector switch,
located on the rear of the internal electronics module above the signal connector must be set accordingly
for annunciator sequence desired.
Normally open or normally closed input setup, relay fail-safe, and additional sequence options are
programmed with the infrared through-glass SafeTouch buttons, or using the mechanical buttons when
uncovered. There is a slide switch located on the connector board. This is used to enable or disable
SafeTouch Buttons.
After power and signal connections have been completed and verified, and the sequence selector switch
has been set appropriately, apply power to the annunciator.
For a Quick Setup Guide go to page 4
SafeTouch Buttons
The ProtEX-MAX is equipped with four sensors that operate as through-glass buttons so that it can be
programmed and operated without removing the cover (and exposing the electronics) in a hazardous
area.
These buttons can be disabled for security by selecting DISABLE on the switch labeled NO-CONTACT
BUTTONS located on the connector board.
To actuate a button, press one finger to the glass directly over the marked button area. Then retract finger
more than three inches from the glass before pressing the next button. When the cover is removed, the
four mechanical buttons located next to the sensors are used. The sensors are disabled when a
mechanical button is pressed and will automatically be re-enabled after 60 seconds of inactivity.
The SafeTouch Buttons are designed to filter normal levels of ambient interference and to protect against
false triggering, however, it is recommended that the SafeTouch Buttons be disabled (slide switch to
LOCK) if there is an infrared interference source in line-of-sight to the display.
The SafeTouch Buttons are configured by default to duplicate the function of the front panel mechanical
pushbuttons associated with the integrated meter. The symbols by each SafeTouch button correspond to
a mechanical button as shown in the table on the next page.
SafeTouch Button Tips:
• To the extent possible, install the display facing away from sunlight, windows, reflective objects and
any sources of infrared interference.
• Keep the glass window clean.
• Tighten the cover securely.
• Use a password to prevent tampering.
unintentional SafeTouch button events. Only clean the ProtEX-MAX
WARNING
18
when the system is safely shut down and inspect the ProtEX-MAX
Page 19
ProtEX-MAX PD8-154 & 158 Alarm Annunciators Instruction Manual
LED
Description
Red
Channel status
Green
Indicates power is
1. Quantity 4 red LED on the PD154
SILENCE ACK RESET
POWER

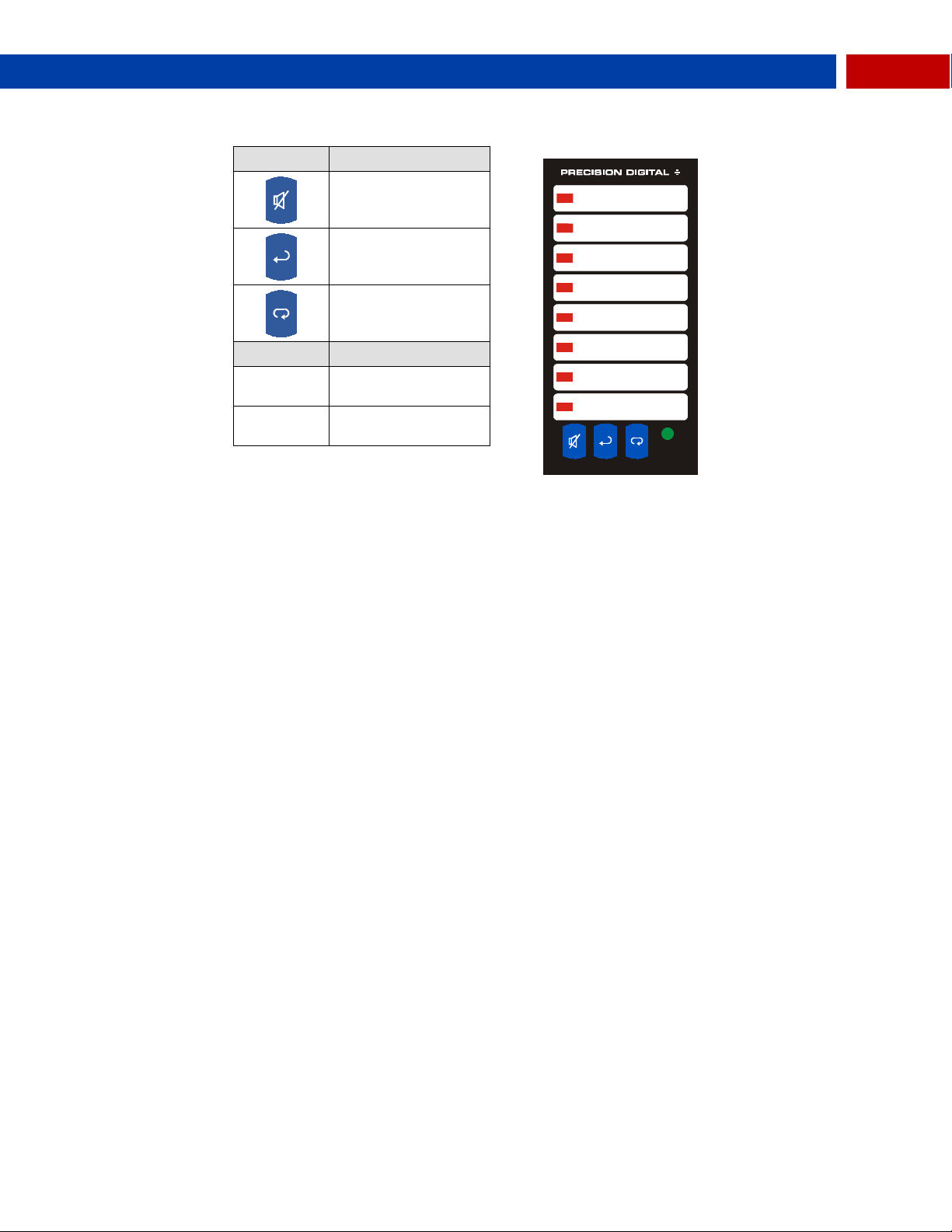

Front Panel Pushbuttons and Sta t us LE D Indicators
Button Description
Silence Horn
Acknowledge
Alarm
Reset Clear
Input Channels
Indicators1
Indicator
Quantity 8 red LED on the PD158
indicators
on.
Pushbutton Descriptions
SILENCE
Silences the audible alarm without affecting the indication sequence states. This pushbutton may be
disabled (see page 26).
ACK (Acknowledge)
Acknowledges alarmed channels. See selected sequence details for complete function description (see
page 29).
RESET
Resets all acknowledged channels. This button is not used on ISA sequences A, F1A, and F2A, which
reset acknowledged channels automatically. See selected sequence details for complete function
description (see page 29).
LED TEST (SILENCE & ACK)
Press and release the SILENCE and ACK pushbuttons to flash the channel indicator LEDs for a lamp
test.
Full Function Test
Press and hold SILENCE and ACK for 5 seconds to perform a function test. This tests the sequence
operation and hardware by simulating alarm inputs that are cleared in the normal sequence progression.
During the function test, all channels enter a simulated alarm state for 3 seconds. All LEDs, pushbuttons,
relays, and the audible alarm will follow the selected sequence as if the simulated alarm inputs were real.
After 3 seconds, the alarms may be cleared as normal for the selected sequence.
Multiple Unit First-Out I ndic a t ion
If multiple Vigilante II annunciators are connected for multiple unit shared first-out indication (see page
17), only one input from all connected devices will display as a first-out alarm.
Each individual annunciator will acknowledge and reset the channels on that unit using the pushbuttons
on that unit, and independent of all other connected units. Only the unit displaying the first-out will sound
the audible alarm.
It is recommended that all connected units be set for the same first-out sequence.
19
Page 20
ProtEX-MAX PD8-154 & 158 Alarm Annunciators Instruction Manual
SIL
RSTACKCOM
SIL
RSTACKCOM
UNIT 1
SIGNAL CONNECTOR
UNIT 2
SIGNAL CONNECTOR
IS A A *
ISA F2A*
ISA F1A
ISA F3A
Follower
ISA M
ISA F1M
ISA F2M
Figure 13. DIP Switch Location
Sequence Selector Switch
Shared Front Panel Buttons
To control all the units from any of the front panels, connect the SIL, ACK, RST, and COM terminals on
each unit.
Figure 12. Shared Pushbutton Connections
Annunciator Sequence S el e ction
The alarm sequence is selected with the DIP switch located above the
signal connector.
Changing sequences while the unit is on will restart the unit.
Sequence Programming
Set switches to the positions shown below for the desired sequence. The annunciator will immediately
automatically restart and operate with the new sequence.
*Common sequences available on other Precision Digital Annunciators
20
Page 21
ProtEX-MAX PD8-154 & 158 Alarm Annunciators Instruction Manual
Sequence Descriptions
Complete sequence descriptions begin on page 29.
Normally Open/Normal ly Closed Input Setup
Each input channel is independently programmed for a normally open or normally closed input. All
channels are initially programmed at the factory for normally open inputs.
Alarm Conditions for normally open inputs:
1. A closed contact between an input channel and common will cause an alarm condition.
2. An “on” or active transistor between an input channel and common will cause an alarm
condition.
3. An active logic level low on an input channel will cause an alarm condition.
Alarm Conditions for normally closed inputs:
1. An open contact between an input channel and common will cause an alarm condition.
2. An “off” or cutoff state transistor between an input channel and common will cause an alarm
condition.
3. An active logic level high or no supplied active logic level on an input channel will cause an
alarm condition.
Programming NO/NC Inputs
1. Press and hold ACK and RESET for 3 seconds until all LEDs cycle, then release
2. Press ACK within 3 seconds of release while LEDS cycle.
3. Press ACK within 3 seconds of release while LEDs blink.
4. Press the RESET pushbutton to turn LED 1 off for a NO input, or on for a NC input on input
channel 1.
5. Press ACK to accept the input type and program channel 2.
6. Repeat steps 4 and 5 for all input channels.
7. Press and hold ACK for five seconds to return to normal operation with the programmed input
types.
During programming, the LED for the channel being programmed will display as either off or brightly on.
All other LEDs will be dim.
The green power LED will blink slowly to indicate the unit is in NO/NC setup mode. The unit will
automatically leave setup mode if no pushbutton is pressed for 3 minutes.
1
The unit will automatically leave setup mode if steps 2 and 3 are not followed.
1
1
21
Page 22
ProtEX-MAX PD8-154 & 158 Alarm Annunciators Instruction Manual

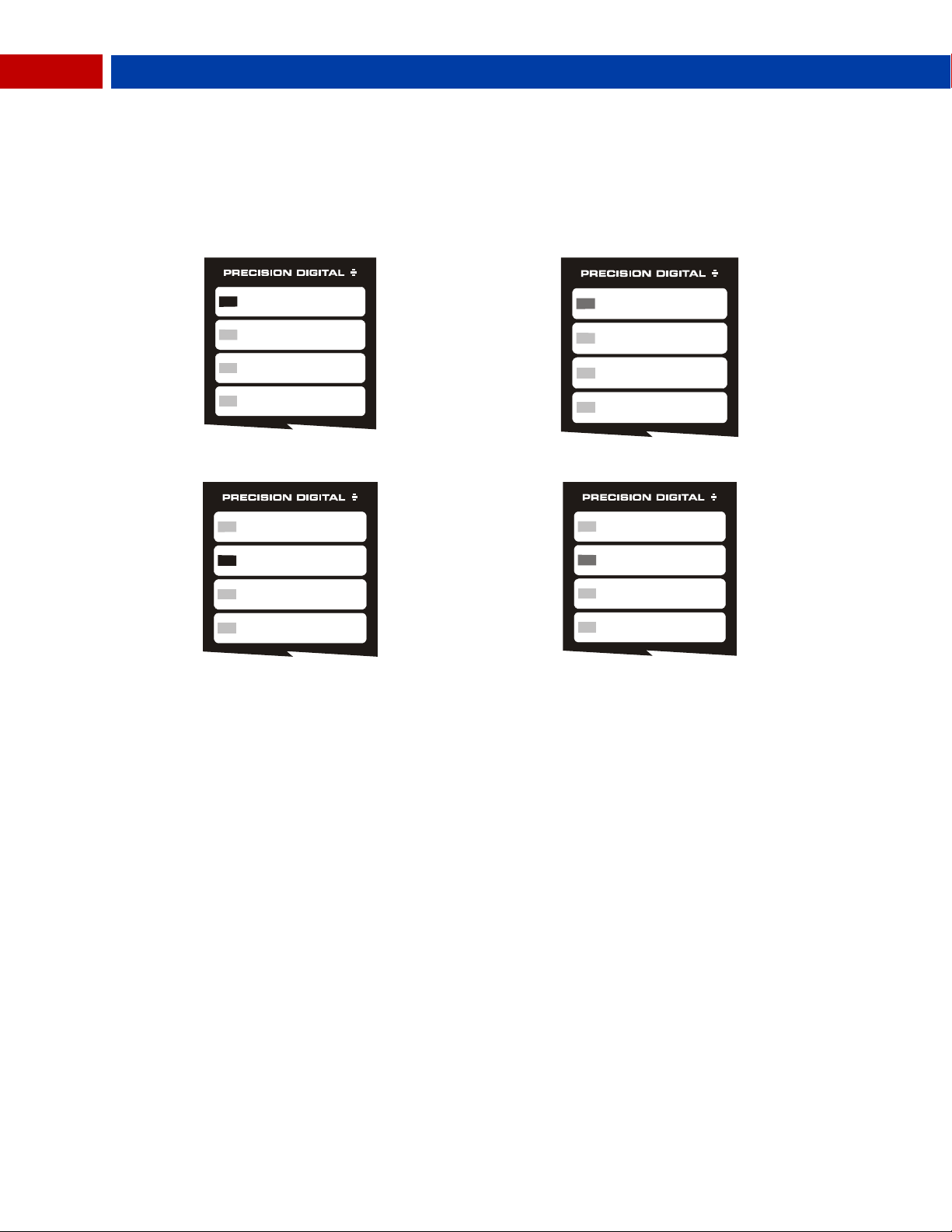

4. LED 1 will be off indicating a NO input for
channel 1. All other LEDs will be dim.
5. Press RESET to change LED 1 from off to on,
setting channel 1 for a NC input.
6. Press ACK to confirm the NC setting and
7. Press RESET to change LED 2 from off to on,

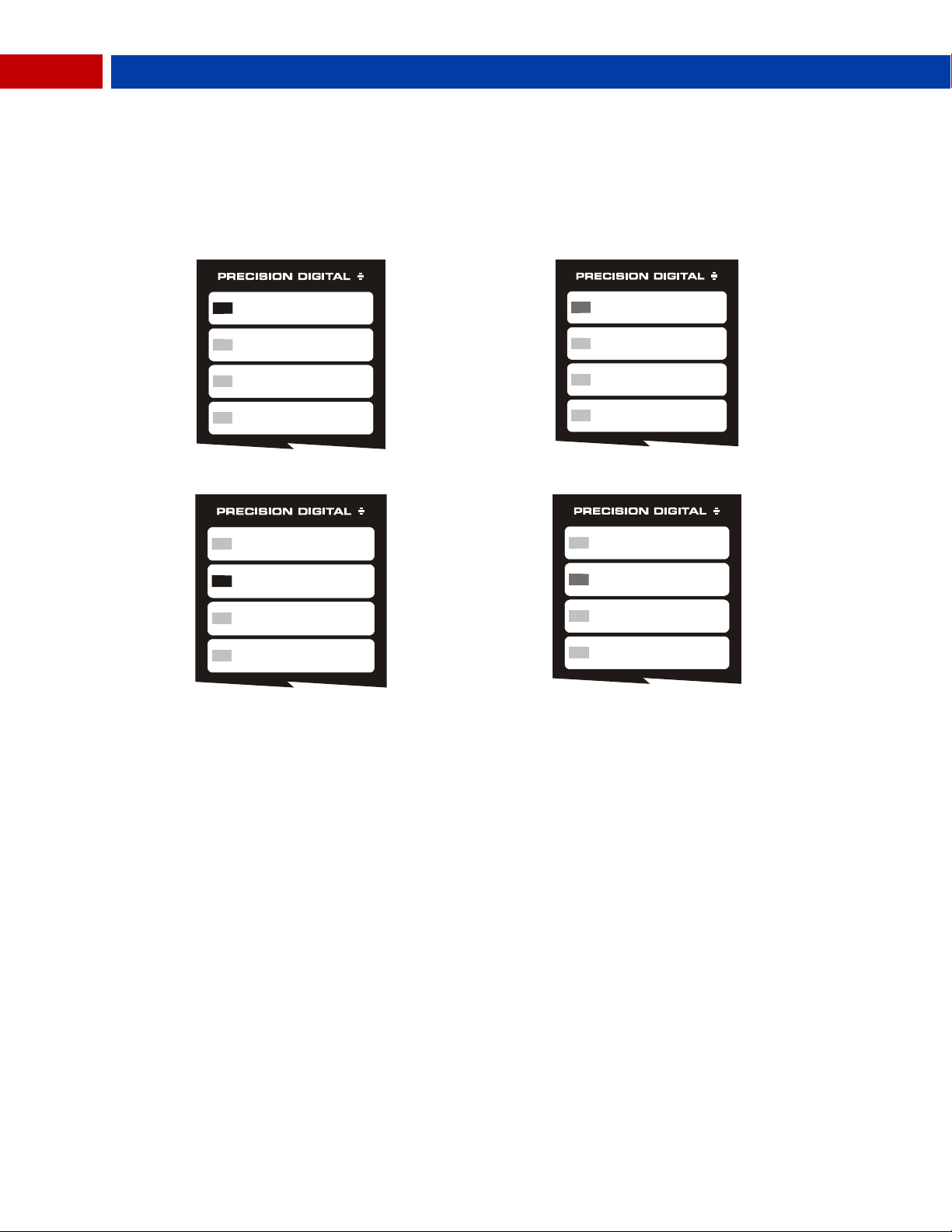

NO/NC Programming Example
The following is an example of NO/NC setup. Input channel 1 and 2 are changed from the default settings
of NO to be NC inputs.
1. Press and hold ACK and RESET for 3 seconds. When all LEDs cycle, release.
2. Press ACK within 3 seconds. All LEDs blink in unison.
3. Press ACK again while LEDs blink
proceed to program channel 2.
8. Press ACK to confirm the NC setting and program channel 3.
9. Press and hold ACK for five seconds to return to normal operation.
setting channel 2 for a NC input.
22
Page 23
ProtEX-MAX PD8-154 & 158 Alarm Annunciators Instruction Manual
Relay Operation
Relays 1 and 2 have standard functionality as defined below.
Relay 1 Operation
Relay 1 enters alarm state when there is a new alarm. This relay will clear when the alarm is
acknowledged, generally by pressing the ACK pushbutton.
Relay 2 Operation
Relay 2 enters alarm state when any channel displays in alarm state. This relay will clear when all
indication LEDs are cleared.
Relay Fail-Safe
In fail-safe operation, a relay coil is energized in non-alarm condition. In case of power failure,
relays will go to alarm state. Fail-safe operation is set independently for each relay.
Programming Relay Fail-Safe
1. Press and hold ACK and RESET for 3 seconds. When all LEDs cycle, release.
2. Press RESET within 3 seconds of release while LEDs cycle.
3. Press RESET within 3 seconds of release while LEDs blink.
4. Press the RESET pushbutton to turn LED 1 off for normal operation, or on for fail-safe operation
of Relay 1.
5. Press ACK to accept the type of operation for Relay 1.
6. Press the RESET pushbutton to turn LED 2 off for normal operation, or on for fail-safe operation
of Relay 2.
7. Press ACK to accept the type of operation for Relay 2.
8. Press and hold ACK for five seconds to return to operation.
During programming, LEDs 1 through 4 will light. The LED being programmed will display as either off or
brightly on. The other 3 LEDs will be dim. On a PD158, LEDs 5 through 8 will be off.
The green power LED will blink quickly to indicate the unit is in the advanced programming mode. The
unit will automatically leave setup mode if no pushbutton is pressed for 3 minutes.
Note: LED 3 and 4 are used for the silence pushbutton enable/disable option (see page 26) and no lockin option (see page 26)
1
The unit will automatically leave setup mode if steps 2 and 3 are not followed.
1
1
23
Page 24
ProtEX-MAX PD8-154 & 158 Alarm Annunciators Instruction Manual
4. LED 1 will be off indicating normal operation
5. Press Reset to change LED 1 from off to on,
6. Press ACK to confirm the setting for relay
7. Press RESET to change LED 2 from off to on,
Relay Fail-Safe Programming Example
The following is an example of relay fail-safe setup. Relays 1 and 2 are changed from the default settings
of normal operation to fail-safe operation.
1. Press and hold ACK and RESET for 3 seconds. When all LEDs cycle, release.
2. Press RESET within 3 seconds of release while LEDs cycle. All LEDs blink in unison.
3. Press RESET again within 3 seconds while LEDs blink
of relay 1. LEDs 2 through 4 will be dim.
1and proceed to program relay 2.
8. Press ACK to confirm the setting for relay 2.
9. Press and hold ACK for 5 seconds to return to normal operation.
Note: LEDs 3 and 4 are used for the silence pushbutton enable/disable option (see page 26) a nd no lock in option (see page 26)
setting relay 1 for fail-safe operation.
setting relay 2 for fail-safe operation.
24
Page 25
ProtEX-MAX PD8-154 & 158 Alarm Annunciators Instruction Manual
ACK
Pressed
ON
O
FF
Relay 1
ON
OFF
Relay 2
ON
OFF
Relay 1
ON
OFF
Relay 2
NORMAL
FAIL-SAFE
Alarms
Cleared
Alarm
Occurance
Sequence F2A
Sequence F2A

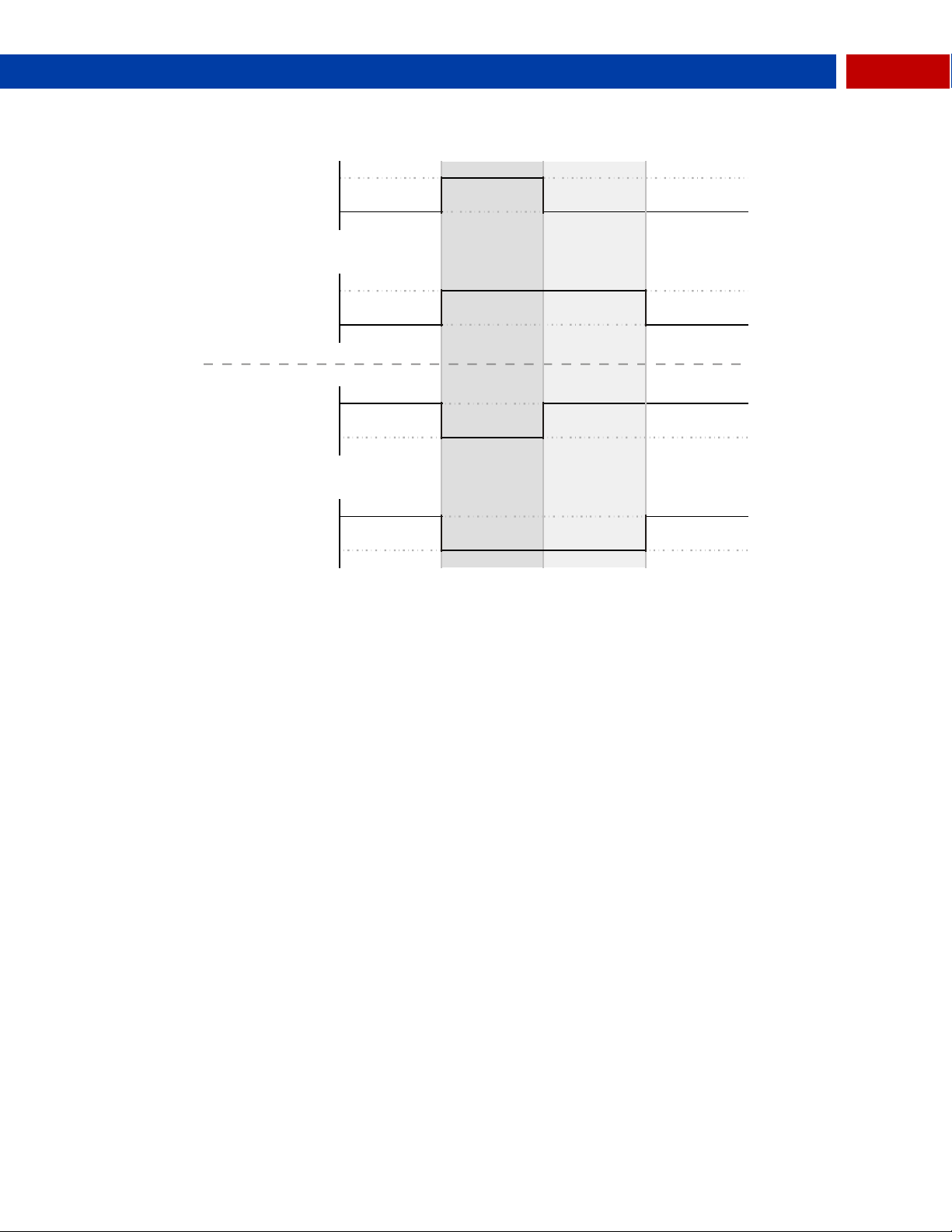

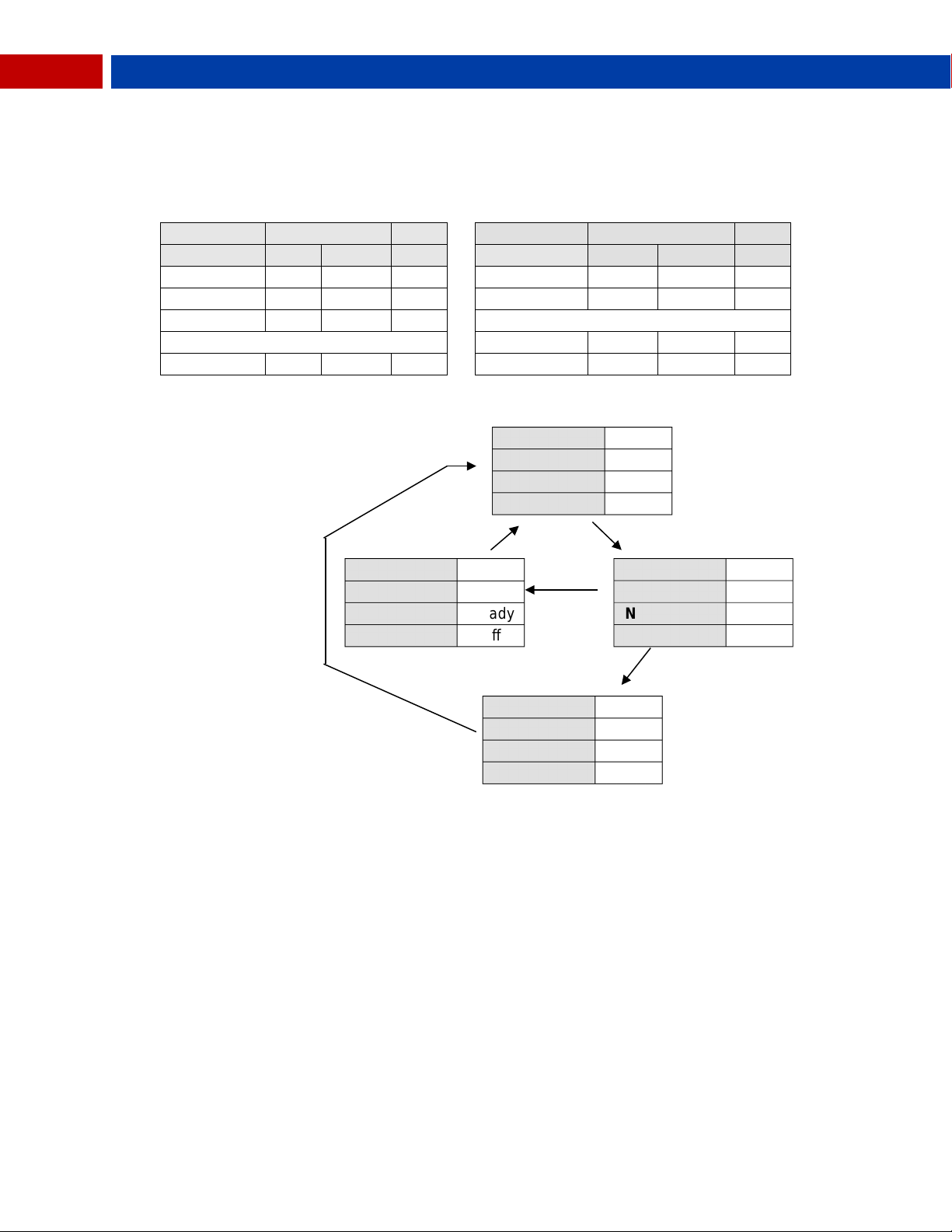

Relay Operation Overview
The following figure illustrates the operation of the relays.
Relay On: Relay is energized
Relay Off: Relay is de-energized.
Alarm Occurrence: A new alarm occurs when there is no previous unacknowledged alarm.
ACK Pressed: The Acknowledge pushbutton is pressed, acknowledging the alarm.
Alarms Cleared: All LED indicators are cleared of alarm state indication
Audible Horn Enable/Disable
The annunciator contains an audible internal horn. This horn may be disabled with the rear-mounted
switch located above the signal connector. To enable the horn, move switch 4 to the ON position. To
disable the horn, move switch 4 to the OFF position.
Horn Enabled
Horn Disabled
25
Page 26
ProtEX-MAX PD8-154 & 158 Alarm Annunciators Instruction Manual
Enabling/Disabling Silence Option
ISA sequence option 1, Silence Pushbutton, includes a silence pushbutton. This option may be disabled,
removing any effects of the silence pushbutton or silence pushbutton external contact. This option is
enabled by factory default.
Silence Pushbutton Enable/Disable
1. Press and hold ACK and RESET for 3 seconds until all LEDs cycle, then release.
2. Press RESET within 3 seconds of release while LEDs cycle.
3. Press RESET within 3 seconds of release while LEDs blink.
4. Press the ACK pushbutton twice until LED 3 is either off or brightly on.
5. Press the RESET pushbutton to turn LED 3 off to disable the silence pushbutton or brightly on to
enable the silence pushbutton.
6. Press ACK to accept the silence pushbutton setting.
7. Press and hold ACK for five seconds to return to normal operation.
The green power LED will blink quickly to indicate the unit is in the advanced programming mode. The
unit will automatically leave setup mode if no pushbutton is pressed for 3 minutes.
Note: LED 1 and 2 are used for relay fail-safe setup (see page 23)
1
The unit will automatically leave setup mode if steps 2 and 3 are not followed.
1
1
No Lock-In Sequence Option
ISA sequence option 4 no lock-in, may be added to any sequence. Momentary alarms will clear without
the ACK pushbutton. Sequences A, F1A, F2A, and F3A will automatically clear any momentary alarm.
Sequences M, F1M, and F2M will clear all momentary alarms when the RESET pushbutton is used,
regardless of what channels have previously been acknowledged with ACK.
Selecting No Lock-In Operation
1. Press and hold ACK and RESET for 3 seconds until all LEDs cycle, then release.
2. Press RESET within 3 seconds of release while LEDs cycle.
3. Press RESET within 3 seconds while LEDs blink.
1
4. Press the ACK pushbutton three times until LED 4 is either off or brightly on.
5. Press the RESET pushbutton to turn LED 4 off to disable the
no lock-in option or on to enable the no lock-in option.
6. Press ACK to accept the option setting.
7. Press and hold ACK for five seconds to return to operation.
The green power LED will blink quickly to indicate the unit is in the advanced programming mode. The
unit will automatically leave setup mode if no pushbutton is pressed for 3 minutes.
Note: LED 1 and 2 are used for relay fail-safe setup (see page 23), and LED 3 is used for silence
pushbutton enable/disable (see page 26).
1
The unit will automatically leave setup mode if steps 2 and 3 are not followed.
1
26
Page 27
ProtEX-MAX PD8-154 & 158 Alarm Annunciators Instruction Manual
WARNINGS
• Installation and service should be performed only by trained service
Reset to Factory Defaults
1. Hold the ACK and RESET pushbuttons for 3 seconds until all red LEDs cycle. Release once the
LEDs begin to cycle.
2. Press and hold the RESET button for 5 seconds. If the RESET butto n is not pres s ed with in 3
seconds of releasing ACK and RESET, the unit will return to run mode without reset.
3. Reset the 4-position switch on the rear of the control to the indicated default settings.
Factory Default
Switch Positions
Service
personnel. Service requiring replacement of internal sub-components
must be performed at the factory.
• Disconnect from supply before opening enclosure. Keep cover tight
while circuits are alive. Conduit seals must be installed within 18"
(450mm) of the enclosure.
• Verify that the operating atmosphere of the instrument is consistent
with the appropriate hazardous locations certifications.
• If the instrument is installed in a high voltage environment and a fault
or installation error occurs, high voltage may be present on any lead
• Read all product labels com pletel y and follo w all instr uc tions and
requirements listed on the labels for installation or service.
If the enclosure is sound and undamaged, then only the internal electronics housing will need to be
returned to the factory for service. Contact the factory for RMA number and return instructions.
27
Page 28
ProtEX-MAX PD8-154 & 158 Alarm Annunciators Instruction Manual
View
Cross Section View
Symptom
Check/Action
SafeTouch buttons do not
If mechanical button was pushed. The Saf eTouch buttons will be
so as to block direct sunlight.
Serial Communications Power
1. Check modular cable connection
2. Check power to the device
If only the TX (or DATA IN) data
1. Check serial cable
4. Check program address & baud rate
If both data status LEDs (TX and
Remove all unnecessary cables and instruments from the bus.
time.
Communications slow
Increase the baud rate
Random communication errors
1. Increase the TX delay time
2. Decrease the baud rate
Mounting Dimensions
All units: inches (mm)
Figure 14: Enclosure Dimensions – Front
Figure 15: Enclosure Dimensions – Side
Troubleshooting
If the annunciator is not working as expected, refer to the recommendations below.
Troubleshooting Tips
respond
LED Indicator is off
status LED is flashing when serial
communications attem pted
re-enabled automatically 60 seconds after the last button push.
If slide switch on connector board is in DISABLE position, switch
to ENABLE.
Strong direct sunlight may interfere with SafeTouch button
operation. It is recommended to operate the buttons by standing
2. Check protocol selected on device
3. Check instrument address & baud rate
RX) are off when trying to
communicate
28
Try getting the system to work with only one device (to ease
troubleshooting) and then expand the system one device at a
Page 29
ProtEX-MAX PD8-154 & 158 Alarm Annunciators Instruction Manual
Symptom
Check/Action
Power LED is off
1. Check modular cable connection
2. Check power to instrument
Audible alarm does not sound
Check:
shorted.
Power light blinks and
intermittently when powered up.
Check that no external pushbutton contacts on the signal
Display sequence does not
Check:
connector are shorted.
If the display locks up or the unit
does not respond at all
Cycle the power to restart the
Relay operation is reversed
Check:
2. Wiring of relay contacts
Other symptoms not described
above
Call Technical Support for
when alarm state detected
channel/point indicators flash
function as expected.
To reset unit to factory default settings of sequence F2A-1, first out indication with silence and
acknowledge pushbuttons with automatic reset, see page 27.
1. Rear switch position 4 is ON.
2. No external pushbutton contacts on the input connector are
connector are shorted to common.
1. Verify sequence selection as shown on page 20.
2. Check that no external pushbutton contacts on the input
microprocessor.
1. Fail-safe settings as shown on page 23.
assistance.
Full Sequence Descriptions
The following section describes the operation of the various sequences available in the Vigilante® II alarm
annunciator.
Features
Acknowledge Pushbutton: Momentary alarms will not clear until the alarmed channels have been
acknowledged with the ACK pushbutton. This will also reset the first out indication. Used in all ISA
sequences.
Automatic Reset: Acknowledged momentary alarms will clear automatically when the inputs return to
normal. The automatic reset is present in all automatic (A) sequences.
First-Out Indication: The sequence provides a distinct visual indication for the first channel to alarm.
First-Out Reset Pushbutton: Resets the first-out display and assigns the first-out channel to display as a
subsequent alarm without any other changes to the sequence. The next alarm input will be a new first-out
alarm. Used only in sequence F3A.
Reset Pushbutton: Acknowledged momentary alarms will only clear when reset with the RESET
pushbutton. Used in any manual reset (M) sequence.
Sequence Condition Descriptions
The following terms are used in describing the sequence behavior in the following tables:
Alert: The input is in alarm state, and the channel has not been acknowledged with the ACK pushbutton.
Acknowledge: The alarm state is acknowledged with the ACK pushbutton. This will restart the first-out
indication.
First Out Reset (F3A Only): The RESET pushbutton is used to reset the first-out indication only.
Normal: Inputs are in the normal state.
LED Condition Descriptions
1st Pt: Indicates the behavior of the first-out channel only.
Next Pt: The behavior of subsequent alarm channels; channels that enter the alarm state after the first-
out alarm.
29
Page 30
ProtEX-MAX PD8-154 & 158 Alarm Annunciators Instruction Manual
Momentary Alarm
Maintained Alarm
Condition
LED
Horn
Condition
LED
Horn
Normal
Off
Off Normal
Off
Off
Alert
Flash
On Alert
Flash
On
Normal
Flash
On ACK Pushbutton
ACK Pushbutton
Acknowledge
Steady
Off
Acknowledge
Off
Off Normal
Off
Off
Condition
Normal
LED
Off
Horn
Off
Condition
Alert
LED
Flash
Horn
On
Condition
Alert
LED
Steady
Horn
Off
Alarm Condition
Ack when
Inputs Normal
Return
to Normal
Ack
indication LEDs are cleared.
ISA Sequence A
Acknowledge Pushbutton and Automatic Reset
Sequence A Sequence A Flowchart
Switch Positions
Pressed
Relay Operation
For complete details on relay function, see page 23.
Relay 1: Operation
Relay 1 enters alarm state when there is a new alarm. This relay will clear when the alarms are
acknowledged.
Relay 2 Operation
Relay 2 enters alarm state when any channel displays in alarm state. This relay will clear when all
30
Page 31
ProtEX-MAX PD8-154 & 158 Alarm Annunciators Instruction Manual
Momentary Alarm
Maintained Alarm
Condition
LED
Horn Condition
LED
Horn
1st Pt
Next Pt
1st Pt
Next Pt
Normal
Off
Off
Off Normal
Off
Off
Off
Alert
Flash
Steady
On Alert
Flash
Steady
On
Normal
Flash
Steady
On
ACK Pushbutton
ACK Pushbutton
Acknowledge
Steady
Steady
Off
Acknowledge
Off
Off
Off Normal
Off
Off
Off
Condition
Normal
1st Pt LED
Off
Next Pt LED
Off
Horn
Off
Condition
Alert
1st Pt LED
Flash
Next Pt LED
Steady
Horn
On
Condition
Alert
1st Pt LED
Steady
Next Pt LED
Steady
Horn
Off
Alarm Condition
Ack when
Inputs Normal
Return
to Normal
Ack
ISA Sequence F2A
First-Out Indication with Acknowledge Pushbutton and Automatic Reset
Sequence F2A Sequence F2A Flowchart
Switch Positions
Pressed
31
Page 32
ProtEX-MAX PD8-154 & 158 Alarm Annunciators Instruction Manual
Momentary Alarm
Maintained Alarm
Condition
LED
Horn Condition
LED
Horn
1st Pt
Next Pt
1st Pt
Next Pt
Normal
Off
Off
Off Normal
Off
Off
Off
Alert
Flash
Steady
On Alert
Flash
Steady
On
Normal
Flash
Off
On
ACK Pushbutton
ACK Pushbutton
Acknowledge
Steady
Steady
Off
Acknowledge
Off
Off
Off Normal
Off
Off
Off
Ack
Pressed
Condition
Normal
1st Pt LED
Off
Next Pt LED
Off
Horn
Off
Condition
Alert
1st Pt LED
Flash
Next Pt LED
Steady
Horn
On
Condition
Alert
1st Pt LED
Steady
Next Pt LED
Steady
Horn
Off
Alarm Condition
Return
to Normal
Ack
Condition
Normal
1st Pt L D
Flash
Next Pt LED
Off
Horn
On
Return
to Normal
ISA Sequence F1A
First-Out Indication with Acknowledge Pushbutton, No Lock-In of Subsequent Alarms, and Automatic
Reset
Sequence F1A Sequence F1A Flowchart
Switch Positions
Pressed
32
Page 33
ProtEX-MAX PD8-154 & 158 Alarm Annunciators Instruction Manual
Condition
LED
Horn
1st Pt
Next Pt
Normal
Off
Off
Off
Alert
Intermittent Flash
Fast Flash
On
Normal
Intermittent Flash
Fast Flash
On
RESET Pushbutton
1st Out Reset
Fast Flash
Fast Flash
On
ACK Pushbutton
Acknowledge
Off
Off
Off
Condition
LED
Horn
1st Pt
Next Pt
Normal
Off
Off
Off
Alert
Intermittent Flash
Fast Flash
On
Normal
Intermittent Flash
Fast Flash
On
ACK Pushbutton
Acknowledge
Slow Flash
Off
Off
RESET Pushbutton
Reset
Off
Off
Off
Condition
LED
Horn
1st Pt
Next Pt
Normal
Off
Off
Off
Alert
Intermittent Flash
Fast Flash
On
RESET Pushbutton
1st Out Reset
Fast Flash
Fast Flash
On
ACK Pushbutton
Acknowledge
Steady
Steady
Off
Normal
Off
Off
Off
ISA Sequence F3A
First-Out Indication with Acknowledge Pushbutton, Automatic Reset, and First-Out Reset Pushbutton
Momentary Alarm (RESET before ACK)
Sequence
Momentary Alarm (ACK before RESET)
F3A
Switch
Positions
Maintained Alarm (RESET before ACK)
33
Page 34
ProtEX-MAX PD8-154 & 158 Alarm Annunciators Instruction Manual
Maintained Alarm (ACK before RESET)
Condition
LED
Horn
1st Pt
Next Pt
Normal
Off
Off
Off
Alert
Intermittent Flash
Fast Flash
On
ACK Pushbutton
Acknowledge
Slow Flash
Steady
Off
RESET Pushbutton
1st Out Reset
Steady
Steady
Off
Normal
Off
Off
Off
Reset
Pressed
Condition
Normal
1st Pt LED
Off
Next Pt LED
Off
Horn
Off
Condition
Alert
1st Pt LED
Intermittent Flash
Next Pt LED
Fast Flash
Horn
On
Alarm
Condition
Ack while
Reset Pressed
Condition
Any
1st Pt LED
Fast Flash
Next Pt LED
Fast Flash
Horn
On
Ack while
Normal
Condition
Alert
1st Pt LED
Steady
Next Pt LED
Steady
Horn
Off
Condition
Normal
1st Pt LED
Slow Flash
Next Pt LED
Off
Horn
Off
Condition
Alert
1st Pt LED
Slow Flash
Next Pt LED
Steady
Horn
Off
Ack while
Ack while Alarmed
Return to Normal
Return to Normal
Sequence F3A Flowchart
Alarmed
Normal
34
Page 35
ProtEX-MAX PD8-154 & 158 Alarm Annunciators Instruction Manual
Momentary Alarm
Maintained Alarm
Condition
LED
Horn Condition
LED
Horn
Normal
Off
Off Normal
Off
Off
Alert
Flash
On Alert
Flash
On
Normal
Flash
On
ACK Pushbutton
ACK Pushbutton
Acknowledge
Steady
Off
Acknowledge
Steady
Off Normal
Steady
Off
RESET Pushbutton
RESET Pushbutton
Reset
Off
Off Normal
Off
Off
Condition
LED
Horn
Normal
Off
Off
Alert
Steady
On
Normal
Off
Off
Condition
Normal
LED
Off
Horn
Off
Condition
Alert
LED
Flash
Horn
On
Condition
Alert
LED
Steady
Horn
Off
Alarm
Condition
Reset while
Normal
Ack
Pressed
Condition
Any
LED
Steady
Horn
Off
Reset while
Normal
Reset while
Input Follower Indication
Simple Indication Switch Positions
ISA Sequence M
Acknowledge and Reset Pushbuttons
Sequence M Sequence M Flowchart
Switch Positions
Alarmed
35
Page 36
ProtEX-MAX PD8-154 & 158 Alarm Annunciators Instruction Manual
Momentary Alarm
Maintained Alarm
Condition
LED
Horn
Condition
LED
Horn
1st Pt
Next Pt
1st Pt
Next Pt
Normal
Off
Off
Off Normal
Off
Off
Off
Alert
Flash
Steady
On Alert
Flash
Steady
On
Normal
Flash
Steady
On
RESET Pushbutton
RESET Pushbutton
Alert
Flash
Steady
On
Reset
Flash
Off
On
ACK Pushbutton
ACK Pushbutton
Acknowledge
Steady
Steady
Off
Acknowledge
Steady
Off
Off Normal
Steady
Steady
Off
RESET Pushbutton
RESET Pushbutton
Normal
Off
Off
Off Normal
Off
Off
Off
Condition
Normal
1st Pt LED
Off
Next Pt LED
Off
Horn
Off
Condition
Alert
1st Pt LED
Flash
Next Pt LED
Steady
Horn
On
Condition
Alert
1st Pt LED
Steady
Next Pt LED
Steady
Horn
Off
Alarm Condition
Ack
Reset while
Normal
Ack
Condition
Normal
1st Pt LED
Flash
Next Pt LED
Off
Horn
On
Reset while
Normal
Condition
Normal
1st Pt LED
Steady
Next Pt LED
Off
Horn
Off
Reset
while
Normal
ISA Sequence F1M
First-Out Indication with Acknowledge and Reset Pushbuttons, and No-Lock-In of Subsequent Alarms
Sequence F1M Sequence F1M Flowchart
Switch Positions
36
Pressed
Page 37
ProtEX-MAX PD8-154 & 158 Alarm Annunciators Instruction Manual
Momentary Alarm
Maintained Alarm
Condition
LED
Horn
Condition
LED
Horn
1st Pt
Next Pt
1st Pt
Next Pt
Normal
Off
Off
Off Normal
Off
Off
Off
Alert
Flash
Steady
On Alert
Flash
Steady
On
Normal
Flash
Steady
On
ACK Pushbutton
ACK Pushbutton
Acknowledge
Steady
Steady
Off
Acknowledge
Steady
Steady
Off Normal
Steady
Steady
Off
RESET Pushbutton
RESET Pushbutton
Reset
Off
Off
Off Normal
Off
Off
Off
Condition
Normal
1st Pt LED
Off
Next Pt LED
Off
Horn
Off
Return
to Normal
Reset
while Normal
Condition
Alert
1st Pt LED
Flash
Next Pt LED
Steady
Horn
On
Condition
Normal
1st Pt LED
Steady
Next Pt LED
Steady
Horn
Off
Condition
Any
1st Pt LED
Steady
Next Pt LED
Steady
Horn
Off
Ack Pressed
Alarm Condition
ISA Sequence F2M
First-Out Indication with Acknowledge and Reset Pushbuttons
Sequence F2M Sequence F2M Flowchart
Switch Positions
37
Page 38
ProtEX-MAX PD8-154 & 158 Alarm Annunciators Instruction Manual
This Page Intentionally Left Blank
38
Page 39
EU Declaration of Conformity
Issued in accordance with ISO/IEC 17050-1:2004 and ATEX Directive 2014/34/EU.
We,
Precision Digital Corporation
233 South Street
Hopkinton, MA 01748 USA
as the manufacturer, declare under our sole responsibility that the product(s),
Model PD8 ProtEX-MAX Series
to which this declaration relates, is in conformity with the European Union Directives shown below:
2014/35/EU Low Voltage Directive
2014/34/EU ATEX Directive
2014/30/EU EMC Directive
2011/65/EU RoHS Directive
This conformity is based on compliance with the application of harmonized or applicable technical
standards and, when applicable or required, a European Union notified body certification.
Standards:
EN 55022:2007 EN 61000-6-2:2005 EN 60079-0:2009 EN 61000-6-4:2007
EN 60079-1:2007 EN 61010-1:2001 EN 60079-31:2008 EN 61326:2006
The standards EN 55022:2007, EN 60079-0:2009, EN 60079-1:2007, EN 60079-31:2008, EN 61000-64:2007, EN 61010-1:200 1, and EN 61326:200 6 are no longer harmoni zed. The requirem ents of these
standards have been checked against the harmonized standard EN 55022:2010, EN 600790:2012+A11:2013, EN 60079-1:2014, EN 60079-31:2014, EN 61000-6-4:2007+A1:2011, EN 610101:2010, and EN 61326:2013 and there were no major tec hnical changes affecting the lates t technical
knowledge for the products listed above.
EC Type Examination Certificate: Sira 12ATEX1182
Product Markings: II 2 G D
Ex d IIC T* Gb
Ex tb IIIC T90°C Db IP68
Tamb = -40°C to +*°C (*T5 = 65°C, *T6 = 60°C)
ATEX Notified Body for EC Type Examination Certific ate: Sira Certification Service, NB 0518
Unit 6, Hawarden Industrial Park
Hawarden, Deeside, CH5 3US, UK
ATEX Quality Assurance Notification No.: SIRA 10 ATEX M462
ATEX Notified Body for Quality Assurance: Sira Certification Service, NB 0518
Unit 6, Hawarden Industrial Park
Hawarden, Deeside, CH5 3US, UK
Signed for and on behalf of Precision Digital Corporation:
Name: Jeffrey Peters
Company: Precision Digital Corporation
Title: President
Date: 02/12/2018 Document No: DoC PD8 {021218}
Page 40
ProtEX-MAX PD8-154 & 158 Alarm Annunciators Instruction Manual
How to Contact Precision Digital
• For Technical Support please
Call: (800) 610-5239 or (508) 655-7300
Fax: (508) 655-8990
Email: [email protected]
• For Sales Support or to place an order please
Call: (800) 343-1001 or (508) 655-7300
Fax: (508) 655-8990
Email: [email protected]
• For the latest version of this manual please visit
www.predig.com
PRECISION DIGITAL CORPORATION
233 South Street • Hopkinton MA 01748 USA
Tel (800) 343-1001 • Fax (508) 655-8990
www.predig.com
LIM8-158_E
SFT043 Ver 1.0 & up
08/19
Loading...
