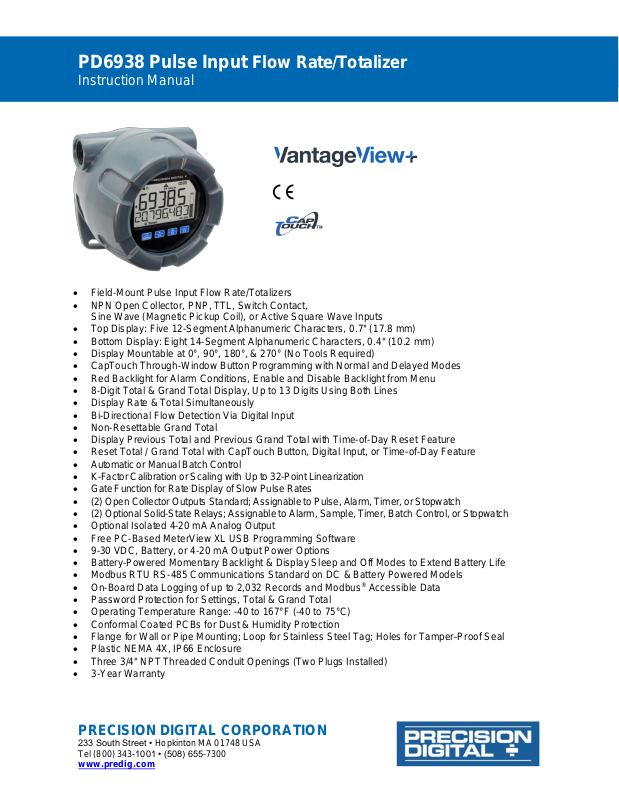

PD6938 Pulse Input Flow Rate/Totalizer

Instruction Manual

PRECISION DIGITAL CORPORATION

233 South Street • Hopkinton MA 01748 USA Tel (800) 343-1001 • (508) 655-7300

www.predig.com

• Field-Mount Pulse Input Flow Rate/Totalizers

• NPN Open Collector, PNP, TTL, Switch Contact,

Sine Wave (Magnetic Pickup Coil), or Active Square Wave Inputs

• Top Display: Five 12-Segment Alphanumeric Characters, 0.7" (17.8 mm)

• Bottom Display: Eight 14-Segment Alphanumeric Characters, 0.4" (10.2 mm)

• Display Mountable at 0°, 90°, 180°, & 270° (No Tools Required)

• CapTouch Through-Window Button Programming with Normal and Delayed Modes

• Red Backlight for Alarm Conditions, Enable and Disable Backlight from Menu

• 8-Digit Total & Grand Total Display, Up to 13 Digits Using Both Lines

• Display Rate & Total Simultaneously

• Bi-Directional Flow Detection Via Digital Input

• Non-Resettable Grand Total

• Display Previous Total and Previous Grand Total with Time-of-Day Reset Feature

• Reset Total / Grand Total with CapTouch Button, Digital Input, or Time-of-Day Feature

• Automatic or Manual Batch Control

• K-Factor Calibration or Scaling with Up to 32-Point Linearization

• Gate Function for Rate Display of Slow Pulse Rates

• (2) Open Collector Outputs Standard; Assignable to Pulse, Alarm, Timer, or Stopwatch

• (2) Optional Solid-State Relays; Assignable to Alarm, Sample, Timer, Batch Control, or Stopwatch

• Optional Isolated 4-20 mA Analog Output

• Free PC-Based MeterView XL USB Programming Software

• 9-30 VDC, Battery, or 4-20 mA Output Power Options

• Battery-Powered Momentary Backlight & Display Sleep and Off Modes to Extend Battery Life

• Modbus RTU RS-485 Communications Standard on DC & Battery Powered Models

• On-Board Data Logging of up to 2,032 Records and Modbus® Accessible Data

• Password Protection for Settings, Total & Grand Total

• Operating Temperature Range: -40 to 167°F (-40 to 75°C)

• Conformal Coated PCBs for Dust & Humidity Protection

• Flange for Wall or Pipe Mounting; Loop for Stainless Steel Tag; Holes for Tamper-Proof Seal

• Plastic NEMA 4X, IP66 Enclosure

• Three 3/4" NPT Threaded Conduit Openings (Two Plugs Installed)

• 3-Year Warranty

Page 2

PD6938 Pulse Input Flow Rate/Totalizer

Instruction Manual

The Complete PD6900 Series

Plastic Enclosures - General Purpose

PD6907-GP-PL

4-20 mA Input

Feet & Inches Meter

PD6908-GP-PL

4-20 mA Input

Process Meter

PD6928-GP-PL

4-20 mA Input

Flow Rate/Totalizer

PD6938-GP-PL

Pulse Input

Flow Rate/Totalizer

Aluminum Enclosures - Hazardous Area Approved

PD6907-HA-AL

4-20 mA Input

Feet & Inches Meter

PD6908-HA-AL

4-20 mA Input

Process Meter

PD6928-HA-AL

4-20 mA Input

Flow Rate/Totalizer

PD6938-XX-AL

Pulse Input

Flow Rate/Totalizer

Stainless Steel Enclosures - Hazardous Area Approved

PD6907-HA-SS

4-20 mA Input

Feet & Inches Meter

PD6908-HA-SS

4-20 mA Input

Process Meter

PD6928-HA-SS

4-20 mA Input

Flow Rate/Totalizer

PD6938-XX-SS

Pulse Input

Flow Rate/Totalizer

Page 3

PD6938 Pulse Input Flow Rate/Totalizer

Instruction Manual

Table of Contents

Introduction .......................................................................................................... 6

Key Features ........................................................................................................ 7

Ordering Information ......................................................................................... 13

-GP Models (General Purpose) ..................................................................... 13

Accessories ................................................................................................... 13

Specifications..................................................................................................... 15

Display ............................................................................................................ 15

General ........................................................................................................... 15

Battery ............................................................................................................ 16

-GP Models (Options: P & R) 3xAA-Cell ..................................................... 16

Battery Life with Modbus Continuously On..................................................... 16

Enclosure ....................................................................................................... 16

Pulse Input ..................................................................................................... 16

Rate/Totalizer ................................................................................................. 17

Batch Control ................................................................................................. 17

Common Open Collector & Relay Specifications ....................................... 17

Open Collector Outputs ................................................................................ 17

Solid-State Relays ......................................................................................... 18

4-20 mA Transmitter Output ......................................................................... 18

On-Board Digital Input .................................................................................. 18

Serial Communications ................................................................................. 18

MeterView XL Software ................................................................................. 18

General Compliance Information ..................................................................... 19

Electromagnetic Compatibility ..................................................................... 19

EU Declaration of Conformity ........................................................................... 19

Safety Information ............................................................................................. 19

Installation .......................................................................................................... 20

Unpacking ...................................................................................................... 20

Conduit Plugs Included ................................................................................ 20

Mounting ............................................................................................................. 20

Dimensions .................................................................................................... 20

Connections ....................................................................................................... 21

Display & Options Modules .......................................................................... 21

Connectors Labeling ..................................................................................... 22

DC Powered Models (-D Option)................................................................. 22

DC Powered with Battery Backup Models (-P Option) ................................ 24

Loop Output Powered Models (-C Option) .................................................. 26

Loop Output Powered with Battery Backup Models (-R Option) ................. 27

Wiring Diagrams ................................................................................................ 28

Pulse Input Connections ............................................................................. 28

DC Power Connections ............................................................................... 29

Digital Input Connections ............................................................................ 29

RS-485 Serial Connections ......................................................................... 29

4-20 mA Output Connections ...................................................................... 30

Solid-State Relay Connections.................................................................... 30

Open Collector Output Connections............................................................ 30

Remote Operation of Meter ......................................................................... 31

Setup and Programming ................................................................................... 32

Overview ......................................................................................................... 32

CapTouch Buttons ........................................................................................ 32

CapTouch Buttons Delay ............................................................................ 32

Turning Off CapTouch Buttons.................................................................... 32

CapTouch Button Tips & Troubleshooting .................................................. 32

MeterView XL Programming Software ......................................................... 33

CapTouch Buttons and Status Indicators ................................................... 34

Display Functions & Messages .................................................................... 35

Main Menu ...................................................................................................... 39

Setting Numeric Values ............................................................................... 40

Entering the K-Factor (KFACTOR) ...................................................................... 41

Page 4

PD6938 Pulse Input Flow Rate/Totalizer

Instruction Manual

Scaling the Pulse Input (SCALE) ....................................................................... 42

Available Engineering Units ........................................................................ 43

Volume Units ............................................................................................... 43

Setting Custom Units (CUSTOM) .................................................................. 44

Setting the Display Features (DISPLAY) ..................................................... 44

Changing the Engineering Units (UNITS) ................................................... 44

Changing the Decimal Point (DEC.PT) ......................................................... 44

Enabling or Disabling Commas on the Bottom Display (COMMA) ................ 45

Display Capabilities Optimization (TOP and BOTTOM) ................................ 45

Using 13 Digits to Display Total .................................................................. 45

Configuring the Display (TOp and BOTTOM) ................................................ 46

Programming the Bargraph (BARGRAPH) .................................................... 47

Programming the Outputs (OUTPUT) ........................................................... 47

Open Collector Outputs

(

OPEN COLLECTR

)

................................................. 48

Solid-State Relay Outputs (RELAY) ............................................................ 53

Isolated 4-20 mA Output (4-20 mA) ............................................................ 60

Output Manual Control (CONTROL) ............................................................. 60

Advanced Features Menu (ADVANCE) .......................................................... 61

Advanced Rate Setup (ADV RATE) ............................................................ 61

Advanced Total and Grand Total Setup (ADV TOTAL & ADV GTOTAL) .... 64

Low-Flow Cutoff (CUTOFF).......................................................................... 66

Gate Function (GATE) ................................................................................. 66

Contact Debounce Filter (FILTER) ............................................................. 66

Enabling Password Protection (PASSWRD) ................................................. 68

Data Log Menu (DATALOG) ......................................................................... 69

Serial Communications (COMM) ................................................................... 72

Programmable Function Keys User Menu (USER) ...................................... 72

Changing System Settings (SYSTEM) ......................................................... 75

Meter Operation ................................................................................................. 76

CapTouch Buttons Operation ...................................................................... 76

CapTouch Buttons ........................................................................................ 76

Function Keys Operation .............................................................................. 77

Digital Input Operation .................................................................................. 77

Maximum/Minimum Readings ...................................................................... 77

Total Reset Capabilities ................................................................................ 77

Total Reset via Digital Input ........................................................................ 77

Total Reset Password Protection ................................................................ 77

Runtime & Cycle Count (INFO) .................................................................... 78

Changing Engineering Units ........................................................................ 78

Batch Controller Operation ............................................................................... 79

Default Batch Control Operation .................................................................. 79

Batch Control Operation Example .............................................................. 79

Manual Batch Control ................................................................................... 82

Automatic Batch Control .............................................................................. 83

Troubleshooting................................................................................................. 84

Reset Meter to Factory Defaults ................................................................... 84

Determining Software Version ..................................................................... 84

Factory Default Settings .............................................................................. 85

Troubleshooting Tips .................................................................................... 86

Page 5

PD6938 Pulse Input Flow Rate/Totalizer

Instruction Manual

Table of Figures

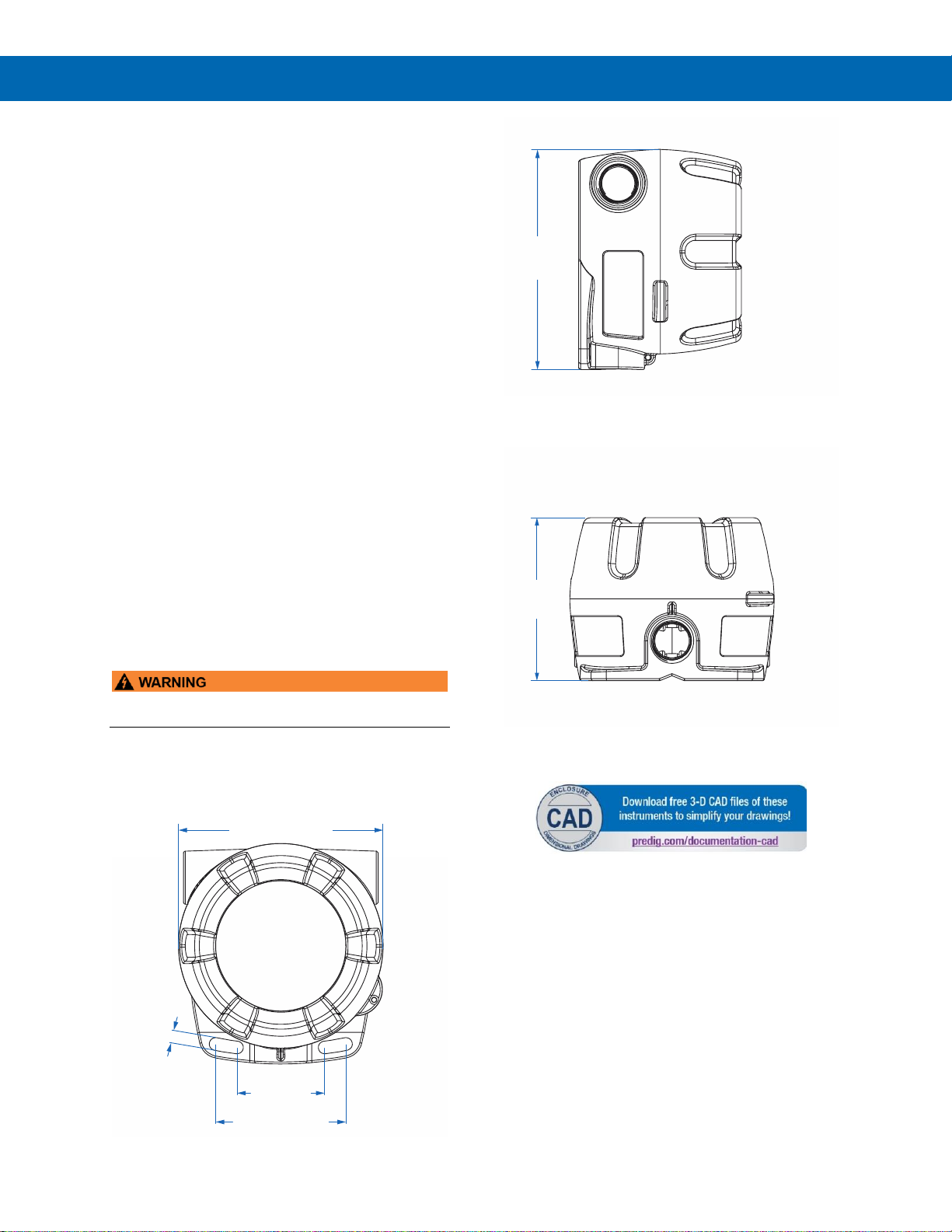

Figure 1. Enclosure Dimensions – Front View .................................................... 20

Figure 2. Enclosure Dimensions – Side View ..................................................... 20

Figure 3. Enclosure Dimensions – Bottom View ................................................ 20

Figure 4. Connector Labeling for PD6938-GP-PL-DNM ...................................... 22

Figure 5. Connector Labeling for PD6938-GP-PL-D2M ...................................... 22

Figure 6. Connector Labeling for PD6938-GP-PL-D3M ...................................... 23

Figure 7. Connector Labeling for PD6938-GP-PL-D5M ...................................... 23

Figure 8. Connector Labeling for PD6938-GP-PL-PNM ...................................... 24

Figure 9. Connector Labeling for PD6938-GP-PL-P2M....................................... 24

Figure 10. Connector Labeling for PD6938-GP-PL-P3M..................................... 25

Figure 11. Connector Labeling for PD6938-GP-PL-P5M..................................... 25

Figure 12. Connector Labeling for PD6938-GP-PL-C3N ..................................... 26

Figure 13. Connector Labeling for PD6938-GP-PL-C5N ..................................... 26

Figure 14. Connector Labeling for PD6938-GP-PL-R3N ..................................... 27

Figure 15. Connector Labeling for PD6938-GP-PL-R5N ..................................... 27

Figure 16. Flowmeter Powered by External Supply (Active) ............................. 28

Figure 17. Flowmeter Powered by Internal Sensor Power (5 V @ 5 mA) .......... 28

Figure 18. Self-Powered Magnetic Pickup Flowmeter (Coil).............................. 28

Figure 19. Bi-Directional Flowmeter Connections .............................................. 28

Figure 20. NPN Open Collector Input ................................................................... 28

Figure 21. PNP Sensor with External Power ....................................................... 28

Figure 22. Switch Contact Input (Reed) ............................................................... 28

Figure 23. DC Power Connections ....................................................................... 29

Figure 24. Digital Input Connections ................................................................... 29

Figure 25. RS-485 2-Wire & Ground Serial Connections.................................... 29

Figure 26. RS-485 4-Wire & Ground Serial Connections.................................... 29

Figure 27. 4-20 mA Output Connections ............................................................. 30

Figure 28. Solid-State Relay Connections ........................................................... 30

Figure 29. Open Collector Output Connections.................................................. 30

Figure 30. PDA2361-R Control Station Connected to PD6938........................... 31

Page 6

PD6938 Pulse Input Flow Rate/Totalizer

Instruction Manual

Disclaimer

The information contained in this document is subject to change without notice. Precision Digital Corporation makes no representations or warranties with respect to the contents hereof; and specifically disclaims any implied warranties of merchantability or fitness for a particular purpose.

• Read complete instructions prior to installation and operation of the meter.

• This product is not recommended for life support applications or applications where malfunctioning could result in personal injury or property loss. Anyone using this product for such applications does so at his/her own risk. Precision Digital Corporation shall not be held liable for damages resulting from such improper use.

• Failure to follow installation guidelines could result in death or serious injury. Make sure only qualified personnel perform the installation.

WARNING

Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Limited Warranty

Precision Digital Corporation warrants this product against defects in material or workmanship for the specified period under

“Specifications” from the date of shipment from

the factory. Precision Digital’s liability under this limited warranty shall not exceed the purchase value, repair, or replacement of the defective unit. See Warranty Information and Terms & Conditions on www.predig.com for complete details.

Registered Trademarks

All trademarks mentioned in this document are the property of their respective owners.

Introduction

The PD6938 VantageView+ pulse input flow rate/totalizers can be installed in a variety of harsh operating environments to provide convenient and informative display of flow rate and total from any pulse output flowmeter. These instruments will accept a variety of pulse inputs, including slow pulse rates. They can be powered from a battery, 9-30 VDC, or the 4-20 mA output loop, have on-board datalogging capabilities, operate down to -40°C, and can be ordered with optional 4-20 mA output and two relays.

The PD6938, with the addition of its two optional relays, can also be used as a simple batch controller.

One of the most convenient features of these instruments is their dual-line display, which is typically used to display the flow rate on the top display and flow total, flow grand total, or a tag on the bottom display. The top display has five characters and the bottom display has eight characters for clear indication of tags, units, or alarm messages. Further enhancing the display on these instruments is a 20-segment bargraph and backlighting that can turn red during an alarm condition.

The PD6938 VantageView+ come in a rugged plastic NEMA 4X / IP66 enclosure that is designed for easy use and installation. The enclosure comes with three 3/4" NPT conduit holes and two plastic conduit plugs. Field wiring is made to removable screw terminals and the display module can be oriented in 4 different positions to accommodate different mounting configurations and requires no tools to install. The display has been designed to optimize viewing angle.

Free, PC-based, MeterView XL software that connects to the meter via a micro-USB cable is available for programming and setup of the instruments. Four CapTouch through-window buttons are available to operate the instrument without removing the cover.

All models come equipped with two open collector outputs and a digital input. There are also models available with Modbus RTU RS-485 communications, two solid-state relays, and isolated 4-20 mA analog output options. The open collector outputs are useful for alarm indication or pulse output. The digital input can be used to reset the total, to start/stop a timer/stopwatch, to start/stop a batch, and more. The relays can be programmed for alarm indication, on/off control, or simple batch control.

Page 7

PD6938 Pulse Input Flow Rate/Totalizer

Instruction Manual

Key Features

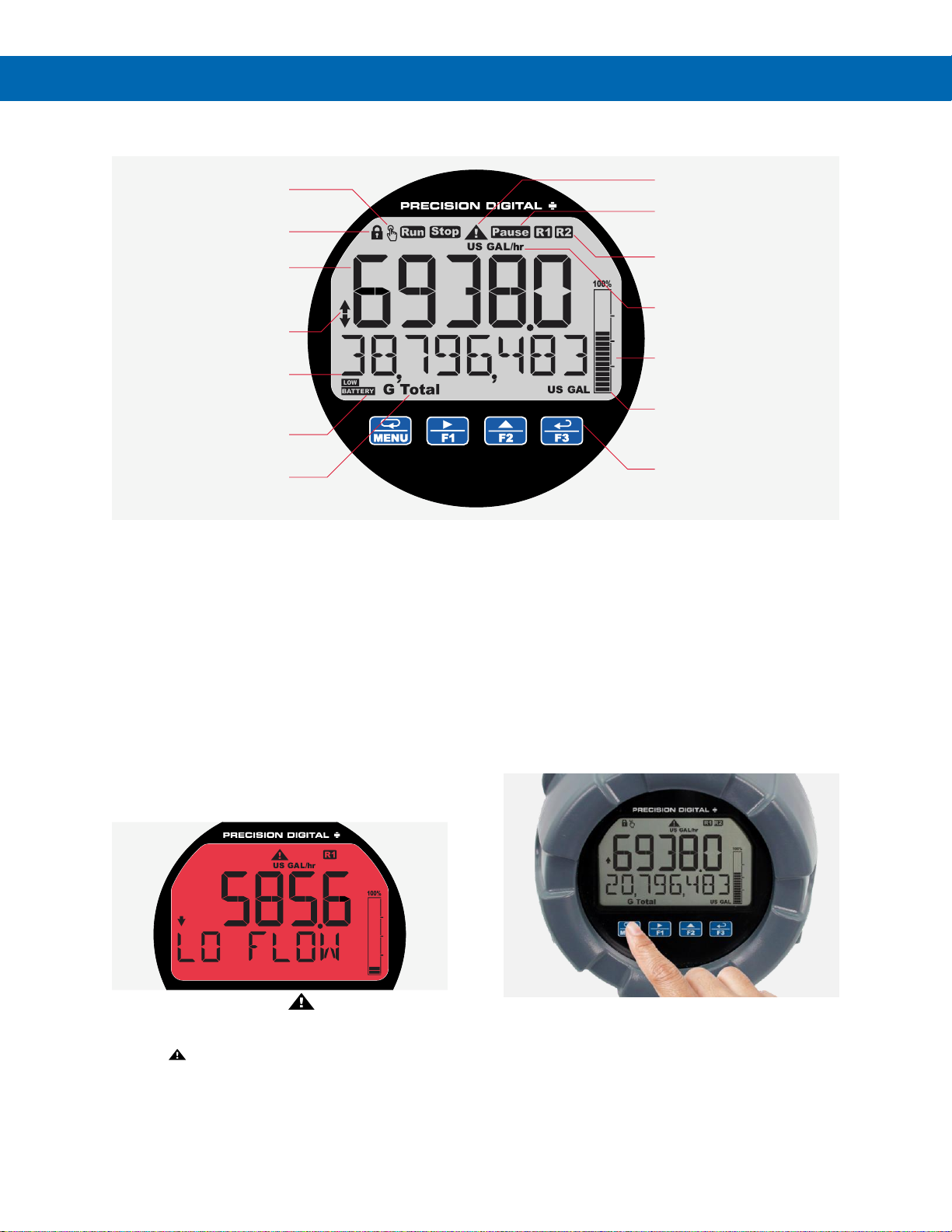

2X More Informative Display

The PD6938 display offers a 50% larger display area and is twice more informative than previous generations of pulse input meters. Featuring an alphanumeric dual-line display and a 20-segment bargraph, reading and understanding process values is easy and intuitive. The addition of status indicators provides a quick glance at alarm conditions, relays, process trends, and more. Predefined display units give users even more display flexibility. Plus, the high contrast backlit LCD display is readable from far away and under various lighting conditions.

Alarm Indication

When an alarm occurs, the display can be programmed to turn red, flash, and display an alarm indicator . In addition, a unique custom alarm message for each of the two relays and two open collectors can be displayed on the bottom display. These features can be activated even if no relay or open collector is connected.

CapTouch Through-Window Buttons

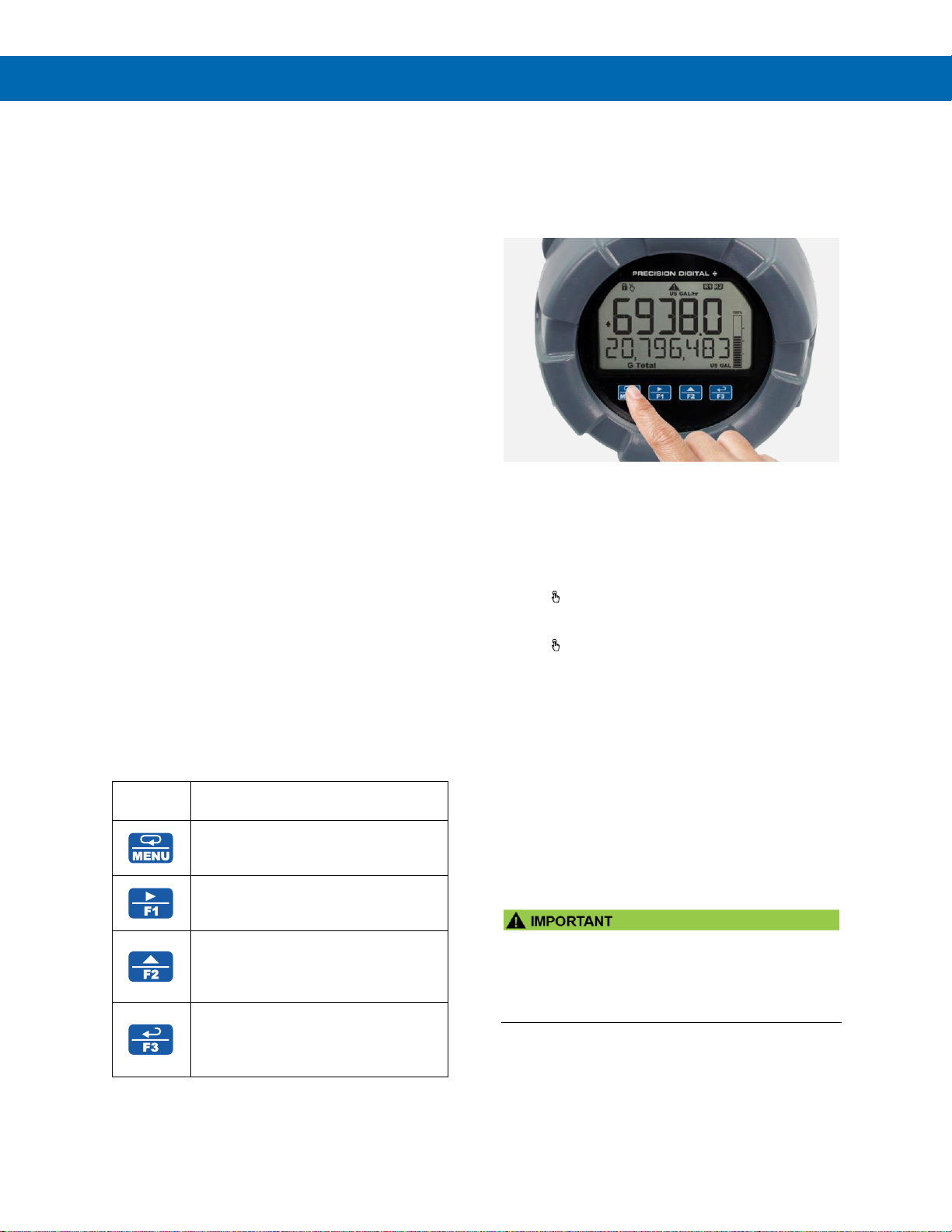

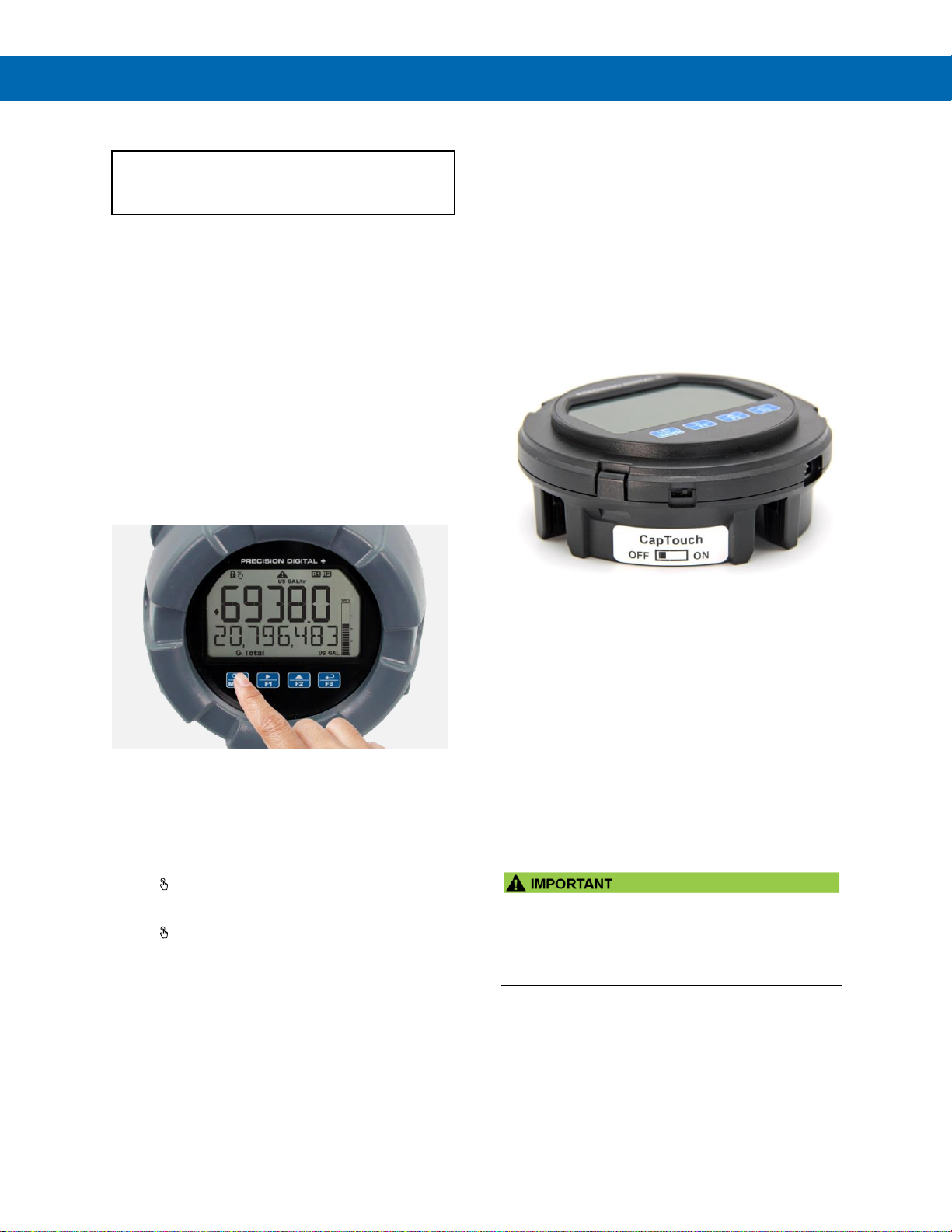

The PD6938 is equipped with four capacitive sensors that operate as through-window buttons so that it can be operated without removing the cover (and exposing the electronics) in a harsh operating area. CapTouch buttons are designed to work under any lighting condition and to protect against false triggering. They can be turned off for security via a switch on the display module.

CapTouch buttons have two modes of operation: Normal and Delayed. Delayed mode prevents accidental trigger of the buttons. In the Delayed mode, the buttons enter into a low sensitivity state (sleep) and they ignore quick button presses after 20 seconds of inactivity. To wake up the buttons, press and hold any button for more than 2 seconds, the buttons respond normally.

Solid State Relays 1-2 Indicators

Predefined Rate Units

Password Protection

Trend

Indicators

CapTouch Buttons

Self-Calibration

Battery Status Indicators

Total or Grand Total

Indicator

Alarm Indicator

Batch Control Indicators (Run, Stop, Pause)

20-Segment Bargraph

Two-Color Backlight

CapTouch Buttons / Function Keys

Five 12-Segment

Alphanumeric Characters

0.7" (17.8 mm)

Eight 14-Segment

Alphanumeric Characters

0.4" (10.2 mm)

Page 8

PD6938 Pulse Input Flow Rate/Totalizer

Instruction Manual

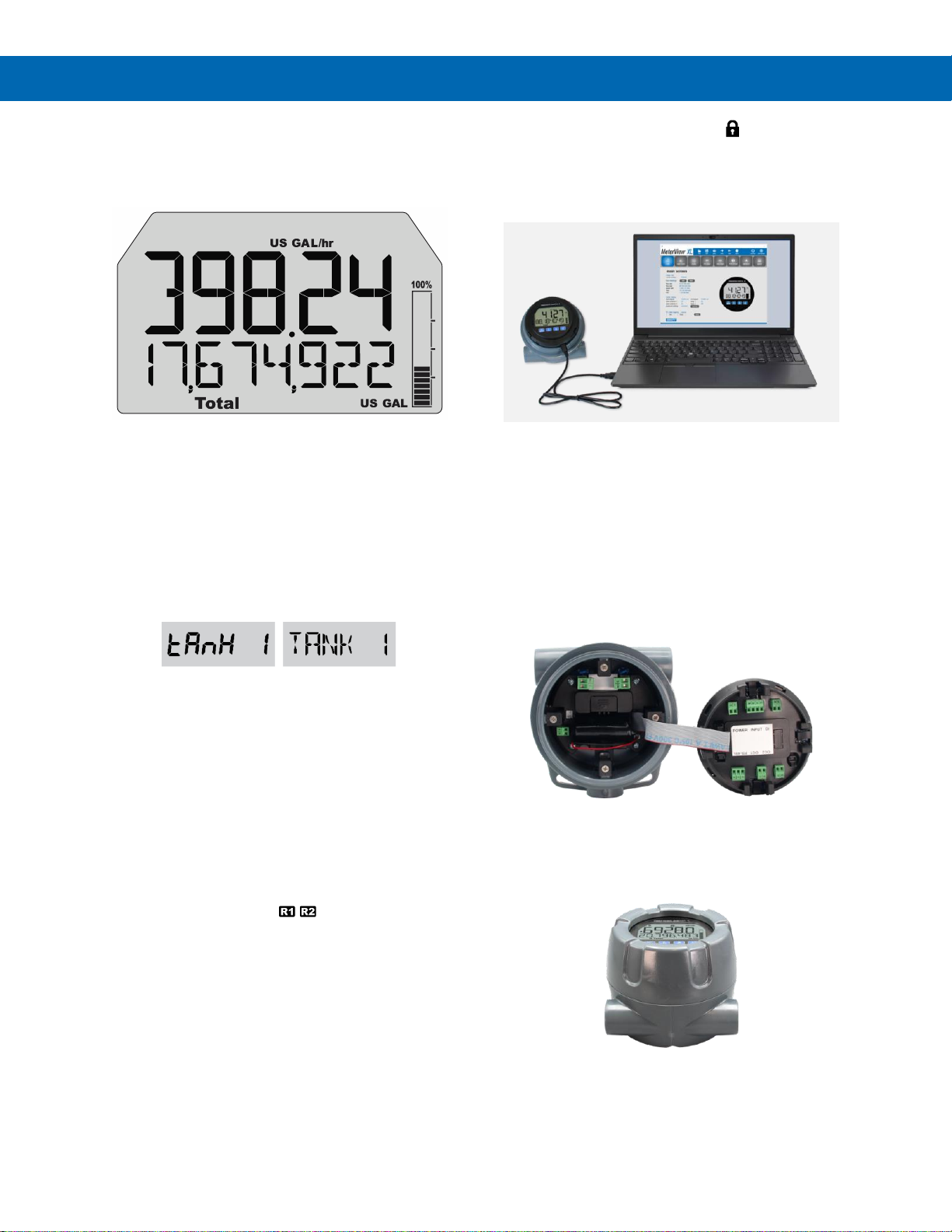

Commas on 8-Digit Totalizer for Easy Reading

It may seem like a simple thing, but adding commas to an eight-digit number makes it easier to read:

Predefined and Custom Units

The PD6938 flow rate/totalizer has the most common predefined rate and volume units. If the desired unit is not available, the user can program a custom unit.

14-Segment Characters

Notice how much better letters like “T”, “N” and “K” appear as 14-segment characters on the bottom display vs. 7-segment characters found on other meters.

Enable / Disable Backlight

The backlight may be enabled or disabled using the System - Backlight menu. The backlight is enabled by default, and it is set up to timeout after 10 seconds when battery power is used. See Enabling or Disabling the Backlight (BACKLITE) on page 75 for details.

Multiple Outputs

• Two open collector outputs (standard)

• Two solid-state relays (optional)

• One 4-20 mA output (optional)

The open collector outputs and relays generally operate in the same manner, with the major exception being the open collectors are not available for batch control and the relays are not available with pulse features. The open collectors and relays can be controlled either automatically or manually.

The isolated analog output signal can be configured to represent the process variable (flow rate, total, or retransmit). It can also be reverse scaled such that

the meter’s high calibration value outputs 4 mA and the meter’s low calibration outputs 20 mA.

Password Protection

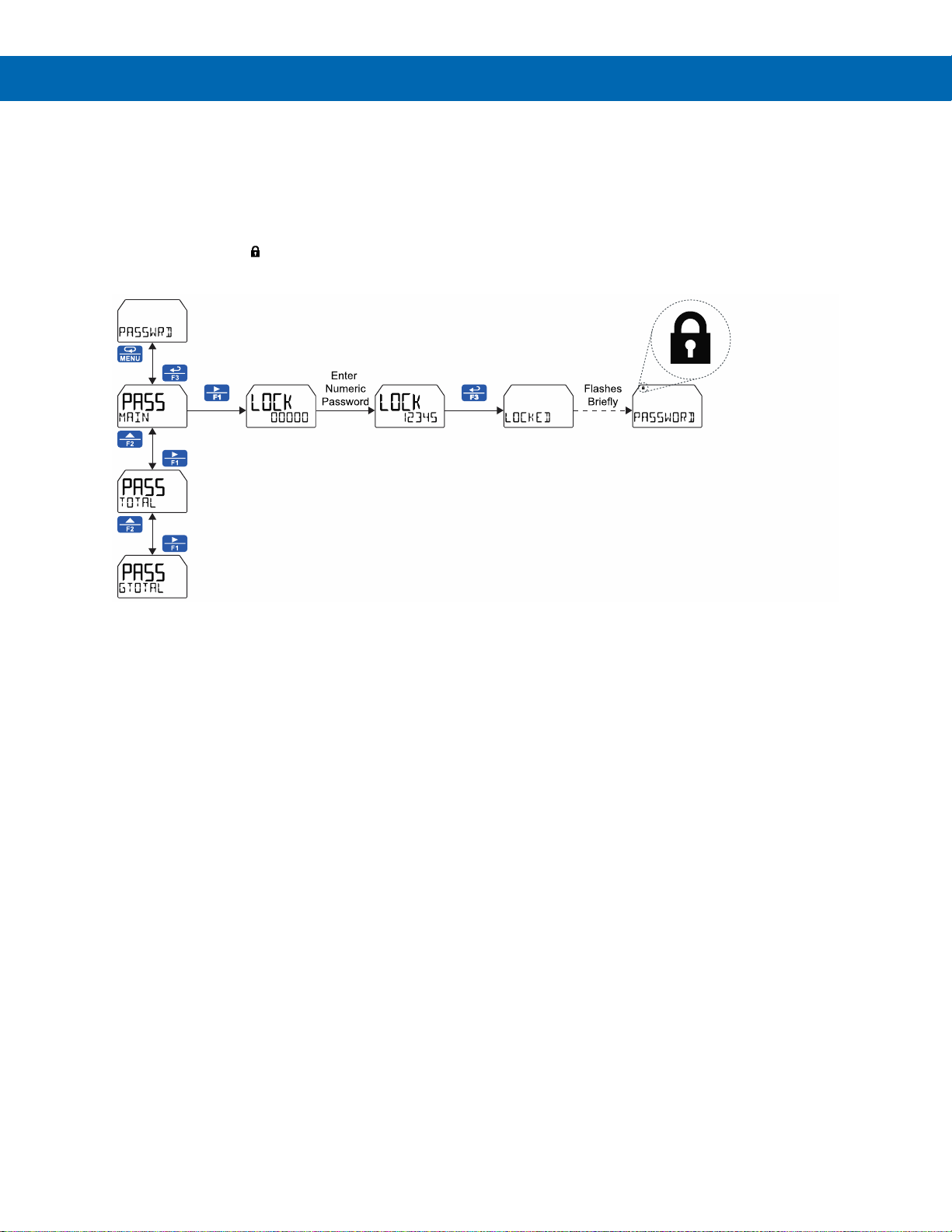

A password can be set up for programming security to prevent unauthorized changes to the programmed parameter settings.

Free MeterView XL Programming Software

The fastest and easiest way to program the meter is using the free Meterview XL programming software. This software greatly simplifies the programming process and allows the user to save configuration files for later use.

The meter connects to the PC via a provided microUSB cable and is powered by the USB connection, so no additional power is needed during programming.

Easy Wiring & Service

The PD6938 has been designed for easy wiring and servicing. All connections are made to removable screw terminal blocks. There are no exposed printed circuit boards.

Wide Viewing Angle

The window and display module have been optimized to provide a wide viewing angle of approximately ±40°; nearly twice that of the competition.

Page 9

PD6938 Pulse Input Flow Rate/Totalizer

Instruction Manual

Modern and Practical Enclosure

The PD6938 NEMA 4X, IP66 plastic enclosure provides serious protection from the elements, high impact, corrosion, dust, etc.

Direct Mounting

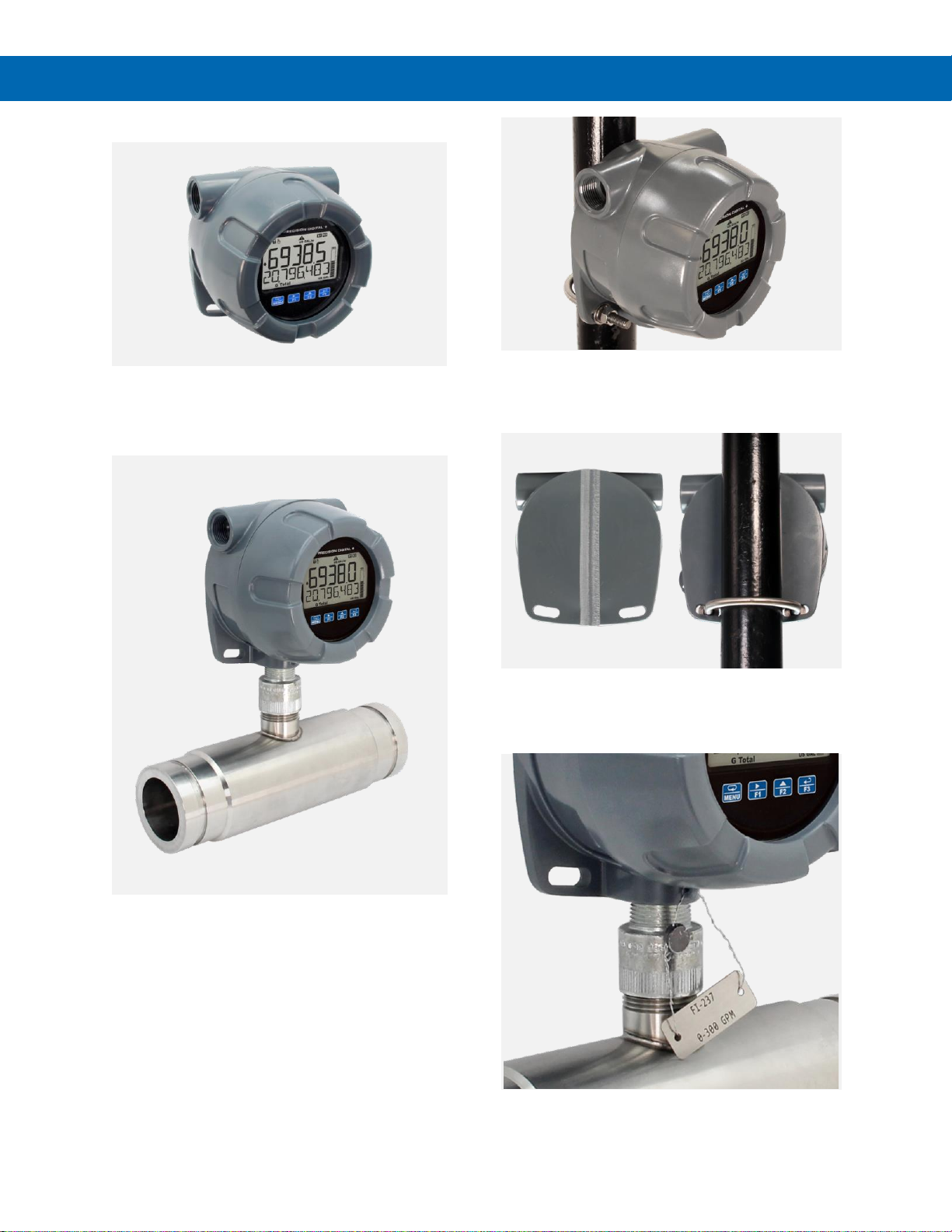

The PD6938 features a bottom 3/4" NPT threaded conduit opening, which allows easy mounting directly to a flowmeter. This image shows a battery powered PD6938 mounted to a turbine flowmeter. Even though it is battery powered, it has a backlight that turns on only when CapTouch buttons are in use.

Built-In Flange for Pipe Mounting The built-in mounting flange allows easy mounting to

walls or pipes.

A slot on the back makes it easy to center the unit on a pipe. There are three 3/4" NPT threaded conduit holes for wiring.

SS Tag Attaching Loop

The enclosure is also equipped with a loop to easily attach a PDA-SSTAG stainless steel tag.

Page 10

PD6938 Pulse Input Flow Rate/Totalizer

Instruction Manual

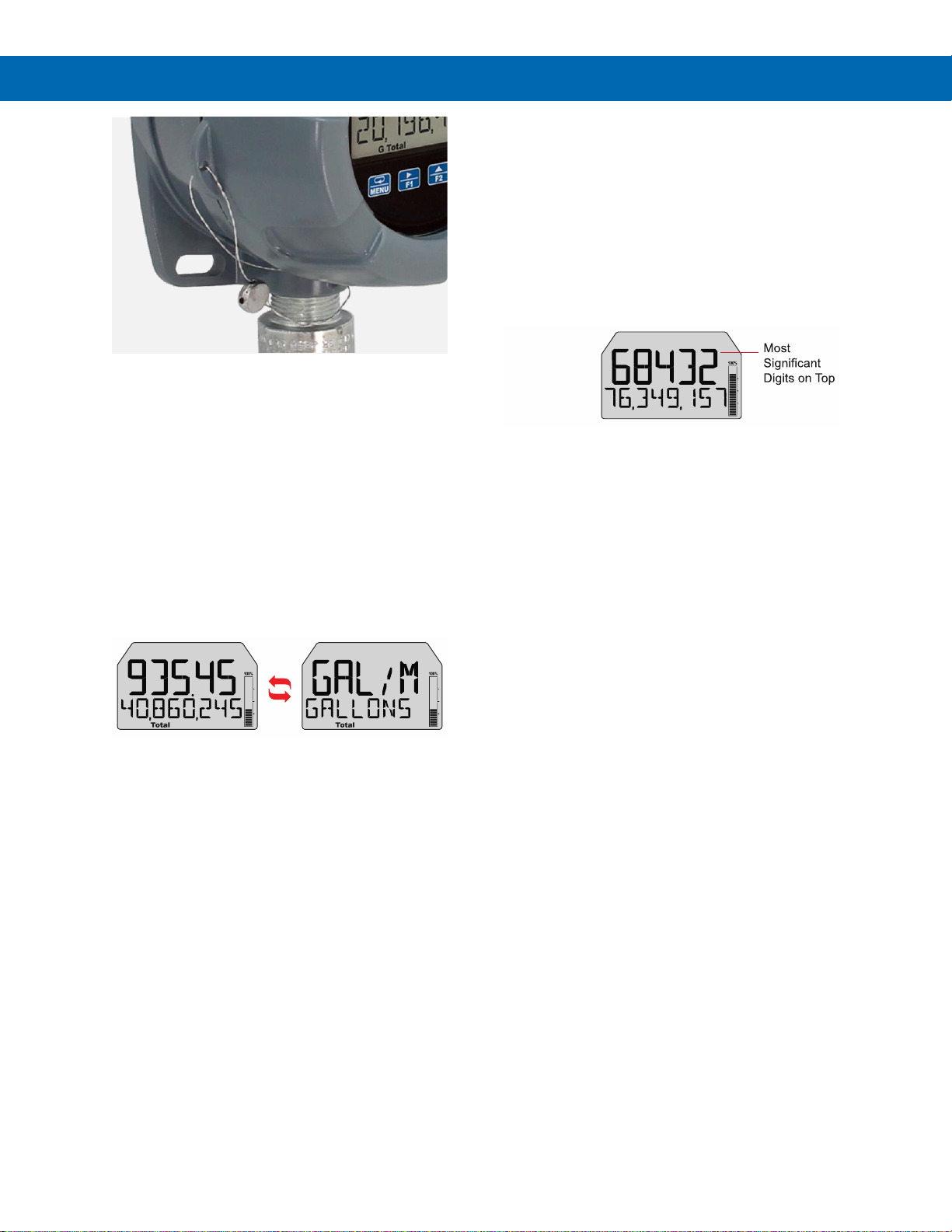

Tamper-Proof Capability

The instrument can be made tamper-proof by inserting a wire through the built-in loop on the base of the enclosure and a hole in the lid of the enclosure and securing this wire with a lead seal.

Rate/Totalizer Features

Display Flow Rate & Total at the Same Time

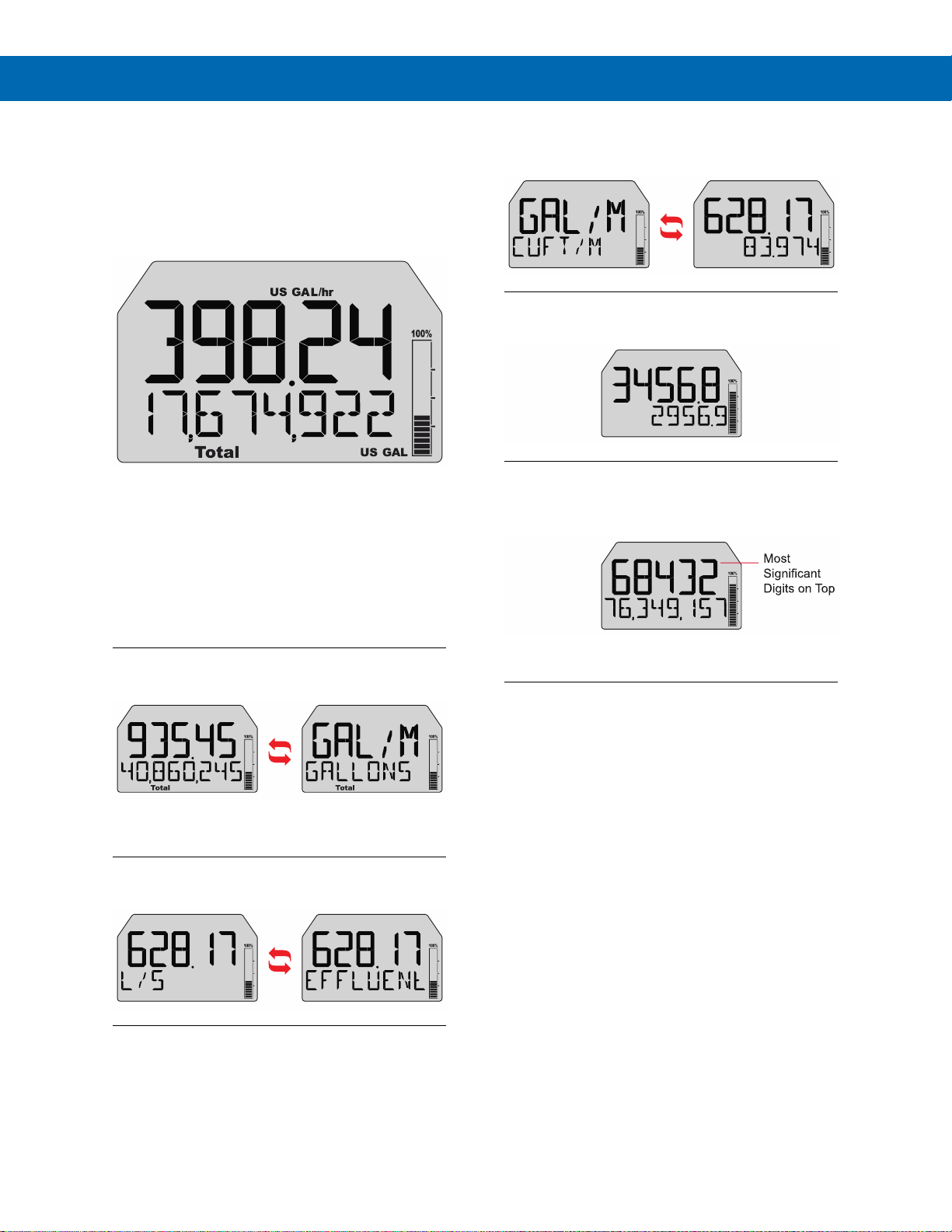

The PD6938 can display flow rate and total at the same time. In addition, the meter can toggle between the rate and total and their corresponding units as the following example illustrates.

Total Limit & Initial Value

The Advanced – Total Count menu allows the digit limit to be selected between 8-digit (bottom display only) and 13-digit (uses top and bottom display to display the full number). The user can set the initial value at which the total and grand total should start counting.

Using 13 Digits to Display Total

The top and bottom displays can be set up to display a 13-digit total.

Note: The number above should be read as

6,843,276,349,187

Total & Rate in Different Units

The user can select to display total in different units than the rate. For instance, a customer could measure flow rate in gallons per minute and total in acre-feet by simply selecting AF (acre-feet) units for the total. Additionally the user can enter a custom unit and conversion factor to display the total in any unit of measure.

Rate in Units Per Second, Minute, Hour, or Day

The user may select a rate time base in units per second, minute, hour, or day. The time base is the amount of time over which the rate parameter will totalize. For example, if the rate was 10 gallons/min (and stayed constant for one minute), then the total would increase by 10 every minute.

4-20 mA Output for Rate or Total

The 4-20 mA output can be assigned to the rate or the total.

Total Stored in Non-Volatile Memory

Total and grand total values, and all programmed settings are stored in non-volatile memory for a minimum of ten years if power is lost.

Page 11

PD6938 Pulse Input Flow Rate/Totalizer

Instruction Manual

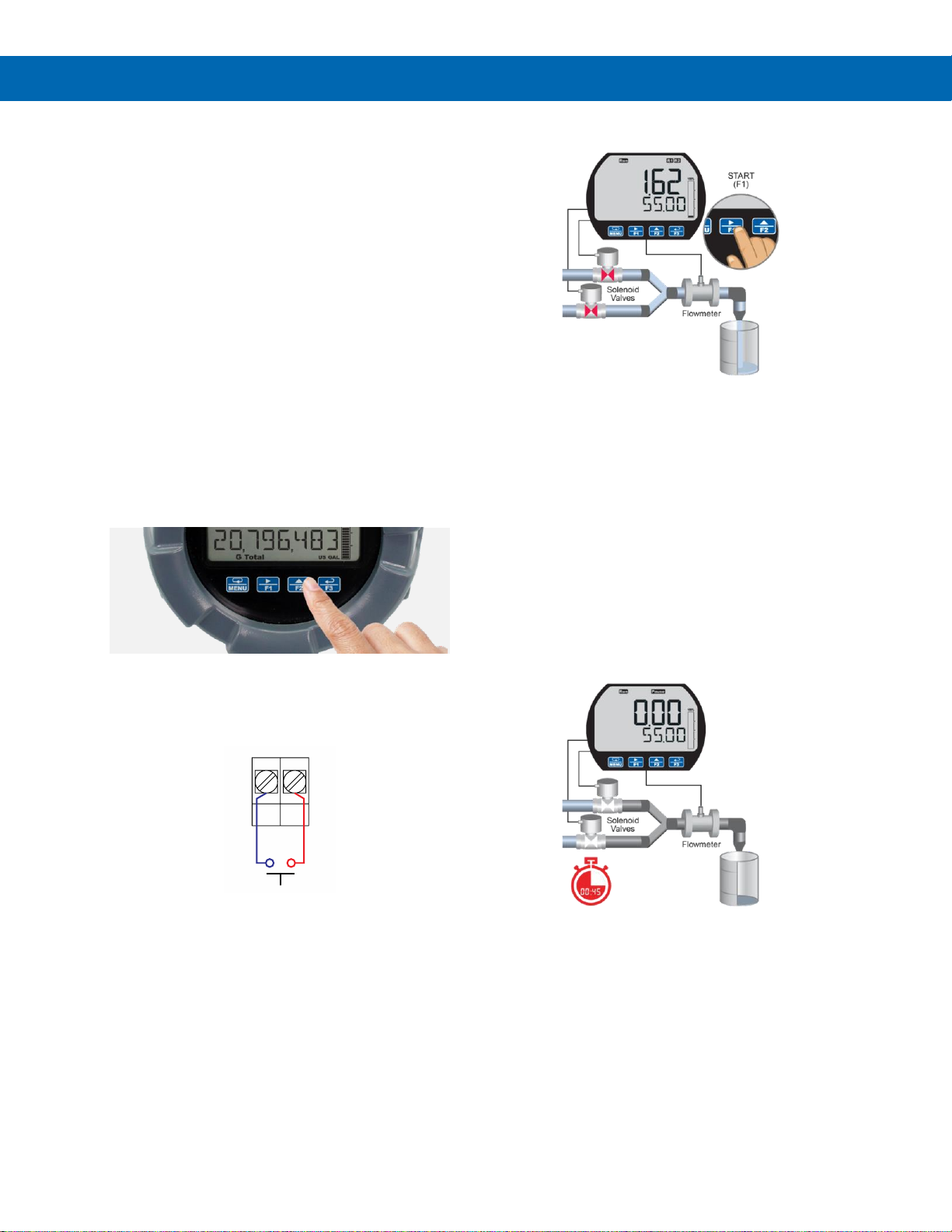

Total Reset Capabilities

The total and grand total can be reset using a CapTouch button, an external contact closure on the digital input, or MeterView XL software. In addition, both total and grand total reset can be password protected to prevent unauthorized resets.

Time of Day Total Reset

The total and grand total can be set up to reset at a time of day every day or any day of the week. The previous total and grand total are saved prior to applying the reset command. The previous totals can be read via the F1 function key and the Modbus registers.

There are four reset times that can be set up, all choices allow specifying the reset day and time.

Total Reset via CapTouch Button

The CapTouch function key F2 is set up to reset the total. If reset grand total is enabled, it is possible for the user to reset either the total or the grand total without removing the cover or the need for external devices.

Total Reset via Digital Input

The PD6938’s digital input can also be used to reset the total or grand total.

Total Reset Password Protection

Total and grand total passwords can be set to prevent resetting the total or grand total unless a password is entered. Grand total reset can be disabled through the meter interface, and it can also be permanently disabled.

Non-Resettable Grand Total

The user can set up the grand total to be non-resettable by selecting YES at the PERMLOC menu; see page 65 for details. Once this is done, the grand total can never be reset.

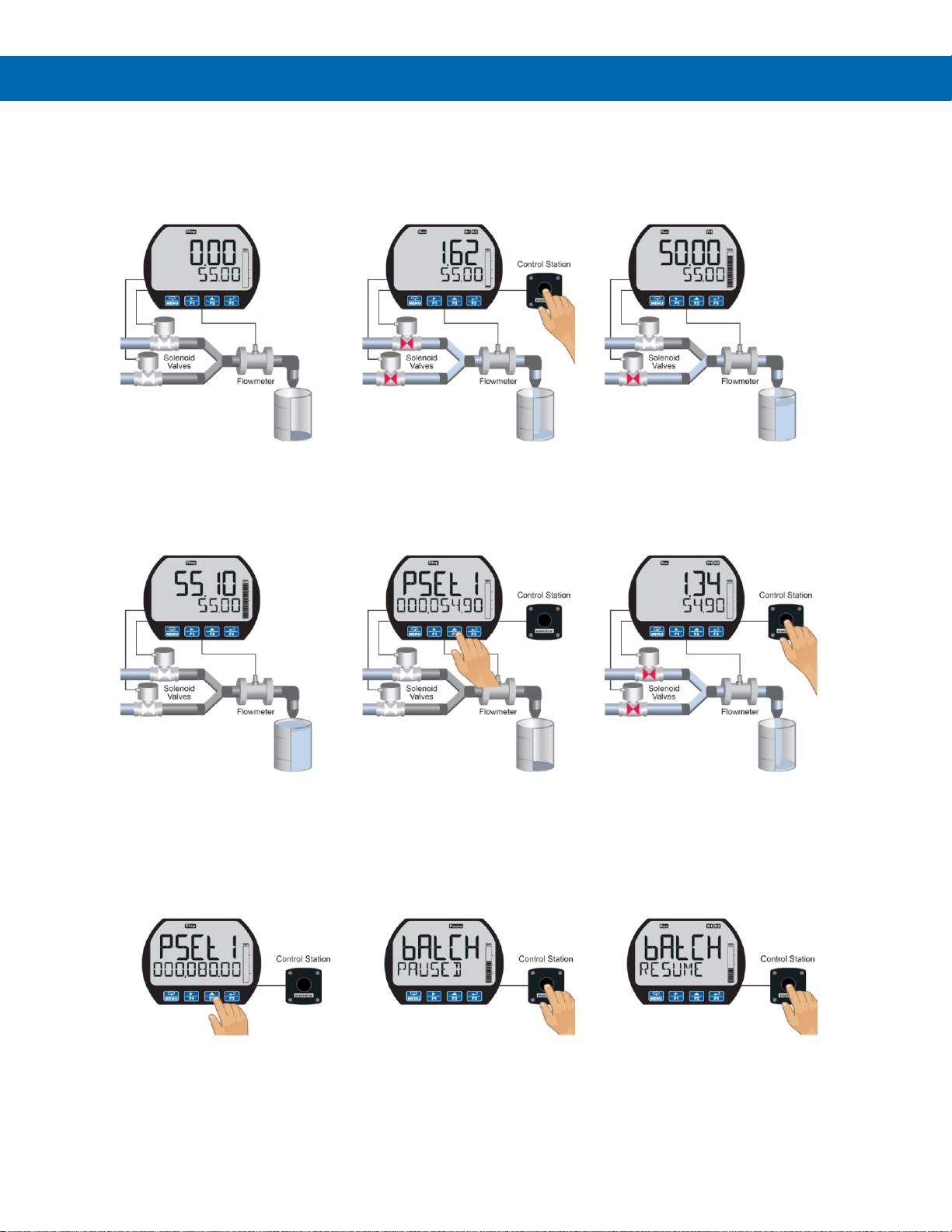

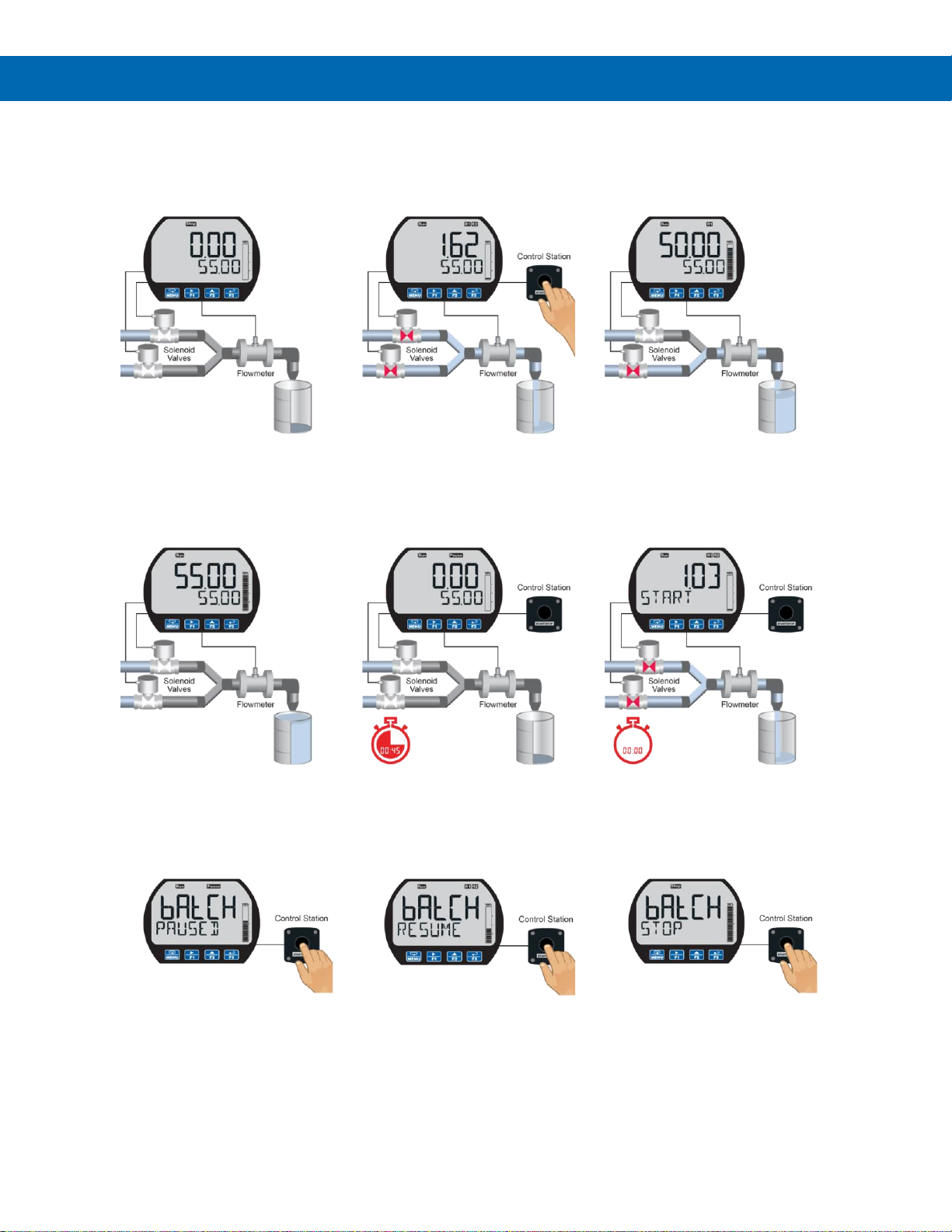

Batch Control Capabilities

The meter can be equipped with two solid-state relays that may be set up for batch control. Selecting batch control for relay 1 enables the batching features on the meter. The top display changes to show the total and the bottom display changes to show the batch preset. The function keys also change for batch control functions such as F1 starts a batch, F2 opens the preset menu to allow the preset value to be changed, and F3 stops the currently running batch. Enabling batch control for relay 1 allows access to the batch menu under relay 2. The second relay may be programmed as a preclose relay or as another batching relay with its own preset amount.

Manual or Automatic Operation

Batching can be set to either manual or automatic operation.

If set to automatic, then a delay before the next batch starts must be programmed.

Count Up or Down Batching

The batch total can be set to count up or down.

G+

Page 12

PD6938 Pulse Input Flow Rate/Totalizer

Instruction Manual

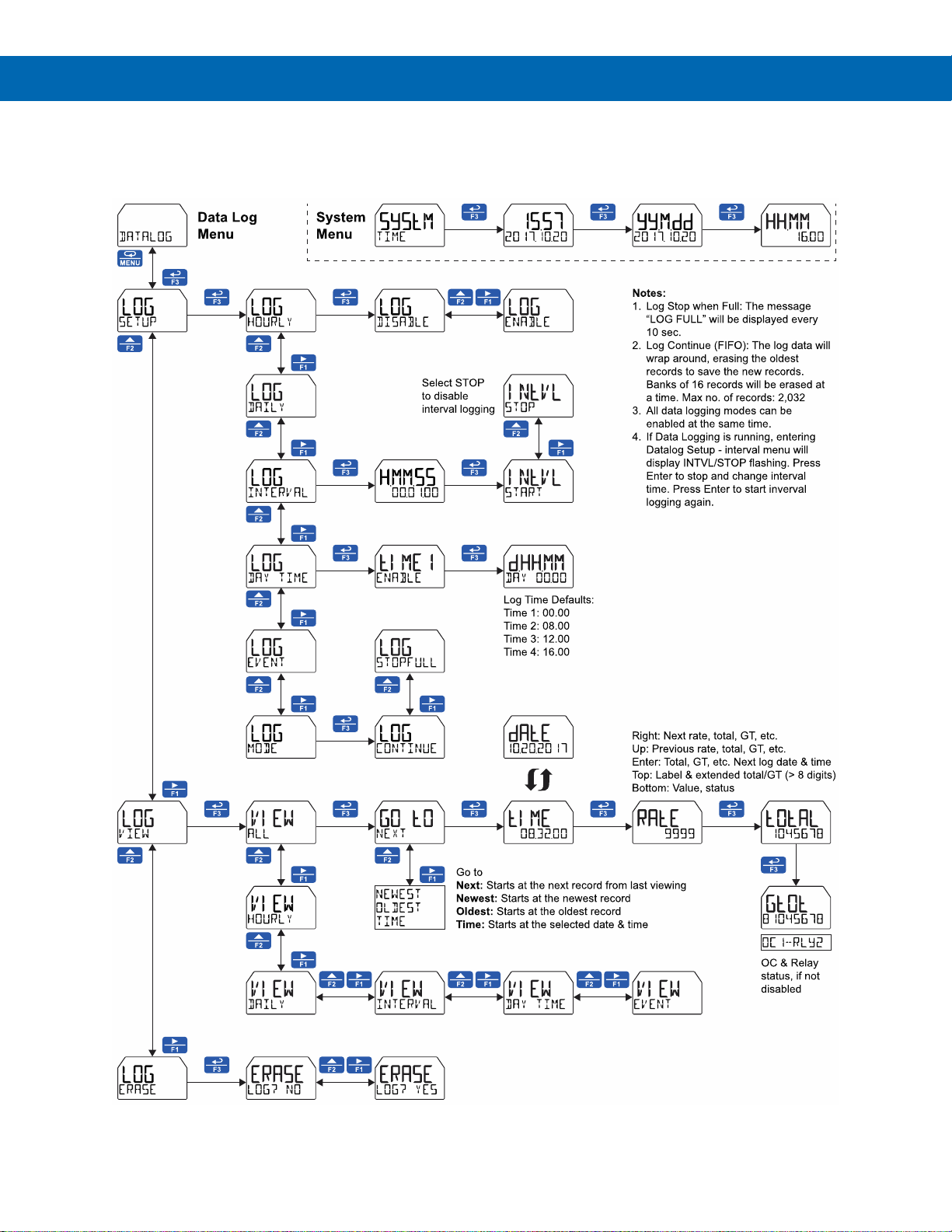

Data Logging

The PD6938 is capable of data logging up to 2,032 records, each containing date, time, rate, total, grand total, and relay & open collector states. The user can choose what information to log, when, and how to log it. The log file can be downloaded using the MeterView XL software and it can be saved in .csv file format.

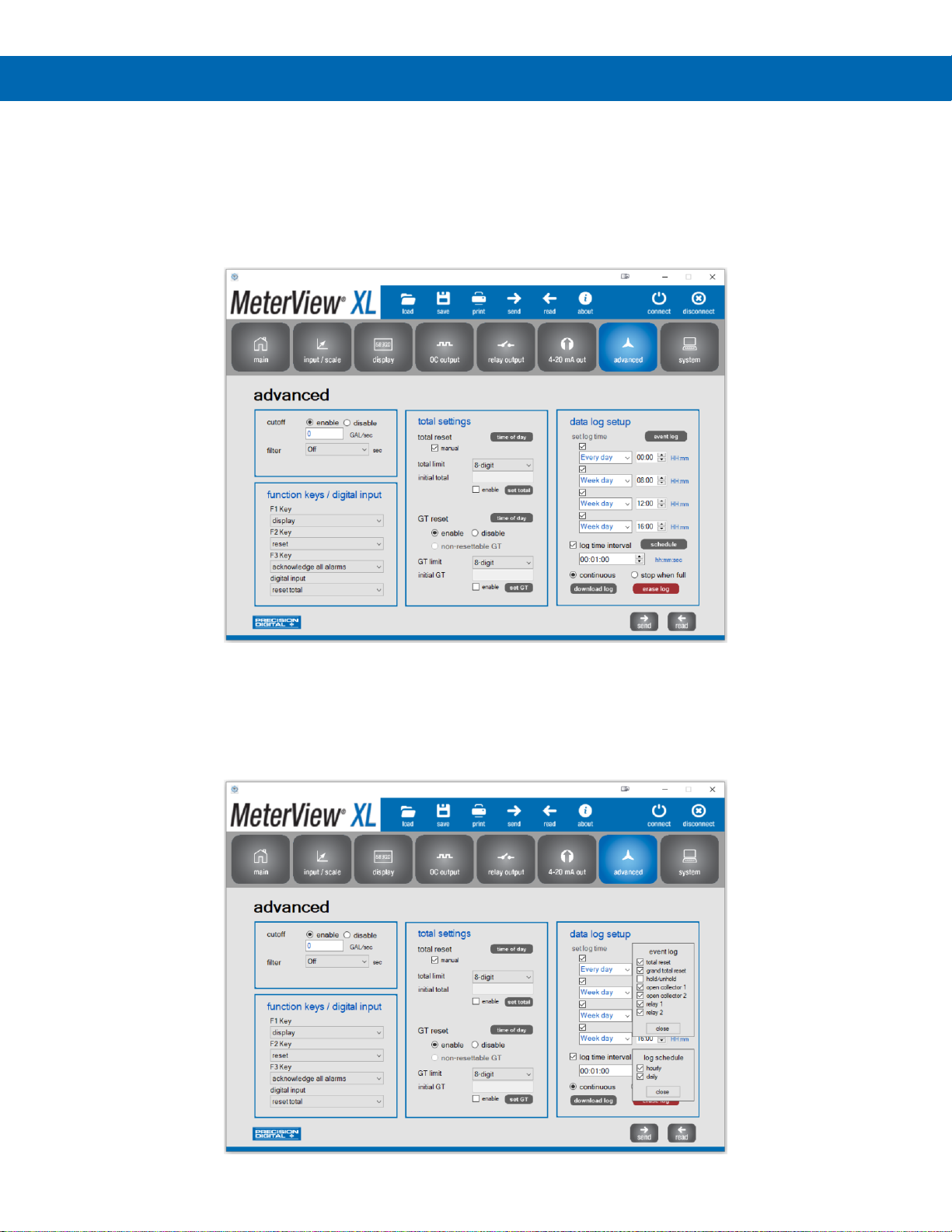

The easiest way to set up the data logger is using the MeterView XL software connected via the micro-USB port or the RS-485 Modbus connection. There are many ways to log data using the on-board memory. Use the MeterView XL software to download the data or a Modbus application.

• Log time: Every day or any day of the week

• Log time interval: Select the logging interval

• Select to log continuously or stop when full

Data Log Example

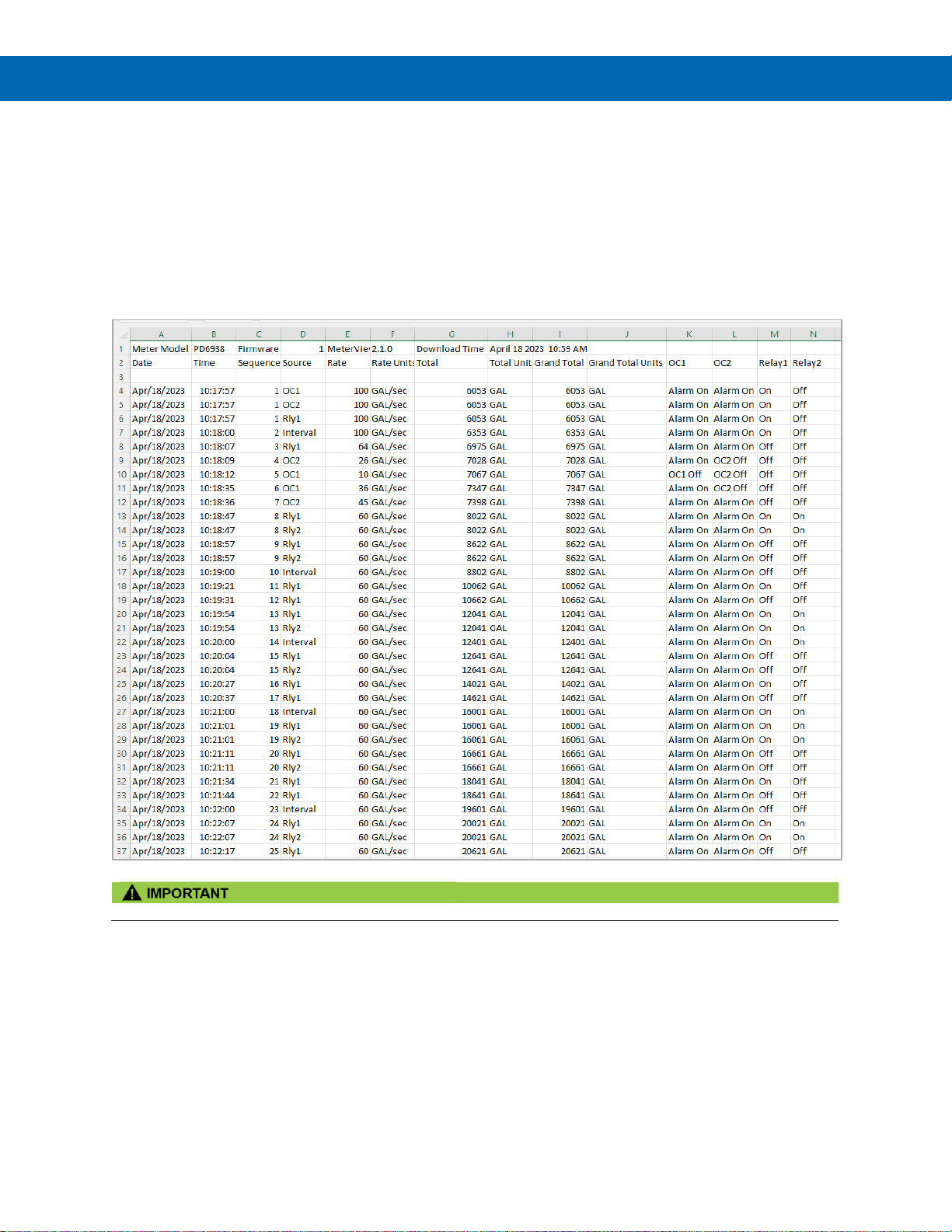

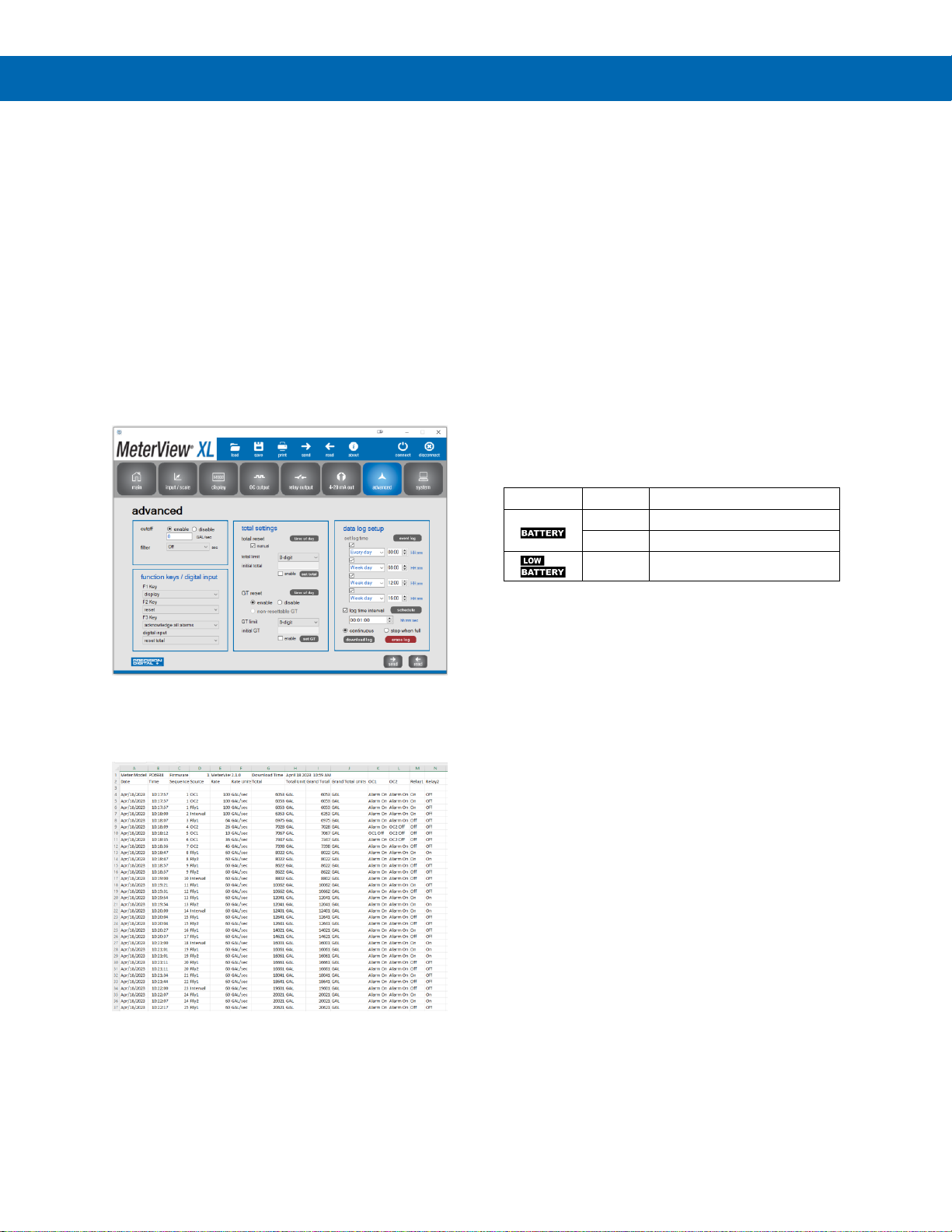

The log file is saved in .csv file format and it contains all the information selected in the data log setup.

Power Options

The PD6938 offers a wide range of power options including DC with battery backup, DC only, output loop, or output loop with battery backup. See Specifications for details on each of the power options available.

Battery Backup

Select models are available with a battery backup power option. For these models, the primary power source is supplied by either DC power or the output loop, depending on the model. The battery is used during battery backup operation. If there is a power failure of the primary power source, the battery will instantly take over powering the meter. There will be no display interruption nor any information loss.

Battery Status Indication

Battery indicators on the display alert users of the power status of the PD6938.

Indicator

State

Description

Flashing

Meter checking battery status

Steady

Meter using battery power

Flashing

Low battery

Designed for Long Battery Life

The PD6938 is designed with power savings in mind to help extend battery life.

LCD Sleep Mode

LCD sleep mode turns the LCD off after a user programmable amount of time, while all inputs and outputs continue working. Press any button for 2 seconds to wake up the display.

CapTouch Delayed Mode

In Delayed mode, the buttons enter into a low sensitivity state (sleep) after 20 seconds of inactivity. Press any button for 2 seconds to wake up the buttons.

Momentary Backlight

The backlight is enabled by default. If the meter is battery powered, then the backlight is automatically set up to momentarily turn on for 10 seconds when any button is pressed.

Turn Meter Off

To extend battery life even more, the meter can be turned off completely when it is not in use. Press and hold the Menu button for 5 seconds to turn the meter on or off and follow the on-screen instructions.

Page 13

PD6938 Pulse Input Flow Rate/Totalizer

Instruction Manual

Ordering Information

-GP Models (General Purpose)

Plastic Enclosure

Loop Output Powered4

Model

Description

PD6938-GP-PL-C3N

Pulse Input Field-Mount Flow Rate/Totalizer, 4-20 mA Analog Output

PD6938-GP-PL-C5N

Pulse Input Field-Mount Flow Rate/Totalizer, Two Solid-State Relays & 4-20 mA Analog Output

DC Powered3

Model

Description

PD6938-GP-PL-DNM

Pulse Input Field-Mount Flow Rate/Totalizer, No Options

PD6938-GP-PL-D2M

Pulse Input Field-Mount Flow Rate/Totalizer, Two Solid-State Relays

PD6938-GP-PL-D3M

Pulse Input Field-Mount Flow Rate/Totalizer, 4-20 mA Analog Output

PD6938-GP-PL-D5M

Pulse Input Field-Mount Flow Rate/Totalizer, Two Solid-State Relays & 4-20 mA Analog Output

DC Powered with 3xAA Battery Pack (Primary or Backup)3

Model

Description

PD6938-GP-PL-PNM

Pulse Input Field-Mount Flow Rate/Totalizer, No Options

PD6938-GP-PL-P2M

Pulse Input Field-Mount Flow Rate/Totalizer, Two Solid-State Relays

PD6938-GP-PL-P3M

Pulse Input Field-Mount Flow Rate/Totalizer, 4-20 mA Analog Output

PD6938-GP-PL-P5M

Pulse Input Field-Mount Flow Rate/Totalizer, Two Solid-State Relays & 4-20 mA Analog Output

Loop Output Powered with 3xAA Battery Pack (Backup)4

Model

Description

PD6938-GP-PL-R3N

Pulse Input Field-Mount Flow Rate/Totalizer, 4-20 mA Analog Output

PD6938-GP-PL-R5N

Pulse Input Field-Mount Flow Rate/Totalizer, Two Solid-State Relays & 4-20 mA Analog Output

Notes:

1. All VantageView+ models come with bargraph, two open collector outputs, and one digital input standard.

2. The meter is supplied with three 3/4" NPT conduit holes and two plastic conduit plugs.

3. Modbus is standard on all DC powered models.

4. Modbus is not available with loop-powered models.

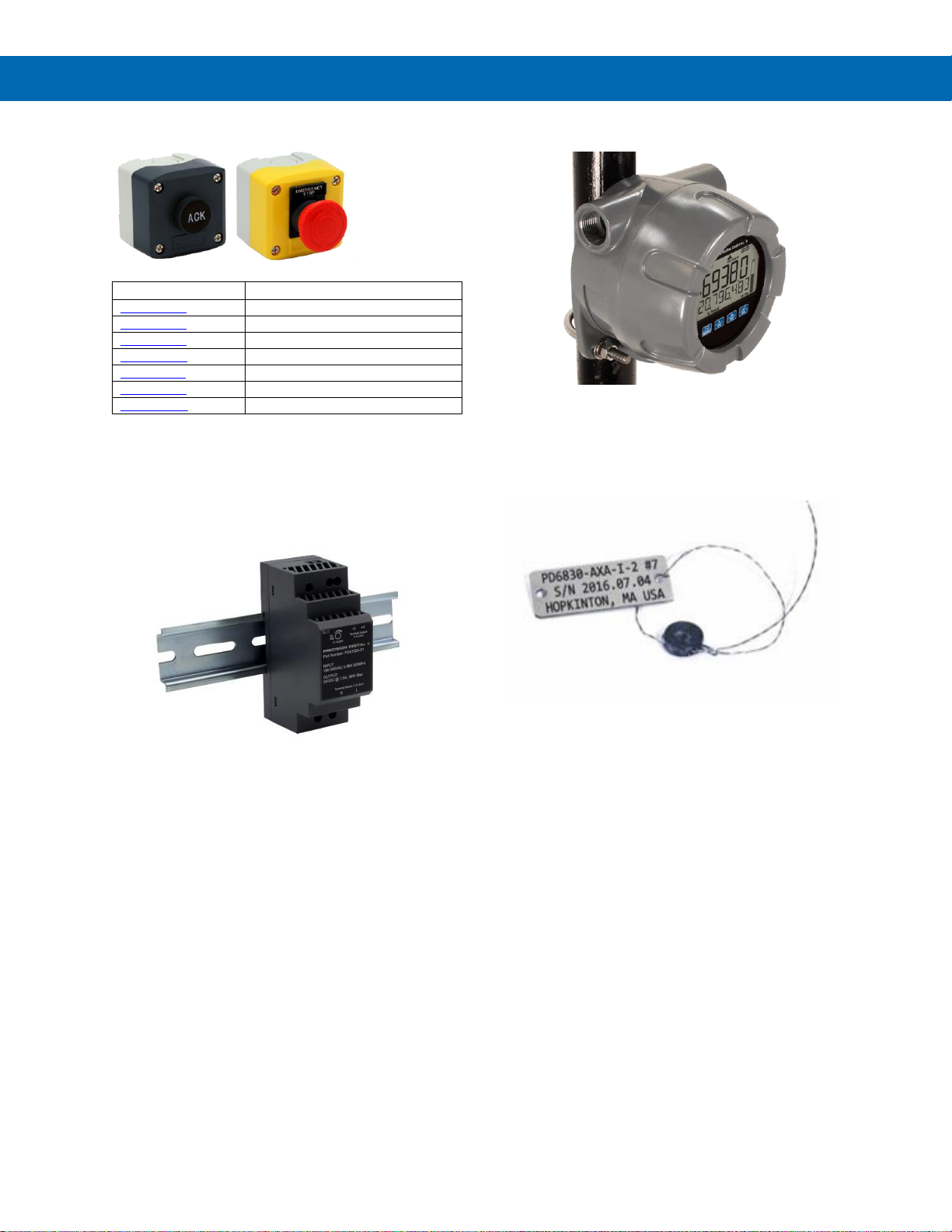

Accessories

Model

Description

PDABAT36AA3-PACK

3.6 V Lithium Battery Pack, 3xAA-Cell

PDAPLUG75P

3/4" Plastic Conduit Plug (Two Plugs Included with Meter)

PDA8485-I

USB to RS-485 Isolated Converter

PDA1002

6" DIN Rail Mounting Kit

PDA1024-01

24 VDC Transmitter Power Supply for DIN Rail

PDA6846

Steel 2" U-Bolt Kit. All Material: Zinc Plated Steel; (1) U-Bolt for 2" Pipe with (2) Washers, (2) Lock Washers, and (2) Nuts

PDA6846-SS

Stainless Steel 2" U-Bolt Kit. All Material: Stainless Steel; (1) U-Bolt for 2" Pipe with (2) Washers, (2) Lock Washers, and (2) Nuts

PDA-MICROUSB

Micro-USB PC Programming Cable (supplied)

PDA-SSTAG

Custom Stainless Steel Tag (see website for convenient ordering form)

PDA-BUTTON

Momentary Pushbutton

Page 14

PD6938 Pulse Input Flow Rate/Totalizer

Instruction Manual

PDA2360 Plastic Control Stations

Model

Description

PDA2360-E

Emergency Button

PDA2361-A

Ack Button

PDA2361-B

Blank Button

PDA2361-R

Reset Button

PDA2361-T

Tare Button

PDA2361-S

Stop Button

PDA2361-Q

Silence Button

Note:

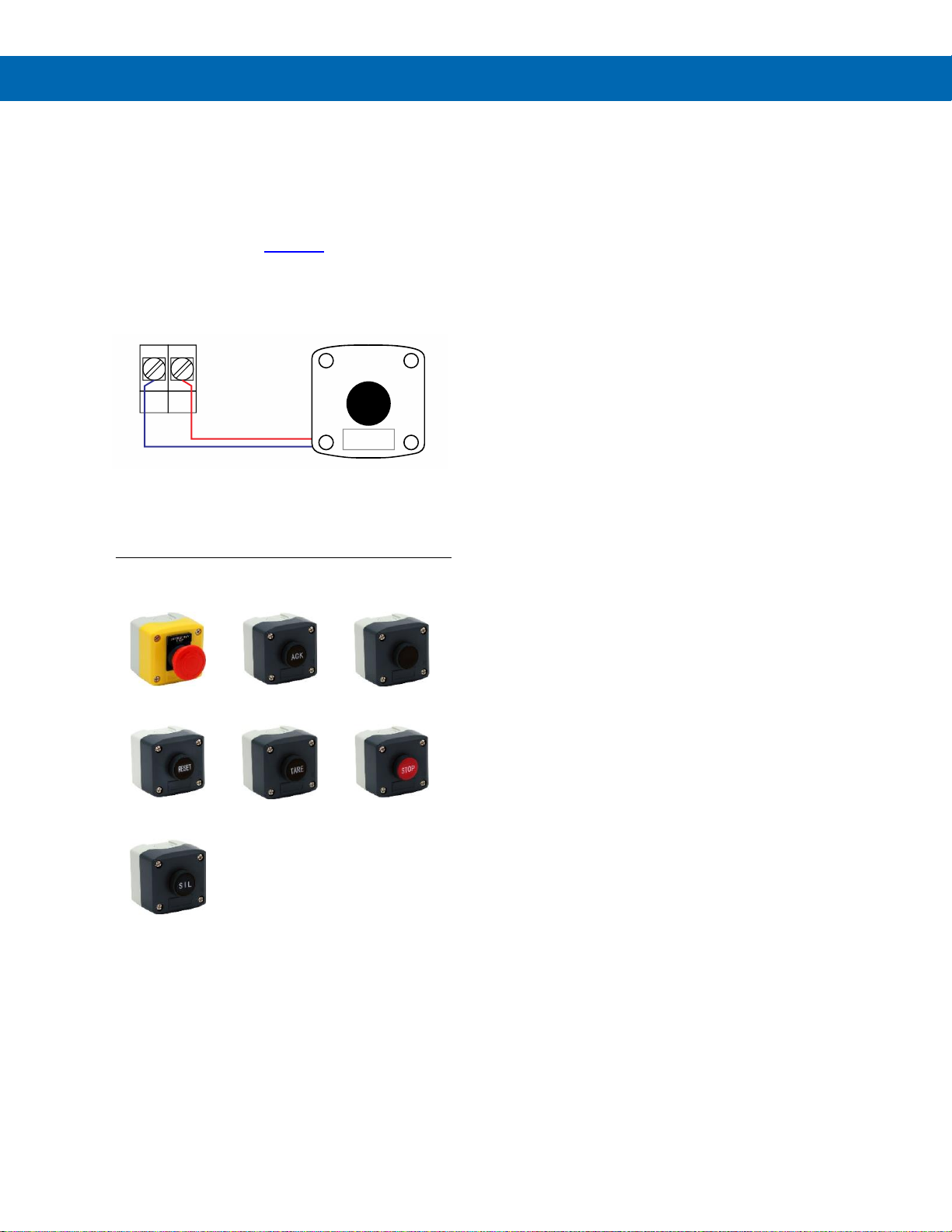

Control stations can be connected directly to the meter’s

Digital Input terminals labeled G and +. See Remote Operation of Meter on page 31 for details.

PDA1024-01 24 VDC Power Supply

The PDA1024-01 is a DIN rail mounted 1.5 A, 24 VDC power supply that can be used to power the PD6938 and the 4-20 mA output.

PDA6846 2" U-Bolt Kits

The PDA6846 U-Bolt Kits provide a convenient way to mount the meter to 1.5" or 2" pipes. They are available in steel and stainless steel.

PDA-SSTAG Stainless Steel Tag

The PDA-SSTAG is a laser etched stainless steel tag that can be customized with three lines of text. Each tag comes with a stainless steel wire and lead seal for easy mounting wherever you need.

Page 15

PD6938 Pulse Input Flow Rate/Totalizer

Instruction Manual

Specifications

Except where noted all specifications apply to operation at +25°C.

Display

Dual-line LCD with backlight. Both lines: alphanumeric Top: 0.7" (17.8 mm) 5 digits, 12-segment Bottom: 0.4" (10.2 mm) 8 characters, 14-segment Display may be programmed to turn red and flash a user-defined message on alarm condition.

LCD Sleep

Never, 1, 2, 5, 10, 20, 60 min Default: 10 min when battery powered; press any key for 2 sec to wake up the display. All inputs and outputs continue working.

Turn Meter Off/On

Press & hold the Menu key for 5 sec and follow the on-screen instructions. This feature helps extend battery life.

On-Screen Indicators

See CapTouch Buttons and Status Indicators on page 34 for details.

Top Display

5 digits (-9999 to 99999) or 5 characters (all capital & most lower-case letters)

Bottom Display

8 digits (-9,999,999 to 99,999,999; separated by commas) or 8 characters (all capital & most lower-case letters)

Backlight

Normal: white LED (enabled by default) Alarm: red LED (default) DC powered: steady on Battery powered: momentary (default: 10 sec) Output loop powered: varying intensity based on 4-20 mA output current

Bargraph

20 segments (100% label at top fixed) Assignable to rate, total, or off Scale: 0 to 100%

Display Assignment

Top & bottom displays can be assigned to rate, total, grand total, etc. See Configuring the Display (TOp and BOTTOM) on page 46 for a complete list of assignable parameters.

Decimal Point

Up to four decimal places on top display and up to seven decimal places on bottom display

Commas

Commas to indicate 1000s (e.g. 88,987,628) on the bottom display

Alarm Indication

Programmable: red backlight, flashing display, alarm symbol , bargraph segment flashes on alarm.

Custom Alarm Messages

Programmable for each relay/open collector: 8 characters maximum; displayed every 10 sec for 1 sec on bottom display. May be turned off.

Display Update Rate

Ambient > -10°C: 4 updates/second Ambient = -20°C: 1 update/2 seconds From -20°C to -40°C the update rate slows down 1 second for every -2°C (e.g. at -24°C, 1 update/4 seconds). Below -40°C the display is not readable, but all the inputs and outputs work correctly.

Overrange

Top: 99999; Bottom: 99,999,999 (flashing)

Underrange

Top: -9999; Bottom: -9,999,999 (flashing)

General

Programming Method

Four CapTouch through-window buttons when cover is installed. The CapTouch buttons can be used with the cover removed. Free PC-based USB MeterView XL programming software.

Recalibration

Recommended at least every 12 months.

Environmental

Operating temperature range:

-40 to 75°C (-40 to 167°F)

Storage temperature range:

-55 to 85°C (-67 to 185°F) Relative humidity: 0 to 90% non-condensing. Printed circuit boards are conformally coated

Max / Min Display

Max / min readings reached by the process are stored until reset by the user or until power to the meter is turned off.

Password

There are three separate passwords available that can be set independently of each other: Main, Total, and Grand Total. The Main password prevents access to the meter Programming Mode. Total and Grand Total passwords prevent resetting the total and grand total, respectively.

Non-Volatile Memory

Total and Grand Total values, and all programmed settings are stored in nonvolatile memory for a minimum of ten years if power is lost.

Power Options

9-30 VDC Powered, 2 W max 9-30 VDC Powered with Battery Backup

Loop Output Powered (30 VDC max) Loop Output Powered with Battery Backup

Data Logging

Up to 2,032 records, recorded 4/day at specific times or at defined time intervals. Record contains date, time, rate, total, grand total, and open collectors & relays states.

Data Logging Modes

Continuous: The log data will wrap around, erasing the oldest records to save the new records. Banks of 16 records will be erased at a time.

Stop when full: The log will stop recording when full and “LOG FULL” is displayed every 10 sec.

Connections

Removable screw terminal blocks Display terminals: accept 16 to 30 AWG wire Relay terminals: accept 12 to 26 AWG wire 4-20 mA output: accept 16 to 30 AWG wire

Tightening Torque

Display terminals: 2.5 lb-in (0.28 Nm) Relay terminals: 4.5 lb-in (0.5 Nm) 4-20 mA output terminals: 2.5 lb-in (0.28 Nm)

Overall Dimensions

5.25" x 5.65" x 4.18" (133 x 144 x 106 mm) (W x H x D)

Weight

1.9 lbs (0.9 kg)

Warranty

3 years parts and labor. See Warranty Information and Terms & Conditions on

www.predig.com for complete details.

Page 16

PD6938 Pulse Input Flow Rate/Totalizer

Instruction Manual

Battery

Battery life is dependent on how the meter is used. Backlight should only be used momentarily (10 sec on). Modbus should rarely be used on battery-power, it requires approximately 26 mA. See battery life table below for details.

-GP Models (Options: P & R) 3xAA-Cell

Battery Type

3.6 V Lithium (Li-SOCl2), non-rechargeable P/N: PDABAT36AA3-PACK

Battery Life

Operating Condition @ 2,000 Hz

Estimated

Service Life

Suggested

Replacement

Interval

Monitoring only, backlight off

35 months

30 months

LCD sleep*, minimal CapTouch use, backlight off

57 months

50 months

100 Hz open collector 1&2 outputs, minimal backlight use

24 months

20 months

Battery Replacement

Replace only with a Precision Digital original Model PDABAT36AA3-PACK

Battery Life with Modbus Continuously On

3XAA-Cell

277 hours

*LCD sleep: Press any key to wake up the display. All input & outputs continue working in LCD Sleep mode.

Enclosure

Material

Polycarbonate plastic with UV stabilizer

Gasket

Buna-N

Rating

NEMA 4X, IP66 plastic, UL 94V-0

Color

Gray

Window

Clear polycarbonate with UV stabilizer

Conduits

Three 3/4" NPT threaded conduit openings

Conduit Stopping Plug

Two 3/4" NPT plastic conduit plugs with 1.29" wrenching flats and a screwdriver slot are included

Flange

Built-in flange for wall and pipe mounting.

Tamper-Proof Seal

Enclosure lid may be secured with tamper-proof seal.

Instrument Tag Loop

Built-in loop for securing stainless steel tag

Overall Dimensions

5.25" x 5.65" x 4.18" (133 x 144 x 106 mm) (W x H x D)

Weight

1.4 lbs (0.64 kg)

Pulse Input

Pulse, Transistor, Contact Closure

Pulse or square wave: 0-5 V, 0-12 V, or 0-24 V; TTL; NPN or PNP

Open collector: 100 kΩ pull-up to 2.8 V Switch contact: 100 kΩ pull-up to 2.8 V PNP transistor: 100 kΩ pull-down to ground Active input: 100 kΩ pull-up to 2.8 V

NPN strong: 10 kΩ pull-up to 2.8 V (Do not

use with battery power)

Maximum Frequency: 100 kHz Minimum Pulse Width: 5 µs

Threshold Setting Low (V) High (V) Active/NPN 0.5 1.8 Active/NPN High 2.8 4.8

Magnetic Pickup Coil

Sensitivity: 10 mVp-p to 24 Vp-p Maximum Frequency: 40 kHz Note: 10 mVp-p @ 300 Hz max

Sensor Power

5 VDC @ 5 mA Enabled in the Advanced – System menu

Minimum Input Frequency

0.0001 Hz Minimum frequency is dependent on high gate setting (rate display)

Input Impedance

Pulse input: Greater than 75 k @ 1 kHz. Open collector/switch: 100 k pull-up to 2.8 V

Contact Debounce Filter

Programmable contact debounce filter. Input signal frequency speed selections: Disable: Greater than 100 kHz (no filter) Fast: 1,000 Hz Medium: 240 Hz Slow: 100 Hz

Accuracy

Rate: ±0.02% of calibrated span ±1 count Total: Every input pulse is counted

Temperature Drift

2 PPM/°C from -40 to 75°C ambient

Function

K-Factor: 0.000001 to 9,999,999 Rate: Linear (2-32 points)

Low-Flow Cutoff

0.1 to 999,999 or disable. Point below at which the display always shows zero.

HART Transparency

The 4-20 mA output does not interfere with existing HART communications.

Page 17

PD6938 Pulse Input Flow Rate/Totalizer

Instruction Manual

Rate/Totalizer

Rate Display

Top display: -9999 to 99999; Bottom display: -9,999,999 to 99,999,999 (with commas)

Total & Grand Total Display

Top display: 0 to 99999; Bottom display: 0 to 99,999,999 (with commas)

13-Digit Total & Grand Total

Up to 9,999,999,999,999 using both lines with 13-digit total feature enabled.

Total Decimal Point

Up to four decimal places on top, up to seven decimal places on bottom. Total decimal point is independent of rate decimal point.

Totalizer

Calculates total based on input pulses and rate units to display total in engineering units. A custom factor must be programmed if using custom defined units.

Time Base

Seconds, Minutes, Hours, Days

Totalizer Rollover

Totalizer rolls over when display exceeds 99,999,999 (9,999,999,999,999 if 13-digit limit enabled). Relay status reflects display.

Total & Grand Total Reset

Via CapTouch button, external contact closure on digital input, automatic based on time of day, or MeterView XL.

Time of Day Total & Grand Total Reset

Four programmable reset times. The total and grand total can be set up to reset at a time of day every day or any day.

Previous Total & Grand Total

Total & grand total are saved prior to applying the reset command. The previous totals can be read via the F1 function key and the Modbus registers.

Total & Grand Total Reset Passwords

Total and grand total passwords may be entered to prevent resetting the total or grand total unless a password is entered.

NonResettable Grand Total

Grand total reset may be disabled through the meter interface. Grand total reset may be permanently disabled by selecting YES at the PERMLOCK menu.

• Once the Grand Total has been programmed as

“non-resettable” the feature CANNOT be disabled.

Non-Volatile Memory

Total and Grand Total values are stored in non-volatile memory for a minimum of ten years if power is lost.

Batch Control

Methods

Automatic or Manual, count up or count down

Manual Batch Start

Pressing F1 function key starts the batch

Manual Batch Pause/Stop

Pressing F3 once pauses the batch, pressing it twice cancels the batch

Automatic Batching

The VantageView+ can be used as an automatic batch controller where batches run continuously without operator input

Batching Relay Operation

Single or dual-relay batching with optional preclose for dual-stage operation

Batch Preset

Set via F2 function key anywhere between

0.0001 to 99,999 based on batch total decimal point. If batch total is assigned to bottom, the preset can be up to 8 digits.

Batch Preclose

For two-stage batch application, a preclose value can be set to close the main flow line.

Automatic Batch Restart Delay

1 to 9,999 seconds. The batch will automatically restart after completion of the last batch.

Common Open Collector & Relay Specifications

Number

Two open collectors & two relays

High or Low Alarm

User programmable for high or low alarm

Alarm Deadband

0-100% FS, user programmable

Output Assignment

Alarm, Timer, Stopwatch, or Disable

Alarm Output Source

Assign to rate, total, grand total, or digital input

On & Off Time Delay

0 to 9,999 seconds

Fail-Safe Operation

Independent for each open collector and relay. Fail-safe on, the output is on under normal conditions. Fail-safe off, the output is on under alarm conditions.

Alarm Operation

Automatic, automatic with manual override, latching (manual reset anytime), latching with reset after cleared (manual reset only after alarm has cleared)

Alarm Indication

Programmable: loop-powered red backlight, flashing display, alarm symbol , bargraph segment flashes on alarm.

Custom Alarm Messages

Programmable for each relay/open collector: 8 characters maximum; displayed every 10 sec for 1 sec on bottom display. May be turned off.

Alarm Acknowledge

CapTouch ACK button or external digital input resets output and screen indication.

Auto Initialization

When power is applied to the meter, open collectors and relays will reflect the state of the input to the meter.

Timer Output

One-shot or Continuous Off Time Delay: 1 sec to 99:59:59 (hrs:min:sec) On Time: 1 sec to 99:59:59 (hrs:min:sec)

Stopwatch

Output turns on when started and off when stopped.

Open Collector Outputs

Rating

Isolated open collector, sinking NPN 5-30 VDC @ 150 mA maximum

Output Assignment

Pulse, Alarm, Timer, Stopwatch, or Disable

Pulse Output Source

Pulse output based on Rate, Total, Grand Total, or Test Frequency, Alarm, Timer, Total Reset, Stopwatch on/off, or Disable

Pulse Output Factor

0.000001 to 999,999.9

Pulse Width

0.25 ms @ 2 kHz; 500 ms @ 1 Hz; 50% duty cycle

Pulse Output Frequency

2,000 Hz maximum

Quadrature Pulse Output

Available for Output 2 (90° behind Output 1) 1000 Hz max

Alarm Output Source

Assign to Rate, Total, Grand Total or Digital Input

Page 18

PD6938 Pulse Input Flow Rate/Totalizer

Instruction Manual

Solid-State Relays

Rating

250 VAC/VDC @ 0.5 A resistive 38 VA; 250 VAC; 0.3 A pilot duty (inductive) 13 VA; 250 VDC; 0.3 A pilot duty (inductive)

Noise Suppression

Metal oxide varistors across outputs

Relay Assignment

Alarm, Sample, Timer, Batch, Stopwatch on/off, or Disable

Alarm Output Source

Assign to Rate, Total, Grand Total, or Digital Input

Relay Runtime

Meter will keep track of how long each relay has operated and display this information.

Relay Cycles

Meter will keep track of how many times the relays have cycled and display this information.

4-20 mA Transmitter Output

Accuracy

±0.05% FS ±0.001mA

Output Source

Rate, total; reverse scaling allowed

Scaling Range

1.00 to 23.0 mA

Disable

High impedance state, less than 1 mA

Calibration

Factory calibrated: 0 to 100 GAL/Sec = 4.00 to 20.00 mA

Underrange

1.0 mA, 3.5 mA, 3.8 mA; or Off; user selectable

Overrange

20.5 mA, 20.8 mA, 23.0 mA, or Off; user selectable

Isolation

500 V input-to-output

Temperature Drift

0.003 mA max from -40 to 75°C ambient

External Loop Power Supply

7.0 VDC to 30.0 VDC maximum

Output Loop Resistance

10-750 Ω @ 24 VDC; 10-1100 Ω @ 30 VDC (External resistance to maintain accuracy)

On-Board Digital Input

Function

Remote operation of front-panel buttons, acknowledge/reset relays, reset total, reset max/min values, start/stop batch, etc. See User section of Display Functions & Messages on page 35 for a complete list of capabilities.

Contacts

2.1 VDC on contact. Connect normally open contacts across G and +

Logic Levels

Logic High: 2.4 to 30 VDC (max) Logic Low: 0 to 0.9 VDC

Serial Communications

Connection

RS-485, 3-wire; Isolation: 500 V. Non-isolated micro-USB.

Protocol

Modbus® RTU

Meter Address / Slave ID

1 - 247

Baud Rate

1,200; 2,400; 4,800; 9,600; 19,200; 38,400; or 57,600 bps.

Transmit Time Delay

Programmable between 0 and 199 ms

Parity/Stop Bit

Even, odd, or none with 1 or 2 stop bits

Byte-to-Byte Timeout

Max of 1.5 character times or 2.25 ms

Note: Refer to the ProtEX+ and VantageView+ PD6938 Modbus® Register Tables located at www.predig.com for details.

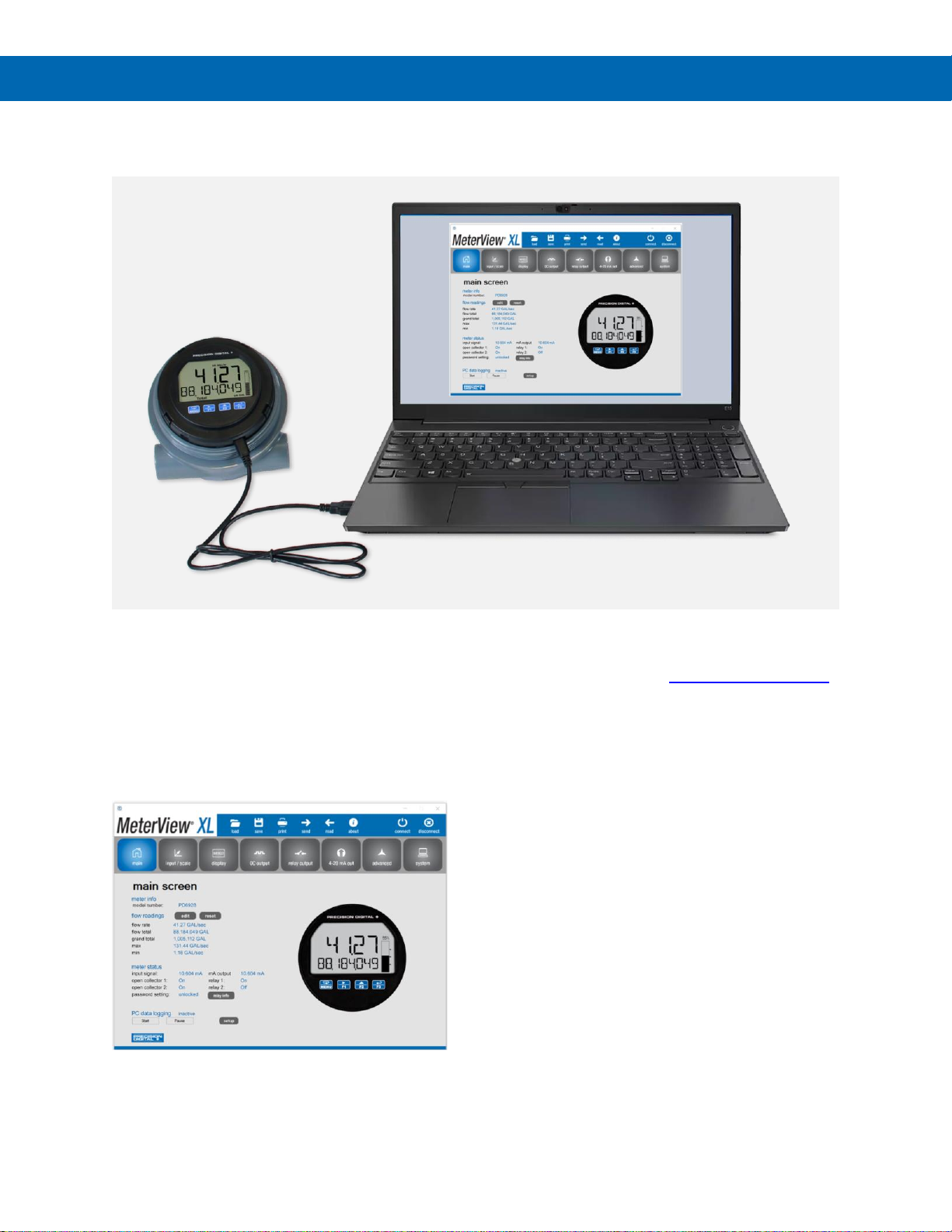

MeterView XL Software

Availability

Free download from

www.predig.com/meterviewxl

System Requirements

Microsoft® Windows® 10 & 11

Communications

USB 2.0 (Standard USB A to Micro USB B) Cable provided

Configuration

Configure all parameters on the meter. Configure meters one at a time.

Configuration Files

Generate with or without meter connected; Save to file for later use.

USB Power Connection

The meter is powered by the USB connection during programming. There is no need to apply external power.

Note: The meter will not be damaged if external power is applied to it during programming.

• The meter should only be connected to a computer while

it is located in a safe area

Data Logging Report

The on-board data log can be downloaded via the USB or the RS-485 connection.

Saved as “.csv” file format.

PC Data Logging

MeterView XL can be used to data log directly to a computer connected to the meter via the USB or the RS-485 connection. The user can select what to log and at what interval.

• Rate

• Total

• Grand total

• Open collector triggers

• Relay triggers

• Hold/Unhold outputs

Compatibility

Programs created for VantageView+ and ProtEX+ can be run on either meter. No other program sharing is permissible.

To download the latest MeterView XL programming software and manual, visit predig.com/meterviewxl.

Page 19

PD6938 Pulse Input Flow Rate/Totalizer

Instruction Manual

General Compliance

Information

Electromagnetic Compatibility

EMC Emissions

• CFR 47 FCC Part 15 Subpart B Class A

emissions requirements (USA)

• ICES-003 Information Technology

emissions requirements (Canada)

• AS/NZS CISPR 11 Group 1 Class A

ISM emissions requirements (Australia/New Zealand)

• EN 55011 Group 1 Class A ISM

emissions requirements (EU)

• EN 61000-6-4 Emissions requirements

for Heavy Industrial Environments Generic

EMC Emissions and Immunity

EN 61326-1 EMC requirements for Electrical equipment for measurement, control, and laboratory use – industrial use

EU Declaration of

Conformity

For shipments to the EU and UK, a Declaration of Conformity was printed and included with the product. For reference, a Declaration of Conformity is also available on our website www.predig.com/docs.

Safety Information

• Read complete instructions prior to installation and operation of the meter.

• Hazardous voltages exist within enclosure. Installation and service should be performed only by trained service personnel.

• Service requiring replacement of internal components must be performed at the factory.

• Control room equipment must not use or generate more than 250 VRMS or VDC.

• PD6938 powered by the 4-20 mA output loop do not add capacitance or inductance to the loop under normal or fault conditions.

• Equipment contains non-metallic materials and therefore special care and consideration should be made to the performance of these materials with respect to chemicals which may be present in a harsh operating environment.

Page 20

PD6938 Pulse Input Flow Rate/Totalizer

Instruction Manual

Installation

To access the connectors, remove the enclosure cover and unclip the display module by pulling it from the enclosure. The display module may be disconnected from the options module to facilitate wiring to the options module.

Unpacking

Remove the meter from box. Inspect the packaging and contents for damage. Report damages, if any, to the carrier.

If any part is missing or the meter malfunctions, please contact your supplier or the factory for assistance.

Conduit Plugs Included

The PD6938 is supplied with two plastic conduit plugs for installations that do not require the use of all three conduit entries.

Mounting

The PD6938 has a slotted mounting flange that may be used for pipe mounting or wall mounting. Alternatively, the unit may be supported by the conduit using the conduit holes provided. Refer to Figure 1 and Figure 2.

• Do not attempt to loosen or remove flange bolts while the meter is in service.

Dimensions

Figure 1. Enclosure Dimensions – Front View

Figure 2. Enclosure Dimensions – Side View

Figure 3. Enclosure Dimensions – Bottom View

5.25" (133 mm)

3.35" (85.1 mm)

2.25"

(57.2 mm)

0.32"

(8.2 mm)

5.65"

(144 mm)

4.18"

(106 mm)

Page 21

PD6938 Pulse Input Flow Rate/Totalizer

Instruction Manual

Connections

To access the connectors, remove the enclosure cover and unclip the display module by pulling it from the enclosure. Signal, backlight, open collector, and digital input connections are made to removable connectors on the display module. Relays and 4-20 mA output connections (if installed) are made to removable connectors on the options module mounted in the base of the enclosure. The display module may be disconnected from the options module to facilitate wiring to the options module.

• Observe all safety regulations. Electrical wiring should be performed in accordance with all agency requirements and applicable national, state, and local codes to prevent damage to the meter and ensure personnel safety.

• Static electricity can damage sensitive components.

• Observe safe handling precautions for static-sensitive components.

• If the meter is installed in a high voltage environment and a fault or installation error occurs, high voltage may

be present on any lead or terminal.

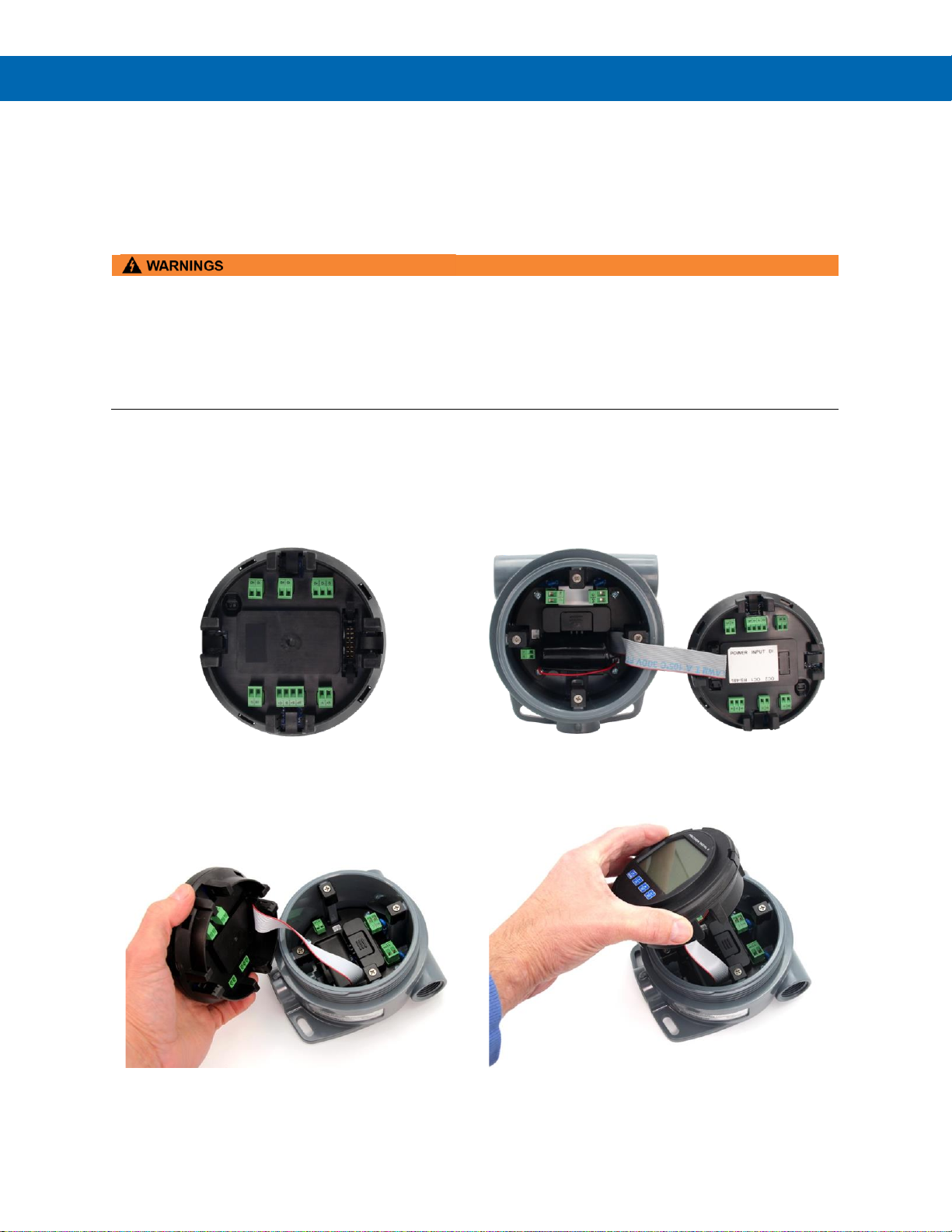

Display & Options Modules

The display module snaps into built-in rails on the enclosure ensuring a secure and perfect fit every time. No tools are needed to install or remove it. The options module is screwed into the base of the enclosure. Both modules completely encase the printed circuit boards.

Display Module

Options Module (Left) and Display Module (Right)

Options Module Mounted on the Bottom of Enclosure

Display Module Mounted on Built-In Rails

(No Tools Required)

Page 22

PD6938 Pulse Input Flow Rate/Totalizer

Instruction Manual

Connectors Labeling

The following graphics show the locations of the connectors for each available configuration.

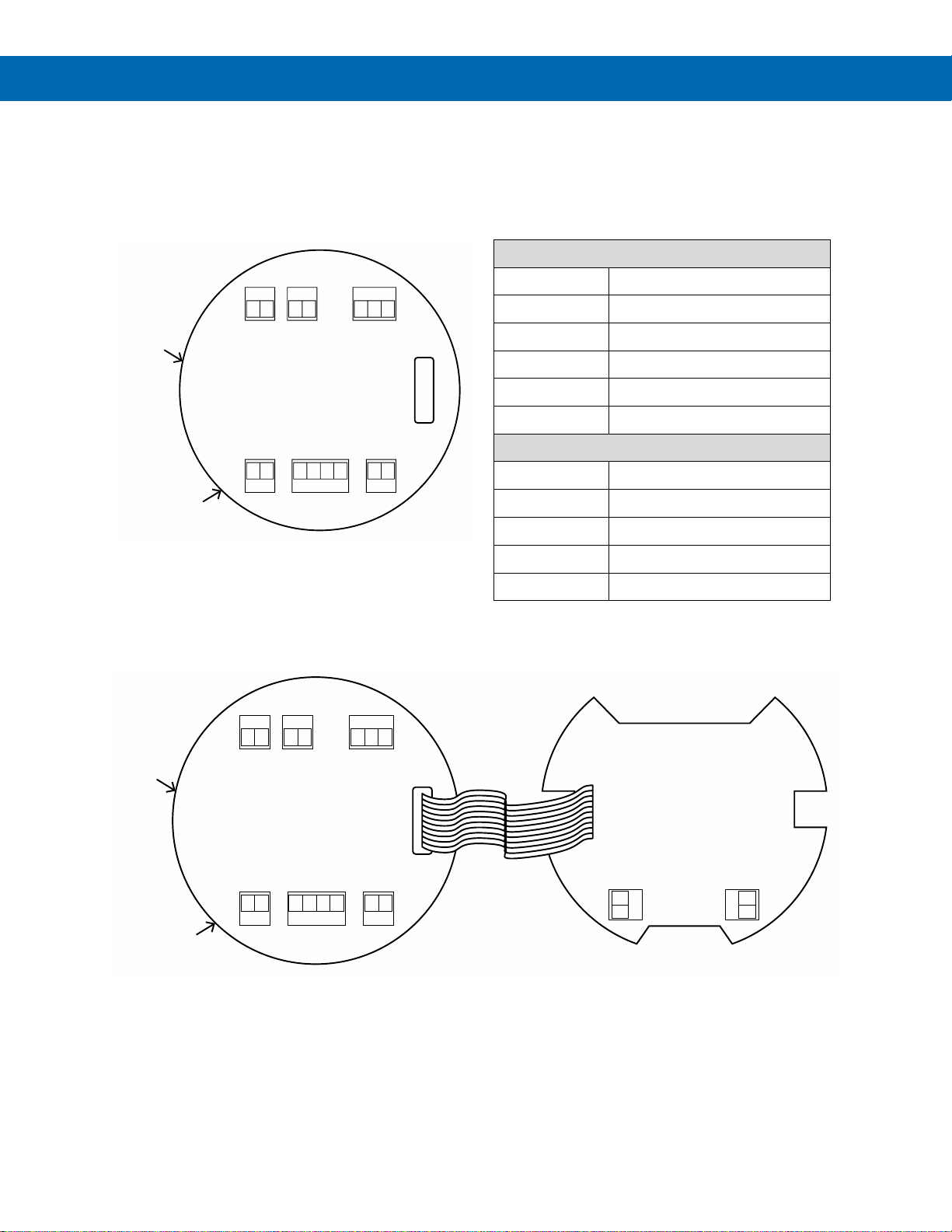

DC Powered Models (-D Option)

Open Collectors, Digital Input, RS-485, DC Power

Connector

Description

OC1

Open Collector 1

OC2

Open Collector 2

RS-485

RS-485 Modbus RTU

Digital Input

G, +

Power

V+, V- (9-30 VDC)

Pulse Input

Connector

Description

C+

Magnetic Pickup Coil

S-

Signal -

S+

Signal +

Sensor Power (5 V @ 5 mA)

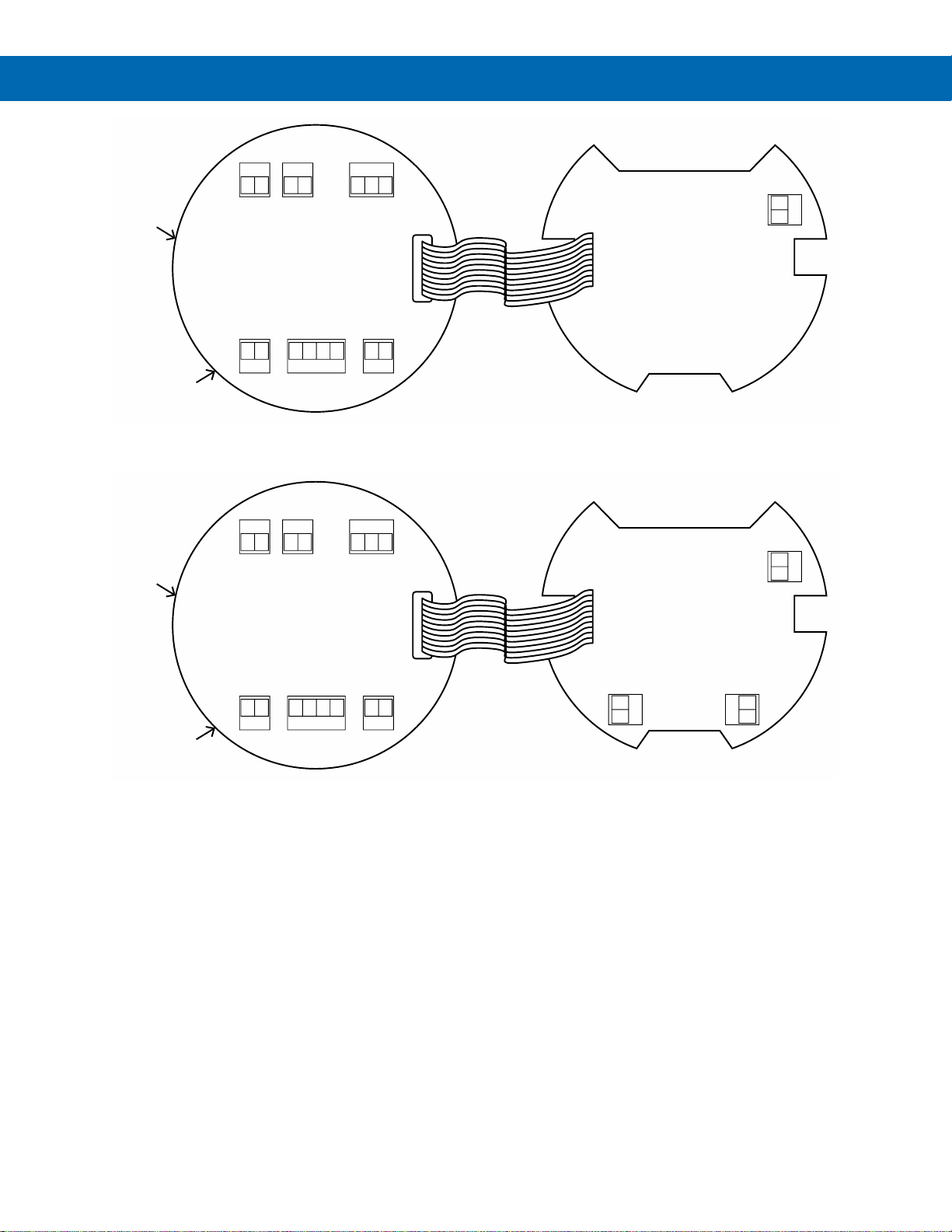

Figure 4. Connector Labeling for PD6938-GP-PL-DNM

Figure 5. Connector Labeling for PD6938-GP-PL-D2M

USB

Connection

CapTouch

On/Off

Switch

Ribbon Cable

Connector

–+

OC2

–+

OC1

Open Collector

Outputs

Power

V+V-

Digital

Input

Pulse Input

S- S+SPC+

RS-485

D- GD+

Options Module

USB

Connection

CapTouch

On/Off

Switch

Ribbon Cable

Connector

–+

OC2–+OC1

Open Collector

Outputs

C NO

Solid State

Relay 2

Solid State

Relay 1Power

V+V-

Digital

Input+GPulse Input

S- S+ SPC+

RS-485

D- GD+

Page 23

PD6938 Pulse Input Flow Rate/Totalizer

Instruction Manual

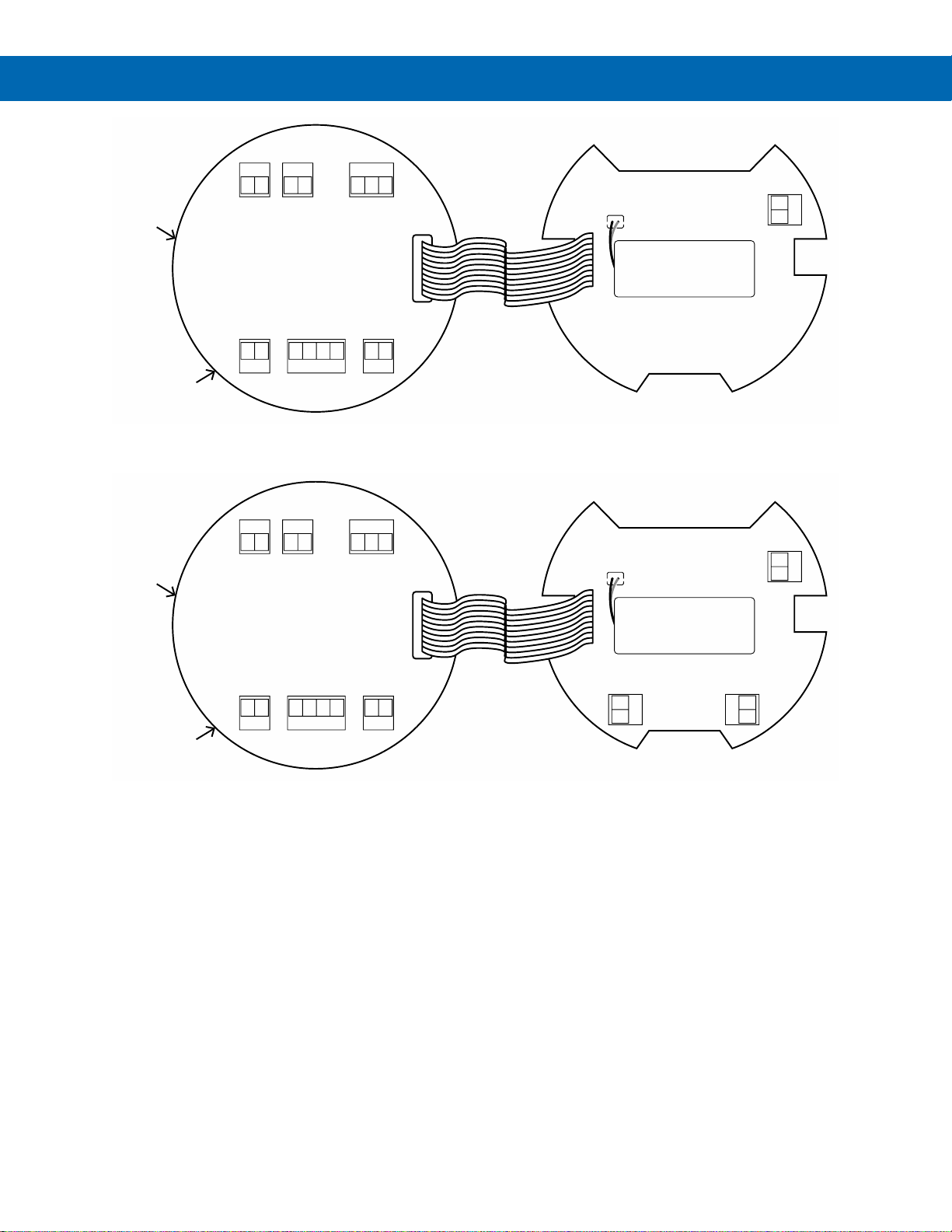

Figure 6. Connector Labeling for PD6938-GP-PL-D3M

Figure 7. Connector Labeling for PD6938-GP-PL-D5M

Options Module

USB

Connection

CapTouch

On/Off

Switch

Ribbon Cable

Connector

–+

OC2

–+

OC1

Open Collector

Outputs

4-20 mA

Output

–

Power

V+V-

Digital

Input

Pulse Input

S- S+ SPC+

RS-485

D- GD+

Options Module

USB

Connection

CapTouch

On/Off

Switch

Ribbon Cable

Connector

–+

OC2

–+

OC1

Open Collector

Outputs

C NO

Solid State

Relay 2

Solid State

Relay 1

4-20 mA

Output

–

Power

V+V-

Digital

Input

Pulse Input

S- S+ SPC+

RS-485

D- GD+

Page 24

PD6938 Pulse Input Flow Rate/Totalizer

Instruction Manual

DC Powered with Battery Backup Models (-P Option)

Open Collectors, Digital Input, RS-485, DC Power

Pulse Input

Connector

Description

Connector

Description

OC1

Open Collector 1

C+

Magnetic Pickup Coil

OC2

Open Collector 2

S-

Signal -

RS-485

RS-485 Modbus RTU

S+

Signal +

Digital Input

G, +

Sensor Power (5 V @ 5 mA)

Power

V+, V- (9-30 VDC)

Figure 8. Connector Labeling for PD6938-GP-PL-PNM

Figure 9. Connector Labeling for PD6938-GP-PL-P2M

USB

Connection

CapTouch

On/Off

Switch

Ribbon Cable

Connector

Options Module

–+

OC2

–+

OC1

Open Collector

Outputs

Battery

Connector

Battery

Power

V+V-

Digital

Input

Pulse Input

S- S+ SPC+

RS-485

D- GD+

Options Module

USB

Connection

CapTouch

On/Off

Switch

Ribbon Cable

Connector

–+

OC2

–+

OC1

Open Collector

Outputs

C NO

Solid State

Relay 2

Solid State

Relay 1

Battery

Connector

Battery

Power

V+V-

Digital

Input

Pulse Input

S- S+ SPC+

RS-485

D- GD+

Page 25

PD6938 Pulse Input Flow Rate/Totalizer

Instruction Manual

Figure 10. Connector Labeling for PD6938-GP-PL-P3M

Figure 11. Connector Labeling for PD6938-GP-PL-P5M

Options Module

USB

Connection

CapTouch

On/Off

Switch

Ribbon Cable

Connector

–+

OC2

–+

OC1

Open Collector

Outputs

4-20 mA

Output

–

Battery

Connector

Battery

Power

V+V-

Digital

Input

Pulse Input

S- S+ SPC+

RS-485

D- GD+

Options Module

USB

Connection

CapTouch

On/Off

Switch

Ribbon Cable

Connector

–+

OC2

–+

OC1

Open Collector

Outputs

C NO

Solid State

Relay 2

Solid State

Relay 1

4-20 mA

Output

–

Battery

Connector

Battery

Power

V+V-

Digital

Input

Pulse Input

S- S+ SPC+

RS-485

D- GD+

Page 26

PD6938 Pulse Input Flow Rate/Totalizer

Instruction Manual

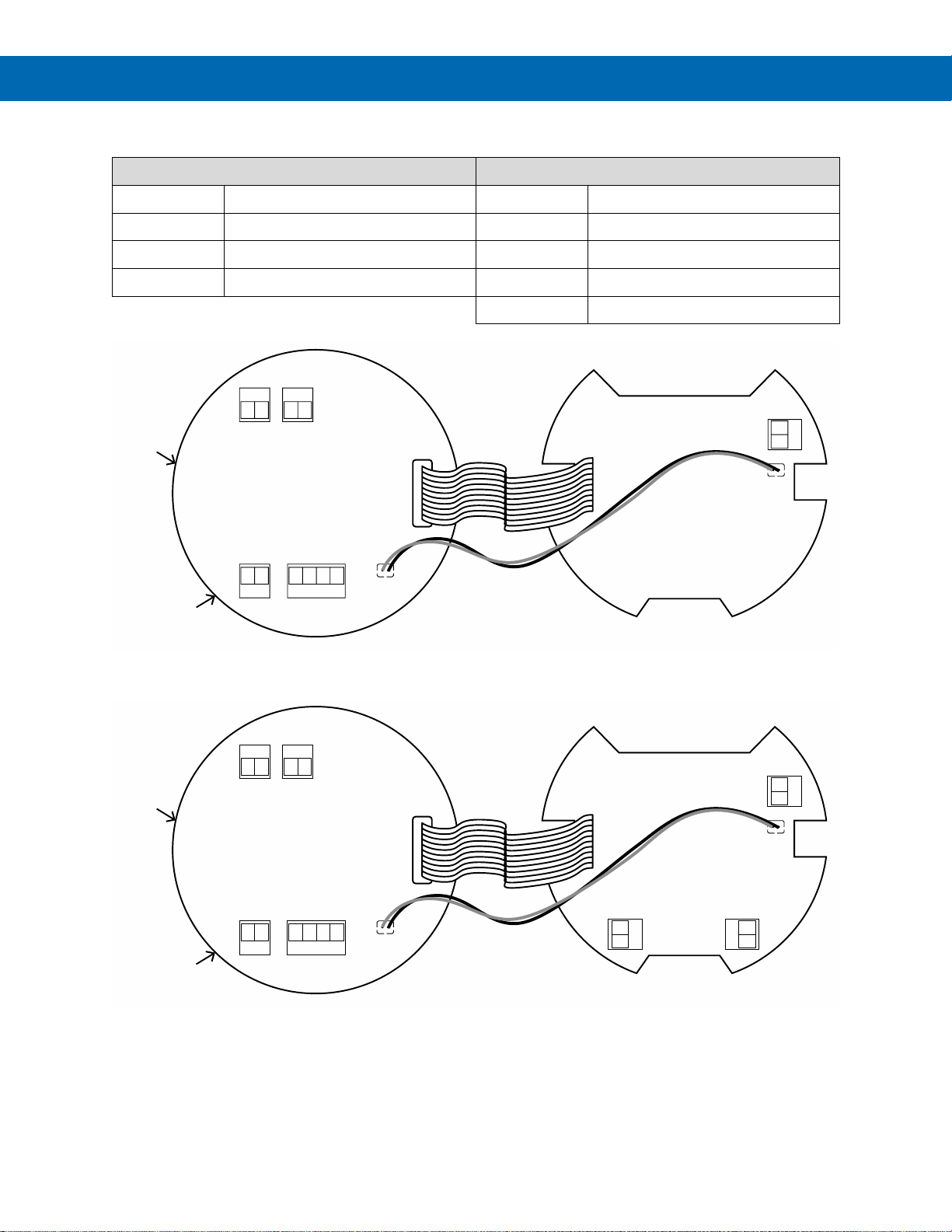

Loop Output Powered Models (-C Option)

Open Collectors and Digital Input

Pulse Input

Connector

Description

Connector

Description

OC1

Open Collector 1

C+

Magnetic Pickup Coil

OC2

Open Collector 2

S-

Signal -

Digital Input

G, +

S+

Signal +

Sensor Power (5 V @ 5 mA)

Figure 12. Connector Labeling for PD6938-GP-PL-C3N

Figure 13. Connector Labeling for PD6938-GP-PL-C5N

Options Module

USB

Connection

CapTouch

On/Off

Switch

Ribbon Cable

Connector

–+

OC2

–+

OC1

Open Collector

Outputs

4-20 mA

Output

–

Digital

Input

Pulse Input

S- S+ SPC+

Loop Output Power

Options Module

USB

Connection

CapTouch

On/Off

Switch

Ribbon Cable

Connector

–+

OC2–+OC1

Open Collector

Outputs

C NO

Solid State

Relay 2

Solid State

Relay 1

4-20 mA

Output

–

Digital

Input+GPulse Input

S- S+ SPC+

Loop Output Power

Page 27

PD6938 Pulse Input Flow Rate/Totalizer

Instruction Manual

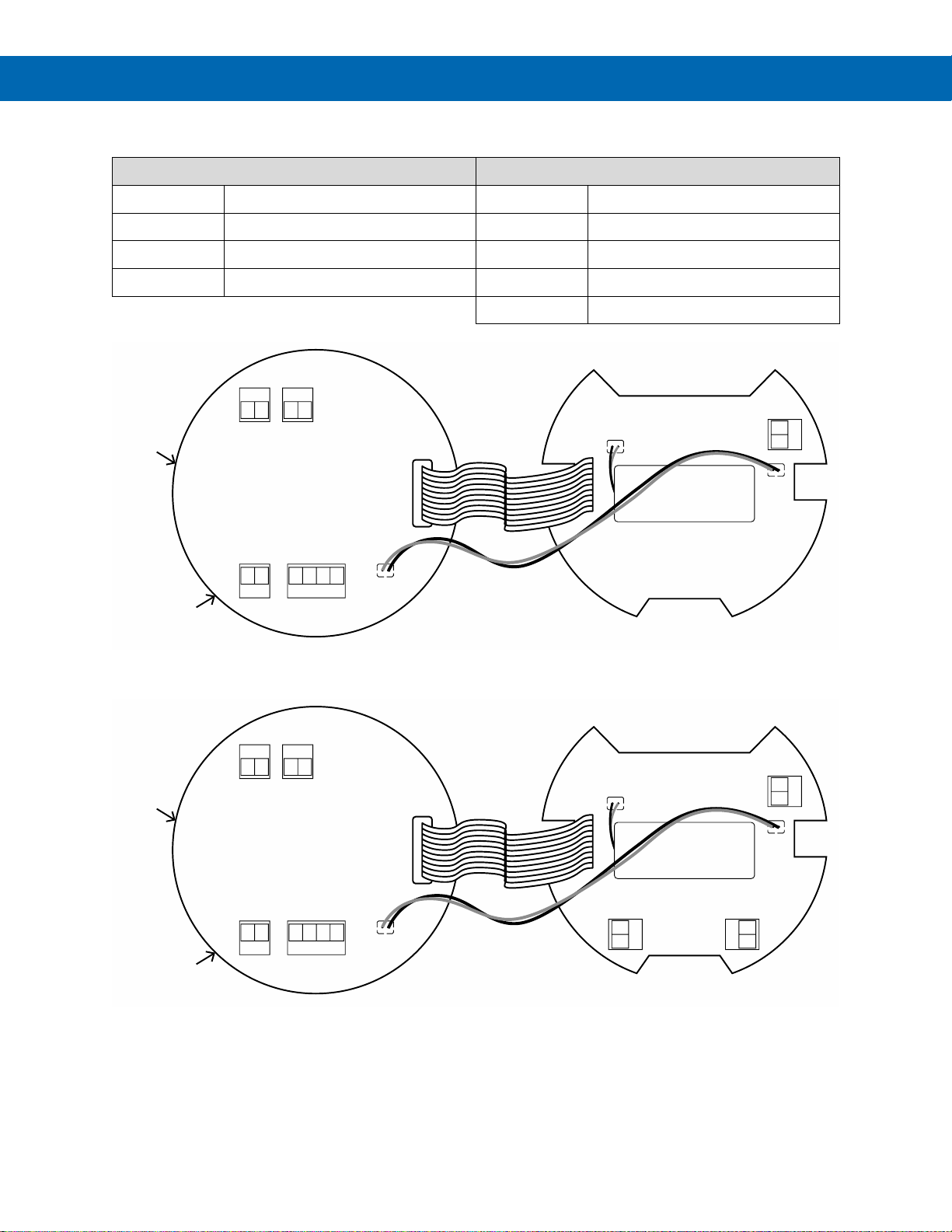

Loop Output Powered with Battery Backup Models (-R Option)

Open Collectors and Digital Input

Pulse Input

Connector

Description

Connector

Description

OC1

Open Collector 1

C+

Magnetic Pickup Coil

OC2

Open Collector 2

S-

Signal -

Digital Input

G, +

S+

Signal +

Sensor Power (5 V @ 5 mA)

Figure 14. Connector Labeling for PD6938-GP-PL-R3N

Figure 15. Connector Labeling for PD6938-GP-PL-R5N

Options Module

USB

Connection

CapTouch

On/Off

Switch

Ribbon Cable

Connector

–+

OC2

–+

OC1

Open Collector

Outputs

4-20 mA

Output

–

Battery

Connector

Battery

Digital

Input

Pulse Input

S- S+ SPC+

Loop Output Power

Options Module

USB

Connection

CapTouch

On/Off

Switch

Ribbon Cable

Connector

–+

OC2

–+

OC1

Open Collector

Outputs

C NO

Solid State

Relay 2

Solid State

Relay 1

4-20 mA

Output

–

Battery

Connector

Battery

Digital

Input

Pulse Input

S- S+ SPC+

Loop Output Power

Page 28

PD6938 Pulse Input Flow Rate/Totalizer

Instruction Manual

Wiring Diagrams

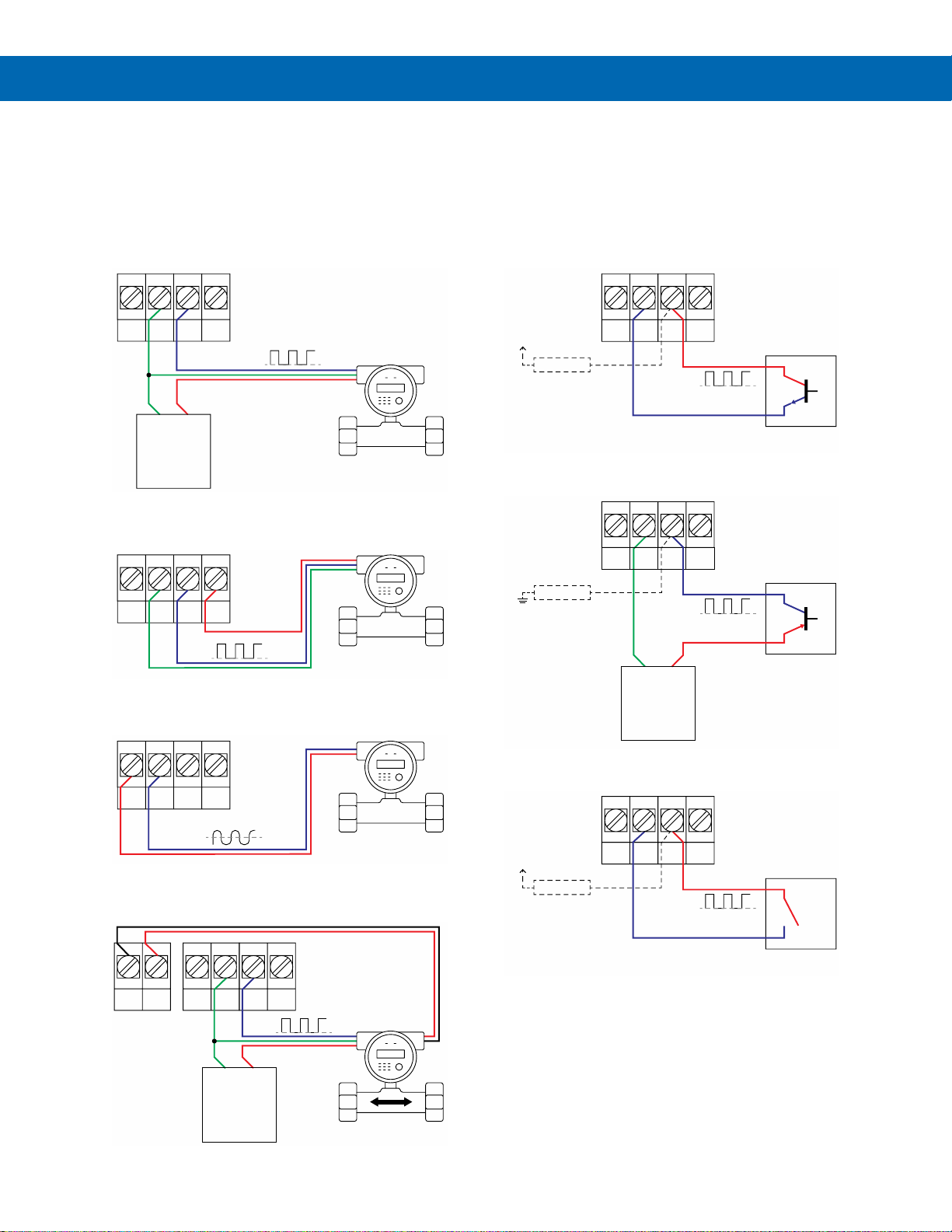

Pulse Input Connections

Signal connections are made to a four-terminal connector. See Connectors Labeling on page 22. The following figures show connections to various flowmeter types.

There are no switches or jumpers to set up for the input. Setup and programming are performed through the CapTouch buttons or PC-based software.

Figure 16. Flowmeter Powered by External Supply

(Active)

Figure 17. Flowmeter Powered by Internal Sensor Power

(5 V @ 5 mA)

Figure 18. Self-Powered Magnetic Pickup Flowmeter

(Coil)

Figure 19. Bi-Directional Flowmeter Connections

Figure 20. NPN Open Collector Input

Figure 21. PNP Sensor with External Power

Figure 22. Switch Contact Input (Reed)

C+ S- S+ SP

Power Supply

Flowmeter

(Pulse Output)

C+ S- S+ SP

Flowmeter

(Pulse Output)

C+ S- S+ SP

Flowmeter

(Magnetic Pickup Coil)

C+ S- S+ SP

Power

Supply

Flowmeter

(Pulse Output)

G+

Flow Direction Switch

C+ S- S+ SP

NP N

Sen s or

100 kΩ

Int ern al Pu ll -Up

+3.0 V

Pow er

Su pp ly

C+ S- S+ SP

PN P

Sen s or

100 kΩ

Int ern al Pu ll -Dow n

C+ S- S+ SP

Sw it ch

Con tact

100 kΩ

Int ern al Pu ll -Up

+3.0 V

Page 29

PD6938 Pulse Input Flow Rate/Totalizer

Instruction Manual

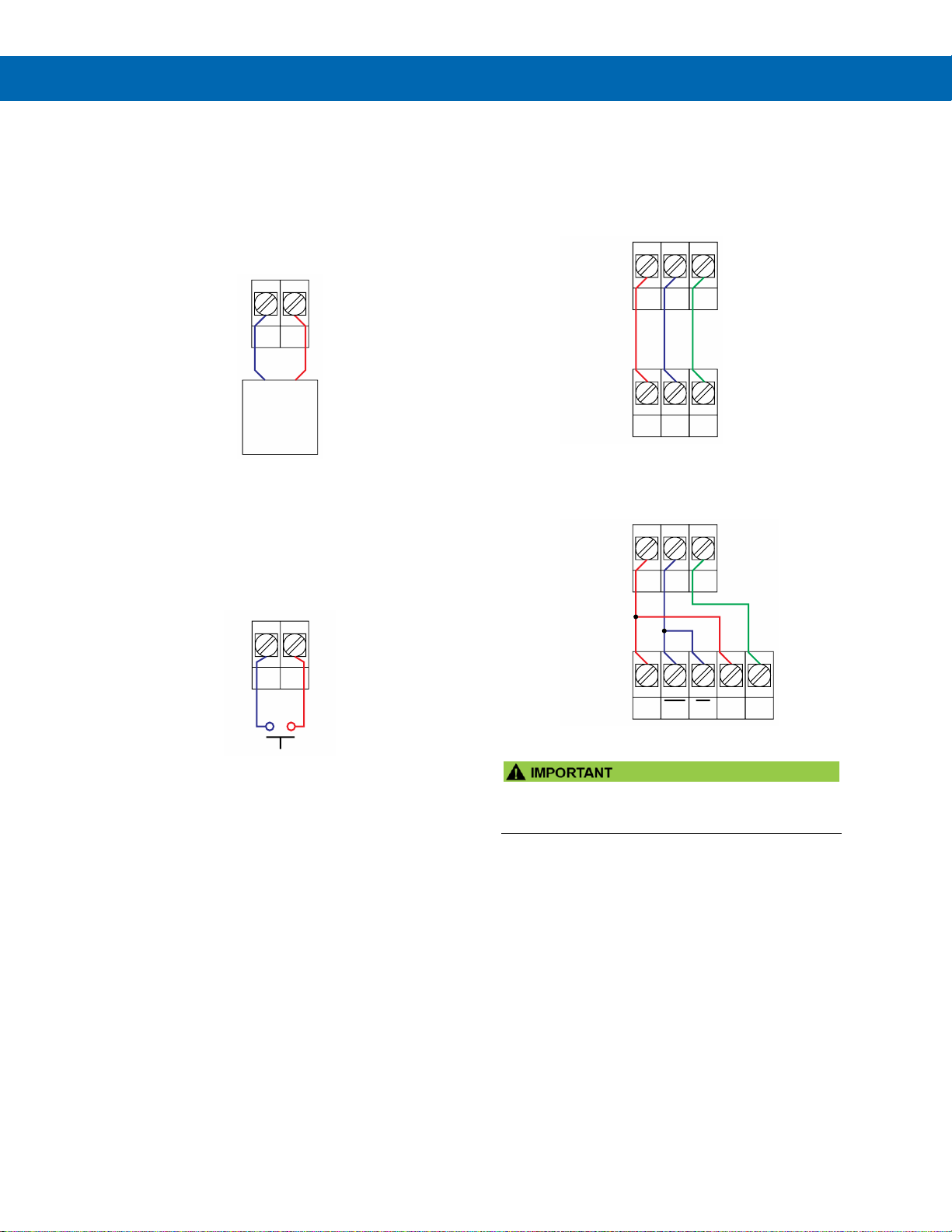

DC Power Connections

Models with battery power may optionally be connected to DC power and the battery will function as backup power when DC is lost. The same power supply may be used to power other circuits including a PNP-type sensor, however, to maintain input isolation, a separate power supply must be used to power the isolated 4-20 mA transmitter output.

Figure 23. DC Power Connections

Digital Input Connections

A digital input is standard on the meter. This digital input is connected with a normally open contact across G and +, or with an active low signal applied to G and +.

Figure 24. Digital Input Connections

RS-485 Serial Connections

The RS-485 three-wire serial connection is standard. The cabling used for an RS-485 serial communications network should always be a highquality cable such as Belden 8162 or Alpha 6203C. Signal ground is always recommended.

Figure 25. RS-485 2-Wire & Ground Serial Connections

Figure 26. RS-485 4-Wire & Ground Serial Connections

• To connect the meter to the MeterView XL software using the RS-485 Modbus connection use a PDA8485 USB to RS-485 converter.

V- V+

Power

Supply

G+

D+ D- G

Flow

Rate/Totalizer

RS-485

Device

D+ D- G

DO DO DI DI

GND

Flow

Rate/Totalizer

RS-485

Device

Page 30

PD6938 Pulse Input Flow Rate/Totalizer

Instruction Manual

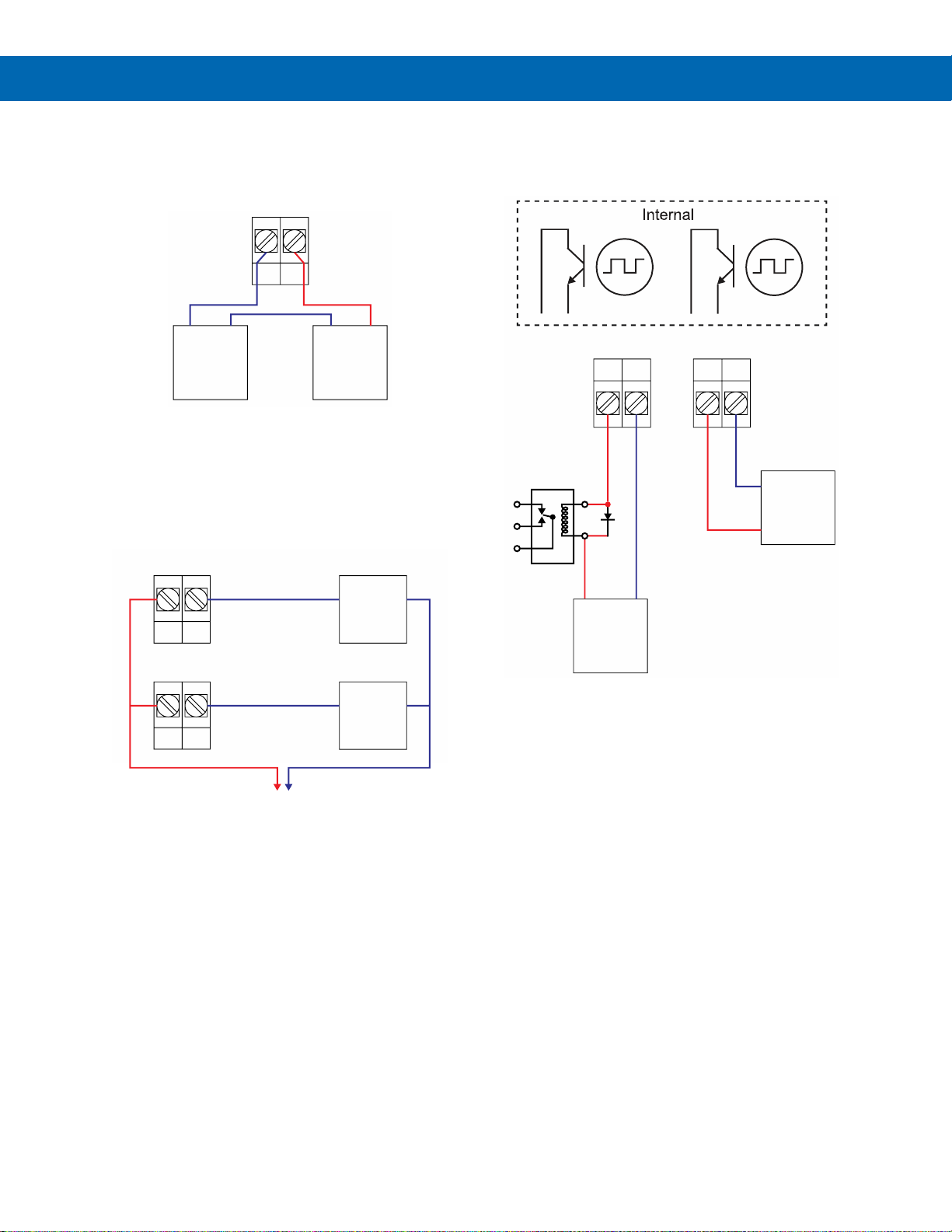

4-20 mA Output Connections

Connections for the 4-20 mA transmitter output are made to the connector terminals labeled 4-20 mA Output on Figure 12, page 26. The 4-20 mA output must be powered from an external power supply.

Figure 27. 4-20 mA Output Connections

Solid-State Relay Connections

Relay connections are made to two-terminal connectors. Each relay’s C terminal is common only to the normally open (NO) contact of the corresponding relay.

Figure 28. Solid-State Relay Connections

Open Collector Output Connections

Open collector output 1 and 2 connections are made to terminals labeled OC1 and OC2. Connect the alarm or pulse input device as shown below.

Figure 29. Open Collector Output Connections

Device with

4-20 mA

Input

Power

Supply

CNO

Load

Power

Relay 1

Relay 2

Power Supply

-++-

OC2 OC1

Alarm

Indicator/

Pulse

Counter

External DC

Relay

5-30 VDC

90 mA MAX

Page 31

PD6938 Pulse Input Flow Rate/Totalizer

Instruction Manual

Remote Operation of Meter

The meter is equipped with a digital input that can be programmed to perform various functions. Common uses for this digital input would be for resetting the

total, resetting the meter’s relays or open collectors,

starting and stopping timers, displaying max/min values and starting/stopping batches. The digital input could be connected to a PDA2360 single button remote control station as illustrated in Figure 30.

For a complete list of Digital Input settings, see Function Keys & Digital Input Available Settings on page 73.

Figure 30. PDA2361-R Control Station Connected to

PD6938

Available Single Button Control Stations

PDA2360-E

PDA2361-A

PDA2361-B PDA2361-R

PDA2361-T

PDA2361-S

PDA2361-Q

RESET

Control

Station

Page 32

PD6938 Pulse Input Flow Rate/Totalizer

Instruction Manual

Setup and Programming

The meter is factory calibrated prior to shipment to display

0.00 to 100.00, which corresponds to the pulse input. The calibration equipment is traceable to NIST standards.

Overview

There are no jumpers to set; setup and programming is done through the CapTouch buttons or the free MeterView XL PC-based software.

The meter may be powered via the micro-USB connection located on the display module for the purpose of programming only. The backlight will not work while the meter is powered via the USB connection.

CapTouch Buttons

The PD6938 is equipped with four capacitive sensors that operate as through-window buttons so that it can be programmed and operated without removing the cover (and exposing the electronics) in a harsh operating area.

These buttons can be turned off for security by selecting the Off setting on the switch located on the side of the display module, close to the Menu button.

To actuate a button, press one finger to the window directly over the marked button area. When the cover is removed, the CapTouch buttons can be used after the meter completes a self-calibrating routine (hand symbol flashes). The sensors are disabled when more than one button is pressed, and they will automatically re-enable after a few seconds (hand symbol off).

CapTouch Buttons Delay

The CapTouch have two modes of operation: Normal and Delayed. Use the Delayed mode to prevent accidental trigger of the buttons. In the Delayed mode, the buttons enter into a low sensitivity state (sleep) and they ignore quick button presses after 20 seconds of inactivity. To wake up the buttons, press and hold any button for more than 2 seconds, the buttons respond normally.

Turning Off CapTouch Buttons

The CapTouch buttons can be turned off for security by moving the slide switch located on the display module to the Off position.

CapTouch Button Tips & Troubleshooting

The CapTouch buttons are designed to work under any lighting condition and to protect against false triggering. If the CapTouch buttons are not needed during operation, they can be turned off (slide switch to Off).

• To remove cover with power applied, or to clean the window, place your hand over the buttons; this will temporarily disable the CapTouch buttons to prevent inadvertent use.

• Keep the window clean.

• Tighten the cover securely.

• Use a password to prevent tampering.

• CapTouch buttons will not work if two or more

buttons are detected as being pressed simultaneously. Be careful to avoid triggering multiple buttons or reaching across one button location to press another.

Page 33

PD6938 Pulse Input Flow Rate/Totalizer

Instruction Manual

MeterView XL Programming Software

The meter connects to the PC via a provided microUSB cable and is powered by the USB connection, so no additional power is needed during programming.

To download the latest MeterView XL programming software and manual, visit predig.com/meterviewxl.

Page 34

PD6938 Pulse Input Flow Rate/Totalizer

Instruction Manual

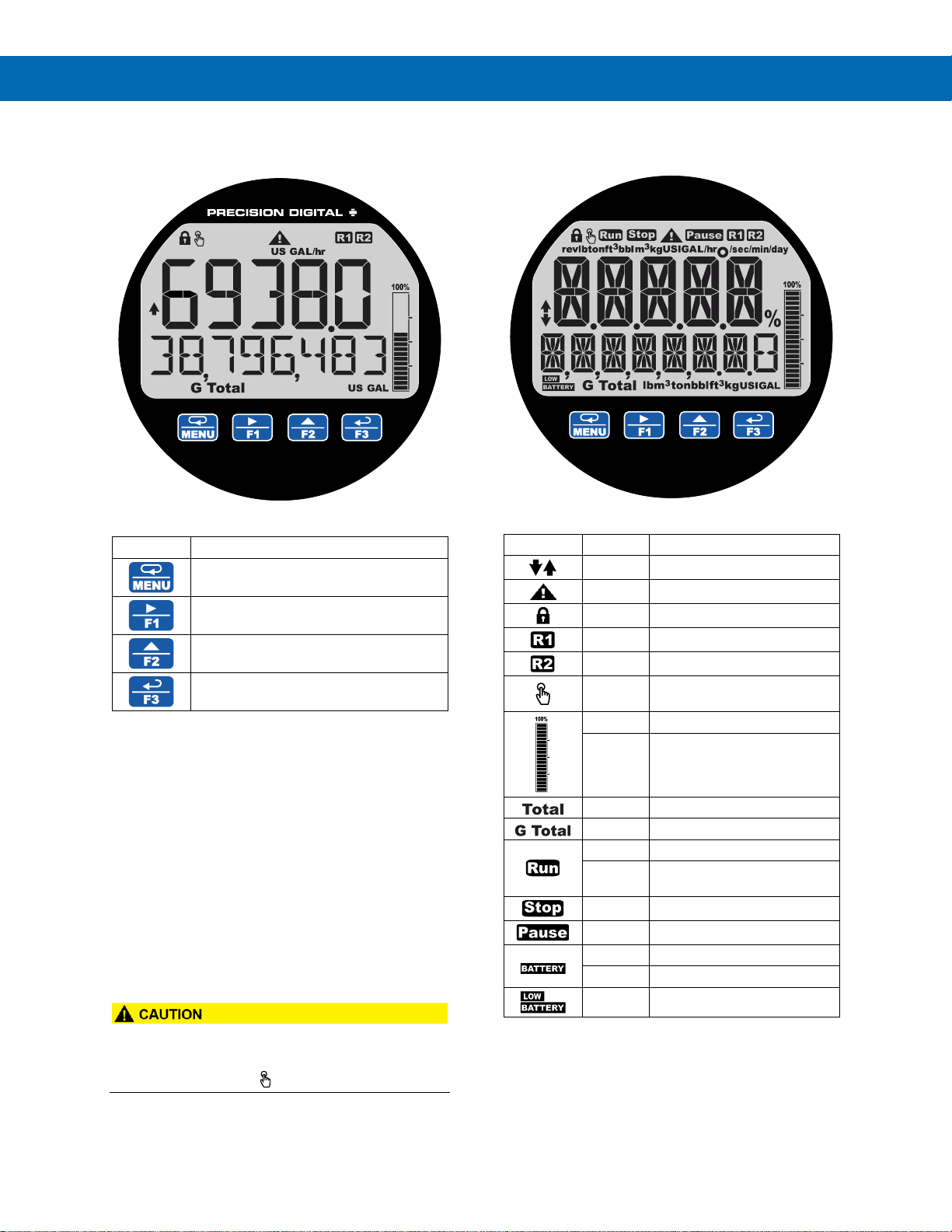

CapTouch Buttons and Status Indicators

Buttons

Button

Description

Right Arrow/F1

Up Arrow/F2

Enter/F3

1. Press the Menu button to enter or exit the Programming Mode at any time.

2. Press or hold the Right-Arrow button to scroll forward through the menus, select digits during numeric programming, select characters during text programming, or decrement the value of a digit or character selected with the Up-Arrow button.

3. Press and hold the Right-Arrow button to zero or clear digits/characters while in data-entry mode.

4. Press or hold the Up-Arrow button to scroll backwards through the menus or to increment the value of a digit or character.

5. Press the Enter button to access a menu or to accept a setting or programmed digit/character value.

• Avoid touching more than one button at a time, otherwise the buttons become unresponsive and enter into a self-calibrating routine. This is indicated by the

flashing hand symbol .

Indicators

Indicator

State

Description

Steady

Process trend arrows

Flashing

Alarm Indicator

Steady

Password protected

Steady

Solid-state relay 1

Steady

Solid-state relay 2

Flashing

CapTouch buttons self-calibrating (wait)

Steady

PV Bargraph

Flashing

Alarm condition: Bargraph segment flashes on alarm

Steady

Displaying Total

Steady

Displaying Grand Total

Steady

Batch is running

Flashing

Automatic batch control: Batch paused or start delayed

Steady

Batch is stopped

Steady

Batch is paused

Flashing

Meter checking battery status

Steady

Meter using battery power

Flashing

Low battery

Page 35

PD6938 Pulse Input Flow Rate/Totalizer

Instruction Manual

Display Functions & Messages

The meter displays various functions and messages during setup, programming, and operation. The following table shows the main menu functions and messages in the order they appear in the menu.

Display Functions & Messages

Parameter

Action/Setting Description

INPUT TYPE

Select the input type (Flowmeter)

ACTIVE

Select for square wave

NPN

Select for NPN transistor

PNP

Select for PNP transistor

REED

Select for reed switch

COIL

Select for magnetic pickup coil

ACT HIGH

Select for high threshold square wave (see specs, page 16)

NPN HIGH

Select for high threshold NPN transistor (see specs, page 16)

NPN STRG

Select for stronger pull-up NPN transistor (see specs, page 16)

PNP HIGH

Select for high threshold PNP transistor (see specs, page 16)

KFACTOR

Enter the flowmeter’s K-Factor

OUTPUT

Program the meter’s available outputs

OPEN COLLECTR

Program the meter’s open collector outputs

OUTPUT1

Open collector 1 setup

OUTPUT2

Open collector 2 setup

DISABLE

Disable the open collector

PULSE

Program the open collector for pulse output

ALARM

Program the open collector for alarm output

TIMER

Program the open collector as a timer

TOT RST

Program the open collector for total reset

STPWATCH

Program the open collector to turn on while the stopwatch is running

MANUAL

Program the open collector to be always On or Off

MESSAGE

Select ON to display a message when open collector is on

RELAY

Program the meter’s relay outputs

OUTPUT1

Relay 1 setup

OUTPUT2

Relay 2 setup

DISABLE

Disable the relay

ALARM

Program relay for alarm functionality

SAMPLE

Program relay for sample functionality

TIMER

Program relay as a timer

BATCH

Program the relay for batch control functionality

Display Functions & Messages

Parameter

Action/Setting Description

STPWATCH

Program relay to turn on while the stopwatch is running

MANUAL

Program the relay to be always On or Off

MESSAGE

Select ON to display a message when relay is on

RELAY INFO

View relay runtime and cycle count

4-20 Ma

Program the meter’s 4-20 mA output

RATE

Transmit a value based on the rate display

TOTAL

Transmit a value based on the total display

DISABLE

Disable the 4-20 mA output

CONTROL

Program manual or automatic operation for the outputs

OC1

Open collector 1

OC2

Open collector 2

RELAY1

Relay 1

RELAY2

Relay 2

4-20 mA

4-20 mA output

AUTO

Set selected output to automatic operation

MANUAL

Manually control selected output operation

ADVANCE

Program the meter’s advanced

features

AdV RATE

Advanced rate input programming

KFACTOR

Enter the flowmeter’s K-Factor

SCALE

Scale the input frequency and the rate display for up to 32 points

PERCENT

Enter bargraph rate percent values

AdVTOTAL

Advanced total programming

COUNT

Program the totalizer functionality

LIMIT

Set the number of digits used for the total

8-DIGIT

Eight digits max (99,999,999)

13-DIGIT

Thirteen digits max (9,999,999,999,999) Requires top and bottom display to display entire number, total will roll over to zero when it exceeds the limit.

NEGATIVE

Enable counting negative values (Available only via front panel)

INITIAL

Set the total to start at a specific number

RESET

Enable or disable the ability to reset the total

MANUAL

Disable manual total reset (default: enabled)

TIME DAY

Enable total reset based on time of day (Up to 4 times), press Up key to change the day of the week, press Right key to change time.

Page 36

PD6938 Pulse Input Flow Rate/Totalizer

Instruction Manual

Display Functions & Messages

Parameter

Action/Setting Description

AdV GTOTAL

Advanced grand total programming

COUNT

Program the totalizer functionality

LIMIT

Set the number of digits used for the total

8-DIGIT

Eight digits max (99,999,999)

13-DIGIT

Thirteen digits max (9,999,999,999,999) Requires top and bottom display to display entire number, total will roll over to zero when it exceeds the limit.

NEGATIVE

Enable counting negative values (Available only via front panel)

INITIAL

Set the total to start at a specific number

RESET

Enable or disable the ability to reset the grand total

MANUAL

Enable manual grand total reset (default: disabled)

TIME DAY

Enable grand total reset based on time of day (Up to 4 times), press Up key to change the day of the week, press Right key to change time.

PERMLOCK

Set grand total as non-resettable (Once set, it cannot be changed)

CUTOFF

Set low-flow cutoff

DISABLE

Disable low-flow cutoff

ENABLE

Enable low-flow cutoff

GATE

Enter the gate settings

LOW GATE

Set low gate (this determines the rate display update)

HIGH GATE

Set high gate (this is used to display slow pulse rates)

FILTER

Set contact de-bounce filter

DISABLE

No filter, allows max frequency

FAST

Set filter to 1,000 Hz max

MEDIUM

Set filter to 240 Hz max

SLOW

Set filter to 100 Hz max

PASSWRD

Set a password for the meter

MAIN

Program the main meter password

TOTAL

Program the total reset password

GTOTAL

Program the grand total reset password

DATALOG

Enter the data logger menu

LOG VIEW

View data logs

LOG SETUP

Set up data logs

HOURLY

Log every hour

DAILY

Log daily

INTERVAL

Set log interval

DAY TIME

Set log based on time of day (up to 4 times), select every day or any day of the week.

Display Functions & Messages

Parameter

Action/Setting Description

EVENT

Set to log based on events: total reset, grand total reset, hold/unhold function, open collectors, and relays status.

LOG MODE

Select Continue when full (oldest log block replaced with newest logs) or Stop when full

LOG ERASE

Erase all data logs

COMM

Set up Modbus communications

SLAVE Id

Set the server ID (1 to 247)

BAUD RATE

Select the baud rate

TX DELAY

Set the transmit delay

PARITY

Select the parity: Even, Odd, None 1, or None 2

MBUS TAG

Enter the Modbus tag

USER

Assign function keys / digital input

Assign F1 function key

Assign F2 function key

Assign F3 function key

Assign digital input

DISP FN

Set the function key or digital input to display a value

DISPLAY

Cycle max, min, rate, total, and grand total

D RATE

Display the rate

D TOTAL

Display the total

DISP GT

Display the grand total

PREV TOt

Display the previous total before the last total reset

PREV GT

Display the previous grand total before the last grand total reset

PCT.RATE

Display the rate’s percentage

D UNITS

Display the rate, total, and grand total units

D TAG

Display the tags

DISPMIN

Display the minimum rate value

DISPMAX

Display the maximum rate value

MIN MAX

Display the minimum and maximum rate value

D FREQ

Display the input frequency

D mAOUT

Display the current mA output value

MENU FN

Set the function key or digital input to access a menu

RLYINFO

Go to relay information menu (INFO)

Page 37

PD6938 Pulse Input Flow Rate/Totalizer

Instruction Manual

TIMER.FN

Set the function key or digital input to start or stop a timer

STRT.ALL

Start all timers

STOP.ALL

Stop all timers

S.STP.ALL

Start or stop all timers

OC1

Start/stop open collector 1 timer

OC2

Start/stop open collector 2 timer

RLY1

Start/stop relay 1 timer

RLY2

Start/stop relay 2 timer

START

Start the selected timer output

STOP

Stop the selected timer output

STR-STP

Start or stop the selected timer output

SHORTCUt

Set a shortcut to timer settings Timer must be set up first

TIMR OC1

Timer open collector 1 settings

TIMR OC1

Timer open collector 2 settings

TIMER R1

Timer relay 1 settings

TIMER R2

Timer relay 2 settings

BATCH.FN

Set the function key or digital input to batch control

START

Start a batch

STOP

Stop a batch

STR-STP

Start or stop a batch

PRESET

Preset batch amount

ALARM.FN

Set the function key or digital input to acknowledge an alarm or access set points

ACK ALL

Acknowledge all active alarms

SETPOINt

Access all output set points

OC1

Access open collector 1

OC2

Access open collector 2

RY1

Access open relay 1

RY2

Access open relay 2

ACK

Acknowledge selected output active alarm

SETPOINt

Access selected output set point

OC1 SET

Access open collector 1 set point

OC2 SET

Access open collector 2 set point

RLY1 SET

Access relay 1 set point

RLY2 SET

Access relay 2 set point

SWATCH.Fn

Set the function key or digital input to activate stopwatch

START

Start the stopwatch

STOP

Pause/Stop the stopwatch

STR-STP

Start or stop the stopwatch (Resets on start)

DATALOG

Set the function key to a data log function

INTERVAL

Start/stop interval data log

MANUAL

Take a log record

ERASE

Erase all data logs

VIEW

View logs

SHORTCut

Set a shortcut to log view, log setup, or log erase

HOLD FN

Set the function key or digital input to hold an output

HOLD.OUT

Hold all outputs while F1-F3 or DI are active (pressed or on)

UNHOLD

Displayed when hold all outputs key is released

HLD.UNHLd

Hold/un-hold all outputs Press once to hold, press again to

release after confirming with YES

OC1+2

Hold/un-hold open collector outputs

RLY1+2

Hold/un-hold relay outputs

mAOUT

Hold/un-hold 4-20 mA output

HOLD

Hold selected output

HLD.UNHLD

Hold or un-hold selected output

DISABLE

Disable function key or digital input

RST FN

Set the function key or digital input to reset a value

RESET

Reset min, max, or max/min rate value

R MIN.MAX

Reset max and min rate value

RST T

Reset the total

RST GT

Reset the grand total

RST T.GT

Reset the total and grand total

HINT

Display hint text on key press and execute action on next key press

OFF

Turn the hint function off

Turn the hint function on

SYSTEM

Program system settings

AOUTCAL

Calibrate the analog output

DEFAULT

Load factory defaults

BACKLITE

Enable/disable display backlight

ENABLE

Enable the backlight (default)

DISABLE

Disable the backlight

SENS.POWr

Enable sensor power

CAPTOUCH

Select CapTouch buttons mode

NORMAL

CapTouch normal (default)

DELAYED

CapTouch delayed

BATTERY

Access battery menu

DISPLAY

Access battery display settings

BACKLITE

Select backlite timeout

LCD.SLEEP

Select LCD sleep timeout

INDICATr

Display battery indicator

RS-485

Enable/disable RS-485 Modbus or program RS-485 enable interval

INFO

View meter software version and model; change the identifier tag

SFT

The software ID number

VER

The software version

MODEL

The meter model number

Page 38

PD6938 Pulse Input Flow Rate/Totalizer

Instruction Manual

ID.TAG

The meter identifier tag Press Enter to edit tag

TIME

Set the system date & time

DISPLAY

Program the meter’s display

UNITS

Change the display units within the selected unit class

RATE

Select the rate units

TOTAL

Select the total units

U.MULT

Select the total units multiplier X1, 100 h, 1000 k, 1.0E^6 M

GTOTAL

Select the grand total units

U.MULT

Select the grand total multiplier X1, 100 h, 1000 k, 1.0E^6 M

DEC.PT

Change the decimal point location

RATE

Program the rate decimal point

TOTAL

Program the total decimal point

GTOTAL

Program the grand total decimal point

COMMA

Enable or disable the use of a comma on the bottom display

ENABLE

Enable comma (default)

DISABLE

Disable comma

BARGRAPH

Turn off or change the bargraph

RATE

Set the bargraph to display the rate percentage of a user-selected range

TOTAL

Set the bargraph to display the total percentage of a user-selected range

OFF

Turn the bargraph feature off

TOP

Select what to display on the top display

RATE

Display the rate

RATE+U

Display the rate and its units alternating

TOTAL

Display the total

TOTAL+U

Display the total and its units alternating

GTOTAL

Display the grand total

TAG

Display the tag

UNITS

Display the units

PRESET

Display the preset value

STPWATCH

Display the stopwatch

TIMR OC1

Display open collector 1 timer

TIMR OC2

Display open collector 2 timer

TIMER R1

Display relay 1 timer

TIMER R2

Display relay 2 timer

MIN

Display minimum value

MAX

Display maximum value

MIN MAX

Display alternating min and max

TIME – 12H

Display time 12-hour format

TIME – 24H

Display time 24-hour format

DATE

Display date

BOTTOM

Select what to display on the bottom display

TOTAL

Display the total

TOTAL+U

Display the total and its units alternating

TOT+TAG

Display the total and its tag alternating

T+U+RU

Display the total, its units, and the rate units alternating

GTOTAL

Display the grand total

GT+UNITS

Display the grand total and its units alternating

GT+TAG

Display the grand total and its tag alternating

GT+U+RU

Display the grand total, units, and rate units alternating

RATE

Display the rate

RATE+TU

Display the rate and the total’s units alternating

RATE+U

Display the rate and its units alternating

RATE+TAG

Display the rate and its tag alternating

R UNITS

Display the rate units

T UNITS

Display the total units

TAG

Display the tag

UNITS

Display the units

PRESET

Display the preset value

STPWATCH

Display the stopwatch

TIMR OC1

Display open collector 1 timer

TIMR OC2

Display open collector 2 timer

TIMER R1

Display relay 1 timer

TIMER R2

Display relay 2 timer

MIN

Display minimum value

MAX

Display maximum value

MIN MAX

Display alternating min and max

TAG+RU

Display the tag and rate units alternating

TAG+TU

Display the tag and total units alternating

OFF

Disable the bottom display

R PCT

Display the rate’s percentage of full scale

FREQ IN

Display the input frequency

mA OUT

Display the current mA output value

TIME – 12H

Display time 12-hour format

TIME – 24H

Display time 24-hour format

DATE

Display date

Page 39

PD6938 Pulse Input Flow Rate/Totalizer

Instruction Manual

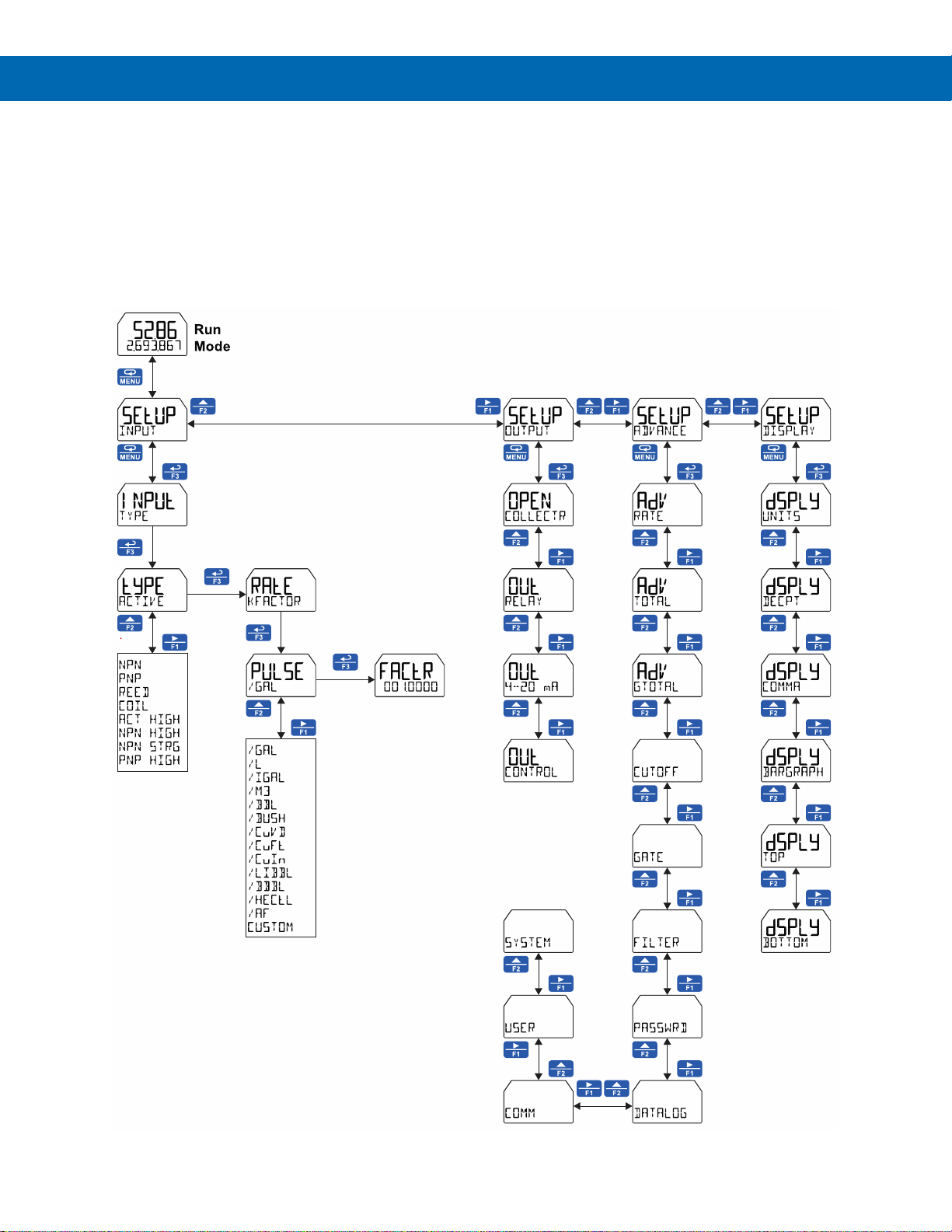

Main Menu

The main menu consists of all the meter’s programmable functions: Input, Output, Advanced, and Display.

• Press Menu button to enter Programming Mode then press the Right-Arrow button to move forward through the menu and the Up-Arrow button to move back.

• Press Menu at any time to go back one level or press & hold to exit and return to Run Mode. Changes made to settings prior to pressing Enter are not saved.

• Changes to the settings are saved to memory only after pressing Enter/F3 to confirm the setting or pressing Enter/F3 at the SAVE? screen when available.

Note: The navigation returns to the top

Page 40

PD6938 Pulse Input Flow Rate/Totalizer

Instruction Manual

Setting Numeric Values

The numeric values are set using the Right and Up-Arrow buttons.

1. Press Right-Arrow to select next digit and Up-Arrow to increment digit value. The selected digit will flash.

2. Press and hold Up-Arrow to auto-increment the display value. If you have made a mistake or would like to

enter a new value, select the left-most digit, and press and hold the Right-Arrow button until all digits reset to zero.

3. Press the Enter button at any time to accept a setting or Menu button to exit without saving changes.

Note: the underscore in the graphic below is provided to show which digit would be flashing.

Page 41

PD6938 Pulse Input Flow Rate/Totalizer

Instruction Manual

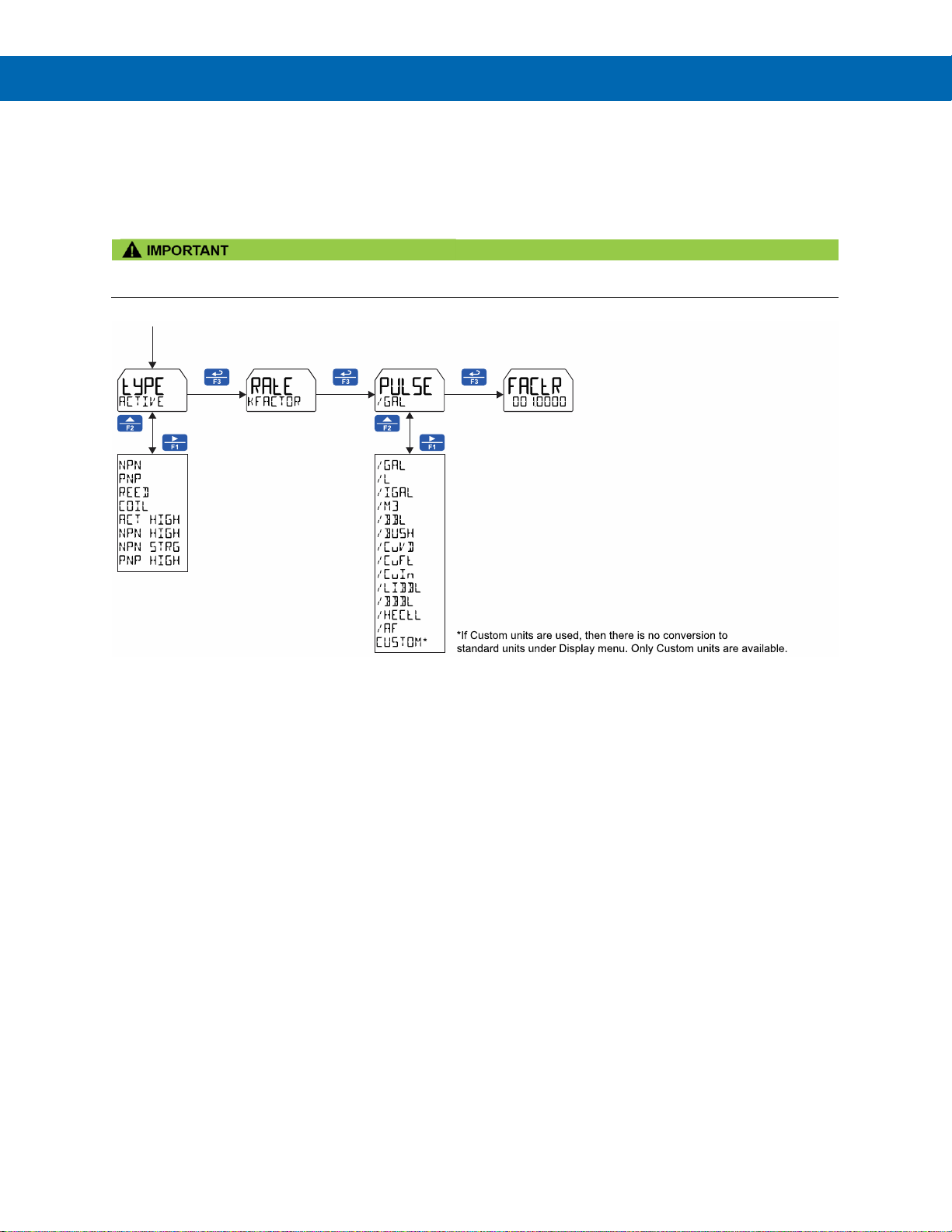

Entering the K-Factor (KFACTOR)

The meter may be scaled using the K-Factor, or conversion factor, function. Most flowmeter manufacturers provide this information with the device. Enter the K-Factor (KFACTOR) menu and select the units defined with the K-Factor (example: pulses/gal), the decimal point with highest resolution possible, and program the K-Factor value. The meter automatically calculates the flow rate using the K-Factor value and the units selected. The rate can be displayed in any time-base and decimal point resolution selected in the Display menu.

• Performing a K-Factor operation will override any scaling programming. Refer to Scaling the Pulse Input (SCALE) on page 42 for more information on these programming methods.

Page 42

PD6938 Pulse Input Flow Rate/Totalizer

Instruction Manual

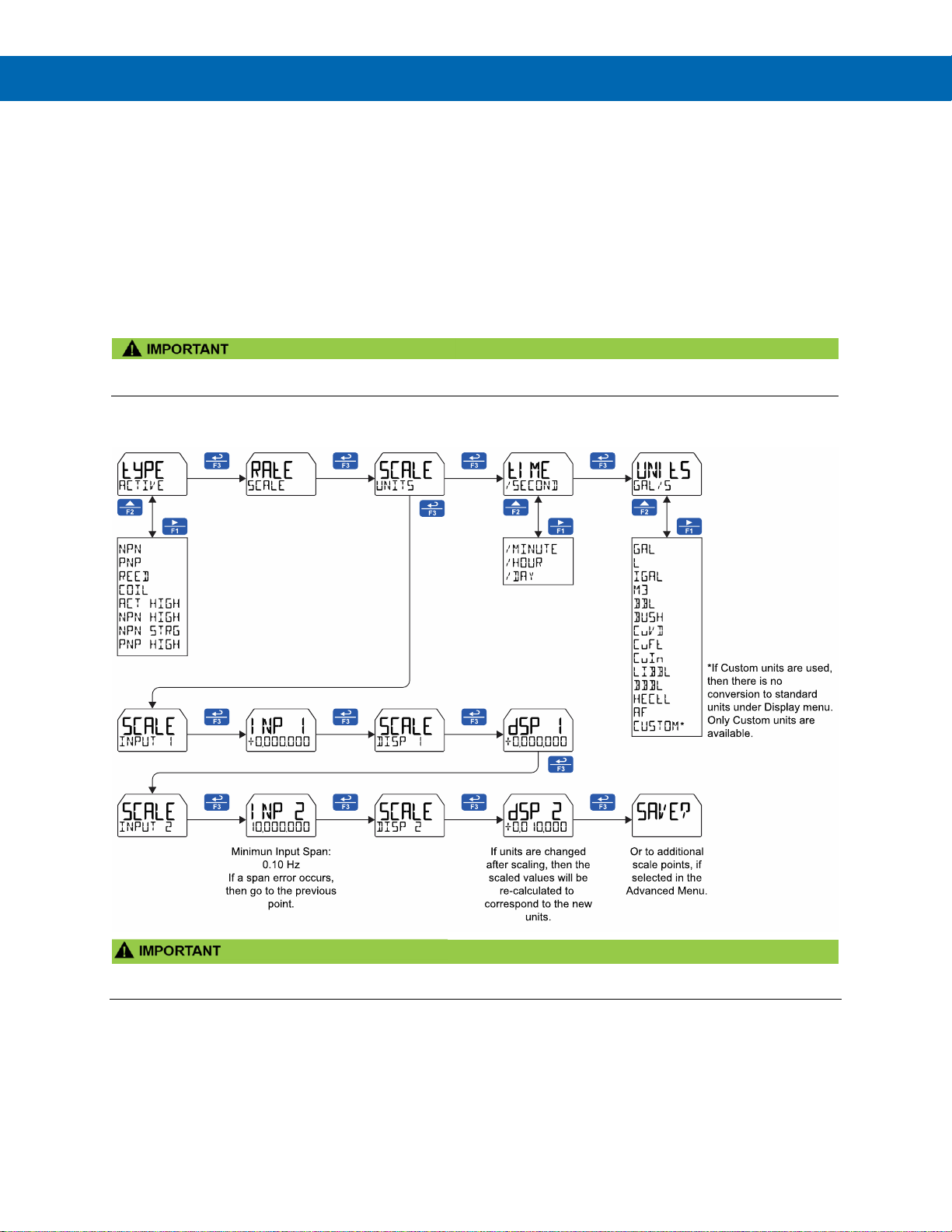

Scaling the Pulse Input (SCALE)

Scaling is an alternative calibration method used instead of K-Factor calibration. The multipoint scaling is a great way of improving the accuracy of a flowmeter application where output frequency and volume are known for various points of the flow rate.

• The meter is set up at the factory with a K-Factor of 1.000 pulses/gal. If it is necessary to use the multipoint scaling function (2-32 points) go to the Advance menu and enter the Adv Rate menu. After selecting Scale function in the Advance menu, the Scale menu is available in the Setup Input menu.

• The meter is factory calibrated prior to shipment to display the rate in gal/sec, which corresponds to the input frequency in pulses/sec. The calibration equipment is traceable to NIST standards.

• A calibrated signal source is not needed to scale the meter.

• Performing a Scale operation will override any K-Factor programming. Refer to Entering the K-Factor (KFACTOR)

on page 41 for more information on these programming methods.

Enter the Rate Scale menu to scale the meter to display the pulse input.

• Bi-Directional Flow The meter can be set up to process bi-directional flow, refer to Bi-Directional Flow on page 67 for details.

Page 43

PD6938 Pulse Input Flow Rate/Totalizer

Instruction Manual

Available Engineering Units

The meter has preprogrammed rate and time base units. The following are the available units to choose from:

Rate Time Bases (TIME)

/SECOND

Units per second

/MINUTE

Units per minute

/HOUR

Units per hour

/DAY

Units per day

Rate Units (RATE)

GAL/(T)

Gallons per time unit (T)

L/(T)

Liters per time unit (T)

IGAL/(T)

Imperial gallons per time unit (T)

M3/(T)

Cubic meters per time unit (T)

BBL/(T)

Barrels per time unit (T)

BUSH/(T)

Bushels per time unit (T)

cuYD/(T)

Cubic Yards per time unit (T)

cuFt/(T)

Cubic Feet per time unit (T)

cuIn/(T)

Cubic Inches per time unit (T)

LiBBL/(T)

Liquid barrels per time unit (T)

BBBL/(T)

Beer barrels per time unit (T)

HECtL/(T)

Hectoliter per time unit (T)

AF/(T)

Acre-Foot per time unit (T)

CUSTOM/

Custom unit per time unit (T)

• Use custom units for engineering units not listed or for units in other languages.

Volume Units

Volume Units (VOLUME)

GAL

Gallons

Liters

IGAL

Imperial Gallons

Cubic Meters

BBL

Barrels

BUSH

Bushels

cuYD

Cubic Yards

cuFt

Cubic Feet

cuIn

Cubic Inches

LiBBL

Liquid barrels

BBBL

Beer barrels

HECtL

Hectoliter

Acre-Foot

CUSTOM

Custom Unit

Page 44

PD6938 Pulse Input Flow Rate/Totalizer

Instruction Manual

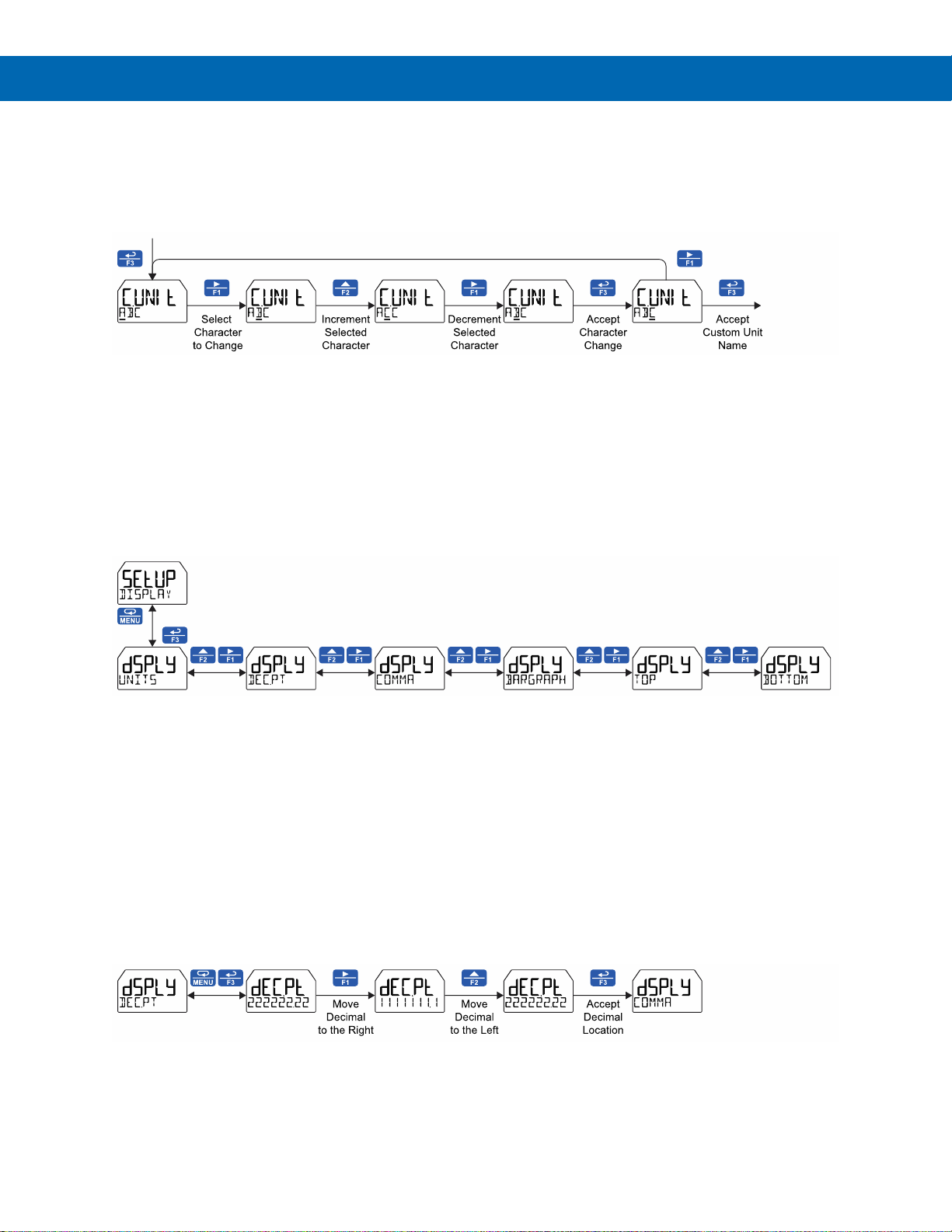

Setting Custom Units (CUSTOM)

When the desired unit class or unit of measure within a class is not available, a custom unit may be programmed. Select the CUSTOM menu (or CUSTOM unit within a unit class) to enter a custom unit name.

Text values are set using the Right and Up-Arrow buttons. Press Right-Arrow to select next character and Up-Arrow to increment character value. The selected character will flash. Press and hold the Up or Right-Arrow buttons to auto-increment or decrement the character. Press Enter to accept the character.

Notes:

• Press and hold the Right-Arrow while no character is being edited to erase all characters to the right of the

flashing character

• Press and hold Up or Right-Arrow to auto-increment or decrement a selected character.

• All text values, including tags and alarm messages, are set in a similar fashion.

Setting the Display Features (DISPLAY)

The meter’s display functions may be programmed using the Display menu. This menu consists of the following submenus: Units, Decimal Point, Comma, Bargraph, Top, and Bottom.

Changing the Engineering Units (UNITS)

It is possible to change the engineering units without the need to re-scale the meter. When selecting a new unit from within the DISPLAY menu (e.g. changing from gallons (GAL) to liters (L)), the meter will automatically convert the display values to display the new unit. Enter the UNITS menu, select a new unit of measure from the list of predefined units, and press the Enter button. If entering a custom unit (CUSTOM), a custom conversion factor needs to be entered.

Changing the Decimal Point (DEC.PT)

The decimal point may be set with up to seven decimal places or with no decimal point at all. Pressing the Right-Arrow moves the decimal point one place to the right until no decimal point is displayed, and then

it moves to the left most position. Pressing the Up-Arrow moves the decimal point one place to the left. If the dual-scale level feature is selected, the decimal point selections for PV1 & PV2 are enabled.

Page 45

PD6938 Pulse Input Flow Rate/Totalizer

Instruction Manual

Enabling or Disabling Commas on the Bottom Display (COMMA)

The bottom display is set to show a comma separating the thousands and millions place by default if a numeric value is being displayed. This feature can be disabled or enabled using the Comma menu.

Display Capabilities Optimization (TOP and BOTTOM)

Display Configuration Examples

The meter’s dual-line display can be setup in multiple ways to provide an extremely informative view of the process variable being monitored. The following graphics show typical configurations:

Top Display: Toggle Flow Rate and Rate Units Bottom Display: Toggle Total Flow and Total Units

Note: To display units as GALLONS, select custom

units and enter the desired text.

Top Display: Flow Rate Bottom Display: Toggling Between Units and Tag

Dual-Scale Mode: Top Display: Toggle Rate and GPM Units Bottom Display: Toggle Rate and CFM Units

Top Display: Maximum Value Bottom Display: Process Value

Using 13 Digits to Display Total

The top and bottom displays can be set up to display a 13-digit total.

Note: The number above should be read as 6,843,276,349,187

Page 46

PD6938 Pulse Input Flow Rate/Totalizer

Instruction Manual

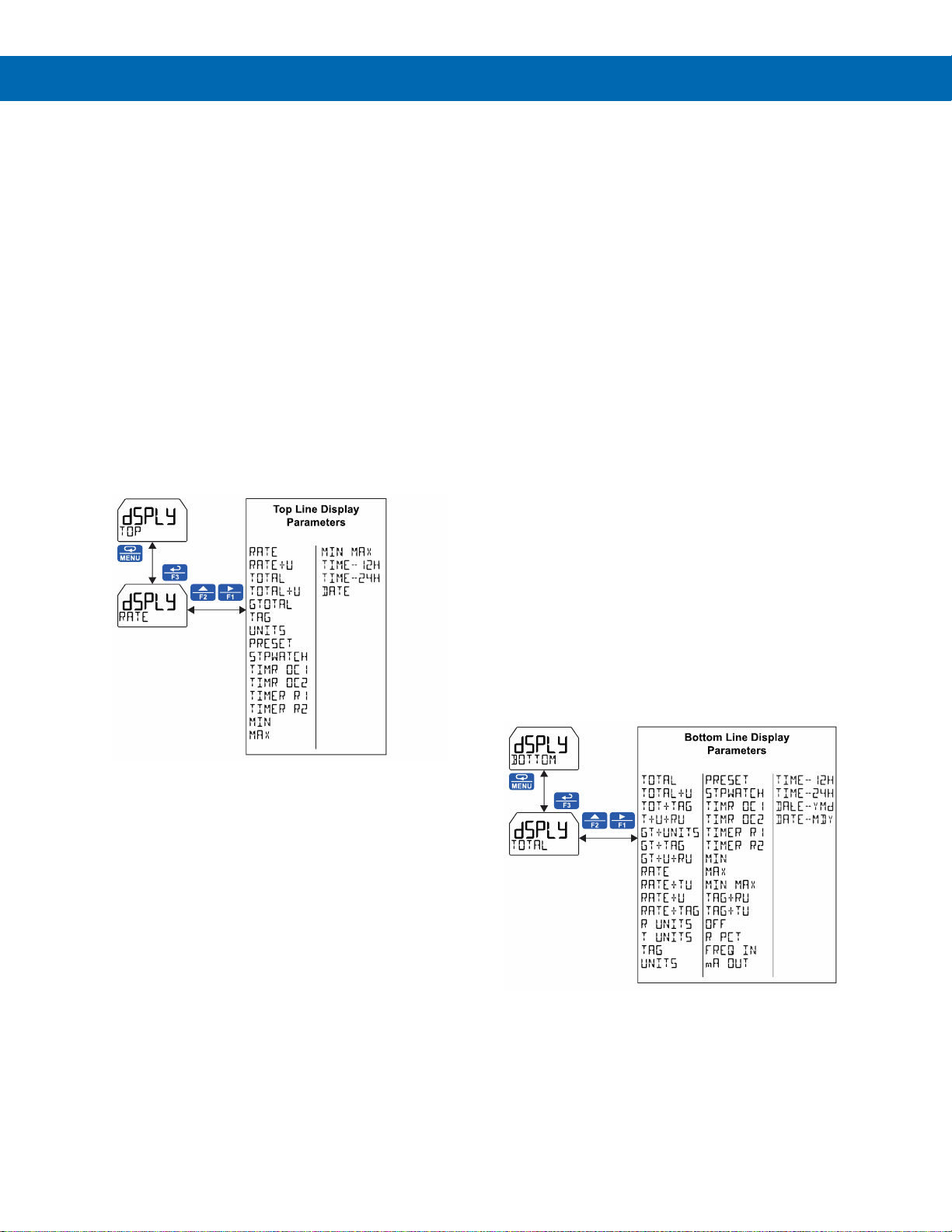

Configuring the Display (TOp and BOTTOM)

The display is configured using the TOP and BOTTOM menus in the DISPLAY menu.

The top display (TOP) can display:

• Rate

• Rate and its units alternating

• Total

• Total and its units alternating

• Grand Total

• Tag

• Units

• Preset batch value

• Stopwatch

• Open Collector 1 or 2 Timer

• Relay 1 or 2 Timer

• Minimum Value, Maximum Value, or Both

• Time 12-hour or 24-hour format

• Date

The bottom display (BOTTOM) can display:

• Total

• Total and its units alternating

• Total and tag alternating

• Total, its units, and rate units alternating

• Grand total and its units alternating

• Grand total and tag alternating

• Grand total, units, and rate units alternating

• Rate

• Rate and the total’s units alternating

• Rate and its units alternating

• Rate and tag

• Rate units

• Total units

• Tag

• Units

• Preset batch value

• Stopwatch

• Open Collector 1 or 2 Timer

• Relay 1 or 2 Timer

• Minimum Value, Maximum Value, or Both

• Tag and rate units

• Tag and total units

• Off (Blank)

• Rate percent

• Input frequency

• mA output

• Time 12-hour or 24-hour format

• Date

Page 47

PD6938 Pulse Input Flow Rate/Totalizer

Instruction Manual

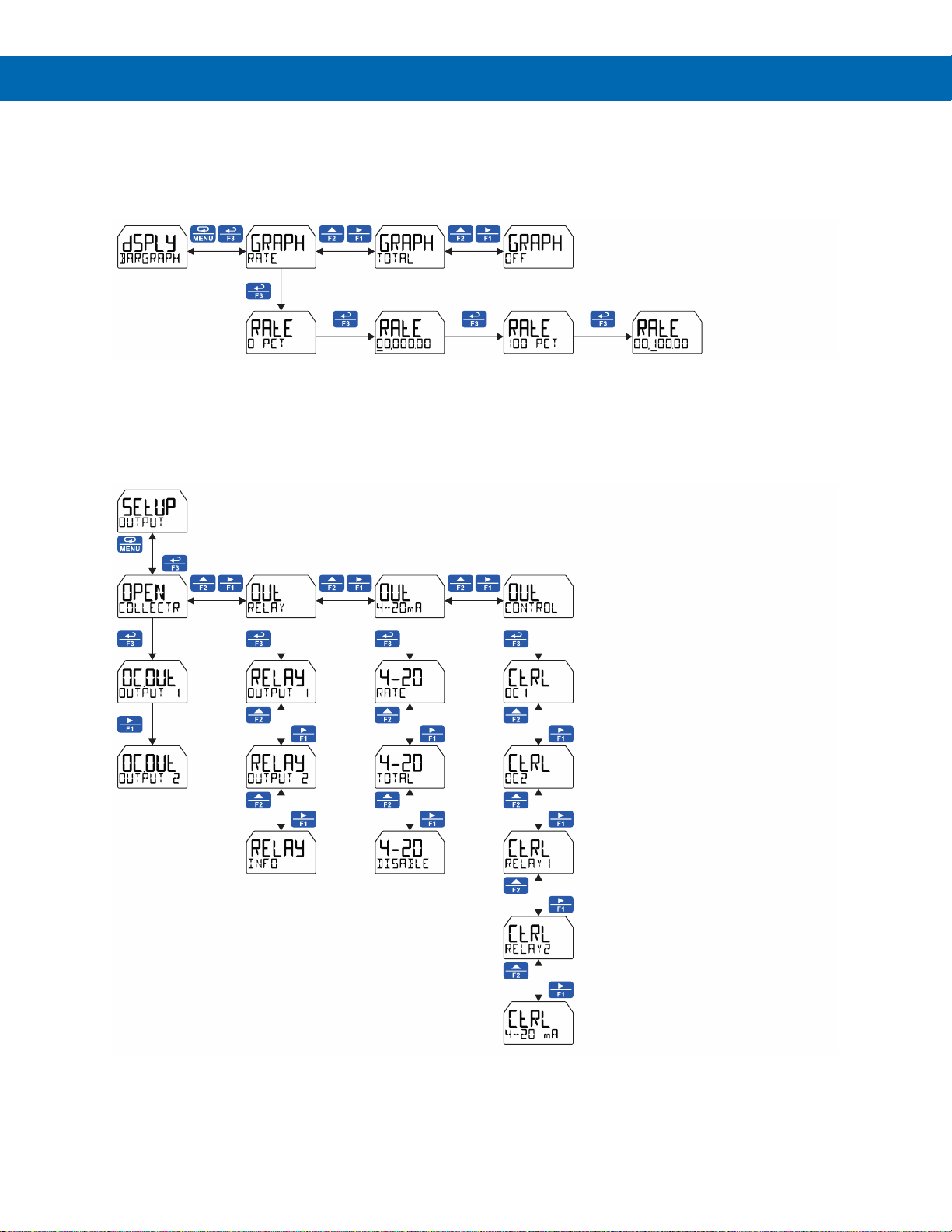

Programming the Bargraph (BARGRAPH)

The VantageView+ Rate/Totalizers come equipped with a bargraph display for applications where a visual

representation of the rate or total’s percentage of full scale is desirable. This feature can be changed to represent

either rate, a percentage of the rate, total, or it can be disabled, using the Bargraph menu (BARGRAPH). If the bargraph is set to represent total, the total full scale will need to be set.

Programming the Outputs (OUTPUT)

All models come with two open collectors. Depending on the model purchased, the meter may include two solid-state relays, and one 4-20 mA output. The Output menu will only show options for the available outputs. See Ordering Information on page 13 for details.

Page 48

PD6938 Pulse Input Flow Rate/Totalizer

Instruction Manual

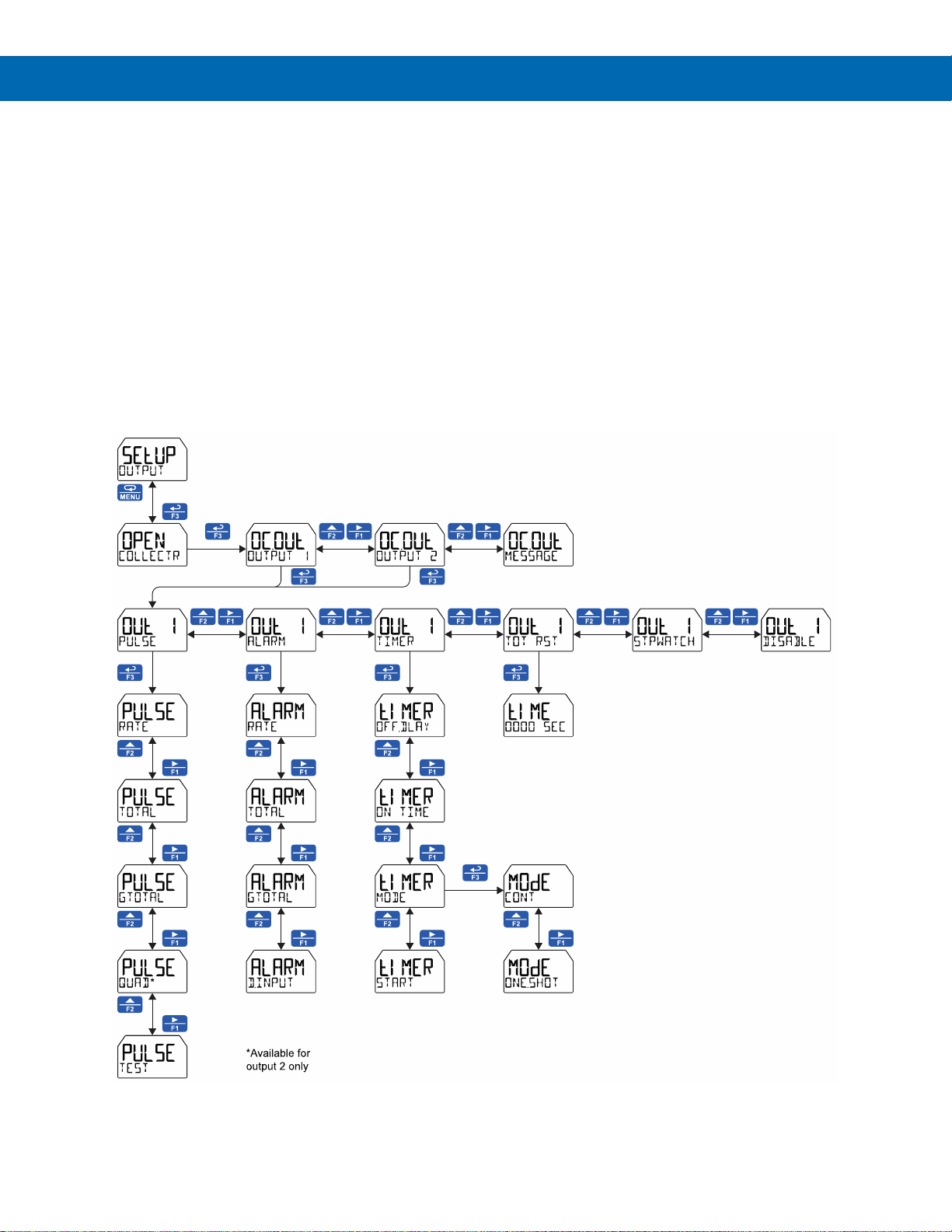

Open Collector Outputs

(OPEN COLLECTR)

The meter is equipped with two NPN open collector outputs that may be set up for pulse outputs, alarms, timed pulses, total reset, or disabled.

Pulse outputs can be set to transmit the rate, total, or grand total. Output 2 may be used to generate a quadrature output based on the other open collector output. An output test mode is also selectable to generate pulses at a constant programmable frequency.

Alarms are available based on the rate value or the digital input. The alarm status will show on the display even if the output is not wired.

A timer output (TIMER) turns the open collector on and off at the specified time intervals. The timer can be set as single-shot or continuous timer.

A total reset output generates a pulse whenever the total is reset, regardless of the reset method used. The On time is programmable between 0 and 9,999 seconds.

The stopwatch output (STPWATCH) allows the open collector to be manually activated by starting the stopwatch. The stopwatch count can be displayed on the top or bottom display.

The output may be disabled by selecting DISABLE. The Open Collector Outputs are programmed in the following manner:

Page 49

PD6938 Pulse Input Flow Rate/Totalizer

Instruction Manual

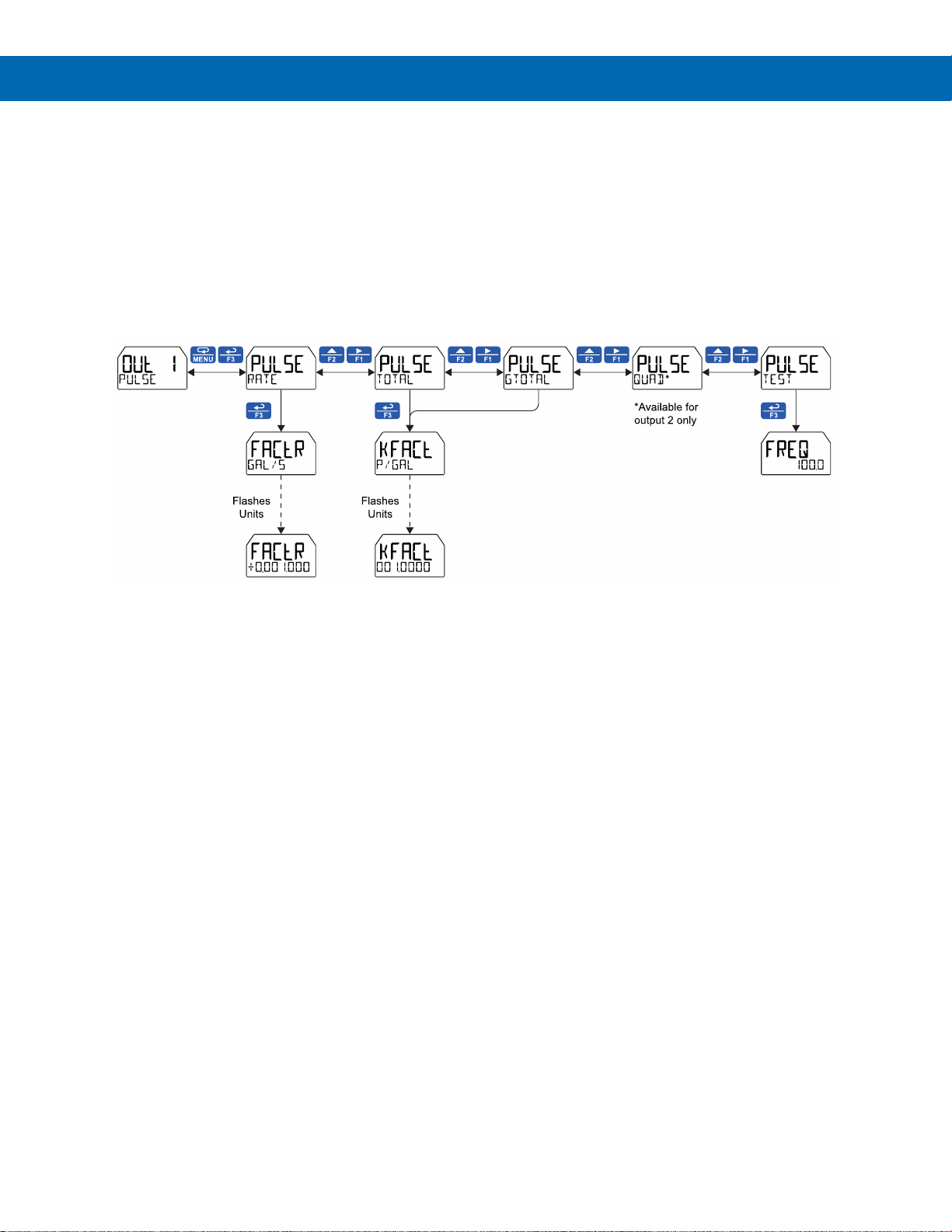

Pulse Output (PULSE)

Pulse outputs may be assigned to output the rate, total, or grand total at a programmable factor. If the output is assigned to rate, the factor is a multiplier that determines the number of pulses generated based on the rate. For example, if the meter display shows 100 gallons/second and the factor is set to 2, the number of pulses generated per second would be 200. If the output is assigned to total or grand total, the k-factor corresponds to the number of pulses generated per unit of measure. For example, if the k-factor is 0.001 and the units are gallons, one pulse will be generated for every 1,000 gallons. The maximum frequency is 2,000 Hz.

Setting output 2 to quadrature will duplicate the other open collector output, but lag by 90 degrees out of phase. The other output should be programmed as desired for the quadrature output function and must be a pulse (PULSE) output selection. The quadrature maximum frequency for both outputs is 1000 Hz.

The TEST option will output a fixed number of pulses per second based on the FREQ value entered.

Page 50

PD6938 Pulse Input Flow Rate/Totalizer

Instruction Manual

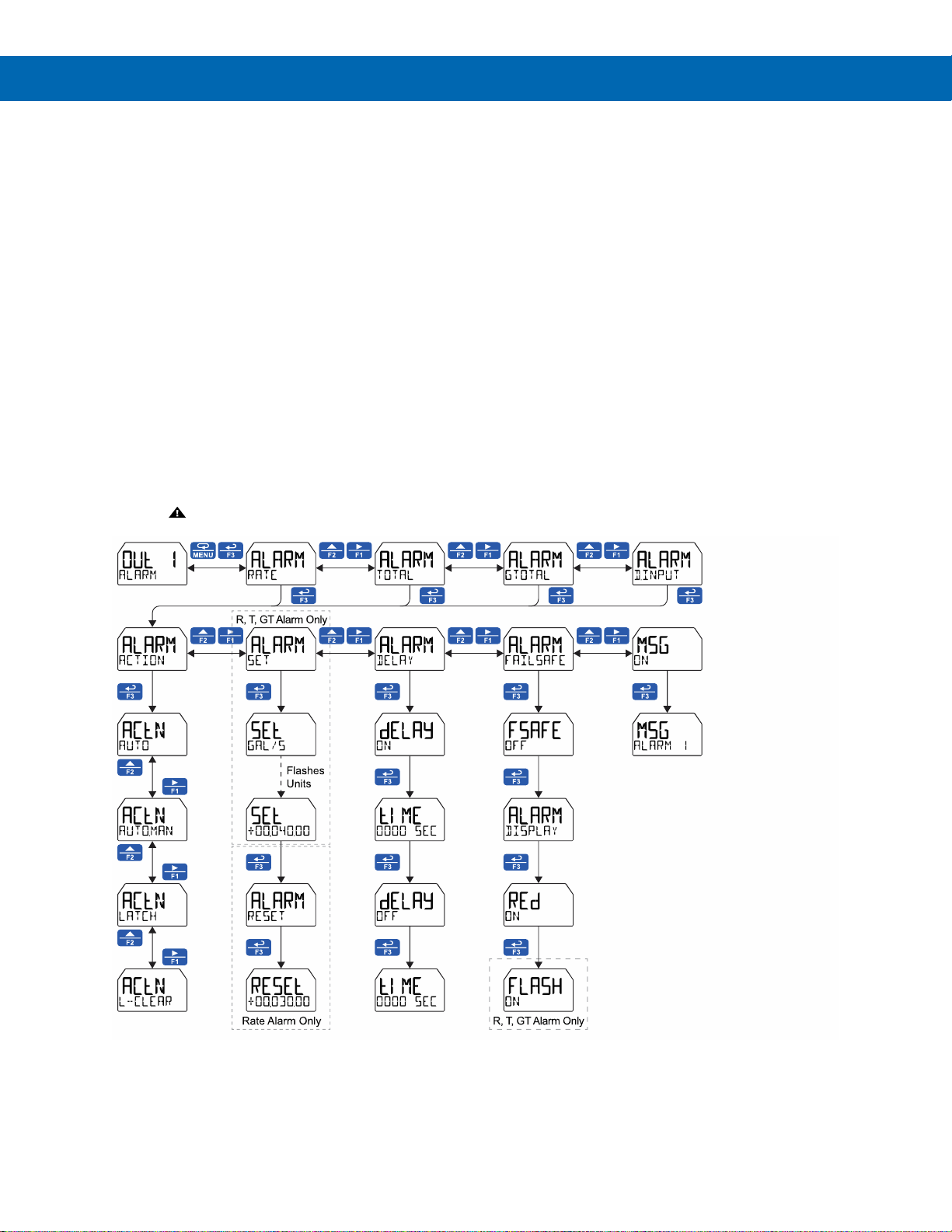

Alarm (ALARM)

Alarm outputs may be assigned to the rate, total, grand total, or the digital input. When assigned to the rate, the alarm may be set as either a high alarm or a low alarm. Alarm actions (AUTO, AUTO.MAN, LATCH, L-CLEAR) determine how and when the alarm should be reset. They operate as follows:

• Automatic (AUTO): Alarm will reset automatically once the alarm condition has cleared.

• Automatic/Manual (AUTO.MAN): Alarm will reset automatically once the alarm condition has cleared but can

also be reset using the Enter (ACK) button (or whichever function key is set to acknowledge) at any time.

• Latching (LATCH): Alarm must be reset manually and can be done so at any time. Press the Enter (ACK) button at any time to clear the alarm.

• Latching with Reset after Clear (L-CLEAR): Alarm must be reset manually and can only be done so after the alarm condition has cleared. Press the Enter (ACK) button after the alarm condition has cleared to reset the alarm.

If the alarm is set to rate, a set and reset point must be programmed. The set point is the display value at which the alarm will turn on and the reset point is the display value at which the alarm will turn off. If the set point is lower than the reset point, the alarm will be a low alarm; if the set point is higher than the reset point, the alarm will be a high alarm. The digital input alarm will trigger whenever the digital input is triggered.

For both the rate and digital input alarms, a delay before the alarm is turned on or off may be set, as well as a fail-safe feature which reverses the on/off operation of the open collectors.

Alarm states will be displayed on the meter even if no open collector output is physically connected. These may include a red LED backlight, flashing the rate value (rate alarm only), a programmable alarm message, an alarm indicator , and flashing bargraph segment.

Page 51

PD6938 Pulse Input Flow Rate/Totalizer

Instruction Manual

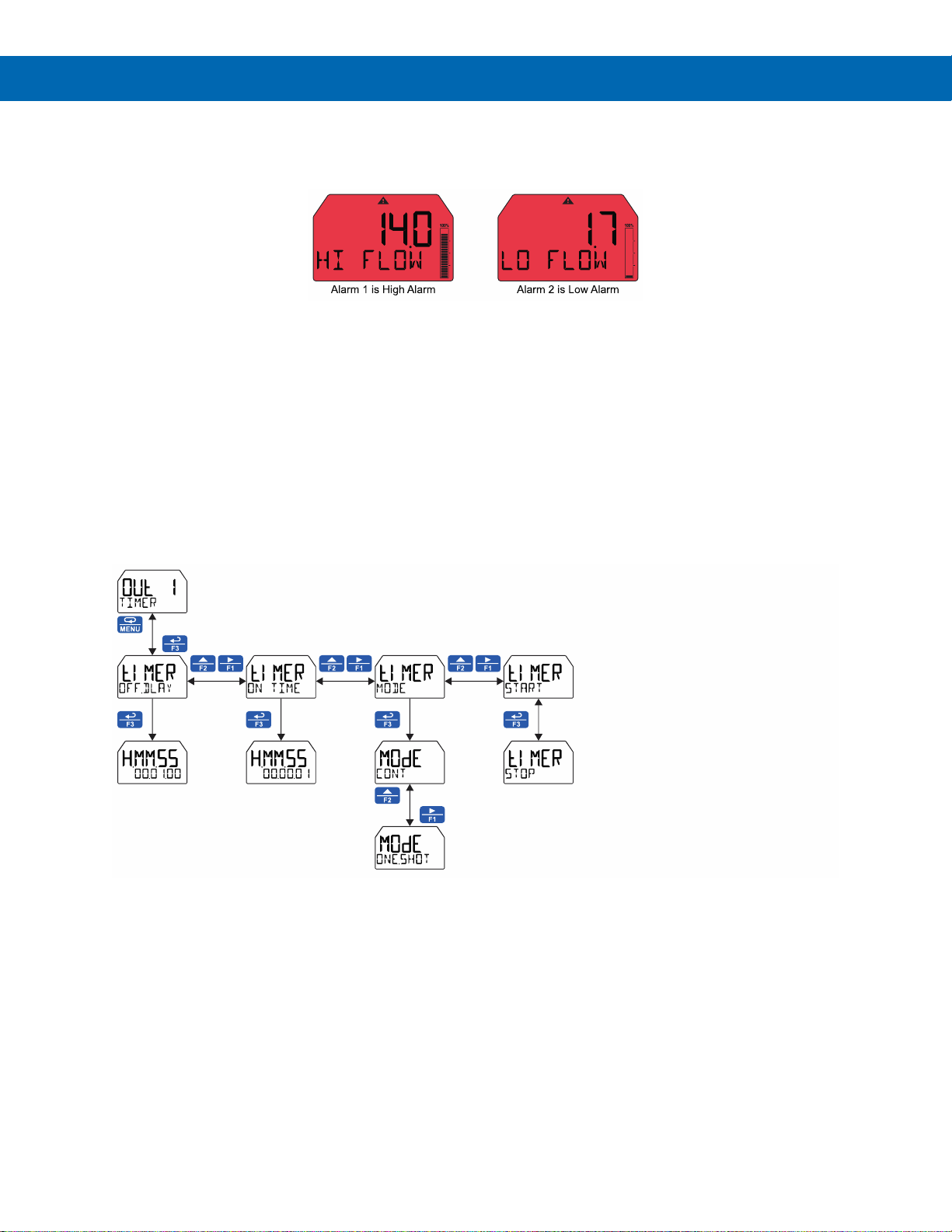

Flashing Red Alarm (RED)

The last two lines in the preceding menu flow chart show how to program the display to turn red, flash, and display a message when an alarm occurs.

Timer (TIMER)

The timer output may be set to generate the timed pulse only once (ONESHOT) or continuously (CONT). The timer output produces a constant width pulse at a constant frequency, if set as continuous timer. Program the Off

Delay (OFF.DLAY) from 1 second to 99 hours 59 minutes and 59 seconds. This is the time it takes from selecting START to turning on the output and for how long the output is off in continuous mode.

Program the On Time (ON TIME) for the active low pulse from 1 second to 99 hours 59 minutes and 59 seconds (pulse width). This is the period of time for which the output will remain on.

Select Start (START) to begin outputting the constant timed pulse. Select Stop (STOP) to end outputting the constant timed pulse. Function keys or the digital input may be assigned to start and stop timer functions (see the USER menu in the

Advanced Menu).

Page 52

PD6938 Pulse Input Flow Rate/Totalizer

Instruction Manual

Stopwatch (STPWATCH)

The stopwatch function may be used to manually run and control a process for a specific time interval up to 99 hrs., 59 min, and 59 seconds. The stopwatch function may be assigned to any open collector. There are three settings needed to use the function effectively.

1. Assign stopwatch to either top or bottom display

2. Assign the open collector to control the process (on/off)

3. Assign a function key or digital input to start/stop the stopwatch

Application Example

To maintain consistency of a product, it is necessary to take and test samples at different times throughout the day. The stopwatch function is used to open and close a solenoid valve to know the exact amount of time needed to complete the desired sample. Once this is determined, the timer function can be used to automatically take a sample (batch) based on the time determined using the stopwatch function.

Setup: Assign the following to Stopwatch Function

• Bottom display

(see pages 44 & 46 for details how to change the display)

• Relay 1

(see pages 47 & 53 how to change Open Collector and Solid-State Relay functionality)

• F3: Start/Stop

(see pages 69 & 73 for details on how to change the function keys)

Procedure

• Press F3 to start the stopwatch; relay 1 turns on and the process starts running.

• Press F3 to stop the stopwatch; relay 1 turns off and the process stops.

• The bottom display indicates the time it took to complete the sample.

Page 53

PD6938 Pulse Input Flow Rate/Totalizer

Instruction Manual

Solid-State Relay Outputs (RELAY)

The meter is optionally equipped with two solid-state relays that may be set up for alarms, sample, timer, batch control, or stopwatch. Alternatively, they may be disabled.

Alarms are available based on the rate, total, grand total, or the digital input. The alarm status will show on the display even if the output is not wired.

Sample will engage the relay for a programmed period of time when either the total or the grand total have reached a programmed amount.

A timer output (TIMER) turns the relay on and off at the specified time intervals. The timer can be set as single-shot or continuous timer.

For use in batch control applications, the meter relays must be set to batch. This will enable the batch control features of the meter.

The stopwatch output (STPWATCH) allows the relay to be manually activated by starting the stopwatch. The stopwatch count can be displayed on the top or bottom display.

The output may be disabled by selecting DISABLE.

• During setup, the relays do not follow the input and they will remain in the state found prior to entering the

Relay menu.

Page 54

PD6938 Pulse Input Flow Rate/Totalizer

Instruction Manual

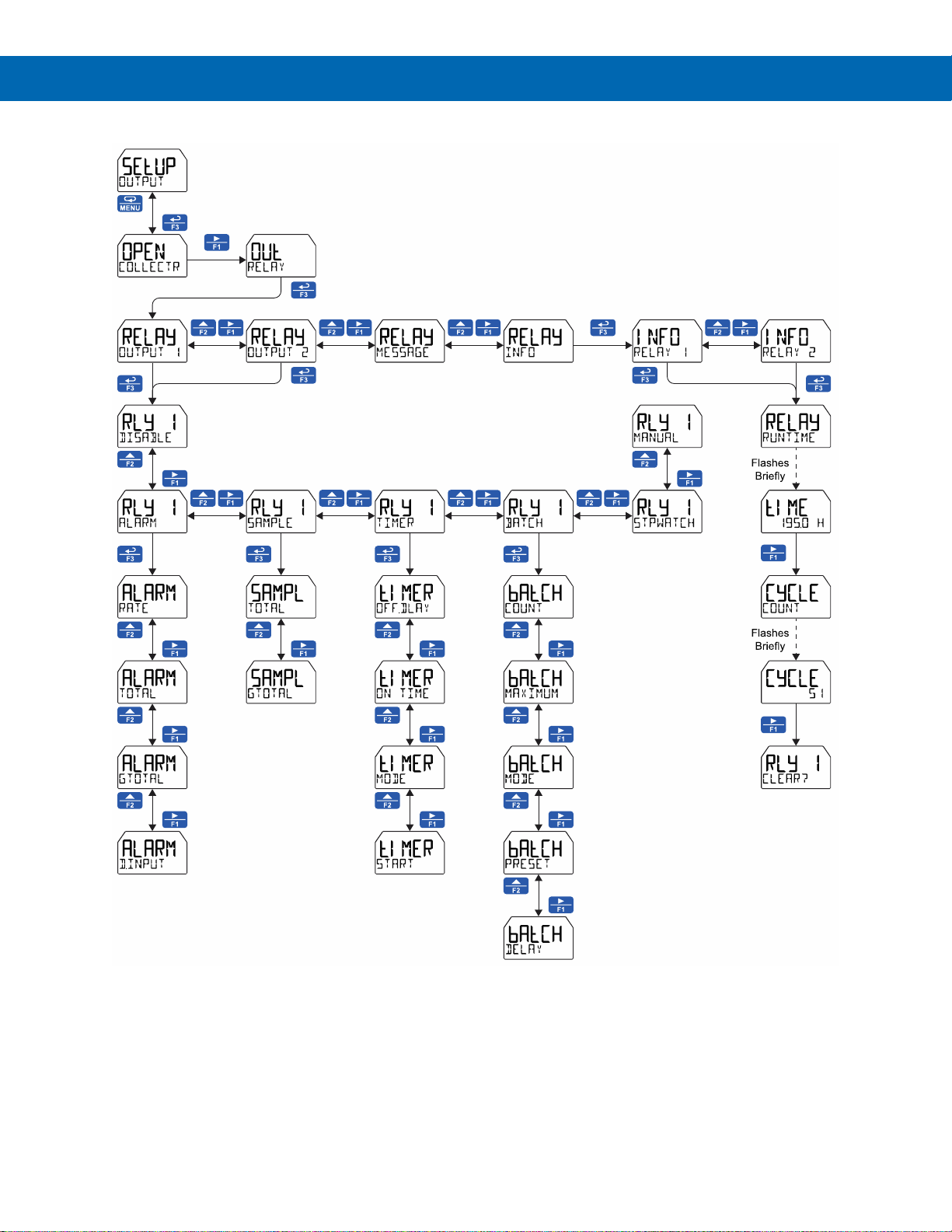

Relay Menu

Page 55

PD6938 Pulse Input Flow Rate/Totalizer

Instruction Manual

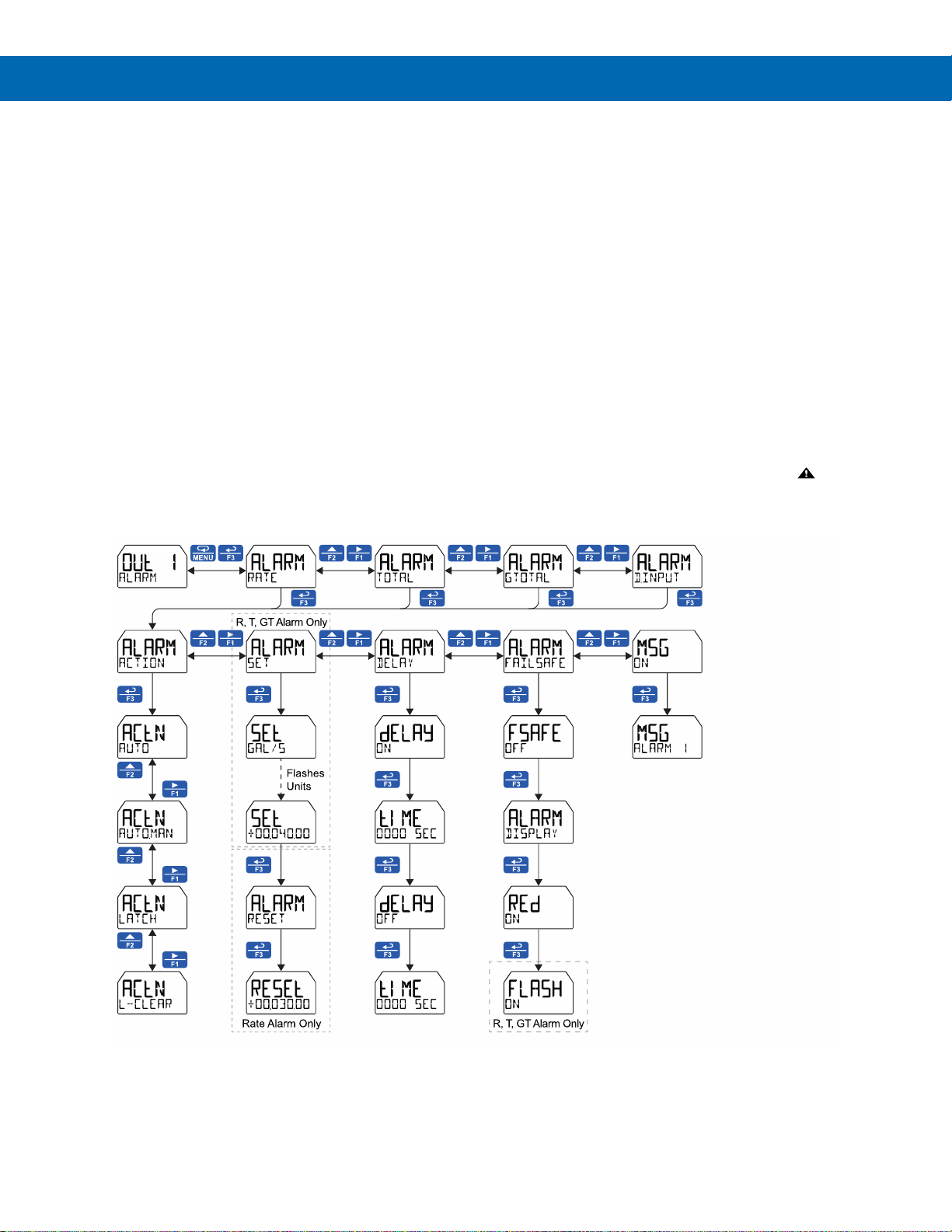

Alarm (ALARM)

• Automatic (AUTO): Alarm will reset automatically once the alarm condition has cleared.

• Automatic/Manual (AUTO.MAN): Alarm will reset automatically once the alarm condition has cleared but can

also be reset using the Enter button (or whichever function key is set to acknowledge).

• Latching (LATCH): Alarm will not reset automatically even if the alarm condition has cleared. Press the Enter button at any time to acknowledge the alarm.

If the alarm is set to rate, a set and reset point must be programmed. The set point is the display value at which the alarm will turn on and the reset point is the display value at which the alarm will turn off. If the set point is lower than the reset point, the alarm will be a low alarm; if the set point is higher than the reset point, the alarm will be a high alarm. If the alarm is set to total or grand total, only a set point needs to be programmed. The digital input alarm will trigger whenever the digital input is triggered.

For all alarms, a delay before the alarm is turned on or off may be set, as well as a failsafe feature which will inverse the on/off programming.

Alarm states will be displayed on the meter even if no relay output is physically connected. The alarm indicator will display as well as optional red LED backlight, flashing rate, total, or grand total value (rate, total, or grand total alarms only), and a programmable alarm message.

Page 56

PD6938 Pulse Input Flow Rate/Totalizer

Instruction Manual

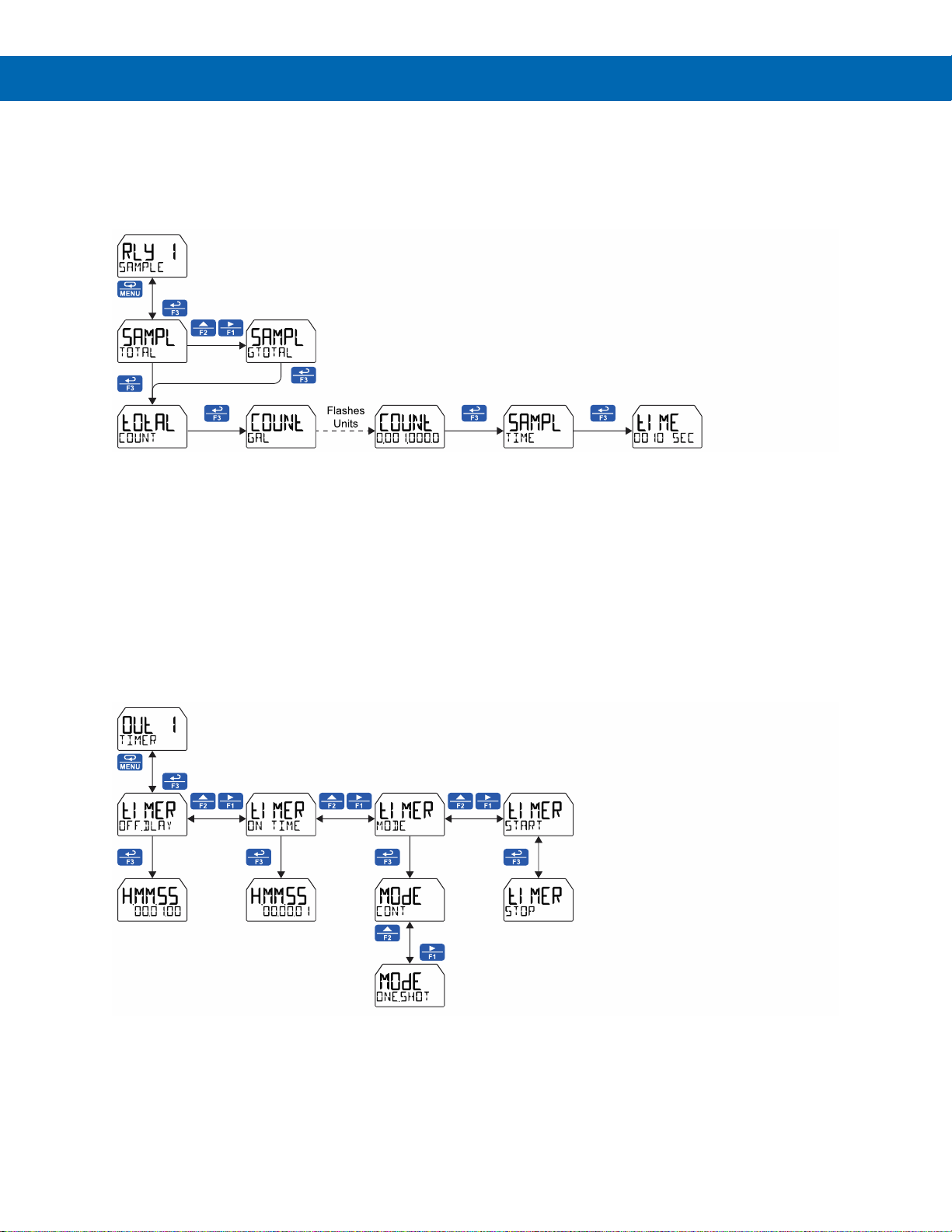

Sample (SAMPLE)

A relay set to sample will trigger when the total or grand total value has incremented by a programmed amount. The relay can be programmed to stay on for a specified amount of time.

For example: if a relay is set to sample the total with a COUNT of 1,000 and a TIME of 10 seconds, the relay will engage for 10 seconds whenever the total has incremented by 1,000 (e.g. 1000, 2000, 3000).

Timer (TIMER)

Program the Off Delay (OFF.DLAY) from 1 second to 99 hours 59 minutes and 59 seconds. This is the time it takes from selecting START to turning on the output and for how long the output is off in continuous mode.

Program the On Time (ONTIME) for the active low pulse from 1 second to 99 hours 59 minutes and 59 seconds (pulse width). This is the period of time for which the output will remain on.

Page 57

PD6938 Pulse Input Flow Rate/Totalizer

Instruction Manual

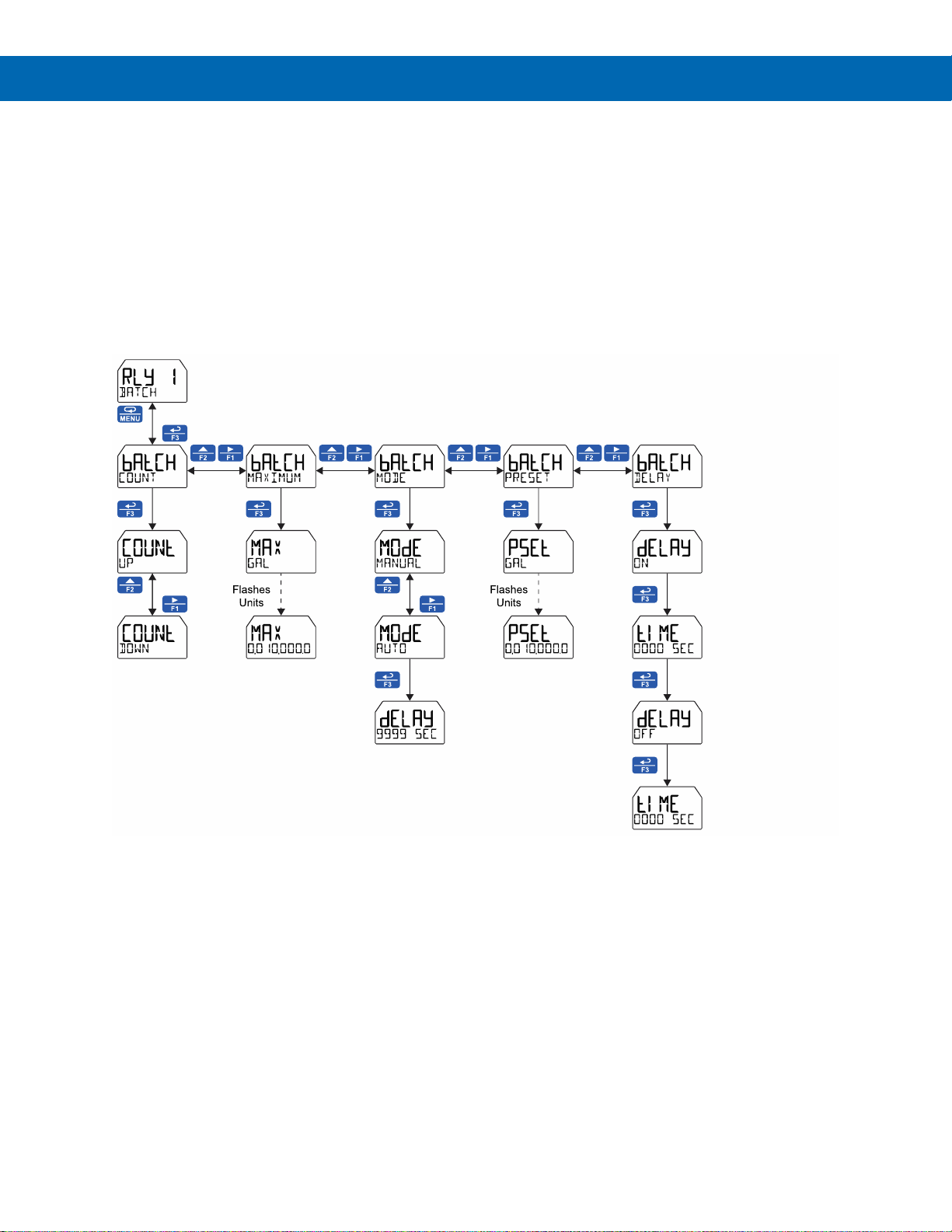

Batch Control (BATCH)

Batch Control Relay 1

The batch total can be set to count UP or DOWN. The batch MAXIMUM is the max preset amount that can be batched. Batching can be set to either manual or automatic operation (MANUAL or AUTO). If setting batching to automatic, a delay before the next batch is started must be programmed. The PRESET amount is the value at which the batch will stop and can be programmed up to the value assigned in the MAXIMUM menu. An on and off delay may be set for batching relays.

Page 58

PD6938 Pulse Input Flow Rate/Totalizer

Instruction Manual

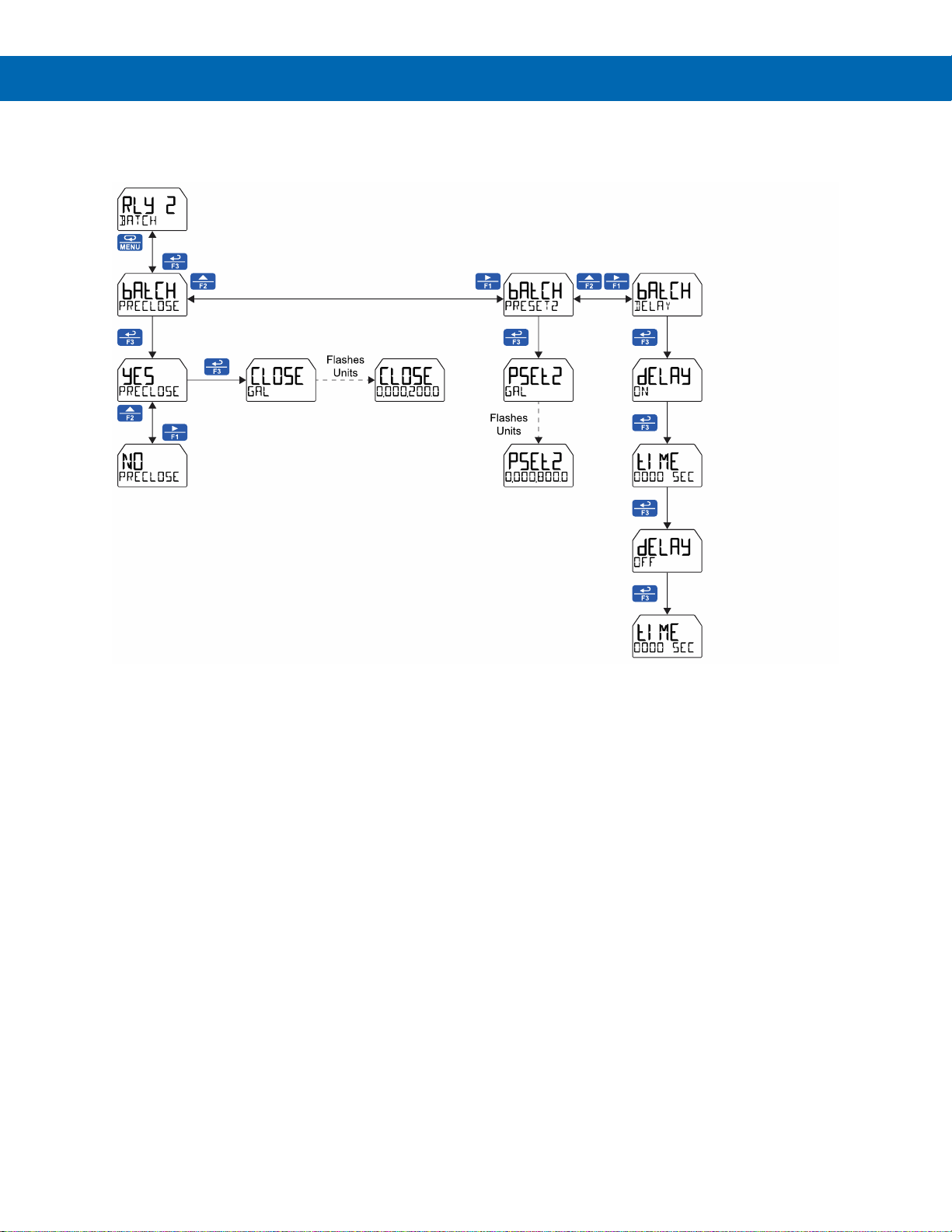

Batch Control Relay 2

The BATCH option only appears under relay 2 if relay 1 has also been set to batch control. The second relay may be programmed as a preclose relay or as another batching relay with its own preset amount.

Page 59

PD6938 Pulse Input Flow Rate/Totalizer

Instruction Manual

Stopwatch (STPWATCH)

The stopwatch function may be used to manually run and control a process for a specific time interval up to 99 hrs., 59 min, and 59 seconds. The stopwatch function may be assigned to any relay. There are three settings needed to use the function effectively.

1. Assign stopwatch to either top or bottom display

2. Assign the relay to control the process (on/off)

3. Assign a function key or digital input to start/stop the stopwatch

Application Example

Setup: Assign the following to Stopwatch Function

• Bottom display

(see pages 44 & 46 for details how to change the display)

• Relay 1

(see pages 47 & 53 how to change Open Collector and Solid-State Relay functionality)

• F3: Start/Stop

(see pages 69 & 73 for details on how to change the function keys)

Procedure

• Press F3 to start the stopwatch; relay 1 turns on and the process starts running.

• Press F3 to stop the stopwatch; relay 1 turns off and the process stops.

• The bottom display indicates the time it took to complete the sample.

Runtime & Cycle Count (INFO)

The relay information menu shows runtime and cycle count for each relay. These values may be cleared at any time by selecting the Clear option (CLEAR?).

Page 60

PD6938 Pulse Input Flow Rate/Totalizer

Instruction Manual

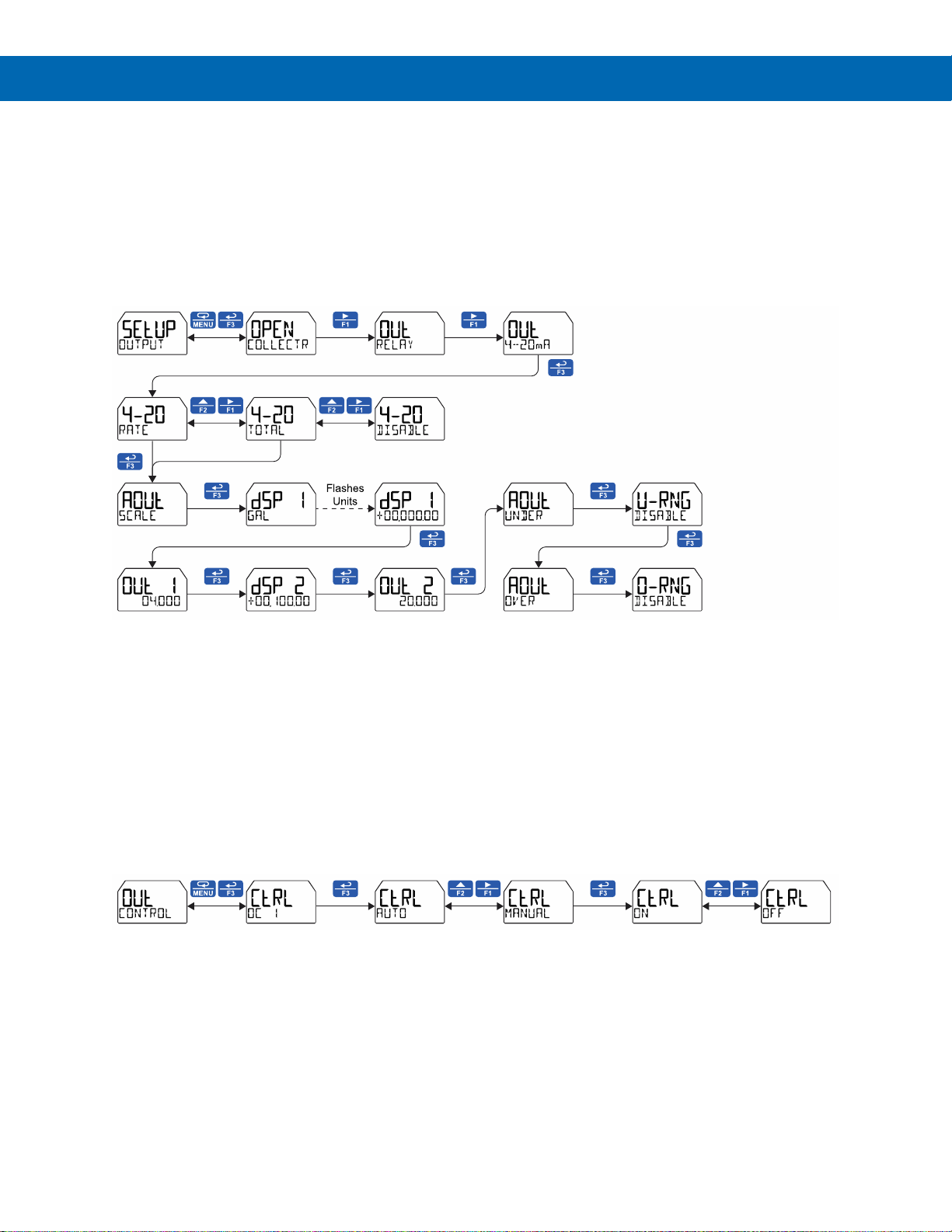

Isolated 4-20 mA Output (4-20 mA)

The 4-20 mA menu is used to scale the isolated 4-20 mA output based on display values. This menu is not present on models without a 4-20 mA output option.

The 4-20 mA analog output (if equipped) can be scaled to provide a 4-20 mA signal for the rate or total display range. The output may be disabled (DISABLE) and will only output the minimum signal.

Overrange and underrange values determine what mA signal the meter will output if the input is below the 4 mA output scaled point or the display is above the 20 mA output scaled point. This value may be set to 1 mA, 3.5 mA,

3.8 mA, 20.5 mA, 20.8 mA, 23 mA, or disabled. No equipment is needed to scale the analog output; simply program two display values and corresponding mA output

signals.

Rate or Total (RATE or TOTAL)

To scale the analog output, enter display value 1 and a corresponding analog output value for this display, then enter display value 2 and a corresponding analog output value for this display value. This will provide a linearly scaled analog output.

Output Manual Control (CONTROL)

The Control menu is used to control the open collector outputs, 4-20 mA analog output, and the relays manually, ignoring the input. Each open collector, relay, and analog output can be programmed independently for manual control. Selecting automatic control sets all relays and analog output for automatic operation.

After selecting manual control for a specific output, you can set the output value. To change the output value, return to the Control menu, select the output to control, select manual control, and enter a new value.

Page 61

PD6938 Pulse Input Flow Rate/Totalizer

Instruction Manual

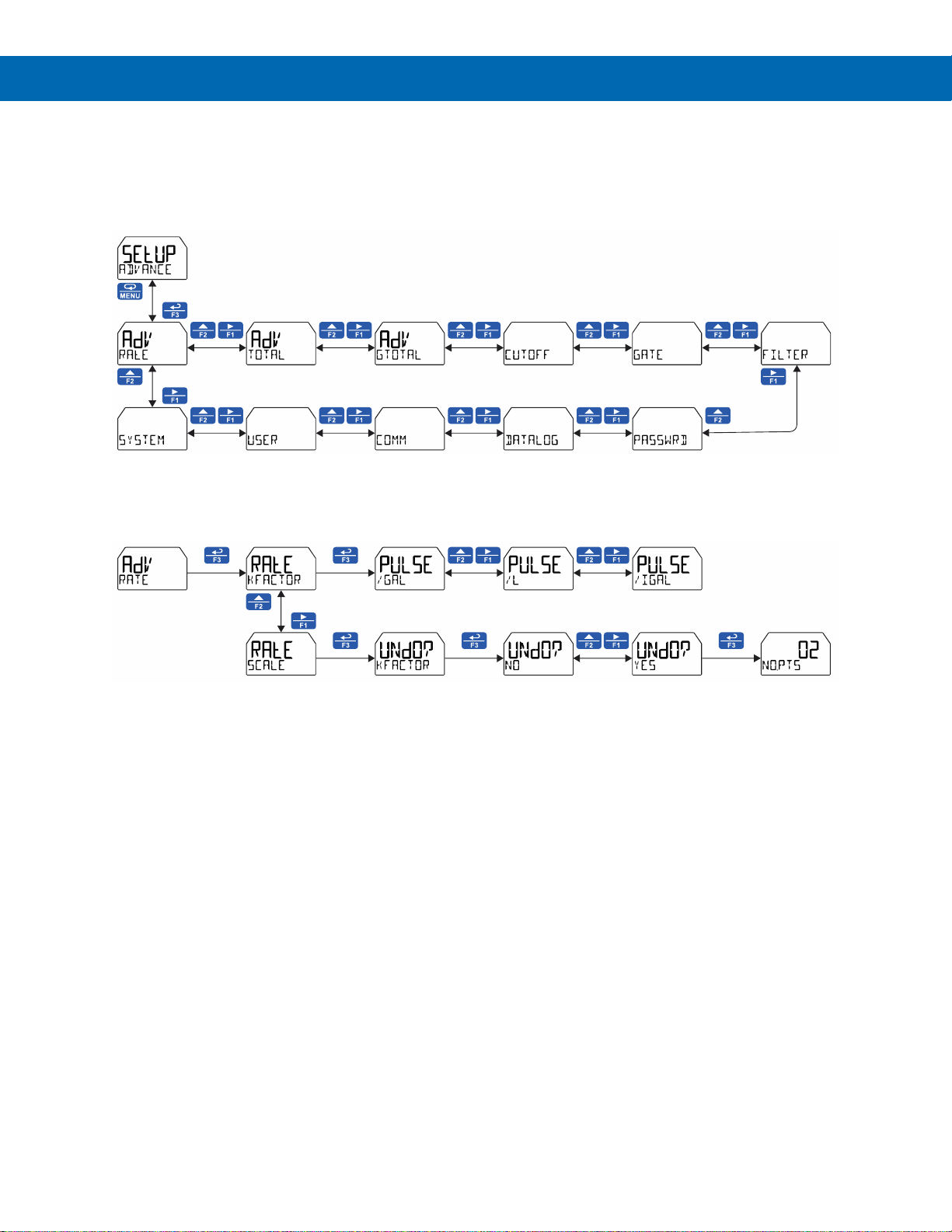

Advanced Features Menu (ADVANCE)

To simplify the setup process, functions not needed for most applications are located in the Advanced Features menu. The options under advanced features include advanced rate, total, and grand total setup, cutoff, gate, filter, password, data log, communications, user function key programming, and system settings.

Refer to Display Functions & Messages on page 35 for complete list of the advanced features menu.

Advanced Rate Setup (ADV RATE)

The Advanced Rate menu contains options to apply input signal calibration using a K-Factor or multi-point scale.

Page 62

PD6938 Pulse Input Flow Rate/Totalizer

Instruction Manual

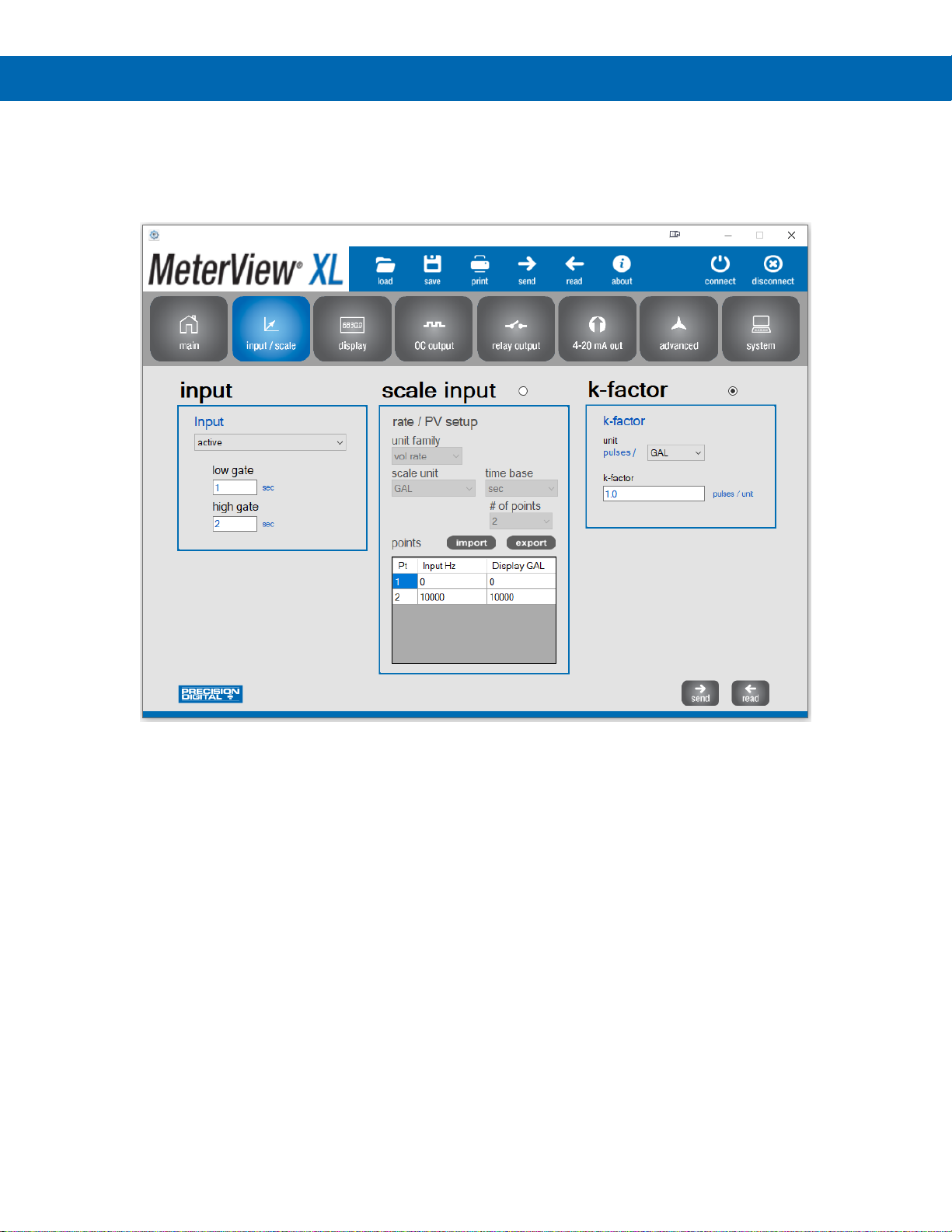

Using MeterView XL

MeterView XL makes programming quick and easy; select the input type, scale the input using the multi-point linearization or enter the k-factor value corresponding to the connected flowmeter. The multi-point scaling can be exported in .csv file format, the saved files can be imported into other meters. The complete configuration can be read from a connected meter, saved, loaded, or printed.

Page 63

PD6938 Pulse Input Flow Rate/Totalizer

Instruction Manual

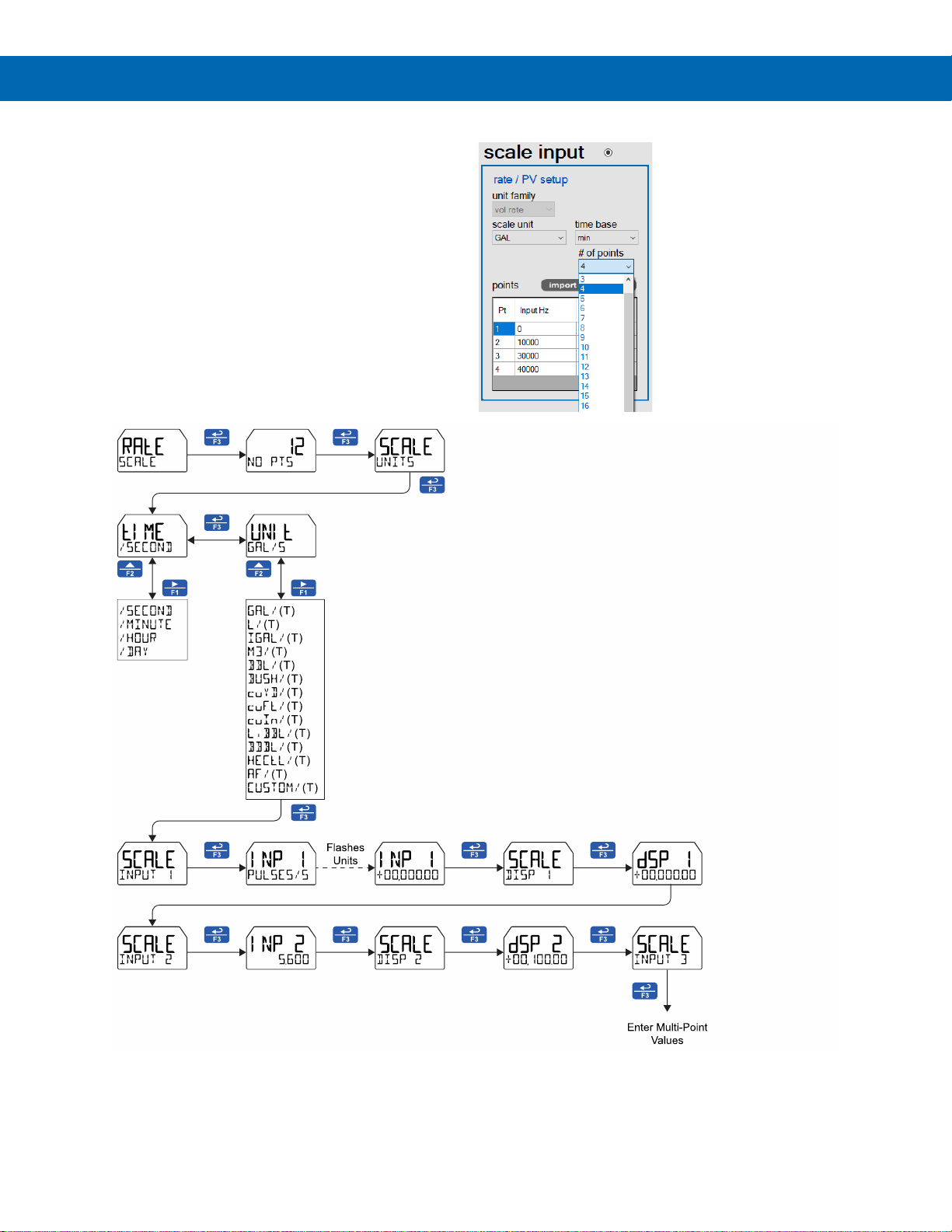

Multi-Point Linearization (LINEAR)

Up to 32 linearization points can be selected for rate under the SCALE function. Multi-point linearization can be used to linearize the input and improve the accuracy of a flowmeter. The easiest way to enter multi-point linearization values is using the MeterView XL software.

The input frequency and rate values can also be entered using the CapTouch buttons.

MeterView XL showing the multipoint linearization feature. Up to 32 points can be selected.

Page 64

PD6938 Pulse Input Flow Rate/Totalizer

Instruction Manual

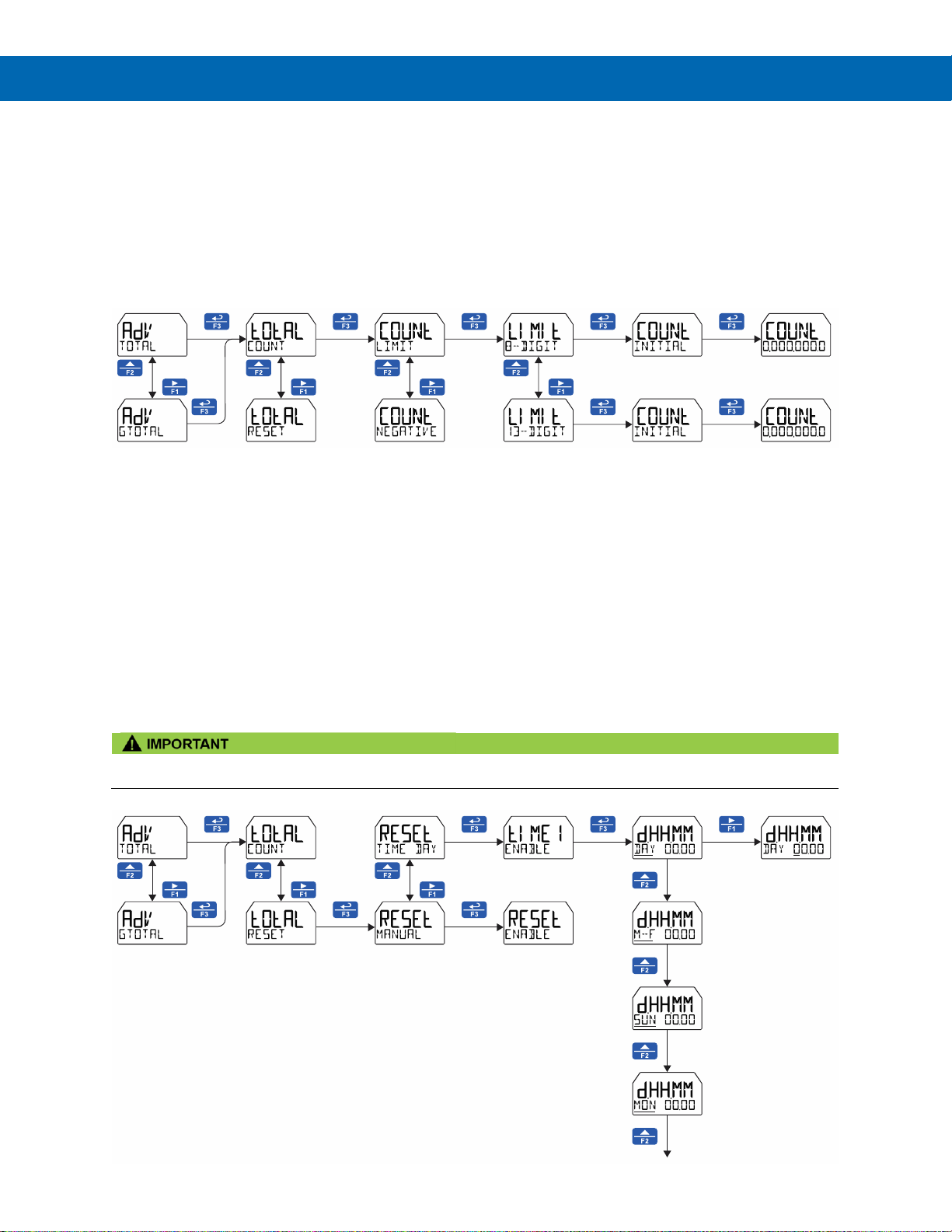

Advanced Total and Grand Total Setup (ADV TOTAL & ADV GTOTAL)

The advanced total and grand total menu contain the count (COUNT) and reset (RESET) menus. The count menu allows the digit limit to be selected between 8-digit (bottom display only) and 13-digit (uses top and bottom display to display full number) and the initial value at which the total or grand total should start counting.

When using a 13-digit total or grand total, press the function key assigned to display (default: F1) to view the full amount once the value has exceeded 100,000,000 (decimal places are automatically truncated). If a 13-digit total or grand total is displayed on the bottom display and the value has exceeded eight digits, the truncated value will flash to indicate that it is not the complete value. To display 13-digit grand total, assigned the top and bottom display to grand total.

The reset menu is used to enable or disable the reset of the total and grand total.

Reset Total & Grand Total

The total and the grand total can be reset manually, using a function key, the digital input, or a Modbus command. The totals can also be reset automatically at specified days and time; up to four day and time can be set up. The totals are saved to non-volatile memory prior to executing the reset command. The previous total and grand total are available for viewing using the function key assigned to Display (F1: Default). The previous totals are also available via the Modbus registers.

Time of Day Total Reset

The total and grand total can be set up to reset at a time of day every day or any day of the week. The previous total and grand total are saved prior to applying the reset command.

There are four reset times that can be set up, all choices allow specifying the reset time.

• DAY: Resets every day at the specified time

• SUN - SAT: Resets on the selected day at the specified time

• M-F: Resets Monday through Friday at the specified time

• To select the day press the Up key, to select the time press the Right key

• Manual reset can be enabled regardless of the reset time of day setting

Page 65

PD6938 Pulse Input Flow Rate/Totalizer

Instruction Manual

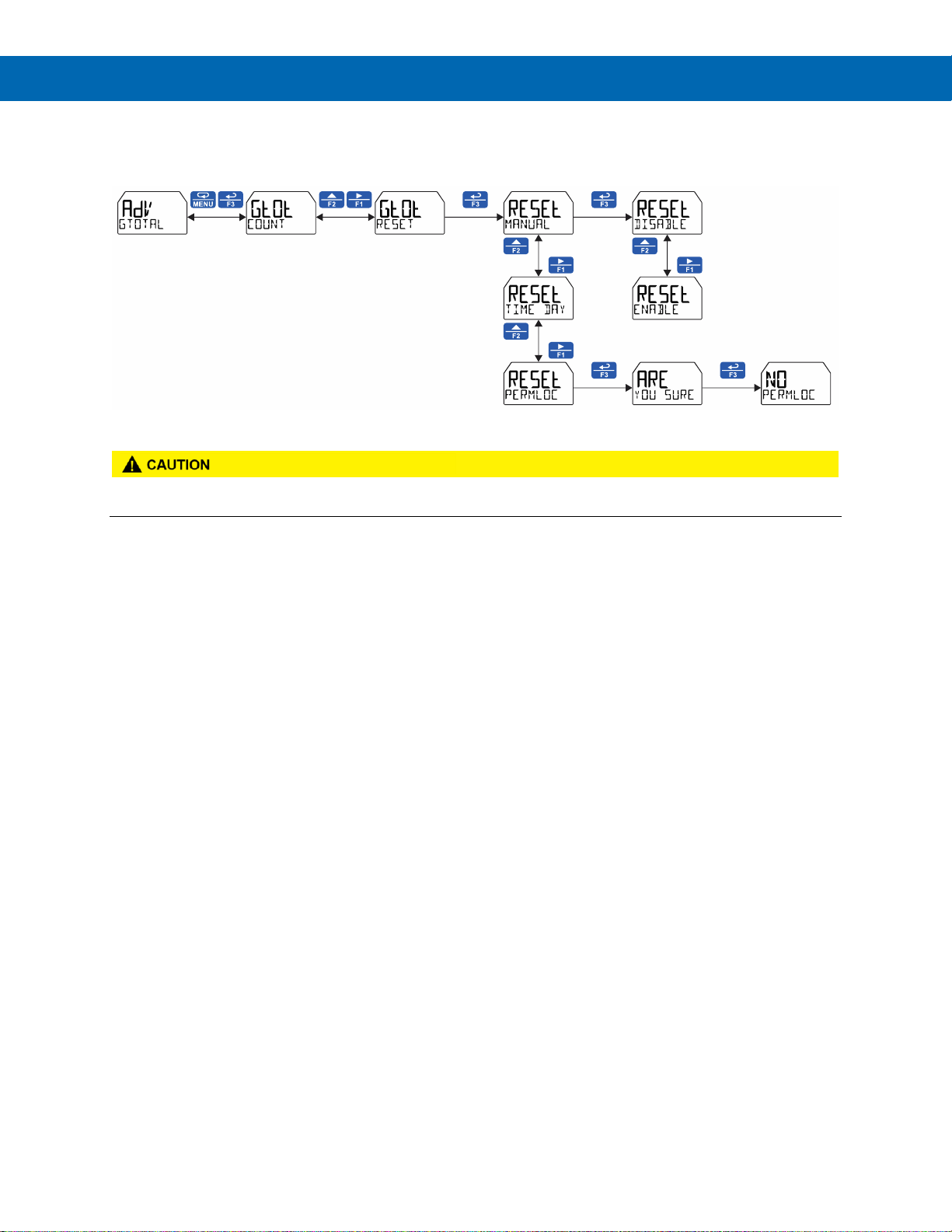

Non-Resettable Grand Total

The grand total reset may be permanently disabled by selecting YES at the PERMLOC menu after disabling grand total reset.

• Use caution when selecting the PERMLOC feature as once the grand total reset has been permanently locked, it cannot be unlocked.

Page 66

PD6938 Pulse Input Flow Rate/Totalizer

Instruction Manual

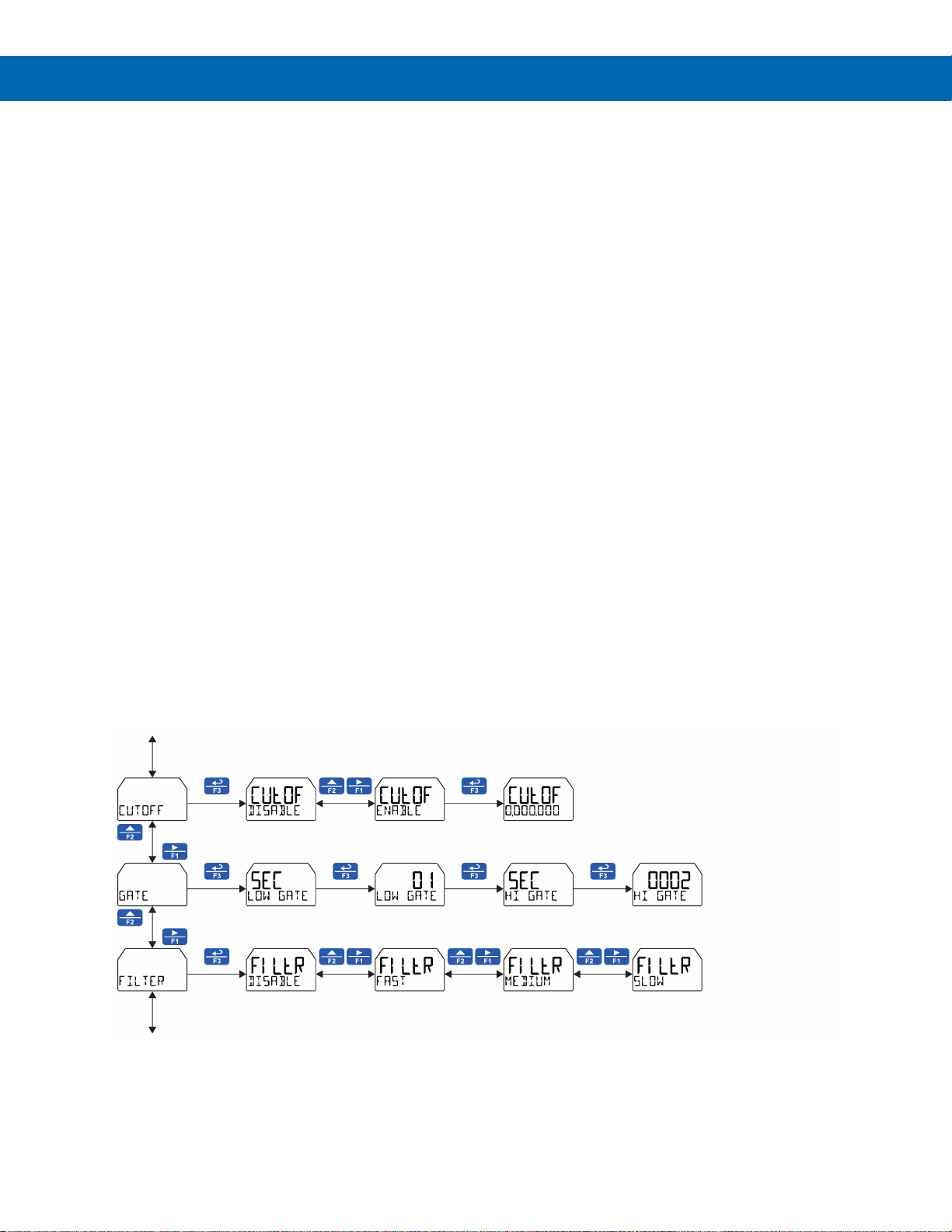

Low-Flow Cutoff (CUTOFF)

The low-flow cutoff feature allows the meter to be programmed so that the output at low flow rates always displays zero on the meter. The cutoff value may be programmed from 0.0 to 99999. The meter will display zero below the cutoff value. The cutoff can be disabled to display negative values.

Gate Function (GATE)

The gate function is used for displaying slow pulse rates. Using the programmable gate, the meter can display pulse rates as slow as 1 pulse every 9,999 seconds (0.0001 Hz). The gate function can also be used to obtain a steady display reading with a fluctuating input signal. There are two settings for the Gate, low gate (LOW GATE) and high gate (HI GATE).

Low Gate (LOW GATE)

For most applications, low gate setting should be left at 1 second. Increase low gate setting to obtain a steadier rate display. The rate display will update in accordance with the low gate setting, for example if low gate is set at 10, the display will update every 10 seconds; changes in rate between updates will not be reflected until next display update. The total is updated faster and independent of the low gate setting.

High Gate (HI GATE)

Set the high gate value to correspond to the highest expected pulse period (lowest pulse rate). For instance if the meter must display a rate when there is 1 pulse coming into the meter every 10 seconds, set the high gate to 11 seconds. When the signal is removed from the meter, the display will show the last reading for 11 seconds; then it will read zero. The maximum high gate value is 9,999 seconds, which allows the display of a 0.0001 Hz frequency.

Contact Debounce Filter (FILTER)

The filter function (FILTER) can be used for applications where the meter is set up to count pulses generated by switch contacts. These are the settings and their maximum frequencies:

Disable: Greater than 100 kHz (no filter) Fast: 1,000 Hz Medium: 240 Hz Slow: 100 Hz

The medium filter ignores signals faster than 240 Hz max, or pulse widths less than 2 ms at 50% duty cycle. The slow filter ignores signals higher than 100 Hz, or pulse widths less than 5 ms at 50% duty cycle.

Page 67

PD6938 Pulse Input Flow Rate/Totalizer

Instruction Manual

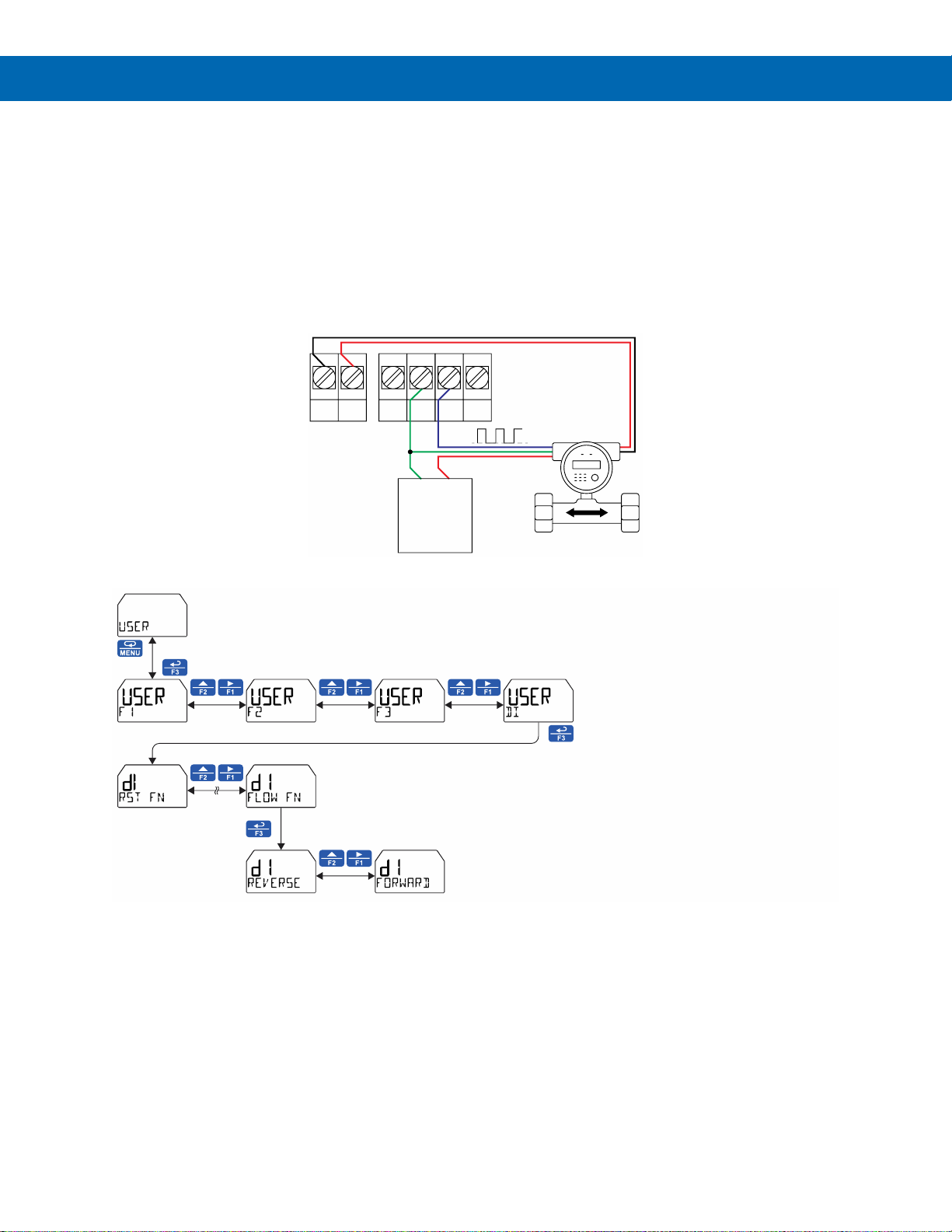

Bi-Directional Flow

The meter can be set up to process bi-directional flow by doing the following:

1. Connect the bi-directional switch from the flowmeter to the digital input terminals of the PD6938

2. Set up the digital input (DI) to activate the flow function: Reversed or Forward The flow direction function is activated when the switch is closed (Logic: Low)

Reverse = Negative rate is displayed, total decreases Forward = Positive rate is displayed, total increases

3. Disable the low-flow cutoff feature

4. Enable negative count in the Advanced Total and Grand Total menus, if total is expected to go negative

C+ S- S+ SP

Power

Supply

Flowmeter

(Pulse Output)

G+

Flow Direction Switch

Page 68

PD6938 Pulse Input Flow Rate/Totalizer

Instruction Manual

Enabling Password Protection (PASSWRD)

The Password menu is used for programming security to prevent unauthorized changes to the programmed parameter settings or undesired resetting of the total or grand total. There are three separate passwords available that can be set independently of each other: Main, Total, and Grand Total. The Main, Total, and Grand Total passwords prevent access to the meter Programming Mode. Total and Grand Total passwords prevent resetting of the total and grand total, respectively.

To set a password, enter the Password menu and program a five-digit password. When a password has been enabled, the lock icon will display in the upper-left side of the display. For instructions on how to program numeric values see Setting Numeric Values on page 40.

Making Changes to a Password Protected Meter

If the Main password is enabled, the meter will display the message LOCKED when the Menu button is pressed. If the Total or Grand Total passwords are enabled, the meter will display the message LOCKED when trying to reset or change the total or grand total. Press the Enter button while the message is being displayed and enter the correct password to gain access to the menu. After exiting Programming Mode, the meter returns to its password protected condition.

Disabling Password Protection

To disable the Main, Total, or Grand Total passwords, access the Password menu and clear the desired password either by pressing and holding the Right Arrow button until all digits reset to zero or manually changing all of the digits to zero. When the Enter button is pressed, the meter will display UNLOCKED and will no longer require a password to access Programming Mode, or a password to reset or change the total or grand total, depending on which password was cleared.

Note: If the meter is password protected and the password has been forgotten, the password may be overridden using the master password: 50865

Page 69

PD6938 Pulse Input Flow Rate/Totalizer

Instruction Manual

Data Log Menu (DATALOG)

The Data Log menu is used to set up, view, and erase the data log. The user can choose what information to log, when, and how to log it. The PD6938 is capable of data logging up to 2,032 records. The log file can be downloaded using the MeterView XL software and it can be saved in .csv file format.

Page 70

PD6938 Pulse Input Flow Rate/Totalizer

Instruction Manual

Data Log Setup with MeterView XL

• Log time: Every day or any day of the week

• Log time interval: Select the logging interval

• Select to log continuously or stop when full

There are many events upon which a log can be taken.

• Total and grand total reset

• Hold/Unhold outputs

• Open collector trigger

• Relay trigger

Page 71

PD6938 Pulse Input Flow Rate/Totalizer

Instruction Manual

Data Log Example

The log file is saved in .csv file format and it contains all the information selected in the data log setup.

• Information header

• Date & time

• Log sequence

• Log source

• Rate, total, and grand total with units

• Alarm state

• Open collector and relay state

• The function keys and the digital input can be used to log manually at any time.

Page 72

PD6938 Pulse Input Flow Rate/Totalizer

Instruction Manual

Serial Communications (COMM)

The Communications menu is used to view and setup serial parameters necessary for communication via Modbus RTU. The PD6938 can be used as a Server-only device on an RS-485 network. The meter address (Server ID) may be programmed between 1 and 247. When using more than one meter in multi-drop mode, each device must have a unique Server ID.

The baud rate and parity selected must match the settings for all other devices on the network. The baud rate may be set to 1,200; 2,400; 4,800; 9,600; 19,200; 38,400; or 57,600 bps.

The transmit delay may be set between 0 and 199 ms. The parity can be set to even, odd, or none with 1 or 2 stop bits. A Modbus Tag can be programmed to differentiate between multiple units on the network. Refer to the ProtEX+ and VantageView+ PD6938 Modbus® Register Tables located at www.predig.com for details.

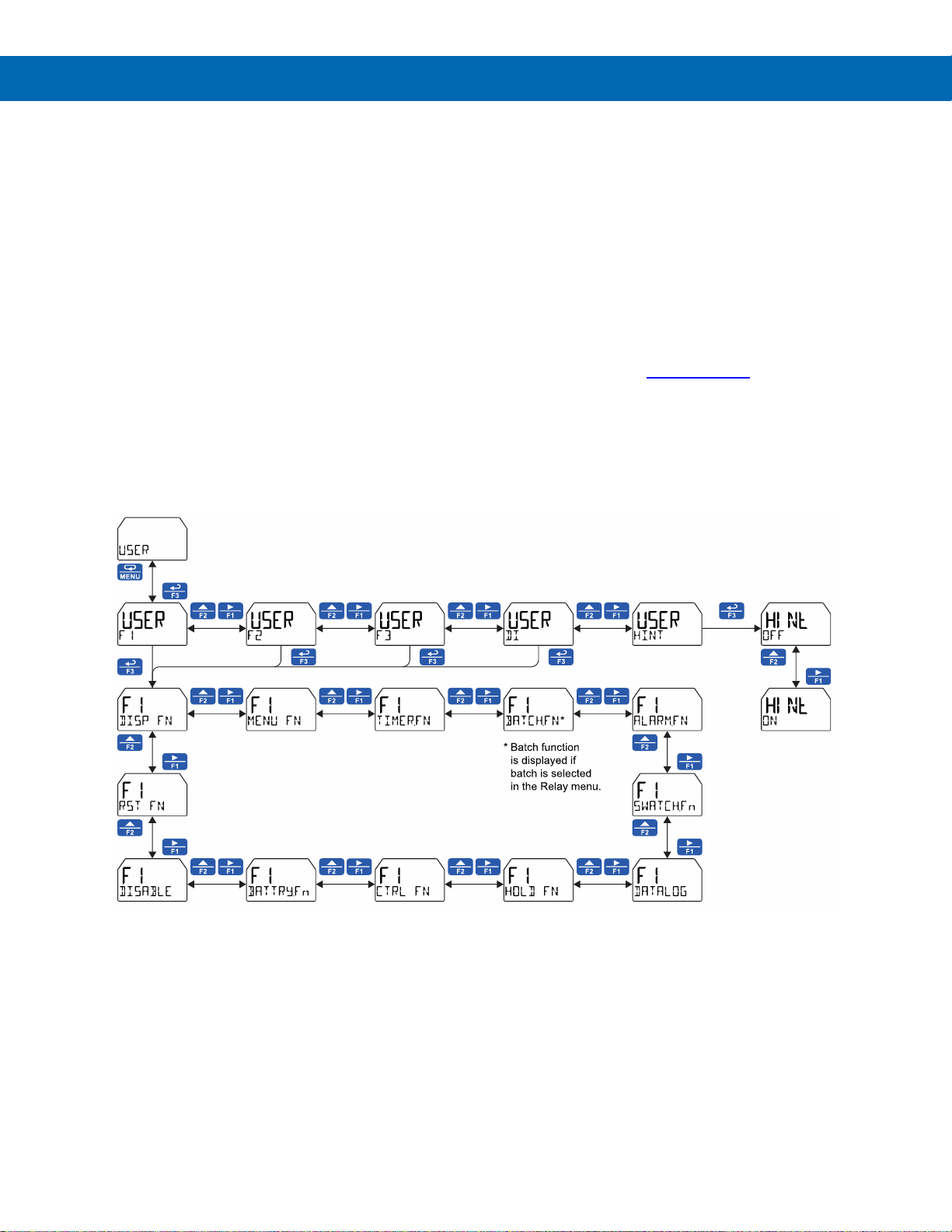

Programmable Function Keys User Menu (USER)

The User menu allows the user to assign the CapTouch buttons function keys F1, F2, and F3, and the digital input (located on the input signal connector) to access some of the menus or to activate certain functions immediately (e.g. reset max & min, hold relay states, etc.). This allows the meter to be greatly customized for use in specialized applications.

Page 73

PD6938 Pulse Input Flow Rate/Totalizer

Instruction Manual

Function Keys & Digital Input Available Settings

Refer to the following table for descriptions of each available function key or digital input setting.

Display

Description

DISP FN

Set the function key or digital input to display a value

DISPLAY

Cycle grand total, previous total, previous grand total, max, min, rate, and total

D RATE

Display the rate

D TOTAL

Display the total

DISP GT

Display the grand total

PREV TOt

Display the previous total

PREV GT

Display the previous grand total

PCT.RATE

Display the rate’s percentage based

on the bargraph scale

D UNITS

Display rate, total, and grand total units

D TAG

Display the tags

DISPMIN

Display the minimum rate value

DISPMAX

Display the maximum rate value

MIN MAX

Display the minimum and maximum rate value

D FREQ

Display the current input frequency

D mAOUT

Display the current mA output value

MENU FN

Set the function key or digital input to access a menu

RLYINFO

Go to relay information menu (INFO)

MANCTRL

Go to output control menu (CONTROL)

TIMR OC1

Open collector 1 timer

TIMR OC2

Open collector 2 timer

TIMER R1

Relay 1 timer

TIMER R2

Relay 2 timer

TIMER.FN

Set the function key or digital input to start or stop a timer

STRT.ALL

Start all timers

STOP.ALL

Stop all timers

S.STP.ALL

Start or stop all timers

OC1

Start/stop open collector 1 timer

OC2

Start/stop open collector 2 timer

RLY1

Start/stop relay 1 timer

RLY2

Start/stop relay 2 timer

START

Start the selected timer output

STOP

Stop the selected timer output

STR-STP

Start or stop the selected timer output

BATCH.FN

Set the function key or digital input to batch control

START

Start a batch

STOP

Stop a batch

Display

Description

STR-STP

Start or stop a batch

PRESET

Preset batch amount

ALARM.FN

Set the function key or digital input to acknowledge an alarm

ACK

Acknowledge all active alarms

SETPOINT

Set all output set point

SETPT.OC1

Set open collector 1 set point

SETPT.OC2

Set open collector 2 set point

SETPT.R1

Set relay 1 set point

SETPT.R2

Set relay 2 set point

SWATCH.FN

Set the function key or digital input to activate stopwatch

START

Start the stopwatch

STOP

Pause/Stop the stopwatch

STR-STP

Start or stop the stopwatch

DATALOG

Set the function key or digital input to activate data log function

INTERVAL

Set the function key or digital input to activate interval data log

START

Start interval data log

STOP

Stop interval data log

STR_STP

Start/Stop interval data log

MANUAL

Set the function key or digital input to activate manual data log at anytime

ERASE

Set the function key or digital input to erase the data log

VIEW

Set the function key or digital input to activate view the data log

ALL

View all logs

HOURLY

View hourly logs

DAILY

View daily logs

INTERVAL

View interval logs

DAY TIME

View time of day logs

MANUAL

View manual logs

EVENT

View event logs, select: All events, total reset, grand total

reset, total & grand total reset, open collectors, relays, power-up, or hold/unhold

SHORTCut

Set the function key or digital input to go to a data log menu

SETUP

Go to data log setup

ERASE

Go to erase data log

VIEW

Go to view data log

HOLD FN

Set the function key or digital input to hold an output

HOLD.OUT

Hold all outputs

HLD.UNHLD

Hold or un-hold all outputs

OC1+2

Hold/un-hold open collector outputs

RLY1+2

Hold/un-hold relay outputs

mAOUT

Hold/un-hold 4-20 mA output

HOLD

Hold selected output

Page 74

PD6938 Pulse Input Flow Rate/Totalizer

Instruction Manual

Display

Description

HLD.UNHLD

Hold or un-hold selected output

CTRL FN

Set the function key or digital input to activate the control function

AUTO

Set the function key or digital input to return all outputs to automatic mode

OC1-OC2

Set the function key or digital input to control the open collector output: automatic, on, off, toggle on/off, alternate, or momentary

RY1-RY2

Set the function key or digital input to control the relay output: automatic, on, off, toggle on/off, alternate, or momentary

SHORTCut

Set the function key or digital input to go to the output control menu

BATTRY.Fn

Set the function key or digital input to activate the battery function

RS-485

Set the function key or digital input to turn on, or on/off the Modbus RS-485 communications with battery power

DISABLE

Disable the function key or digital input

RST FN

Set the function key or digital input to reset a value

RESET

Reset min, max, or max/min PV value

R MIN.MAX

Reset max and min PV value

Enabling the Function Key Hint Feature (HINT)

Enabling the function key hint feature will cause a hint message to be displayed when pressing the F1, F2, or F3 function keys. This text gives a brief description of what the button is programmed to do. Pressing that function key a second time will execute that action.

The hint feature does not affect the digital input (DI) which is intended for immediate execution.

Page 75

PD6938 Pulse Input Flow Rate/Totalizer

Instruction Manual

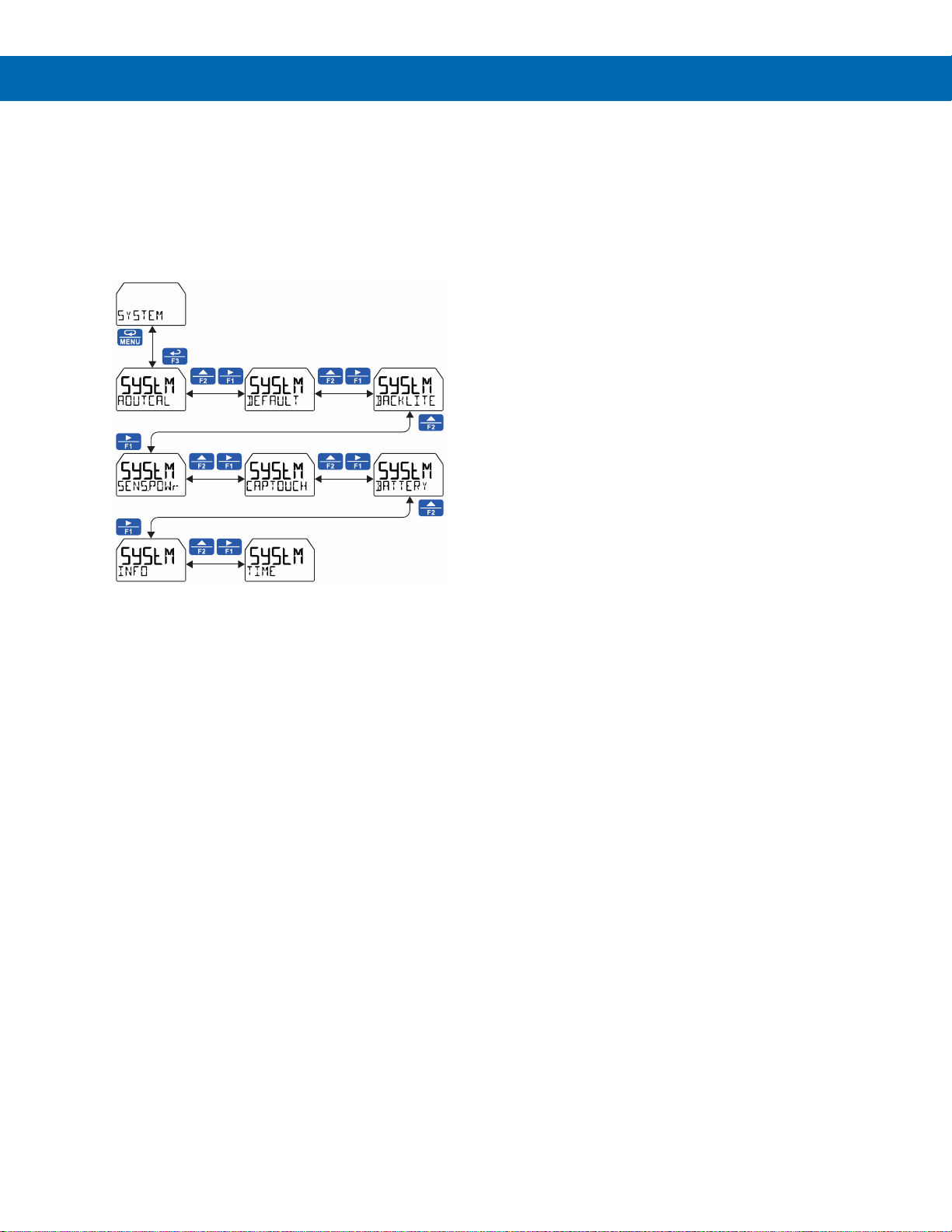

Changing System Settings (SYSTEM)

The System menu contains the following menus:

Analog Output Calibration, Restore Factory Defaults, Backlight, Sensor Power, CapTouch Buttons Operation Mode, Battery, Information, and Date & Time.

Note: The Analog Output Calibration menu is available only if the option is installed.

Analog Output Calibration (AOUTCAL)

To perform the analog output calibration, it is recommended to use a milliamp meter with a resolution of at least 0.1 µA to measure the output current. The values saved internally during this procedure are used for scaling the 4-20 mA output in the Setup menu.

4-20 mA Output Calibration Procedure

1. Go to the Advanced Features menu and navigate to the SYSTEM menu and press Enter. Navigate to AOUTCAL and press Enter.

2. The display will show 4 mA. The VantageView+ mA output should now be close to 4 mA. Enter the actual value read by the digital mA meter on the bottom display and press Enter.

3. The display will show 20 mA. The VantageView+ mA output should now be close to 20 mA. Enter the actual value read by the digital mA meter on the bottom display and press Enter.

4. The VantageView+ will now calculate the calibration factors and store them.

5. Press Menu to exit.

Enabling or Disabling the Backlight (BACKLITE)

The backlight may be enabled or disabled using the System - Backlight menu. The backlight is enabled by default; if the meter is DC powered, the backlight is constantly on. If the meter is battery powered, the backlight is on according to the setting selected under the System – Battery - Display menu.

CapTouch Buttons Operation Mode (CAPTOUCH)

Battery Operation (BATTERY)

To maximize the battery life of the meter, it is important to set the display, backlight, and RS-485 operation according to what is best for the application. These are the default settings:

• Backlight on: 10 seconds

• LCD Sleep: 10 minutes

• Battery Indicator: Off

• Modbus RS-485: Disabled

Viewing System Information (INFO)

System information, such as software (firmware) number and version, model number, and system tag, may be viewed in the INFO menu. Press the Right Arrow button to cycle through all available meter information. Press Menu to go back to the previous menu.

Page 76

PD6938 Pulse Input Flow Rate/Totalizer

Instruction Manual

Meter Operation

The meter is equipped with four CapTouch throughwindow buttons. These buttons allow meter operation without removing the cover and exposing the electronics in a harsh environment.

Three CapTouch buttons labeled F1, F2, and F3 can be programmed as function keys to perform a variety of meter functions simply by pressing on the window over the button. These include resetting the total,

resetting the meter’s relays or open collectors,

starting and stopping timers, displaying max/min values and starting/stopping batches. See Function Keys & Digital Input Available Settings on page 73 for a complete list of settings available.

A digital input is available on the meter and it may function in a similar fashion as the function keys to allow remote operation of a single task.

The max & min readings (peak & valley) reached by the process can be displayed either continuously by assigning it to a display line in the Display menu, or momentarily by pressing the F1 key (default) or assign it to any of the other function key or the digital input.

Pressing the F1 key cycles through various display values (e.g. Grand total, max, min); press the Enter key to lock the display in the current process value and press the Enter key again to unlock the display.

The relay information menu shows runtime and cycle count for each relay.

Change the display units within the selected unit class at any time without the need to re-scale the meter. Select the desired units via the UNITS menu in the DISPLAY menu, and the meter automatically converts the display values to the new unit of measure.

CapTouch Buttons Operation

Button

Description (Default Settings)

Press to enter or exit Programming Mode, view settings, or exit max/min

readings.

Press to display grand total. Continue pressing to cycle through max, min, rate, and total displays.

Press to access the Reset menu. Press F1 to scroll through the options. Press F3 to reset the currently displayed parameter.

Press to acknowledge all manually resettable relays or open collectors.

Press to lock/unlock the display value after pressing the F1 key.

CapTouch Buttons

These buttons can be turned off for security by selecting the Off setting on the switch located on the side of the display module, close to the Menu button.

• To remove cover with power applied, or to clean the window, place your hand over the buttons; this will temporarily disable the CapTouch buttons to prevent inadvertent use.

• Keep the window clean.

• Tighten the cover securely.

• Use a password to prevent tampering.

• CapTouch buttons will not work if two or more

buttons are detected as being pressed simultaneously. Be careful to avoid triggering multiple buttons or reaching across one button location to press another.

Page 77

PD6938 Pulse Input Flow Rate/Totalizer

Instruction Manual

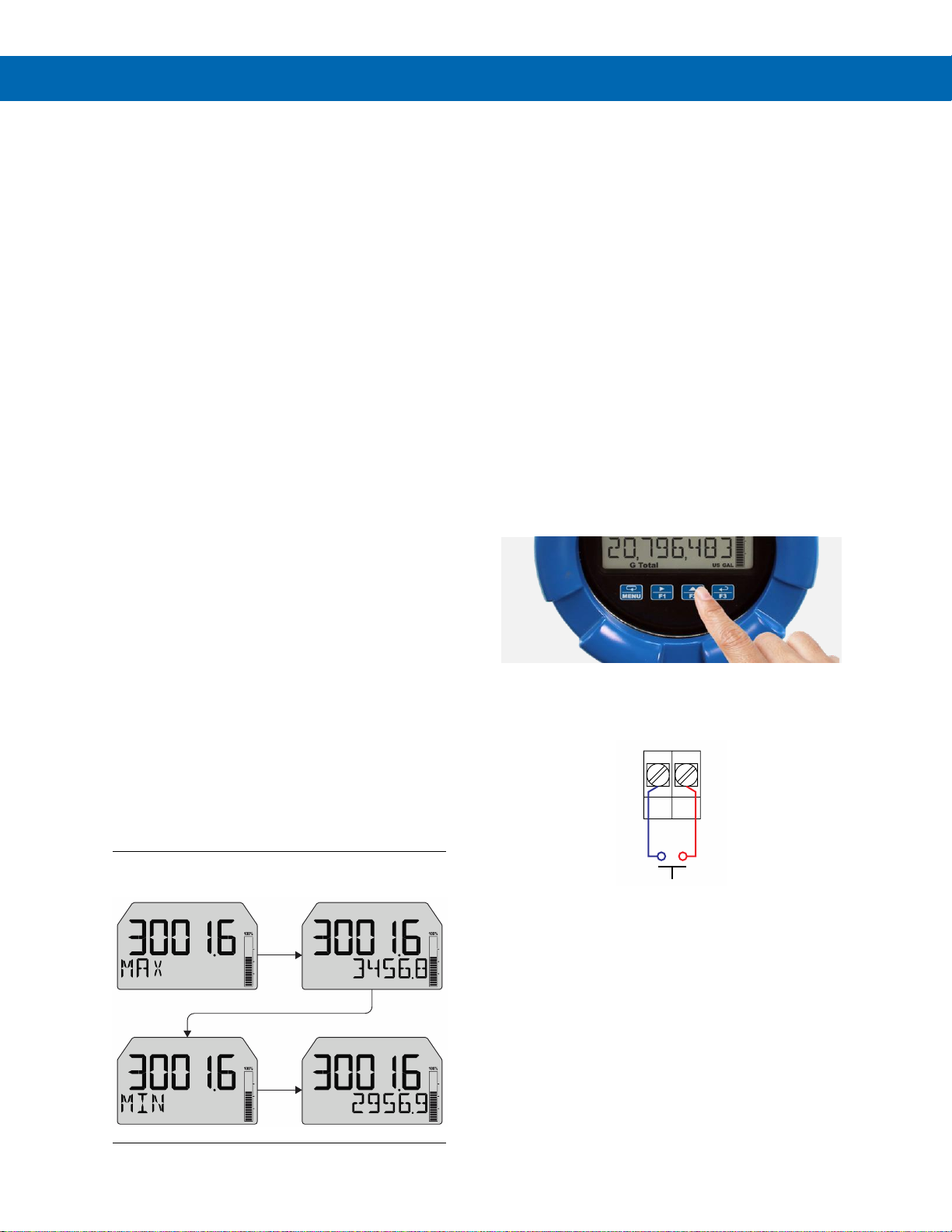

Function Keys Operation

During operation, the programmable function keys operate according to the way they have been programmed in the Advanced Features – User menu. The table under CapTouch Buttons Operation on page 76 shows the factory default settings for F1, F2, and F3.

A hint message may be enabled to provide a description of what each function key does prior to executing their assigned function. See Enabling the Function Key Hint Feature (HINT) on page 74.

Digital Input Operation

A digital input is standard on the meter. This digital input is programmed identically to function keys F1, F2, and F3. The input is triggered with a contact closure between DI+ and DI-, or with an active low signal. During operation, the digital input operates according to the way it has been programmed in the Advanced Features – User menu. Factory default setting is to reset total.

Maximum/Minimum Readings

The max & min readings (peak & valley) reached by the process can be displayed either continuously or momentarily.

Display momentarily by pressing the F1 function key (default) or assigning to any of the other function keys or to the digital input in the User menu.

Display continuously by pressing the Enter button while the max/min is being displayed to lock the display. Press Enter again to unlock.

Any of the F1-F3 function keys (buttons) and the digital input can be programmed to reset the max & min readings. The meters are set at the factory to display the max reading by pressing the Right Arrow/F1 button and to use the Up-Arrow/F2 button to access the Reset menu. Press the Right Arrow button to cycle through the available parameters to reset.

Top Display: Process Value Bottom Display: Max & Min

Total Reset Capabilities

Time of Day Total Reset

There are four reset times that can be set up, all choices allow specifying the reset day and time.

Total Reset via CapTouch Button

Total Reset via Digital Input

The PD6938’s digital input can also be used to reset the total or grand total.

Total Reset Password Protection

Non-Resettable Grand Total

The user can set up the grand total to be non-resettable by selecting YES at the PERMLOC menu; see page 65 for details. Once this is done, the grand total can never be reset.

G+

Page 78

PD6938 Pulse Input Flow Rate/Totalizer

Instruction Manual

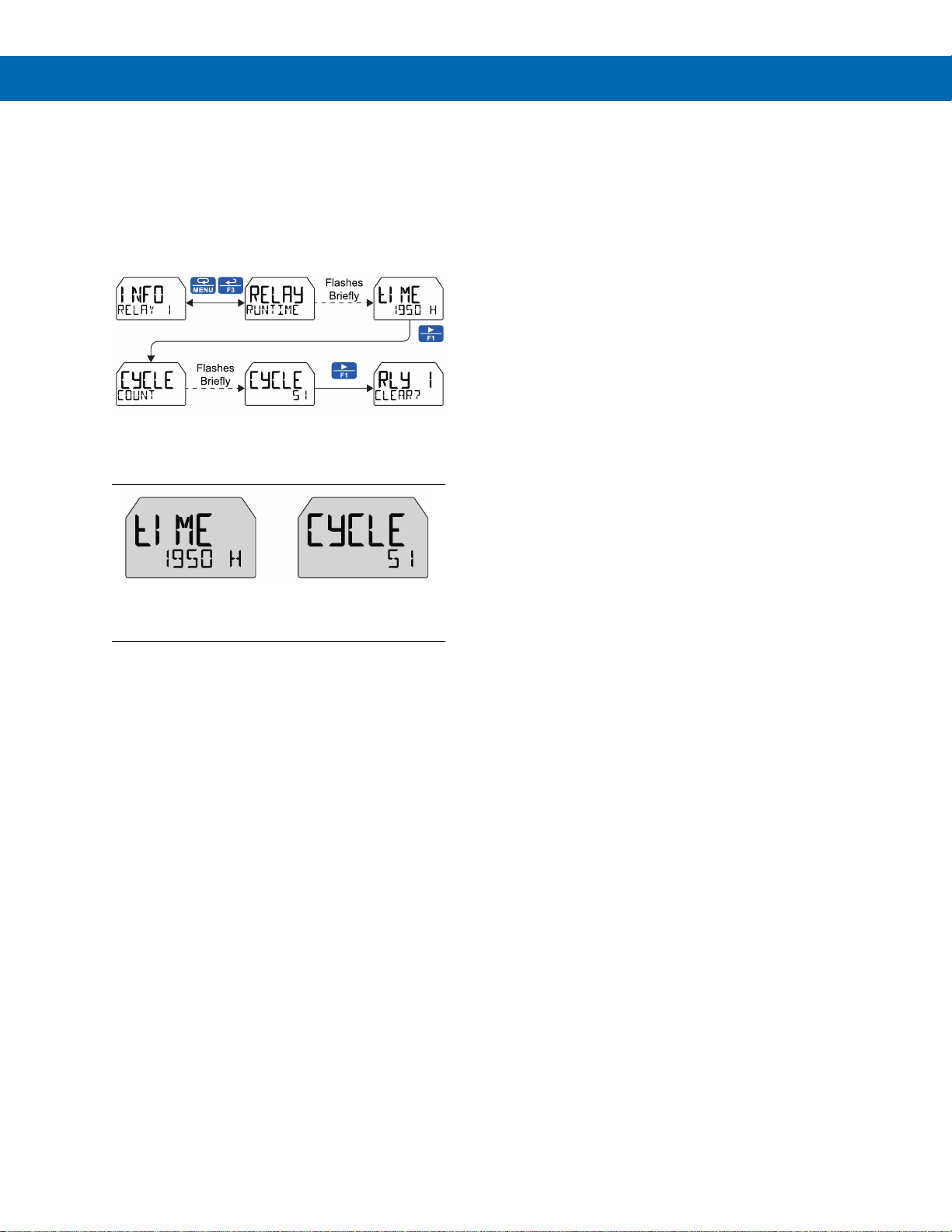

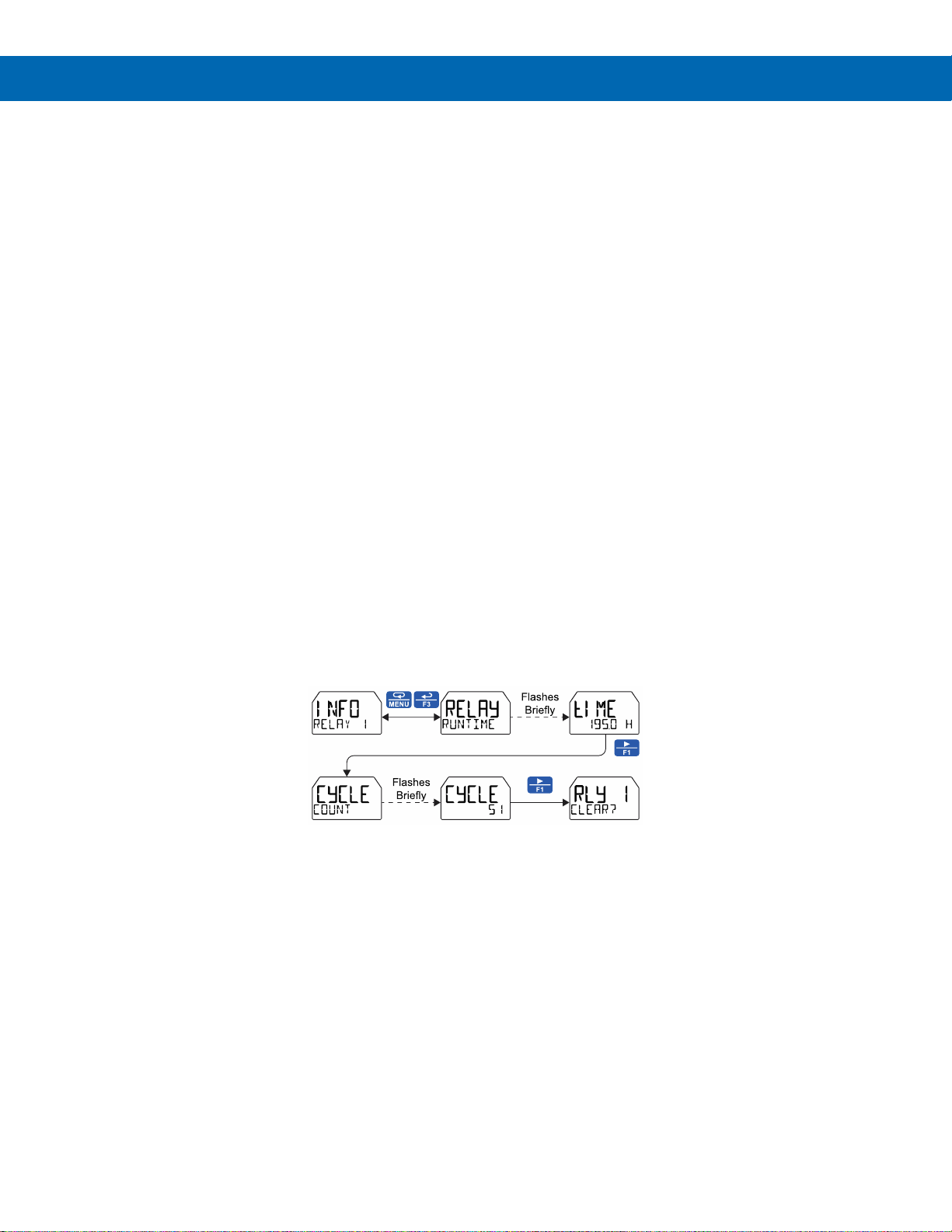

Runtime & Cycle Count (INFO)

The relay information menu shows runtime and cycle count for each relay. These values may be cleared at any time by selecting the Clear option (CLEAR?). If the cycle count or runtime values need to be changed on a frequent basis, it would be convenient to set up a CapTouch button or the digital input to simplify this process.

Note: See the menu tree under Solid-State Relay Outputs (RELAY) on page 53 for complete menu

structure on this feature.

Meter displaying the amount of time a relay has been activated

Meter displaying the number of times a relay has cycled

Changing Engineering Units

During operation of the meter, it is possible to change the display units within the selected unit class without the need to re-scale the meter. The UNITS menu in the DISPLAY menu allows the unit of measure to be changed (e.g. from gallons/second (GAL/s) to liters/second (L/s)) and the meter will automatically convert the display values to the new unit of measure. If entering a custom unit (CUSTOM), a custom conversion factor will need to be entered. See Changing the Engineering Units (UNITS) on page 44.

Page 79

PD6938 Pulse Input Flow Rate/Totalizer

Instruction Manual

Batch Controller Operation

Selecting batch control for relay 1 enables the batching features on the meter. The top display is changed to show the total and the bottom display is changed to display the preset batch amount. The function keys are changed so that F1 starts a batch, F2 opens the preset menu to allow the preset value to be changed, and F3 stops the currently running batch. Enabling batch control for relay 1 allows access to the batch menu under relay 2 (this menu does not appear by default). Refer to page 80 for details to setup the batch controller features. The PD6938 has two open collector outputs that can used for alarm indication. A 4-20 mA output option is also available for retransmitting the process variable.

Default Batch Control Operation

The following describes the operation of the three operating keys as programmed with default settings. The digital input can be used to start and stop the batch using a momentary pushbutton. See examples for Manual Batch Control on page 82 and Automatic Batch Control on page 83.

START Key (F1)

Press the START button to begin a new batch process. Press the START button to resume a batch that has been stopped.

BATCH Key (F2)

Press the Batch button to access the Preset (batch amount) menu. Program the batch with the arrow keys and confirm with the Enter key.

STOP Key (F3)

Press the STOP key once during a batch to pause. Press the STOP key while paused to stop and cancel the batch.

• Only the STOP Key is Enabled when a Batch is Running. During a batch process, only the

pause/stop functions are operational, other keys are deactivated.

Batch Control Operation Example

The following example shows how two-stage manual batch control functions with a PD6938. This setup will establish a 55-gallon preset for the batch, with a main valve (high flow) that will close at 50 gallons, and a trickle valve (low or restricted flow) that will close at 55 gallons. Because the first batch overruns by 0.10, the batch preset will be changed to 54.90 for the next batch to compensate for overrun.

Two-Stage Manual Batch Control Setup Using Relays 1 & 2

The following table shows the parameters as they appear within the OUT RELAY menu.

Parameter

Setting

Function

RELAY OUTPUT 1

RLY 1 BATCH

Press Enter to assign relay 1 batch parameters.

BATCH COUNT

UP or

DOWN

Setup batch to count up or down.

BATCH MAXIMUM

100.00 GAL

This setting prevents the operator from entering a preset value that exceeds a safety limit for the batch process.

BATCH MODE

MANUAL

AUTO

Press Enter to select manual or automatic batch control.

BATCH PRESET

55.00 GAL

Enter the batch size.

BATCH DELAY

ON & OFF

Enter the On & Off time delays for relay 1, if desired.

RELAY OUTPUT 2

RLY 2 BATCH

Press Enter to assign relay 2 batch parameters.

BATCH PRECLOSE

YES PRECLOSE

5.00

Set the pre-close value to 5 to close the valve being controlled by relay 2 so it closes five gallons before reaching the preset.

BATCH DELAY

ON & OFF

Enter the On & Off time delays for relay 2, if desired.

RELAY MESSAGE

MSG RELAY 1

Enter a message to be displayed while relay 1 is on, if desired.

MSG RELAY 2

Enter a message to be displayed while relay 2 is on, if desired.

If only one-stage batch control is desired, do not assign relay 2 to batch. The following pages show illustrations of how the above settings control the batch operation. The display assignment shown is the default.

Page 80

PD6938 Pulse Input Flow Rate/Totalizer

Instruction Manual

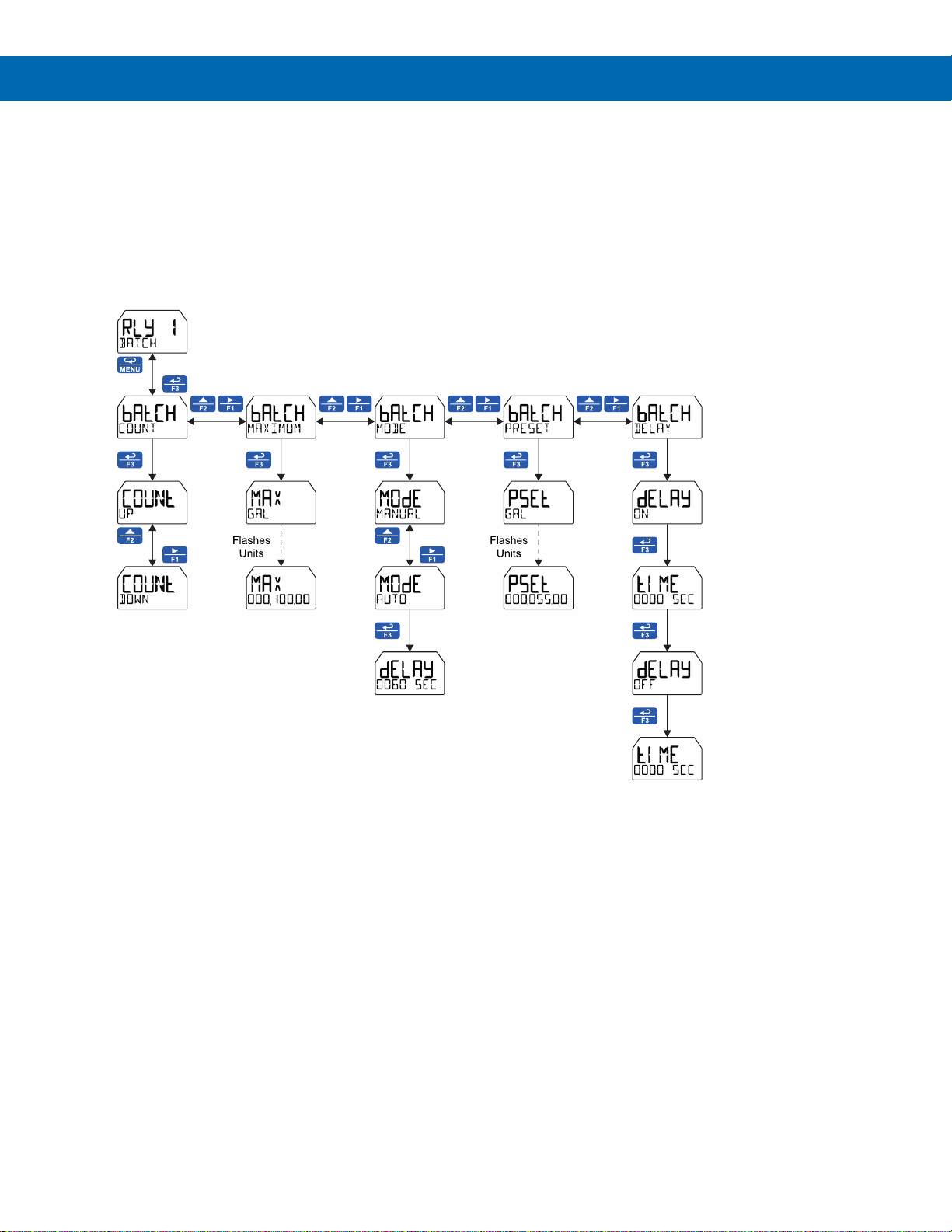

Batch Control Relay 1

The batch total can be set to count UP or DOWN. The batch MAXIMUM is the max preset amount that can be batched. Batching mode can be set to either manual or automatic operation (MANUAL or AUTO). If setting batching to

automatic, a delay before the next batch is started must be programmed. The PRESET amount is the value at which the batch will stop and can be programmed up to the value assigned in the

MAXIMUM menu. An on and off delay may be set for batching relays.

Page 81

PD6938 Pulse Input Flow Rate/Totalizer

Instruction Manual

Batch Control Relay 2

Page 82

PD6938 Pulse Input Flow Rate/Totalizer

Instruction Manual

Manual Batch Control

The manual batch control feature is used for batch processes that the operator wants to start manually. It can also be used where the batch size needs to be manually adjusted for each batch. The batch can be controlled by the button on the meter or the digital input.

System Setup

Both valves are closed with an empty barrel in place. The batched total is displayed in the upper display, the preset is selected for the lower display.

Batch Start

The START button or (F1) is pressed. Both valves open. The barrel begins to fill.

Preclose Valve

When the batch total reaches a value of 50.00 (Preset [55.00] – Pre-close [5.00]) the full-flow valve closes. The fill rate of the tank slows as a result.

Completed Batch

When the batch is complete, the restricted-flow valve closes. If overrun occurs, then the preset must be adjusted to compensate for the overrun. The next batch will only start after the START button or (F1) is pressed.

Overrun Correction

To compensate for overrun in the previous batch, adjust the preset to

54.90, so that the next batch is accurate (55.00).

Manual Start of Next Batch

A new, empty, barrel is put in place and the START button or (F1) is pushed to manually start the next batch.

Change Batch Size

While the process is stopped, a new preset fill amount may be selected with the Batch key (F2) for a different size barrel.

Pause/Stop

At any time, press the STOP button or Stop key (F3) once to pause the process, or twice to cancel the batch, which stops the process.

Resume Batch

If the batch has been paused, then press START button or (F1) to resume the batch process.

Page 83

PD6938 Pulse Input Flow Rate/Totalizer

Instruction Manual

Automatic Batch Control

The automatic batch control feature is used for batches that start automatically once the previous batch is completed. There is no opportunity for the operator to change the batch size between batches. The batch can be controlled by the button on the meter or the digital.

System Setup

Both valves are closed with an empty barrel in place. The batched total is displayed in the upper display, the preset is selected for the lower display.

Batch Start

The START button or (F1) is pressed. Both valves open. The barrel begins to fill.

Preclose Valve

When the batch total reaches a value of 50.00 (Preset [55.00] – Pre-close [5.00]) the full-flow valve closes. The fill rate of the tank slows as a result.

Completed Batch

When the batch is complete, the restricted-flow valve closes. If overrun occurs, then the preset must be adjusted to compensate for the overrun.

Start Delay

After the batch is completed, the operator removes the full barrel and places an empty barrel; the new batch starts automatically after 60 seconds (Time Delay).

Automatic Start of Next Batch

The new batch begins automatically after 60 seconds, both relays activate and both valves open.

Pause

At any time, press the STOP button or Stop key (F3) once to pause the process.

Resume Batch

If the batch has been paused, then press START button or (F1) to resume the batch process.

Stop Process

At the end of the shift, press STOP button or Stop key (F3) twice to stop the batch process.

Page 84

PD6938 Pulse Input Flow Rate/Totalizer

Instruction Manual

Troubleshooting

This product is a highly sophisticated instrument with an extensive list of features and capabilities. If the CapTouch buttons are used to program the meter, it can be a difficult task to keep everything straight. That is why we strongly recommend the use of the free

MeterView XL software for all programming activities.

A cable is provided to use the MeterView XL software for programming the meter.

If you have programmed the meter with the CapTouch buttons and it is not working as intended, try re-programming the meter using the MeterView XL software.

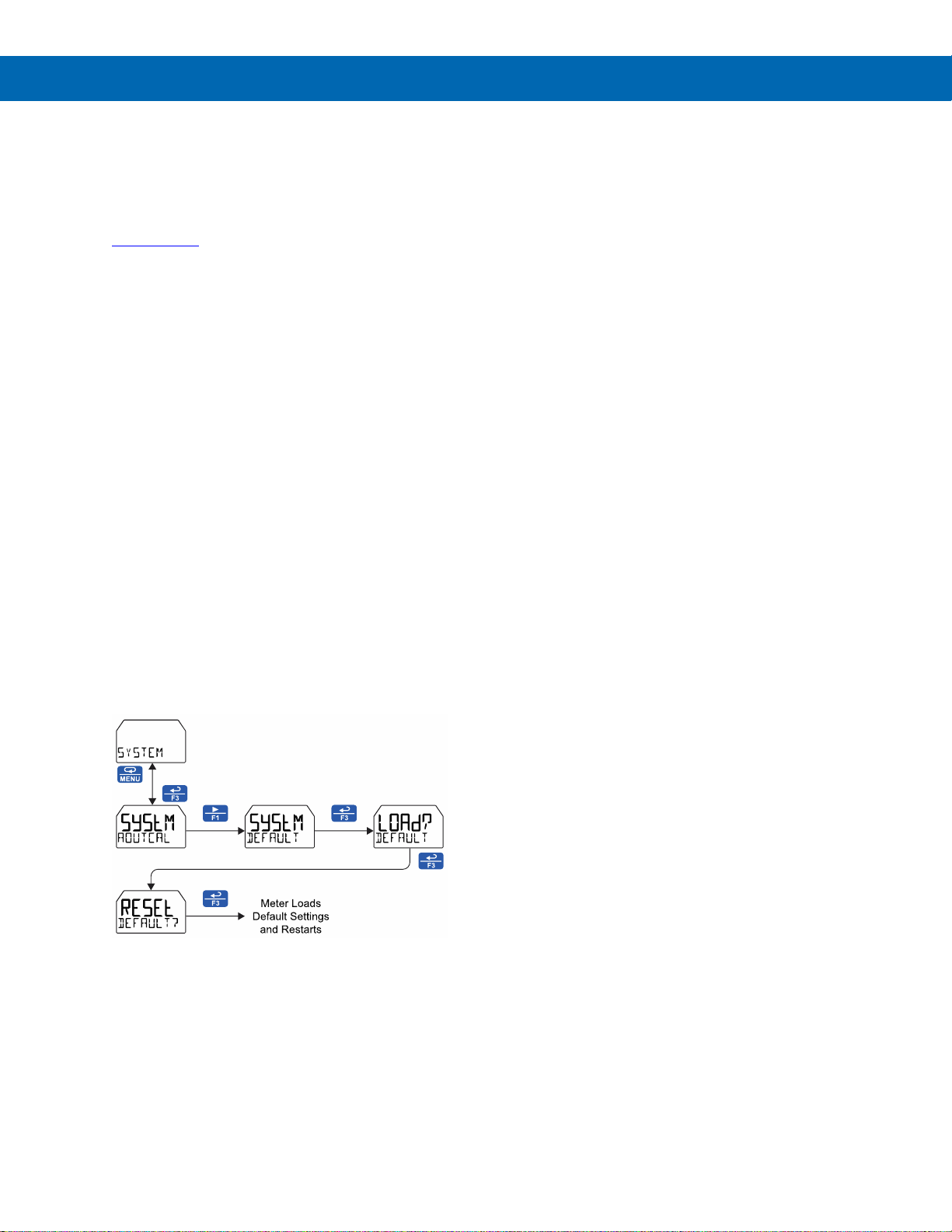

Reset Meter to Factory Defaults

When the parameters have been changed in a way that is difficult to determine what’s happening, it might be better to start the setup process from the factory defaults. This can be accomplished using MeterView XL software or with the CapTouch buttons.

To load factory defaults:

1. Press the Menu button to enter

Programming Mode.

2. Press the Right-Arrow button twice and

press Enter to access the Advanced menu.

3. Press the Up-Arrow button and press Enter

to access the System menu.

4. Press the Right-Arrow button and press

Enter to access the Default menu.

5. Press Enter twice in quick succession. The

meter will load default settings and restart.

Determining Software Version

To determine the software (firmware) version of a meter:

1. Press the Menu button to enter Programming Mode.

2. Press the Up-Arrow button twice and press Enter to access the Advanced menu.

3. Press the Up-Arrow button and press Enter to access the System menu.

4. Press the Up-Arrow button twice and press Enter to access the Info menu.

5. Press the Right-Arrow button to cycle through the meter information. When done, press the Menu button to return to the previous menu or press & hold Menu to exit to Run mode.

Page 85

PD6938 Pulse Input Flow Rate/Totalizer

Instruction Manual

Factory Default Settings

The following table shows the factory setting for most of the programmable parameters on the meter.

Parameter

Display

Default Setting

Input Menu

Input Type

INPUt TYPE

Active

K-Factor

RatE KFACTOR

1.0000

Rate Units

UNITS

Gallons/second

Rate Scale

RAtE SCALE

If selected in Advance Rate menu

Input 1

INP 1

0.000 pulses/sec

Display 1

DSP 1

0,000,000

Input 2

INP 2

10,000.00 pulses/sec

Display 2

DSP 2

100.00

Output Menu

Open Collector Output 1

OUTPUT 1

Disabled

Pulse Factor

FACTOR

1.0

Test Frequency

FREQ

100

Alarm

ALARM

Rate

Alarm Action

ACTION

AUTO

Set Point

SET

20.00

Reset Point

RESET

10.00

Alarm On Delay

DELAY ON

0 seconds

Alarm Off Delay

DELAY OFF

0 seconds

Alarm Failsafe

FAILSAFE

OFF

Red LED

RED

Flash rate

FLASH

Alarm Message

MSG

Message Text

MSG EDIT

ALARM 1

Timer Off Delay

OFF.DLAY

1 minute

Timer On Time

ON TIME

1 second

Timer Mode

MODE

Continuous

Open Collector Output 2

OUTPUT 2

Disabled

Set Point

SET

40.00

Reset Point

RESET

30.00

Message Text

MSG EDIT

ALARM 2

Relay Output 1

RELAY 1

Disabled

Alarm

ALARM

Rate

Alarm Action

ACTION

AUTO

Set Point

SET

70.00

Reset Point

RESET

60.00

Alarm On Delay

DELAY ON

0 seconds

Alarm Off Delay

DELAY OFF

0 seconds

Alarm Failsafe

FAILSAFE

OFF

Red LED

RED

Flash rate

FLASH

Alarm Message

MSG

Message Text

MSG EDIT

ALARM 3

Parameter

Display

Default Setting

Sample Count

TOTAL COUNT

1,000 gallons

Sample Time

TOTAL TIME

10 seconds

Batch Count

BATCH COUNT

Batch Max

BATCH MAXIMUM

10,000

Batch Mode

BATCH MODE

Manual

Batch Preset

BATCH PRESET

1,000

Batch On Delay

DELAY ON

0 seconds

Batch Off Delay

DELAY OFF

0 seconds

Timer Off Delay

OFF.DLAY

1 minute

Timer On Time

ON TIME

1 second

Timer Mode

MODE

Continuous

Relay Output 2

RELAY 2

Disabled

Set Point

SET

90.00

Reset Point

RESET

80.00

Message Text

MSG EDIT

ALARM 4

4-20 mA Output

4-20 mA

Rate

Advanced Menu

Signal Conditioning Function

FUNCTION

Linear (2 pts) Count Limit

COUNT LIMIT

8-Digit Total

Count Initial

COUNT INITIAL

Total Reset

TOTAL RESET

Enabled

GTotal Reset

GTOT RESET

Disabled

Non-Resettable Grand Total

PERMLOCK

Low Cutoff

CUTOFF

Enabled: 0

Filter

FILTER

2.0 seconds

Filter Bypass

BYPAS

0.4 PCT

Main Password

MAIN

00000 (Unlocked)

Total Password

TOTAL

00000 (Unlocked)

GTot Password

GTOTAL

00000 (Unlocked)

Function Key 1

Display

Function Key 2

Reset

Function Key 3

Acknowledge

Digital Input

Reset Total

Hint Feature

HINT

Disabled

Totalizer

TOTAL

Enabled

Backlight

BACKLIGHT

Enabled

CapTouch

CAPTOUCH

Normal

Display Menu

Unit of Measure

UNITS

Rate: GAL/S Total: GAL

Decimal Point Location

DEC.PT

Rate: 2; Total: 1; Grand Total: 0

Comma

COMMA

Enabled

Top Display

TOP

Rate

Bottom Display

BOTTOM

Total

Page 86

PD6938 Pulse Input Flow Rate/Totalizer

Instruction Manual

Troubleshooting Tips

Certain sequences of events can cause unexpected results. To solve these issues, it is best to start fresh from factory defaults and use the manual as a step by step programming guide, rather than a random approach to programming. To reset the meter to factory defaults, see Factory Default Settings on page 85. In addition, for best results, we recommend using the free MeterView XL software for all programming needs.

Symptom

Check/Action

No display at all

Check:

1. Check if DC power supply is on and it provides 9-30 VDC to the meter.

2. If DC or battery power is OK, the meter might be off: Press & hold the menu key to turn it on; follow the on-screen instructions.

3. If battery powered, check if the LCD is in sleep mode: Press & hold any key for more than 3 seconds to wake-up.

4. If battery powered, check if the meter is off: Press & hold the Menu key for 5 seconds to turn the meter on.

Not able to change setup or programming, LOCKED is displayed

The meter is password-protected. Enter the correct five-digit password to unlock or the Master Password of 50865 to temporarily unlock the meter.

To remove the password go to the Advance menu and enter 0000 for the password.

Meter display flashes:

1. 99999

2. -9999

Check that the number of digits required for the scaled value does not exceed the maximum digits for the display. If it does, try adjusting the decimal point location for less precision or changing the PV display to the bottom display.

Display is unstable

Check:

1. Input signal stability and value.

2. Display scaling vs. input signal.

3. Increase the low gate setting in the Advance menu, this will allow more time to average the input signal.

Display response is too slow

Check the low gate setting in the Advance menu.

Display reading is not accurate

Check:

1. Confirm the flowmeter K-Factor value

2. Check the input scaling

Display does not respond to input changes, reading a fixed number

Check display assignment. It might be displaying max, min, or set point.

Display shows: MAX, MIN, RATE, TOTAL,

or GTOT and a number

Display has been locked. Press Enter to unlock the display readings. Relay operation is reversed

Check fail-safe settings in Output menu

Relays do not respond to signal

Check:

1. Relay action in Output menu

2. Set and reset points

3. Check manual control menu

If the display locks up or the meter does not respond at all

Cycle the power to reboot the microprocessor.

CapTouch buttons do not respond

1. If hand-symbol is flashing, multiple buttons were touch at the same time, wait a few seconds until the hand symbol goes off.

2. If Delayed mode has been set, press & hold any button for 5 seconds, the buttons should respond normally.

3. If the slide switch on the display module is in the Lock position, move the switch to the Unlock position; see Turning Off CapTouch Buttons on page 32.

Total and/or Grand Total do not reset

Check:

1. Total / Grand Total not password protected

2. Grand Total set to non-resettable (this cannot be overridden)

3. Total / Grand Total manual reset disabled. Check Advanced Total and Grand Total reset settings and Enable manual reset.

Other symptoms not described above

Call Technical Support for assistance.

Page 87

PD6938 Pulse Input Flow Rate/Totalizer

Instruction Manual

Notes

Page 88

PD6938 Pulse Input Flow/Rate Totalizer

Instruction Manual

PRECISION DIGITAL CORPORATION

233 South Street • Hopkinton MA 01748 USA Tel (800) 343-1001 • (508) 655-7300

www.predig.com

LIM6938GP_A

SFT133 Ver 1.000 & up

07/23

Contact Precision Digital

Technical Support

Call: (800) 610-5239 or (508) 655-7300 Email: [email protected]

Sales Support

Call: (800) 343-1001 or (508) 655-7300 Email: [email protected]

Place Orders

Email: [email protected]

For the latest version of this manual please visit

www.predig.com
