Page 1
PD6700 VANTAGEVIEW
LOOP-POWERED PROCESS METER
• 4-20 mA Input Loop-Powered
• Plastic NEMA 4X, IP65 Enclosure
• 5 Digits, 0.7" (17.8 mm) Upper Display
• 7 Alphanumeric Character, 0.4" (10.2 mm) Lower Display
®
• SafeTouch
Through-Window Button Programming
• Password Protection
• 32-Point, Square Root, or Exponential Linearization
• Loop-Powered or External DC-Powered Backlight Standard
®
• HART
Protocol Transparent
• 3 V Drop (6.0 V with Backlight)
• Operates from -40 to 75°C
®
PRECISION DIGITAL CORPORATION
Find Quality Products Online at: [email protected]
www.GlobalTestSupply.com
Page 2
PD6700 Loop-Powered Process Meter Instruction Manual
Disclaimer
The information contained in this document is subject to change without notice.
Precision Digital makes no representations or warranties with respect to the contents
hereof; and specifically disclaims any implied warranties of merchantability or fitness
for a particular purpose.
!
CAUTION: Read complete
instructions prior to installation
and operation of the meter.
WARNING: Risk of
electric shock or
personal injury.
WARNINGS
• This product is not recommended for life support applications or applications
where malfunctioning could result in personal injury or property loss. Anyone
using this product for such applications does so at his/her own risk. Precision
Digital Corporation shall not be held liable for damages resulting from such
improper use.
• Failure to follow installation guidelines could result in death or serious injury.
Make sure only qualified personnel perform the installation.
Limited Warranty
Precision Digital Corporation
workmanship for the specified period under “Specifications” from the date of
shipment from the factory. Precision Digital’s liability under this limited warranty shall
not exceed the purchase value, repair, or replacement of the defective unit.
warrants this product against defects in material or
Registered Trademarks
All trademarks mentioned in this document are the property of their respective
owners.
© 2013-2014 Precision Digital Corporation. All rights reserved.
2
Find Quality Products Online at: [email protected]
www.GlobalTestSupply.com
Page 3
PD6700 Loop-Powered Process Meter Instruction Manual
INTRODUCTION
The Vantageview PD6700 is a plastic field mounted loop-powered meter fully
featured for demanding applications in the harshest environmental conditions. The
meter derives all of its power from the 4-20 mA loop. It is programmed using the four
SafeTouch
with or without a calibration signal. The numeric display will read up to 99999 and the
alphanumeric display can be programmed to show any combination of numbers and
letters up to seven characters long for use as engineering units and/or the process
identification tag. The backlight lets you see the display under any lighting condition
and can be powered from either the 4-20 mA loop or from a separate DC power
supply.
The enclosure has three threaded conduit holes, integrated pipe or wall mounting
flanges, and allows for easy installation of tamper seals.
®
through-window buttons, without removing the cover, and can be scaled
ORDERING INFORMATION
Model Description
PD6700-0K0 Loop-Powered Process Meter with Backlight
Accessories
Model Description
PDAPLUG75P 3/4" NPT Plastic Conduit Plug
PDA6846
PDA6846-SS
Pipe Mounting Kit. Includes zinc-plated u-bolt for 2" pipe, (2)
washers, and (2) nuts.
Pipe Mounting Kit. Includes stainless steel u-bolt for 2" pipe,
(2) washers, and (2) nuts.
3
Find Quality Products Online at: [email protected]
www.GlobalTestSupply.com
Page 4
PD6700 Loop-Powered Process Meter Instruction Manual
SETUP
SERVICE
Table of Contents
INTRODUCTION ---------------------------------------------------------------------- 3
ORDERING INFORMATION ------------------------------------------------------- 3
SPECIFICATIONS -------------------------------------------------------------------- 6
General ------------------------------------------------------------------------------------------- 6
Input ----------------------------------------------------------------------------------------------- 7
SAFETY INFORMATION -------------------------------------------------------------------- 8
INSTALLATION ----------------------------------------------------------------------- 9
Unpacking --------------------------------------------------------------------------------------- 9
Conduit/Stopping Plug ---------------------------------------------------------------------- 9
Mounting --------------------------------------------------------------------------------------- 10
Connections ---------------------------------------------------------------------------------- 10
Connections & Wiring Diagrams ................................................................ 12
SETUP AND PROGRAMMING -------------------------------------------------- 14
SafeTouch® Buttons ----------------------------------------------------------------------- 14

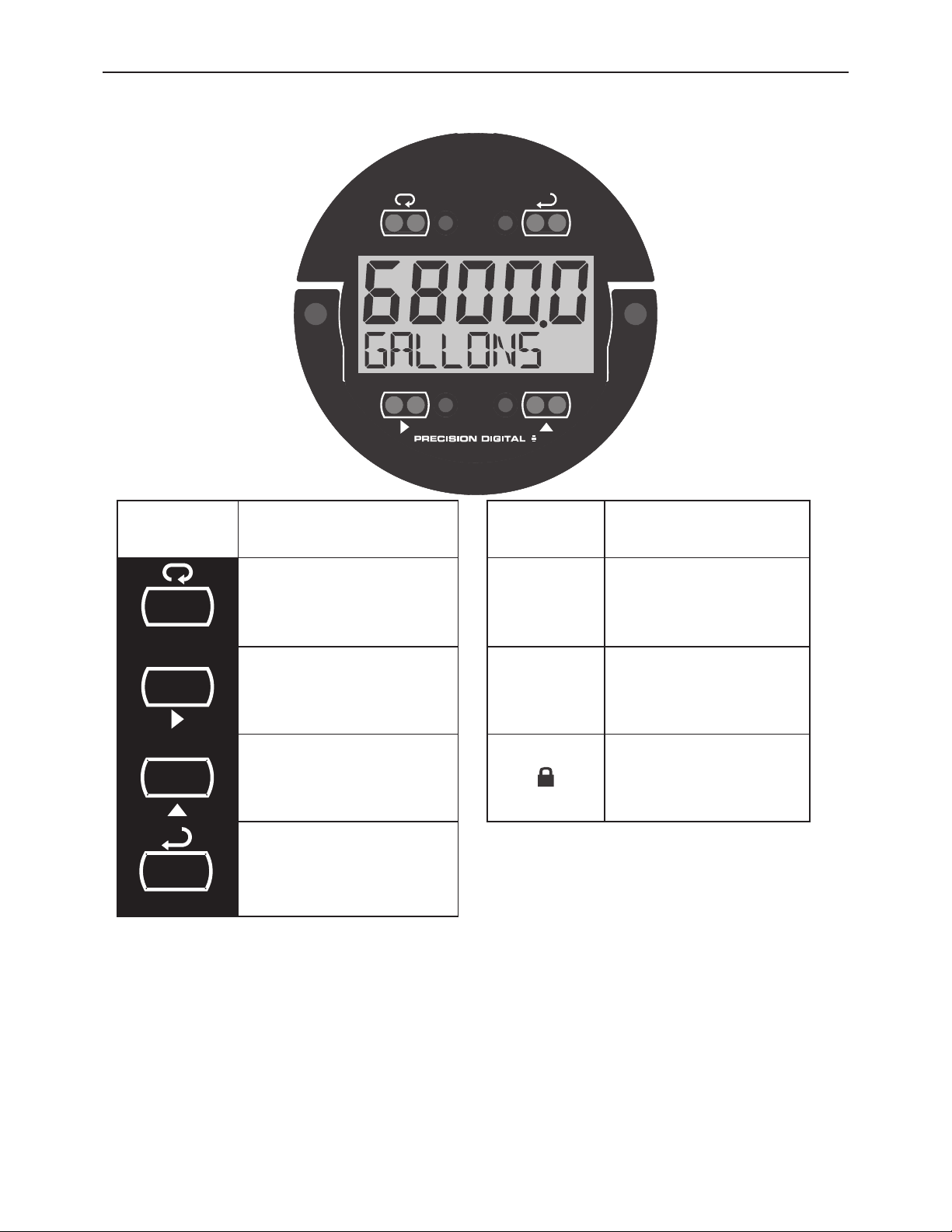

Buttons and Display ----------------------------------------------------------------------- 15
Main Menu Display Functions & Messages ---------------------------------------- 16

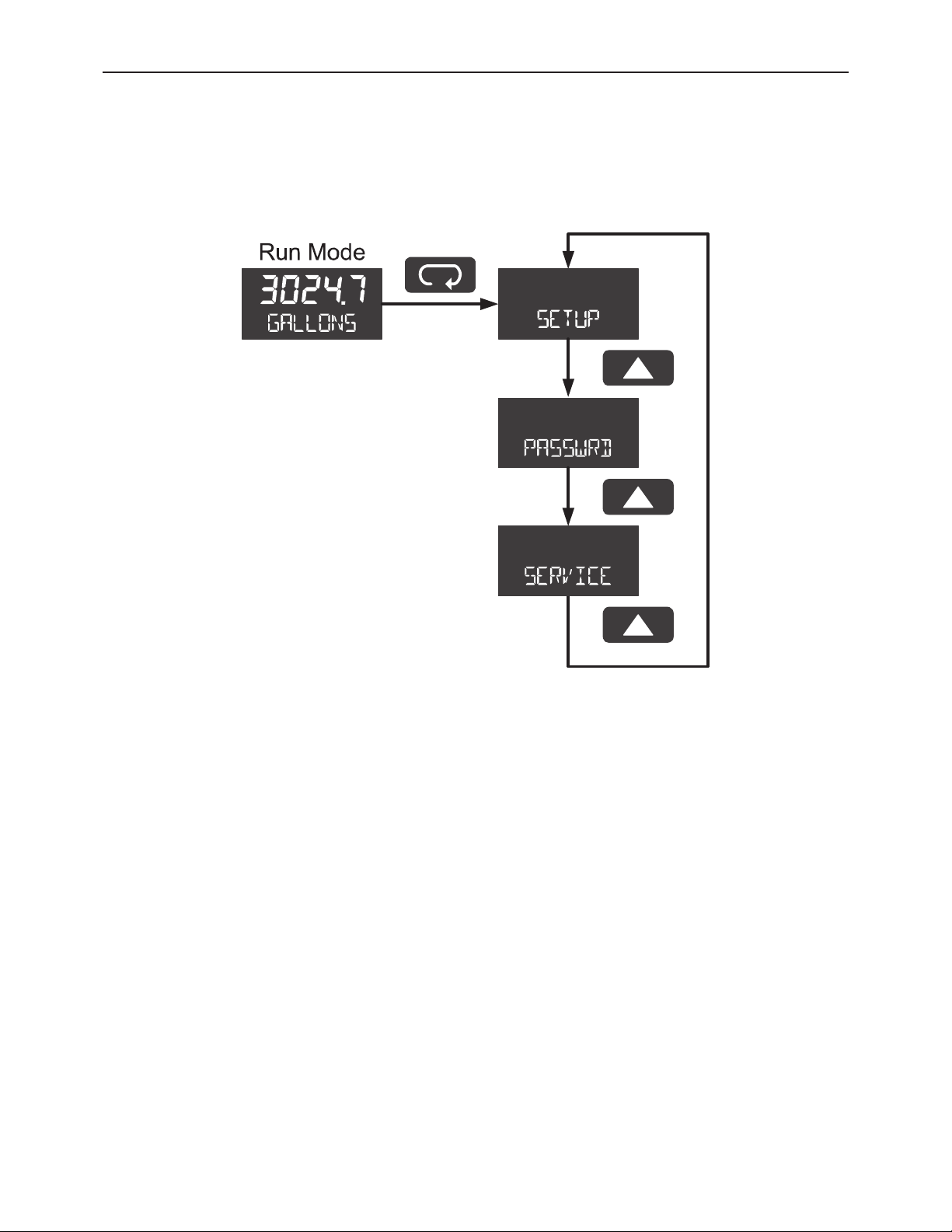

Main Menu ------------------------------------------------------------------------------------- 17

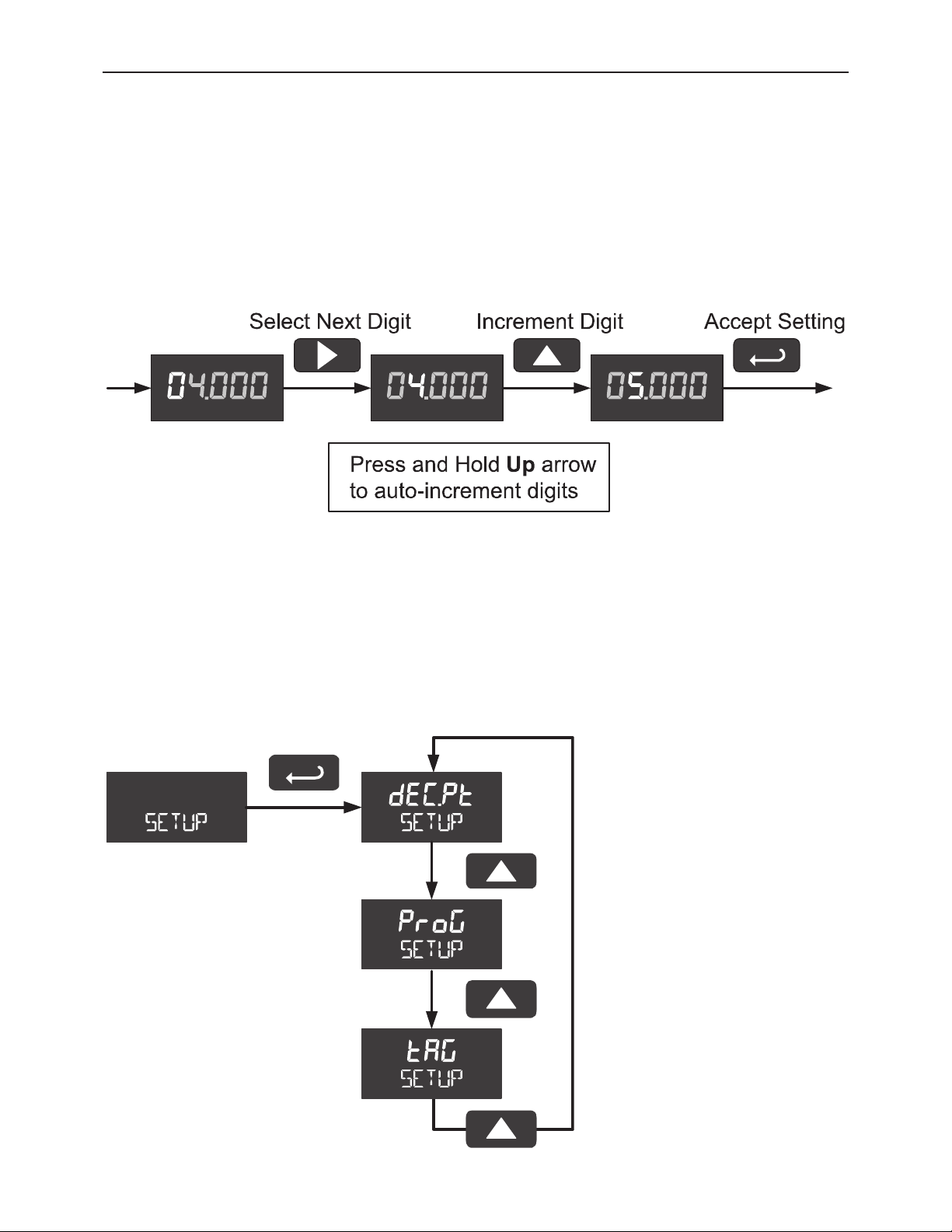

Setting Numeric
Setting Up the Meter (
Setting the Decimal Point (Dec.Pt) ............................................................. 19
Programming th
Scaling the Meter (SCale)

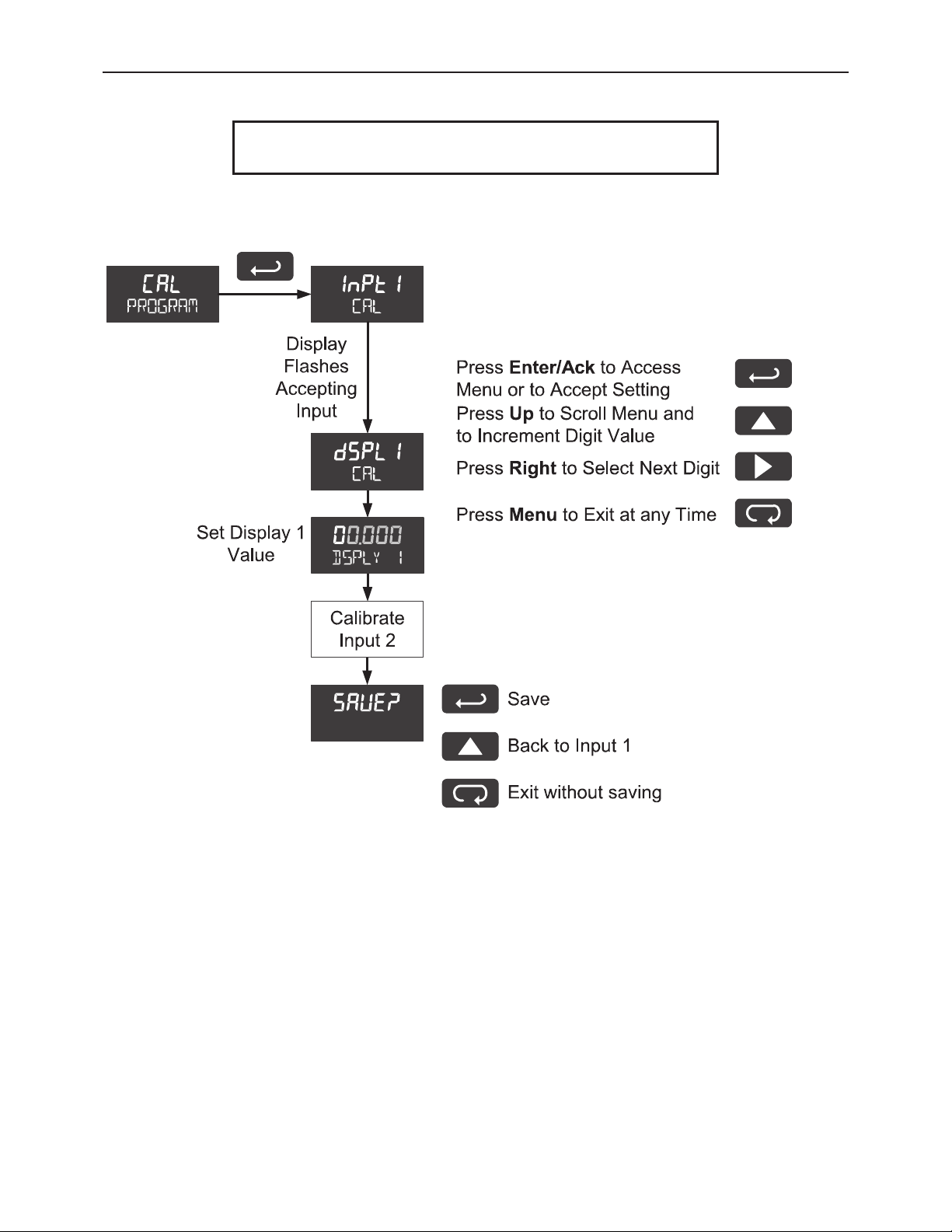

Calibrating the Meter (Cal)
Re-Calibrating the Internal Calibration Reference (ICaL)
Setting the Tag Display (tag
Setting Up the Password (PAS
Locking the Meter ...................................................................................... 24
Making Changes to a Password Protected Meter ..................................... 24
Disabling Password Protection .................................................................. 25
Service Feature (
Advanced Features Menu ---------------------------------------------------------------- 26
Advanced Features Menu & Display Messages ........................................ 27
Indication (INDIC
Advanced Function Selection (FUNCTN) .....................................................
Multi-Point Linearization (lnear)
Square Root Linearization (Sq
Programmable Exponent Linearization (Prog.E)
Low-Flow Cutoff (CUTOFF) .........................................................................
Input Signal Filter (FILTE
Internal Calibration (ICAL
Information (INFO) .....................................................................................
Values

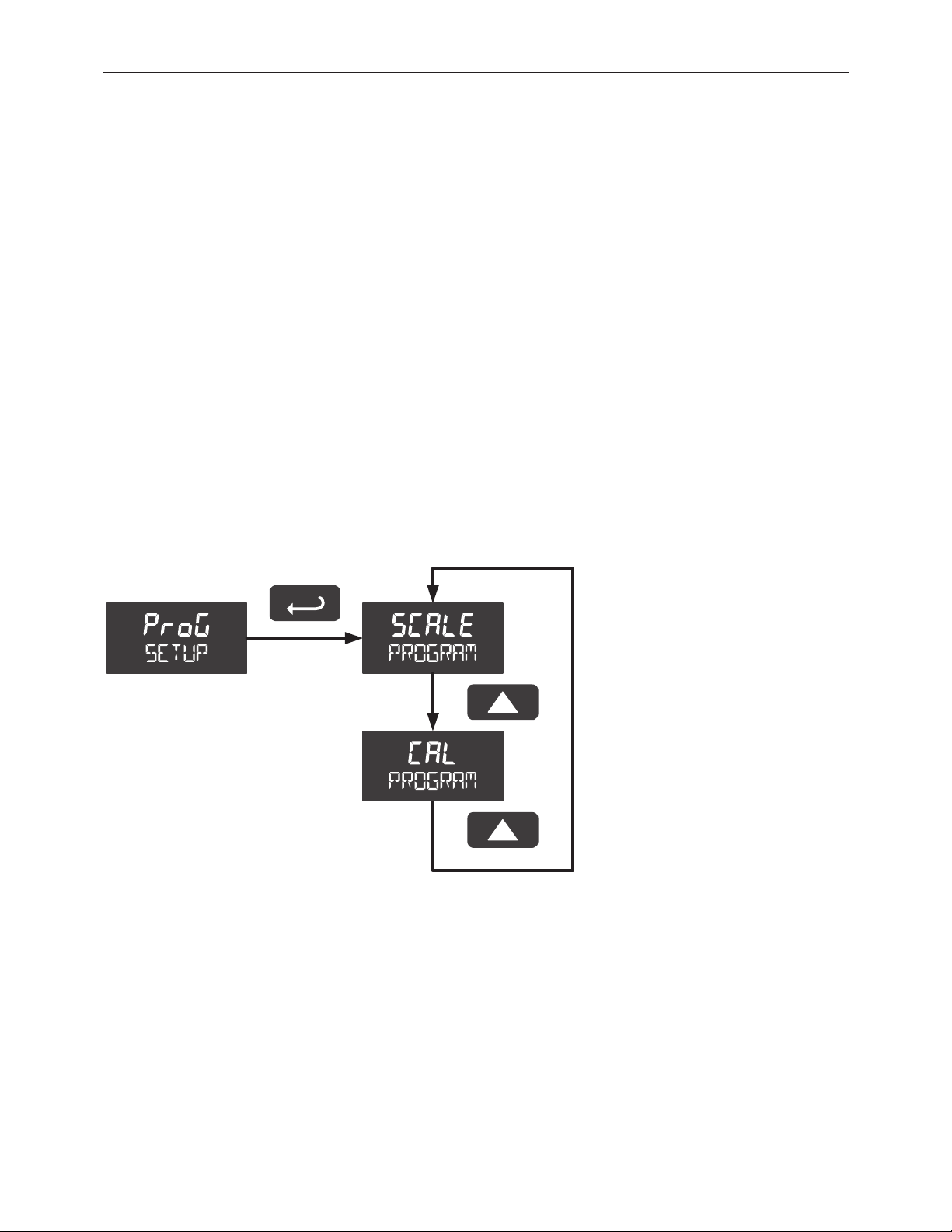

e Meter (PRoG) ..................................................................
------------------------------------------------------------------- 18
) ------------------------------------------------------------ 18
20
---------------------------------------------------------- 21
-------------------------------------------------------- 22
----------------- 23
) .................................................................... 23
SWRD) .......................................................... 24
) --------------------------------------------------------------- 25
AT) .................................................................................. 28
29
------------------------------------------------- 29
uar) ---------------------------------------------- 30
----------------------------- 30
31
R) ....................................................................... 31
) ......................................................................... 32
32
4
Find Quality Products Online at: [email protected]
www.GlobalTestSupply.com
Page 5
PD6700 Loop-Powered Process Meter Instruction Manual
MAXIMUM &MINIMUM
OPERATION -------------------------------------------------------------------------- 33

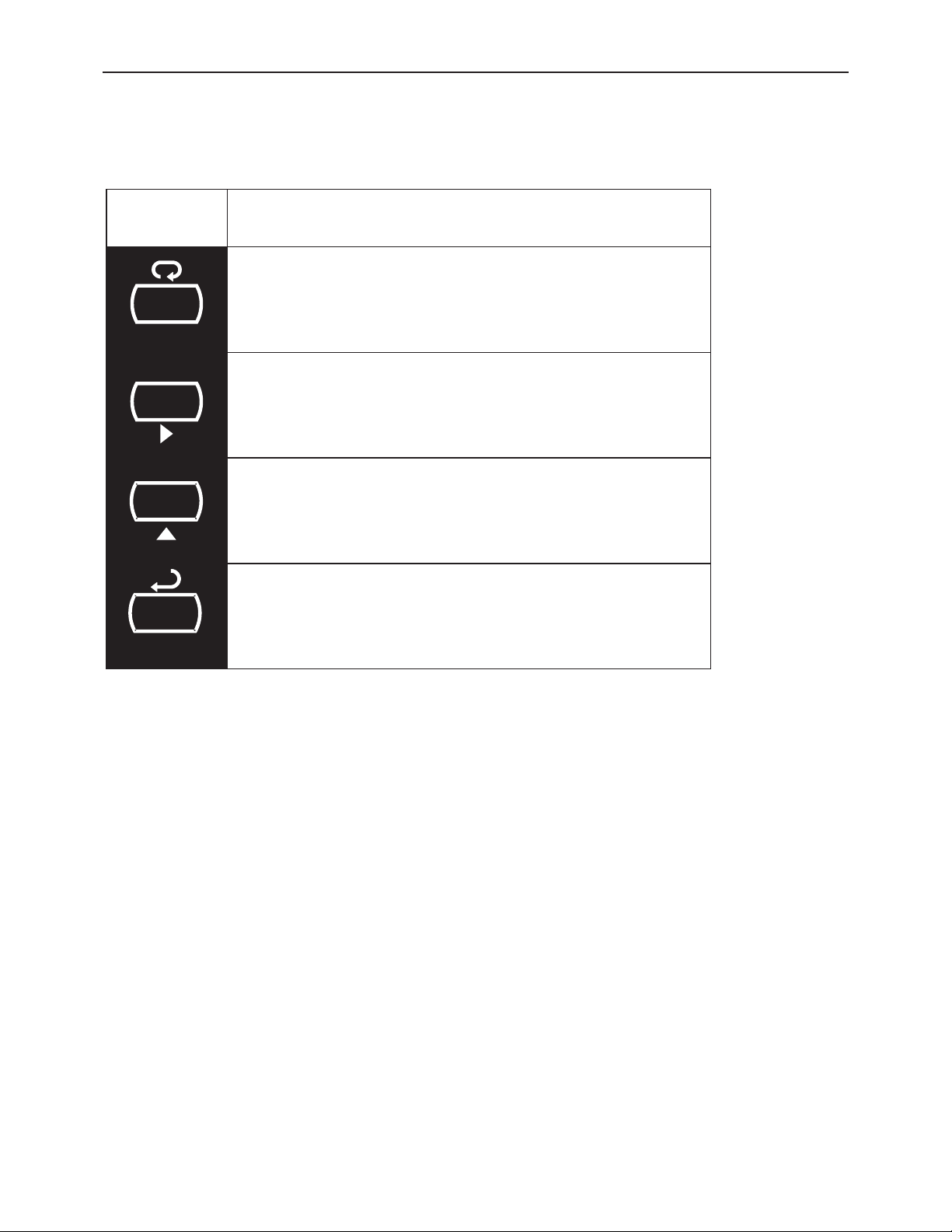

Front Panel Buttons Operation -------------------------------------------------------- 33
Maximum & Minimum Readings (
Reset Meter to Factory
Factory Defaults & User Settin
Defaults ------------------------------------------------------- 34
gs ----------------------------------------------------- 35
) ------------------------ 34
TROUBLESHOOTING ------------------------------------------------------------- 36
Troubleshooting Tips ---------------------------------------------------------------------- 36
MOUNTING DIMENSIONS -------------------------------------------------------- 37

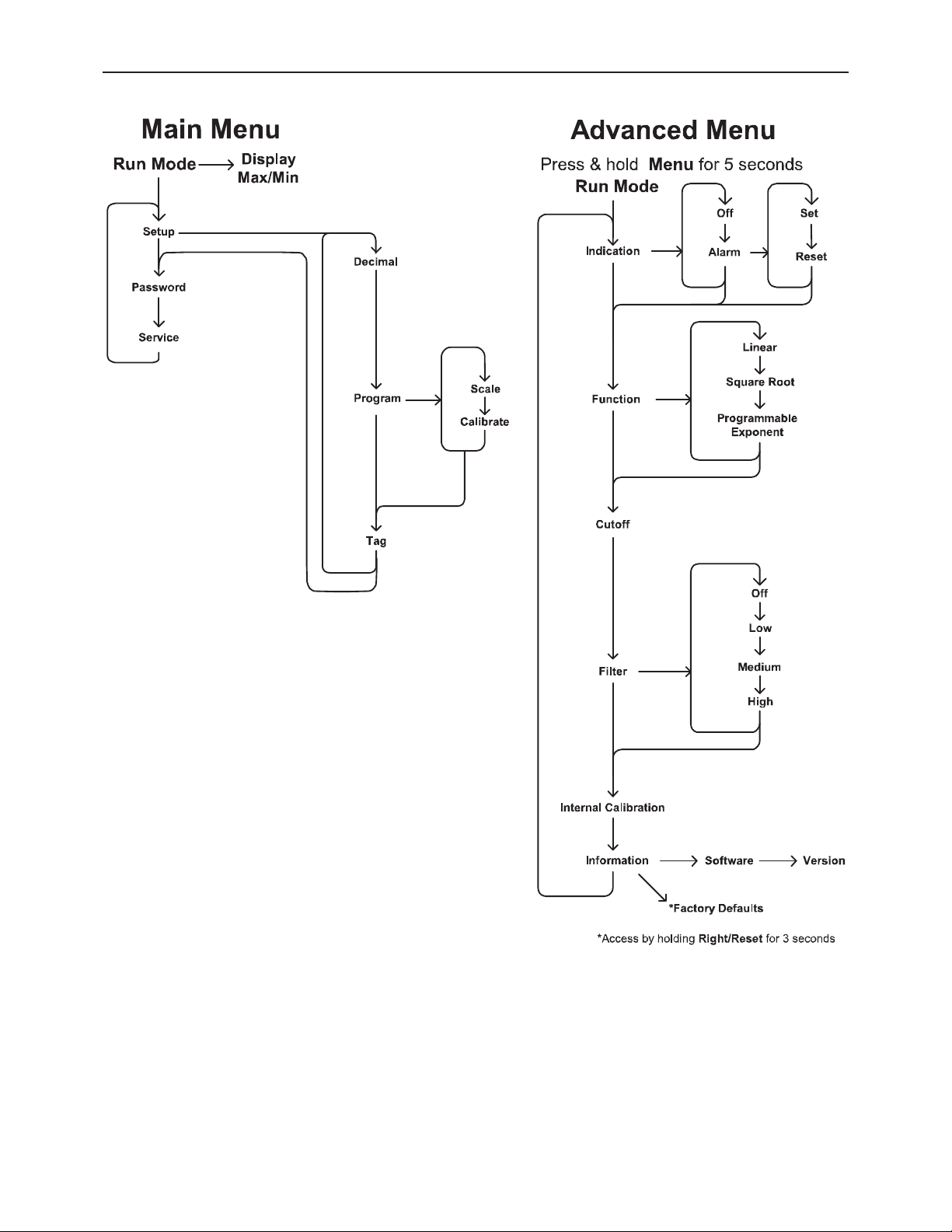

QUICK USER INTERFACE REFERENCE ------------------------------------ 38
Table of Figures

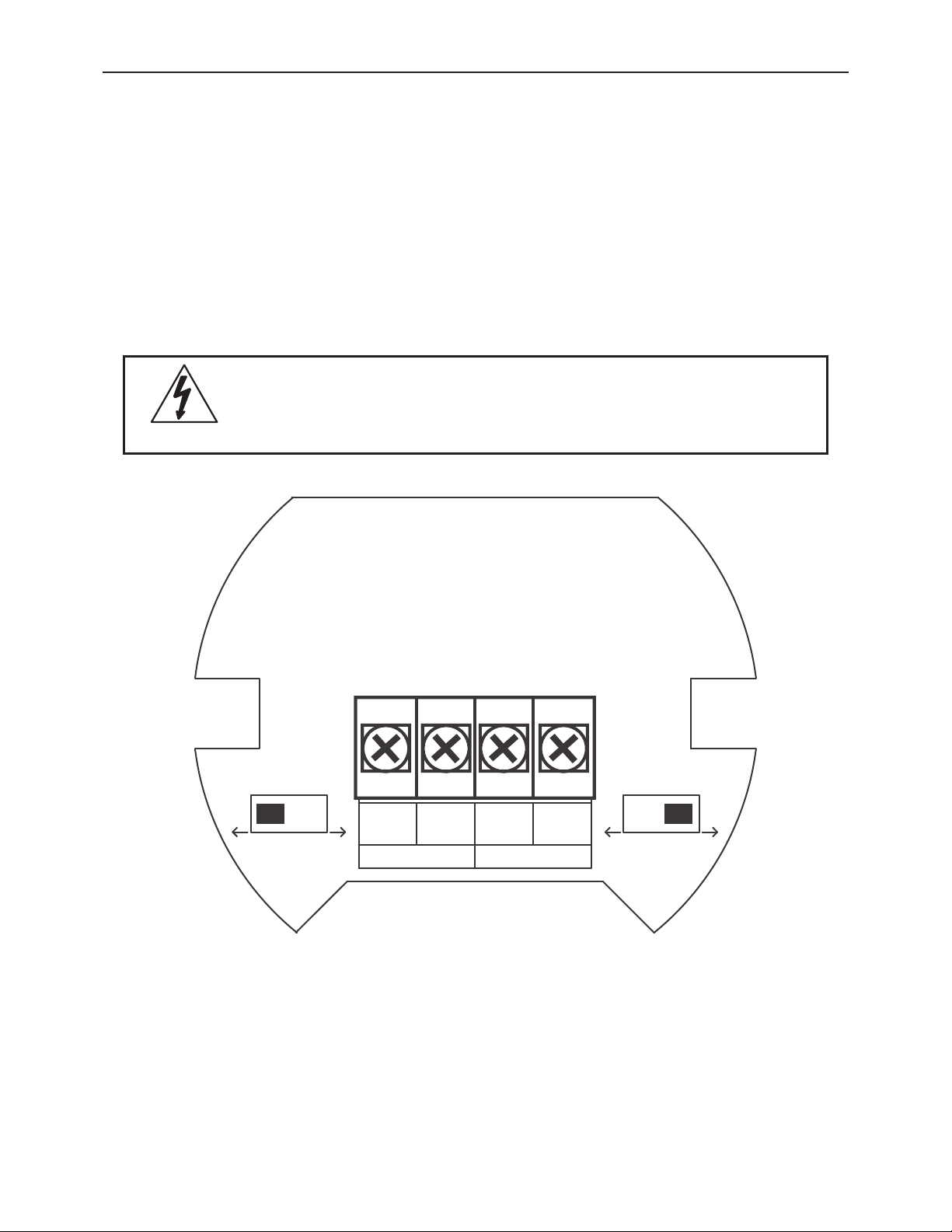

Figure 1. Connector Board ...................................................................... 11

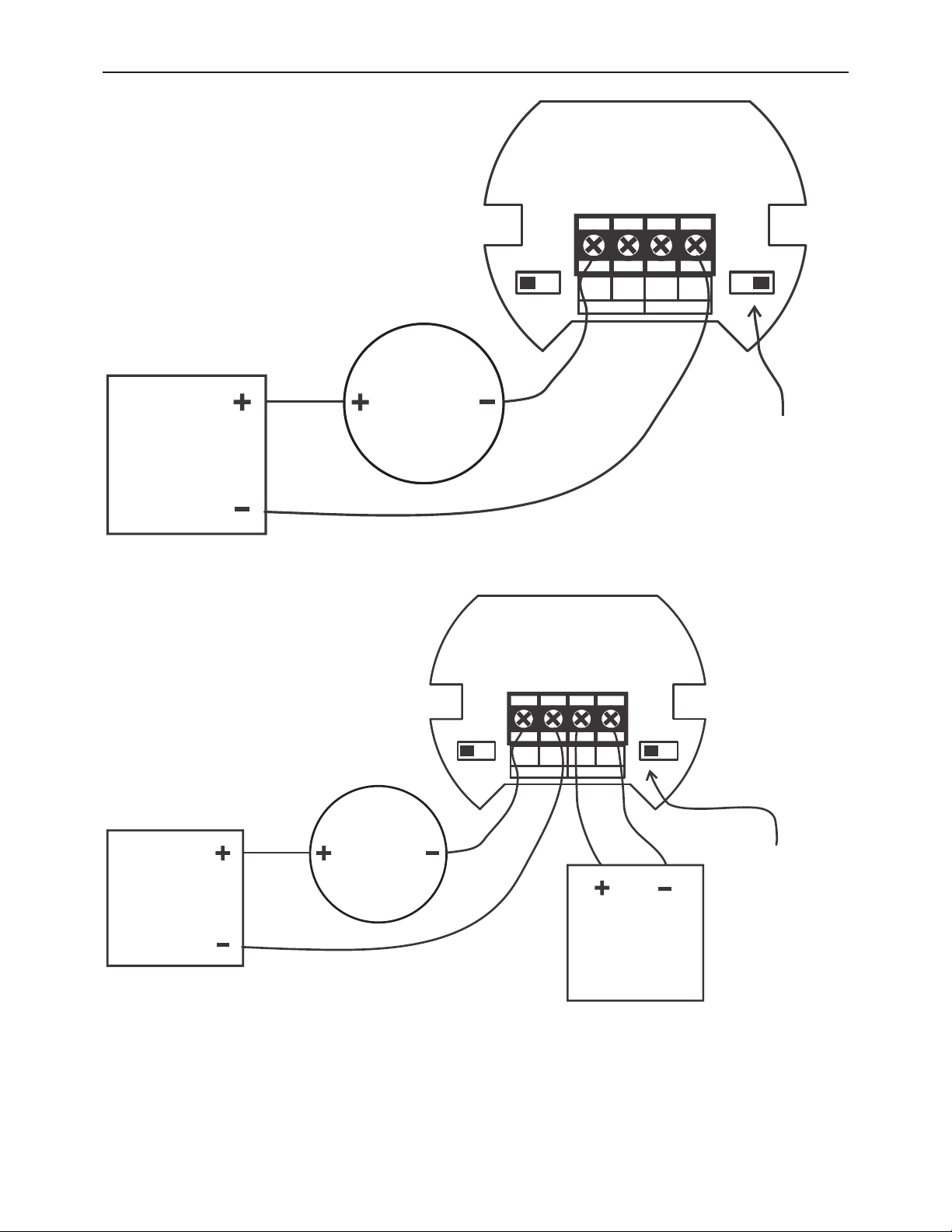

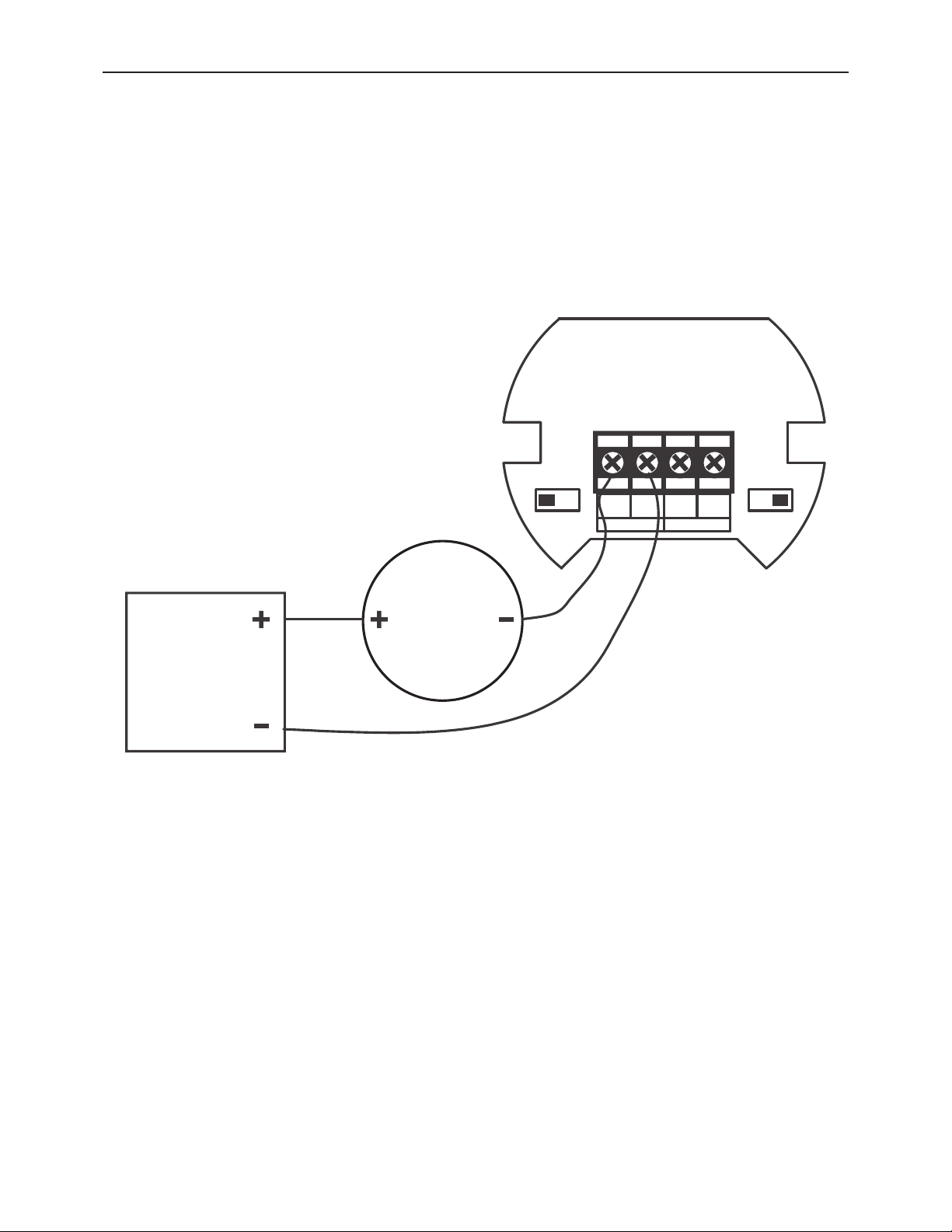

Figure 2. Connections without Backlight ............................................... 12
Figure 3. Connections with Loop-Powered Backlight ........................... 13
Figure 4. Connections with Externally-Powered Backlight .................. 13

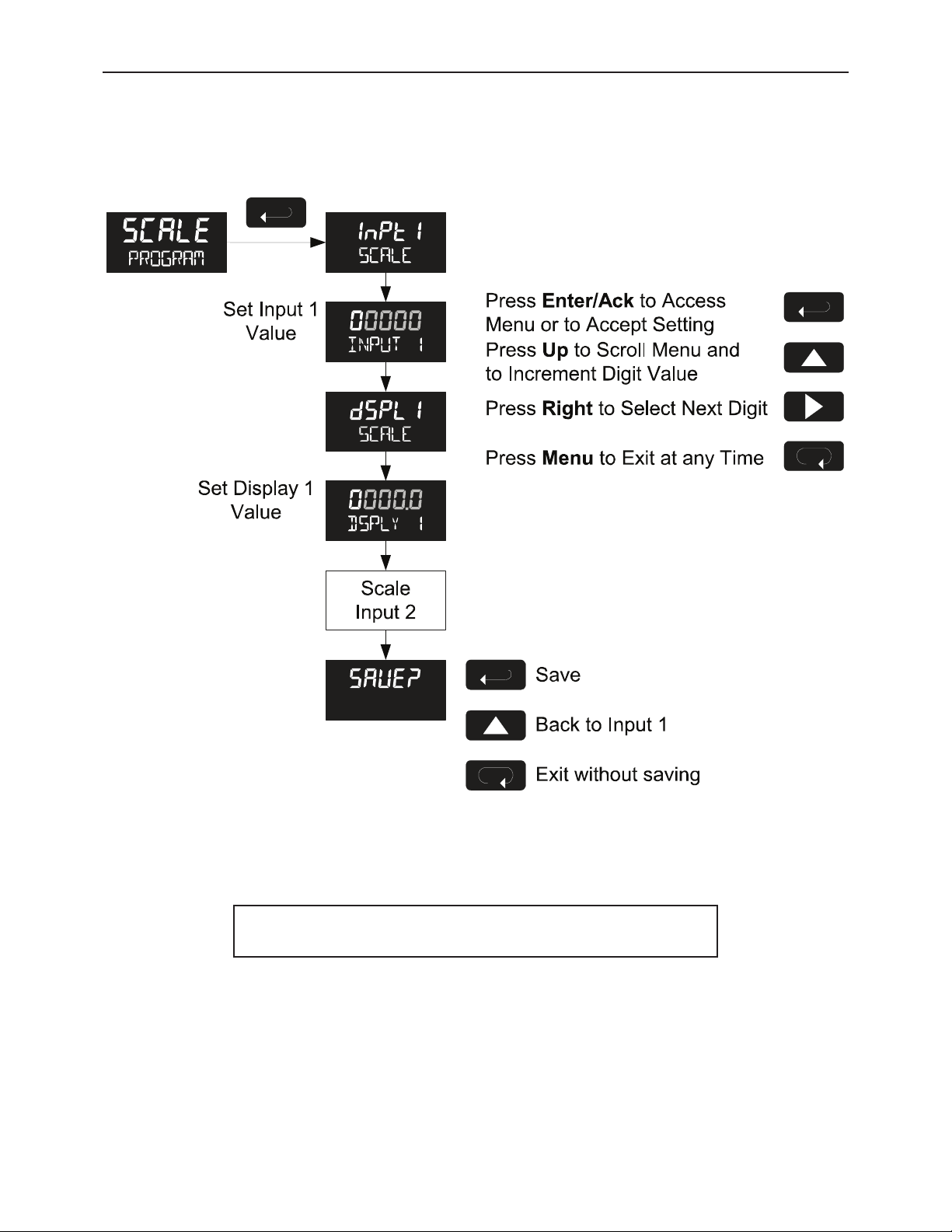

Figure 5. Scale Menu ................................................................................ 21

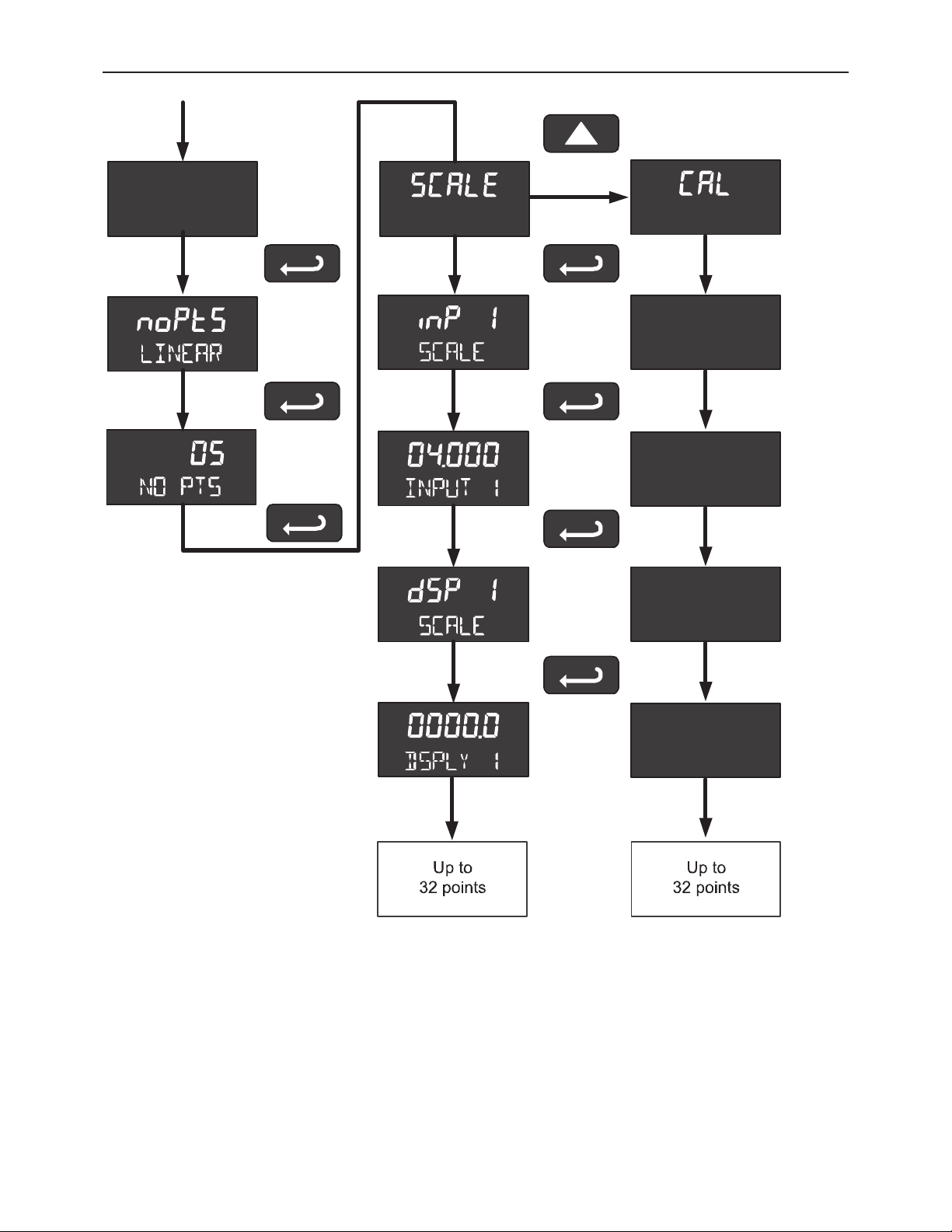

Figure 6. Multi-Point Linearization Menu ............................................... 30

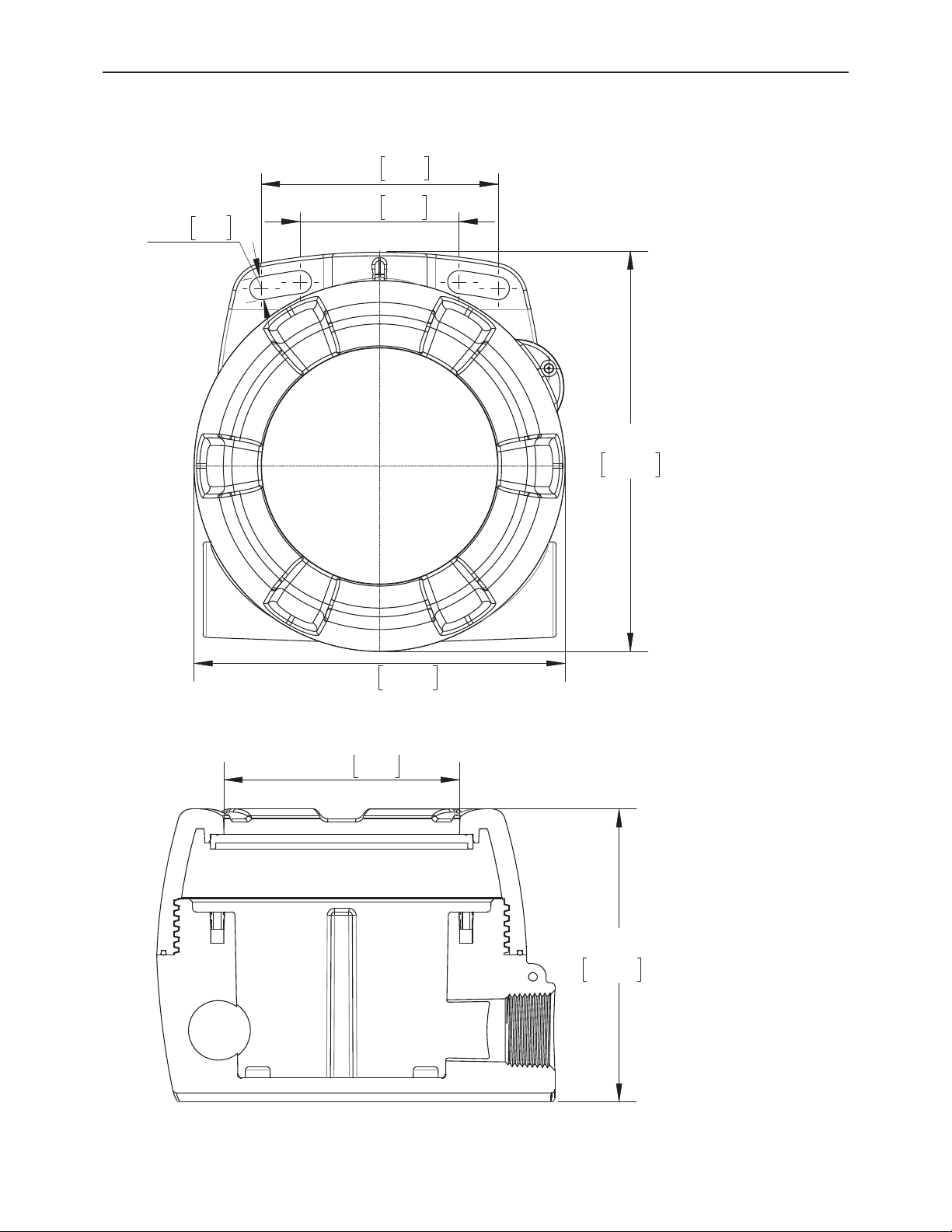

Figure 7. Enclosure Dimensions – Front View ...................................... 37
Figure 8. Enclosure Dimensions – Side Cross Section View ............... 37
5
Find Quality Products Online at: [email protected]
www.GlobalTestSupply.com
Page 6
PD6700 Loop-Powered Process Meter Instruction Manual
med, HI
OFF
SPECIFICATIONS
Except where noted all specifications apply to operation at +25°C.
General
DISPLAY Five digits
(-9999 to 99999)
Seven characters
(Engineering Units)
Symbols High & Low Alarm, Password Lock
Backlight White
DISPLAY
UPDATE RATE
OVERRANGE
UNDERRANGE
PROGRAMMING
METHOD
NOISE FILTER Programmable LO,
RECALIBRATION Recalibration is recommended at least every 12 months.
MAX/MIN
DISPLAY
Ambient > -25°C: 2 Updates/Second
Ambient < -25°C: 1 Update/5 Seconds
Display flashes
Display flashes
Four SafeTouch® through-window buttons when cover is
installed. Four internal pushbuttons when cover is removed.
Max/Min readings reached by the process are stored until
reset by the user or until power to the meter is turned off.
99999
-9999
0.70" (17.8 mm) high, 7-segment,
automatic lead zero blanking.
0.4" (10.2 mm) high, 14 segment.
, or
PASSWORD Programmable password restricts modification of
programmed settings.
NON-VOLATILE
MEMORY
NORMAL MODE
REJECTION
ENVIRONMENTAL Operating temperature range: -40 to 75°C
CONNECTIONS Screw terminals accept 12 to 22 AWG wire
ENCLOSURE NEMA 4X, IP65 plastic field enclosure.
MOUNTING May be mounted directly to conduit. Two slotted flanges for
All programmed settings are stored in non-volatile memory for
a minimum of ten years if power is lost.
64 dB at 50/60 Hz
Storage temperature range: -40 to 75°C
Relative humidity: 0 to 90% non-condensing
Color: grey.
Three ¾" NPT threaded conduit openings. One ¾" NPT
plastic conduit plug, with 1.29" wrenching flats and a
screwdriver slot, is included.
wall mounting or NPS 1½" to 2½" or DN 40 to 65 mm pipe
mounting. See Mounting Dimensions on page 37.
6
Find Quality Products Online at: [email protected]
www.GlobalTestSupply.com
Page 7
PD6700 Loop-Powered Process Meter Instruction Manual
OVERALL
DIMENSIONS
WEIGHT 1.65 lbs (26.4 oz, 0.75 kg)
WARRANTY 3 years parts and labor
5.67" x 5.25" x 4.18" (W x H x D)
(144 mm x 133 mm x 106 mm)
Input
ACCURACY
ADVANCED
FUNCTION
MULTI-POINT
LINEARIZATION
PROGRAMMABLE
EXPONENT
LOW FLOW CUTOFF
TEMPERATURE
DRIFT
±0.03% of calibrated span ±1 count,
square root & programmable exponent accuracy range:
10-100% of calibrated span.
Linear, square root, or programmable exponent
2 to 32 points
1.0001 to 2.9999
0-99999 (0 disables cutoff function)
50 PPM/°C from -40 to 75°C ambient
DECIMAL POINT
MINIMUM SPAN
CALIBRATION
RANGE
MAXIMUM
VOLTAGE DROP
EQUIVALENT
RESISTANCE
EXTERNALLY
POWERED
BACKLIGHT
User selectable decimal point
Input 1 & Input 2: 0.10 mA
An Error message will appear if input 1 and input 2 signals
are too close together.
Input
Range
4-20 mA 0.10 mA
Without Backlight or with
Externally-Powered (DC
Powered) Backlight
3.0 VDC @ 20 mA 6.0 VDC @ 20 mA
150 ȍ @ 20 mA 300 ȍ @ 20 mA
Voltage Range: Maximum Power
9-36 VDC 9 VDC 12 VDC 24 VDC 36 VDC
Minimum Span
Input 1 & Input 2
With Loop-Powered
Backlight
0.2 W 0.25 W 0.5 W 0.75 W
INPUT
OVERLOAD
Find Quality Products Online at: [email protected]
Over current protection to 2 A max.
7
www.GlobalTestSupply.com
Page 8
PD6700 Loop-Powered Process Meter Instruction Manual
SAFETY INFORMATION
WARNINGS
• Read complete instructions prior to installation and operation of the meter.
• Installation and service should be performed only by trained service
personnel. Service requiring replacement of internal components must be
performed at the factory.
• Disconnect from supply before opening enclosure. Keep cover tight while
circuits are alive.
• If the meter is installed in a high voltage environment and a fault or
installation error occurs, high voltage may be present on any lead.
.
8
Find Quality Products Online at: [email protected]
www.GlobalTestSupply.com
Page 9
PD6700 Loop-Powered Process Meter Instruction Manual
INSTALLATION
Hazardous voltages may exist within enclosure.
Installation and service should be performed only by trained
WARNING
Wiring connectors are accessed by opening the enclosure. To access electrical
connectors, remove the 2 captive screws, then disconnect the ribbon cable from the
display module and set the display module aside.
Unpacking
Remove the meter from box. Inspect the packaging and contents for damage. Report
damages, if any, to the carrier.
If any part is missing or the meter malfunctions, please contact your supplier or the
factory for assistance.
service personnel.
Conduit/Stopping Plug
The PD6700 is provided with three ¾" NPT threaded conduit openings and one IP68
rated ¾" NPT plastic conduit plug.
The conduit/stopping plug included has 1.29" wrenching flats and a screwdriver slot.
9
Find Quality Products Online at: [email protected]
www.GlobalTestSupply.com
Page 10
PD6700 Loop-Powered Process Meter Instruction Manual
Mounting
The PD6700 has two slotted mounting flanges that may be used for pipe mounting or
wall mounting. Alternatively, the unit may be supported by the conduit using the
conduit holes provided.
Refer to Mounting Dimensions, page 37 for details.
Do not attempt to loosen or remove flange bolts while the meter is
in service.
WARNING
Connections
WARNINGS
• Static electricity can damage sensitive components.
• Observe safe handling precautions for static-sensitive components.
• Use proper grounding procedures/codes.
• If the meter is installed in a high voltage environment and a fault or
installation error occurs, high voltage may be present on any lead or
terminal.
To access the connectors, remove the enclosure cover and unscrew the two captive
screws that fasten the display module. Disconnect the ribbon cable and remove the
display module. Signal connections are made to a four-terminal connector in the base
of the enclosure.
10
Find Quality Products Online at: [email protected]
www.GlobalTestSupply.com
Page 11
PD6700 Loop-Powered Process Meter Instruction Manual
Connections (continued)
SIGNAL + 4-20 mA signal input positive terminal connection
SIGNAL - 4-20 mA signal return/negative terminal connection when not
using loop powered backlight.
BACKLIGHT + +9-36 VDC when powering backlight from external supply.
BACKLIGHT - 4-20 mA signal return/negative terminal when using the installed
loop powered backlight or ground/negative when powering
backlight from external supply.
Refer to Figure 1 for terminal positions.
Observe all safety regulations. Electrical wiring should be
performed in accordance with all agency requirements and
applicable national, state, and local codes to prevent damage to
WARNING
the meter and ensure personnel safety.
SAFE-TOUCH
BUTTONS
UNLOCK LOCK
Find Quality Products Online at: [email protected]
www.GlobalTestSupply.com
+
Figure 1. Connector Board
-
SIGNAL BACKLIGHT
+
11
-
BACKLIGHT
9-36 VDC
POWER
LOOP
Page 12
PD6700 Loop-Powered Process Meter Instruction Manual
Connections & Wiring Diagrams
Signal connections are made to a four-terminal connector mounted in the base of the
enclosure. For installations without backlight, only the two signal terminals are
connected. The 4-20 mA input with no backlight has a maximum voltage drop of 3 V
and is wired as shown in Figure 2. The loop-powered backlight configuration requires
a total maximum voltage drop of 6 V. The backlight is recommended for dim lighting
conditions and is enabled when wired as shown in Figure 3 or Figure 4.
Power
Supply
SAFE-TOUCH
BUTTONS
-
UNLOCK LOCK
+
SIGNAL BACKLIGHT
4-20 mA
Transmitter
Figure 2. Connections without Backlight
+
BACKLIGHT
POWER
-
9-36 VDC
LOOP
12
Find Quality Products Online at: [email protected]
www.GlobalTestSupply.com
Page 13
PD6700 Loop-Powered Process Meter Instruction Manual
o
Power
Supply
SAFE-TOUCH
BUTTONS
UNLOCK LOCK
-
+
SIGNAL BACKLIGHT
+
-
4-20 mA
Transmitter
Figure 3. Connections with Loop-Powered Backlight
Slide Switch to
BACKLIGHT
9-36 VDC
POWER
LOOP
LOOP
Power
4-20 mA
Transmitter
SAFE-TOUCH
BUTTONS
UNLOCK LOCK
-
+
SIGNAL BACKLIGHT
+
BACKLIGHT
POWER
-
9-36 VDC
LOOP
Slide Switch t
9-36 VDC
Supply
Power
Supply
Figure 4. Connections with Externally-Powered Backlight
It is possible to use the same transmitter (signal loop) power supply for the externally
powered backlight. The backlight circuit will draw 25 mA in addition to the loop circuit.
13
Find Quality Products Online at: [email protected]
www.GlobalTestSupply.com
Page 14
PD6700 Loop-Powered Process Meter Instruction Manual
SETUP AND PROGRAMMING
There is no need to recalibrate the meter for milliamps
when first received from the factory.
The meter is factory calibrated for milliamps prior to
shipment. The calibration equipment is certified to NIST
standards.
Overview
Setup and programming is done through the infrared through-window SafeTouch
buttons, or using the mechanical buttons when uncovered. There are two slide
switches located on the connector board. One is used to select backlight power (if
equipped) and the other is to lock or unlock the SafeTouch
®
buttons.
SafeTouch® Buttons
®
The PD6700 is equipped with four sensors that operate as through-window buttons
so that it can be programmed and operated without removing the cover. These
buttons can be disabled for security by selecting the LOCK setting on the switch
located on the connector board in the base of the enclosure. To actuate a button,
press one finger to the window directly over the marked button area. When the cover
is removed, the four mechanical buttons located next to the sensors are used. The
sensors are disabled when a mechanical button is pressed and will automatically be
re-enabled after 60 seconds of inactivity.
The SafeTouch
®
buttons are designed to filter normal levels of ambient interference
and to protect against false triggering, however, it is recommended that the
SafeTouch
®
buttons be disabled (slide switch to LOCK) if there is an infrared
interference source in line-of-sight to the display.
SafeTouch
®
Button Tips:
• To remove cover with power applied (safe area only), or to clean the window,
select SERVICE in the main menu before opening the cover. This will temporarily
disable the SafeTouch
®
buttons for 60 seconds to prevent inadvertent use. Use
the mechanical buttons while the meter is open.
• To the extent possible, install the display facing away from sunlight, windows,
reflective objects and any sources of infrared interference.
• Keep the window clean.
• Tighten the cover securely.
• Use a password to prevent tampering.
After all connections have been completed and verified, apply power to the loop.
14
Find Quality Products Online at: [email protected]
www.GlobalTestSupply.com
Page 15
PD6700 Loop-Powered Process Meter Instruction Manual
U
Buttons and Display
Button
Symbol
MEN
RESET
MENU
ENTER
DISPLAYRESET
Description Symbol Status
Menu HI High Alarm Set
Right arrow/Reset LO Low Alarm Set
DISPLAY
Up arrow/Max
Password Enabled
Enter
ENTER
• Press the Menu button to enter or exit the Programming Mode at any time.
• Press the Right arrow button to move to the next digit or decimal position during
programming.
• Press the Up arrow button to scroll through the menus, decimal point, or to in-
crement the value of a digit.
• Press the Enter button to access a menu or to accept a setting.
• Press and hold the Menu button for five seconds to access the Advanced fea-
tures of the meter.
15
Find Quality Products Online at: [email protected]
www.GlobalTestSupply.com
Page 16
PD6700 Loop-Powered Process Meter Instruction Manual
Main Menu Display Functions & Messages
The meter displays various functions and messages during setup, programming, and
operation. The following table shows the main menu functions and messages in the
order they appear in the menu.
Display Parameter Action/Setting
SETUP
DeC..pt
PRog
sCalE
Cal
Inpt1
DspL1
Inpt2
DsPl2
Span
Error
tag
ON
Setup
Decimal point
Program
Scale
Calibrate
Input 1
Display 1
Input 2
Display 2
Span
Error
Tag/Units
Tag On
Enter Setup menu
Enter Decimal Point menu
Enter the Program menu
Enter the Scale menu
Enter the Calibrate menu
Calibrate input 1 signal or program input 1 value
Program display 1 value
Calibrate input 2 signal or program input 2 value
Program display 2 value
Error, calibration not successful, check signal
Enter the Tag/Units Menu
Enable Tag/Units
OFF
PASSWRD
UNLOCKD
LOCKED
99999
-9999
SERVICE
Tag Off
Password
Unlocked
Locked
Flashing
display
Service
Disable Tag/Units
Enter the Password menu
Program password to lock meter
Enter password to unlock meter
Overrange condition
Underrange condition
Select before removing/installing cover for ser-
vice or to clean the window
16
Find Quality Products Online at: [email protected]
www.GlobalTestSupply.com
Page 17
PD6700 Loop-Powered Process Meter Instruction Manual

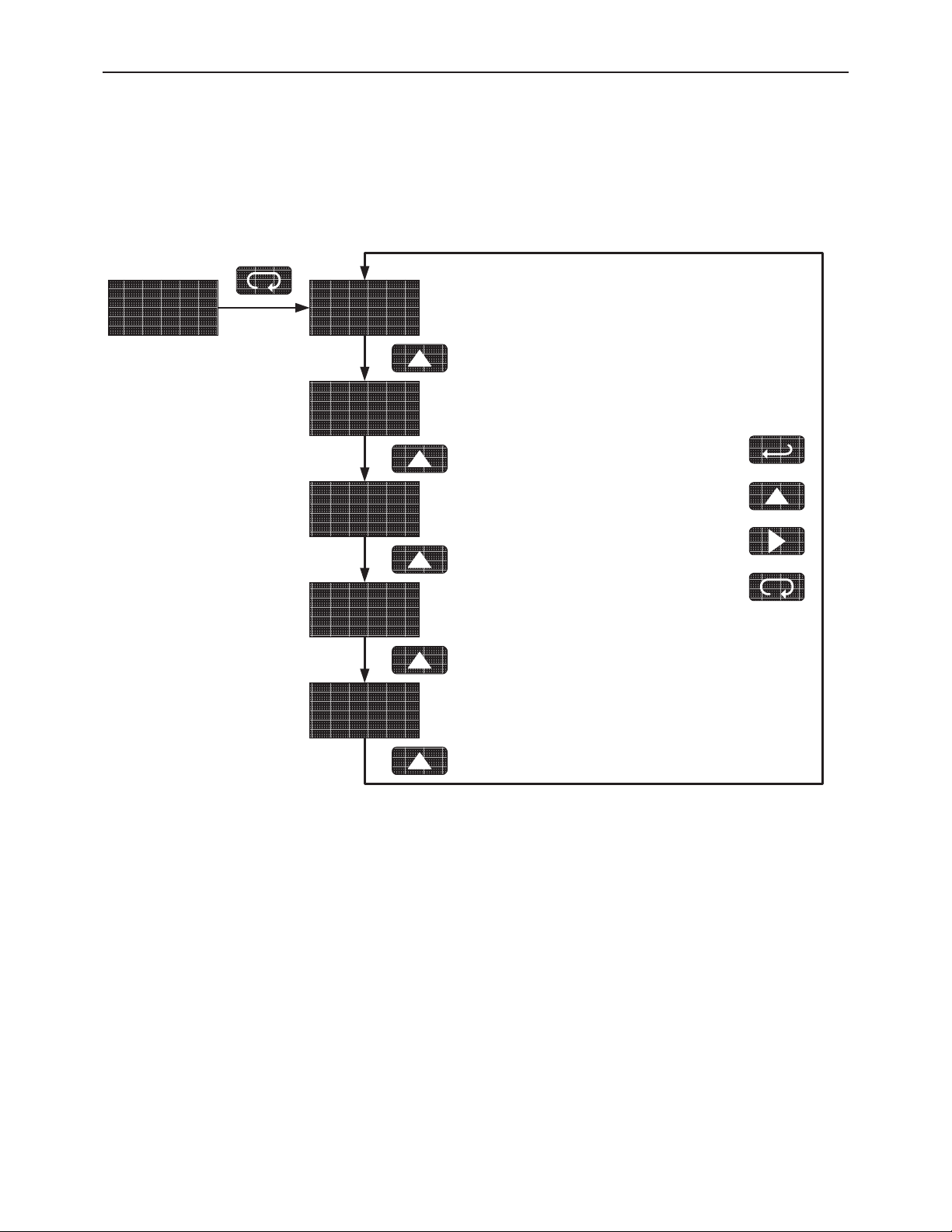

Main Menu
The main menu consists of the most commonly used functions: Setup, Password,
and Service.
Press MENU button to enter Programming Mode then press the Up Arrow button to
scroll through the main menu.
• Press MENU, at any time, to exit and return to Run Mode. Changes made to
settings prior to pressing Enter are not saved.
• Changes to the settings are saved to memory only after pressing Enter.
• The display moves to the next menu every time a setting is accepted by
pressing Enter.
17
Find Quality Products Online at: [email protected]
www.GlobalTestSupply.com
Page 18
PD6700 Loop-Powered Process Meter Instruction Manual
SETUP
Setting Numeric Values
The numeric values are set using the Right and Up arrow buttons. Press Right
arrow to select next digit and Up arrow to increment digit.
The digit being changed blinks.
Press the Enter button, at any time, to accept a setting or MENU button to exit
without saving changes.
The decimal point is set using the Right or Up arrow button in the Setup-decimal
point menu.
Setting Up the Meter (
Press the Enter button to access any menu or press Up arrow button to scroll
through choices. Press the Menu button to exit at any time.
)
18
Find Quality Products Online at: [email protected]
www.GlobalTestSupply.com
Page 19
PD6700 Loop-Powered Process Meter Instruction Manual
Dec.Pt
Setting the Decimal Point (
Decimal point may be set with up to four decimal places or with no decimal point.

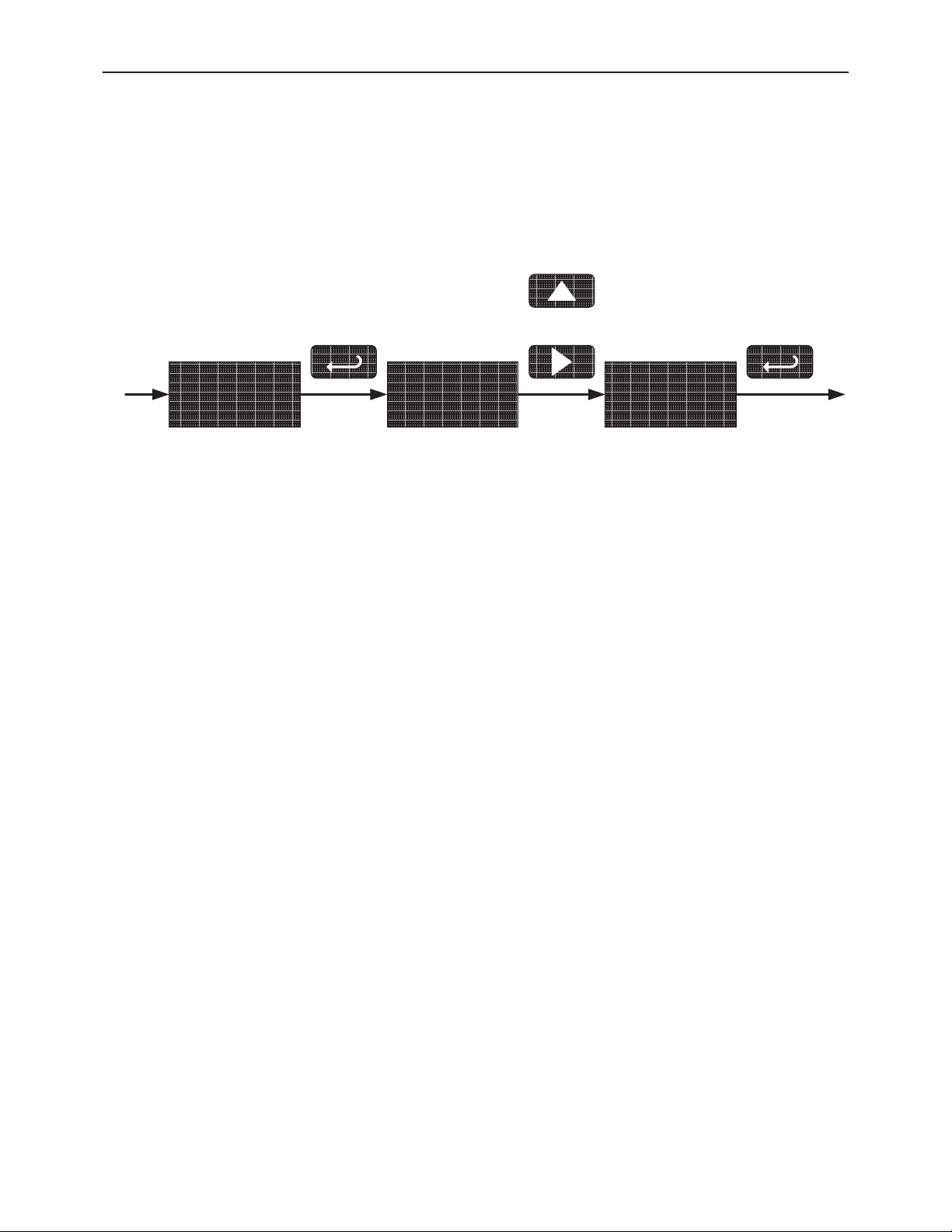

Pressing the Right arrow moves the decimal point one place to the right until no
decimal point is displayed. Pressing the Up arrow moves the decimal point one place
to the left.
dec.Pt
SeTUP
DD.DDD
DEC.PT
)
Select Decimal Point
Or
DDD.DD
DEC.PT
Accept Setting
19
Find Quality Products Online at: [email protected]
www.GlobalTestSupply.com
Page 20
PD6700 Loop-Powered Process Meter Instruction Manual
PRoG
Programming the Meter (
It is very important to read the following information, before proceeding to program
the meter:
• There is no need to recalibrate the meter for milliamps when first received
from the factory.
• The meter is factory calibrated for milliamps prior to shipment. The calibration
equipment is certified to NIST standards.
• Use the Scale menu to enter the default 2-point scaling without a signal source.
• Use the Calibrate menu to apply a signal from a calibrator or a flowmeter for the
default 2-point scaling.
Note: The Scale and Calibrate functions are exclusive of each other. The meter
uses the last function programmed. Only one of these methods can be
employed at a time. The Scale and Calibrate functions can use up to 32 points
(default is 2). The number of points should be set in the Advanced menu under
the Multi-Point Linearization (
calibration of the meter, see page 29 for details.
Additional parameters, not needed for most applications, are viewed and
programmed with the Advanced features menu, see Advanced Features Menu
page 26.
)
r) menu selection prior to scaling and
lnea
20
Find Quality Products Online at: [email protected]
www.GlobalTestSupply.com
Page 21
PD6700 Loop-Powered Process Meter Instruction Manual
SCale
Scaling the Meter (
The 4-20 mA input can be scaled to display the process in engineering units.
A signal source is not needed to scale the meter; simply program the inputs and
corresponding display values.
)
Figure 5. Scale Menu
For instructions on how to program numeric values
see Setting Numeric Values, page 18.
21
Find Quality Products Online at: [email protected]
www.GlobalTestSupply.com
Page 22
PD6700 Loop-Powered Process Meter Instruction Manual
Cal
Calibrating the Meter (
To scale the meter without a signal source refer to
Scaling the Meter (SCale), page 21.
The meter can be calibrated to display the process in engineering units by applying
the appropriate input signal and following the calibration procedure.
The use of a calibrated signal source is strongly recommended.
)
1. Press the Up arrow button to scroll to the Calibration menu (cAL)
and press Enter.
2. The meter displays Inpt1. Apply a known signal and press Enter.
The display will flash while accepting the signal.
3. After the signal is accepted, the meter displays dspl1 Press Enter.
Enter a corresponding display value for the signal input, and
press Enter to accept.
4. The meter displays Inpt2. Apply a known signal and press Enter.
The display will flash while accepting the signal.
5. After the signal is accepted, the meter displays dspl2. Press Enter.
Enter a corresponding display value for the signal input and press
Enter to accept.
6. After completing calibration the save? display will need to be
acknowledged using the Enter key before calibration will take effect.
22
Find Quality Products Online at: [email protected]
www.GlobalTestSupply.com
Page 23
PD6700 Loop-Powered Process Meter Instruction Manual
ICaL
tag
Minimum Input Span
The minimum input span is the minimum difference between input 1 and input 2
signals required to complete the calibration or scaling of the meter. The minimum
span is 0.10 mA.
If the minimum span is not maintained, the meter reverts to input 2, allowing the
appropriate input signals to be applied.
Re-Calibrating the Internal Calibration Reference (
The Internal Calibration (ICAL) menu, located in the Advanced features menu, is
used to recalibrate the internal calibration reference. Recalibration is recommended
at least every twelve months. Refer to Internal Calibration (ICAL), page 32 for
instructions.

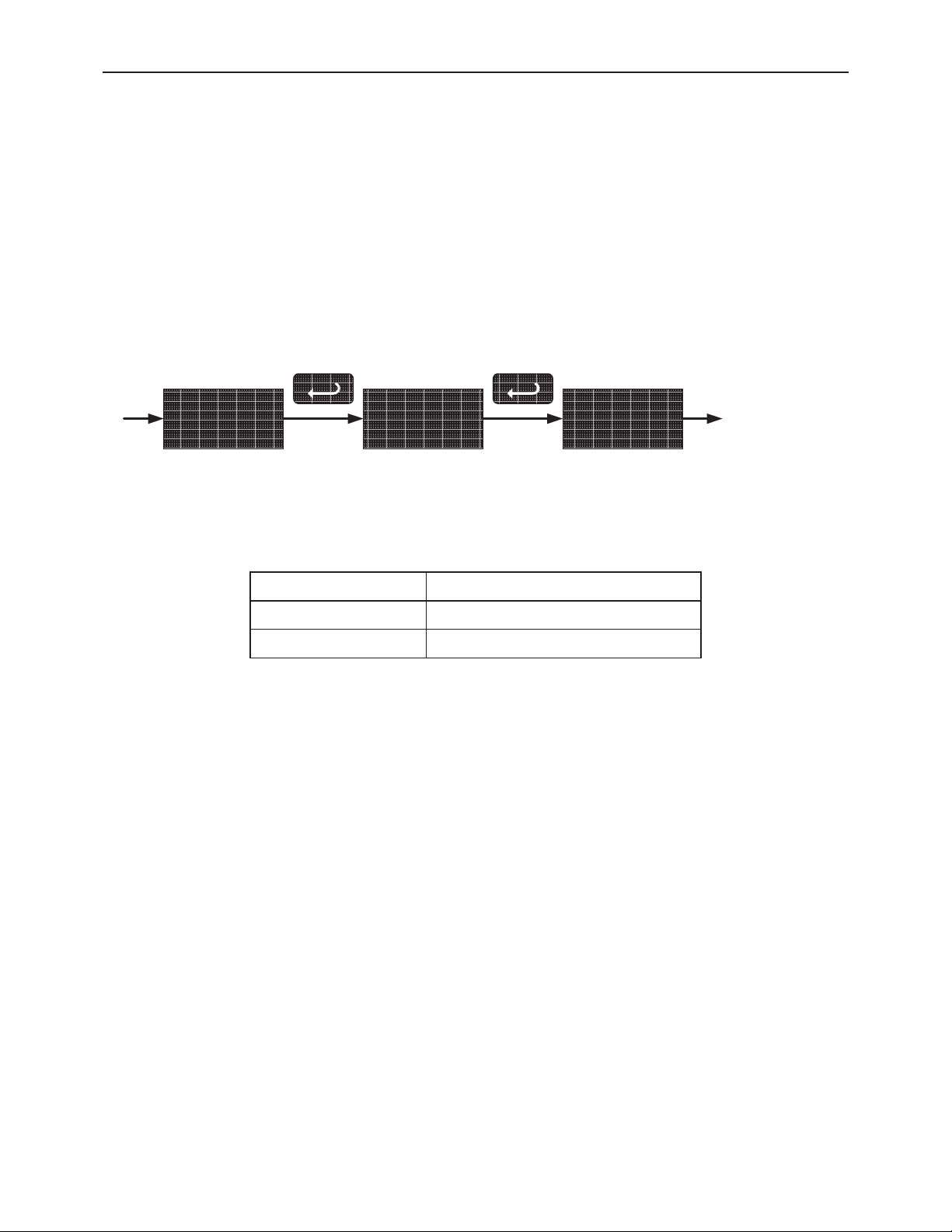

Setting the Tag Display (
The meter can be set to display a combination of seven alphanumeric characters for
engineering units (e.g. GALLONS) or for identification (e.g. TANK 3). Press Right arrow
to select next unit and Up arrow to increment unit.
The unit being changed blinks.
Press the Enter button, at any time, to accept a setting or Menu button to exit without
saving changes.
Press and hold Up arrow to auto-scroll characters.
tag
SeTUP
)
ON
TAG
Accept
Setting
)
OFF
TAG
Accept
Setting
TAG
ABCDEFG
Find Quality Products Online at: [email protected]
www.GlobalTestSupply.com
TAG
ABCDEFG
23
TAG
ACCDEFG
Page 24
PD6700 Loop-Powered Process Meter Instruction Manual
PASSWRD

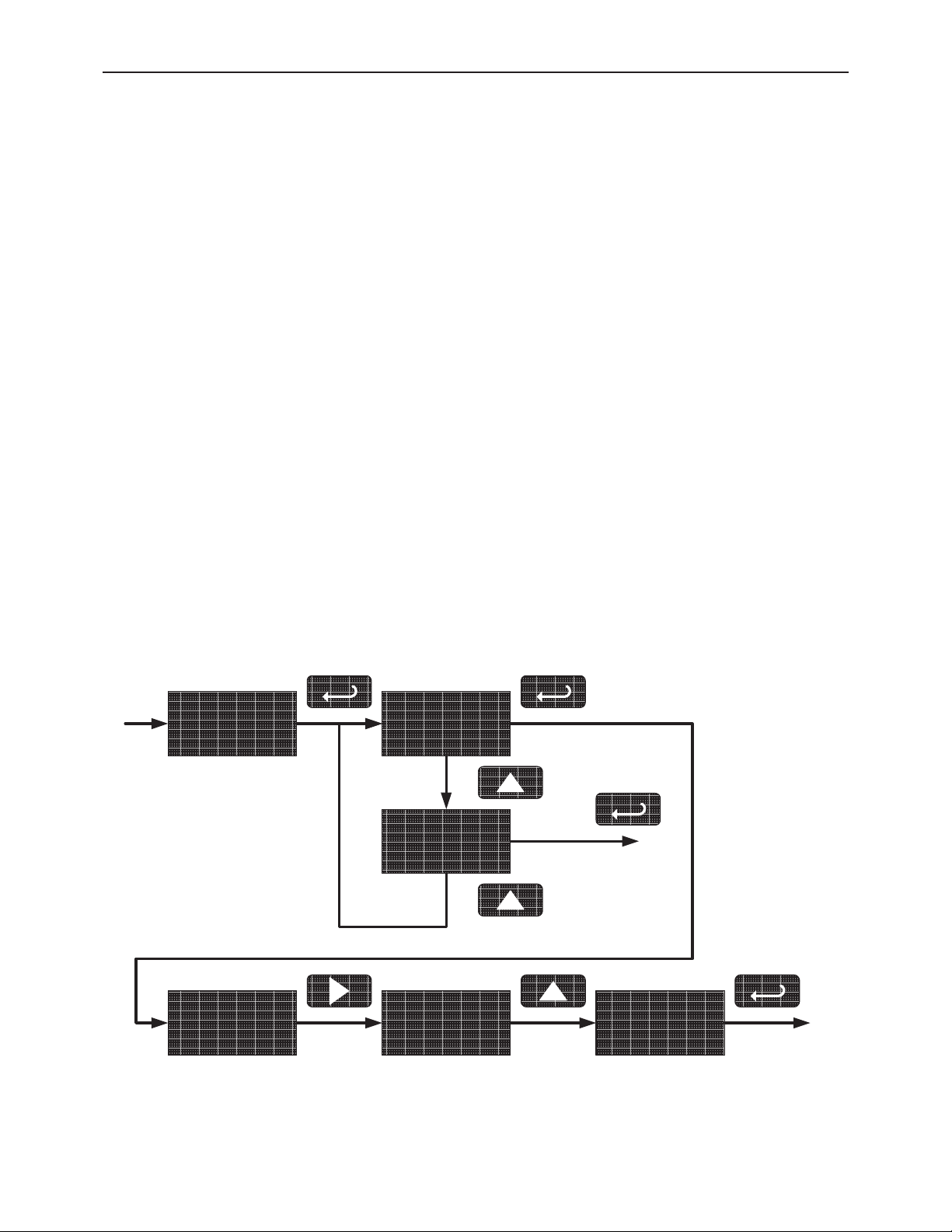

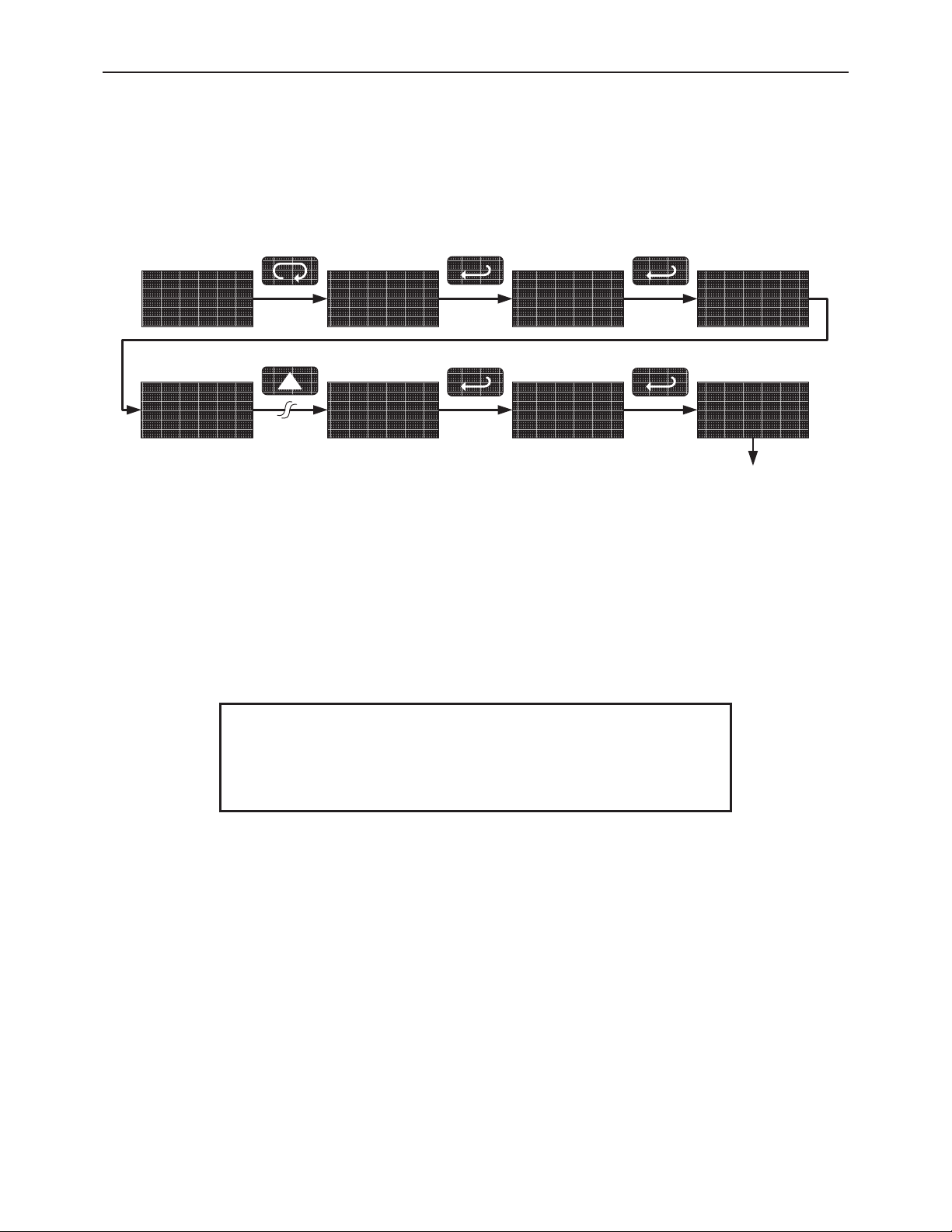

Setting Up the Password (
The Password menu is used to program a five-digit password to prevent
unauthorized changes to the programmed parameter settings. The lock symbol is
displayed to indicate that settings are protected.
)
Locking the Meter
Enter the Password menu and program a five-digit password.
For instructions on how to program numeric values see Setting Numeric Values,
page 18.
00000
passWRD LOCKED
Record the password for future reference. If appropriate, it may be
recorded in the space provided.
passWRD
Program
Password
Run
Mode
Model:
Serial Number:
Password: __ __ __ __ __
Making Changes to a Password Protected Meter
If the meter is password protected, the meter will display the message LOCKED when
the Menu button is pressed. Press the Enter button while the message is being
displayed and enter the correct password to gain access to the menu. After exiting
the programming mode, the meter returns to its password protected condition.
24
Find Quality Products Online at: [email protected]
www.GlobalTestSupply.com
Page 25
PD6700 Loop-Powered Process Meter Instruction Manual

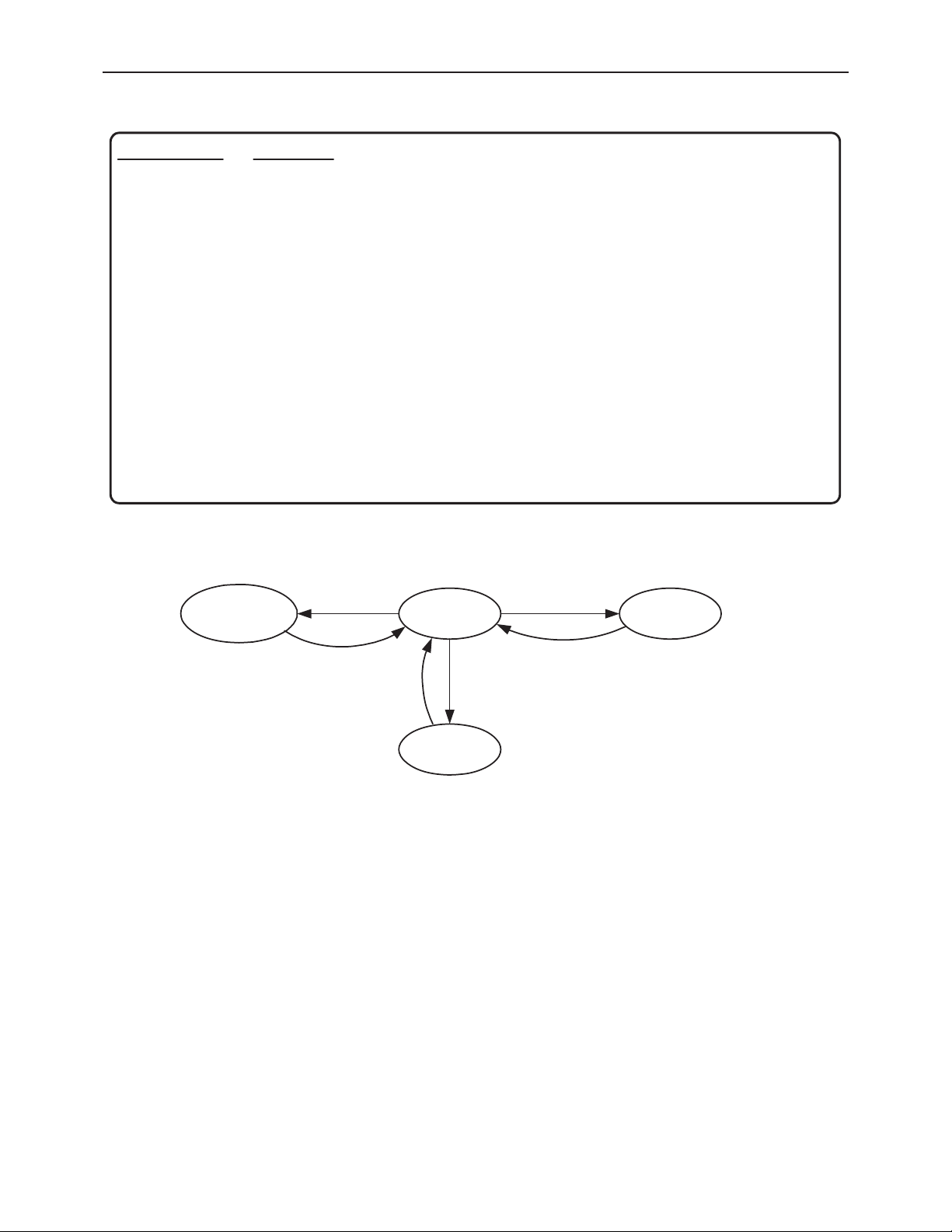

SERVICE
Disabling Password Protection
To disable the password protection, access the Password menu and enter the correct
password twice, as shown below. The meter is now unprotected until a new
password is entered.
Enter
Run Mode
Password
3024.7
GALLONS
LOCKED
00000
LOCKED
UNLOCKD
00000
SETUP
If the correct six-digit password is entered, the meter displays the message UNLOCKD
(unlocked) and the protection is disabled until a new password is programmed.
If the password entered is incorrect, the meter displays the message LOCKED for
about two seconds, and then it returns to Run Mode. To try again, press Enter while
the Locked message is displayed.
PASSWRD
PASSWRD
Re-Enter
Password
Did you forget the password?
UNLOCKD
Run Mode
The password may be disabled by entering a master
password. If you are authorized to make changes, enter
the master password 50865 to unlock the meter.
Service Feature (
Select SERVICE from the main menu to temporarily disable the SafeTouch® buttons to
prevent inadvertent use. Buttons will automatically resume operation after 60
seconds. The display blinks the message SERVICE during this period. This should be
used when cleaning the window and when installing or removing the cover while
power is applied (in a safe area only).
The service menu is not shown when the SafeTouch® buttons are disabled using the
slide switch located on the connector board.
)
25
Find Quality Products Online at: [email protected]
www.GlobalTestSupply.com
Page 26
PD6700 Loop-Powered Process Meter Instruction Manual
Advanced Features Menu
To simplify the setup process, functions not needed for most applications are located
in the Advanced features menu. Press and hold the MENU button for five seconds to
access the Advanced features menu.
Hold for five seconds
3024.7
GALLONS
Run Mode
INDICAT
FUNCTN
fILTER
Press Enter/Ack to Access
Menu or to Accept Setting
Press Up to Scroll Menu and
to Increment Digit Value
Press Right to Select Next Digit
ICAL
INFO
Press Menu to Exit at any Time
26
Find Quality Products Online at: [email protected]
www.GlobalTestSupply.com
Page 27
PD6700 Loop-Powered Process Meter Instruction Manual
Advanced Features Menu & Display Messages
The following table shows the Advanced features menu functions and messages in
the order they appear in the menu.
Display Parameter Action/Setting
INDICAT
OFF
Alrnm
SeT
ReseT
Funct
Lnear
Squar
Prog.E
CUTOFF
FILTER
OFF
Indicate
Off
Alarm
Set Point
Reset Point
Function
Linear
Square Root
Programmable
Exponent
Low-Flow Cutoff
Filter
Filter Off
Enter Indication (Alarm) menu
Disable alarm
Enter alarm indication menu
Program set point
Program reset point
Enter advanced function menu
Set linear scaling
Set square root extraction
Set programmable exponent
Set low-flow cutoff
Set noise filter
Disable noise filter
LO
NmED
HI
ICAL
INFO
SFT
ver
RESET
DFALTS?
Filter Low
Filter Medium
Filter High
Internal
Calibration
Meter
Information
Software
Software Version
Reset Defaults
Set noise filter to low setting
Set noise filter to medium setting
Set noise filter to high setting
Enter internal reference calibration
Show software number and version, or reset to
factory defaults
Software number
Software version
Restore factory default parameter settings
27
Find Quality Products Online at: [email protected]
www.GlobalTestSupply.com
Page 28
PD6700 Loop-Powered Process Meter Instruction Manual
INDICAT
alrnm
For instructions on how to program numeric values
see Setting Numeric Values, page 18.

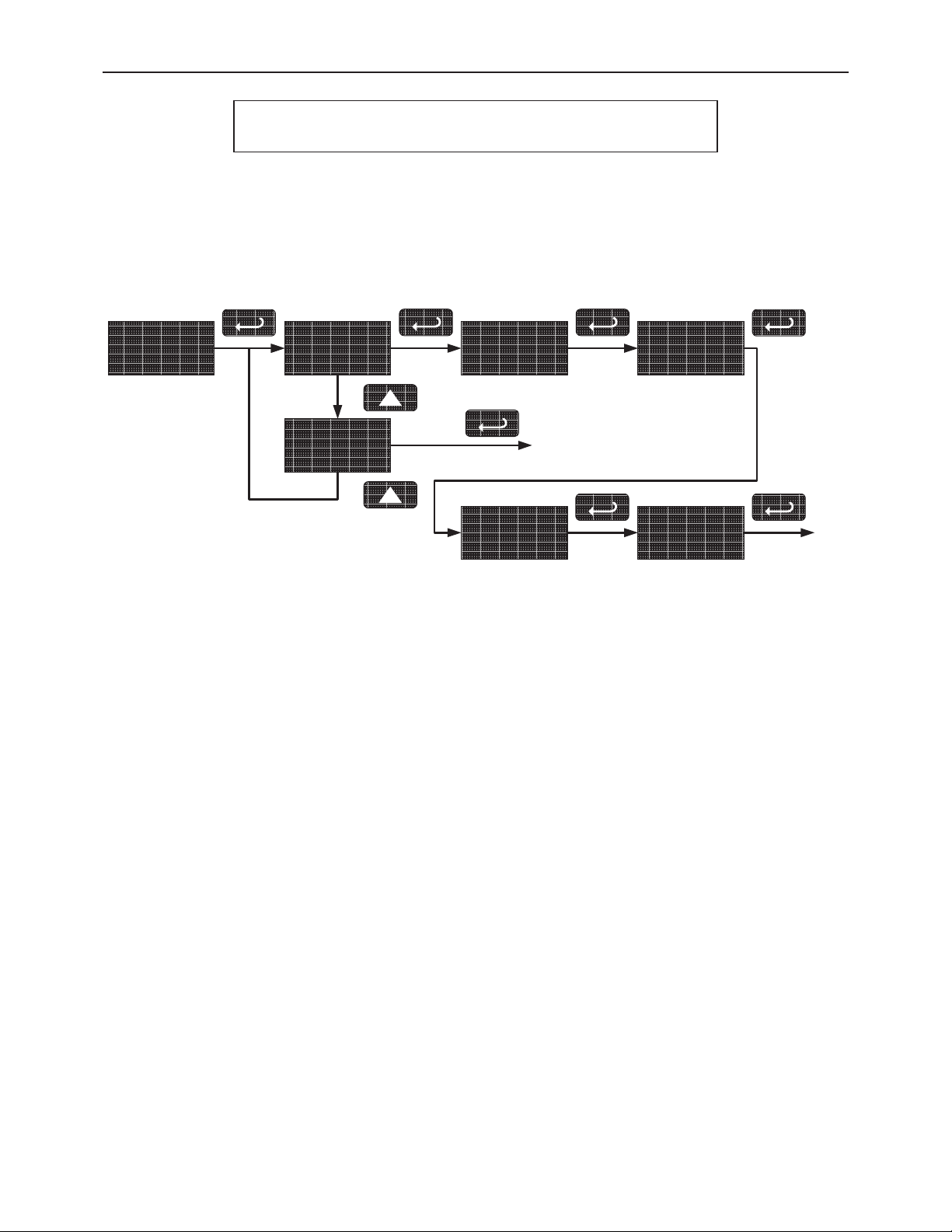

Indication (

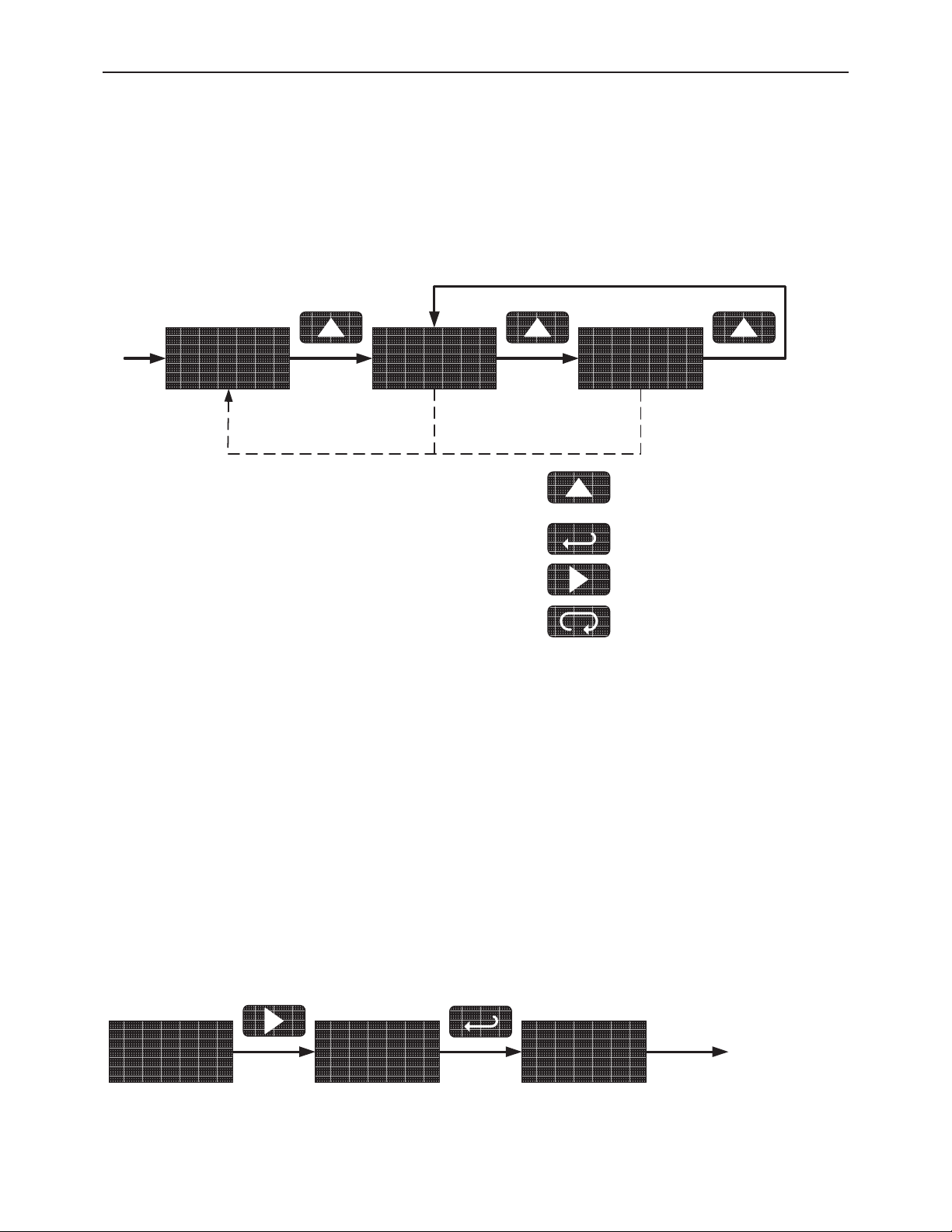

The Indication menu is used to enable and set up a high or low alarm indication on
the screen. When alarm indication is enabled, the HI and LO symbols are used
accompanied by a flashing display.
INDICAT
Alarm (
)
ALRNm
INDICAT
off
INDICAT
)
set
ALARM
reset
ALARM
Accept
Setting
Enter
Set Point
16.000
SET
16.000
RESET
Enter
Reset Point
Accept
Setting
• High alarm trip point: program set point above reset point.
• Low alarm trip point: program set point below reset point.
• Alarm deadband is determined by the difference between set and reset
points. Minimum deadband is one display count. If set and reset points are
programmed the same, output will reset one count below set point.
To acknowledge a rate or total alarm, press the Enter button once for
acknowledge prompt and a second time to confirm.
28
Find Quality Products Online at: [email protected]
www.GlobalTestSupply.com
Page 29
PD6700 Loop-Powered Process Meter Instruction Manual
FUNCTN
lnear
SCALE
CAL
Advanced Function Selection (
The Advanced Function menu is used to select the advanced function to be applied
to the input: linear, square root, programmable exponent, or round horizontal tank
volume calculation. The multi-point linearization is part of the linear function selection.
Meters are set up at the factory for linear function with 2-point linearization. The linear
function provides a display that is linear with respect to the input signal.
Multi-Point Linearization (
Up to 32 linearization points can be selected under the Linear function. The multipoint linearization can be used to linearize the display for non-linear signals such as
those from level transmitters used to measure volume in odd-shaped tanks or to
convert level to flow using weirs and flumes that require a complex exponent. These
points are established via direct entry (SCALE) or with an external calibration signal
(CAL).
Manual Entry (
Manual entry of the linearization data is done once the number of points has been
selected (noPtS). Input signal levels (InP 1-32) for up to 32 points, along with the
desired/corresponding meter reading (dSP 1-32) should be entered for each linearization point. See Figure 6 on page 30.
)
)
)
External Calibration (
Linearization data can be entered using a known accurate signal source (InP 1-32)
and then entering the desired/corresponding meter reading (disp 1-32) for that
input signal level. See Figure 6 on page 30.
)
Important Navigation Note:
After entering the last display value, the linearization entries must be saved (SAUE?)
before they go into effect. You may move past this selection using the Up arrow key if
you need to go back and correct an earlier entry. Once confident in the entries however, the user must navigate back to the Save menu screen (SAUE?) and press the
Enter key to save the changes.
29
Find Quality Products Online at: [email protected]
www.GlobalTestSupply.com
Page 30
PD6700 Loop-Powered Process Meter Instruction Manual
Squar
Prog.E
LnEAR
FUNCTN PROGRAM PROGRAM
inP 1
CAL
dsp 1
CAL
0000.0
DSPLY 1
INP 2
CAL
Figure 6. Multi-Point Linearization Menu
Square Root Linearization (
The square root function can be used to linearize the signal from a differential
pressure transmitter and display flow rate in engineering units.
)
Programmable Exponent Linearization (
The programmable exponent can be used to linearize the signal from level
transmitters in open-channel flow applications using weirs and flumes.
30
Find Quality Products Online at: [email protected]
www.GlobalTestSupply.com
)
Page 31
PD6700 Loop-Powered Process Meter Instruction Manual
CUTOFF
FILTER
Low-Flow Cutoff (
The low-flow cutoff feature allows the meter to be programmed so that the oftenunsteady output from a differential pressure transmitter, at low flow rates, always
displays zero on the meter. The default cutoff is zero to prevent negative readings,
but this may be overridden to allow them.
The cutoff value may be programmed from 0 to 99999. Below the cutoff value, the
meter will display zero. Selecting either square root or programmable exponent will
set the cutoff value to 0. Program the cutoff value to 0 to disable.
Input Signal Filter (
The noise filter is available for unusually noisy signals that cause an unstable
process variable display. The noise filter averages the input signal over a certain
period. The filter level can be set to low (LO), medium (nmed), high (HI), or off (OFF).
The higher the filter setting, the longer the averaging time and so the longer the
display may take to find its final value.
The filter contains a noise filter bypass feature so that while small variations in the
signal will be filtered out, large, abrupt changes to the input signal are displayed
immediately.
)
)
31
Find Quality Products Online at: [email protected]
www.GlobalTestSupply.com
Page 32
PD6700 Loop-Powered Process Meter Instruction Manual
ICAL
SPAN ERROR
INFO
Internal Calibration (
There is no need to recalibrate the meter for milliamps when first
received from the factory.
The meter is factory calibrated for milliamps prior to shipment.
The calibration equipment is certified to NIST standards.
The internal calibration allows the user to scale the meter without applying a signal.
The use of a calibrated signal source is necessary to perform the internal calibration
of the meter. Check calibration of the meter at least every 12 months.
Notes:
The signal source must have a full-scale accuracy of 0.002% or
better between 4 and 20 mA in order to maintain the specified
accuracy of the meter.
Allow the meter to warm up for at least 15 minutes before
performing the internal calibration procedure.
The Internal Calibration menu (ICAL) is part of the Advanced features menu.
Press and hold the MENU button for 5 seconds to enter the Advanced features
menu. Press the Up arrow button to scroll to the Internal Calibration menu (ICAL) and
press Enter.
)
The meter displays 4.000 mA. Apply a 4.000 mA signal and press Enter. The display
flashes for a moment while the meter is accepting the signal.
After the signal is accepted, the meter displays 20.000 mA. Apply a 20.000 mA signal
and press Enter. The display flashes for a moment while the meter is accepting the
signal.
Error Message (
An error message indicates that the calibration process was not successful. After the
error message is displayed, the meter will revert to input 2 calibration settings. The
error message might be caused by inadvertently leaving the signal at the previous
level or not maintaining the minimum span. Press the Menu button to cancel the
current calibration process if necessary.
Information (
The Information menu (INFO) is part of the Advanced features menu. It shows
software identification number and version number. To determine the software
version of a meter:
Go to the Information menu (INFO) and press Enter button.
Continue pressing Enter to scroll through the software release number and software
version.
)
)
Following the information display, the meter will exit the Advanced features menu and
return to run mode.
32
Find Quality Products Online at: [email protected]
www.GlobalTestSupply.com
Page 33
PD6700 Loop-Powered Process Meter Instruction Manual
U
OPERATION
Front Panel Buttons Operation
Button
Symbol
MEN
RESET
DISPLAY
ENTER
Description
Press to enter or exit Programming Mode
or exit Max/Min readings
Press to reset Max/Min readings
Press to display Max/Min readings
alternately
Press to display Max or Min reading
indefinitely while displaying Max or Min
33
Find Quality Products Online at: [email protected]
www.GlobalTestSupply.com
Page 34
PD6700 Loop-Powered Process Meter Instruction Manual
MAXIMUM &MINIMUM
Maximum & Minimum Readings (
The maximum and minimum (peak & valley) readings reached by the process are
stored in the meter since the last reset or power-up. The meter shows MAXIMUM or
MINIMUM to differentiate between run mode and max/min display. Press Enter to
remain in Max/Min display mode. If Enter is not pressed, the Max/Min display reading
will time out after ten seconds. The meter will return to display the actual
reading.
Run Mode
3024.7
GALLONS
10 Sec Time Out
Press Up to Display and to
Toggle Between Max & Min
Press Enter to hold Max/Min
4065.3
MAXIMUM
2457.7
MINIMUM
)
Press Right to Reset Max/Min
Press Menu to Exit Max/Min
Reset Meter to Factory Defaults
When the parameters have been changed in a way that is difficult to determine
what’s happening, it might be better to start the setup process from the factory
defaults.
Instructions to load factory defaults:
Enter the Advanced features menu.
Press and hold Reset button when INFO is shown.
Press Enter when RESET DFALTS? prompt is shown
Note: If Enter is not pressed within three seconds, the prompt will stop flashing return
to showing INFO.
Press and
Hold for 5 sec
RESET
INFO
Find Quality Products Online at: [email protected]
DFALTS? LOADING
Flashing
Display
34
www.GlobalTestSupply.com
Defaults
Restored
Page 35
PD6700 Loop-Powered Process Meter Instruction Manual
prog
INPt1
Dspl1
INPt2
Dspl2
Dd.ddd
Tag
PASSWRD
INDICAT
FUNCTN
CUTOFF
FILTER
Factory Defaults & User Settings
The following table shows the factory setting for most of the programmable
parameters on the meter. Next to the factory setting, the user may record the new
setting for the particular application.
Model: ______________ S/N: _______________ Date: _________
Parameter Display Default Setting User Setting
Programming
Input 1
Display 1
Input 2
Display 2
Decimal point
Tag
Password
Advanced Features
Indicate
Function
Cutoff
Filter
Scale
4.000 mA
4.000
20.00 mA
20.000
3 places
Off
00000 (unlocked)
Off
Linear
0 (disabled)
Low
35
Find Quality Products Online at: [email protected]
www.GlobalTestSupply.com
Page 36
PD6700 Loop-Powered Process Meter Instruction Manual
TROUBLESHOOTING
The rugged design and the user-friendly interface of the meter should make it
unusual for the installer or operator to refer to this section of the manual. If the meter
is not working as expected, refer to the recommendations below.
Troubleshooting Tips
Symptom Check/Action
No display or faint display Check input signal connections.
Perform hard reset by shorting S+ and S-
terminals.
Rate display unsteady Increase filter setting in Advanced menu.
Meter displays error message during
calibration (Span eRROR)
Meter flashes
99999 or -9999
Display stuck displaying MAXIMUM or
MINIMUM
Display response is too slow Check filter setting to see if it can be
If the display locks up or the meter
does not respond at all
Backlight does not appear. Backlight is intended for viewing
Other symptoms not described above Call Technical Support for
Check signal connections.
Verify minimum input span requirements
Check input signal is within the scaled
range (99999 and -9999).
Press Menu to exit Max/Min
display readings.
lowered to LO or OFF.
Perform hard reset by shorting S+ and S-
terminals.
assistance in dim lighting conditions. It
may not be noticeable under good lighting
conditions.
Check connections are as shown in Figure
3 or Figure 4 on page 13.
assistance.
SafeTouch® buttons do not respond Service menu was selected or mechanical
button was pushed. The SafeTouch
buttons will be re-enabled automatically
60 seconds after the last button push.
If slide switch on connector board is in
Lock position, switch to Unlock.
Sunlight can interfere with the sensors. It
is recommended to shield the window
from sunlight while operating the buttons
by standing so as to block direct sunlight.
36
Find Quality Products Online at: [email protected]
www.GlobalTestSupply.com
®
Page 37
PD6700 Loop-Powered Process Meter Instruction Manual
MOUNTING DIMENSIONS
All units: inches [mm]
0.33
8.3
3.35
2.25
85.1
57.2
5.67
144.0
5.25 133.3
Figure 7. Enclosure Dimensions – Front View
Ø
3.34
84.9
4.18
106.1
Figure 8. Enclosure Dimensions – Side Cr oss Section View
37
Find Quality Products Online at: [email protected]
www.GlobalTestSupply.com
Page 38
PD6700 Loop-Powered Process Meter Instruction Manual
QUICK USER INTERFACE REFERENCE
Pushbutton Function
Menu Go to Programming Mode or leave Programming, Advanced
Features, and Max/Min Modes.
Right Arrow Move to next digit or decimal point position. Reset Total.
Up Arrow Move to next selection or increment digit. Go to Max/ Min Mode.
Enter/Ack Accept selection/value and move to next selection.
Acknowledge Alarm.
Menu held for 5 seconds enters Advanced Features Menu
Max/Min Mode
While in Run Mode, pressing Up Arrow will initiate Max/Min Mode. Up Arrow toggles
between Max & Min displays, and Right Arrow resets the Max/Min to the current
value. Press Menu or wait 10 seconds to return to Run Mode. Pressing Enter/Ack will
disable the 10 second timeout and continuously display Max or Min.
Advanced
Features
Menu for 5
seconds
Menu
Operational Modes
Run
Menu
Menu
Program
Up Arrow
Max &
Min
Menu
38
Find Quality Products Online at: [email protected]
www.GlobalTestSupply.com
Page 39
PD6700 Loop-Powered Process Meter Instruction Manual
39
Find Quality Products Online at: [email protected]
www.GlobalTestSupply.com
Loading...
