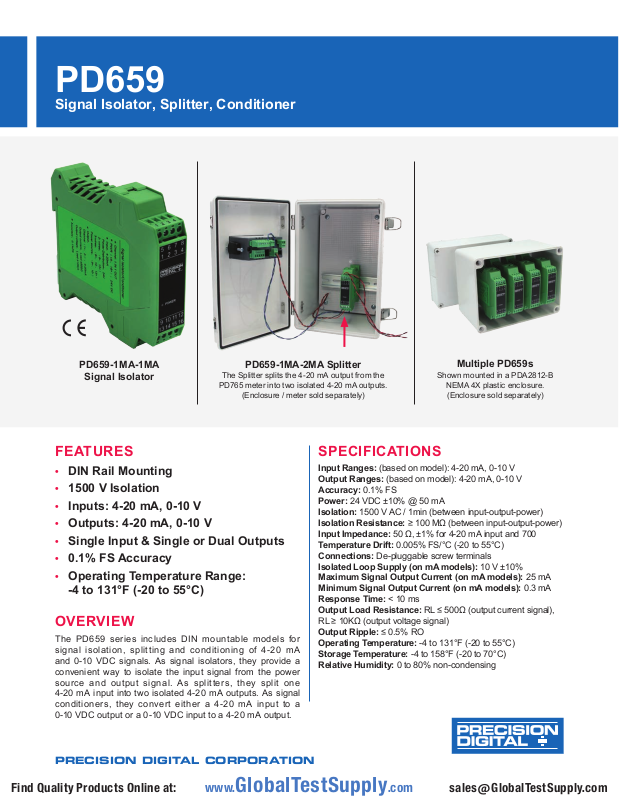

Page 1
FEATURES
• DIN Rail Mounting
• 1500 V Isolation
• Inputs: 4-20 mA, 0-10 V
• Outputs: 4-20 mA, 0-10 V
• Single Input & Single or Dual Outputs
• 0.1% FS Accuracy
• Operating Temperature Range:
-4 to 131°F (-20 to 55°C)
PRECISION DIGITAL CORPORATION
PD659
Signal Isolator, Splitter, Conditioner
OVERVIEW
The PD659 series includes DIN mountable models for
signal isolation, splitting and conditioning of 4-20 mA
and 0-10 VDC signals. As signal isolators, they provide a
convenient way to isolate the input signal from the power
source and output signal. As splitters, they split one
4-20 mA input into two isolated 4-20 mA outputs. As signal
conditioners, they convert either a 4-20 mA input to a
0-10 VDC output or a 0-10 VDC input to a 4-20 mA output.
SPECIFICATIONS
Input Ranges: (based on model): 4-20 mA, 0-10 V
Output Ranges: (based on model): 4-20 mA, 0-10 V
Accuracy: 0.1% FS
Power: 24 VDC ±10% @ 50 mA
Isolation: 1500 V AC / 1min (between input-output-power)
Isolation Resistance: ≥ 100 MΩ (between input-output-power)
Input Impedance: 50 Ω, ±1% for 4-20 mA input and 700
Temperature Drift: 0.005% FS/°C (-20 to 55°C)
Connections: De-pluggable screw terminals
Isolated Loop Supply (on mA models): 10 V ±10%
Maximum Signal Output Current (on mA models): 25 mA
Minimum Signal Output Current (on mA models): 0.3 mA
Response Time: < 10 ms
Output Load Resistance: RL ≤ 500Ω (output current signal),
RL ≥ 10KΩ (output voltage signal)
Output Ripple: ≤ 0.5% RO
Operating Temperature: -4 to 131°F (-20 to 55°C)
Storage Temperature: -4 to 158°F (-20 to 70°C)
Relative Humidity: 0 to 80% non-condensing

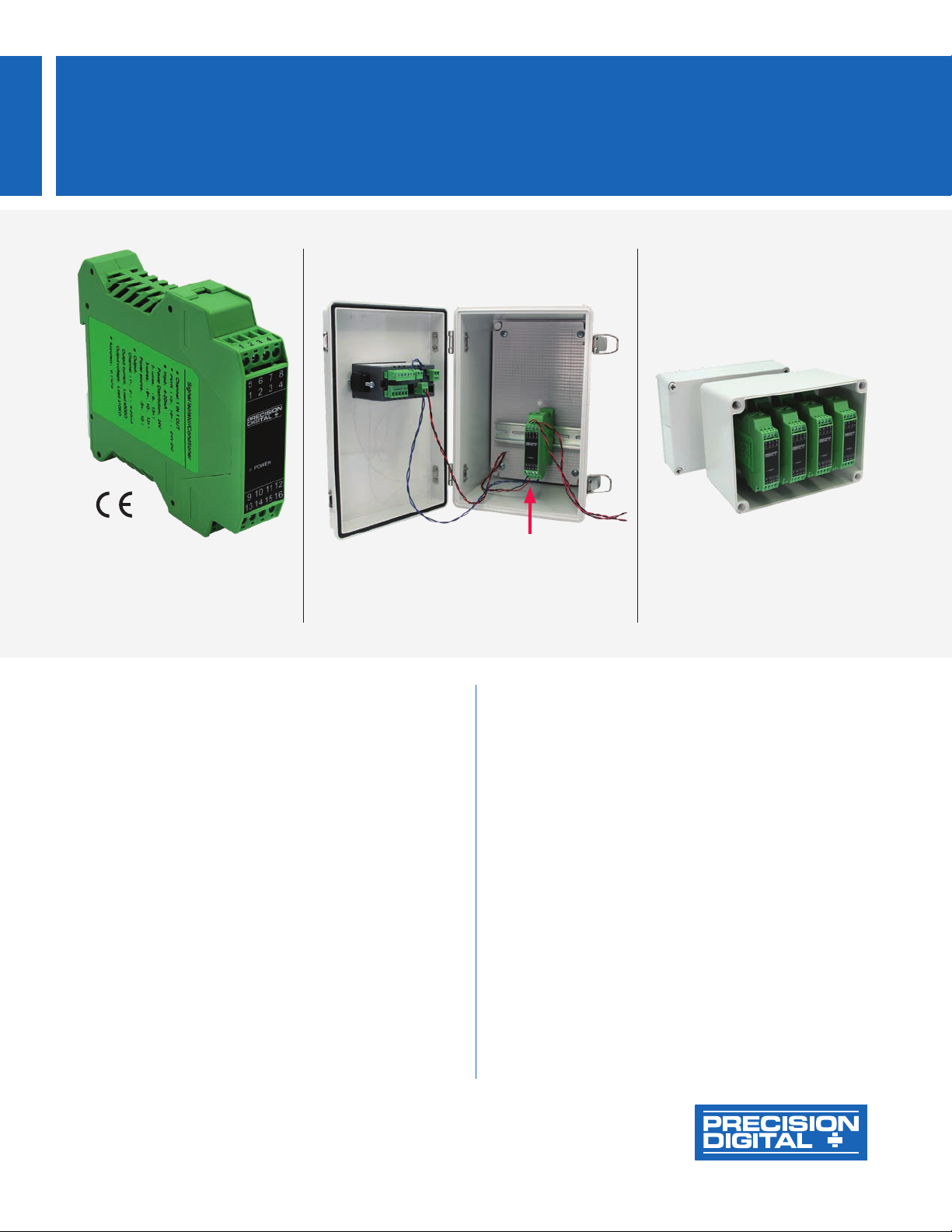

Multiple PD659s
Shown mounted in a PDA2812-B
NEMA 4X plastic enclosure.
(Enclosure sold separately)
PD659-1MA-2MA Splitter
The Splitter splits the 4-20 mA output from the
PD765 meter into two isolated 4-20 mA outputs.
(Enclosure / meter sold separately)
PD659-1MA-1MA
Signal Isolator
Find Quality Products Online at: [email protected]
www.GlobalTestSupply.com
Page 2
PD659 Signal Isolator, Splitter, Conditioner

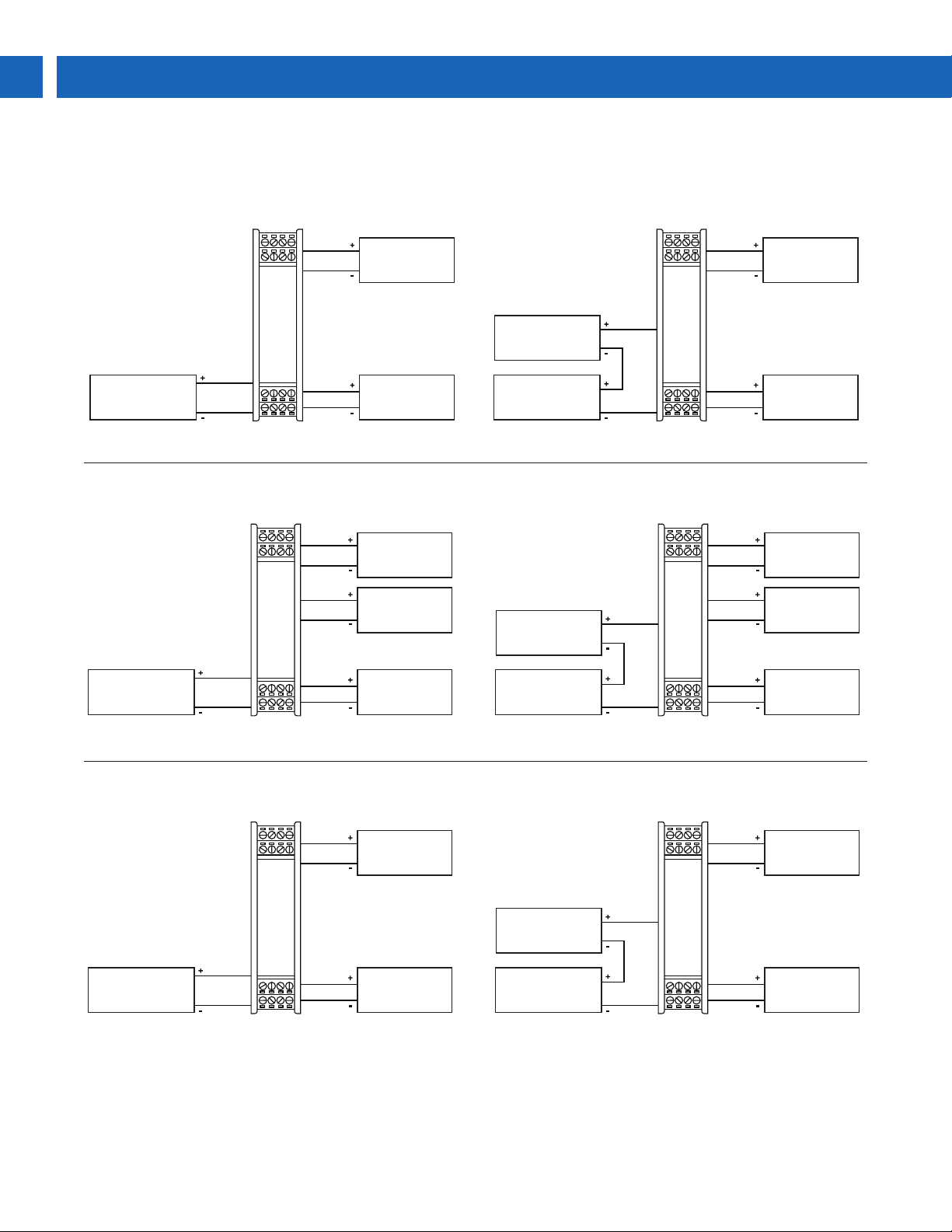

CONNECTIONS
(1) 4-20 mA Input to (1) 4-20 mA Output
(1) 4-20 mA Input to (2) 4-20 mA Outputs
(1) 4-20 mA Input to (1) 0-10 V Output
(1) 4-20 mA Input to (1) 4-20 mA Output using External Power Supply
(1) 4-20 mA Input to (2) 4-20 mA Outputs
(1) 4-20 mA Input to (1) 0-10 V Output
PD659-1MA-1MA SIGNAL ISOLATOR
(One 4-20 mA Input and One 4-20 mA Output)
Input:
4-20 mA
2-Wire Transmitter
Signal Isolator powering 2-wire transmitter input External power supply powering 2-wire transmitter input
Input:
4-20 mA
2-Wire Transmitter
Signal Splitter powering 2-wire transmitter input External power supply powering 2-wire transmitter input
13
13
9
9
13 14 15 16
5 6 7 8
1 2 3 4
9 10 11 12
13 14 15 16
5 6 7 8
1 2 3 4
9 10 11 12
1
2
Output:
4-20 mA
24 V External
Power Supply
16
15
24 V
Power Supply
Input:
4-20 mA
2-Wire Transmitter
PD659-1MA-2MA SIGNAL SPLITTER
(One 4-20 mA Input and Two 4-20 mA Outputs)
1
2
3
4
16
15
Output:
4-20 mA
Output:
4-20 mA
24 V
Power Supply
24 V External
Power Supply
Input:
4-20 mA
2-Wire Transmitter
9
10
10
9
5 6 7 8
1 2 3 4
9 10 11 12
13 14 15 16
5 6 7 8
1 2 3 4
9 10 11 12
13 14 15 16
1
2
16
15
1
2
3
4
16
15
Output:
4-20 mA
24 V
Power Supply
Output:
4-20 mA
Output:
4-20 mA
24 V
Power Supply
PD659-1MA-1V SIGNAL CONDITIONER
(One 4-20 mA Input and One 0-10 VDC Output)
5 6 7 8
1 2 3 4
1
2
Output:
0-10 VDC
24 V External
9
Power Supply
9 10 11 12
13
9
13 14 15 16
16
15
24 V
Power Supply
Input:
4-20 mA
2-Wire Transmitter
10
Input:
4-20 mA
2-Wire Transmitter
Signal Conditioner powering 2-wire transmitter input External power supply powering 2-wire transmitter input
2
Find Quality Products Online at: [email protected]
www.GlobalTestSupply.com
5 6 7 8
1 2 3 4
9 10 11 12
13 14 15 16
1
2
16
15
Output:
0-10 VDC
24 V
Power Supply
Page 3
PD659 Signal Isolator, Splitter, Conditioner

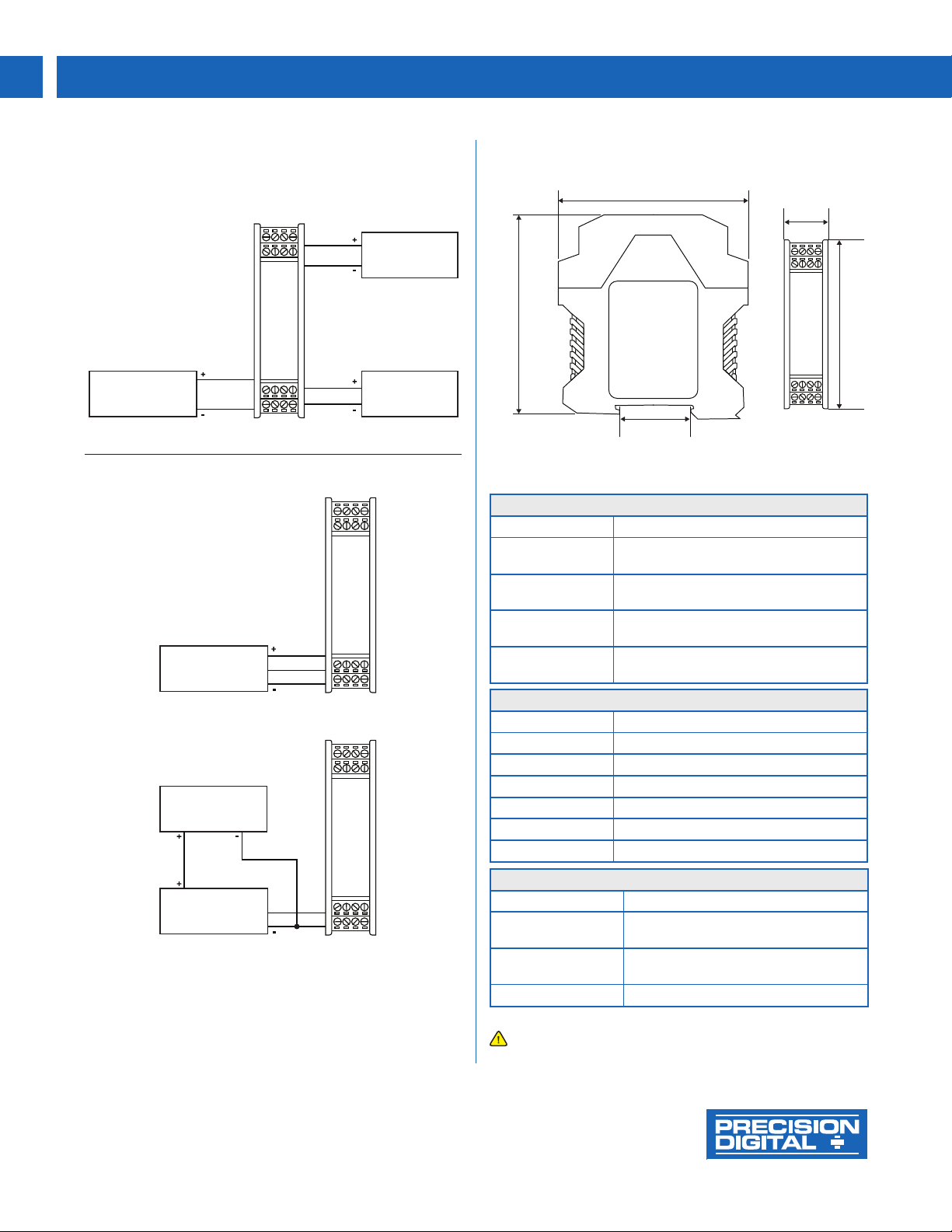

CONNECTIONS (continued)
(1) 0-10 V Input to (1) 4-20 mA Output
10
10
DIMENSIONS
Units: Inches (mm)
PD659-1V-1MA SIGNAL CONDITIONER
(One 0-10 VDC Input and One 4-20 mA Output)
5 6 7 8
1 2 3 4
1
2
Output:
4-20 mA
3.9 (99)
0.9 (23)
9 10 11 12
9
13 14 15 16
Input:
0-10 VDC
16
10
15
24 V
Power Supply
Signal Conditioner with voltage input
Three-Wire Transmitter Connections
5 6 7 8
1 2 3 4
9 10 11 12
13 14 15 16
Input:
4-20 mA
3-Wire Transmitter
Signal Isolator/Splitter/Conditioner powering 3-wire transmitter input
24 V External
Power Supply
13
9S
5 6 7 8
1 2 3 4
4.5
(115)
1.4 (35)
ORDERING INFORMATION
PD659 Signal Conditioner
Model Description
PD659-1MA-1MA
PD659-1MA-2MA
PD659-1V-1MA
PD659-1MA-1V
Enclosure Series Description
PDA2300 Economical NEMA 4X Plastic
PDA2500 NEMA 4X Plastic
PDA2600 NEMA 4X Stainless Steel
PDA2700 NEMA 4X Steel
PDA2800 Smallest Footprint NEMA 4X Plastic
PDA3400 Internally Mounted NEMA 4X Plastic
Signal Isolator with One 4-20 mA Input and
One 4-20 mA Output
Signal Splitter with One 4-20 mA Input and
Two 4-20 mA Outputs
Signal Conditioner with One 0-10 VDC
Input and One 4-20 mA Output
Signal Conditioner with One 4-20 mA Input
and One 0-10 VDC Output
Enclosures
3.9
(100)
9 10 11 12
Input:
4-20 mA
3-Wire Transmitter
9S
13 14 15 16
Model Description
PDA1002
External power supply powering 3-wire transmitter input
PDA1003
Disclaimer
The info rmatio n contai ned in this documen t is subjec t to chang e without notice. Precision
Digital Corporation makes no representations or warranties with respect to the contents
hereof, and specically disclaims any implied warranties of merchantabilit y or tness for
a particular purpose.
©2020 Precision Digital Corporation. All rights reserved.
Find Quality Products Online at: [email protected]
www.GlobalTestSupply.com
PDA1024-01 24 VDC Transmitter Power Supply
WARNING
Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Accessories
6" DIN Rail Mounting Kit
(for mounting on enclosure back plates)
7" DIN Rail Mounting Kit
(for mounting in PDA2811/PDA2812)
LIM659_B 02/20
